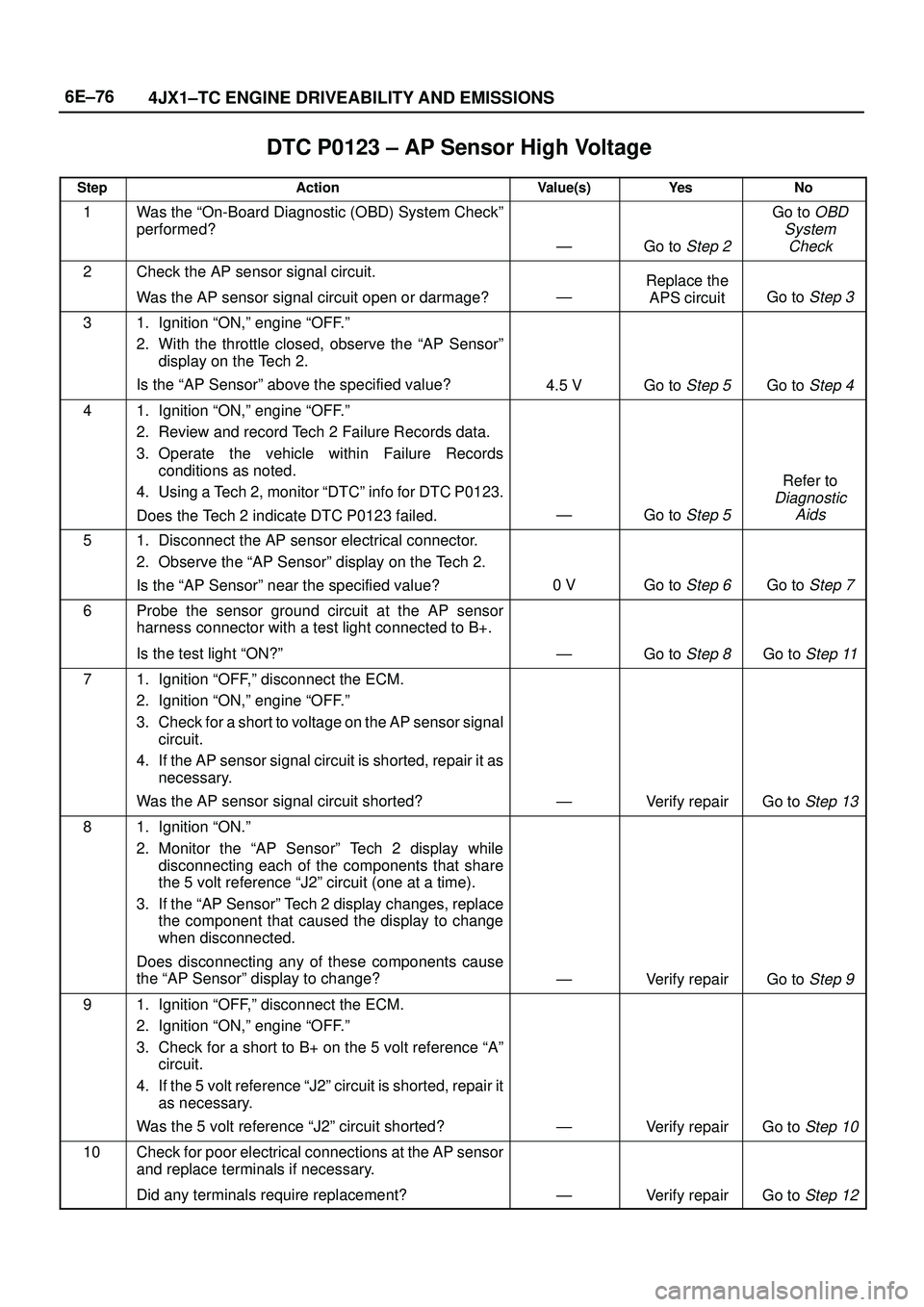

ISUZU TROOPER 1998 Service Repair Manual 6E±76
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0123 ± AP Sensor High Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD

6E±76
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0123 ± AP Sensor High Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Check the AP sensor signal circuit.
Was the AP sensor signal circuit open or darmage?
Ð
Replace the
APS circuit
Go to Step 3
31. Ignition ªON,º engine ªOFF.º
2. With the throttle closed, observe the ªAP Sensorº
display on the Tech 2.
Is the ªAP Sensorº above the specified value?
4.5 VGo to Step 5Go to Step 4
41. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P0123.
Does the Tech 2 indicate DTC P0123 failed.
ÐGo to Step 5
Refer to
Diagnostic
Aids
51. Disconnect the AP sensor electrical connector.
2. Observe the ªAP Sensorº display on the Tech 2.
Is the ªAP Sensorº near the specified value?
0 VGo to Step 6Go to Step 7
6Probe the sensor ground circuit at the AP sensor
harness connector with a test light connected to B+.
Is the test light ªON?º
ÐGo to Step 8Go to Step 11
71. Ignition ªOFF,º disconnect the ECM.
2. Ignition ªON,º engine ªOFF.º
3. Check for a short to voltage on the AP sensor signal
circuit.
4. If the AP sensor signal circuit is shorted, repair it as
necessary.
Was the AP sensor signal circuit shorted?
ÐVerify repairGo to Step 13
81. Ignition ªON.º
2. Monitor the ªAP Sensorº Tech 2 display while
disconnecting each of the components that share
the 5 volt reference ªJ2º circuit (one at a time).
3. If the ªAP Sensorº Tech 2 display changes, replace
the component that caused the display to change
when disconnected.
Does disconnecting any of these components cause
the ªAP Sensorº display to change?
ÐVerify repairGo to Step 9
91. Ignition ªOFF,º disconnect the ECM.
2. Ignition ªON,º engine ªOFF.º
3. Check for a short to B+ on the 5 volt reference ªAº
circuit.
4. If the 5 volt reference ªJ2º circuit is shorted, repair it
as necessary.
Was the 5 volt reference ªJ2º circuit shorted?
ÐVerify repairGo to Step 10
10Check for poor electrical connections at the AP sensor
and replace terminals if necessary.
Did any terminals require replacement?
ÐVerify repairGo to Step 12

Page 1970 of 3573

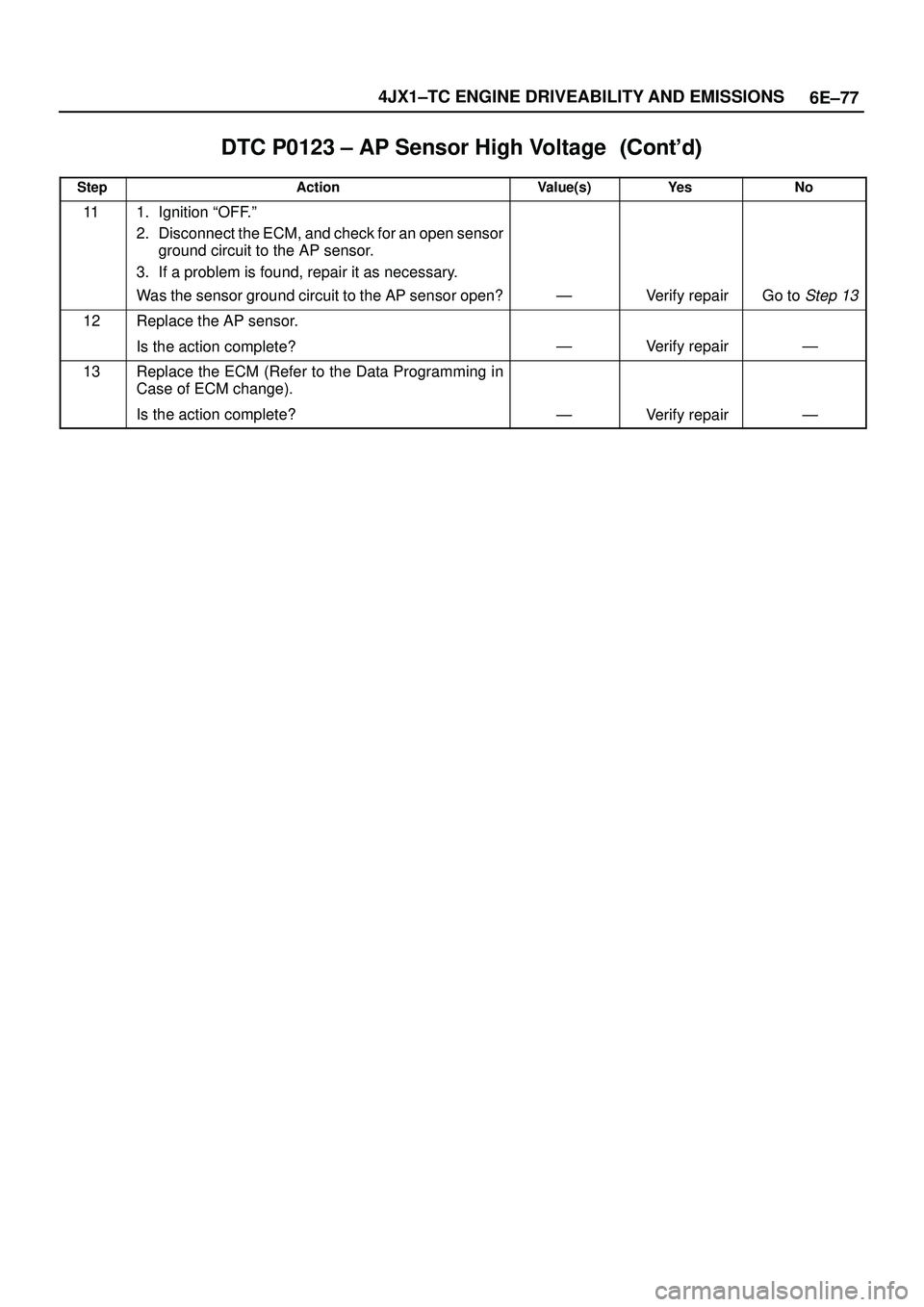

ISUZU TROOPER 1998 Service Repair Manual 6E±77 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0123 ± AP Sensor High Voltage
StepNo Ye s Value(s) Action
111. Ignition ªOFF.º
2. Disconnect the ECM, and check for an open sensor
g

Page 1971 of 3573

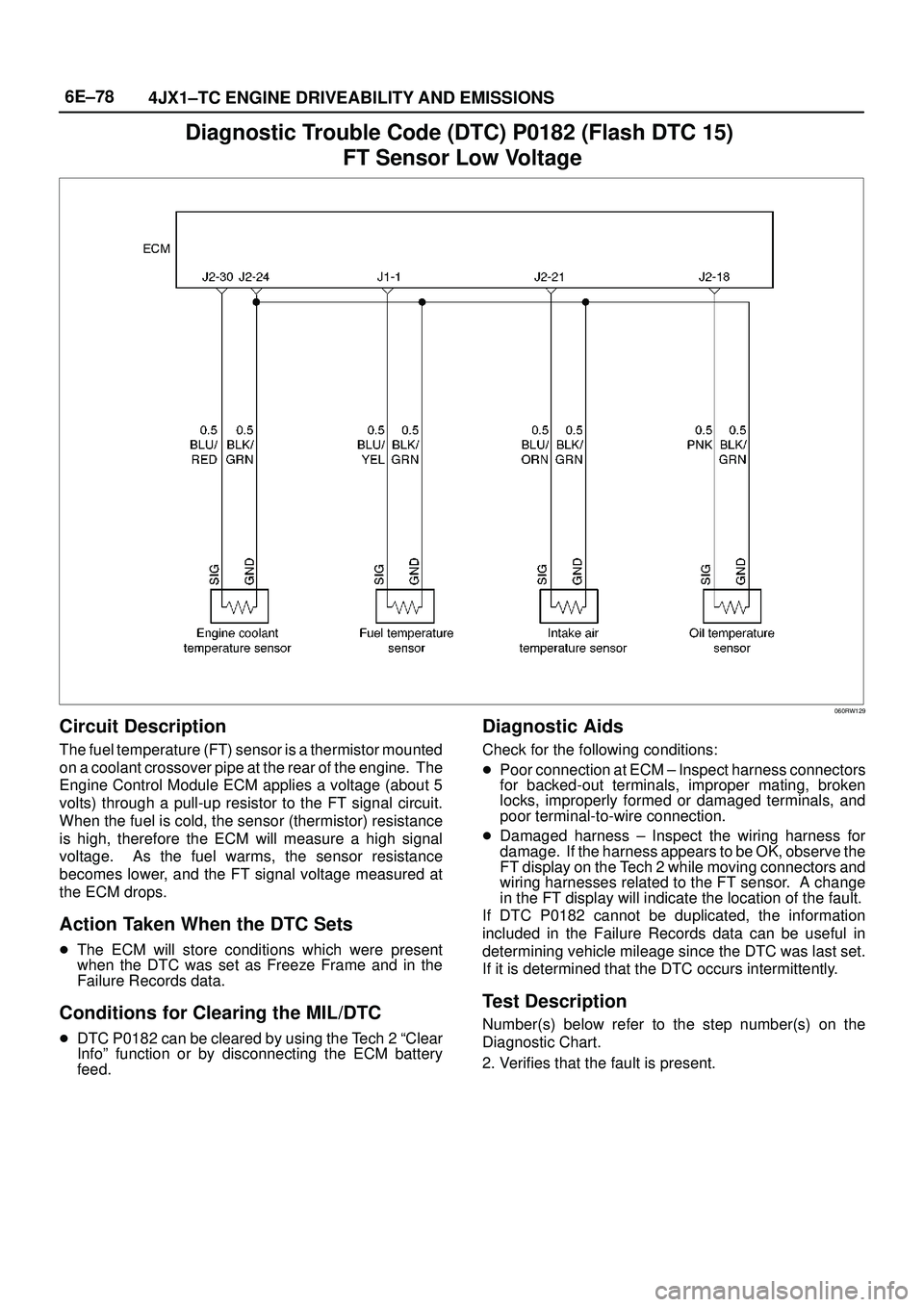

ISUZU TROOPER 1998 Service Repair Manual 6E±78
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0182 (Flash DTC 15)
FT Sensor Low Voltage
060RW129
Circuit Description
The fuel temperature (FT) sensor is a thermisto

Page 1972 of 3573

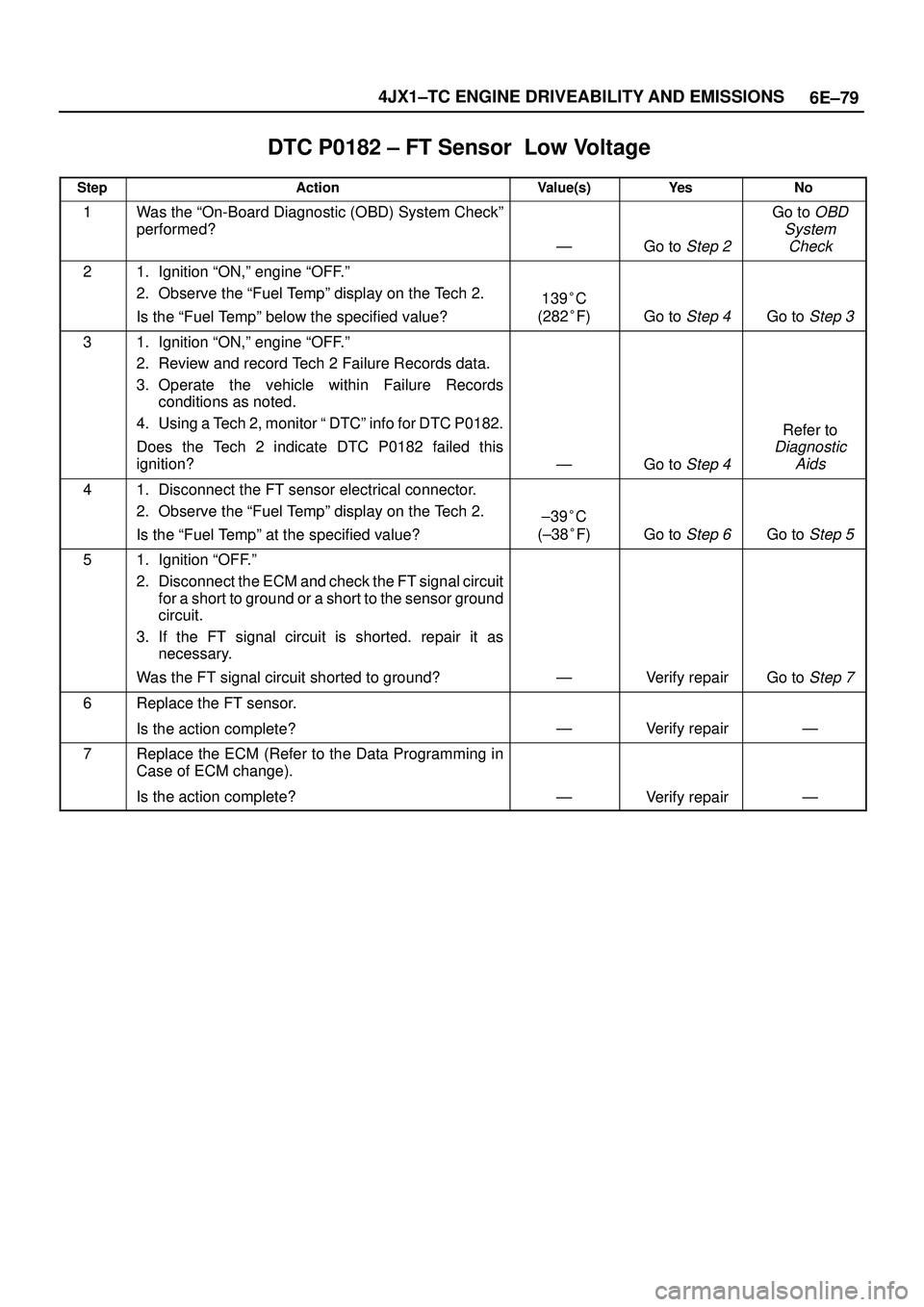

ISUZU TROOPER 1998 Service Repair Manual 6E±79 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0182 ± FT Sensor Low Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD

Page 1973 of 3573

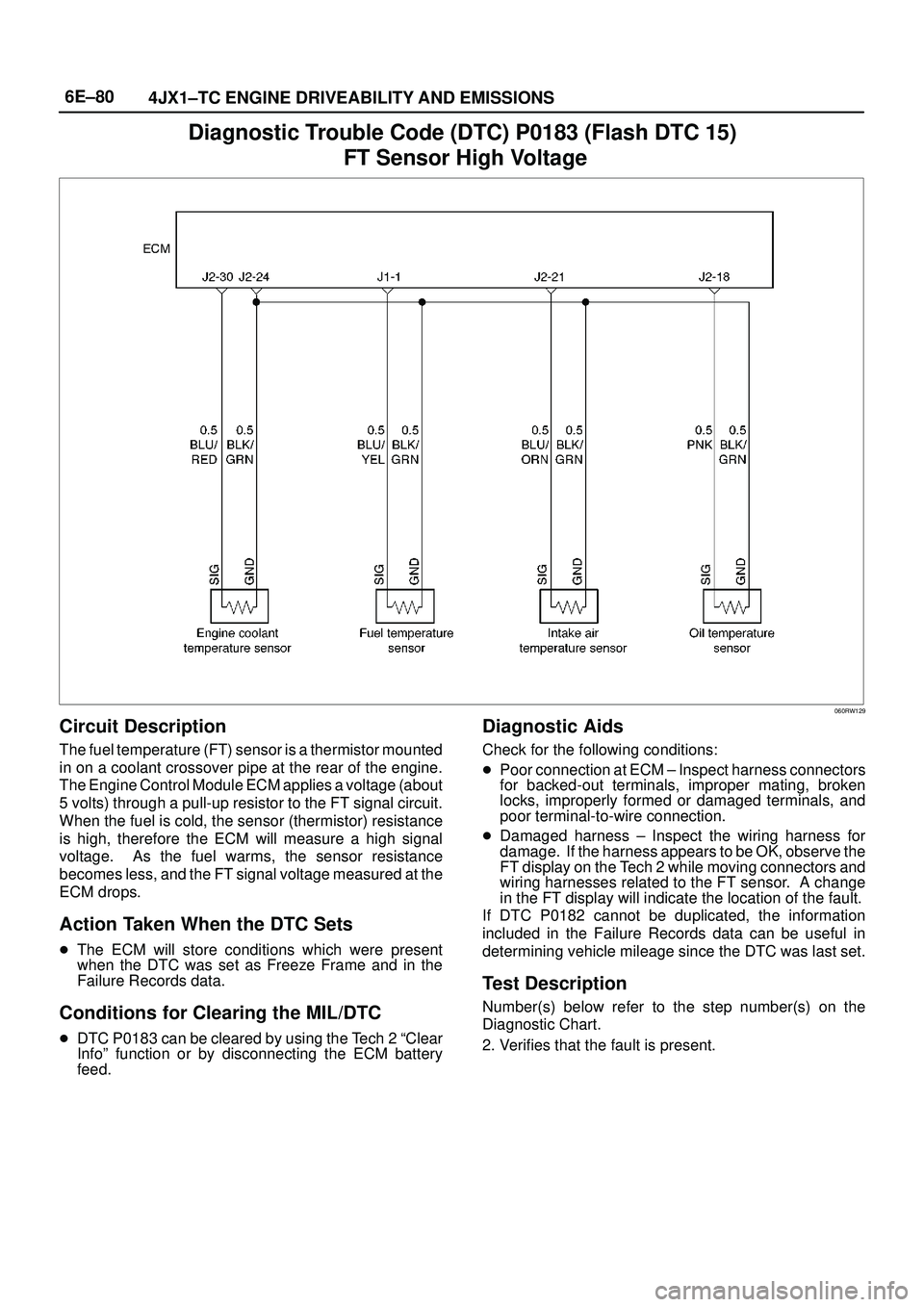

ISUZU TROOPER 1998 Service Repair Manual 6E±80
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0183 (Flash DTC 15)
FT Sensor High Voltage
060RW129
Circuit Description
The fuel temperature (FT) sensor is a thermist

Page 1974 of 3573

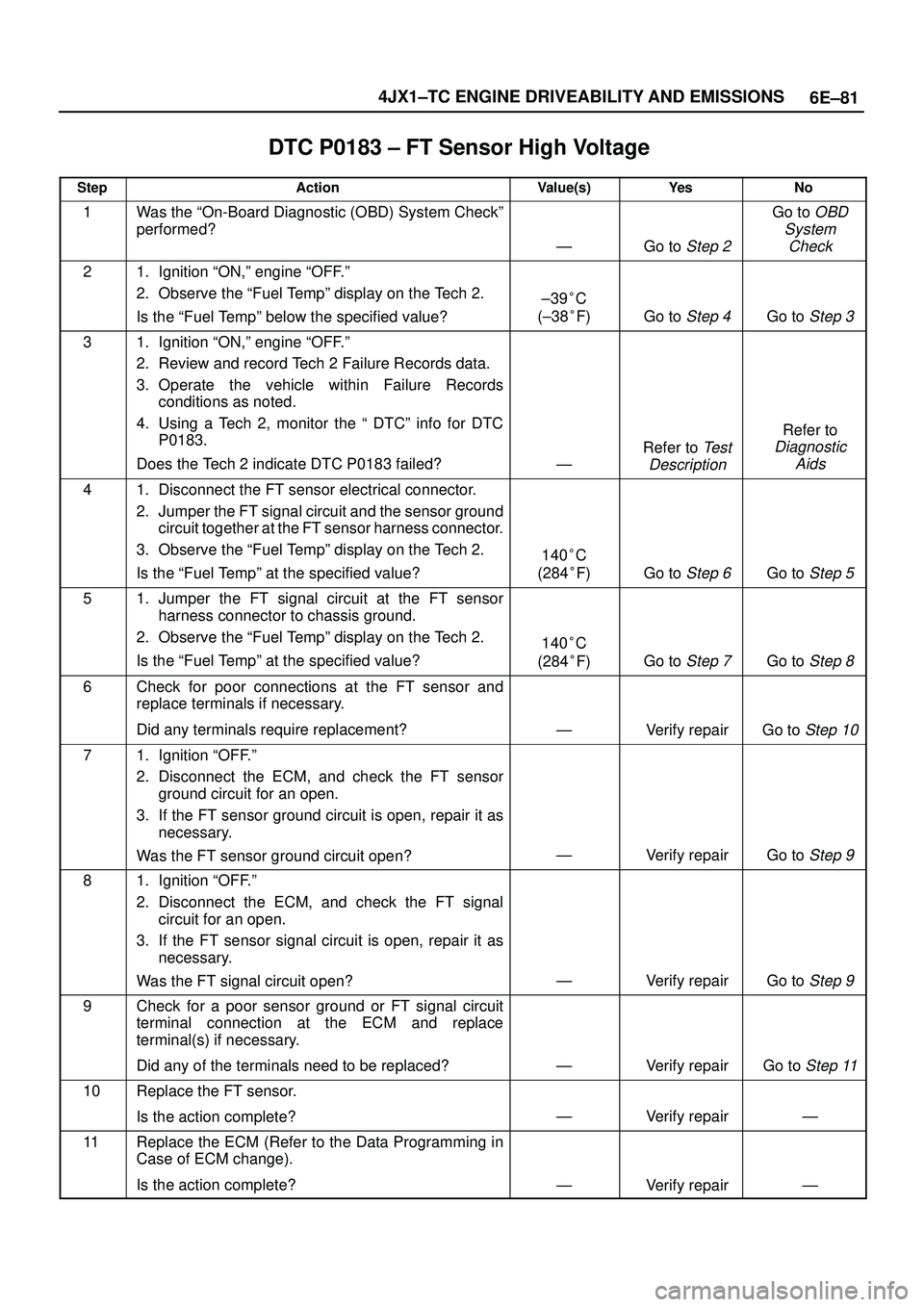

ISUZU TROOPER 1998 Service Repair Manual 6E±81 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0183 ± FT Sensor High Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD

6E±81 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0183 ± FT Sensor High Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º
2. Observe the ªFuel Tempº display on the Tech 2.
Is the ªFuel Tempº below the specified value?
±39C
(±38F)
Go to Step 4Go to Step 3
31. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor the ª DTCº info for DTC
P0183.
Does the Tech 2 indicate DTC P0183 failed?
Ð
Refer to Test
Description
Refer to
Diagnostic
Aids
41. Disconnect the FT sensor electrical connector.
2. Jumper the FT signal circuit and the sensor ground
circuit together at the FT sensor harness connector.
3. Observe the ªFuel Tempº display on the Tech 2.
Is the ªFuel Tempº at the specified value?
140C
(284F)
Go to Step 6Go to Step 5
51. Jumper the FT signal circuit at the FT sensor
harness connector to chassis ground.
2. Observe the ªFuel Tempº display on the Tech 2.
Is the ªFuel Tempº at the specified value?
140C
(284F)
Go to Step 7Go to Step 8
6Check for poor connections at the FT sensor and
replace terminals if necessary.
Did any terminals require replacement?
ÐVerify repairGo to Step 10
71. Ignition ªOFF.º
2. Disconnect the ECM, and check the FT sensor
ground circuit for an open.
3. If the FT sensor ground circuit is open, repair it as
necessary.
Was the FT sensor ground circuit open?
ÐVerify repairGo to Step 9
81. Ignition ªOFF.º
2. Disconnect the ECM, and check the FT signal
circuit for an open.
3. If the FT sensor signal circuit is open, repair it as
necessary.
Was the FT signal circuit open?
ÐVerify repairGo to Step 9
9Check for a poor sensor ground or FT signal circuit
terminal connection at the ECM and replace
terminal(s) if necessary.
Did any of the terminals need to be replaced?
ÐVerify repairGo to Step 11
10Replace the FT sensor.
Is the action complete?
ÐVerify repairÐ
11Replace the ECM (Refer to the Data Programming in
Case of ECM change).
Is the action complete?
ÐVerify repairÐ

Page 1975 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±82
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0192 (Flash DTC 63)
Rail Pressure Sensor Low Voltage
060RW135
Circuit Description
The rail pressure (RP) sensor respon

Page 1976 of 3573

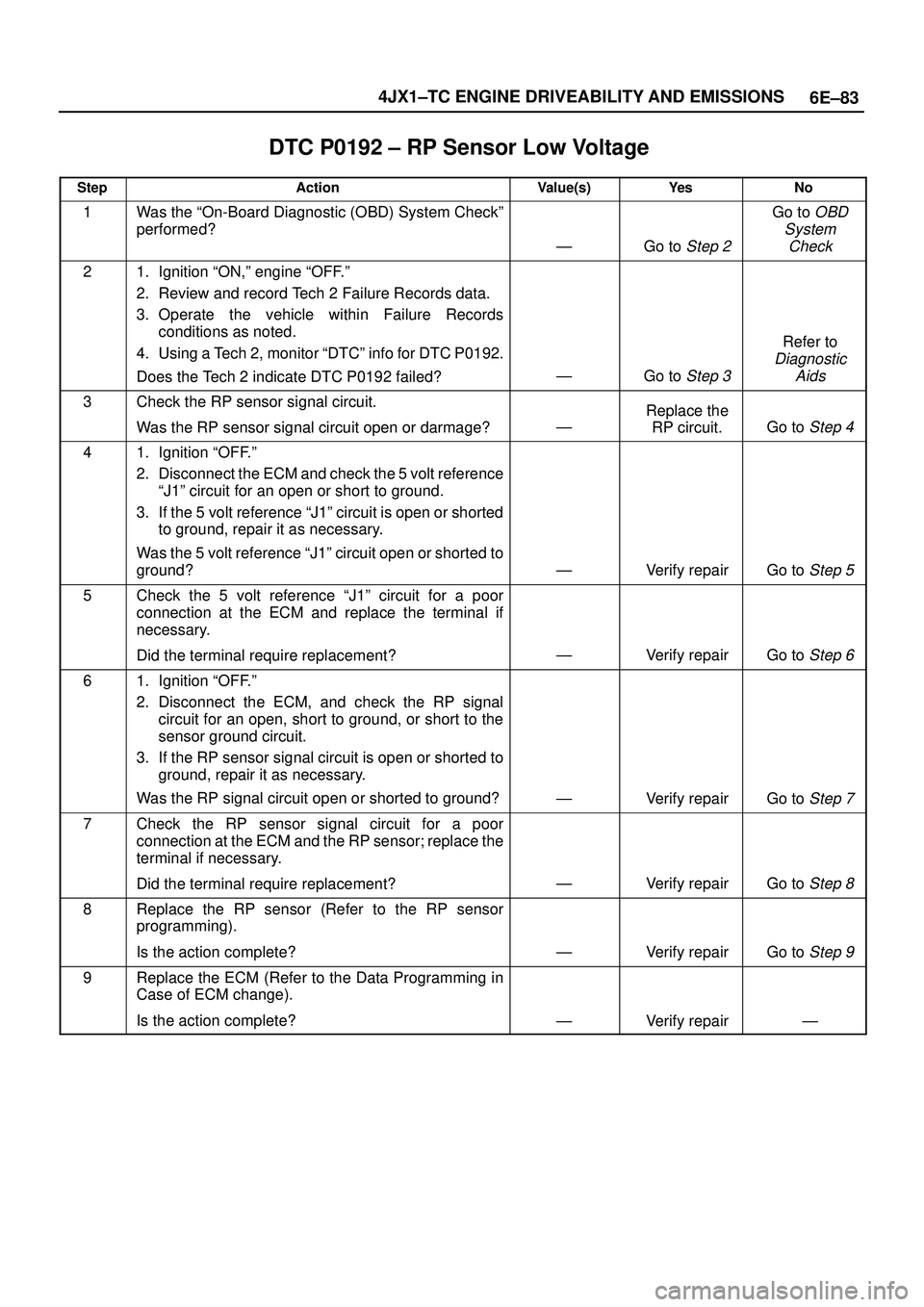

ISUZU TROOPER 1998 Service Repair Manual 6E±83 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0192 ± RP Sensor Low Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
S
