6E±140
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0475 (Flash DTC 71)
EXH #1 VSV Circuit
060RW135
Circuit Description
EXH. #1, #2 VSV Circuit receives current through Engine
15A fuse, #1 and #2 being connected in parallel.
Action Taken When the DTC Sets
The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.
The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC
DTC P0475 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the ECM battery
feed.
Diagnostic Aids
Check for the following conditions:
Poor connection at ECM ± Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.
Damaged harness ± Inspect the wiring harness for
damage.
Page 2034 of 3573

6E±141 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P0475 ± EXH #1 VSV Circuit Open/Short
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º Review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor the ª DTCº info for DTC
P0475.
Does the Tech 2 indicate DTC P0475 failed this
ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Ignition ªOFF.º
2. Disconnect the EXH #1 VSV connectors.
3. Check the EXH #1 VSV circuit for a short to ground.
Is the EXH #1 VSV circuit shorted to ground?
ÐVerify repairGo to Step 4
4Replace the EXH #1 VSV.
Is the action complete?
ÐVerify repairGo to Step 5
51. Ignition ªON,º engine ªOFF.º Review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor the ª DTCº info for DTC
P0475.
Does the Tech 2 indicate DTC P0475 failed this
ignition?
ÐGo to Step 6Ð
6Replace the ECM (Refer to the Data Programming in
Case of ECM change).
Is the action complete?
ÐVerify repairÐ
Page 2035 of 3573
6E±142
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS

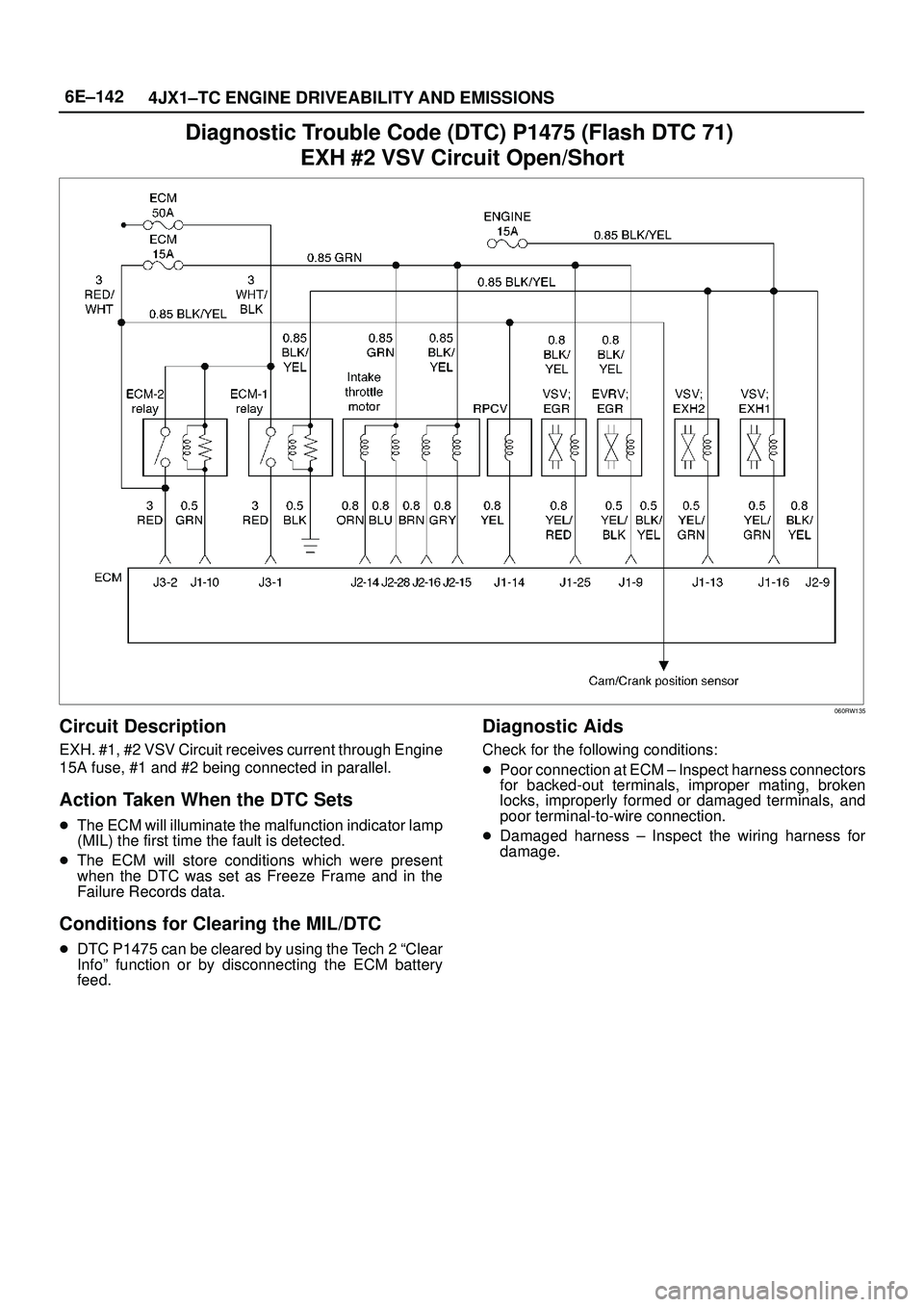

Diagnostic Trouble Code (DTC) P1475 (Flash DTC 71)
EXH #2 VSV Circuit Open/Short
060RW135
Circuit Description
EXH. #1, #2 VSV Circuit receives current through Engine
15A fuse, #1 and #2 being connected in parallel.
Action Taken When the DTC Sets
The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.
The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC
DTC P1475 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the ECM battery
feed.
Diagnostic Aids
Check for the following conditions:
Poor connection at ECM ± Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.
Damaged harness ± Inspect the wiring harness for
damage.
Page 2036 of 3573

6E±143 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS

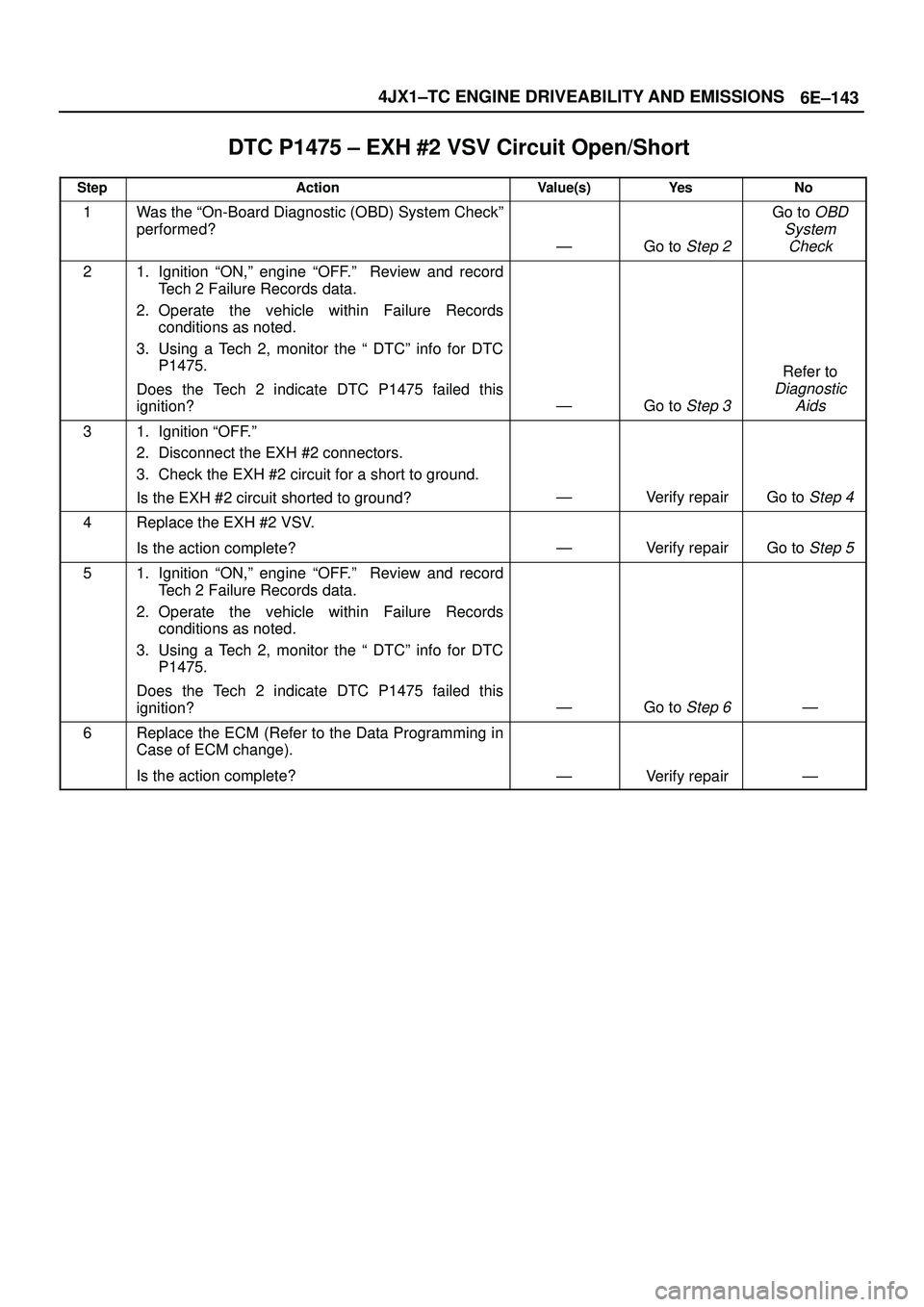

DTC P1475 ± EXH #2 VSV Circuit Open/Short
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º Review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor the ª DTCº info for DTC
P1475.
Does the Tech 2 indicate DTC P1475 failed this
ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Ignition ªOFF.º
2. Disconnect the EXH #2 connectors.
3. Check the EXH #2 circuit for a short to ground.
Is the EXH #2 circuit shorted to ground?
ÐVerify repairGo to Step 4
4Replace the EXH #2 VSV.
Is the action complete?
ÐVerify repairGo to Step 5
51. Ignition ªON,º engine ªOFF.º Review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor the ª DTCº info for DTC
P1475.
Does the Tech 2 indicate DTC P1475 failed this
ignition?
ÐGo to Step 6Ð
6Replace the ECM (Refer to the Data Programming in
Case of ECM change).
Is the action complete?
ÐVerify repairÐ
Page 2037 of 3573

6E±144
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1485 (Flash DTC 74)
ITP (Intake Thorottle Position) Sensor Low Voltage
060RW134
Circuit Description
The intake throttle position (ITP) sensor circuit provides a
voltage signal that changes relative to throttle blade
angle.
Action Taken When the DTC Sets
The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.
The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC
DTC P1485 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the ECM battery
feed.
Diagnostic Aids
Check for the following conditions:
Poor connection at ECM ± Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.
Damaged harness ± Inspect the wiring harness for
damage.
If the harness appears to be OK, observe the
throttle position display on the Tech 2 while
moving connectors and wiring harnesses related
to the ITP sensor. A change in the display will
indicate the location of the fault.
If DTC P1485 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
DTC P1485 ±ITP Sensor Low Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º
2. With the throttle closed by the hand, observe the
ªITP Sensorº display on the Tech 2.
Is the ªITP Sensorº below the specified value?
0.22 VGo to Step 4Go to Step 3
Page 2038 of 3573

6E±145 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P1485 ±ITP Sensor Low Voltage
StepNo Ye s Value(s) Action
31. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor the ªDTCº info for DTC
P1485.
Does the Tech 2 indicate DTC P1485 failed?
ÐGo to Step 4
Refer to
Diagnostic
Aids
4Check the ITP sensor signal circuit for a poor
connection at the ECM and replace the terminal if
necessary.
Did the terminal require replacement?
ÐVerify repairGo to Step 5
51. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2 monitor the ªSpecific DTCº info for
DTC P1485.
Dose the Tech 2 indicate DTC P1485 failed?
ÐGo to Step 6
Refer to
Diagnostic
Aids
6Replace the intake throttle.
Is the action complete?
ÐVerify repairGo to Step 7
7Replace the ECM (Refer to the Data Programming in
Case of ECM change).
Is the action complete?
ÐVerify repairÐ
Page 2039 of 3573

6E±146
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1486 (Flash DTC 74)
ITP (Intake Throttle Position) Sensor High Voltage
060RW134
Circuit Description
The intake throttle position (ITP) sensor circuit provides a
voltage signal that changes relative to throttle blade
angle.
Action Taken When the DTC Sets
The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.
The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC
DTC P1486 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the ECM battery
feed.
Diagnostic Aids
Check for the following conditions:
Poor connection at ECM ± Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.
Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
ITP sensor display on the Tech 2 while moving
connectors and wiring harnesses related to the TP
sensor. A change in the display will indicate the
location of the fault.
Faulty TP sensor ± With the ignition key ªON,º engine
ªOFF,º observe the TP sensor display on the Tech 2
while slowly depressing the accelerator to wide open
throttle.
If DTC P1486 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
Page 2040 of 3573

6E±147 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
DTC P1486 ± ITP Sensor High Voltage
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º
2. With the throttle closed by the hand, observe the
ªITP Sensorº display on the Tech 2.
Is the ªITP Sensorº above the specified value?
4.88 VGo to Step 4Go to Step 3
31. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P1486.
Does the Tech 2 indicate DTC P1486 failed.
ÐGo to Step 4
Refer to
Diagnostic
Aids
4Check for poor electrical connections at the ITP sensor
and replace terminals if necessary.
Did any terminals require replacement?
ÐVerify repairGo to Step 5
51. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2 monitor the ªDTCº info for DTC
P1486.
Dose the Tech 2 indicate DTC P1486 failed.
ÐGo to Step 6
Refer to
Diagnostic
Aids
6Replace the intake throttle.
Is the action complete?
ÐVerify repairGo to Step 7
7Replace the ECM (Refer to the Data Programming in
Case of ECM change).
Is the action complete?
ÐVerify repairÐ
