Page 2745 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ152 WIRING SYSTEM Parts Location Legend (1) Lighting Switch (2) R-12 (3) R-4 (4) R-13 (5) H-33 (6) H-44(7) H-46 (8) I-9 (9) B-19 (10) Relay and Fuse Box (X-9, X-22) (11) H-13, H-15, H-27 (12) Fuse

Page 2746 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ153 Headlight Leveling General Description The circuit consists of the headlight leveling SW and headlight leveling actuators. The actuator is made up of a motor, two relays and dis

Page 2747 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ154 WIRING SYSTEM Circuit Diagram 3.0 B/Y 0.5 L/W 0.5 L/W HEADLIGHT LEVELING SWITCH HEADLIGHT LEVELING ACTUATOR-RH 0.85 L/W 0.5 P/L 0.5 P/L0.5 O/L 0.5 O/L0.5 L/O 0.5 L/O0.5 O/B 0.5 O/B STARTER SW

Page 2748 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ155 Parts Location 9 4 8 10 3 5 6 7 12 D08RW999 Legend (1) H-12 (2) H-9, H-24 (3) C-16 (4) Headlight Leveling Actuator-LH (5) C-77(6) Fuse Box (7) C-76 (8) Headlight Leveling Actuato

Page 2749 of 3573

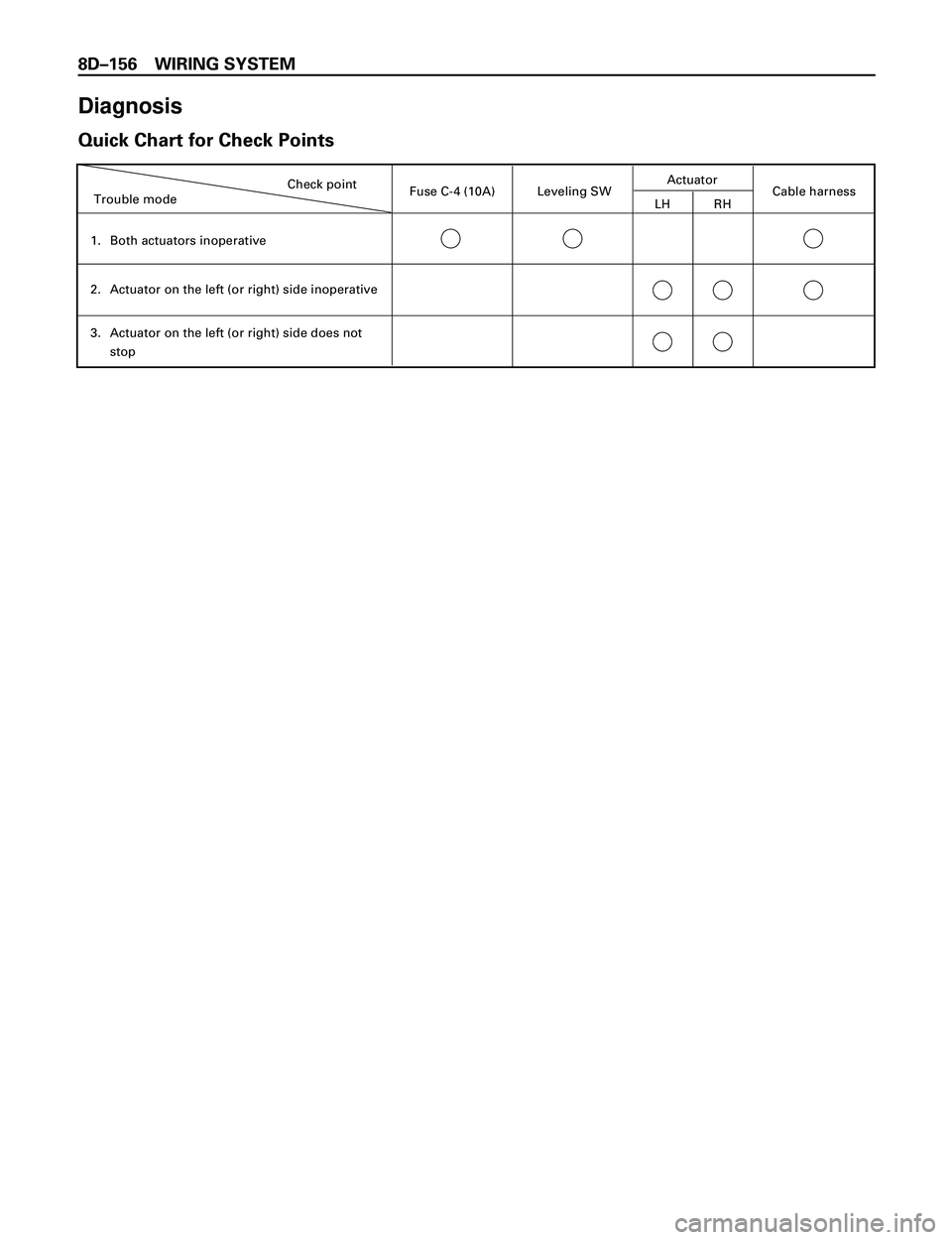

ISUZU TROOPER 1998 Service Repair Manual 8DÐ156 WIRING SYSTEM Diagnosis Quick Chart for Check Points Trouble modeCheck point Both actuators inoperative Actuator on the left (or right) side inoperative Actuator on the left (or right) side do

Page 2750 of 3573

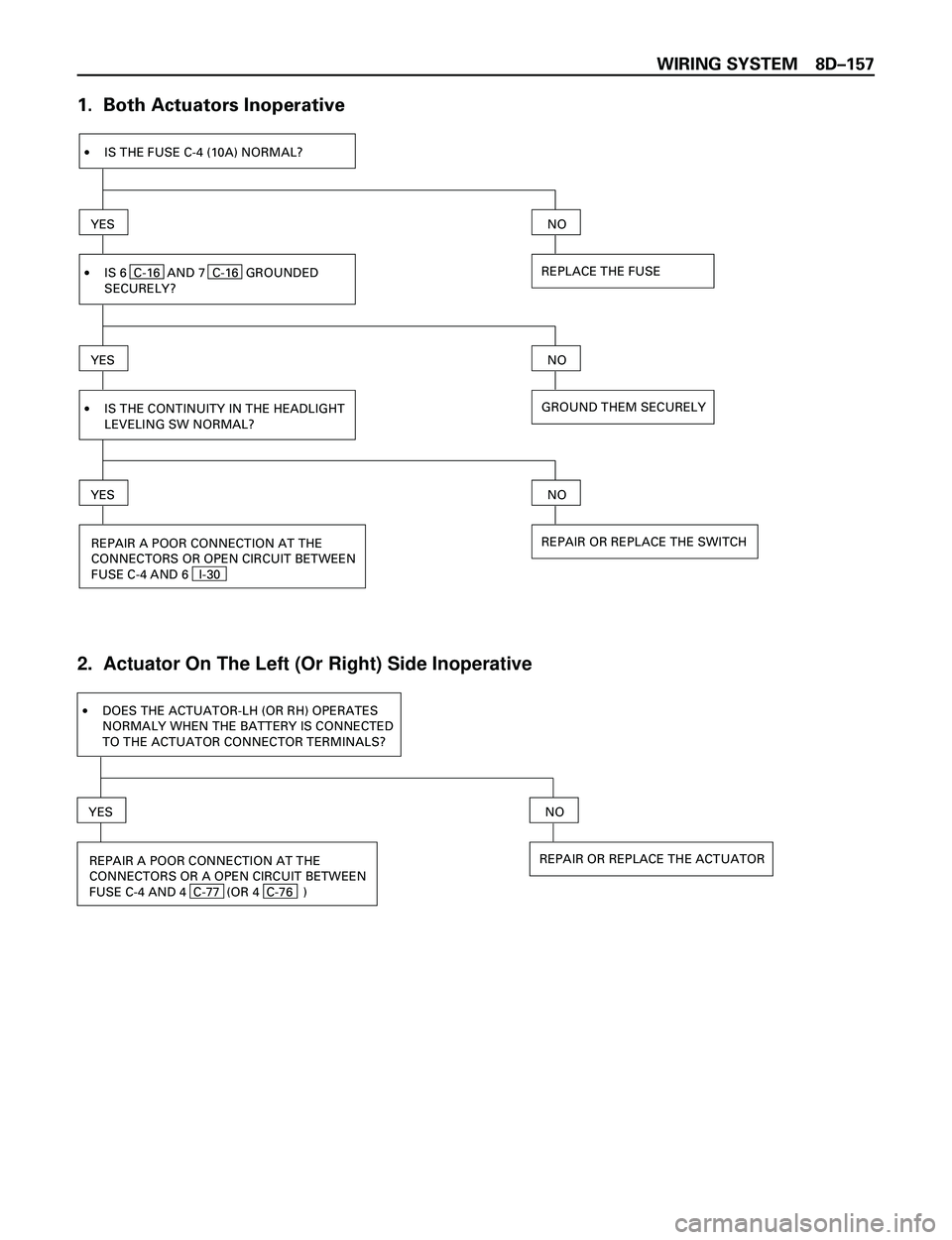

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ157 1. Both Actuators Inoperative YES REPLACE THE FUSE NO ·IS THE FUSE C-4 (10A) NORMAL? IS 6 C-16 AND 7 C-16 GROUNDED SECURELY? YES GROUND THEM SECURELY NO · IS THE CONTINUIT

Page 2751 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ158 WIRING SYSTEM 3. Actuator On The Left (Or Right) Side Does Not Stop YES REPAIR OR REPLACE THE ACTUATOR (FAILURE OF THE SENSOR OR A SHORT CIRCUIT IN THE ACTUATOR) NO ·IS THERE CONTINUITY BETW

Page 2752 of 3573

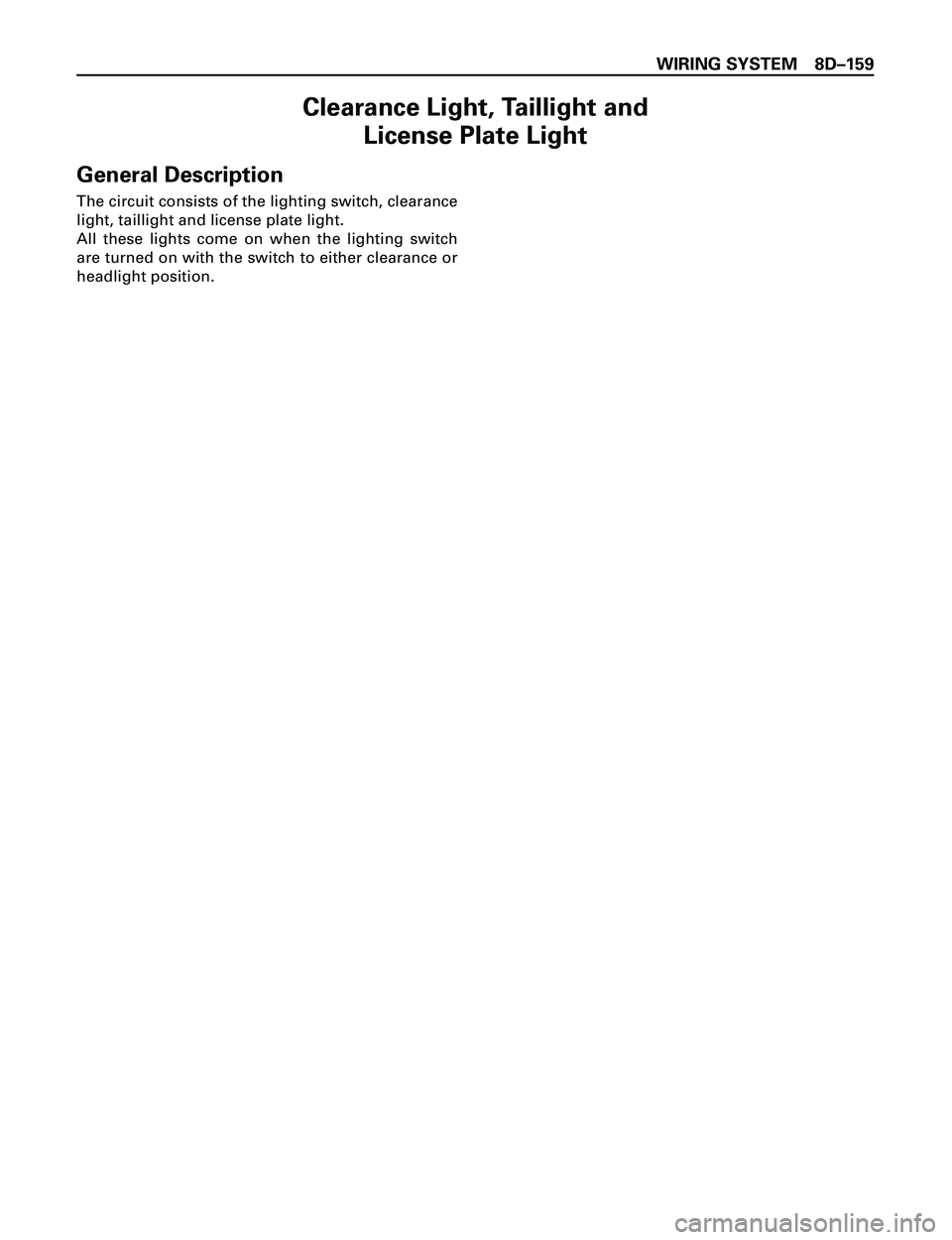

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ159 Clearance Light, Taillight and License Plate Light General Description The circuit consists of the lighting switch, clearance light, taillight and license plate light. All these
