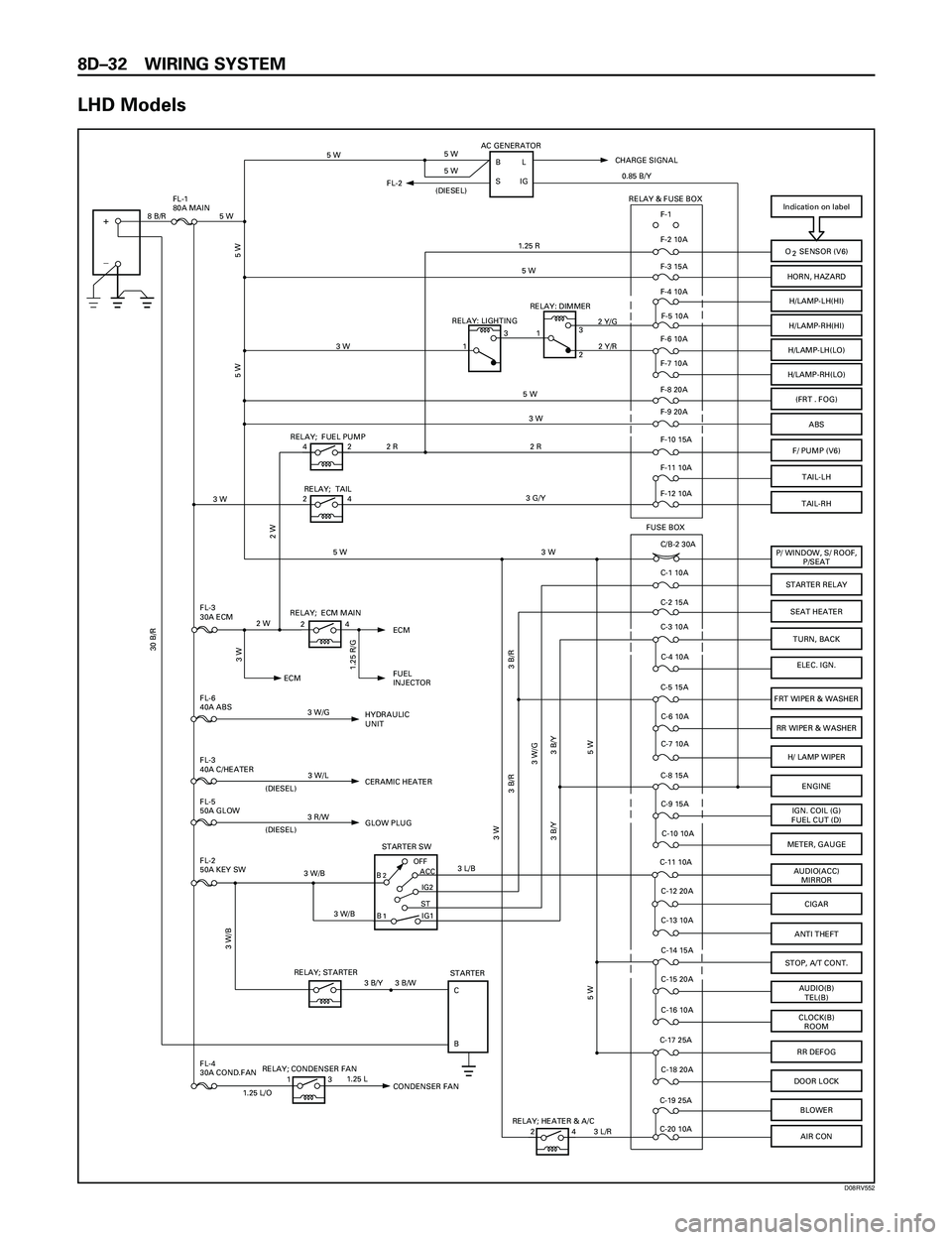

ISUZU TROOPER 1998 Service Repair Manual 8DÐ32 WIRING SYSTEM LHD Models FL-4 30A COND.FAN Indication on label BOFF STIG2 ACC STARTER SW + _ O SENSOR (V6) HORN, HAZARD H/LAMP-LH(HI) H/LAMP-RH(HI) (FRT . FOG) ABS F/ PUMP (V6) P/ WINDOW, S/

Page 2626 of 3573

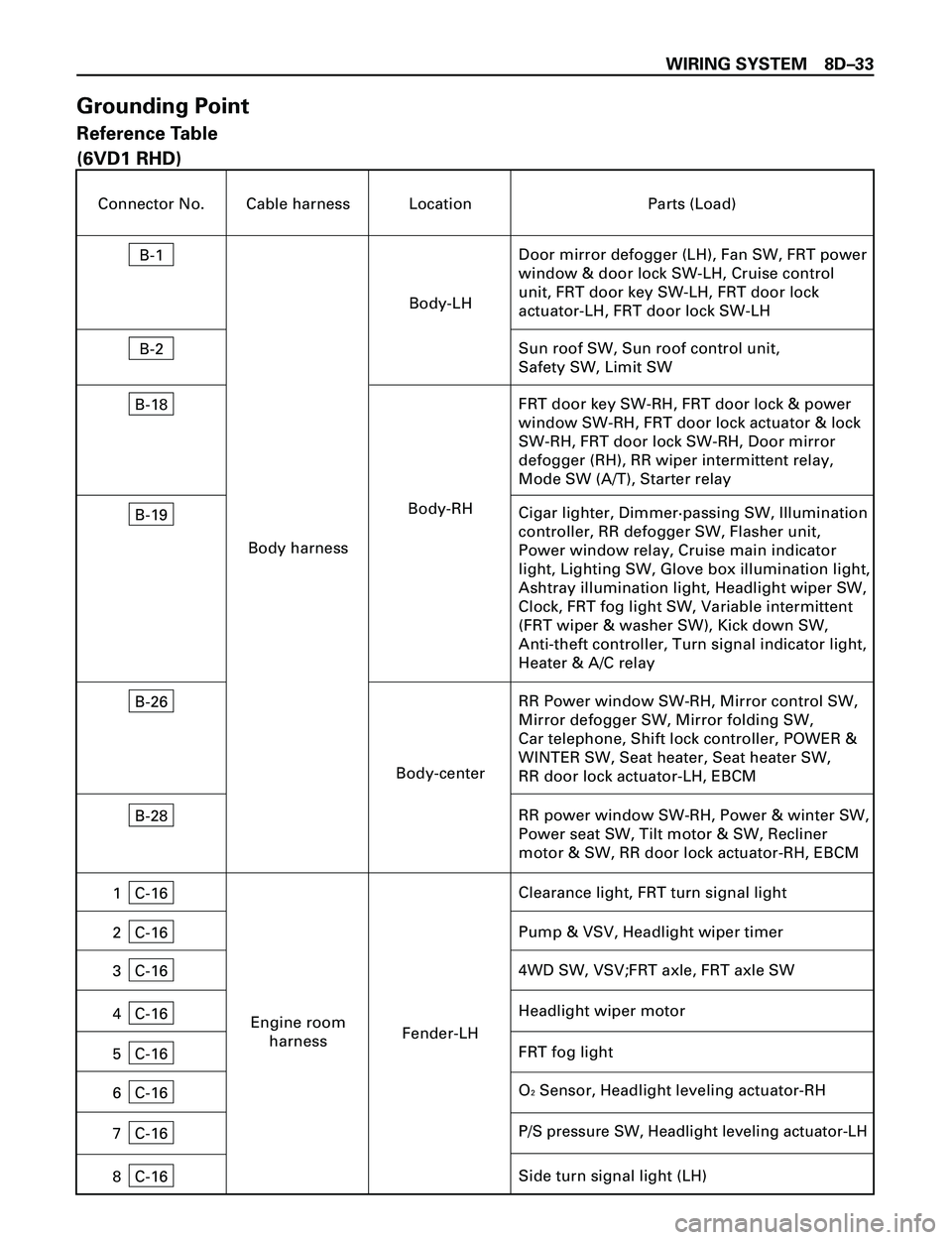

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ33 Grounding Point Reference Table (6VD1 RHD) Connector No. Cable harness Location Parts (Load) B-1 Door mirror defogger (LH), Fan SW, FRT power window & door lock SW-LH, Cruise cont

Page 2627 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ34 WIRING SYSTEM Connector No. Cable harness Location Parts (Load) C-39 Windshield washer motor1 C-39 Windshield wiper motor2 C-39 FRT fog light relay4 C-39Meter, Vehicle speed sensor (Meter), Fue

Page 2628 of 3573

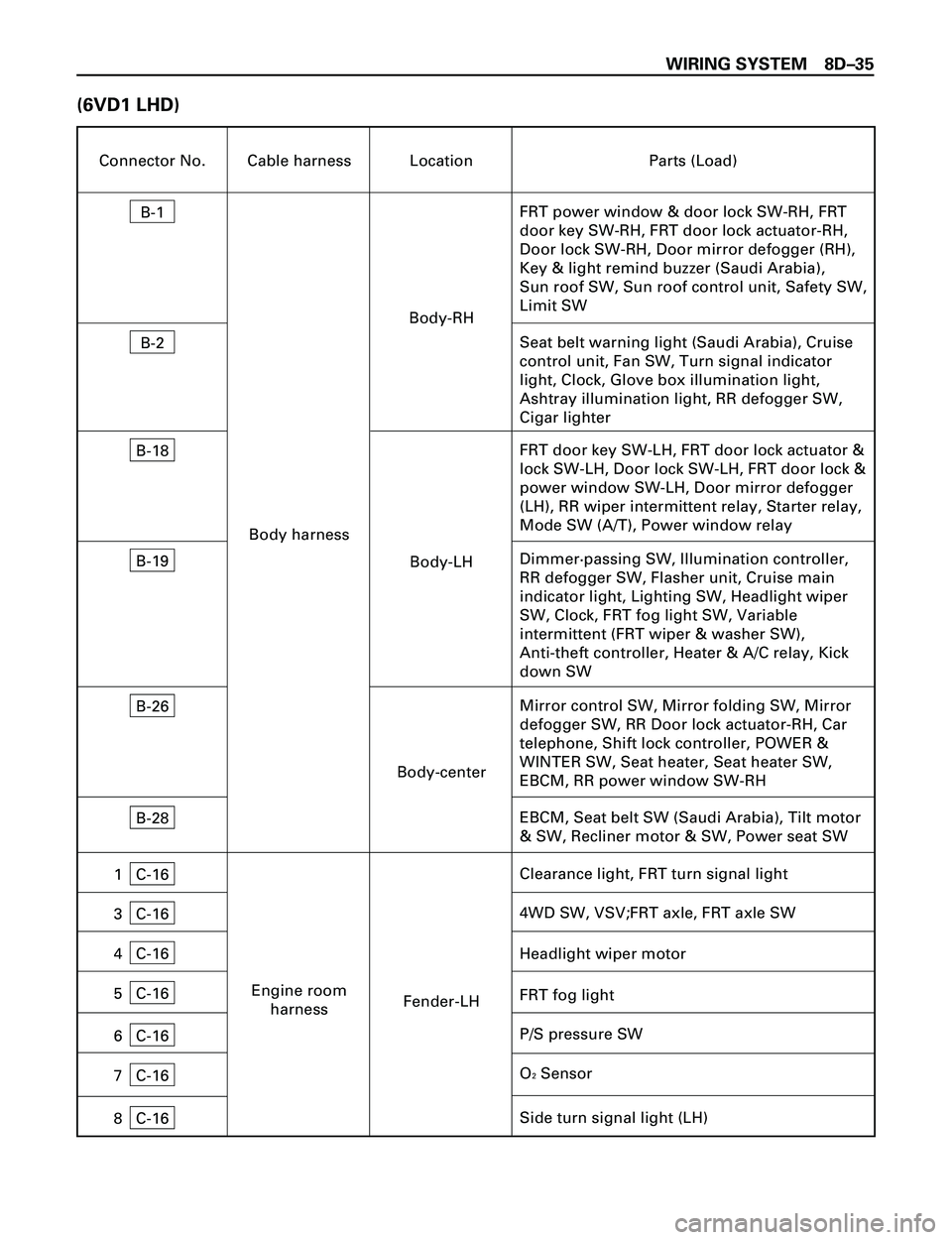

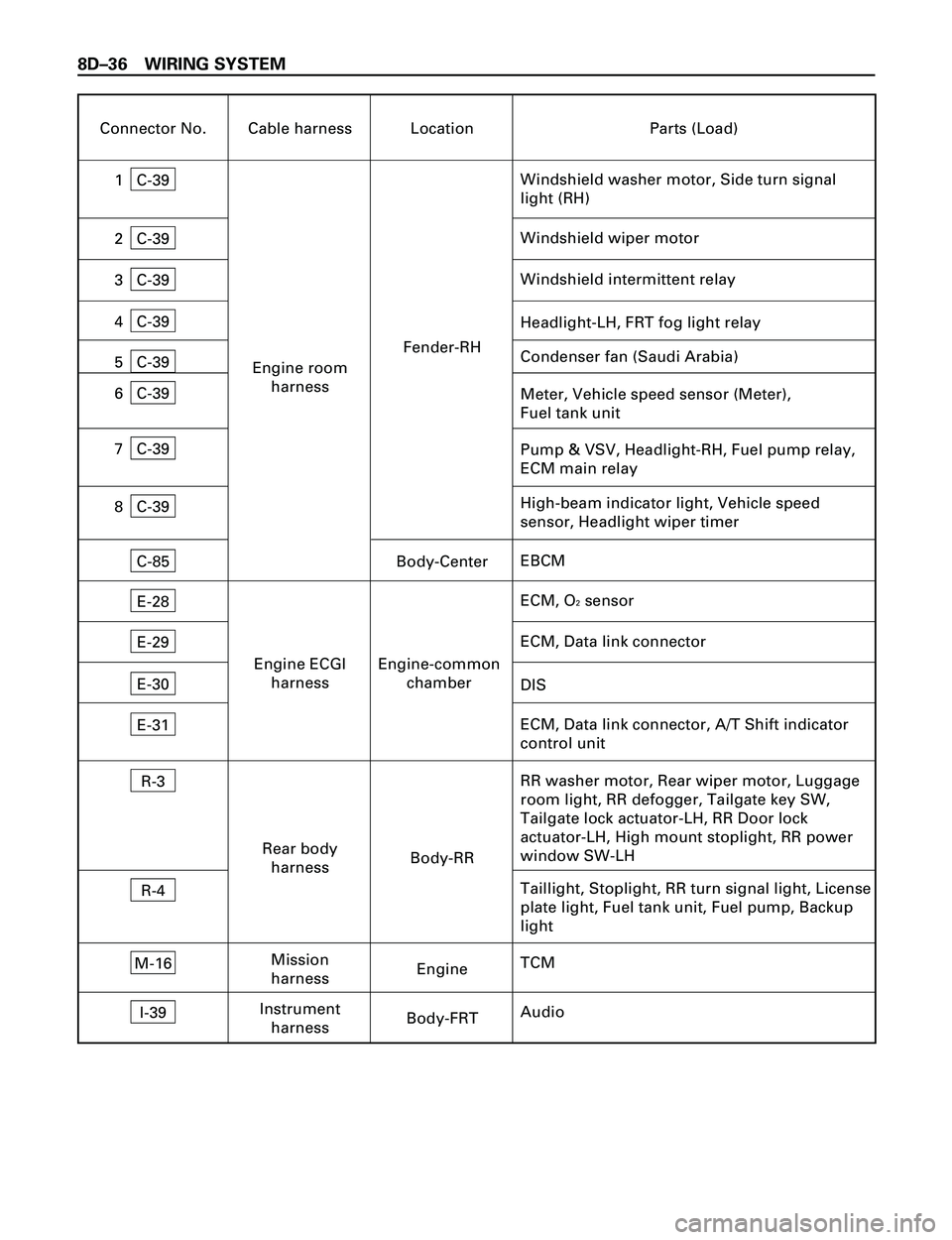

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ35 (6VD1 LHD) Connector No. Cable harness Location Parts (Load) B-1 FRT power window & door lock SW-RH, FRT door key SW-RH, FRT door lock actuator-RH, Door lock SW-RH, Door mirror de

Page 2629 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ36 WIRING SYSTEM Connector No. Cable harness Location Parts (Load) C-39 Windshield washer motor, Side turn signal light (RH)1 C-39 Windshield wiper motor2 C-39 Headlight-LH, FRT fog light relay4 C

Page 2630 of 3573

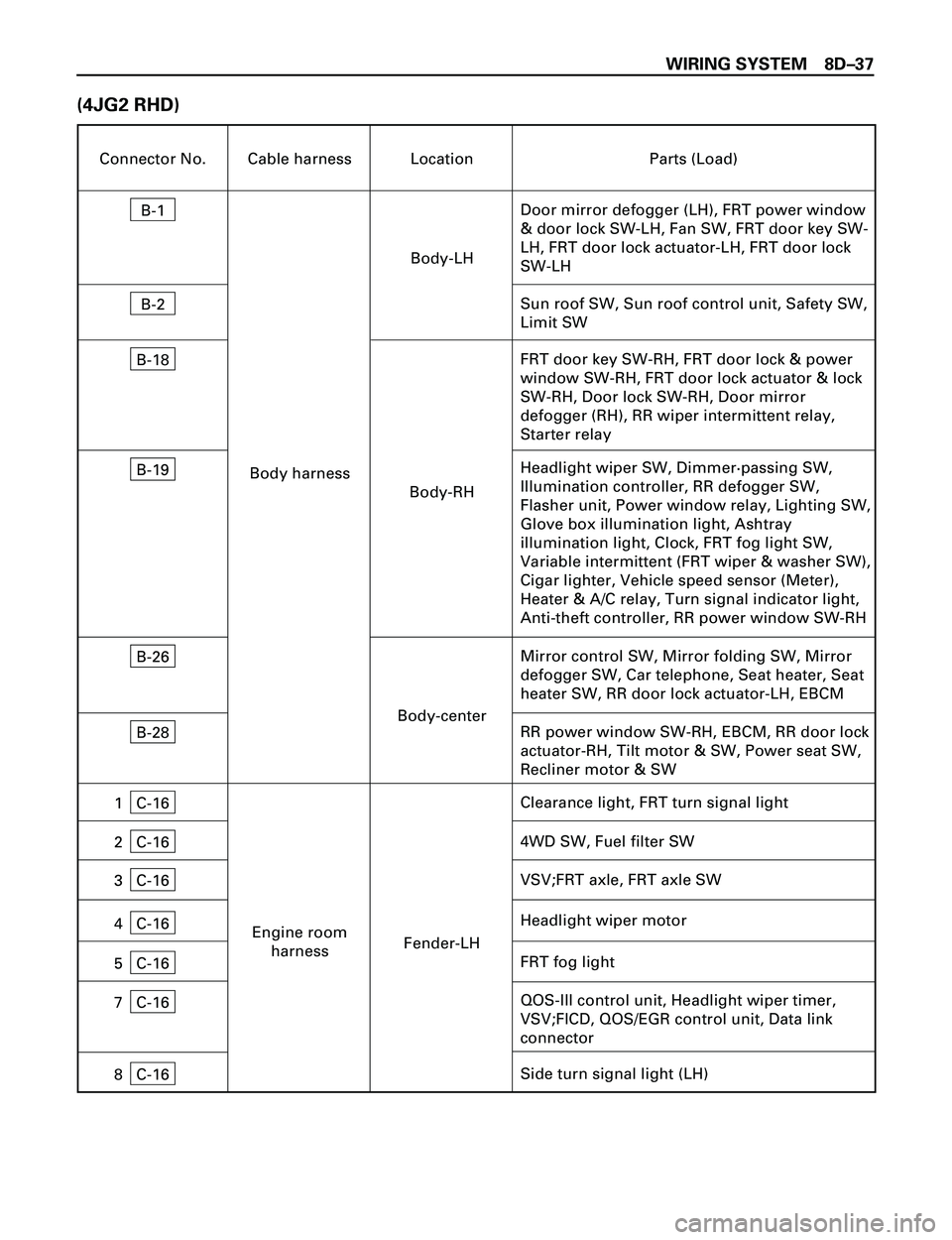

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ37 (4JG2 RHD) Connector No. Cable harness Location Parts (Load) B-1 Door mirror defogger (LH), FRT power window & door lock SW-LH, Fan SW, FRT door key SW- LH, FRT door lock actuator

Page 2631 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ38 WIRING SYSTEM Connector No. Cable harness Location Parts (Load) C-39 Windshield washer motor1 C-39 Windshield wiper motor2 C-39 FRT fog light relay4 C-39Vehicle speed sensor (Meter), Meter, Fue

Page 2632 of 3573

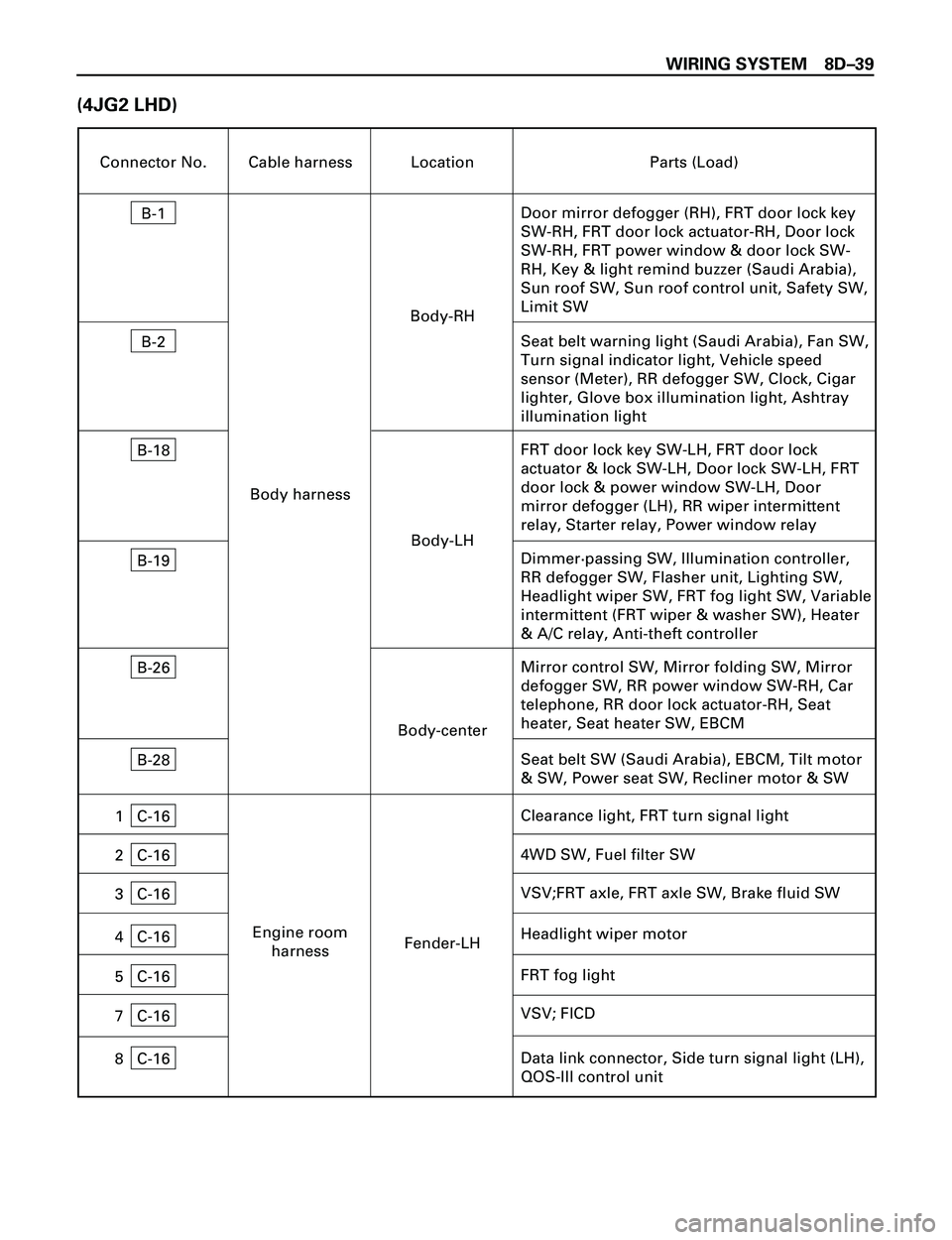

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ39 (4JG2 LHD) Connector No. Cable harness Location Parts (Load) B-1 Door mirror defogger (RH), FRT door lock key SW-RH, FRT door lock actuator-RH, Door lock SW-RH, FRT power window &
