Page 3049 of 3573

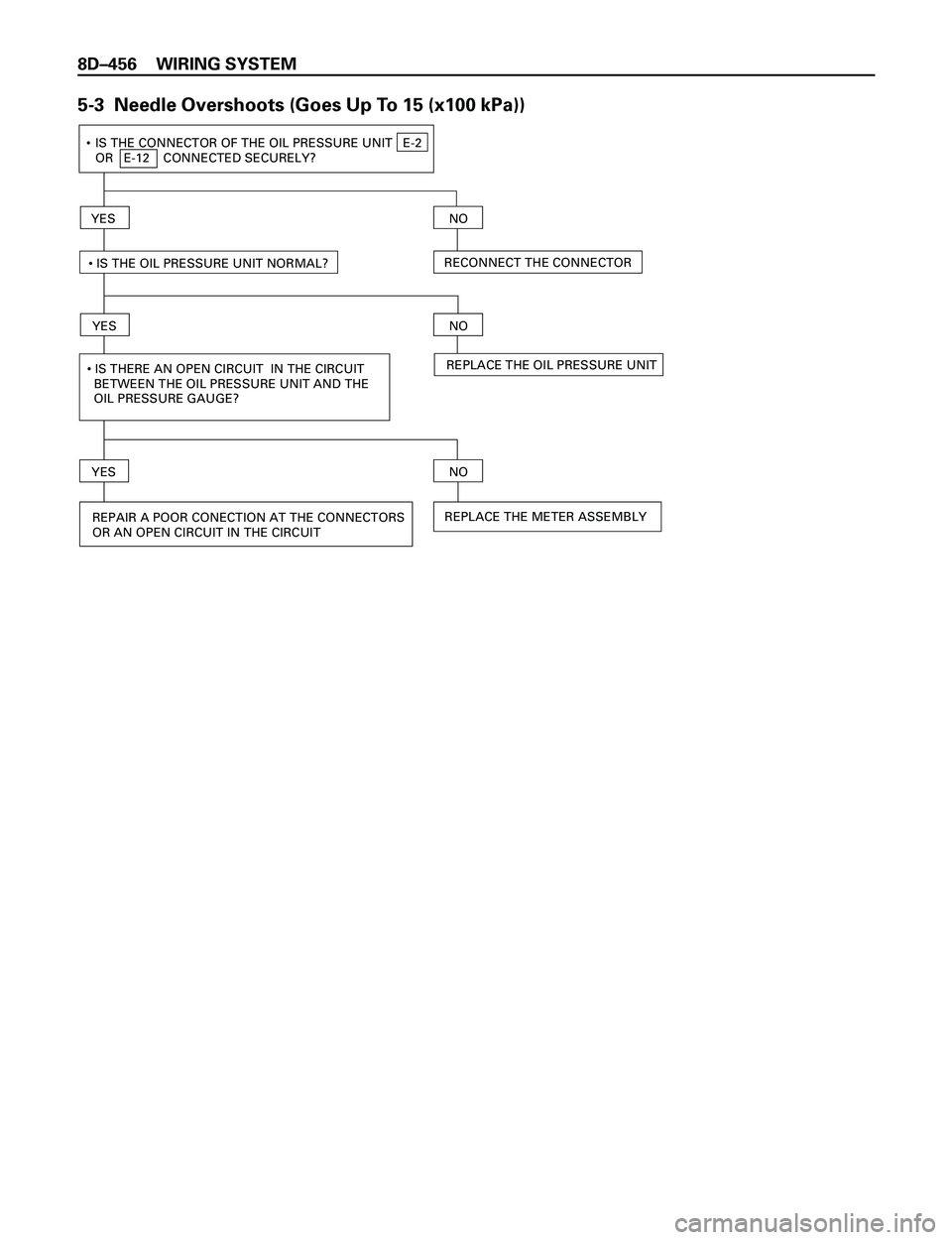

ISUZU TROOPER 1998 Service Repair Manual 8DÐ456 WIRING SYSTEM 5-3 Needle Overshoots (Goes Up To 15 (x100 kPa)) • IS THE CONNECTOR OF THE OIL PRESSURE UNIT E-2 OR E-12 CONNECTED SECURELY? YES • IS THE OIL PRESSURE UNIT NORMAL? Y

Page 3050 of 3573

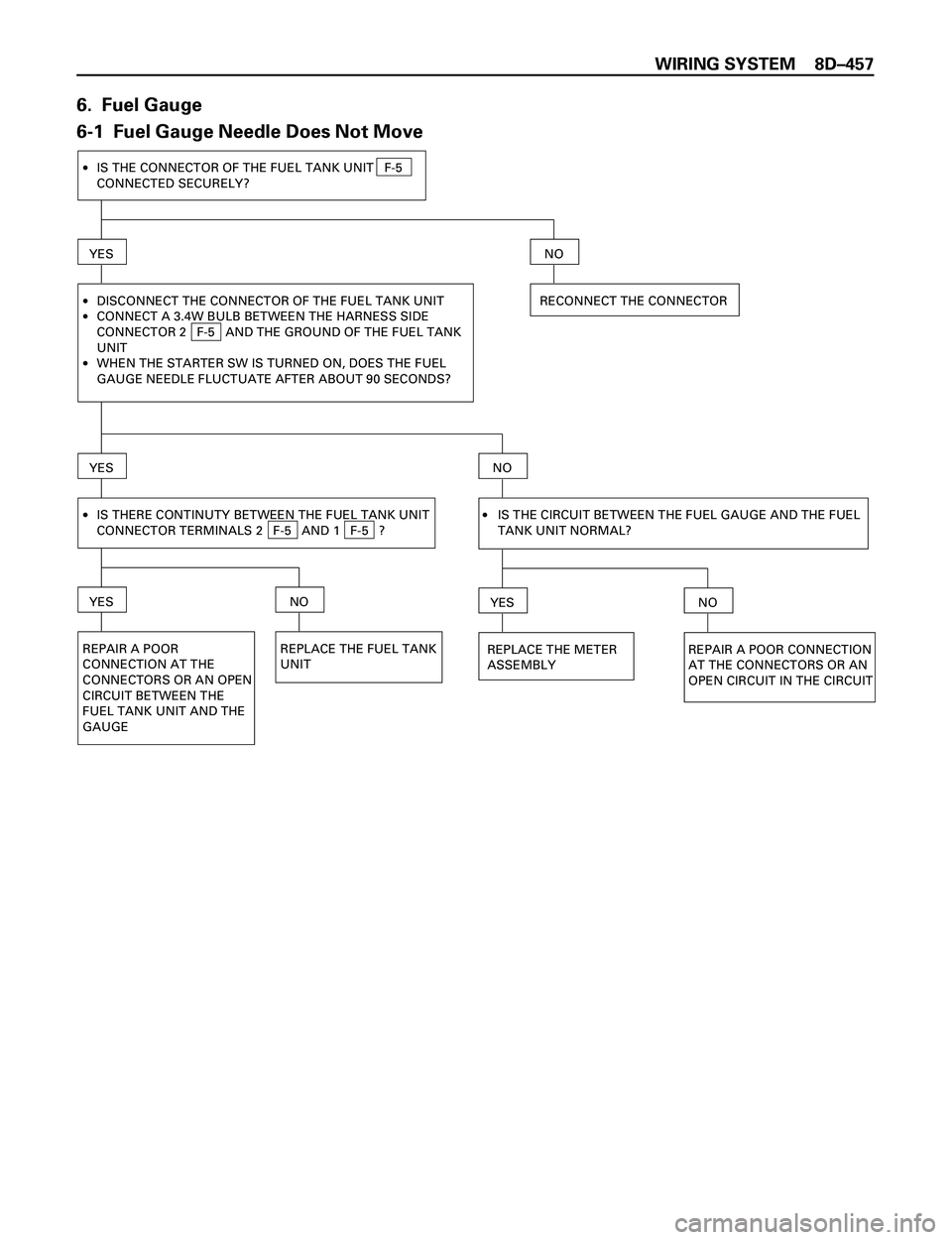

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ457 6. Fuel Gauge 6-1 Fuel Gauge Needle Does Not Move ·IS THE CONNECTOR OF THE FUEL TANK UNIT F-5 CONNECTED SECURELY? YES · · ·DISCONNECT THE CONNECTOR OF THE FUEL TANK UNIT

Page 3051 of 3573

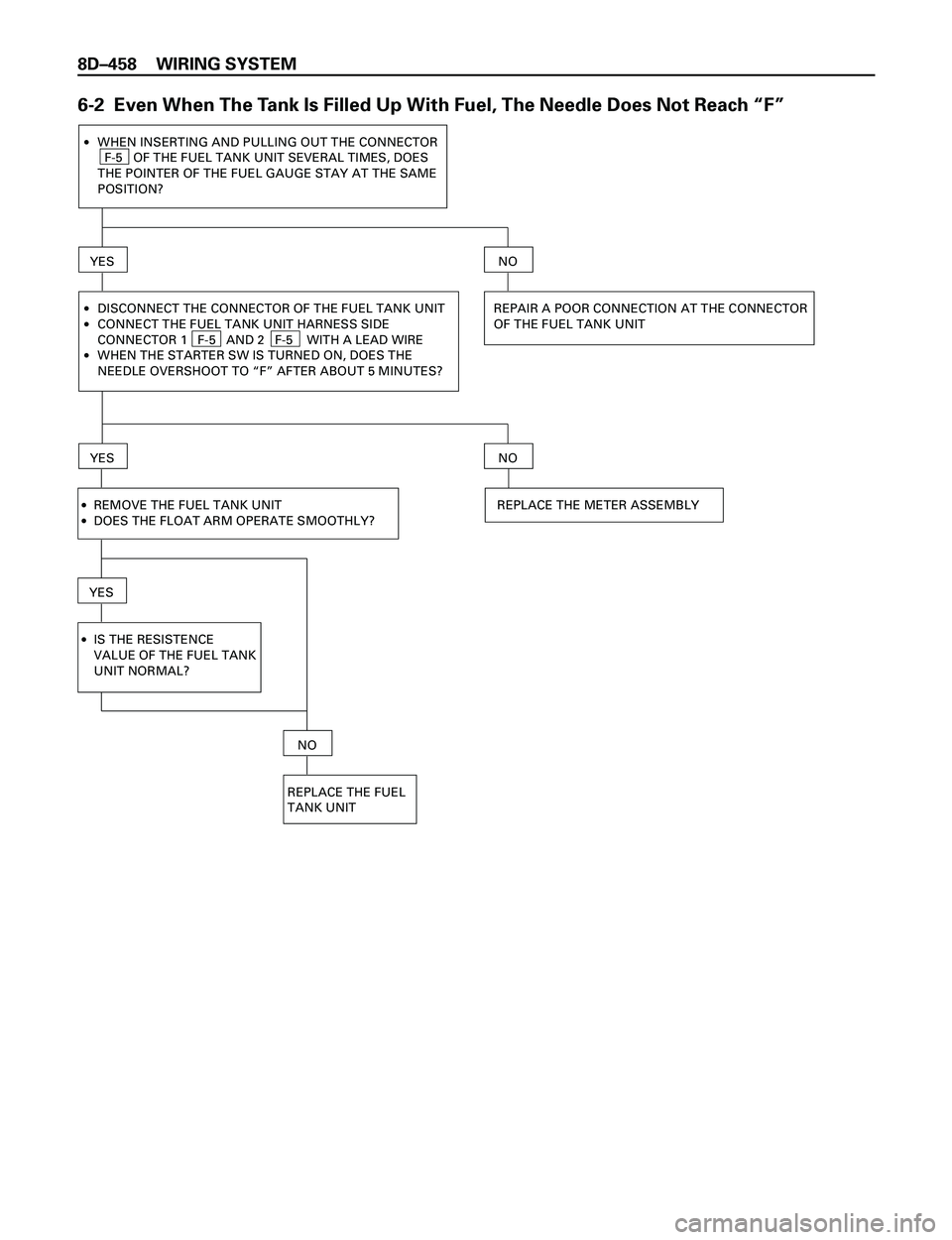

ISUZU TROOPER 1998 Service Repair Manual 8DÐ458 WIRING SYSTEM 6-2 Even When The Tank Is Filled Up With Fuel, The Needle Does Not Reach ÒFÓ ·WHEN INSERTING AND PULLING OUT THE CONNECTOR F-5 OF THE FUEL TANK UNIT SEVERAL TIMES, DOES T

Page 3052 of 3573

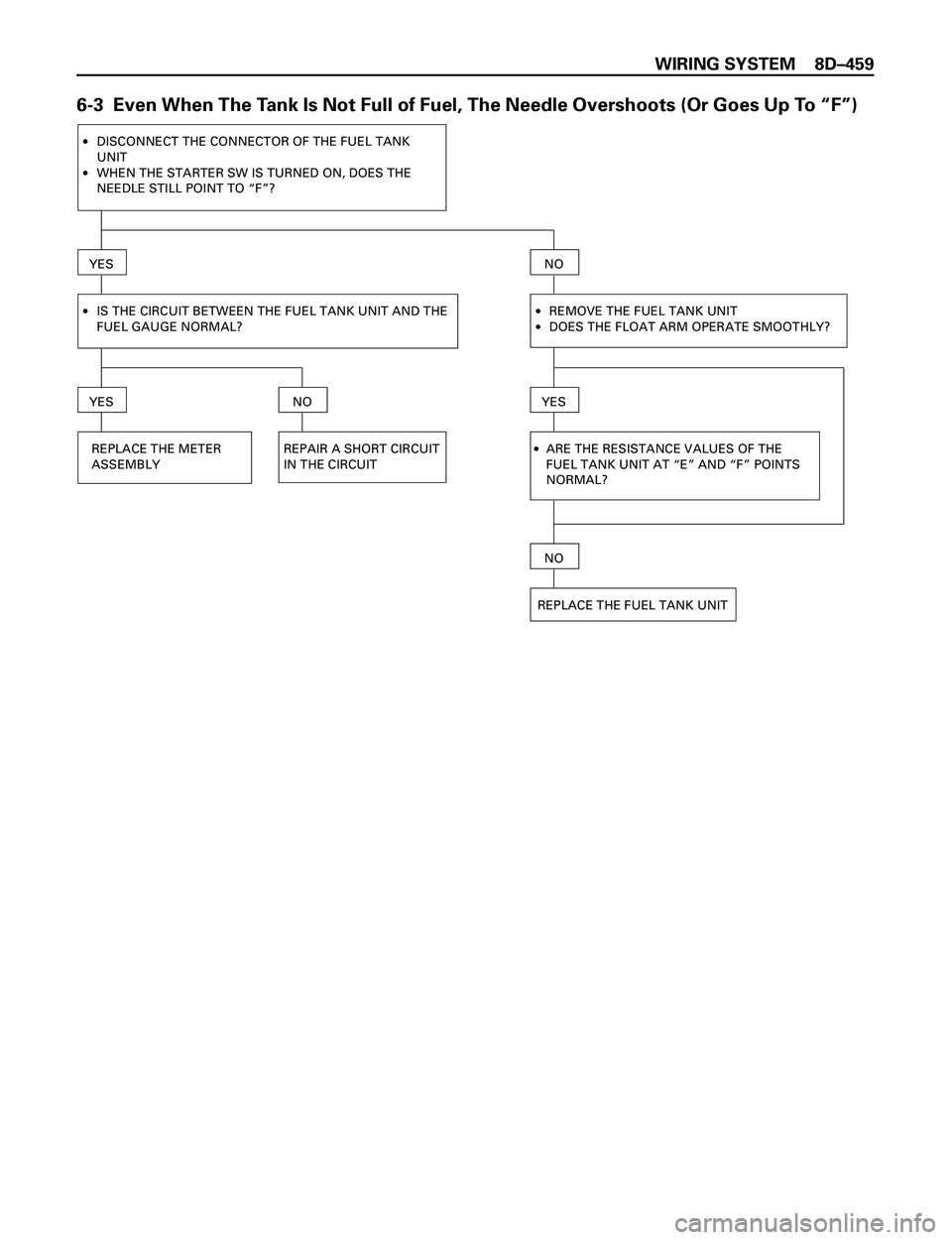

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ459 6-3 Even When The Tank Is Not Full of Fuel, The Needle Overshoots (Or Goes Up To ÒFÓ) · ·DISCONNECT THE CONNECTOR OF THE FUEL TANK UNIT WHEN THE STARTER SW IS TURNED ON, DOE

Page 3053 of 3573

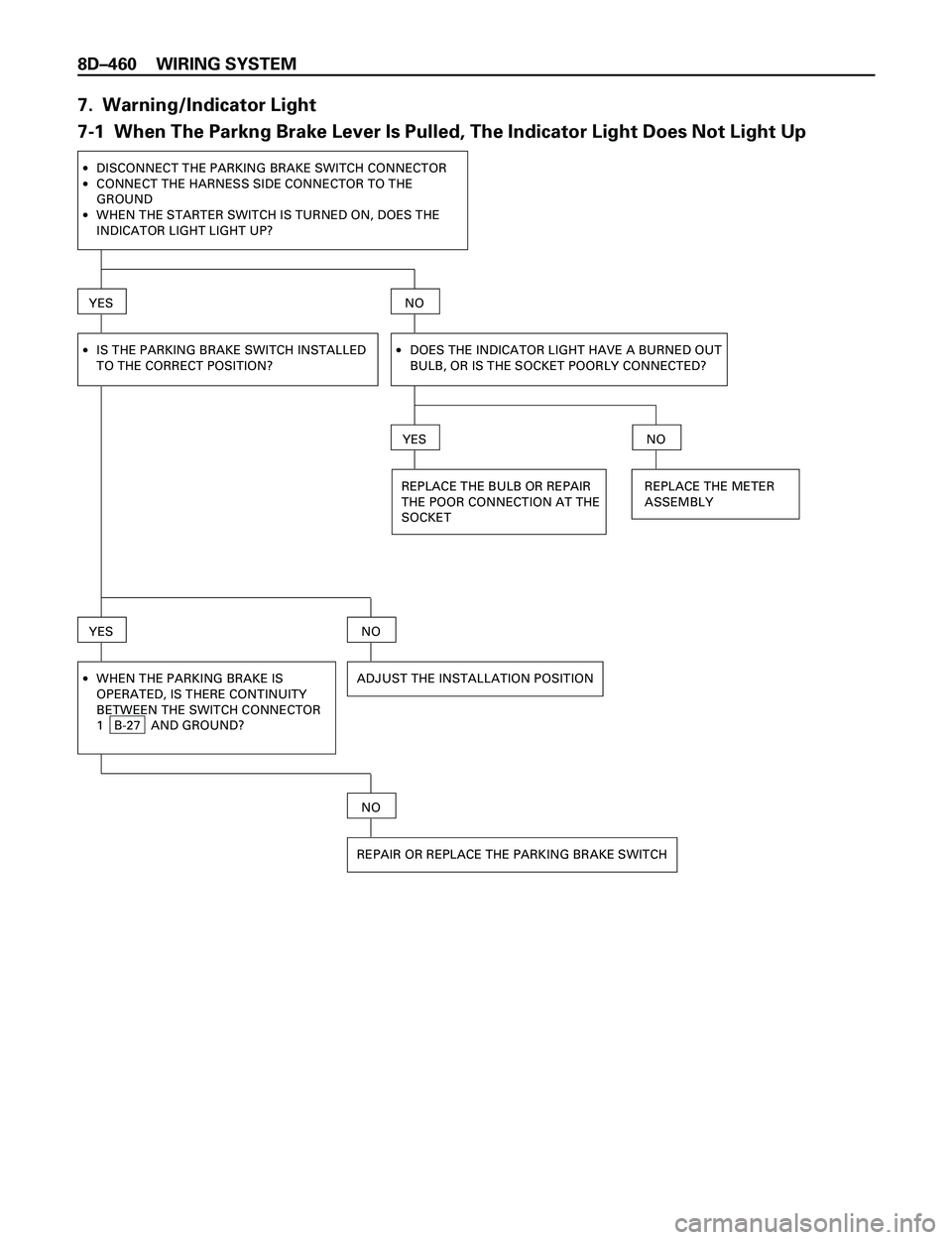

ISUZU TROOPER 1998 Service Repair Manual 8DÐ460 WIRING SYSTEM 7. Warning/Indicator Light 7-1 When The Parkng Brake Lever Is Pulled, The Indicator Light Does Not Light Up · · ·DISCONNECT THE PARKING BRAKE SWITCH CONNECTOR CONNECT THE HA

Page 3054 of 3573

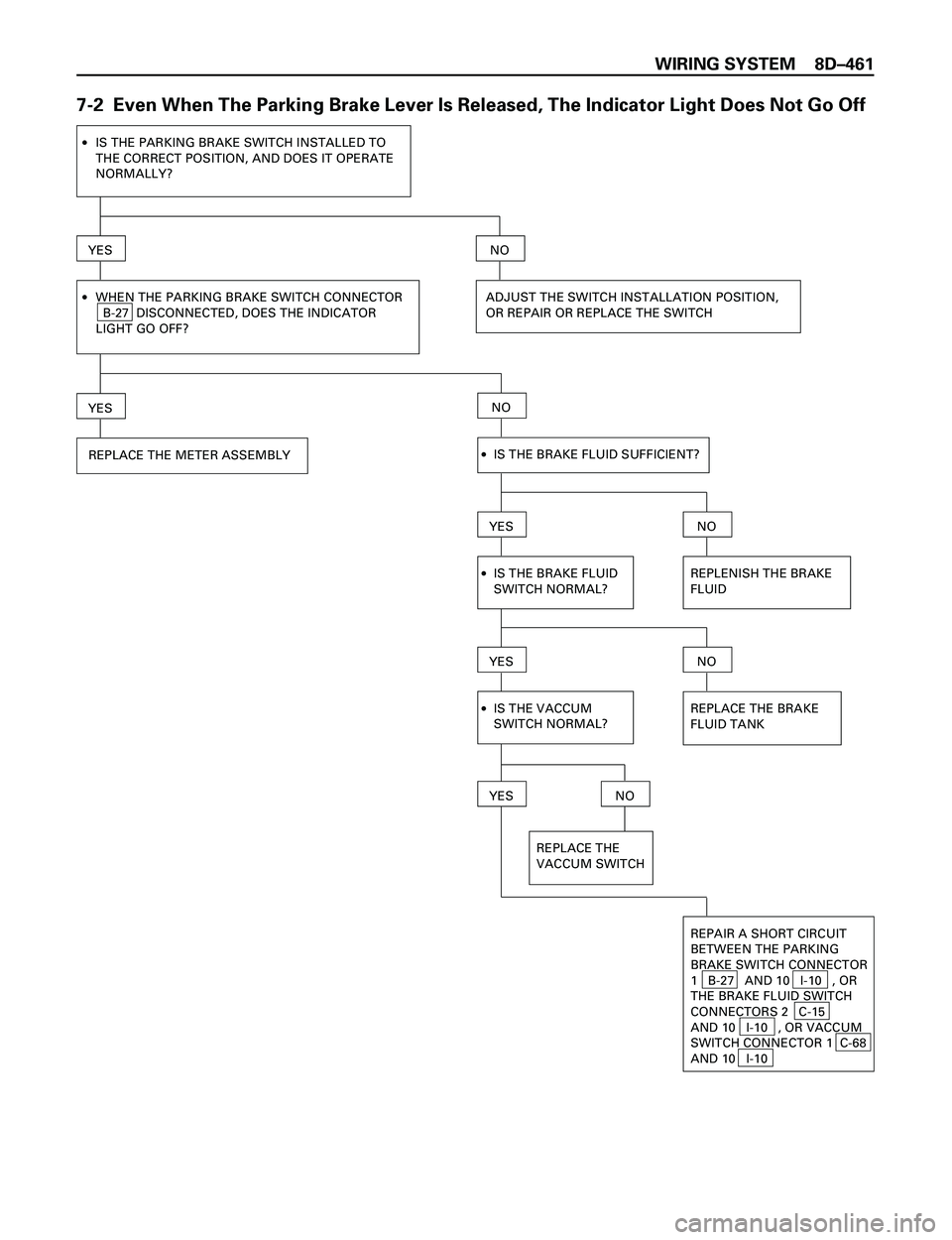

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ461 7-2 Even When The Parking Brake Lever Is Released, The Indicator Light Does Not Go Off ·IS THE PARKING BRAKE SWITCH INSTALLED TO THE CORRECT POSITION, AND DOES IT OPERATE NORMA

Page 3055 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ462 WIRING SYSTEM 7-3 While The Engine Is Operating, The Oil Pressure Warning Light Does Not Go Off · IS THE ENGINE OIL PRESSURE NORMAL? YES ·WITH THE OIL PRESSURE SWITCH CONNECTOR E-1 OR

Page 3056 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ463 7-5 Even When The Fuel Tank Is Empty, The Low Fuel Warning Light Does Not Light Up ·DOES THE WARNING LIGHT HAVE A BURNED OUT BULB, OR IS THE SOCKET POORLY CONNECTED? · ·DISCO
