Page 1425 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±308 ENGINE DRIVEABILITY AND EMISSIONS Accelerator Pedal Replacement Removal Procedure 1. Disconnect the cruise control cable from the accelerator pedal assembly. TS24053 2. Disconnect the accelera

Page 1426 of 3573

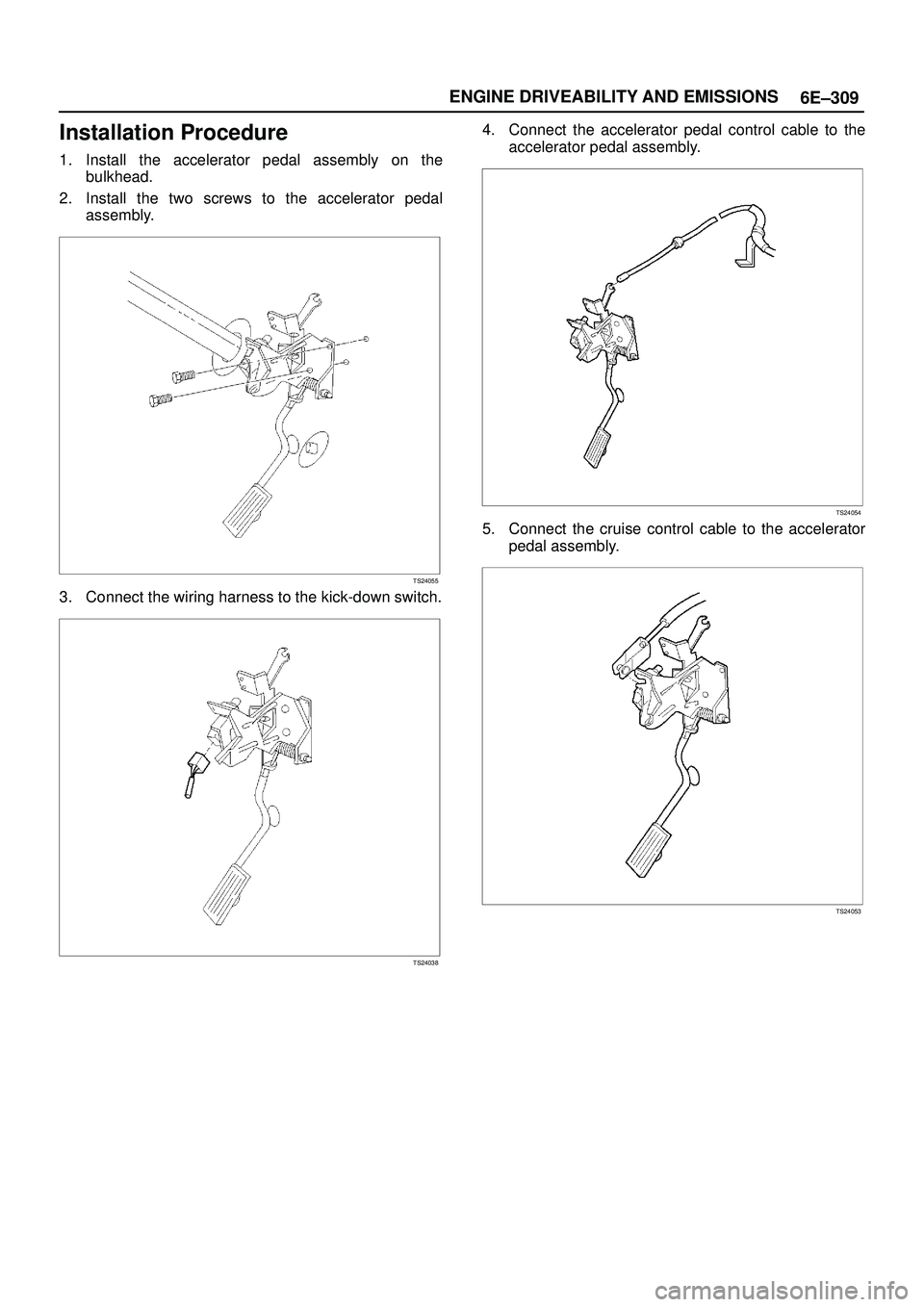

ISUZU TROOPER 1998 Service Repair Manual 6E±309 ENGINE DRIVEABILITY AND EMISSIONS Installation Procedure 1. Install the accelerator pedal assembly on the bulkhead. 2. Install the two screws to the accelerator pedal assembly. TS24055 3. Conn

Page 1427 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±310 ENGINE DRIVEABILITY AND EMISSIONS Pedal Stroke Adjustment Procedure 1. Loosen the jam nut and rotate the kick-down switch counterclockwise. TS24039 2. Fully depress the pedal and hold it by ha

Page 1428 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±311 ENGINE DRIVEABILITY AND EMISSIONS 3. Disconnect the fuel line from the fuel filter on the engine side. 4. Disconnect the fuel line from the fuel filter on the fuel tank side. 041RW006 5. Remov

Page 1429 of 3573

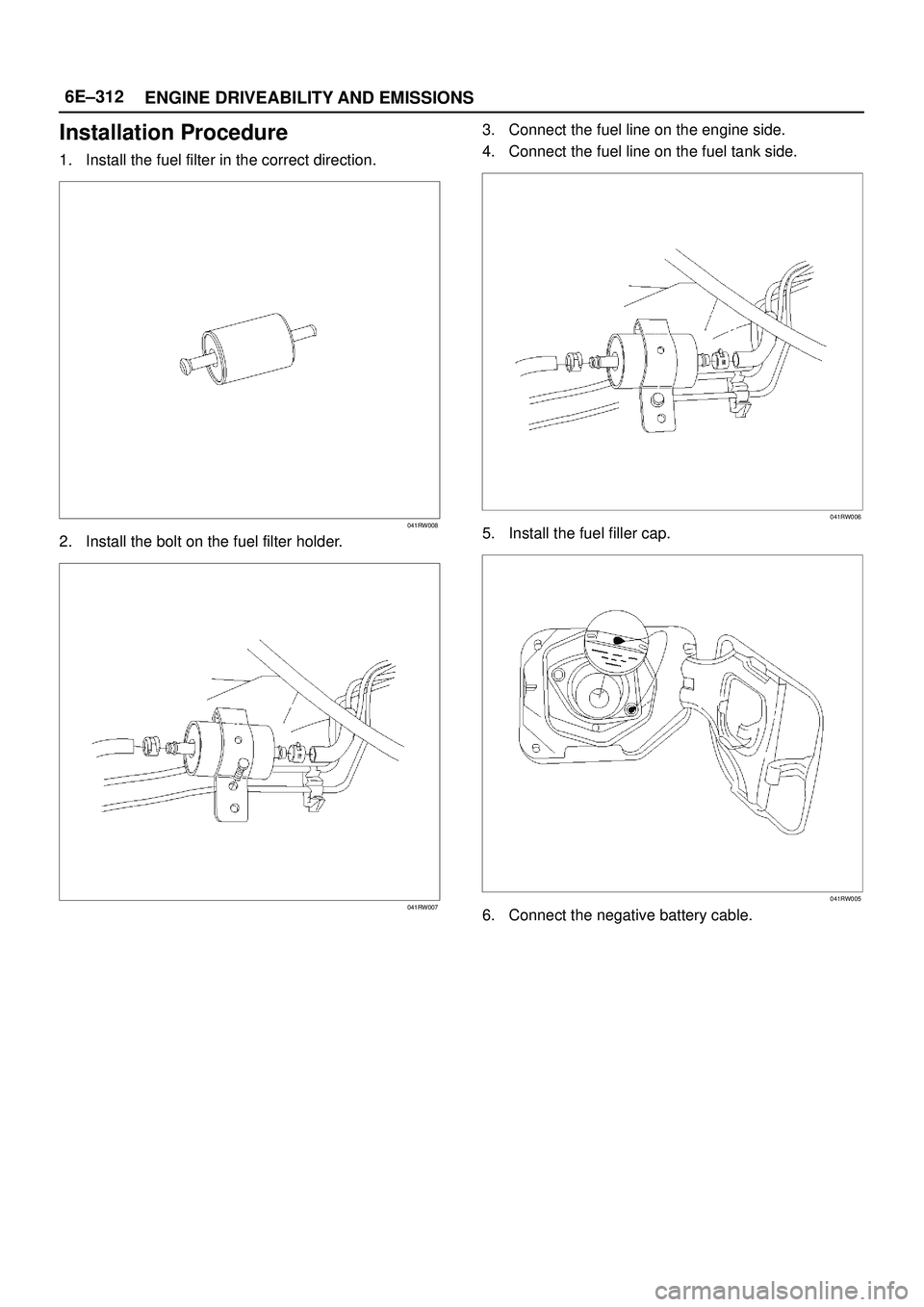

ISUZU TROOPER 1998 Service Repair Manual 6E±312 ENGINE DRIVEABILITY AND EMISSIONS Installation Procedure 1. Install the fuel filter in the correct direction. 041RW008 2. Install the bolt on the fuel filter holder. 041RW007 3. Connect the fu

Page 1430 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±313 ENGINE DRIVEABILITY AND EMISSIONS Fuel Gauge Unit Removal Procedure 1. Disconnect the negative battery cable. 2. Loosen the fuel filler cap. 3. Drain the fuel from the tank. Tighten Tighten t

Page 1431 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±314 ENGINE DRIVEABILITY AND EMISSIONS 3. Connect the wiring connector to the fuel gauge unit. TS23771 4. Fill the fuel tank with fuel. Tighten the fuel filler cap. Check for leaks at the fuel ga

Page 1432 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±315 ENGINE DRIVEABILITY AND EMISSIONS Installation Procedure 1. Install the O-ring backup on the fuel injector. 2. Install the new O-ring on the fuel injector. 3. Install the fuel injector on the
