Page 1105 of 3573
6D3±14STARTING AND CHARGING SYSTEM
If the measured value is out of standard, insert dust cover,
or disassemble and adjust.
065RW019

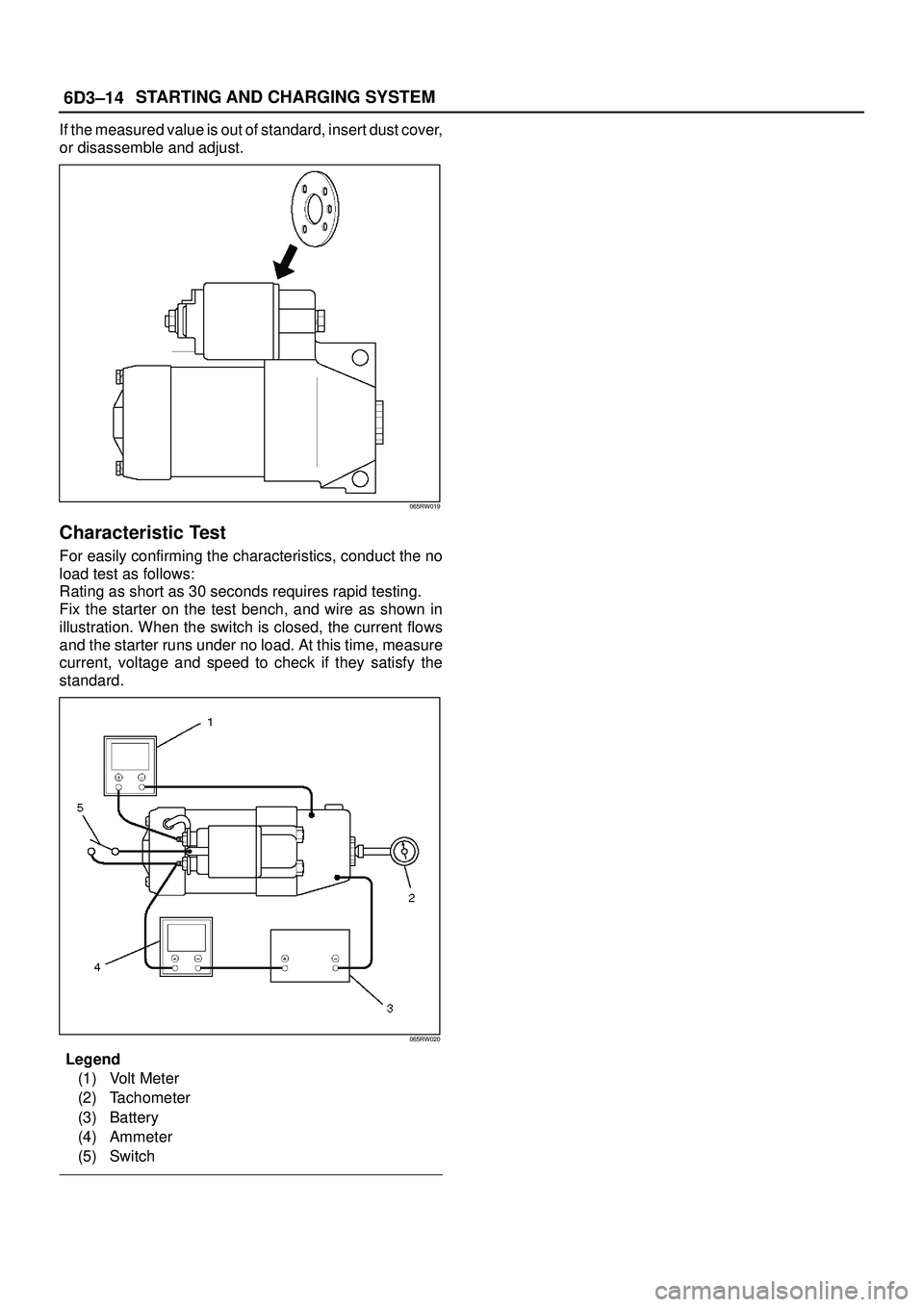

Characteristic Test
For easily confirming the characteristics, conduct the no
load test as follows:
Rating as short as 30 seconds requires rapid testing.
Fix the starter on the test bench, and wire as shown in
illustration. When the switch is closed, the current flows
and the starter runs under no load. At this time, measure
current, voltage and speed to check if they satisfy the
standard.
065RW020
Legend
(1) Volt Meter
(2) Tachometer
(3) Battery
(4) Ammeter
(5) Switch
Page 1106 of 3573
6D3±15 STARTING AND CHARGING SYSTEM

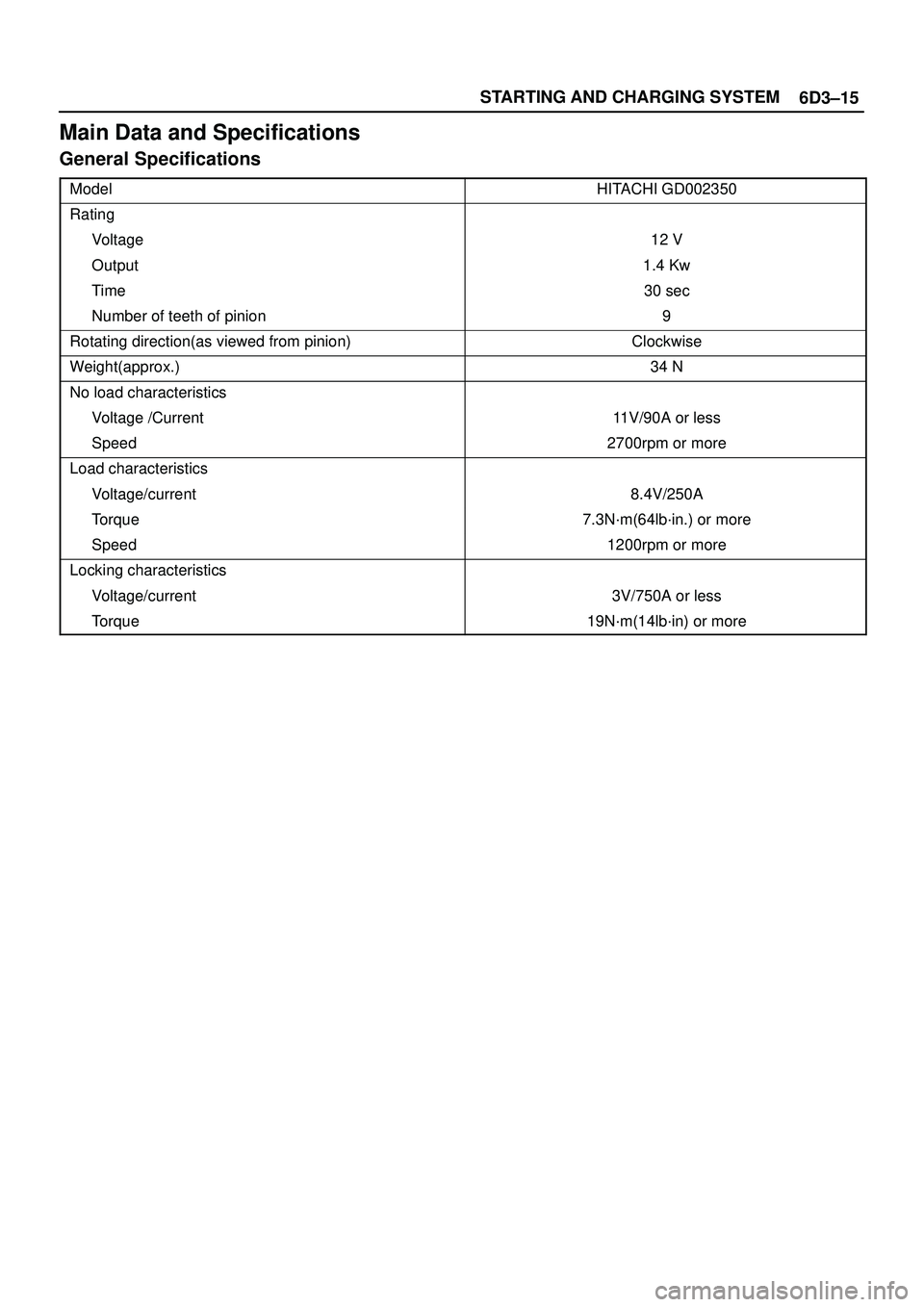

Main Data and Specifications
General Specifications
ModelHITACHI GD002350
Rating
Voltage12 V
Output1.4 Kw
Time30 sec
Number of teeth of pinion 9
Rotating direction(as viewed from pinion)Clockwise
Weight(approx.)34 N
No load characteristics
Voltage /Current 11V/90A or less
Speed 2700rpm or more
Load characteristics
Voltage/current 8.4V/250A
Torque 7.3N´m(64lb´in.) or more
Speed 1200rpm or more
Locking characteristics
Voltage/current 3V/750A or less
Torque19N´m(14lb´in) or more
Page 1107 of 3573
6D3±16STARTING AND CHARGING SYSTEM
Torque Specifications
N´m (Kg´m/lb ft)
E06RW044
Page 1108 of 3573

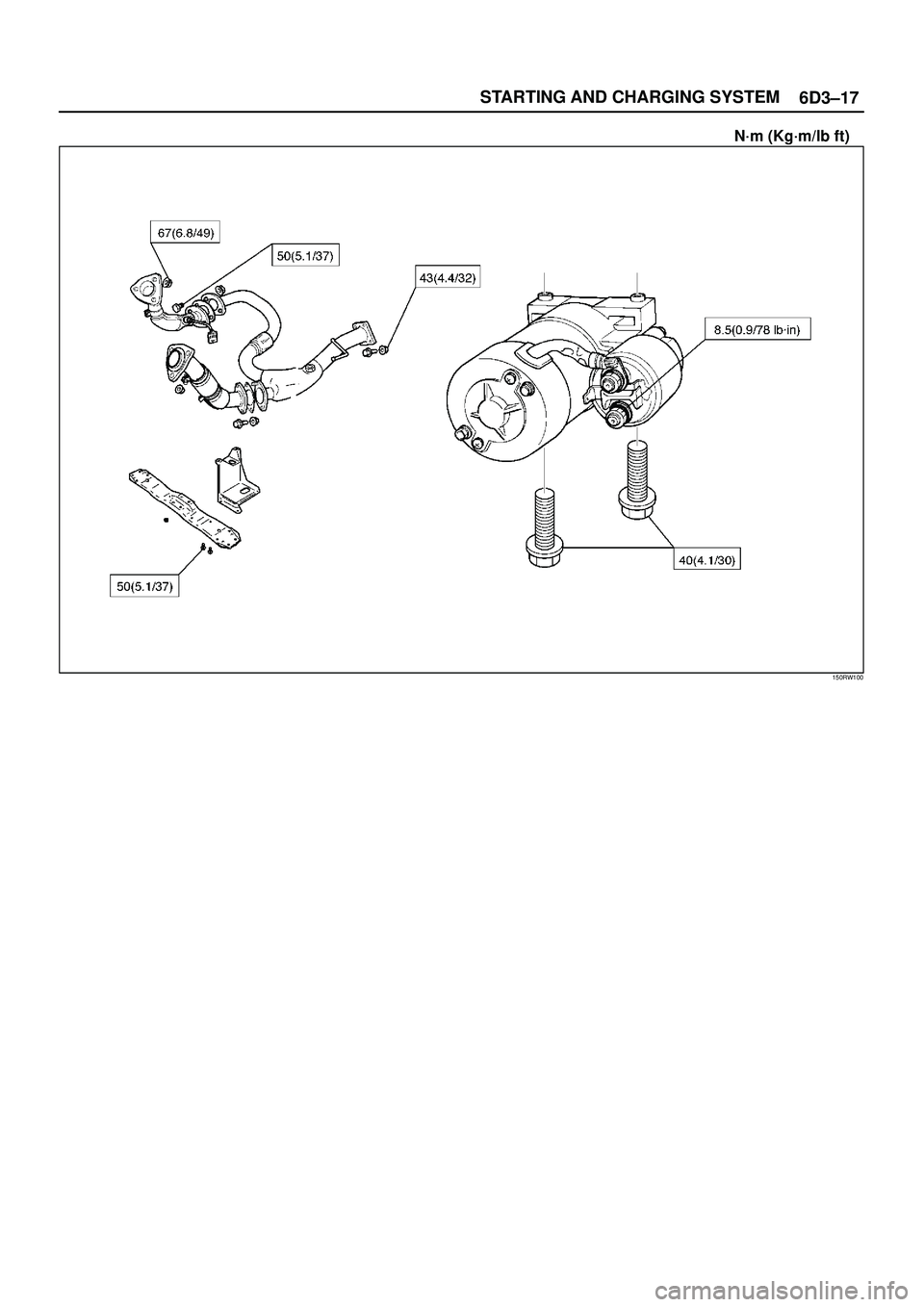

6D3±17 STARTING AND CHARGING SYSTEM
N´m (Kg´m/lb ft)
150RW100
Page 1109 of 3573

6D3±18STARTING AND CHARGING SYSTEM

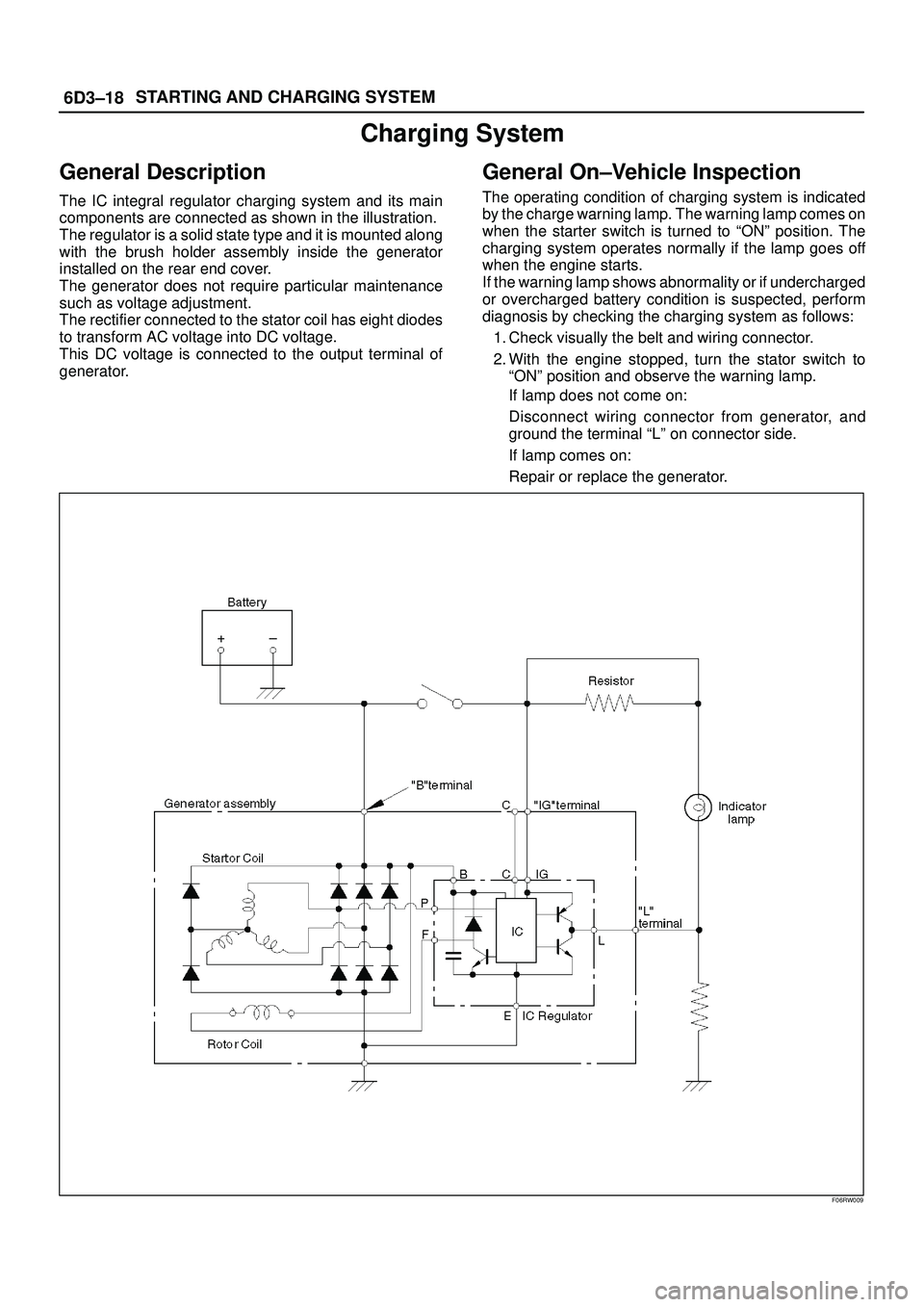

Charging System
General Description
The IC integral regulator charging system and its main
components are connected as shown in the illustration.
The regulator is a solid state type and it is mounted along
with the brush holder assembly inside the generator
installed on the rear end cover.
The generator does not require particular maintenance
such as voltage adjustment.
The rectifier connected to the stator coil has eight diodes
to transform AC voltage into DC voltage.
This DC voltage is connected to the output terminal of
generator.
General On±Vehicle Inspection
The operating condition of charging system is indicated
by the charge warning lamp. The warning lamp comes on
when the starter switch is turned to ªONº position. The
charging system operates normally if the lamp goes off
when the engine starts.
If the warning lamp shows abnormality or if undercharged
or overcharged battery condition is suspected, perform
diagnosis by checking the charging system as follows:
1. Check visually the belt and wiring connector.
2. With the engine stopped, turn the stator switch to
ªONº position and observe the warning lamp.
If lamp does not come on:
Disconnect wiring connector from generator, and
ground the terminal ªLº on connector side.
If lamp comes on:
Repair or replace the generator.
F06RW009
Page 1110 of 3573

6D3±19 STARTING AND CHARGING SYSTEM

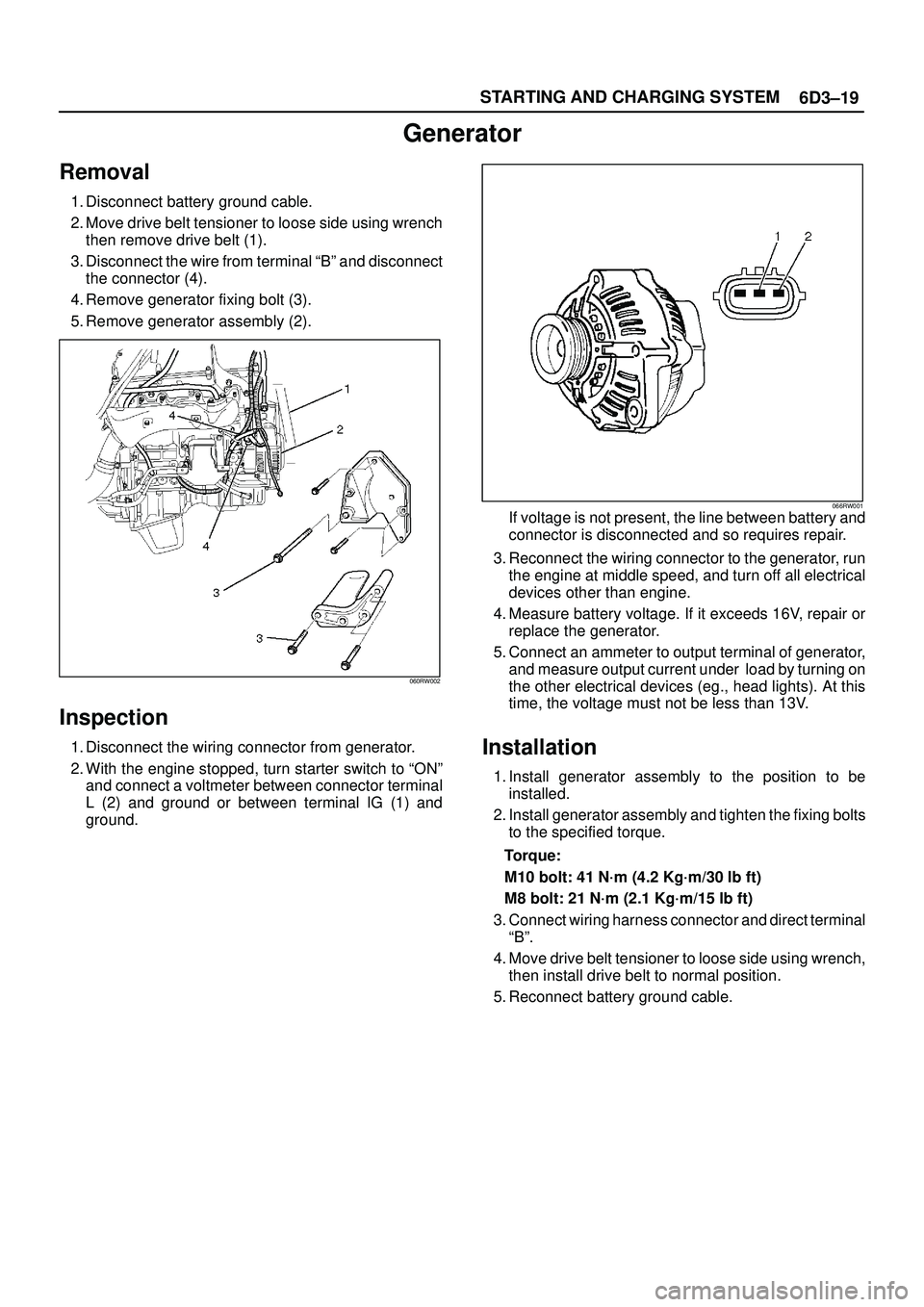

Generator
Removal
1. Disconnect battery ground cable.
2. Move drive belt tensioner to loose side using wrench
then remove drive belt (1).
3. Disconnect the wire from terminal ªBº and disconnect
the connector (4).
4. Remove generator fixing bolt (3).
5. Remove generator assembly (2).
060RW002
Inspection
1. Disconnect the wiring connector from generator.
2. With the engine stopped, turn starter switch to ªONº
and connect a voltmeter between connector terminal
L (2) and ground or between terminal IG (1) and
ground.
066RW001If voltage is not present, the line between battery and
connector is disconnected and so requires repair.
3. Reconnect the wiring connector to the generator, run
the engine at middle speed, and turn off all electrical
devices other than engine.
4. Measure battery voltage. If it exceeds 16V, repair or
replace the generator.
5. Connect an ammeter to output terminal of generator,
and measure output current under load by turning on
the other electrical devices (eg., head lights). At this
time, the voltage must not be less than 13V.
Installation
1. Install generator assembly to the position to be
installed.
2. Install generator assembly and tighten the fixing bolts
to the specified torque.
Torque:
M10 bolt: 41 N´m (4.2 Kg´m/30 lb ft)
M8 bolt: 21 N´m (2.1 Kg´m/15 lb ft)
3. Connect wiring harness connector and direct terminal
ªBº.
4. Move drive belt tensioner to loose side using wrench,
then install drive belt to normal position.
5. Reconnect battery ground cable.
Page 1111 of 3573
6D3±20STARTING AND CHARGING SYSTEM

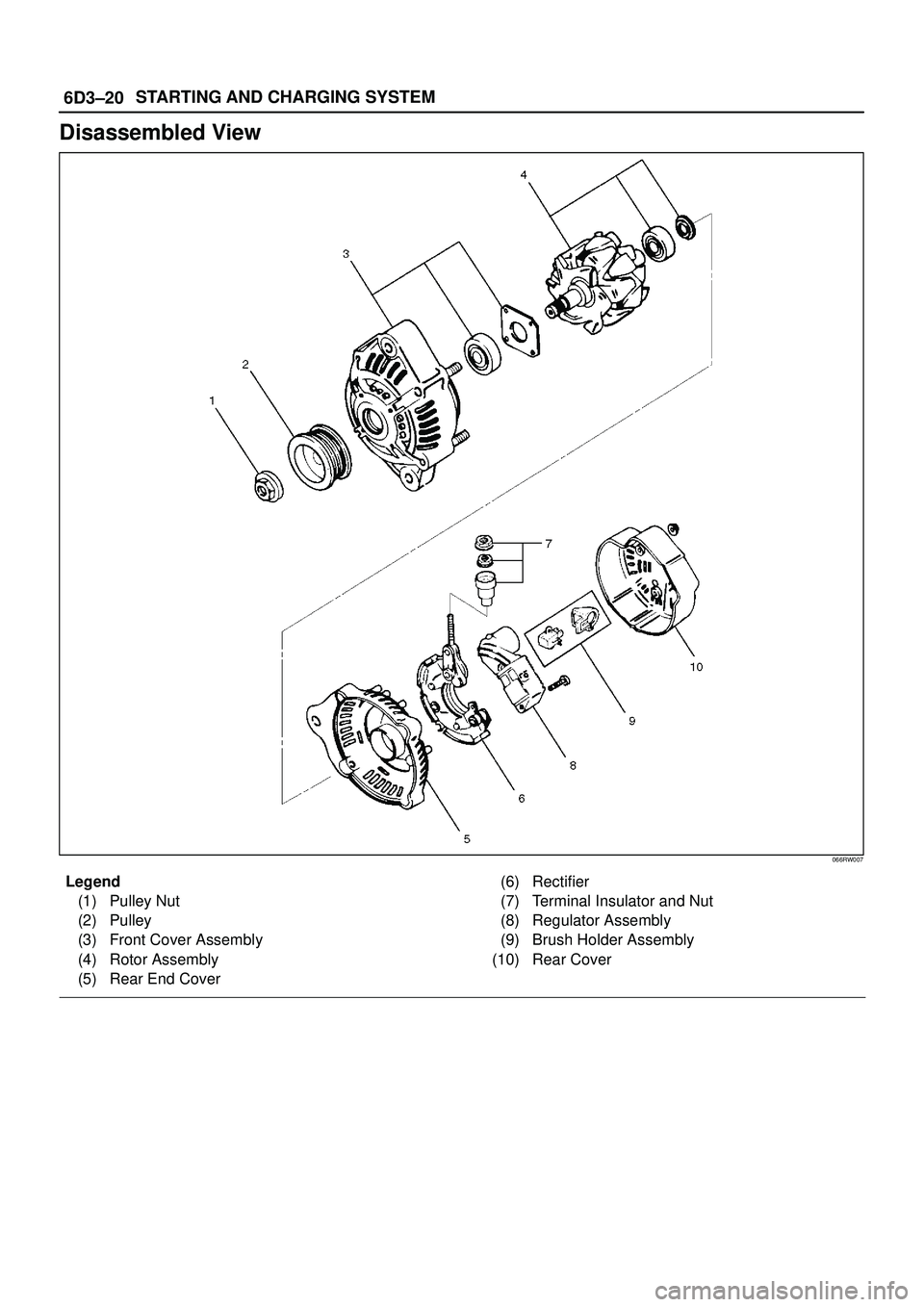

Disassembled View
066RW007
Legend
(1) Pulley Nut
(2) Pulley
(3) Front Cover Assembly
(4) Rotor Assembly
(5) Rear End Cover(6) Rectifier
(7) Terminal Insulator and Nut
(8) Regulator Assembly
(9) Brush Holder Assembly
(10) Rear Cover
Page 1112 of 3573
6D3±21 STARTING AND CHARGING SYSTEM

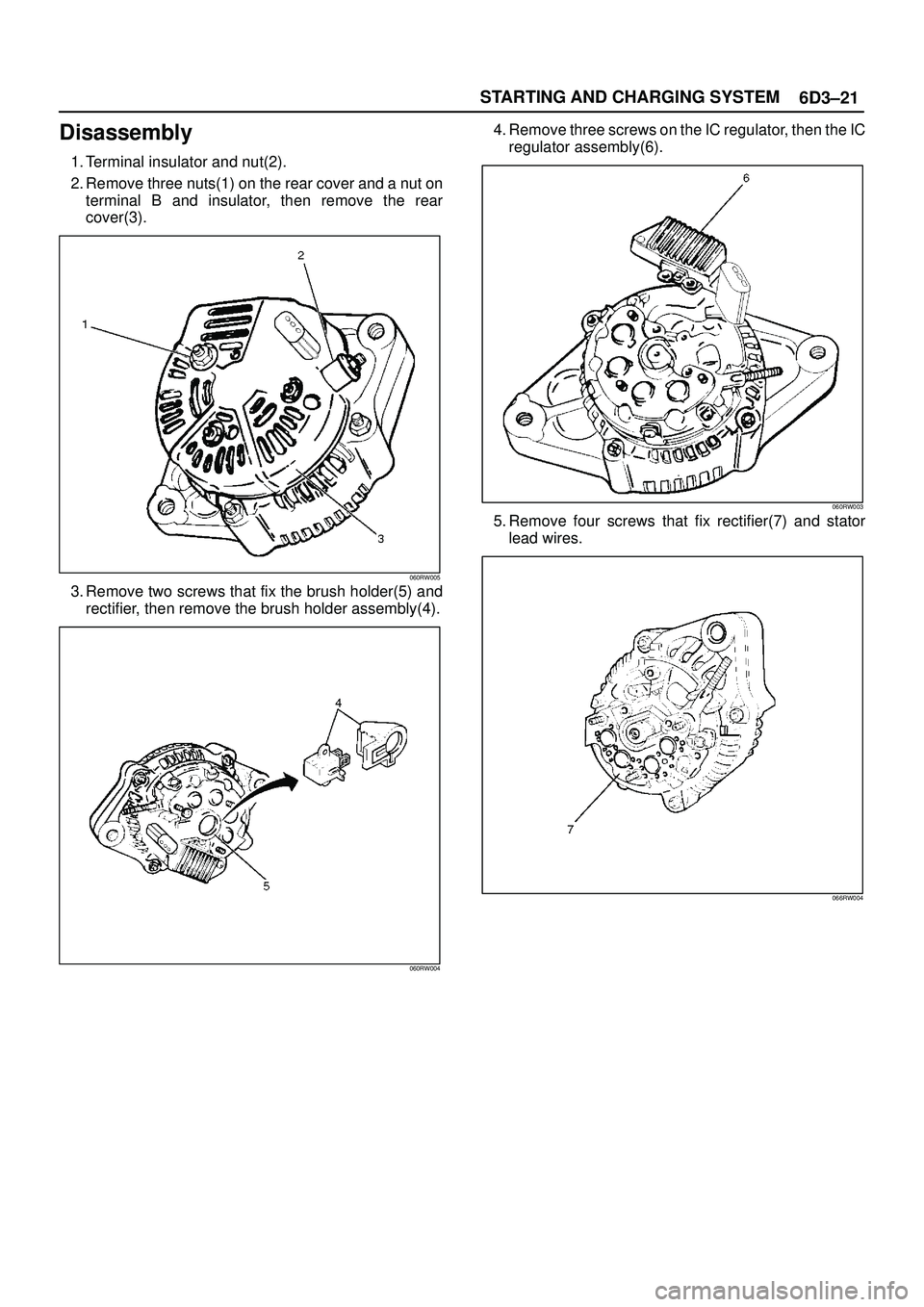

Disassembly
1. Terminal insulator and nut(2).
2. Remove three nuts(1) on the rear cover and a nut on
terminal B and insulator, then remove the rear
cover(3).
060RW005
3. Remove two screws that fix the brush holder(5) and
rectifier, then remove the brush holder assembly(4).
060RW004
4. Remove three screws on the IC regulator, then the IC
regulator assembly(6).
060RW003
5. Remove four screws that fix rectifier(7) and stator
lead wires.
066RW004
