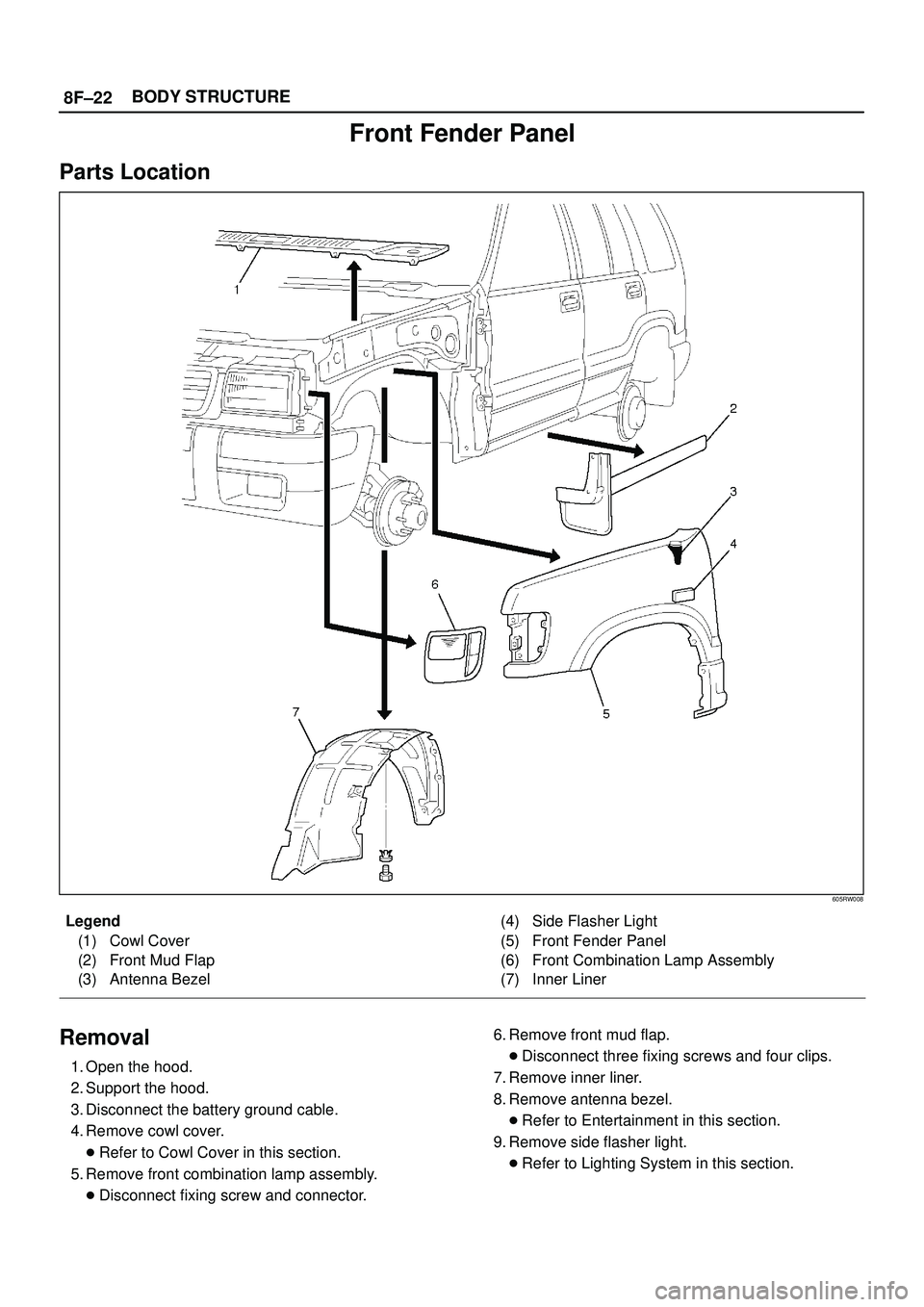

ISUZU TROOPER 1998 Service Repair Manual 8F±22BODY STRUCTURE Front Fender Panel Parts Location 605RW008 Legend (1) Cowl Cover (2) Front Mud Flap (3) Antenna Bezel(4) Side Flasher Light (5) Front Fender Panel (6) Front Combination Lamp Assem

Page 3218 of 3573

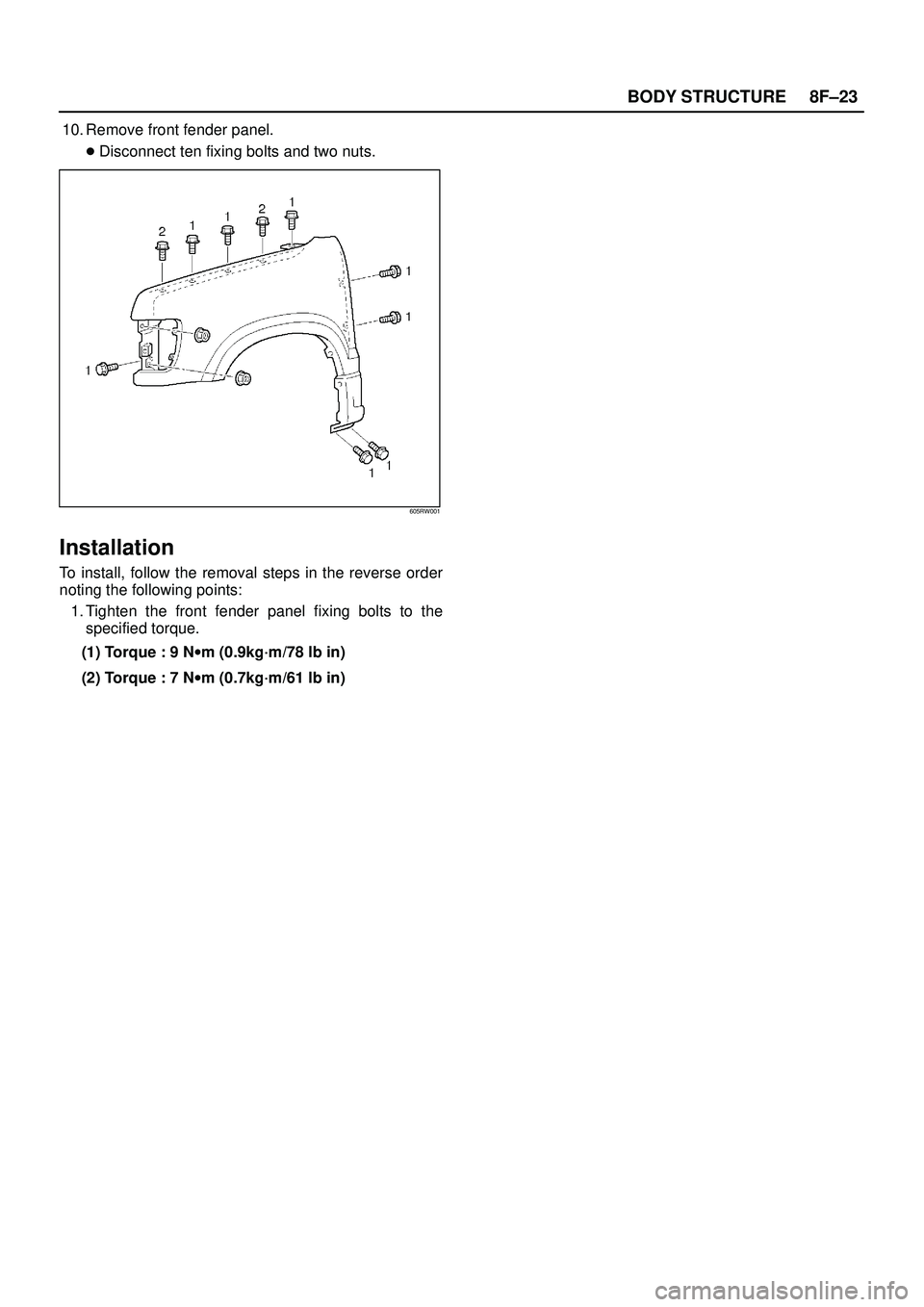

ISUZU TROOPER 1998 Service Repair Manual 8F±23 BODY STRUCTURE 10. Remove front fender panel. Disconnect ten fixing bolts and two nuts. 605RW001 Installation To install, follow the removal steps in the reverse order noting the following poi

Page 3219 of 3573

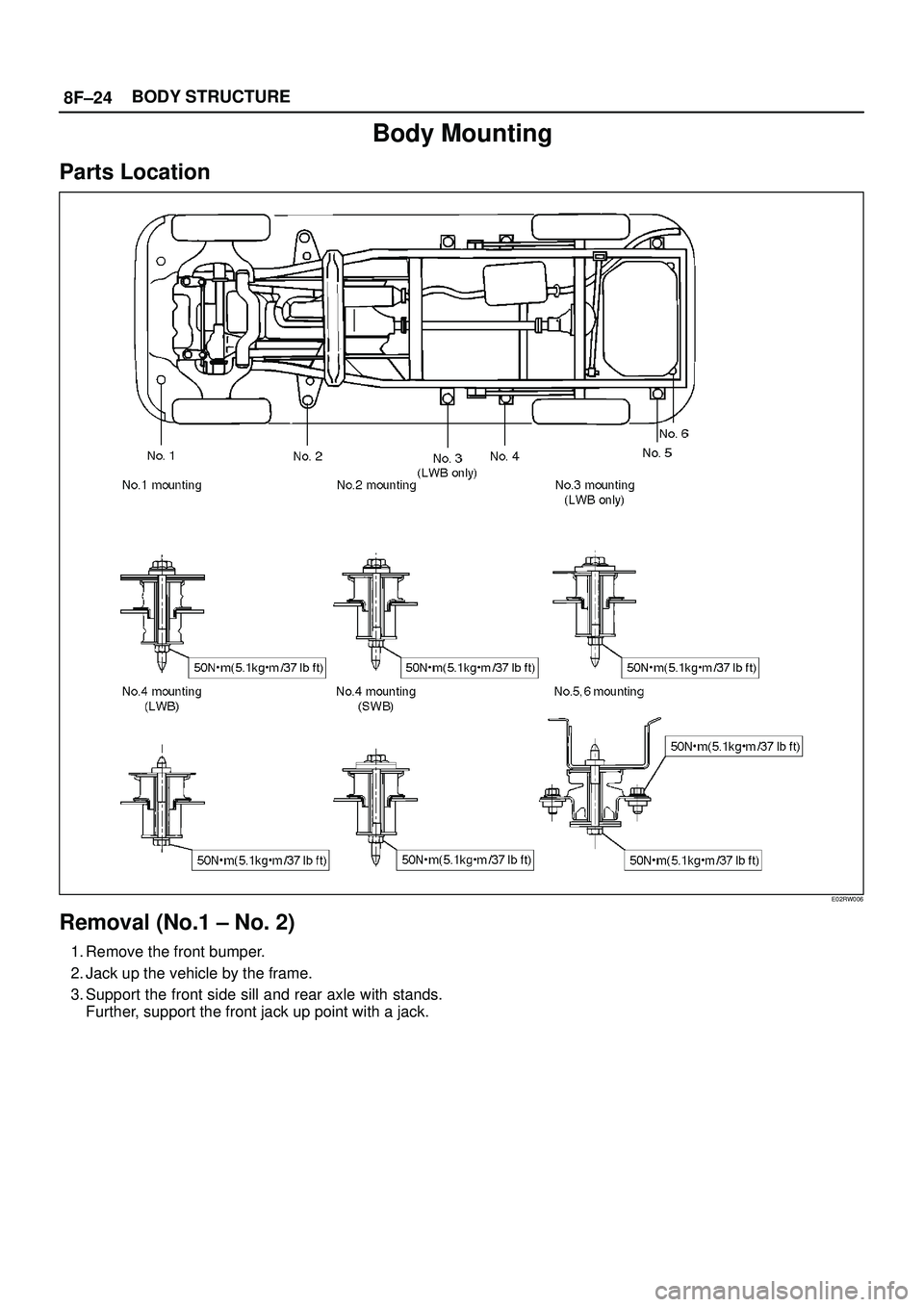

ISUZU TROOPER 1998 Service Repair Manual 8F±24BODY STRUCTURE Body Mounting Parts Location E02RW006 Removal (No.1 ± No. 2) 1. Remove the front bumper. 2. Jack up the vehicle by the frame. 3. Support the front side sill and rear axle with st

Page 3220 of 3573

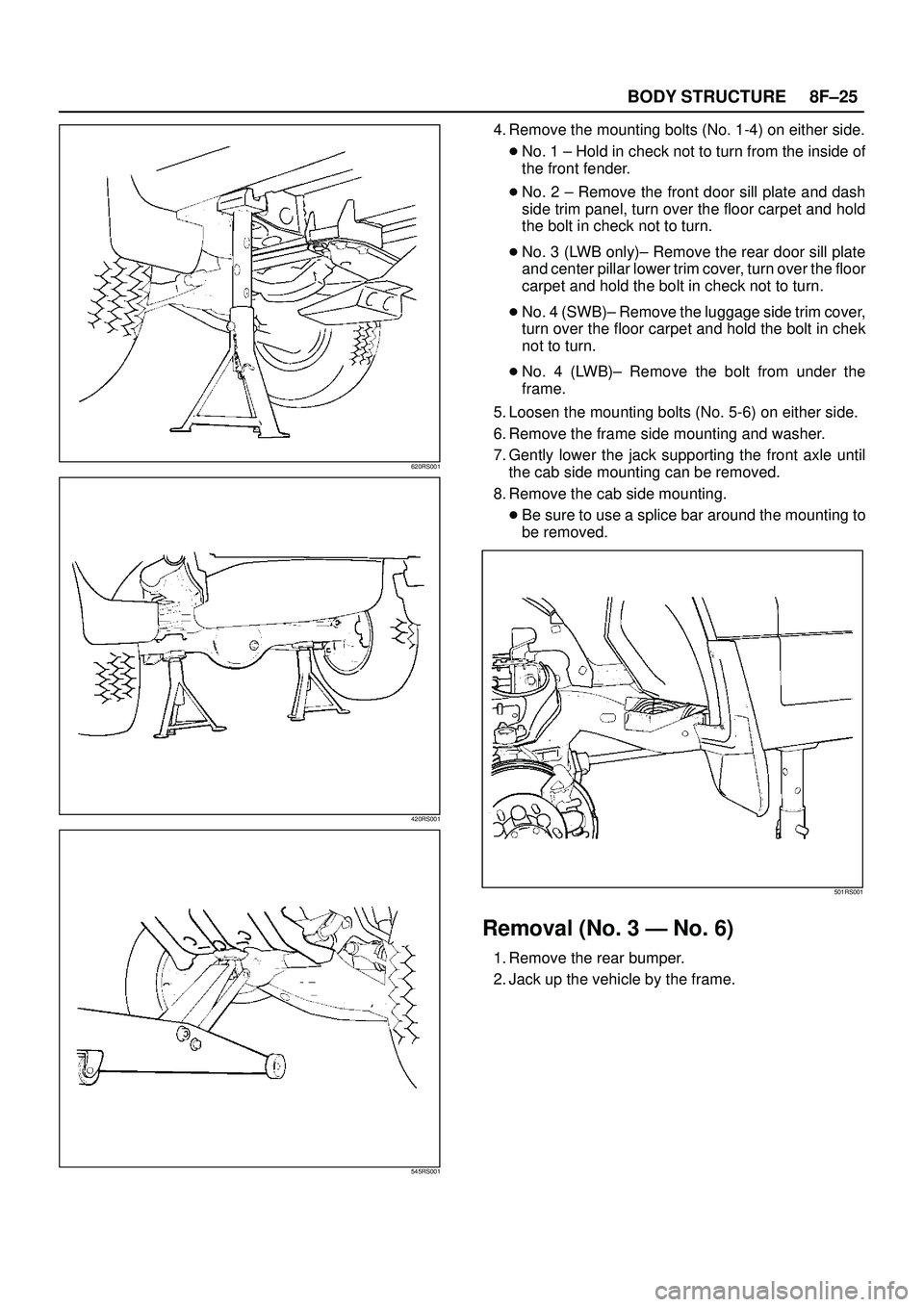

ISUZU TROOPER 1998 Service Repair Manual 8F±25 BODY STRUCTURE 620RS001 420RS001 545RS001 4. Remove the mounting bolts (No. 1-4) on either side. No. 1 ± Hold in check not to turn from the inside of the front fender. No. 2 ± Remove the fr

Page 3221 of 3573

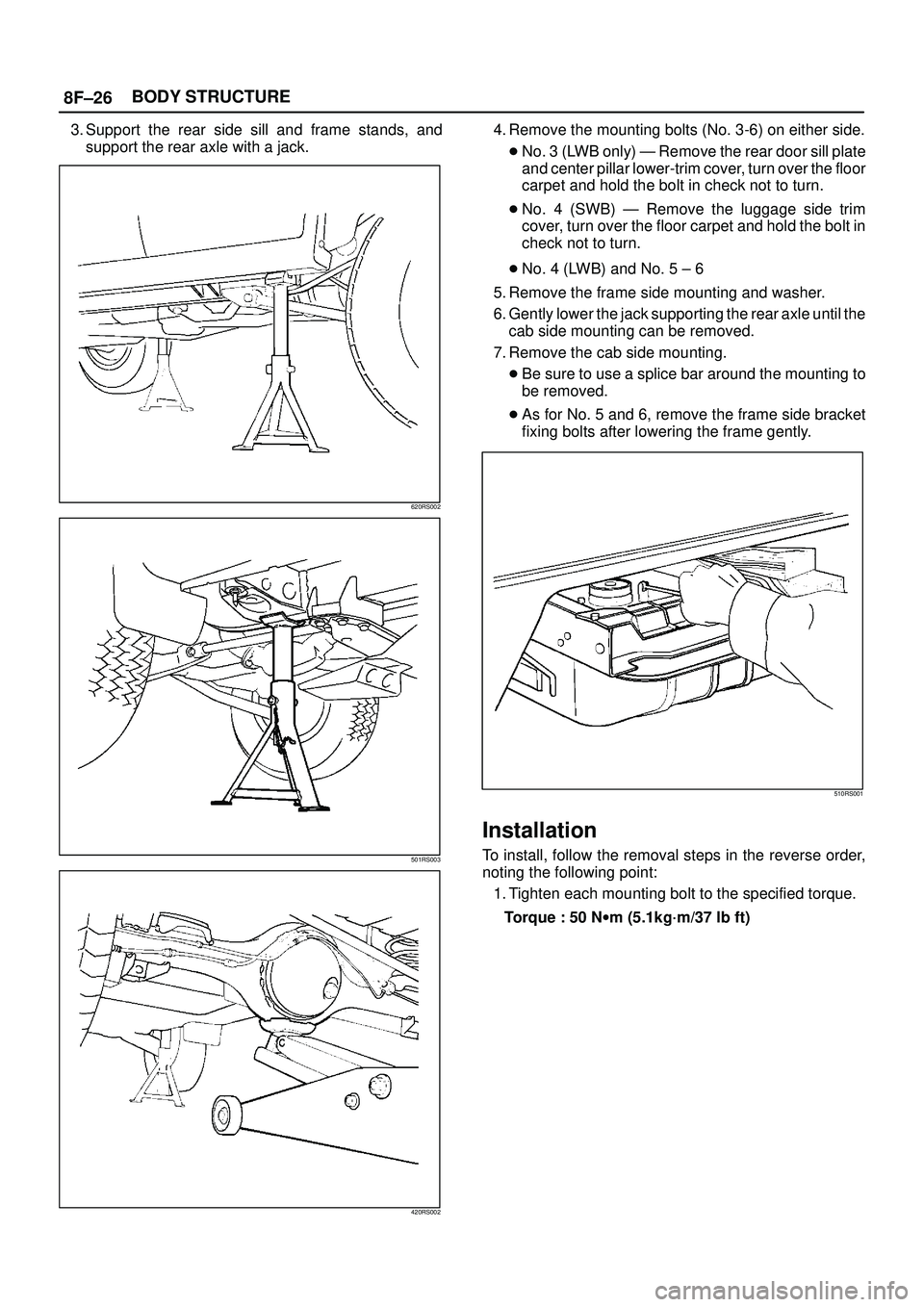

ISUZU TROOPER 1998 Service Repair Manual 8F±26BODY STRUCTURE 3. Support the rear side sill and frame stands, and support the rear axle with a jack. 620RS002 501RS003 420RS002 4. Remove the mounting bolts (No. 3-6) on either side. No. 3 (LW

Page 3222 of 3573

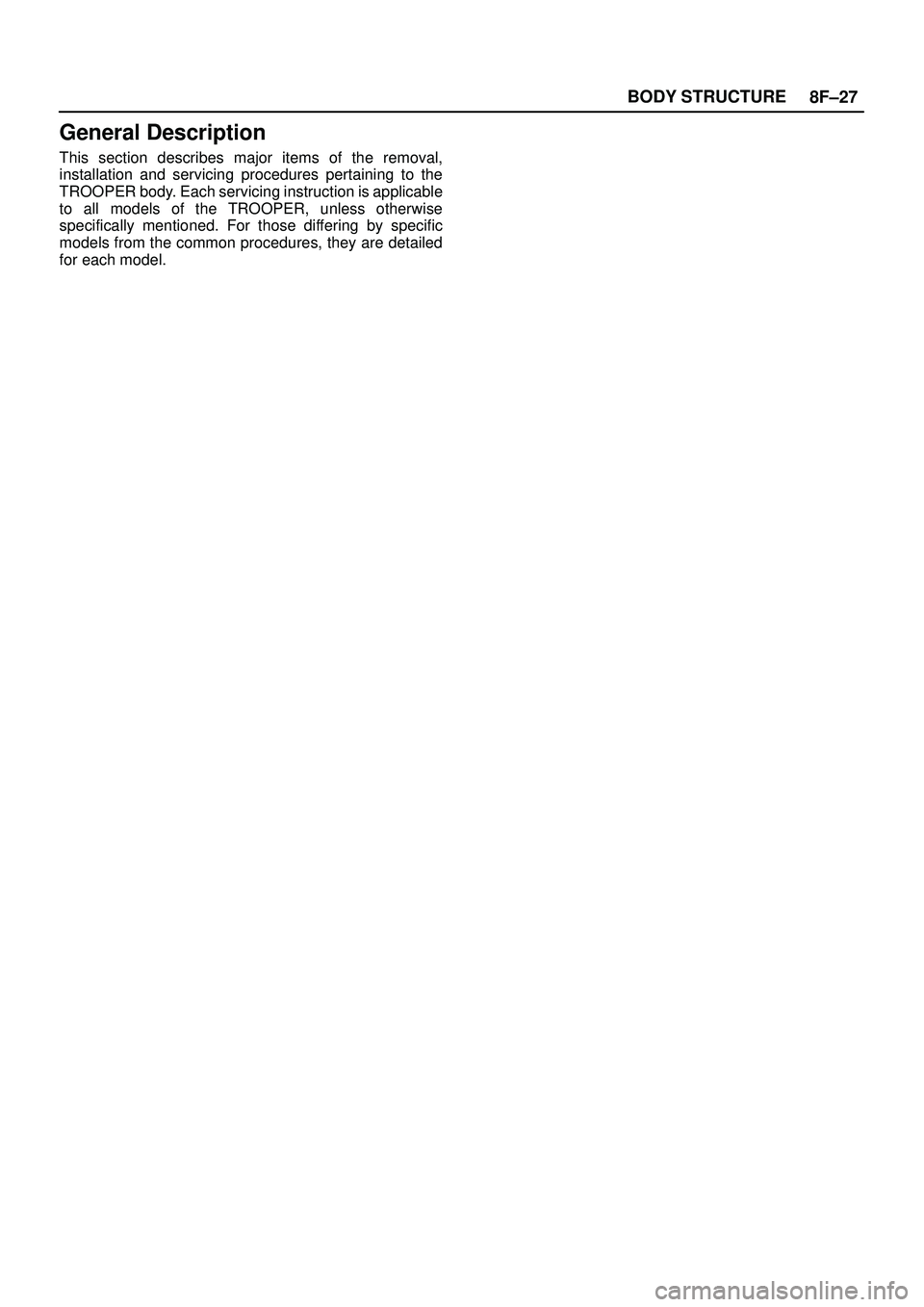

ISUZU TROOPER 1998 Service Repair Manual 8F±27 BODY STRUCTURE General Description This section describes major items of the removal, installation and servicing procedures pertaining to the TROOPER body. Each servicing instruction is applica

Page 3223 of 3573

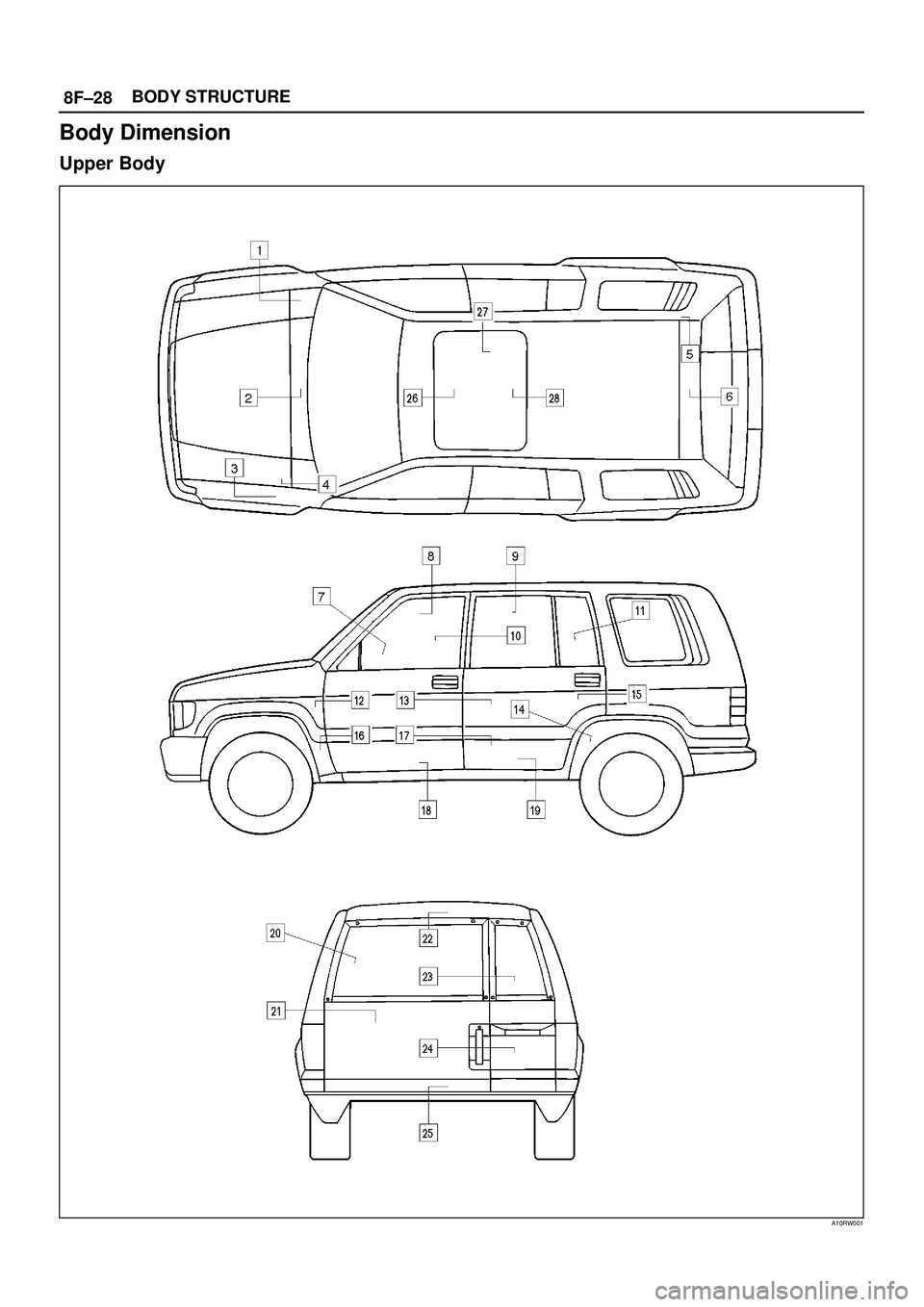

ISUZU TROOPER 1998 Service Repair Manual 8F±28BODY STRUCTURE Body Dimension Upper Body A10RW001

Page 3224 of 3573

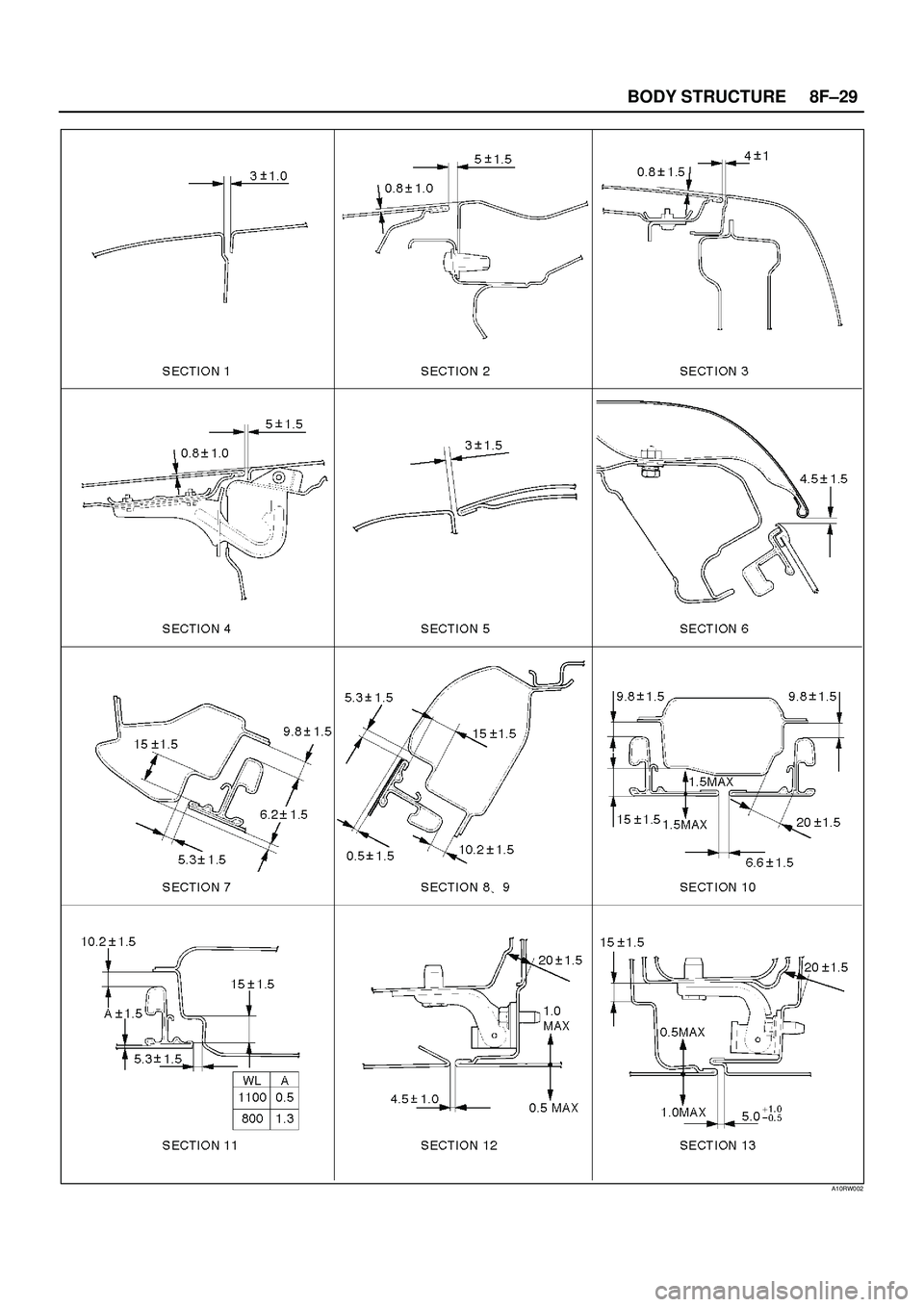

ISUZU TROOPER 1998 Service Repair Manual 8F±29 BODY STRUCTURE A10RW002
