ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±2

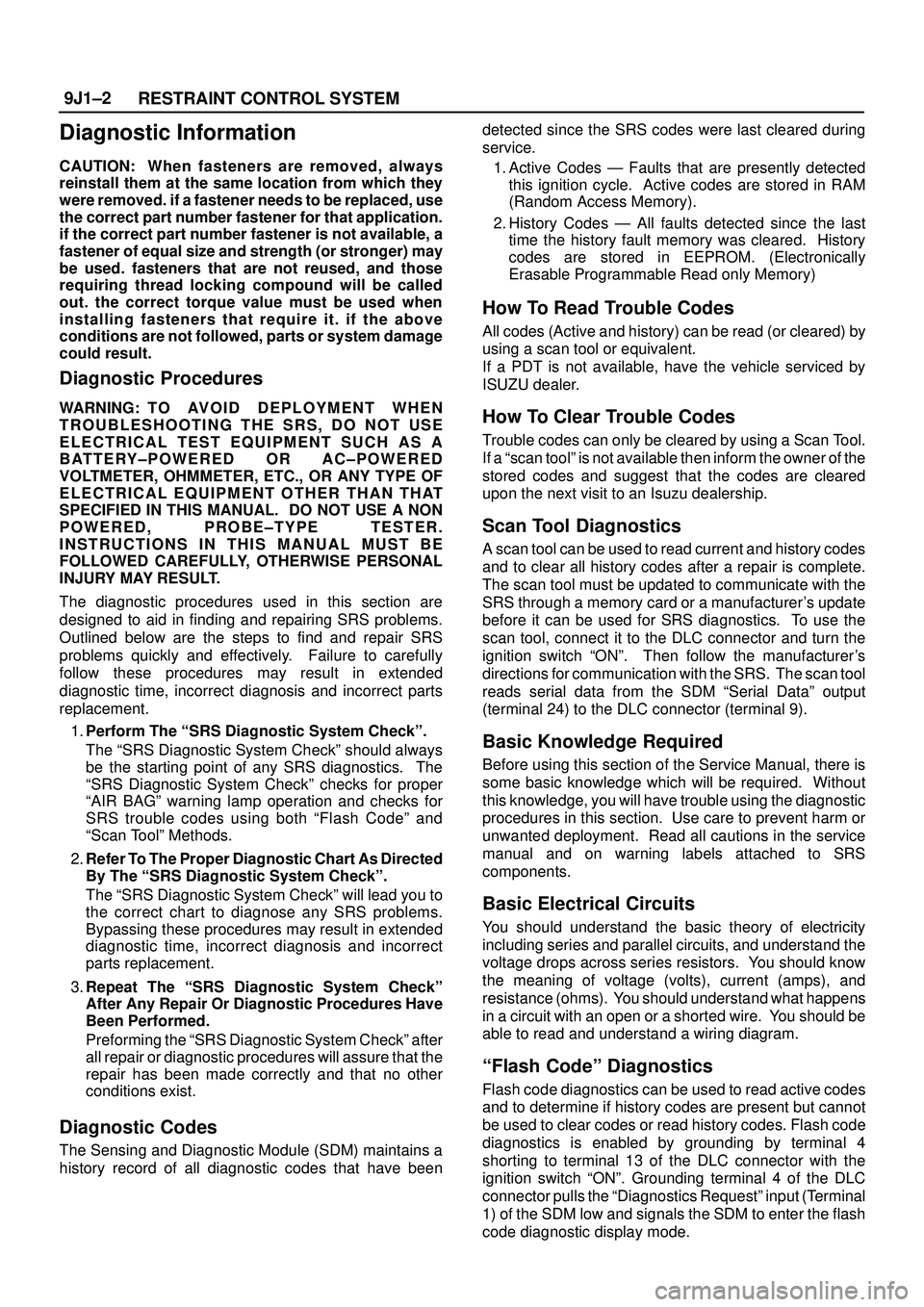

Diagnostic Information
CAUTION: When fasteners are removed, always
reinstall them at the same location from which they
were removed. if a fastener needs to be replaced,

RESTRAINT CONTROL SYSTEM 9J1±2
Diagnostic Information
CAUTION: When fasteners are removed, always
reinstall them at the same location from which they
were removed. if a fastener needs to be replaced, use
the correct part number fastener for that application.
if the correct part number fastener is not available, a
fastener of equal size and strength (or stronger) may
be used. fasteners that are not reused, and those
requiring thread locking compound will be called
out. the correct torque value must be used when
installing fasteners that require it. if the above
conditions are not followed, parts or system damage
could result.
Diagnostic Procedures
WARNING: T O AV O I D D E P L O Y M E N T W H E N
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT SUCH AS A
BATTERY±POWERED OR AC±POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL. DO NOT USE A NON
POWERED, PROBE±TYPE TESTER.
INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE PERSONAL
INJURY MAY RESULT.
The diagnostic procedures used in this section are
designed to aid in finding and repairing SRS problems.
Outlined below are the steps to find and repair SRS
problems quickly and effectively. Failure to carefully
follow these procedures may result in extended
diagnostic time, incorrect diagnosis and incorrect parts
replacement.
1.Perform The ªSRS Diagnostic System Checkº.
The ªSRS Diagnostic System Checkº should always
be the starting point of any SRS diagnostics. The
ªSRS Diagnostic System Checkº checks for proper
ªAIR BAGº warning lamp operation and checks for
SRS trouble codes using both ªFlash Codeº and
ªScan Toolº Methods.
2.Refer To The Proper Diagnostic Chart As Directed
By The ªSRS Diagnostic System Checkº.
The ªSRS Diagnostic System Checkº will lead you to
the correct chart to diagnose any SRS problems.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis and incorrect
parts replacement.
3.Repeat The ªSRS Diagnostic System Checkº
After Any Repair Or Diagnostic Procedures Have
Been Performed.
Preforming the ªSRS Diagnostic System Checkº after
all repair or diagnostic procedures will assure that the
repair has been made correctly and that no other
conditions exist.
Diagnostic Codes
The Sensing and Diagnostic Module (SDM) maintains a
history record of all diagnostic codes that have beendetected since the SRS codes were last cleared during
service.
1. Active Codes Ð Faults that are presently detected
this ignition cycle. Active codes are stored in RAM
(Random Access Memory).
2. History Codes Ð All faults detected since the last
time the history fault memory was cleared. History
codes are stored in EEPROM. (Electronically
Erasable Programmable Read only Memory)
How To Read Trouble Codes
All codes (Active and history) can be read (or cleared) by
using a scan tool or equivalent.
If a PDT is not available, have the vehicle serviced by
ISUZU dealer.
How To Clear Trouble Codes
Trouble codes can only be cleared by using a Scan Tool.
If a ªscan toolº is not available then inform the owner of the
stored codes and suggest that the codes are cleared
upon the next visit to an Isuzu dealership.
Scan Tool Diagnostics
A scan tool can be used to read current and history codes
and to clear all history codes after a repair is complete.
The scan tool must be updated to communicate with the
SRS through a memory card or a manufacturer's update
before it can be used for SRS diagnostics. To use the
scan tool, connect it to the DLC connector and turn the
ignition switch ªONº. Then follow the manufacturer's
directions for communication with the SRS. The scan tool
reads serial data from the SDM ªSerial Dataº output
(terminal 24) to the DLC connector (terminal 9).
Basic Knowledge Required
Before using this section of the Service Manual, there is
some basic knowledge which will be required. Without
this knowledge, you will have trouble using the diagnostic
procedures in this section. Use care to prevent harm or
unwanted deployment. Read all cautions in the service
manual and on warning labels attached to SRS
components.
Basic Electrical Circuits
You should understand the basic theory of electricity
including series and parallel circuits, and understand the
voltage drops across series resistors. You should know
the meaning of voltage (volts), current (amps), and
resistance (ohms). You should understand what happens
in a circuit with an open or a shorted wire. You should be
able to read and understand a wiring diagram.
ªFlash Codeº Diagnostics
Flash code diagnostics can be used to read active codes
and to determine if history codes are present but cannot
be used to clear codes or read history codes. Flash code
diagnostics is enabled by grounding by terminal 4
shorting to terminal 13 of the DLC connector with the
ignition switch ªONº. Grounding terminal 4 of the DLC
connector pulls the ªDiagnostics Requestº input (Terminal
1) of the SDM low and signals the SDM to enter the flash
code diagnostic display mode.

Page 3490 of 3573

ISUZU TROOPER 1998 Service Repair Manual 9J1±3
RESTRAINT CONTROL SYSTEM

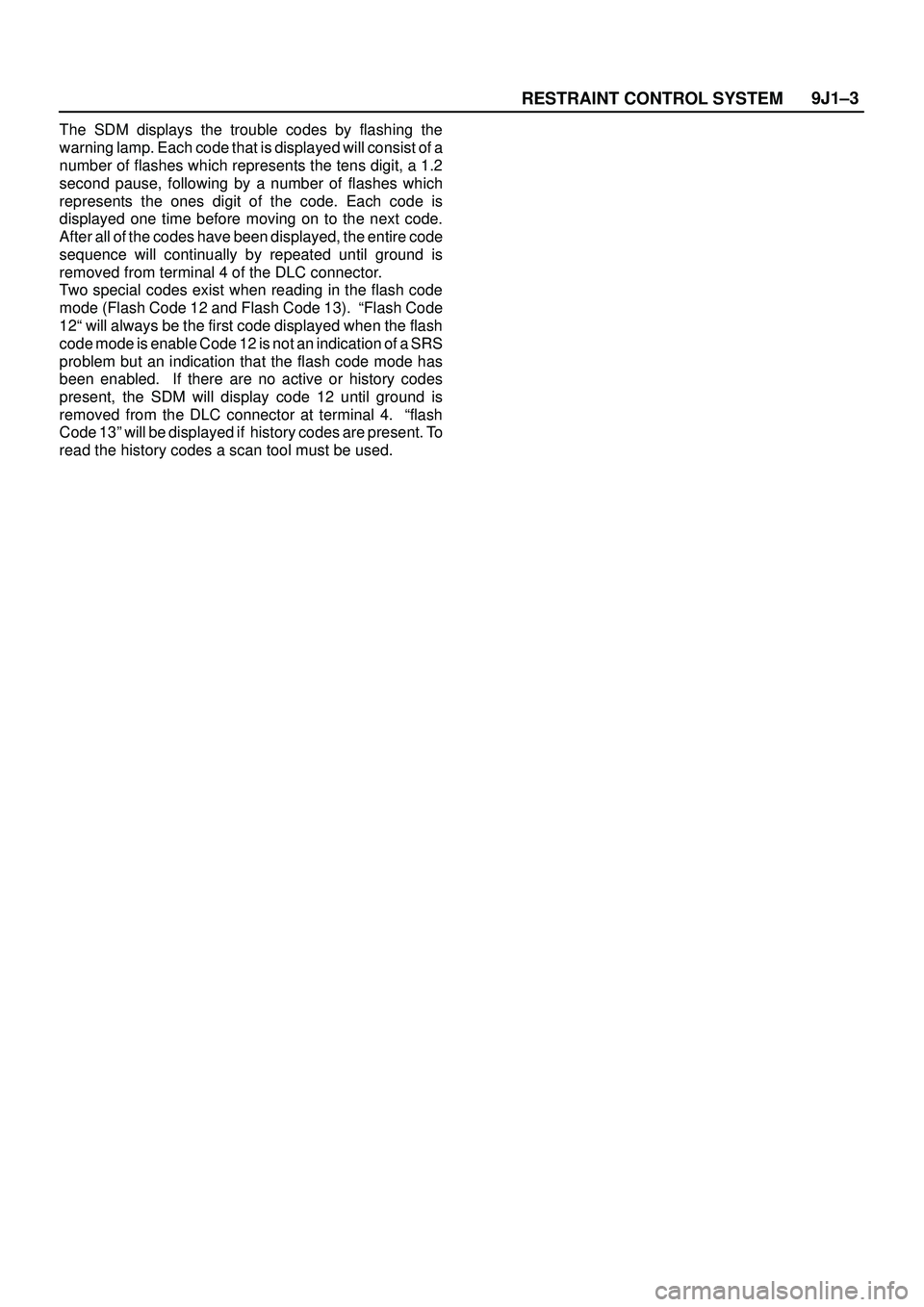

The SDM displays the trouble codes by flashing the
warning lamp. Each code that is displayed will consist of a
number of flashes which represents the tens digit, a 1.2

Page 3491 of 3573

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±4

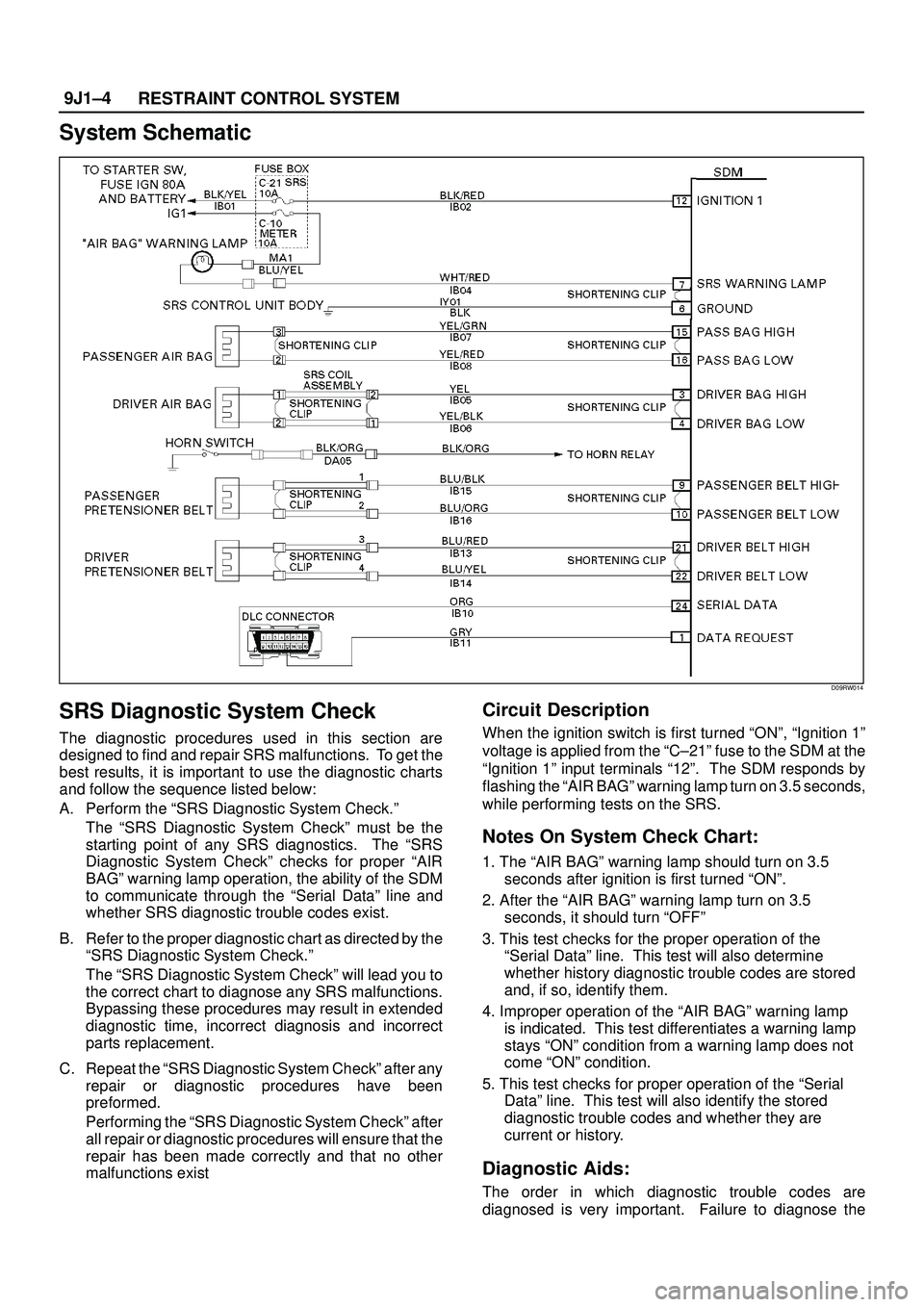

System Schematic
D09RW014
SRS Diagnostic System Check
The diagnostic procedures used in this section are
designed to find and repair SRS malfunctions. To get the
best

RESTRAINT CONTROL SYSTEM 9J1±4
System Schematic
D09RW014
SRS Diagnostic System Check
The diagnostic procedures used in this section are
designed to find and repair SRS malfunctions. To get the
best results, it is important to use the diagnostic charts
and follow the sequence listed below:
A. Perform the ªSRS Diagnostic System Check.º
The ªSRS Diagnostic System Checkº must be the
starting point of any SRS diagnostics. The ªSRS
Diagnostic System Checkº checks for proper ªAIR
BAGº warning lamp operation, the ability of the SDM
to communicate through the ªSerial Dataº line and
whether SRS diagnostic trouble codes exist.
B. Refer to the proper diagnostic chart as directed by the
ªSRS Diagnostic System Check.º
The ªSRS Diagnostic System Checkº will lead you to
the correct chart to diagnose any SRS malfunctions.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis and incorrect
parts replacement.
C. Repeat the ªSRS Diagnostic System Checkº after any
repair or diagnostic procedures have been
preformed.
Performing the ªSRS Diagnostic System Checkº after
all repair or diagnostic procedures will ensure that the
repair has been made correctly and that no other
malfunctions exist
Circuit Description
When the ignition switch is first turned ªONº, ªIgnition 1º
voltage is applied from the ªC±21º fuse to the SDM at the
ªIgnition 1º input terminals ª12º. The SDM responds by
flashing the ªAIR BAGº warning lamp turn on 3.5 seconds,
while performing tests on the SRS.
Notes On System Check Chart:
1. The ªAIR BAGº warning lamp should turn on 3.5
seconds after ignition is first turned ªONº.
2. After the ªAIR BAGº warning lamp turn on 3.5
seconds, it should turn ªOFFº
3. This test checks for the proper operation of the
ªSerial Dataº line. This test will also determine
whether history diagnostic trouble codes are stored
and, if so, identify them.
4. Improper operation of the ªAIR BAGº warning lamp
is indicated. This test differentiates a warning lamp
stays ªONº condition from a warning lamp does not
come ªONº condition.
5. This test checks for proper operation of the ªSerial
Dataº line. This test will also identify the stored
diagnostic trouble codes and whether they are
current or history.
Diagnostic Aids:
The order in which diagnostic trouble codes are
diagnosed is very important. Failure to diagnose the

Page 3492 of 3573

ISUZU TROOPER 1998 Service Repair Manual 9J1±5
RESTRAINT CONTROL SYSTEM
diagnostic trouble codes in the order specified may result in extended diagnostic time, incorrect diagnosis and
incorrect parts replacement.
SRS Diagnostic System

9J1±5
RESTRAINT CONTROL SYSTEM
diagnostic trouble codes in the order specified may result in extended diagnostic time, incorrect diagnosis and
incorrect parts replacement.

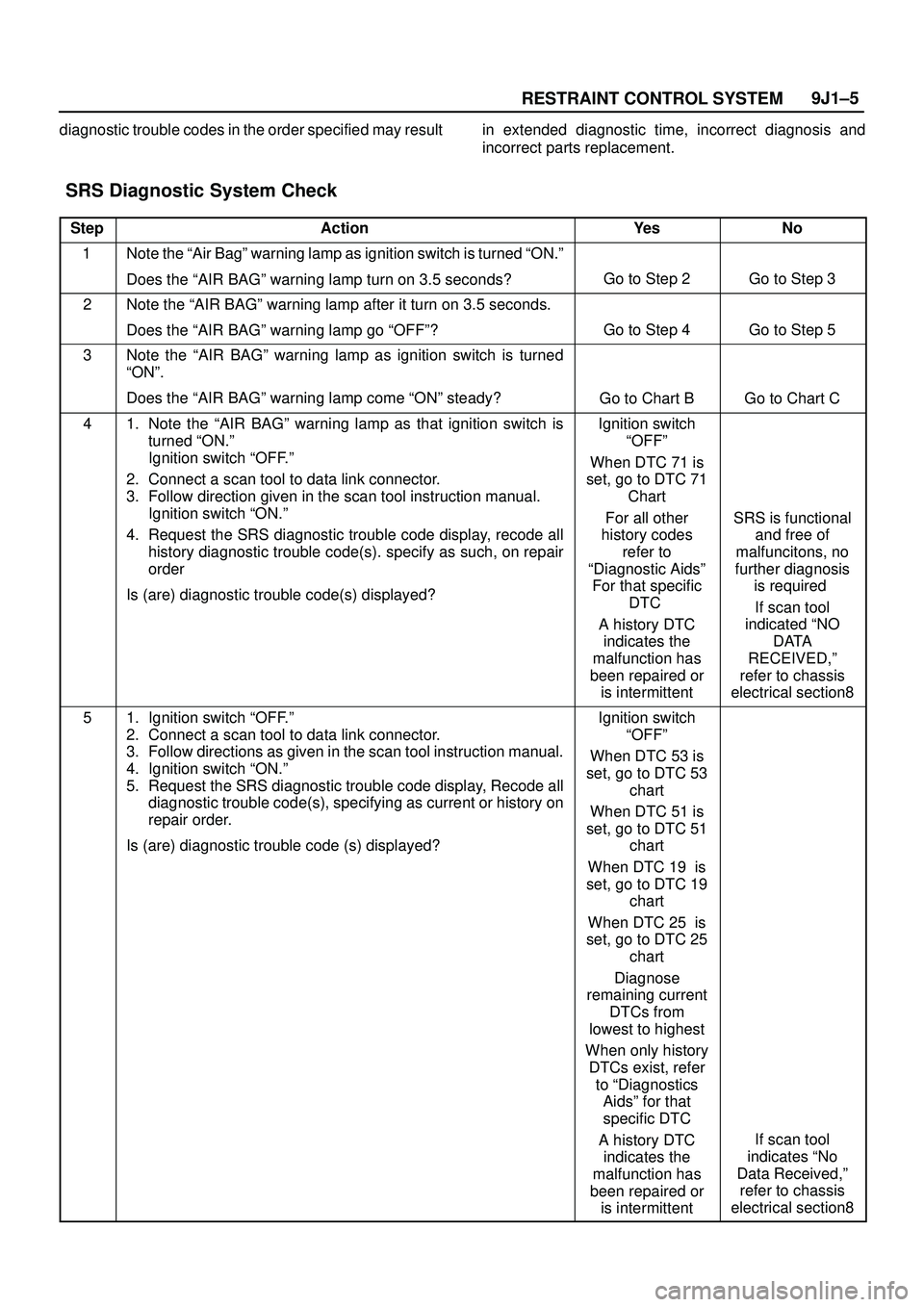

SRS Diagnostic System Check
StepActionYe sNo
1Note the ªAir Bagº warning lamp as ignition switch is turned ªON.º
Does the ªAIR BAGº warning lamp turn on 3.5 seconds?
Go to Step 2Go to Step 3
2Note the ªAIR BAGº warning lamp after it turn on 3.5 seconds.
Does the ªAIR BAGº warning lamp go ªOFFº?
Go to Step 4Go to Step 5
3Note the ªAIR BAGº warning lamp as ignition switch is turned
ªONº.
Does the ªAIR BAGº warning lamp come ªONº steady?
Go to Chart BGo to Chart C
41. Note the ªAIR BAGº warning lamp as that ignition switch is
turned ªON.º
Ignition switch ªOFF.º
2. Connect a scan tool to data link connector.
3. Follow direction given in the scan tool instruction manual.
Ignition switch ªON.º
4. Request the SRS diagnostic trouble code display, recode all
history diagnostic trouble code(s). specify as such, on repair
order
Is (are) diagnostic trouble code(s) displayed?Ignition switch
ªOFFº
When DTC 71 is
set, go to DTC 71
Chart
For all other
history codes
refer to
ªDiagnostic Aidsº
For that specific
DTC
A history DTC
indicates the
malfunction has
been repaired or
is intermittent
SRS is functional
and free of
malfuncitons, no
further diagnosis
is required
If scan tool
indicated ªNO
DATA
RECEIVED,º
refer to chassis
electrical section8
51. Ignition switch ªOFF.º
2. Connect a scan tool to data link connector.
3. Follow directions as given in the scan tool instruction manual.
4. Ignition switch ªON.º
5. Request the SRS diagnostic trouble code display, Recode all
diagnostic trouble code(s), specifying as current or history on
repair order.
Is (are) diagnostic trouble code (s) displayed?Ignition switch
ªOFFº
When DTC 53 is
set, go to DTC 53
chart
When DTC 51 is
set, go to DTC 51
chart
When DTC 19 is
set, go to DTC 19
chart
When DTC 25 is
set, go to DTC 25
chart
Diagnose
remaining current
DTCs from
lowest to highest
When only history
DTCs exist, refer
to ªDiagnostics
Aidsº for that
specific DTC
A history DTC
indicates the
malfunction has
been repaired or
is intermittent
If scan tool
indicates ªNo
Data Received,º
refer to chassis
electrical section8

Page 3493 of 3573

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±6

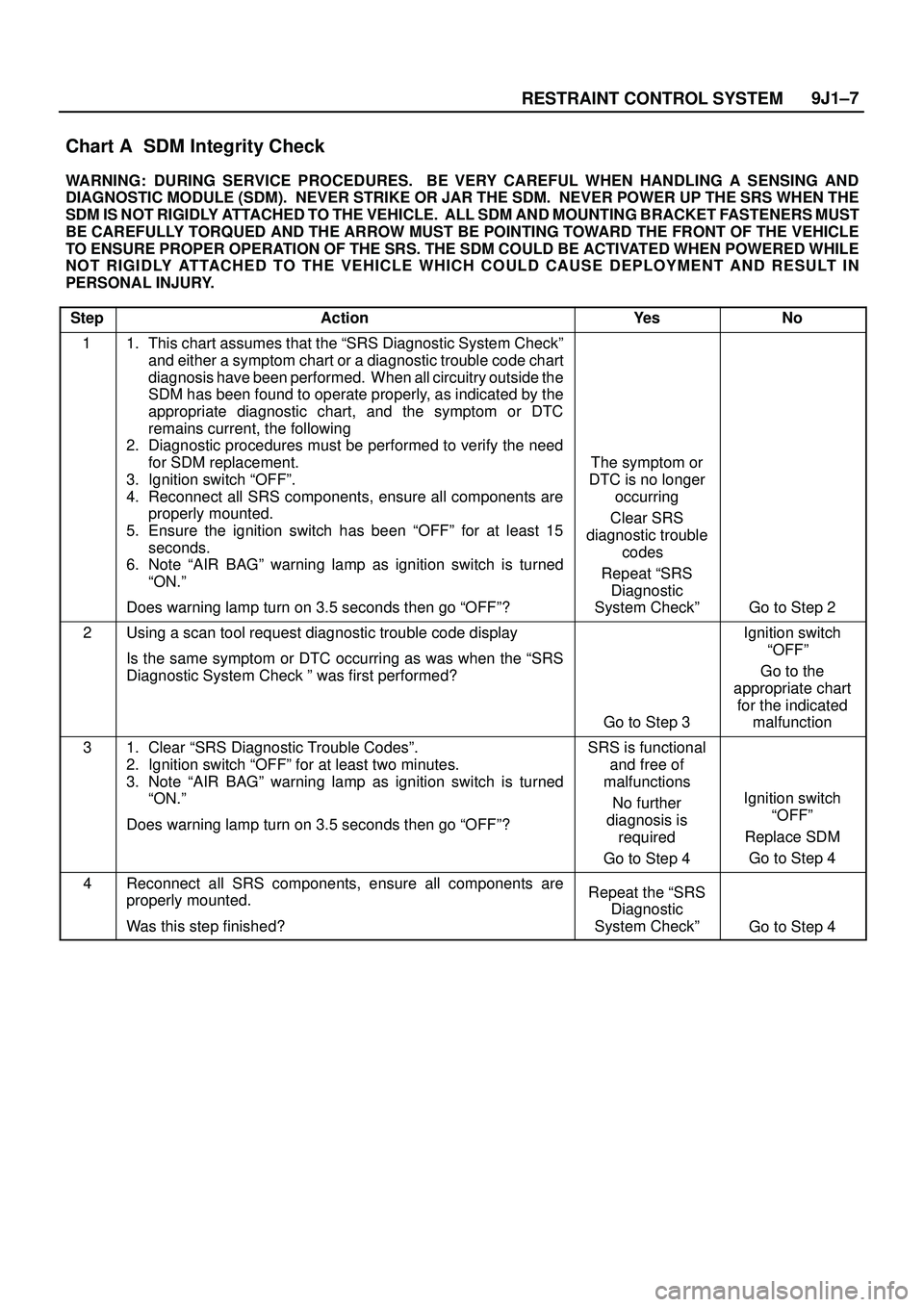

Chart A SDM Integrity Check
D09RW014
Circuit Description:
When the SDM recognizes ªIgnition 1º voltage, applied to
terminals ª12º, is greater than 9 volts, the ªA

Page 3494 of 3573

ISUZU TROOPER 1998 Service Repair Manual 9J1±7
RESTRAINT CONTROL SYSTEM
Chart A SDM Integrity Check
WARNING: DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR JAR THE SDM. N

9J1±7
RESTRAINT CONTROL SYSTEM
Chart A SDM Integrity Check
WARNING: DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR JAR THE SDM. NEVER POWER UP THE SRS WHEN THE
SDM IS NOT RIGIDLY ATTACHED TO THE VEHICLE. ALL SDM AND MOUNTING BRACKET FASTENERS MUST
BE CAREFULLY TORQUED AND THE ARROW MUST BE POINTING TOWARD THE FRONT OF THE VEHICLE
TO ENSURE PROPER OPERATION OF THE SRS. THE SDM COULD BE ACTIVATED WHEN POWERED WHILE
NOT RIGIDLY ATTACHED TO THE VEHICLE WHICH COULD CAUSE DEPLOYMENT AND RESULT IN
PERSONAL INJURY.
Step
ActionYe sNo
11. This chart assumes that the ªSRS Diagnostic System Checkº
and either a symptom chart or a diagnostic trouble code chart
diagnosis have been performed. When all circuitry outside the
SDM has been found to operate properly, as indicated by the
appropriate diagnostic chart, and the symptom or DTC
remains current, the following
2. Diagnostic procedures must be performed to verify the need
for SDM replacement.
3. Ignition switch ªOFFº.
4. Reconnect all SRS components, ensure all components are
properly mounted.
5. Ensure the ignition switch has been ªOFFº for at least 15
seconds.
6. Note ªAIR BAGº warning lamp as ignition switch is turned
ªON.º
Does warning lamp turn on 3.5 seconds then go ªOFFº?
The symptom or
DTC is no longer
occurring
Clear SRS
diagnostic trouble
codes
Repeat ªSRS
Diagnostic
System Checkº
Go to Step 2
2Using a scan tool request diagnostic trouble code display
Is the same symptom or DTC occurring as was when the ªSRS
Diagnostic System Check º was first performed?
Go to Step 3
Ignition switch
ªOFFº
Go to the
appropriate chart
for the indicated
malfunction
31. Clear ªSRS Diagnostic Trouble Codesº.
2. Ignition switch ªOFFº for at least two minutes.
3. Note ªAIR BAGº warning lamp as ignition switch is turned
ªON.º
Does warning lamp turn on 3.5 seconds then go ªOFFº?SRS is functional
and free of
malfunctions
No further
diagnosis is
required
Go to Step 4
Ignition switch
ªOFFº
Replace SDM
Go to Step 4
4Reconnect all SRS components, ensure all components are
properly mounted.
Was this step finished?Repeat the ªSRS
Diagnostic
System Checkº
Go to Step 4

Page 3495 of 3573

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±8

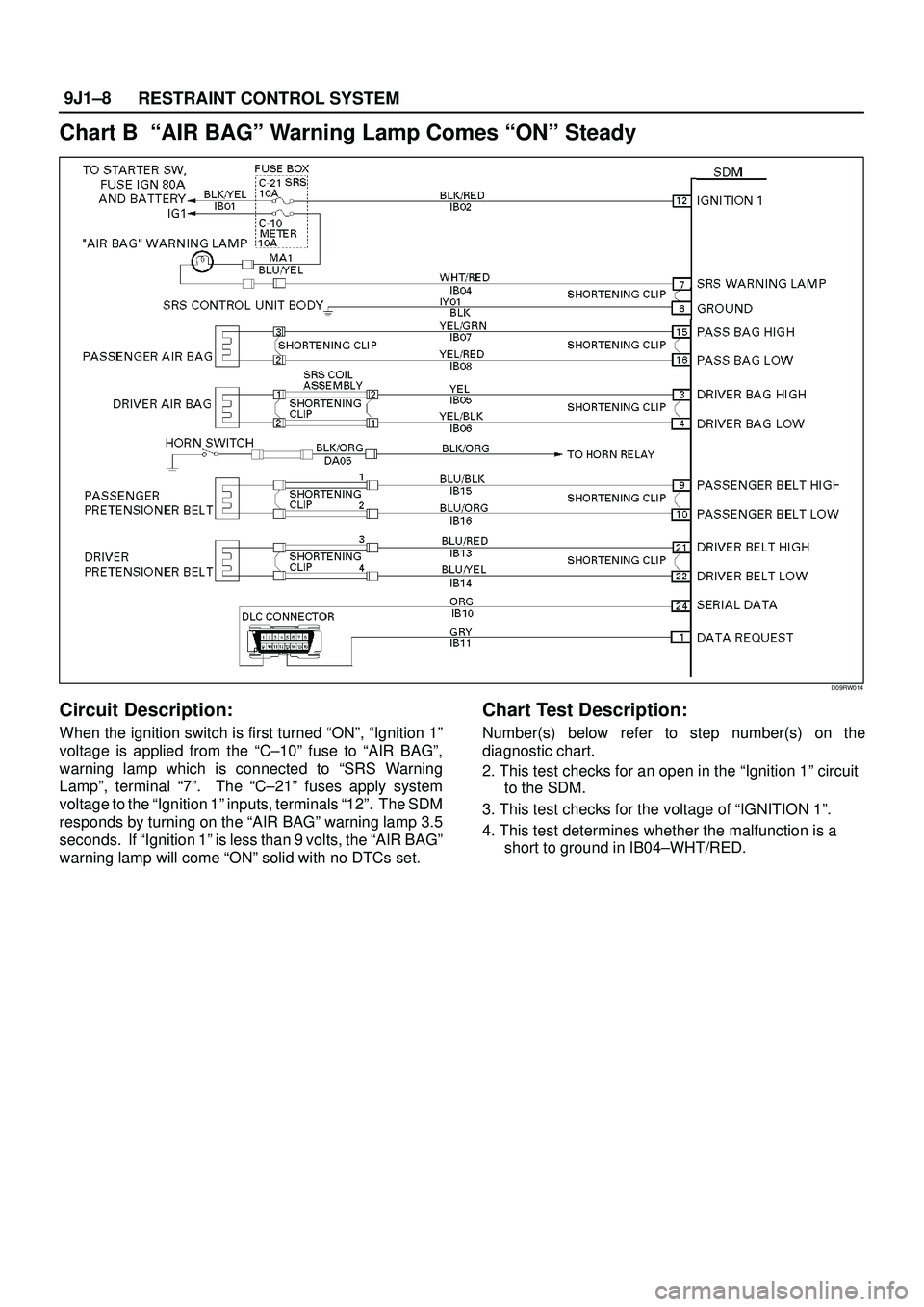

Chart B ªAIR BAGº Warning Lamp Comes ªONº Steady
D09RW014
Circuit Description:
When the ignition switch is first turned ªONº, ªIgnition 1º
voltage is applied f

Page 3496 of 3573

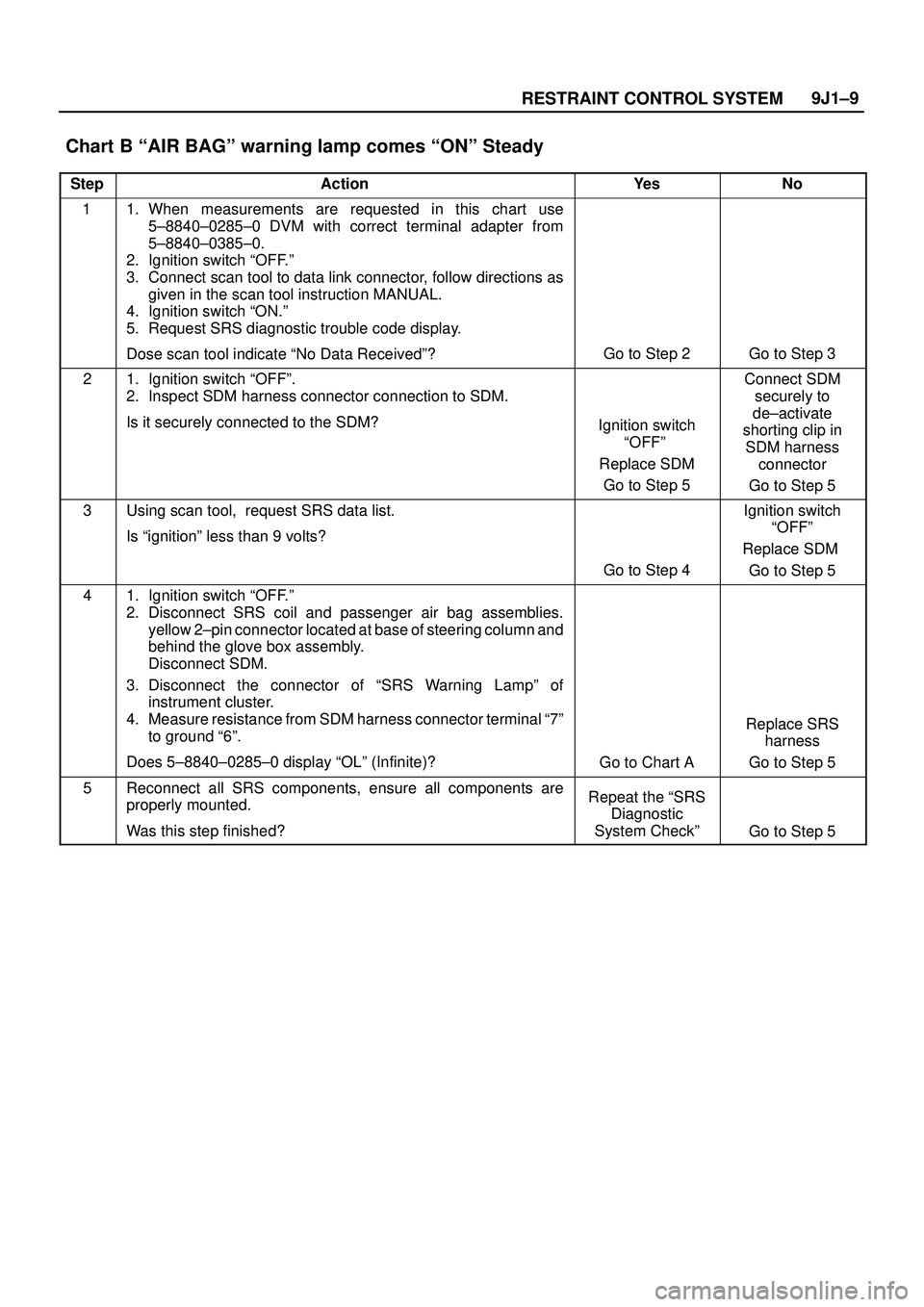

ISUZU TROOPER 1998 Service Repair Manual 9J1±9
RESTRAINT CONTROL SYSTEM
Chart B ªAIR BAGº warning lamp comes ªONº Steady
StepActionYe sNo
11. When measurements are requested in this chart use
5±8840±0285±0 DVM with correct terminal

Load next 8 pages

Page: < prev 1-10 ... 3457-3464 3465-3472 3473-3480 3481-3488 3489-3496 3497-3504 3505-3512 3513-3520 3521-3528 ... 3576 next >

cruise control bonnet brakes low beam brake sensor TPMS
