Page 1889 of 3573
6D – 22 ENGINE ELECTRICAL

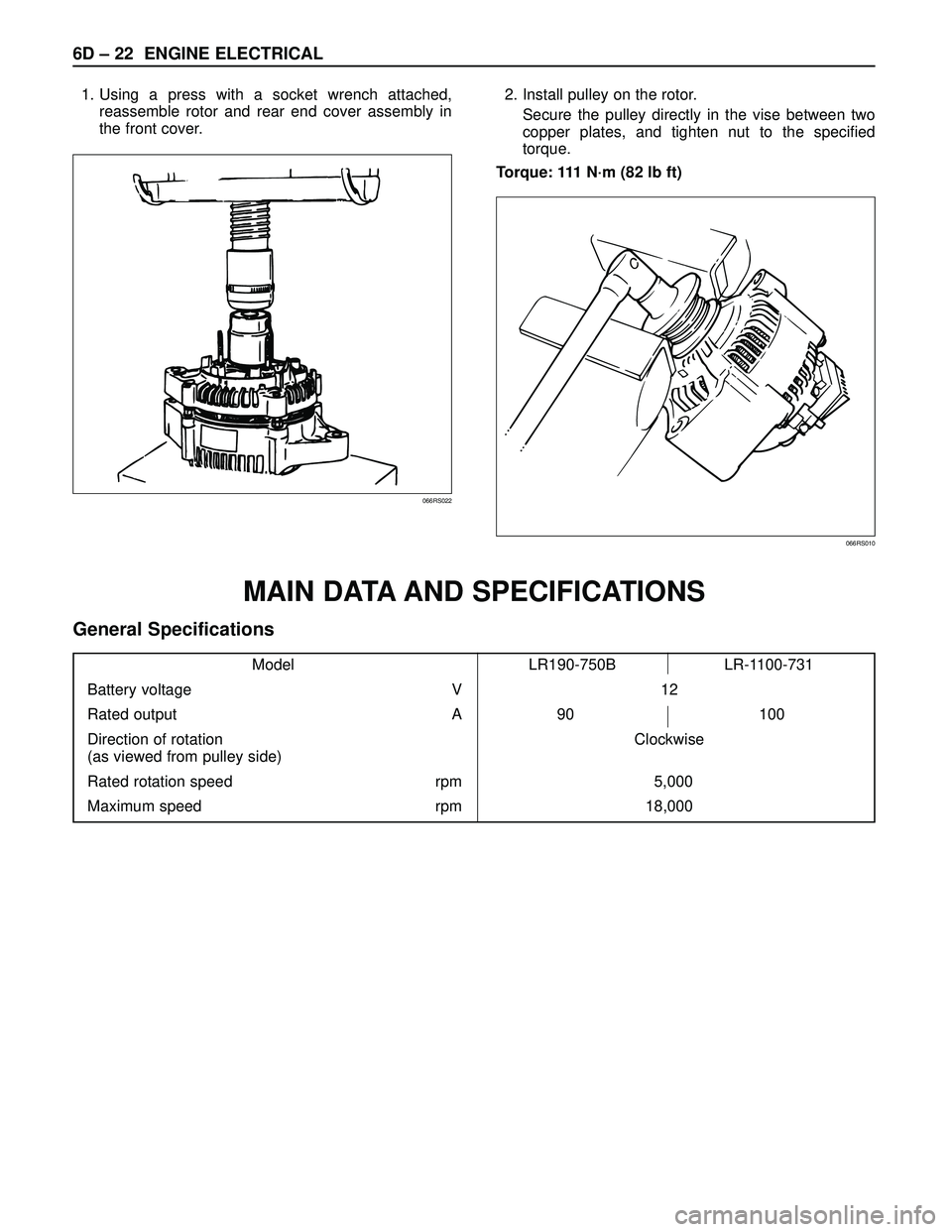

1. Using a press with a socket wrench attached,
reassemble rotor and rear end cover assembly in
the front cover.2. Install pulley on the rotor.
Secure the pulley directly in the vise between two
copper plates, and tighten nut to the specified
torque.
Torque: 111 N·m (82 lb ft)
066RS022
066RS010
MAIN DATA AND SPECIFICATIONS
General Specifications
Model LR190-750B LR-1100-731
Battery voltage V 12
Rated output A 90 100
Direction of rotation Clockwise
(as viewed from pulley side)
Rated rotation speed rpm 5,000
Maximum speed rpm 18,000
Page 1890 of 3573
ENGINE ELECTRICAL 6D – 23

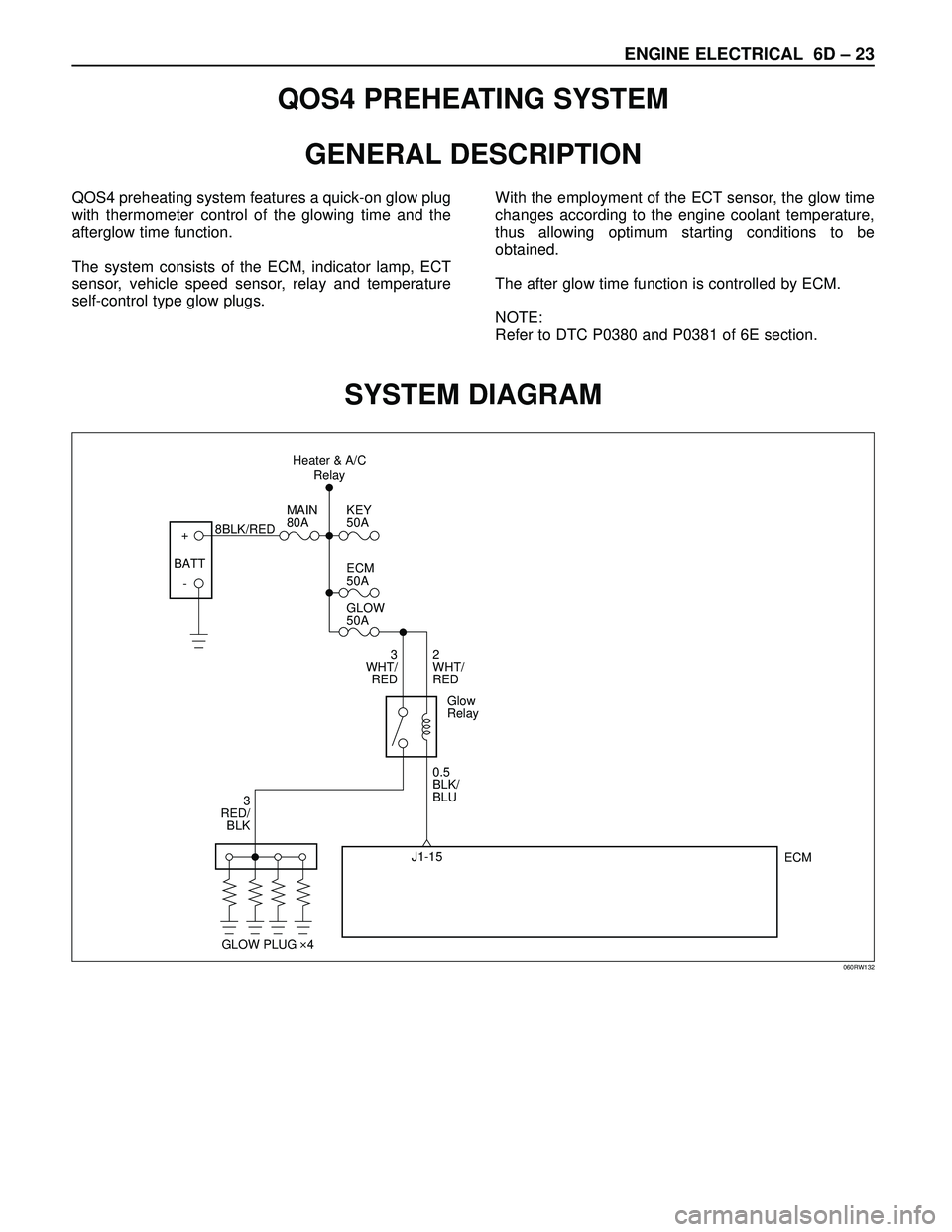

QOS4 PREHEATING SYSTEM
GENERAL DESCRIPTION
QOS4 preheating system features a quick-on glow plug
with thermometer control of the glowing time and the
afterglow time function.
The system consists of the ECM, indicator lamp, ECT
sensor, vehicle speed sensor, relay and temperature
self-control type glow plugs.With the employment of the ECT sensor, the glow time
changes according to the engine coolant temperature,
thus allowing optimum starting conditions to be
obtained.
The after glow time function is controlled by ECM.
NOTE:
Refer to DTC P0380 and P0381 of 6E section.
SYSTEM DIAGRAM
+
-KEY
50A
ECM
50A
GLOW
50A
2
WHT/
RED
0.5
BLK/
BLU
ECM J1-15 3
WHT/
RED
3
RED/
BLKMAIN
80A
8BLK/RED
Glow
Relay
GLOW PLUG 4
BATTHeater & A/C
Relay
060RW132
Page 1891 of 3573

6D – 24 ENGINE ELECTRICAL

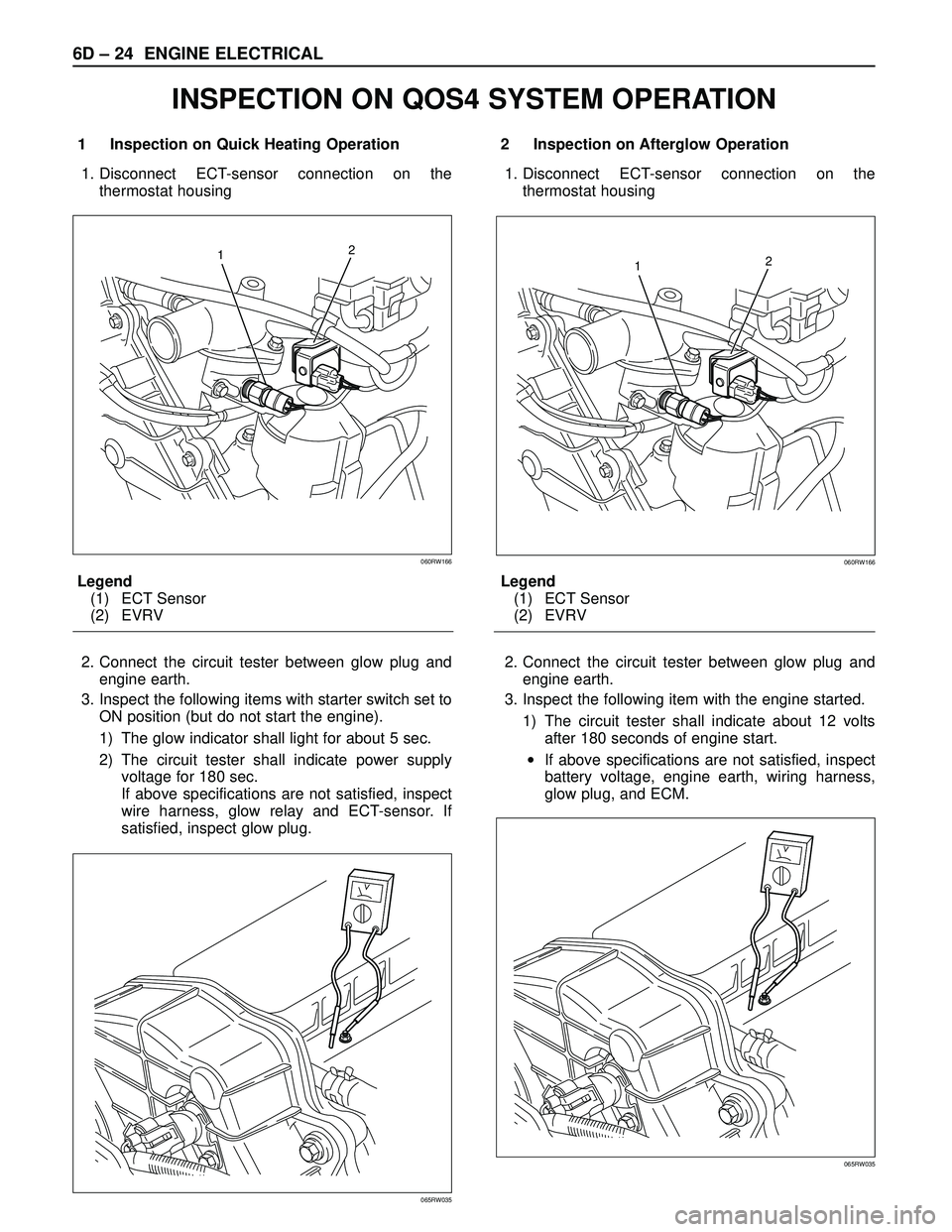

1 Inspection on Quick Heating Operation
1. Disconnect ECT-sensor connection on the
thermostat housing
Legend
(1) ECT Sensor
(2) EVRV
2. Connect the circuit tester between glow plug and
engine earth.
3. Inspect the following items with starter switch set to
ON position (but do not start the engine).
1) The glow indicator shall light for about 5 sec.
2) The circuit tester shall indicate power supply
voltage for 180 sec.
If above specifications are not satisfied, inspect
wire harness, glow relay and ECT-sensor. If
satisfied, inspect glow plug.2 Inspection on Afterglow Operation
1. Disconnect ECT-sensor connection on the
thermostat housing
Legend
(1) ECT Sensor
(2) EVRV
2. Connect the circuit tester between glow plug and
engine earth.
3. Inspect the following item with the engine started.
1) The circuit tester shall indicate about 12 volts
after 180 seconds of engine start.
•If above specifications are not satisfied, inspect
battery voltage, engine earth, wiring harness,
glow plug, and ECM.
12
060RW166
065RW035
12
060RW166
065RW035
INSPECTION ON QOS4 SYSTEM OPERATION
Page 1892 of 3573
ENGINE ELECTRICAL 6D – 25

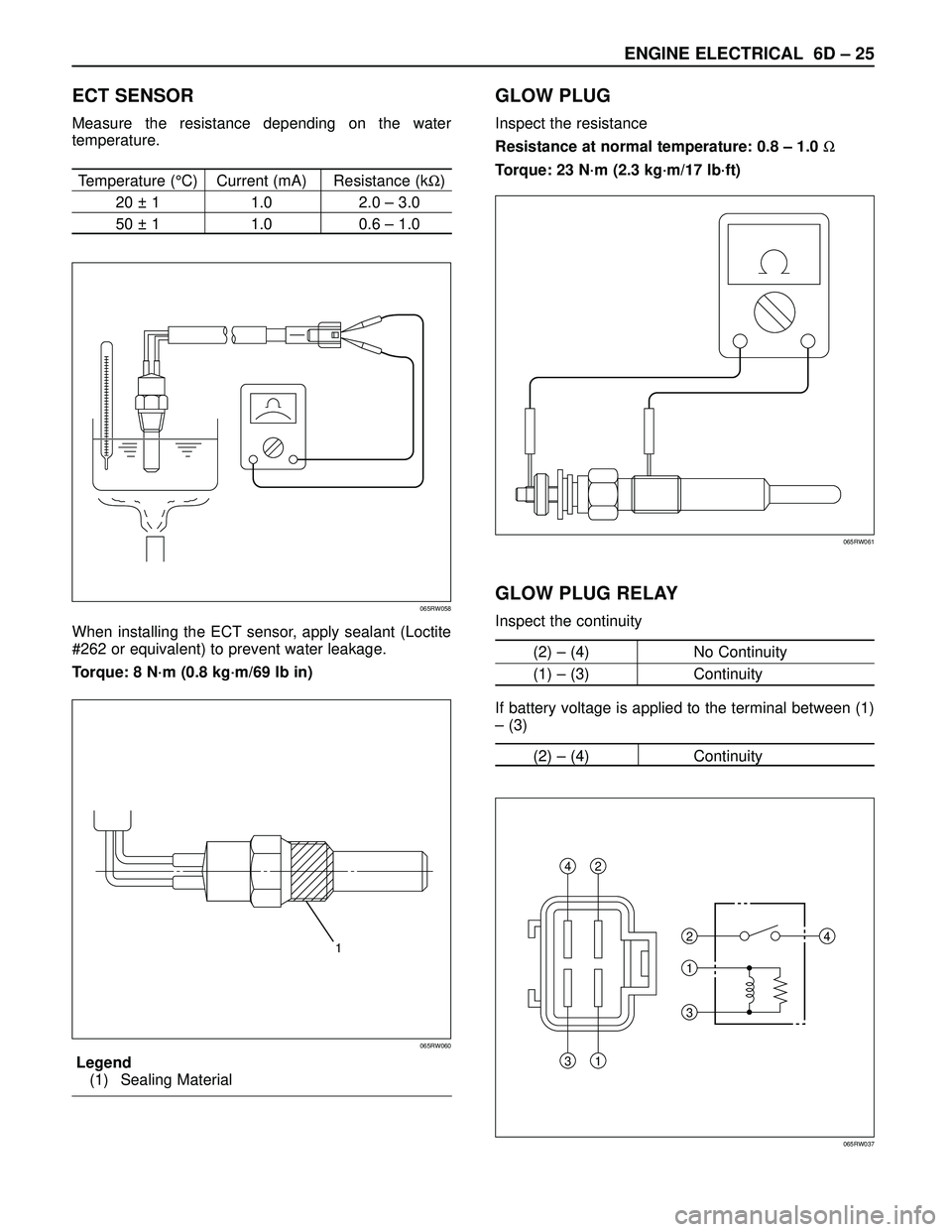

ECT SENSOR
Measure the resistance depending on the water
temperature.
Temperature (°C) Current (mA) Resistance (kΩ)
20 ± 1 1.0 2.0 – 3.0
50 ± 1 1.0 0.6 – 1.0
When installing the ECT sensor, apply sealant (Loctite
#262 or equivalent) to prevent water leakage.
Torque: 8 N·m (0.8 kg·m/69 lb in)
Legend
(1) Sealing Material
GLOW PLUG
Inspect the resistance
Resistance at normal temperature: 0.8 – 1.0 Ω
Torque: 23 N·m (2.3 kg·m/17 lb·ft)
GLOW PLUG RELAY
Inspect the continuity
(2) – (4) No Continuity
(1) – (3) Continuity
If battery voltage is applied to the terminal between (1)
– (3)
(2) – (4) Continuity065RW058
065RW061
1
065RW060
2 42
311
34
065RW037
Page 1893 of 3573
Page 1894 of 3573

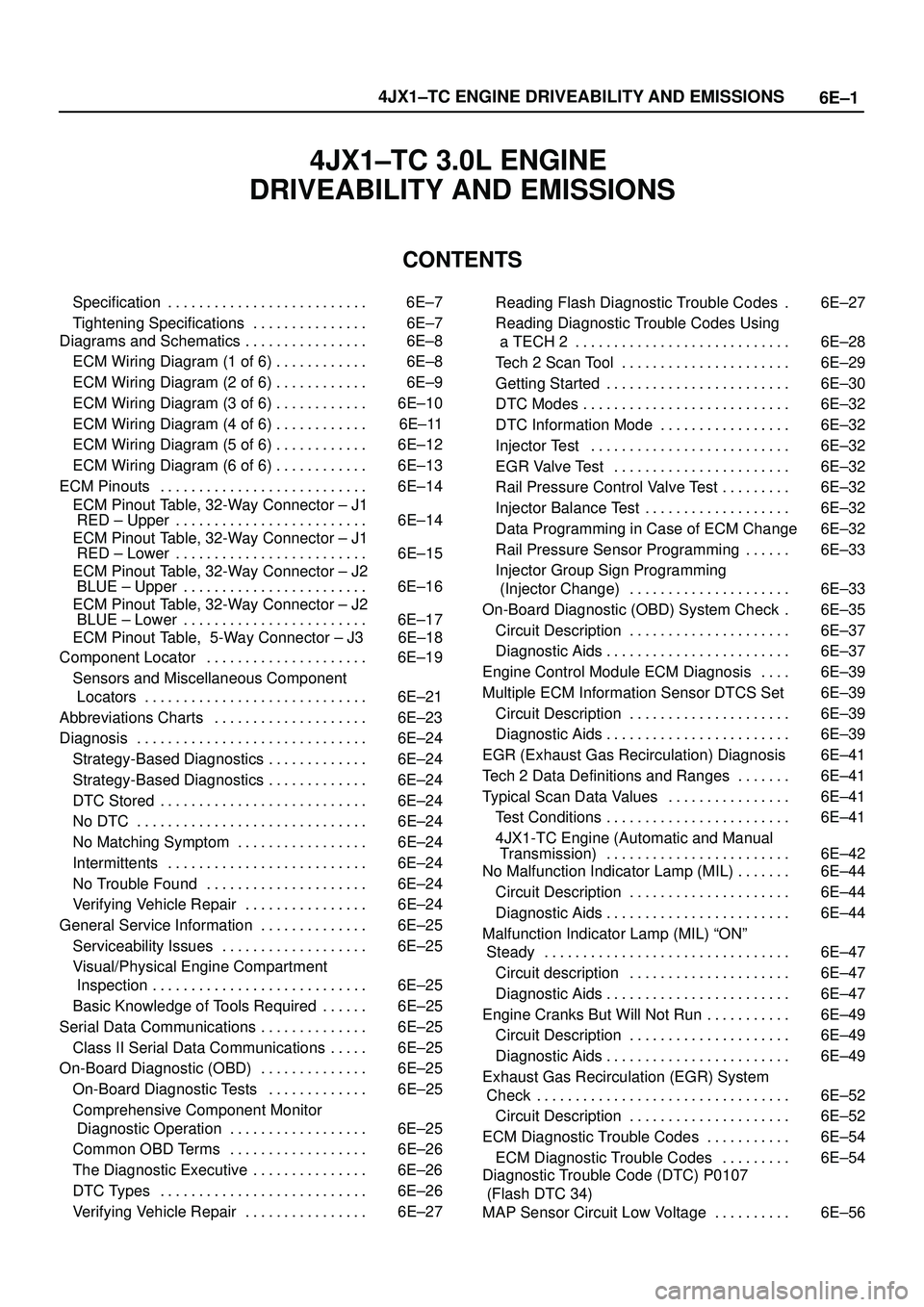

6E±1 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
4JX1±TC 3.0L ENGINE
DRIVEABILITY AND EMISSIONS
CONTENTS
Specification 6E±7. . . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E±7. . . . . . . . . . . . . . .
Diagrams and Schematics 6E±8. . . . . . . . . . . . . . . .
ECM Wiring Diagram (1 of 6) 6E±8. . . . . . . . . . . .
ECM Wiring Diagram (2 of 6) 6E±9. . . . . . . . . . . .
ECM Wiring Diagram (3 of 6) 6E±10. . . . . . . . . . . .
ECM Wiring Diagram (4 of 6) 6E±11. . . . . . . . . . . .
ECM Wiring Diagram (5 of 6) 6E±12. . . . . . . . . . . .
ECM Wiring Diagram (6 of 6) 6E±13. . . . . . . . . . . .
ECM Pinouts 6E±14. . . . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J1
RED ± Upper 6E±14. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J1
RED ± Lower 6E±15. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J2
BLUE ± Upper 6E±16. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J2
BLUE ± Lower 6E±17. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 5-Way Connector ± J3 6E±18
Component Locator 6E±19. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E±21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Abbreviations Charts 6E±23. . . . . . . . . . . . . . . . . . . .
Diagnosis 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±24. . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±24. . . . . . . . . . . . .
DTC Stored 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E±24. . . . . . . . . . . . . . . . .
Intermittents 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E±24. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±24. . . . . . . . . . . . . . . .
General Service Information 6E±25. . . . . . . . . . . . . .
Serviceability Issues 6E±25. . . . . . . . . . . . . . . . . . .
Visual/Physical Engine Compartment
Inspection 6E±25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E±25. . . . . .
Serial Data Communications 6E±25. . . . . . . . . . . . . .
Class II Serial Data Communications 6E±25. . . . .
On-Board Diagnostic (OBD) 6E±25. . . . . . . . . . . . . .
On-Board Diagnostic Tests 6E±25. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E±25. . . . . . . . . . . . . . . . . .
Common OBD Terms 6E±26. . . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E±26. . . . . . . . . . . . . . .
DTC Types 6E±26. . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±27. . . . . . . . . . . . . . . . Reading Flash Diagnostic Trouble Codes 6E±27.
Reading Diagnostic Trouble Codes Using
a TECH 2 6E±28. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Scan Tool 6E±29. . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E±30. . . . . . . . . . . . . . . . . . . . . . . .
DTC Modes 6E±32. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E±32. . . . . . . . . . . . . . . . .
Injector Test 6E±32. . . . . . . . . . . . . . . . . . . . . . . . . .
EGR Valve Test 6E±32. . . . . . . . . . . . . . . . . . . . . . .
Rail Pressure Control Valve Test 6E±32. . . . . . . . .
Injector Balance Test 6E±32. . . . . . . . . . . . . . . . . . .
Data Programming in Case of ECM Change 6E±32
Rail Pressure Sensor Programming 6E±33. . . . . .
Injector Group Sign Programming
(Injector Change) 6E±33. . . . . . . . . . . . . . . . . . . . .
On-Board Diagnostic (OBD) System Check 6E±35.
Circuit Description 6E±37. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±37. . . . . . . . . . . . . . . . . . . . . . . .
Engine Control Module ECM Diagnosis 6E±39. . . .
Multiple ECM Information Sensor DTCS Set 6E±39
Circuit Description 6E±39. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±39. . . . . . . . . . . . . . . . . . . . . . . .
EGR (Exhaust Gas Recirculation) Diagnosis 6E±41
Tech 2 Data Definitions and Ranges 6E±41. . . . . . .
Typical Scan Data Values 6E±41. . . . . . . . . . . . . . . .
Test Conditions 6E±41. . . . . . . . . . . . . . . . . . . . . . . .
4JX1-TC Engine (Automatic and Manual
Transmission) 6E±42. . . . . . . . . . . . . . . . . . . . . . . .
No Malfunction Indicator Lamp (MIL) 6E±44. . . . . . .
Circuit Description 6E±44. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±44. . . . . . . . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) ªONº
Steady 6E±47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit description 6E±47. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±47. . . . . . . . . . . . . . . . . . . . . . . .
Engine Cranks But Will Not Run 6E±49. . . . . . . . . . .
Circuit Description 6E±49. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±49. . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) System
Check 6E±52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±52. . . . . . . . . . . . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E±54. . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E±54. . . . . . . . .
Diagnostic Trouble Code (DTC) P0107
(Flash DTC 34)
MAP Sensor Circuit Low Voltage 6E±56. . . . . . . . . .
Page 1895 of 3573

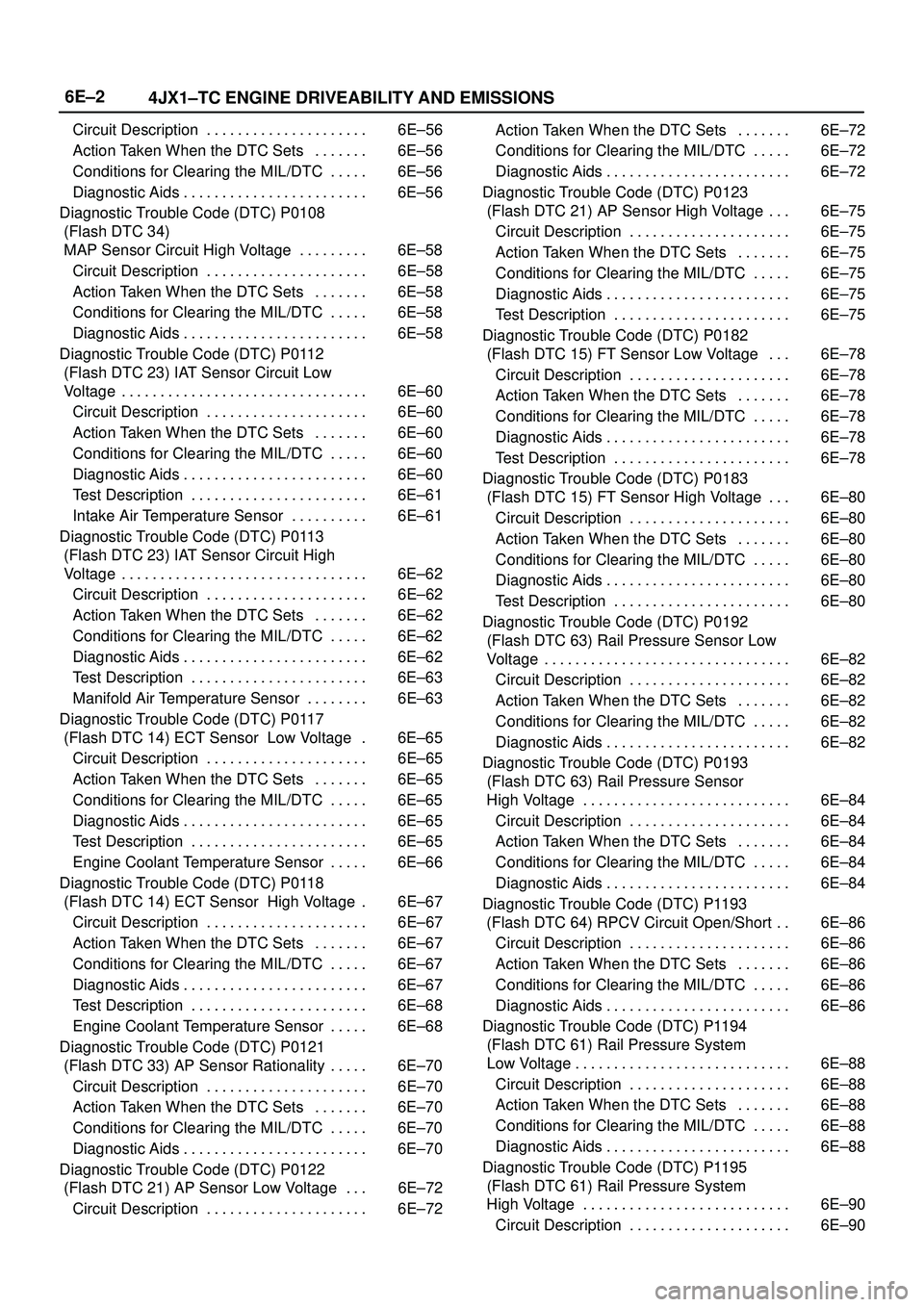

6E±2
4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Circuit Description 6E±56. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±56. . . . . . .
Conditions for Clearing the MIL/DTC 6E±56. . . . .
Diagnostic Aids 6E±56. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0108
(Flash DTC 34)
MAP Sensor Circuit High Voltage 6E±58. . . . . . . . .
Circuit Description 6E±58. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±58. . . . . . .
Conditions for Clearing the MIL/DTC 6E±58. . . . .
Diagnostic Aids 6E±58. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0112
(Flash DTC 23) IAT Sensor Circuit Low
Voltage 6E±60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±60. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±60. . . . . . .
Conditions for Clearing the MIL/DTC 6E±60. . . . .
Diagnostic Aids 6E±60. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±61. . . . . . . . . . . . . . . . . . . . . . .
Intake Air Temperature Sensor 6E±61. . . . . . . . . .
Diagnostic Trouble Code (DTC) P0113
(Flash DTC 23) IAT Sensor Circuit High
Voltage 6E±62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±62. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±62. . . . . . .
Conditions for Clearing the MIL/DTC 6E±62. . . . .
Diagnostic Aids 6E±62. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±63. . . . . . . . . . . . . . . . . . . . . . .
Manifold Air Temperature Sensor 6E±63. . . . . . . .
Diagnostic Trouble Code (DTC) P0117
(Flash DTC 14) ECT Sensor Low Voltage 6E±65.
Circuit Description 6E±65. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±65. . . . . . .
Conditions for Clearing the MIL/DTC 6E±65. . . . .
Diagnostic Aids 6E±65. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±65. . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Sensor 6E±66. . . . .
Diagnostic Trouble Code (DTC) P0118
(Flash DTC 14) ECT Sensor High Voltage 6E±67.
Circuit Description 6E±67. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±67. . . . . . .
Conditions for Clearing the MIL/DTC 6E±67. . . . .
Diagnostic Aids 6E±67. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±68. . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Sensor 6E±68. . . . .
Diagnostic Trouble Code (DTC) P0121
(Flash DTC 33) AP Sensor Rationality 6E±70. . . . .
Circuit Description 6E±70. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±70. . . . . . .
Conditions for Clearing the MIL/DTC 6E±70. . . . .
Diagnostic Aids 6E±70. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0122
(Flash DTC 21) AP Sensor Low Voltage 6E±72. . .
Circuit Description 6E±72. . . . . . . . . . . . . . . . . . . . . Action Taken When the DTC Sets 6E±72. . . . . . .
Conditions for Clearing the MIL/DTC 6E±72. . . . .
Diagnostic Aids 6E±72. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0123
(Flash DTC 21) AP Sensor High Voltage 6E±75. . .
Circuit Description 6E±75. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±75. . . . . . .
Conditions for Clearing the MIL/DTC 6E±75. . . . .
Diagnostic Aids 6E±75. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±75. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0182
(Flash DTC 15) FT Sensor Low Voltage 6E±78. . .
Circuit Description 6E±78. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±78. . . . . . .
Conditions for Clearing the MIL/DTC 6E±78. . . . .
Diagnostic Aids 6E±78. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±78. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0183
(Flash DTC 15) FT Sensor High Voltage 6E±80. . .
Circuit Description 6E±80. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±80. . . . . . .
Conditions for Clearing the MIL/DTC 6E±80. . . . .
Diagnostic Aids 6E±80. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±80. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0192
(Flash DTC 63) Rail Pressure Sensor Low
Voltage 6E±82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±82. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±82. . . . . . .
Conditions for Clearing the MIL/DTC 6E±82. . . . .
Diagnostic Aids 6E±82. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0193
(Flash DTC 63) Rail Pressure Sensor
High Voltage 6E±84. . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±84. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±84. . . . . . .
Conditions for Clearing the MIL/DTC 6E±84. . . . .
Diagnostic Aids 6E±84. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1193
(Flash DTC 64) RPCV Circuit Open/Short 6E±86. .
Circuit Description 6E±86. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±86. . . . . . .
Conditions for Clearing the MIL/DTC 6E±86. . . . .
Diagnostic Aids 6E±86. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1194
(Flash DTC 61) Rail Pressure System
Low Voltage 6E±88. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±88. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±88. . . . . . .
Conditions for Clearing the MIL/DTC 6E±88. . . . .
Diagnostic Aids 6E±88. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1195
(Flash DTC 61) Rail Pressure System
High Voltage 6E±90. . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±90. . . . . . . . . . . . . . . . . . . . .
Page 1896 of 3573

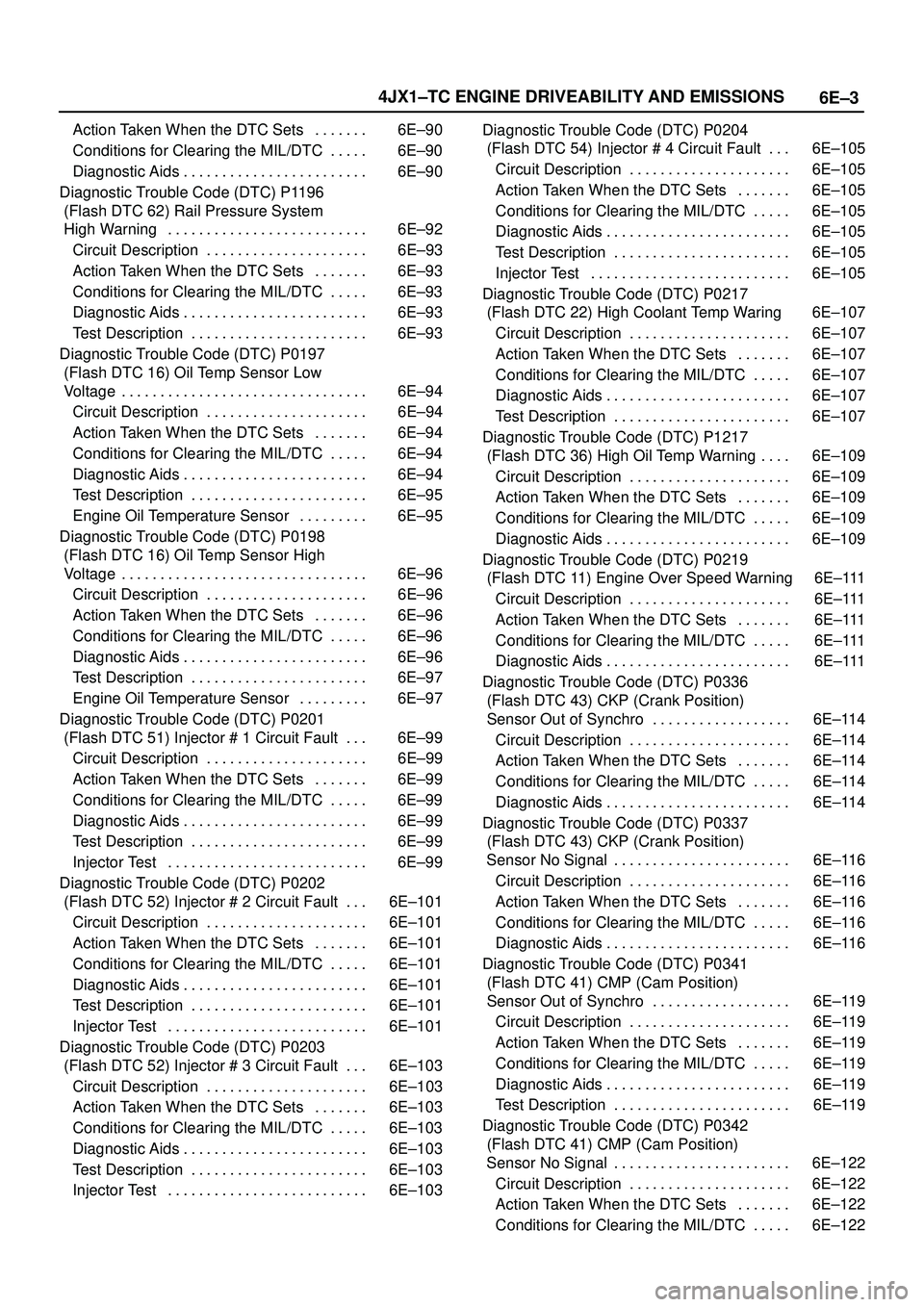

6E±3 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Action Taken When the DTC Sets 6E±90. . . . . . .
Conditions for Clearing the MIL/DTC 6E±90. . . . .
Diagnostic Aids 6E±90. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1196
(Flash DTC 62) Rail Pressure System
High Warning 6E±92. . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±93. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±93. . . . . . .
Conditions for Clearing the MIL/DTC 6E±93. . . . .
Diagnostic Aids 6E±93. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±93. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0197
(Flash DTC 16) Oil Temp Sensor Low
Voltage 6E±94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±94. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±94. . . . . . .
Conditions for Clearing the MIL/DTC 6E±94. . . . .
Diagnostic Aids 6E±94. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±95. . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Temperature Sensor 6E±95. . . . . . . . .
Diagnostic Trouble Code (DTC) P0198
(Flash DTC 16) Oil Temp Sensor High
Voltage 6E±96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±96. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±96. . . . . . .
Conditions for Clearing the MIL/DTC 6E±96. . . . .
Diagnostic Aids 6E±96. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±97. . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Temperature Sensor 6E±97. . . . . . . . .
Diagnostic Trouble Code (DTC) P0201
(Flash DTC 51) Injector # 1 Circuit Fault 6E±99. . .
Circuit Description 6E±99. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±99. . . . . . .
Conditions for Clearing the MIL/DTC 6E±99. . . . .
Diagnostic Aids 6E±99. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±99. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E±99. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0202
(Flash DTC 52) Injector # 2 Circuit Fault 6E±101. . .
Circuit Description 6E±101. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±101. . . . . . .
Conditions for Clearing the MIL/DTC 6E±101. . . . .
Diagnostic Aids 6E±101. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±101. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E±101. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0203
(Flash DTC 52) Injector # 3 Circuit Fault 6E±103. . .
Circuit Description 6E±103. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±103. . . . . . .
Conditions for Clearing the MIL/DTC 6E±103. . . . .
Diagnostic Aids 6E±103. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±103. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E±103. . . . . . . . . . . . . . . . . . . . . . . . . . Diagnostic Trouble Code (DTC) P0204
(Flash DTC 54) Injector # 4 Circuit Fault 6E±105. . .
Circuit Description 6E±105. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±105. . . . . . .
Conditions for Clearing the MIL/DTC 6E±105. . . . .
Diagnostic Aids 6E±105. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±105. . . . . . . . . . . . . . . . . . . . . . .
Injector Test 6E±105. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0217
(Flash DTC 22) High Coolant Temp Waring 6E±107
Circuit Description 6E±107. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±107. . . . . . .
Conditions for Clearing the MIL/DTC 6E±107. . . . .
Diagnostic Aids 6E±107. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±107. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1217
(Flash DTC 36) High Oil Temp Warning 6E±109. . . .
Circuit Description 6E±109. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±109. . . . . . .
Conditions for Clearing the MIL/DTC 6E±109. . . . .
Diagnostic Aids 6E±109. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0219
(Flash DTC 11) Engine Over Speed Warning 6E±111
Circuit Description 6E±111. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±111. . . . . . .
Conditions for Clearing the MIL/DTC 6E±111. . . . .
Diagnostic Aids 6E±111. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0336
(Flash DTC 43) CKP (Crank Position)
Sensor Out of Synchro 6E±114. . . . . . . . . . . . . . . . . .
Circuit Description 6E±114. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±114. . . . . . .
Conditions for Clearing the MIL/DTC 6E±114. . . . .
Diagnostic Aids 6E±114. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0337
(Flash DTC 43) CKP (Crank Position)
Sensor No Signal 6E±116. . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±116. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±116. . . . . . .
Conditions for Clearing the MIL/DTC 6E±116. . . . .
Diagnostic Aids 6E±116. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0341
(Flash DTC 41) CMP (Cam Position)
Sensor Out of Synchro 6E±119. . . . . . . . . . . . . . . . . .
Circuit Description 6E±119. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±119. . . . . . .
Conditions for Clearing the MIL/DTC 6E±119. . . . .
Diagnostic Aids 6E±119. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 6E±119. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0342
(Flash DTC 41) CMP (Cam Position)
Sensor No Signal 6E±122. . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±122. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±122. . . . . . .
Conditions for Clearing the MIL/DTC 6E±122. . . . .
