Page 3297 of 3573

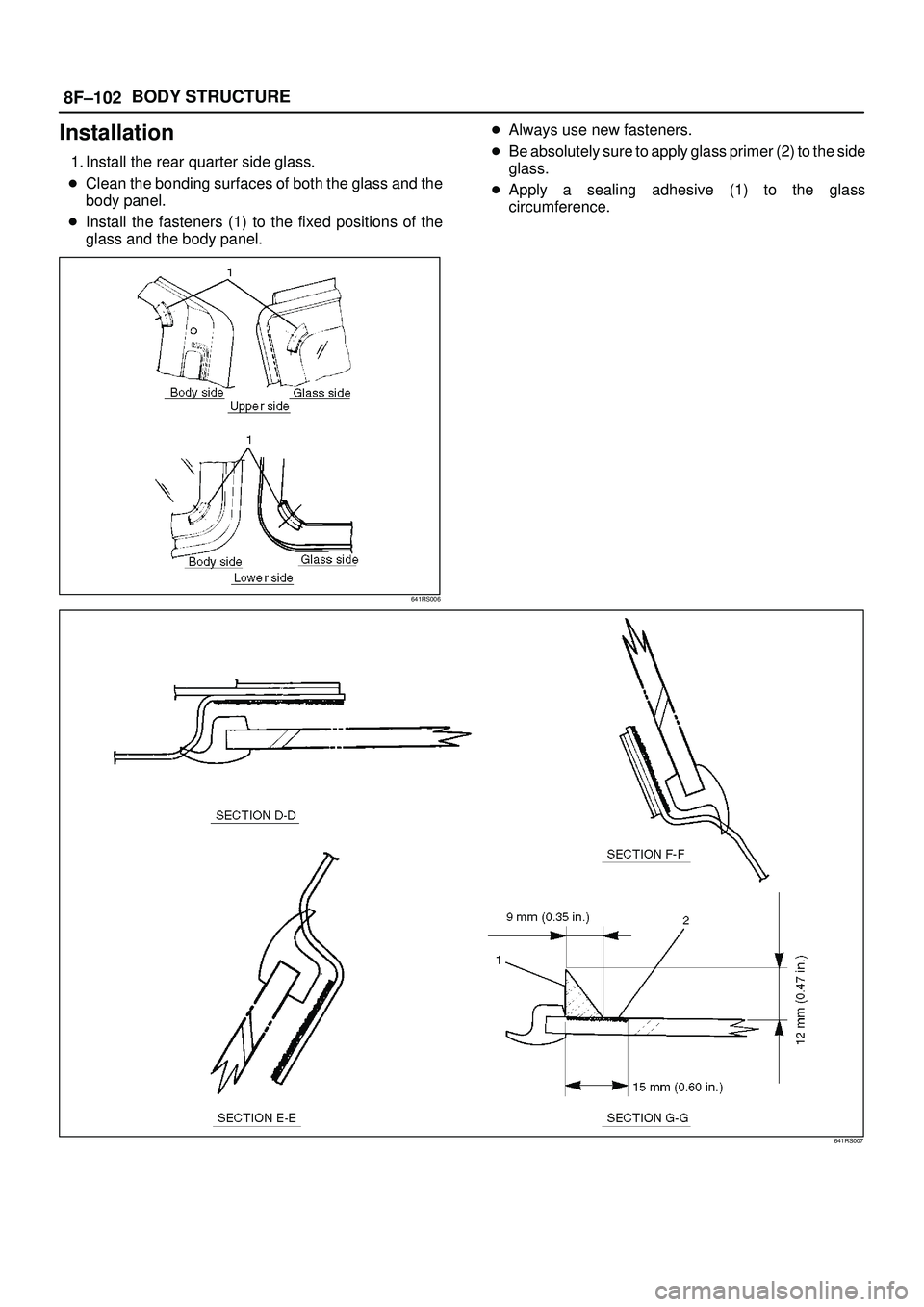

ISUZU TROOPER 1998 Service Repair Manual 8F±102BODY STRUCTURE Installation 1. Install the rear quarter side glass. Clean the bonding surfaces of both the glass and the body panel. Install the fasteners (1) to the fixed positions of the gl

Page 3298 of 3573

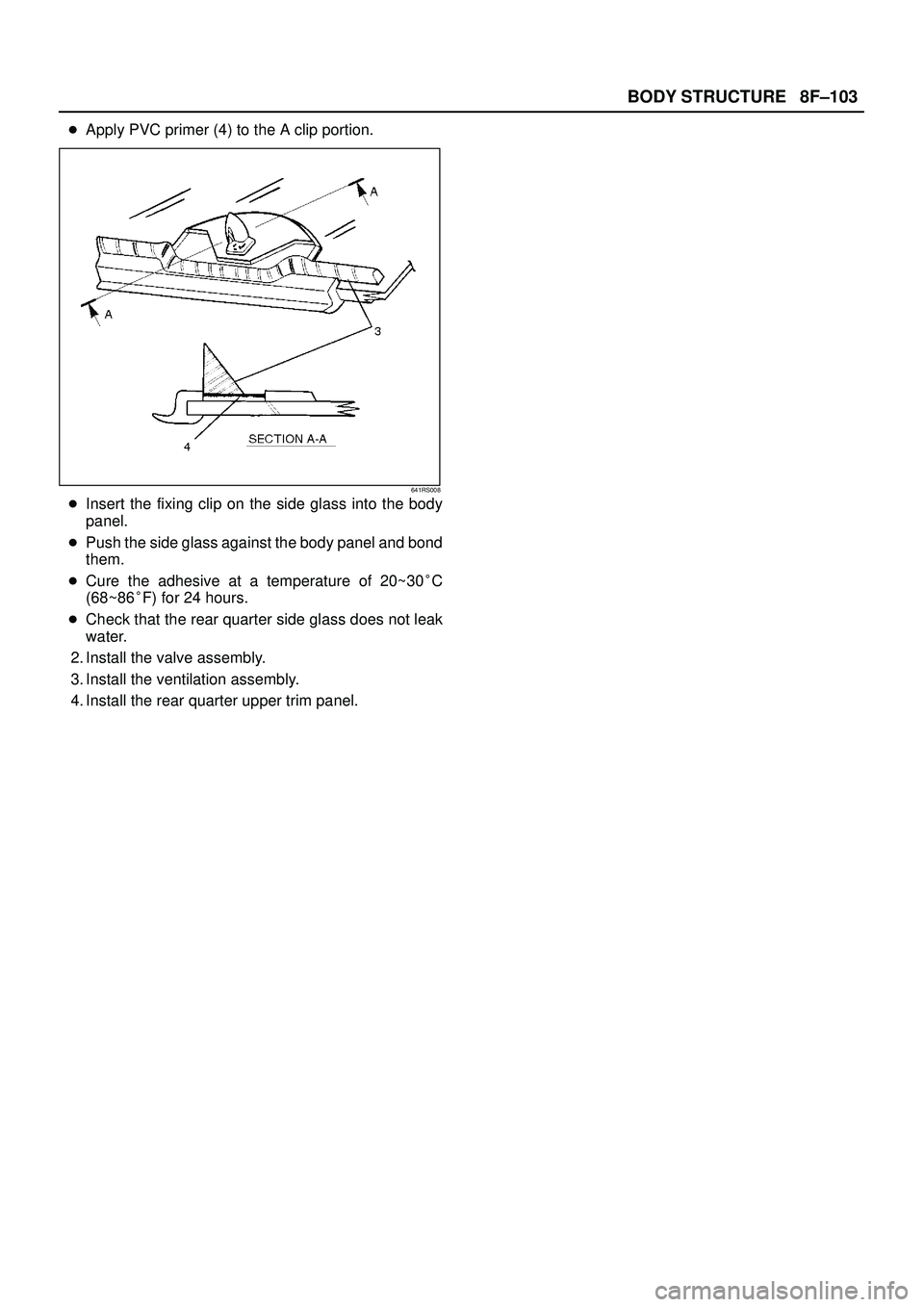

ISUZU TROOPER 1998 Service Repair Manual 8F±103 BODY STRUCTURE Apply PVC primer (4) to the A clip portion. 641RS008 Insert the fixing clip on the side glass into the body panel. Push the side glass against the body panel and bond them.

Page 3299 of 3573

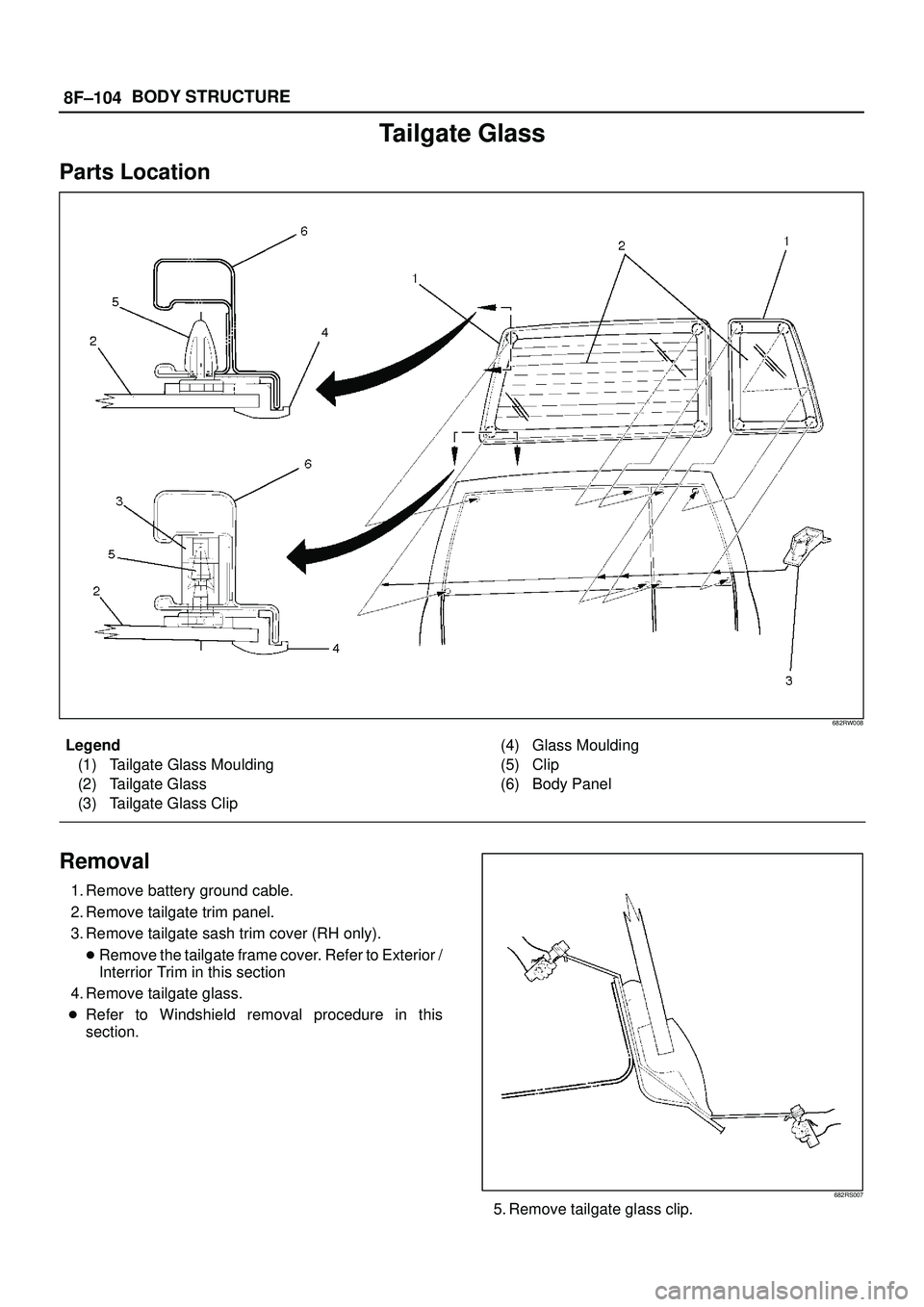

ISUZU TROOPER 1998 Service Repair Manual 8F±104BODY STRUCTURE Tailgate Glass Parts Location 682RW008 Legend (1) Tailgate Glass Moulding (2) Tailgate Glass (3) Tailgate Glass Clip(4) Glass Moulding (5) Clip (6) Body Panel Removal 1. Remove b

Page 3300 of 3573

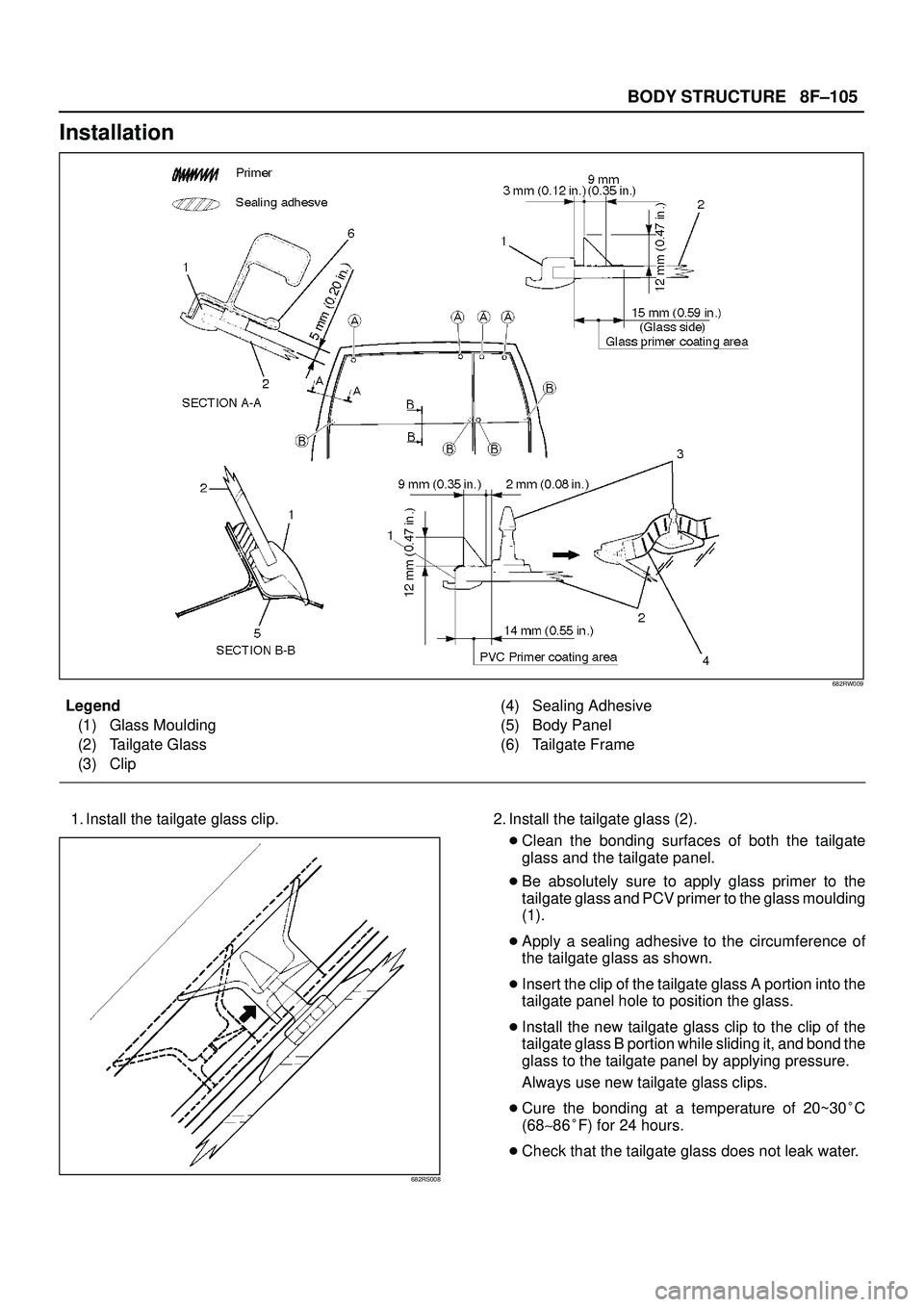

ISUZU TROOPER 1998 Service Repair Manual 8F±105 BODY STRUCTURE Installation 682RW009 Legend (1) Glass Moulding (2) Tailgate Glass (3) Clip(4) Sealing Adhesive (5) Body Panel (6) Tailgate Frame 1. Install the tailgate glass clip. 682RS008 2.

Page 3301 of 3573

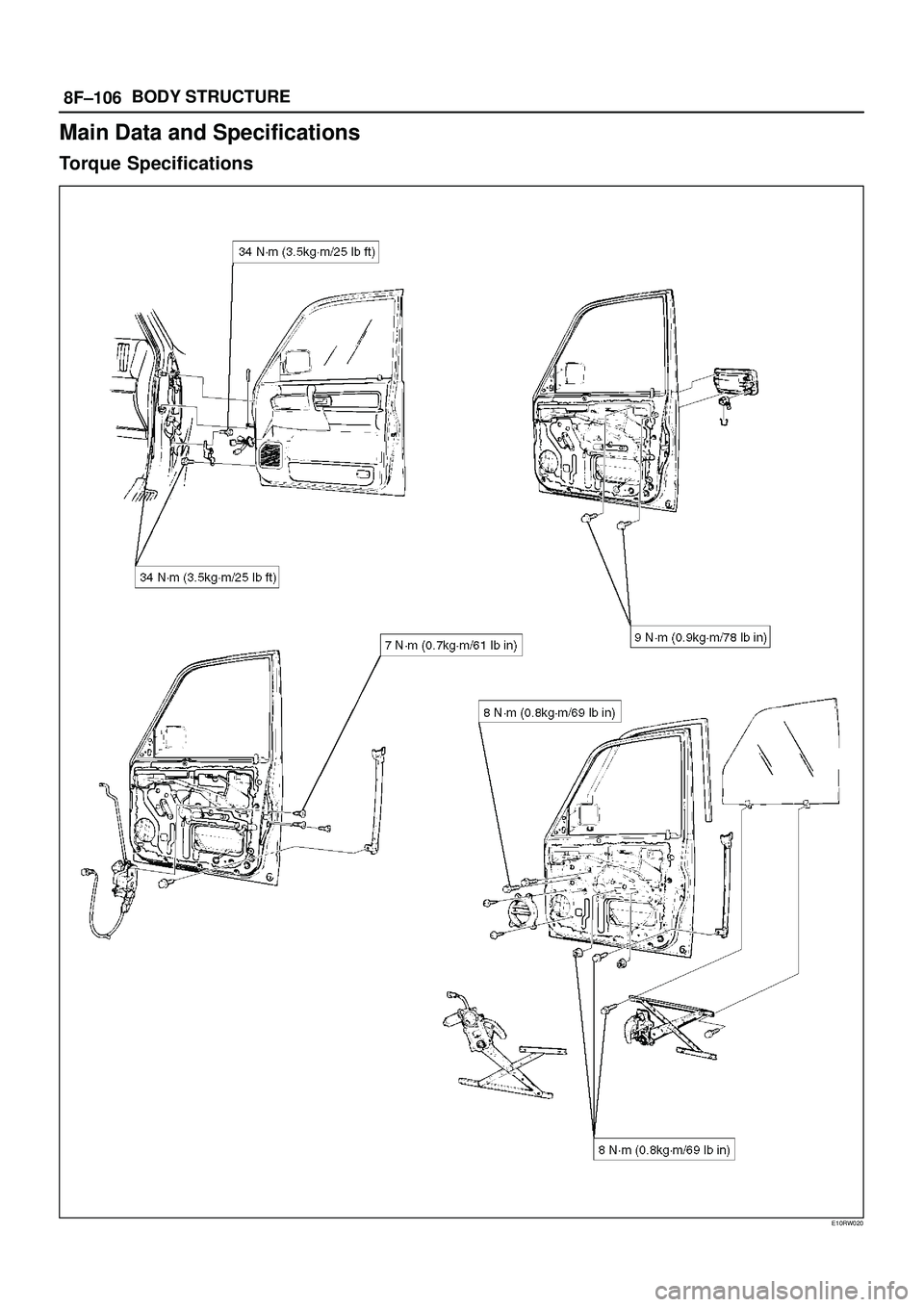

ISUZU TROOPER 1998 Service Repair Manual 8F±106BODY STRUCTURE Main Data and Specifications Torque Specifications E10RW020

Page 3302 of 3573

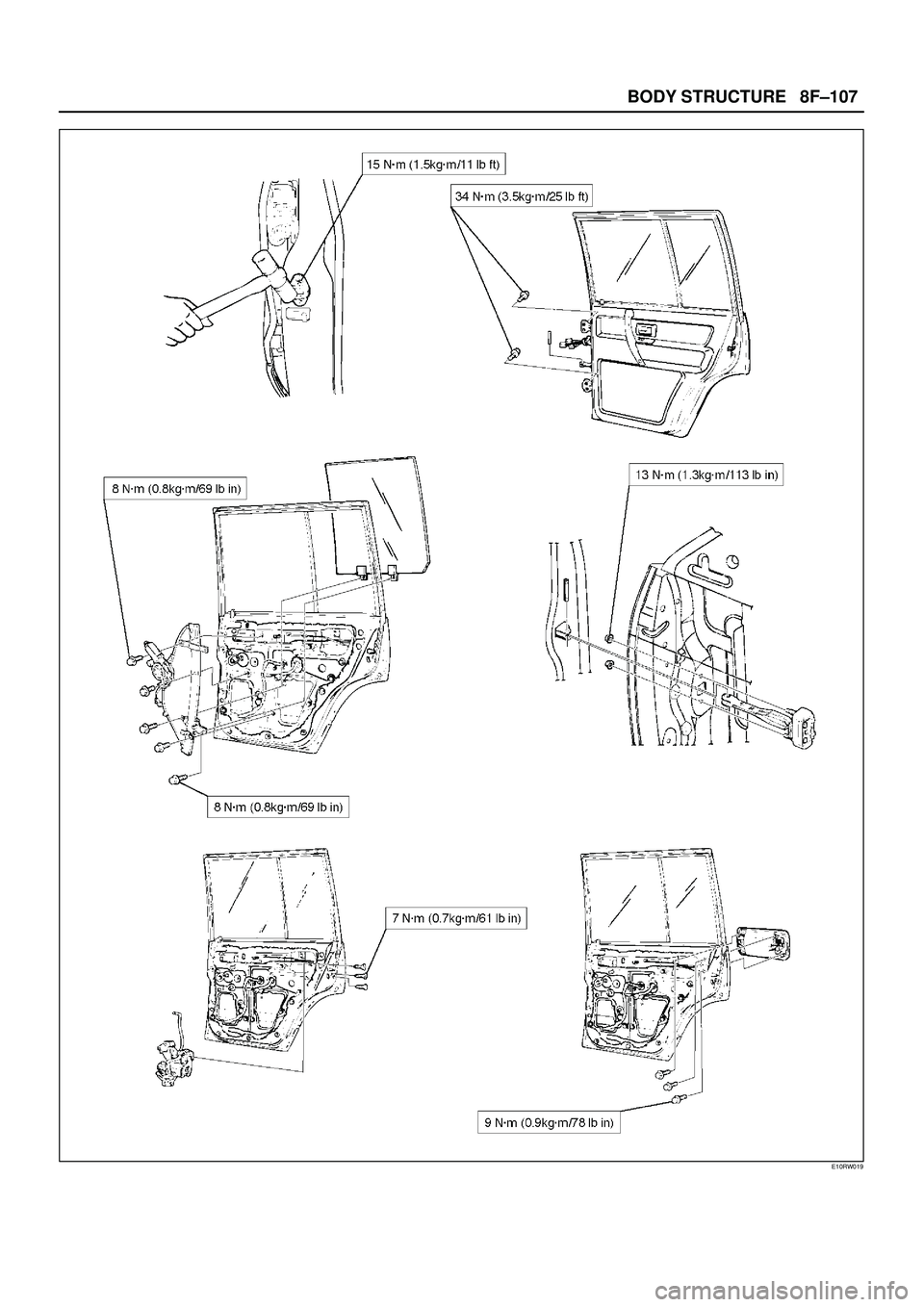

ISUZU TROOPER 1998 Service Repair Manual 8F±107 BODY STRUCTURE E10RW019

Page 3303 of 3573

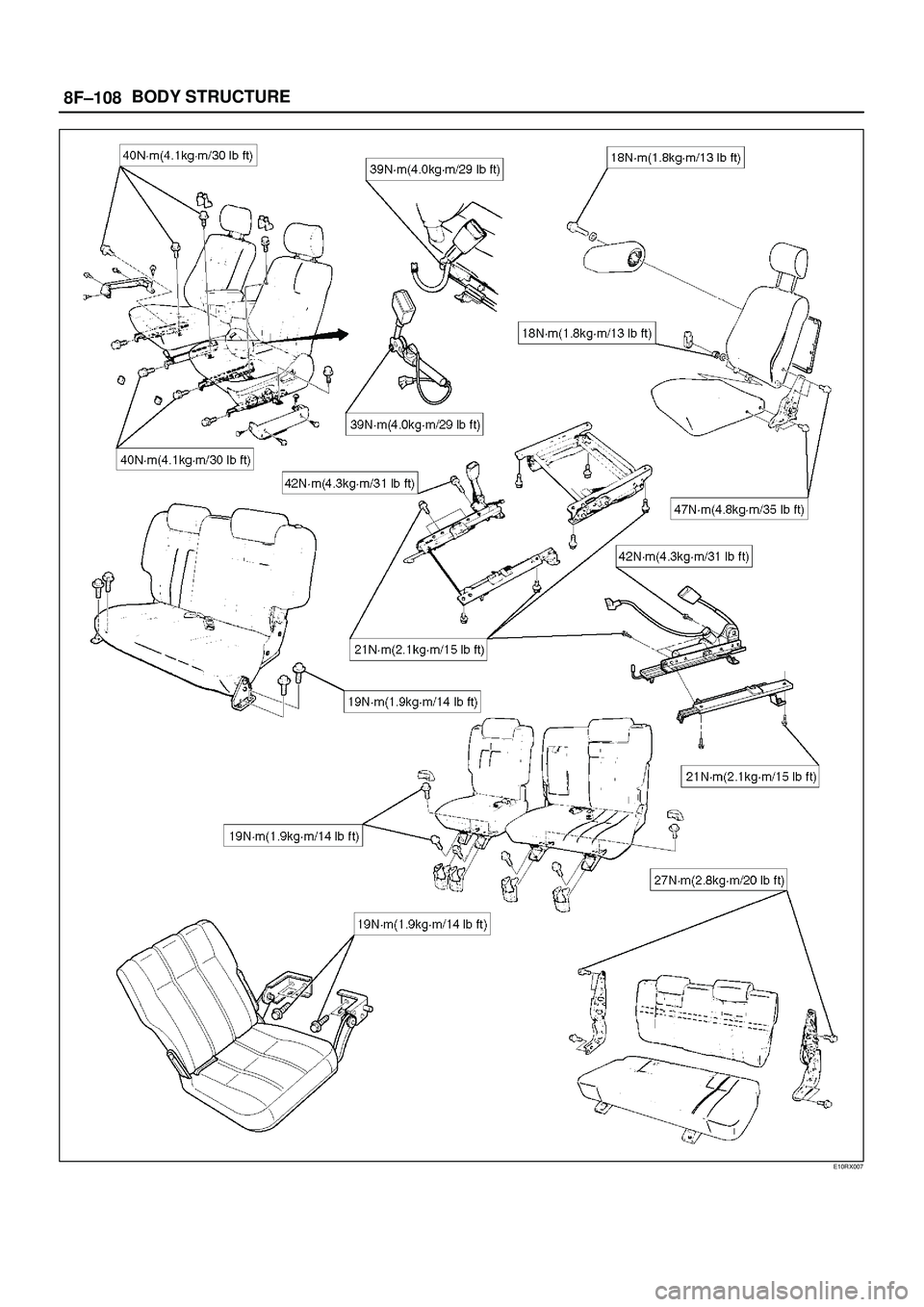

ISUZU TROOPER 1998 Service Repair Manual 8F±108BODY STRUCTURE E10RX007

Page 3304 of 3573

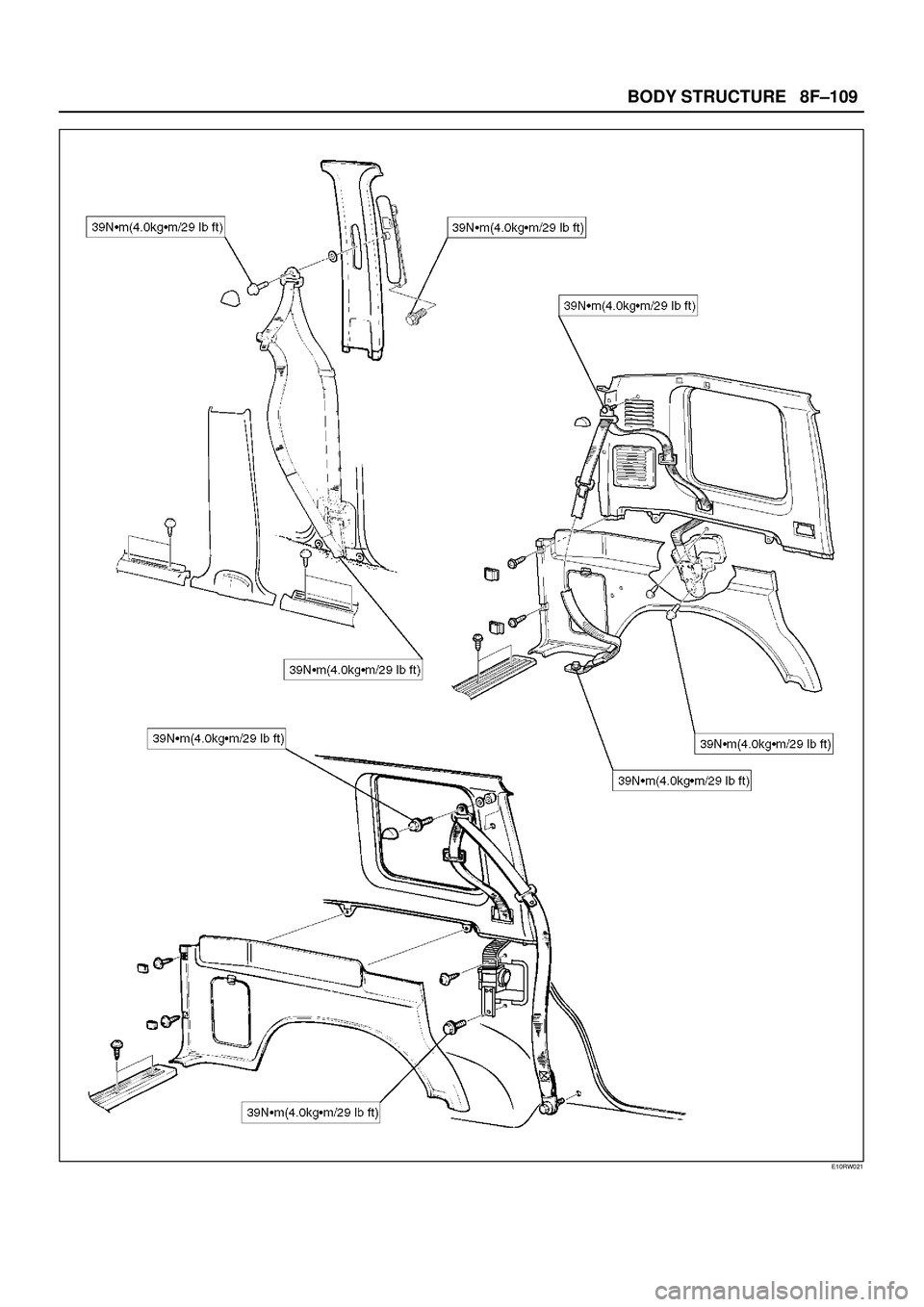

ISUZU TROOPER 1998 Service Repair Manual 8F±109 BODY STRUCTURE E10RW021
