Page 1009 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±53
ENGINE MECHANICAL
2. Remove camshaft bracket fixing bolt (5), camshaft
bracket (6), then camshaft exhaust (7), and intake
side (8).
3. Remove tappet with shim (11).
4. Use the 5±8840±2446±0

6A±53
ENGINE MECHANICAL
2. Remove camshaft bracket fixing bolt (5), camshaft
bracket (6), then camshaft exhaust (7), and intake
side (8).
3. Remove tappet with shim (11).
4. Use the 5±8840±2446±0 valve spring compressor
and 5±8840±2547±0 valve spring compressor
adapter to remove the split collar (12), valve spring
with upper seat (13) and valve (14).
014RW042
5. Remove spark plug (1).
CAUTION: Do not remove the spark plugs when the
head and plugs are hot. Clean dirt and debris from
spark plug recess areas before removal.
Clean
Cylinder head
Carefully remove all varnish, soot and carbon from the
bare metal. Do not use a motorized wire brush on any
gasket sealing surface.
Inspection and Repair
1. Cylinder head gasket and mating surfaces for leaks,
corrosion and blow±by. If the gasket has failed,
determine the cause.
± Insufficient torque on head bolts.
± Improper installation
± Loose or warped cylinder head
± Missing dowel pins
± Warped case surface
2. Cylinder head for cracks, especially between valve
seats and in the exhaust ports.3. Cylinder head deck for corrosion, sand particles in
head and porosity.
CAUTION:
Do not attempt to weld the cylinder head. Replace
it.
Do not reuse cylinder head bolts.
4. Cylinder head deck, common chamber and exhaust
manifold mating surfaces for flatness. These
surfaces may be reconditioned by milling. If the
surfaces are ªout of flatº by more than specification,
the surface should be ground to within specifications.
Replace the head if it requires machining beyond the
repairable limit.
Head surface and manifold surface
Standard: 0.05 mm (0.002 in) or less
Warpage limit: 0.2 mm (0.0079 in)
Maximum Repairable limit: 0.2 mm (0.0079 in)
Head height
Standard height : 133.2 mm (5.2441 in)
Warpage limit : 0.2 mm (0.0079 in)
Maximum Repairable limit : 133.0 mm (5.2362 in)011RW019
5. Water jacket sealing plugs seating surfaces.
Reassembly
1. Install Spark plug and tighten all the spark plugs to
specified torque.
Torque: 18 N´m (1.8 Kg´m/13 lb ft)
2. Tighten sub gear setting bolt.
1. Use 5±8840±2443±0 gear spring lever to turn sub
gear to right direction until the M5 bolt aligns with
the hole between camshaft driven gear and sub
gear.

Page 1010 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±54
ENGINE MECHANICAL
2. Tighten the M5 bolt to a suitable torque to prevent
the sub gear from moving .
014RW025
3. Install camshaft drive gear assembly and tighten
three bolts to the specified tor

Page 1011 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±55
ENGINE MECHANICAL
014RW024
Legend
(1) Right Bank
(2) Left Bank(3) Alignment Mark on Camshaft Drive Gear
(4) Alignment Mark on Camshaft
(5) Alignment Mark on Retainer
3. Tighten twenty bolts in

Page 1012 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±56
ENGINE MECHANICAL

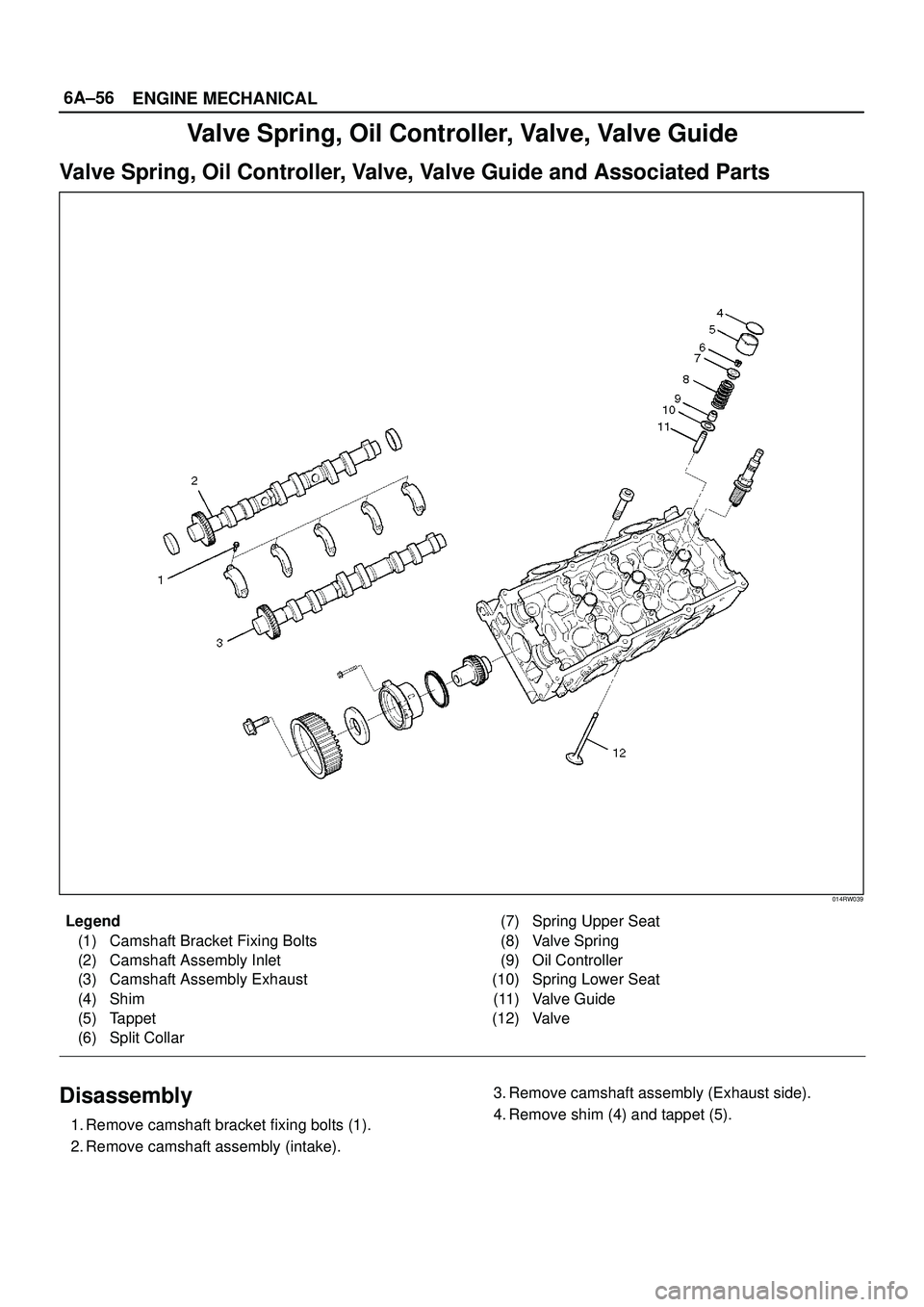

Valve Spring, Oil Controller, Valve, Valve Guide
Valve Spring, Oil Controller, Valve, Valve Guide and Associated Parts
014RW039
Legend
(1) Camshaft Bracket Fixing Bolts
(2) Ca

Page 1013 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±57
ENGINE MECHANICAL
5. Use 5±8840±2446±0 valve spring compressor and
5±8840±2547±0 valve spring compressor adapter to
remove split collar.
014RW042
6. Remove valve spring.
7. Remove valve.

Page 1014 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±58
ENGINE MECHANICAL
1. Measure the valve stem diameter with a micrometer.
If the valve stem diameter is less than the specified
limit, the valve and the valve guide must be replaced
as a set.
Dia

Page 1015 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±59
ENGINE MECHANICAL
Limit: 39.47 mm (1.5539 in)
Exhaust
Standard: 39.30 mm (1.5472 in)
Limit: 39.45 mm (1.5531 in)
014RW047
2. Measure the valve seat contact width. Make the
necessary corrections

Page 1016 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±60
ENGINE MECHANICAL
6. Check that the valve contact width is correct.
7. Check that the valve seat insert surface is in contact
with the entire circumference of the valve.
014RS014
Valve Seat Ins
