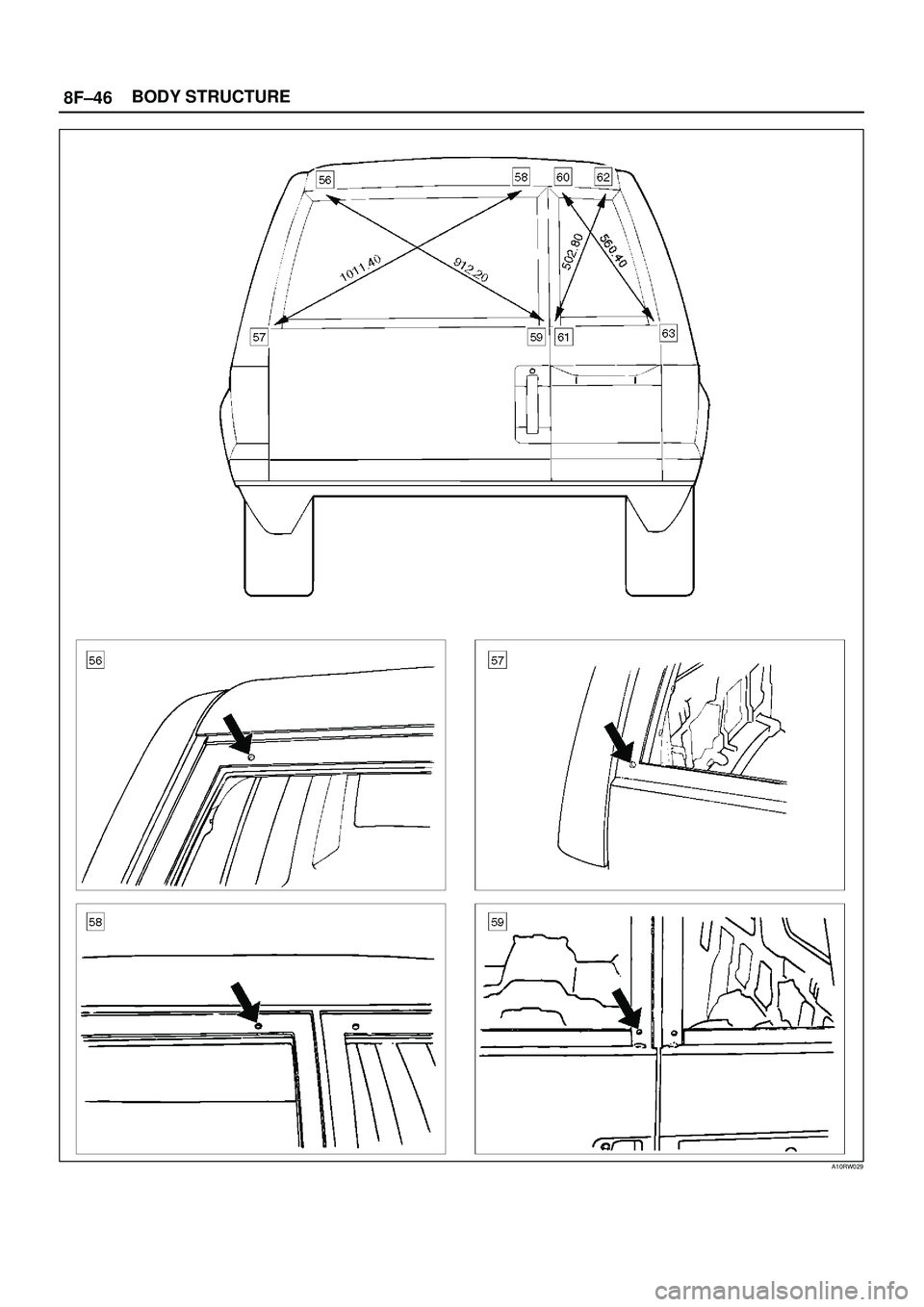

ISUZU TROOPER 1998  Service Repair Manual 8F±46BODY STRUCTURE
A10RW029

Page 3242 of 3573

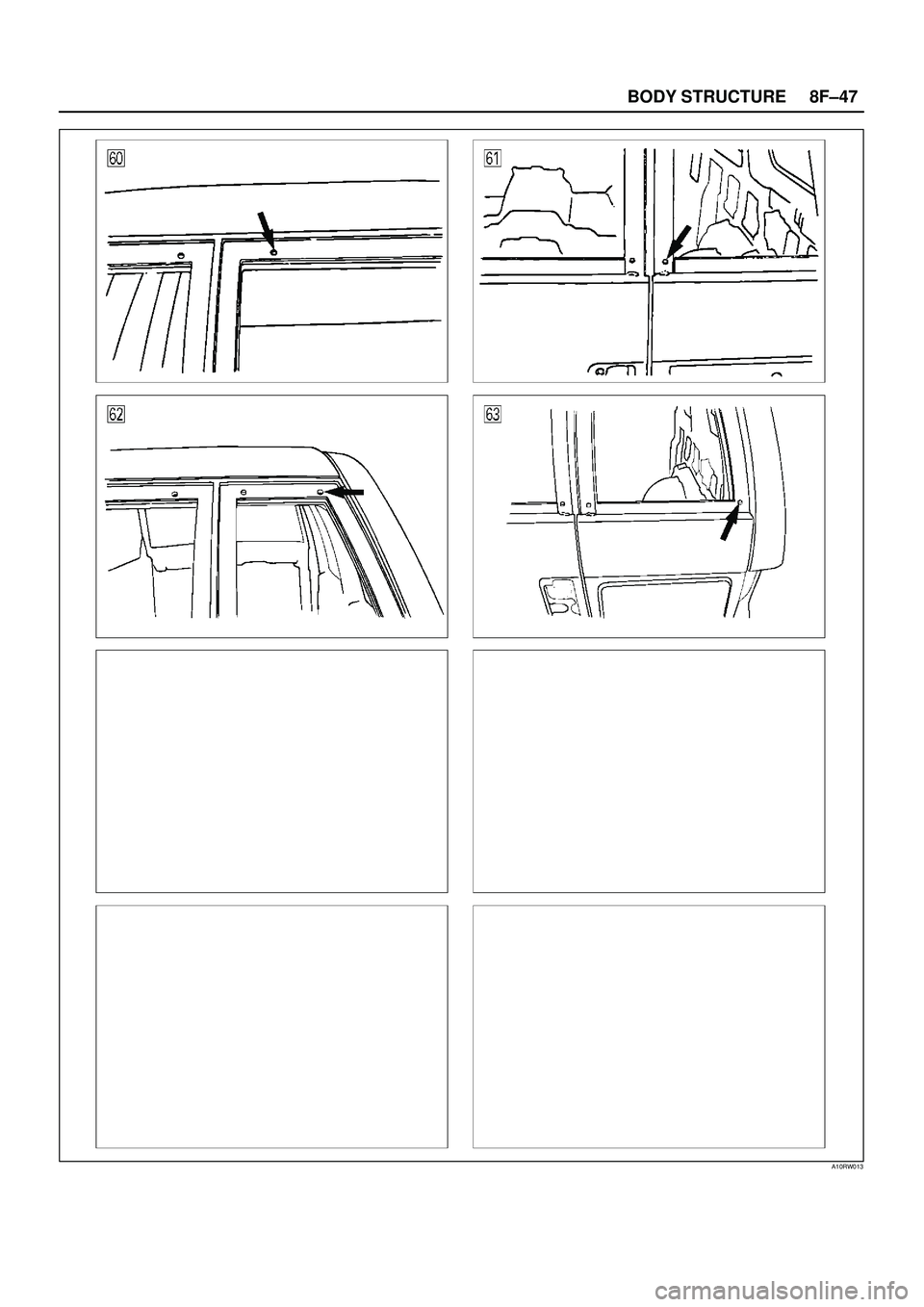

ISUZU TROOPER 1998  Service Repair Manual 8F±47 BODY STRUCTURE
A10RW013

Page 3243 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8F±48BODY STRUCTURE

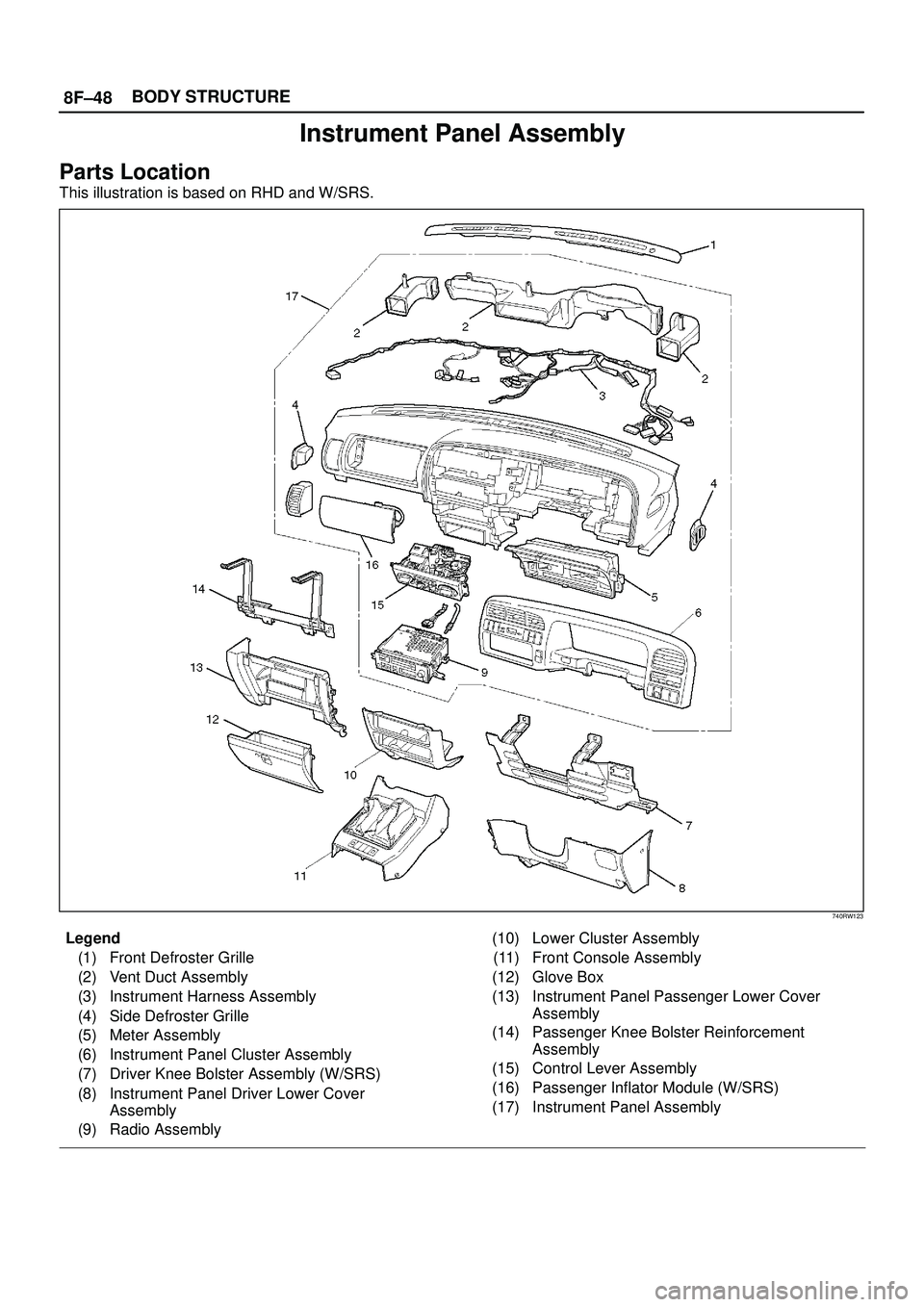

Instrument Panel Assembly
Parts Location
This illustration is based on RHD and W/SRS.
740RW123
Legend
(1) Front Defroster Grille
(2) Vent Duct Assembly
(3) Instrument Harness Asse

Page 3244 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8F±49 BODY STRUCTURE

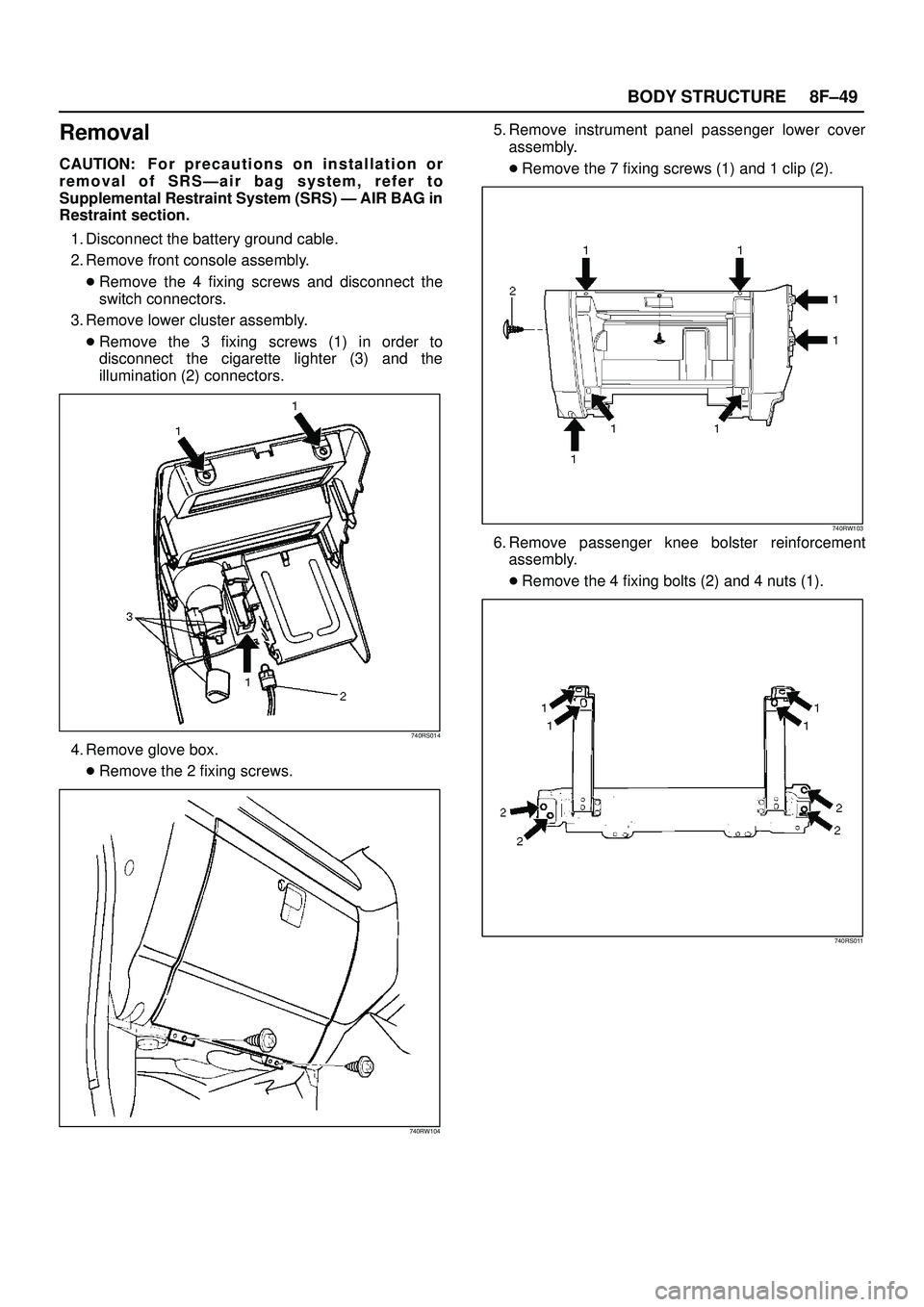

Removal
CAUTION: F o r p recautions on installation or
removal of SRSÐair bag system, refer to
Supplemental Restraint System (SRS) Ð AIR BAG in
Restraint section.
1. Disconnect

Page 3245 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8F±50BODY STRUCTURE

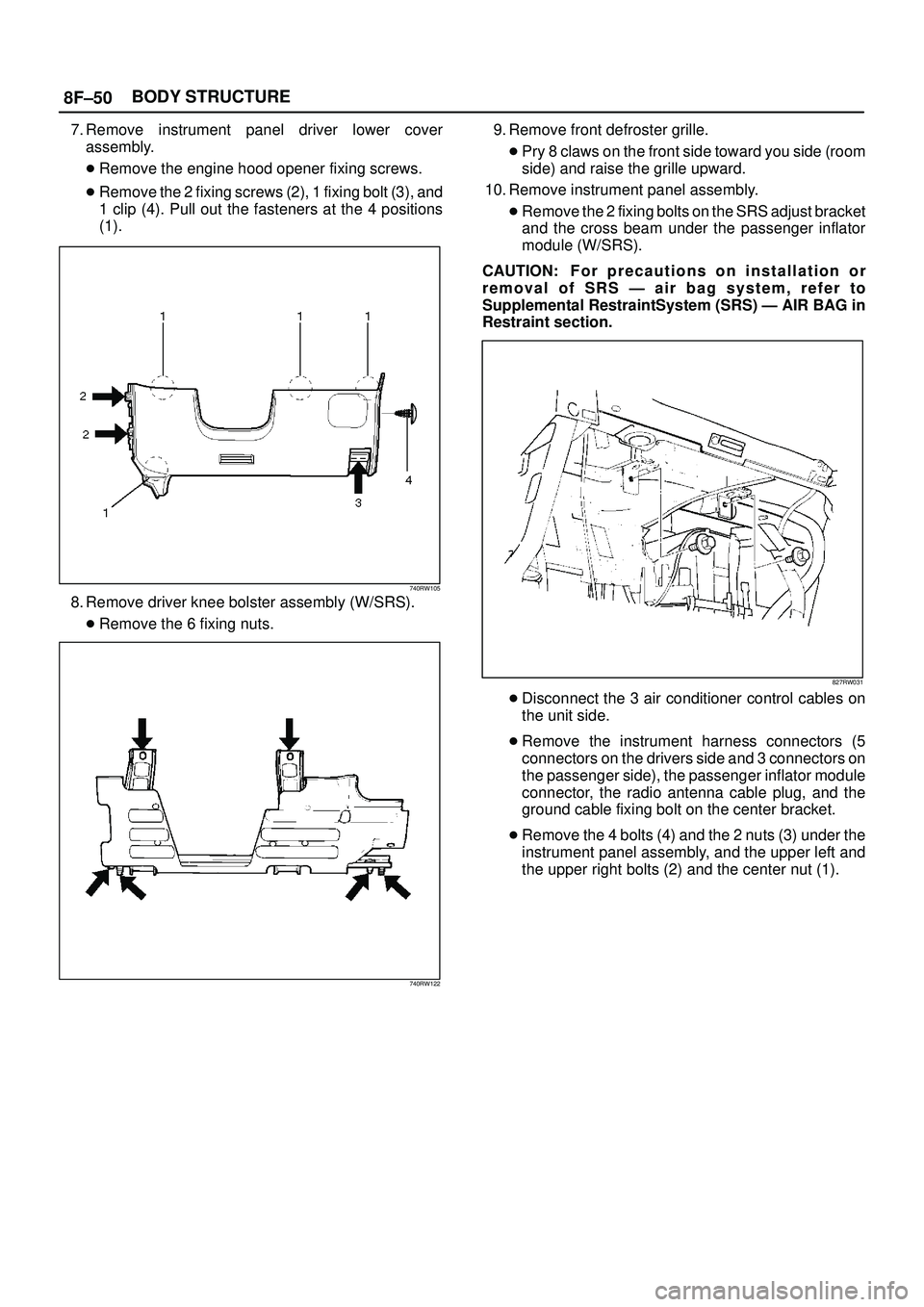

7. Remove instrument panel driver lower cover
assembly.
Remove the engine hood opener fixing screws.
Remove the 2 fixing screws (2), 1 fixing bolt (3), and
1 clip (4). Pull out

Page 3246 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8F±51 BODY STRUCTURE
740RW106

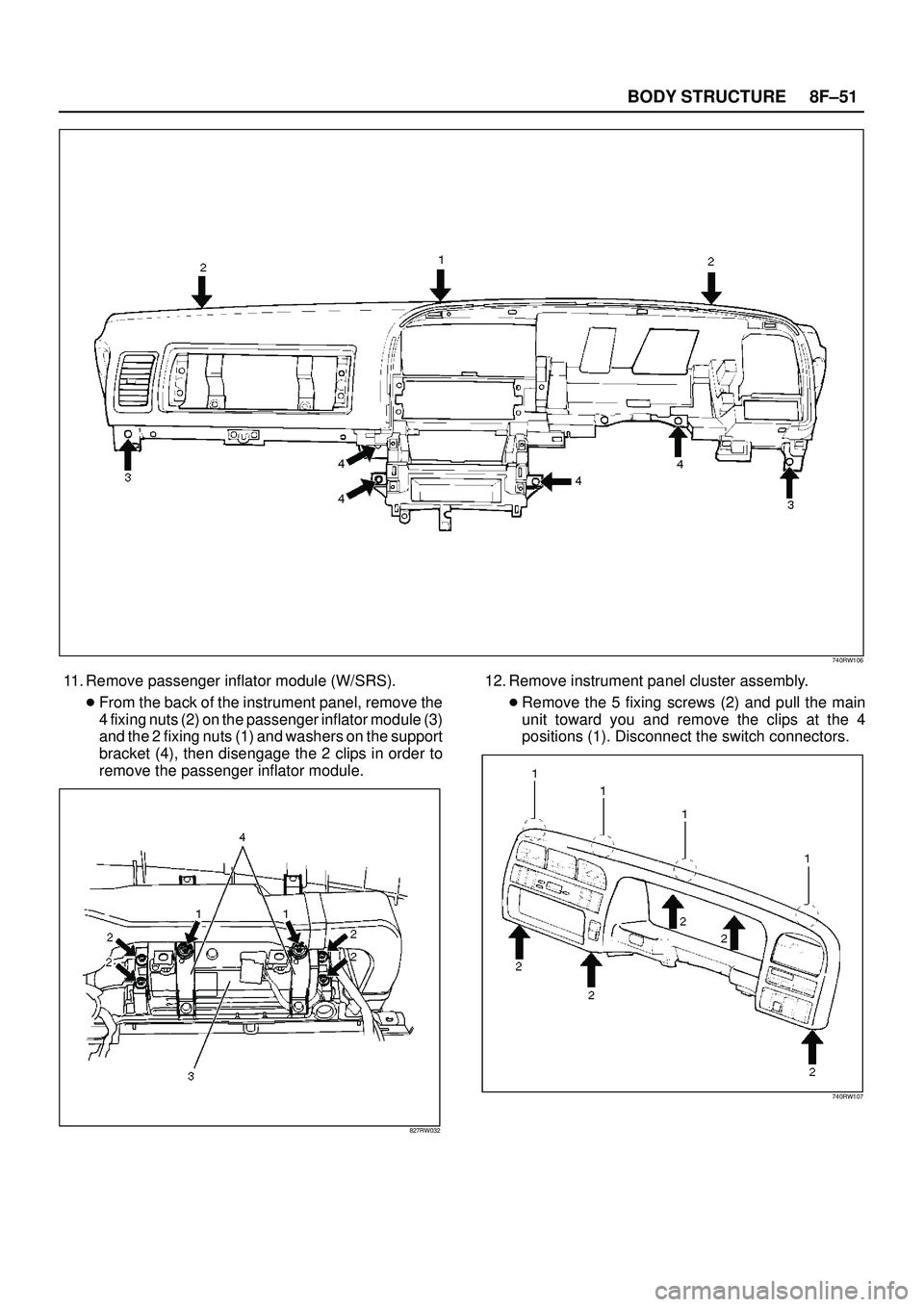

11. Remove passenger inflator module (W/SRS).
From the back of the instrument panel, remove the
4 fixing nuts (2) on the passenger inflator module (3)
and the 2 fixing

Page 3247 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8F±52BODY STRUCTURE

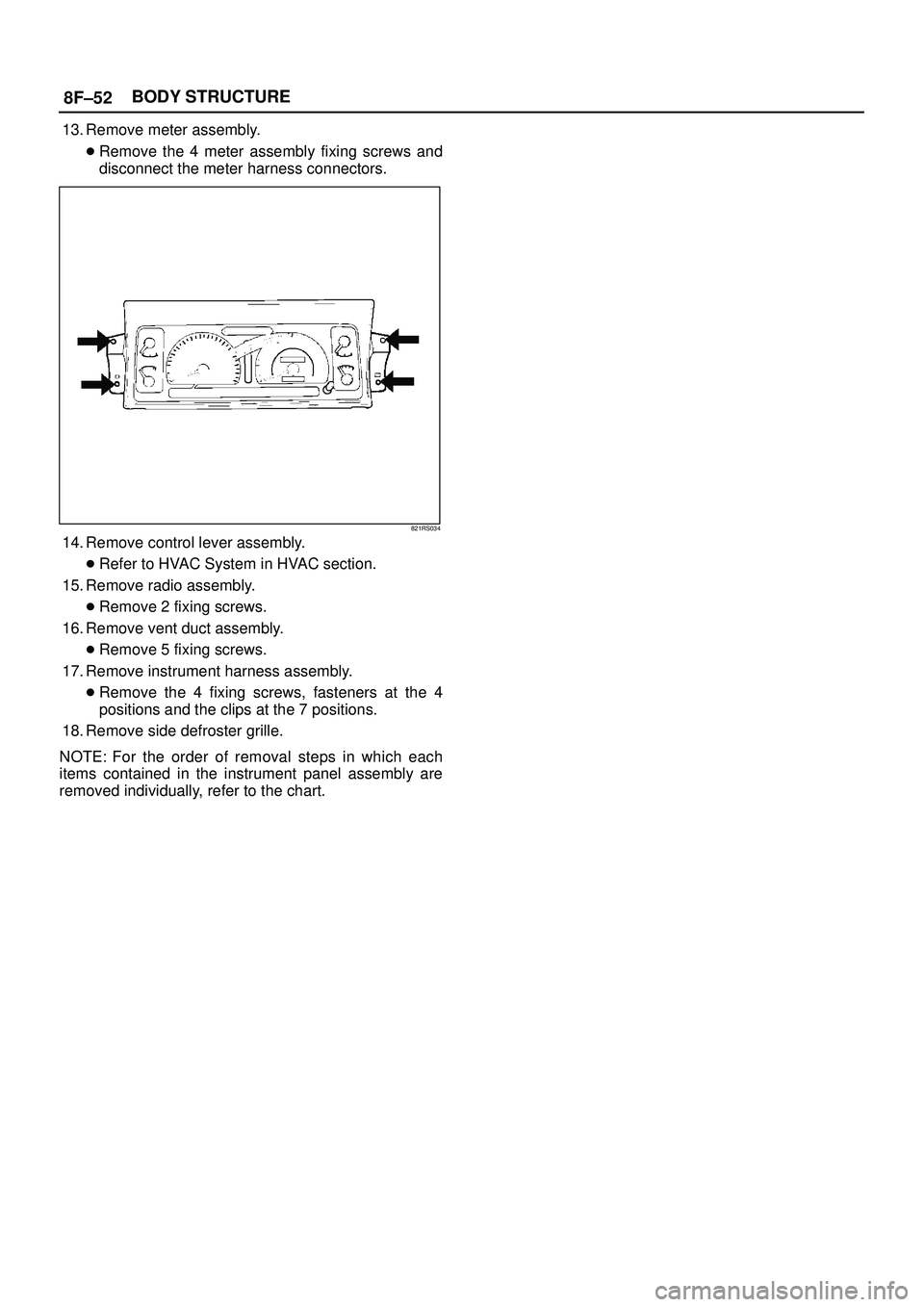

13. Remove meter assembly.
Remove the 4 meter assembly fixing screws and
disconnect the meter harness connectors.
821RS034
14. Remove control lever assembly.
Refer to HVAC Syst

Page 3248 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8F±53 BODY STRUCTURE

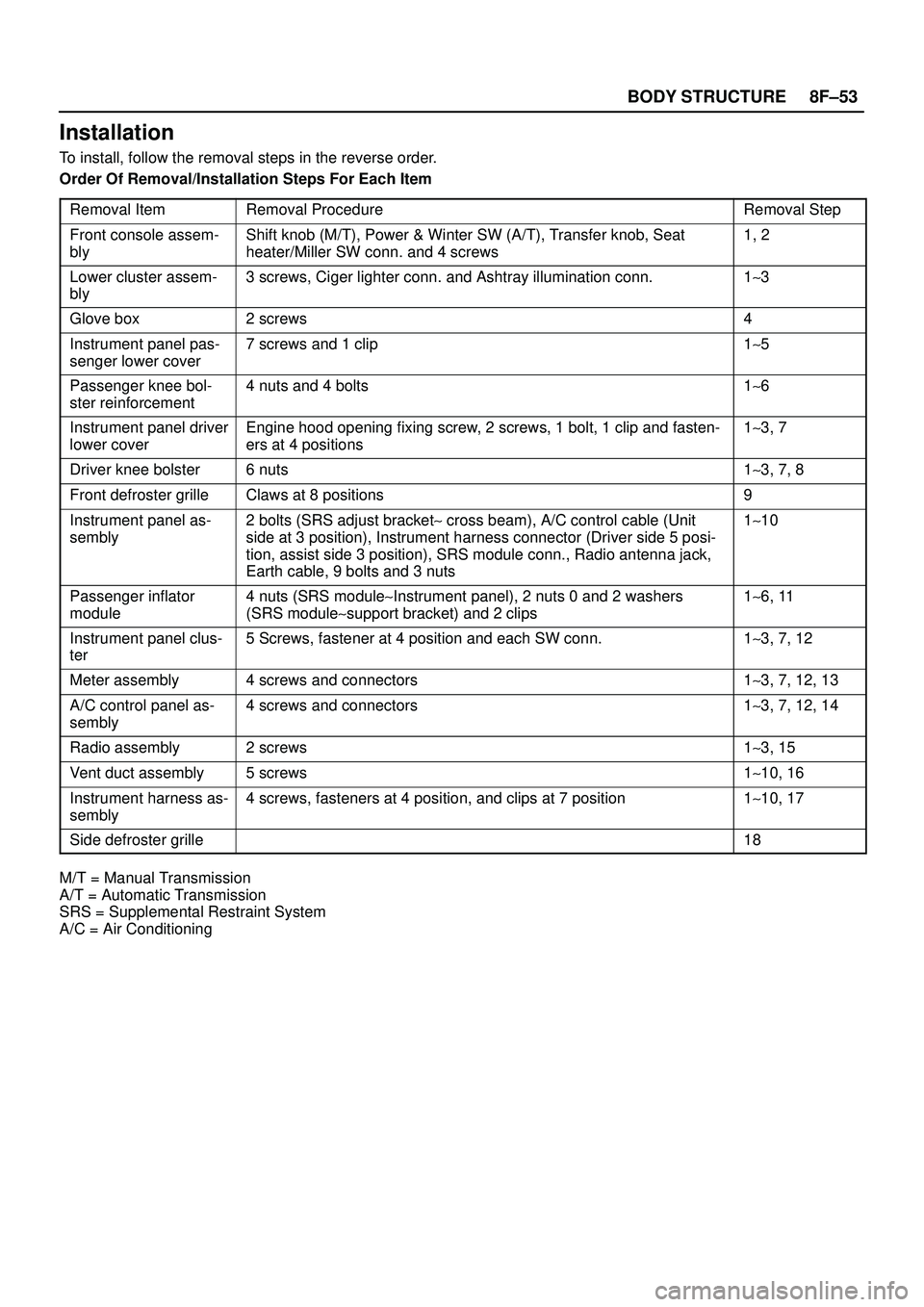

Installation
To install, follow the removal steps in the reverse order.
Order Of Removal/Installation Steps For Each Item
Removal Item
Removal ProcedureRemoval Step
Front console
