Page 2633 of 3573

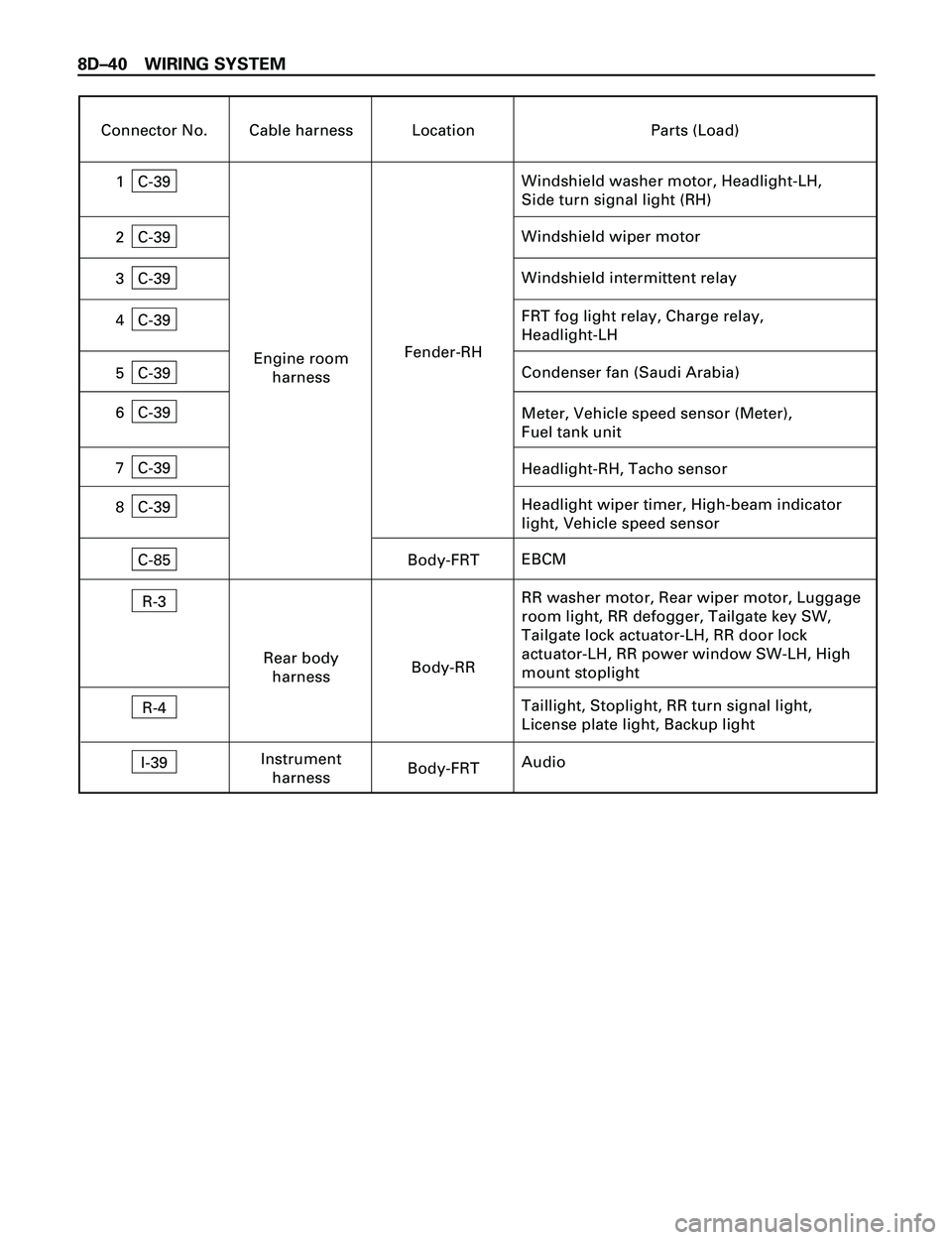

ISUZU TROOPER 1998 Service Repair Manual 8DÐ40 WIRING SYSTEM Connector No. Cable harness Location Parts (Load) C-39 Windshield washer motor, Headlight-LH, Side turn signal light (RH)1 C-39 Windshield wiper motor2 C-39 FRT fog light relay, C

Page 2634 of 3573

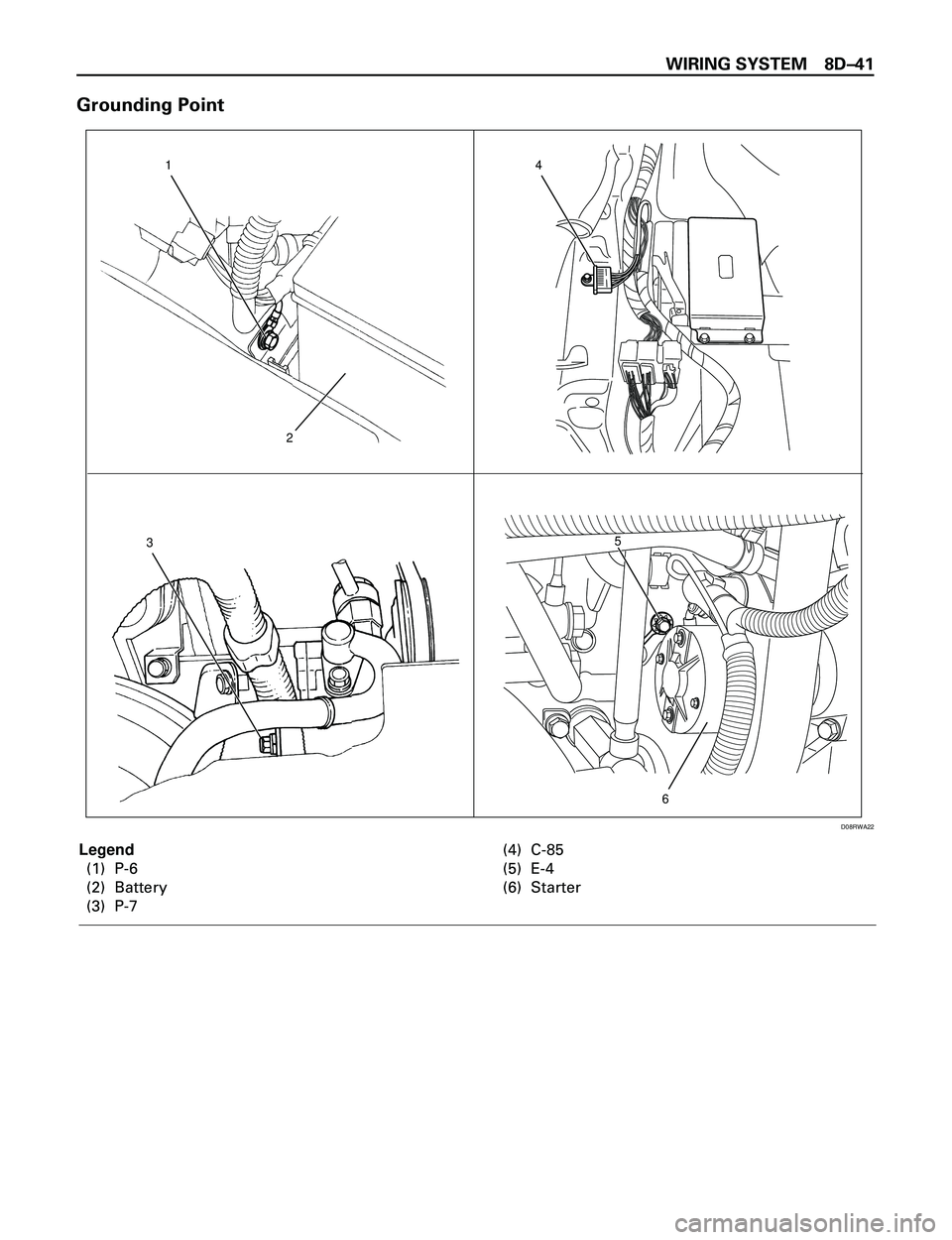

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ41 Grounding Point 14 5 632 D08RWA22 Legend (1) P-6 (2) Battery (3) P-7(4) C-85 (5) E-4 (6) Starter

Page 2635 of 3573

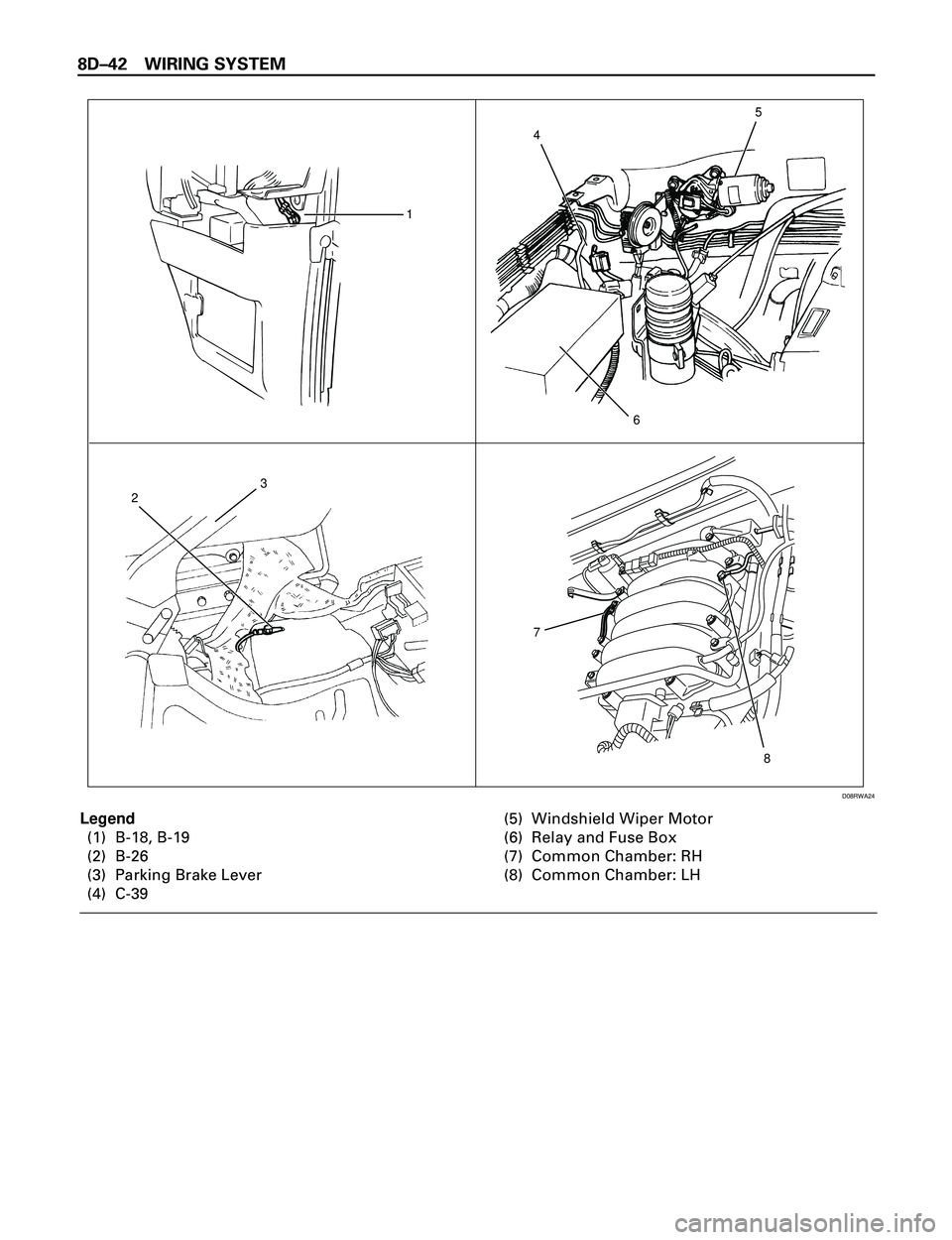

ISUZU TROOPER 1998 Service Repair Manual 8DÐ42 WIRING SYSTEM 145 6 7 8 23 D08RWA24 Legend (1) B-18, B-19 (2) B-26 (3) Parking Brake Lever (4) C-39(5) Windshield Wiper Motor (6) Relay and Fuse Box (7) Common Chamber: RH (8) Common Chamber: L

Page 2636 of 3573

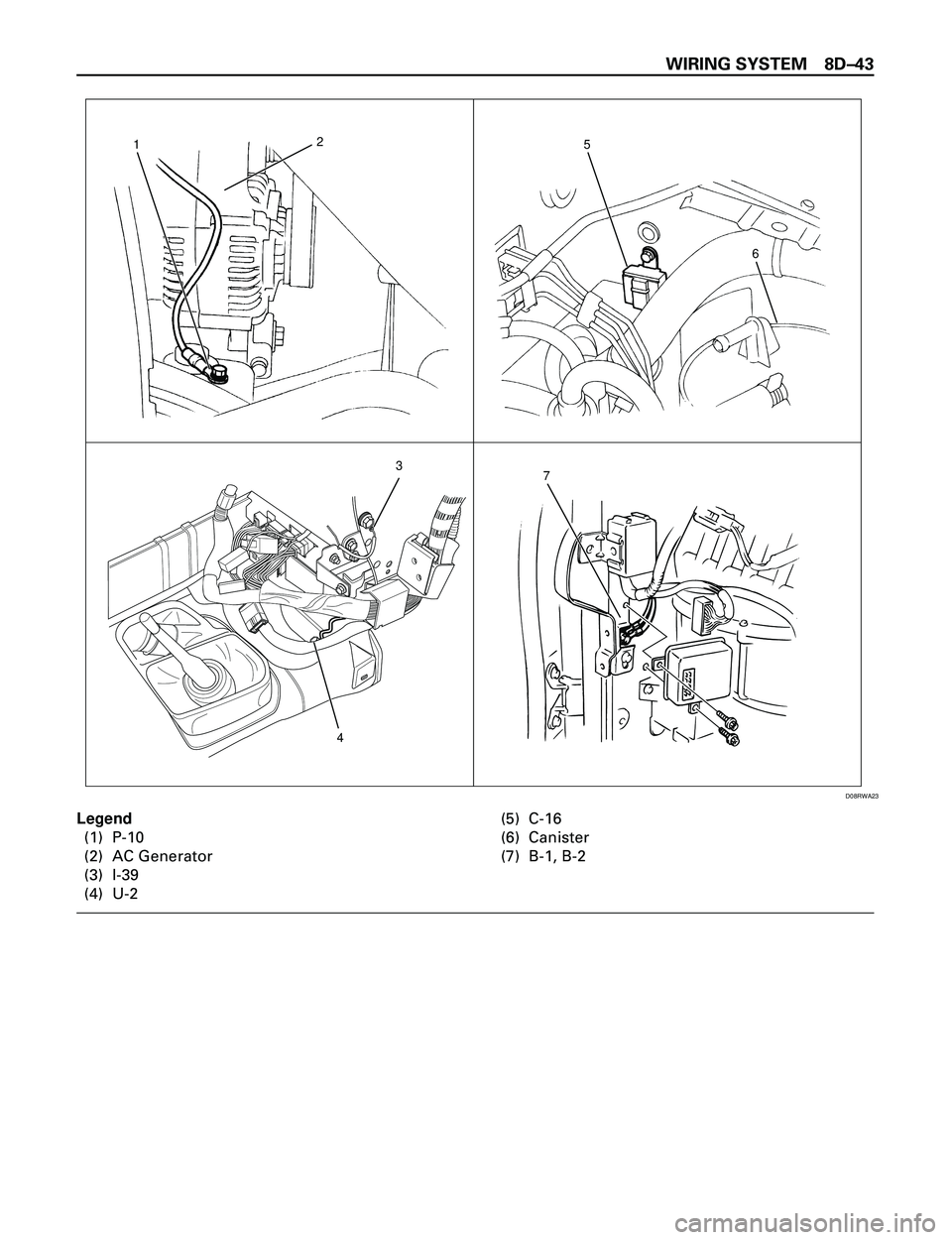

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ43 2 3 4 15 7 6 D08RWA23 Legend (1) P-10 (2) AC Generator (3) I-39 (4) U-2(5) C-16 (6) Canister (7) B-1, B-2

Page 2637 of 3573

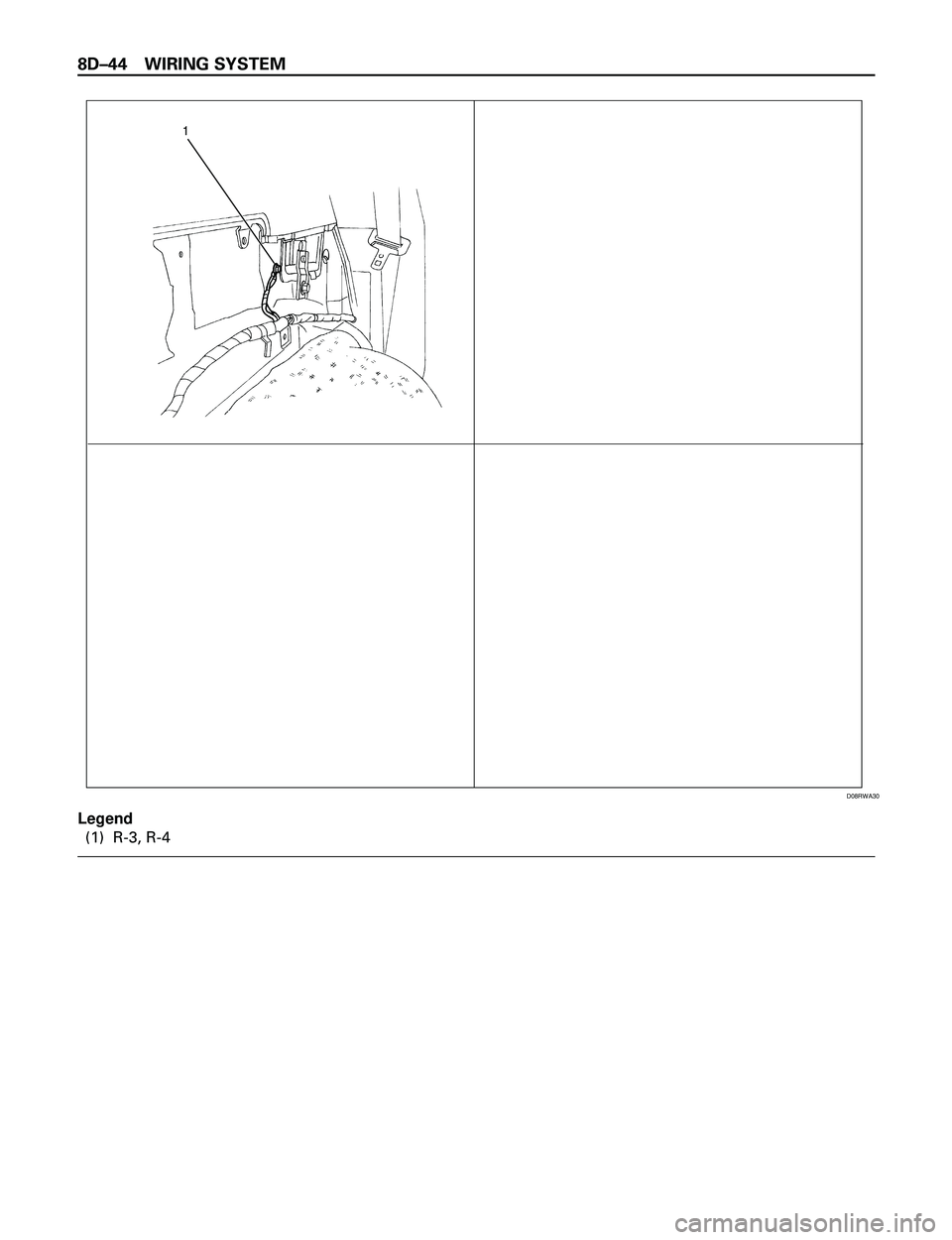

ISUZU TROOPER 1998 Service Repair Manual 8DÐ44 WIRING SYSTEM 1 D08RWA30 Legend (1) R-3, R-4

Page 2638 of 3573

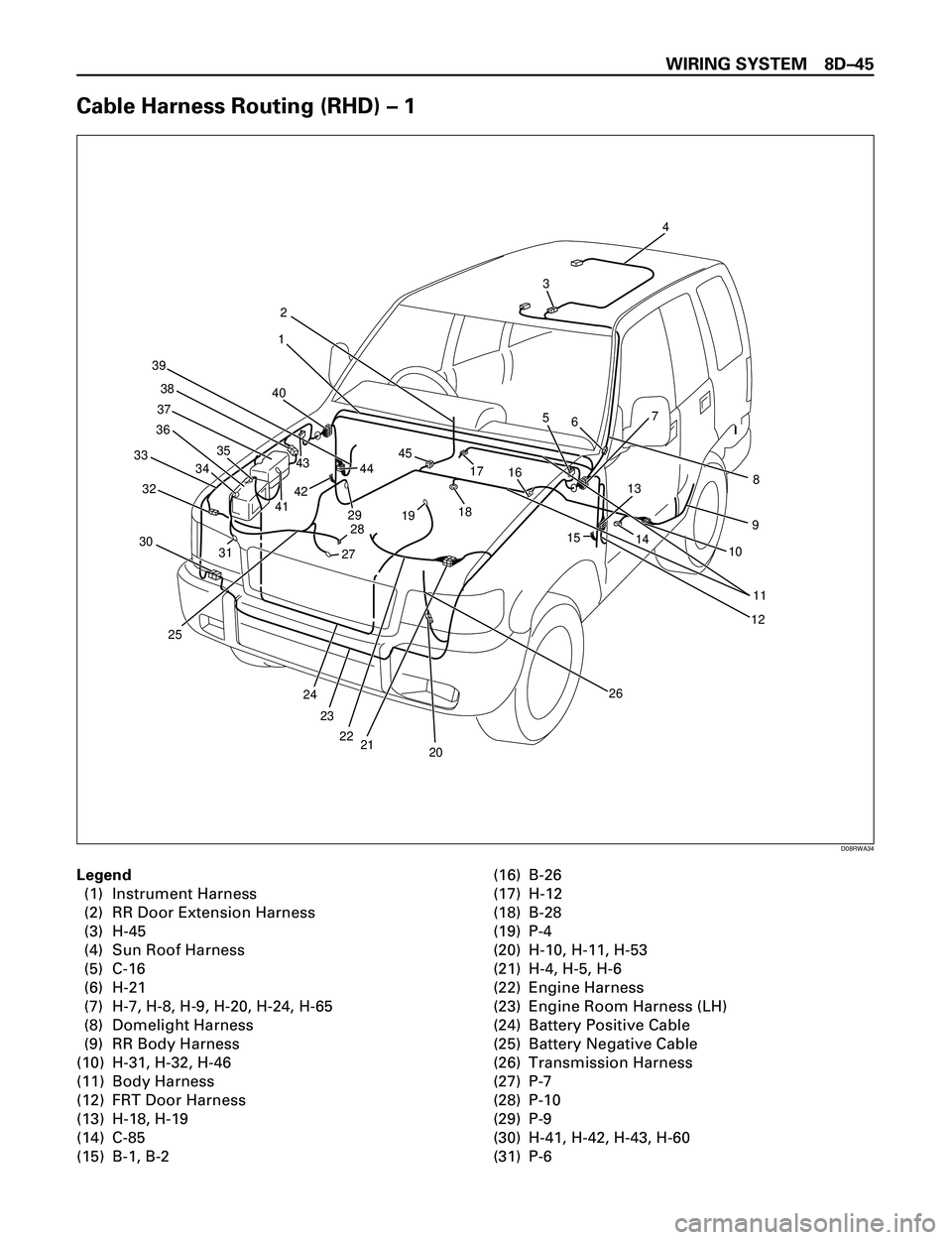

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ45 Cable Harness Routing (RHD) Ð 1 8 4012 33 16 14 10 13 156 45 4244 9 7 11 5 22 23 25 24 30 31 2728 323435 41 29 43 3637 39 211917 18 12 26 384 3 20 D08RWA34 Legend (1) Instrument

Page 2639 of 3573

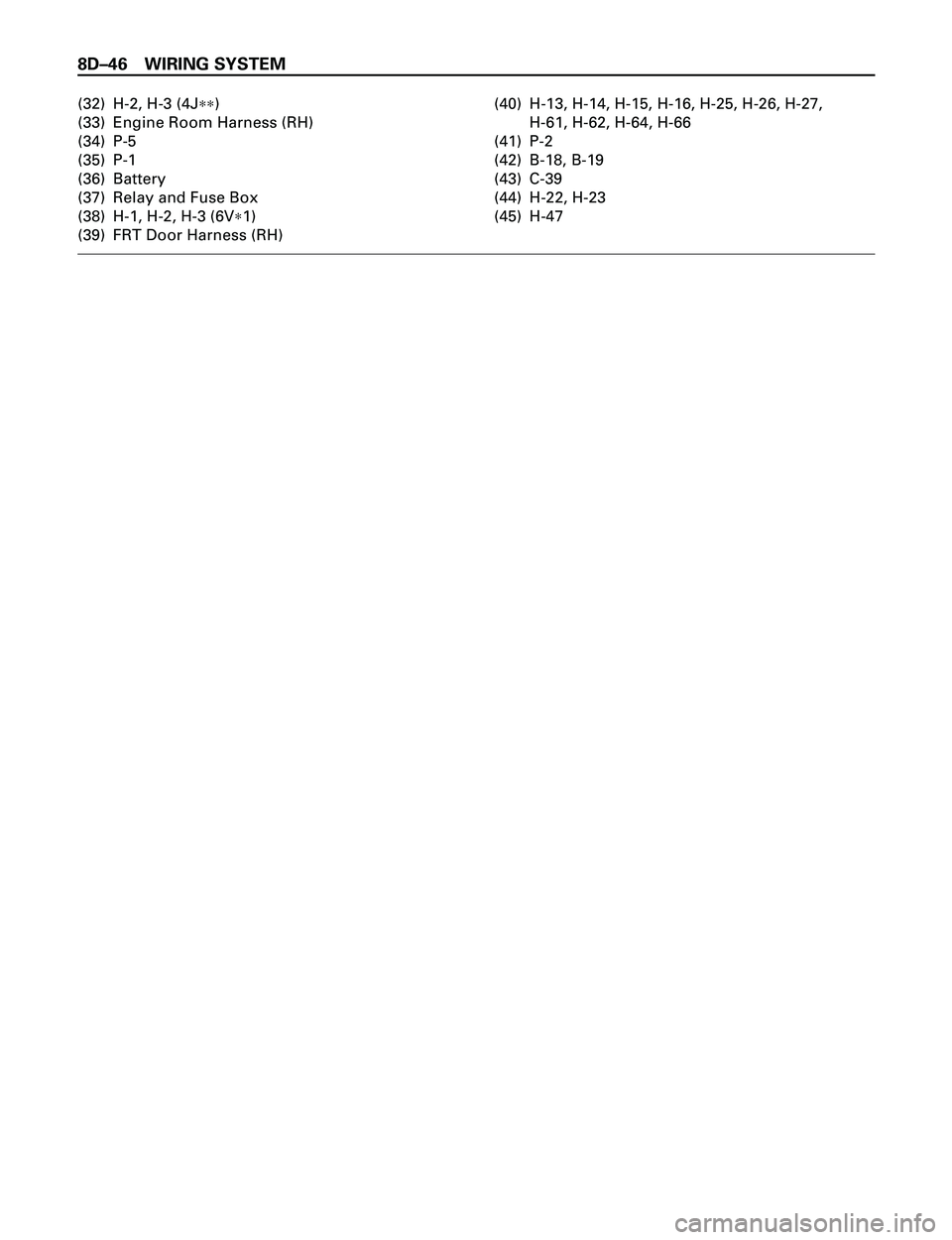

ISUZU TROOPER 1998 Service Repair Manual 8DÐ46 WIRING SYSTEM (32) H-2, H-3 (4J**) (33) Engine Room Harness (RH) (34) P-5 (35) P-1 (36) Battery (37) Relay and Fuse Box (38) H-1, H-2, H-3 (6V*1) (39) FRT Door Harness (RH)(40) H-13, H-14, H-15

Page 2640 of 3573

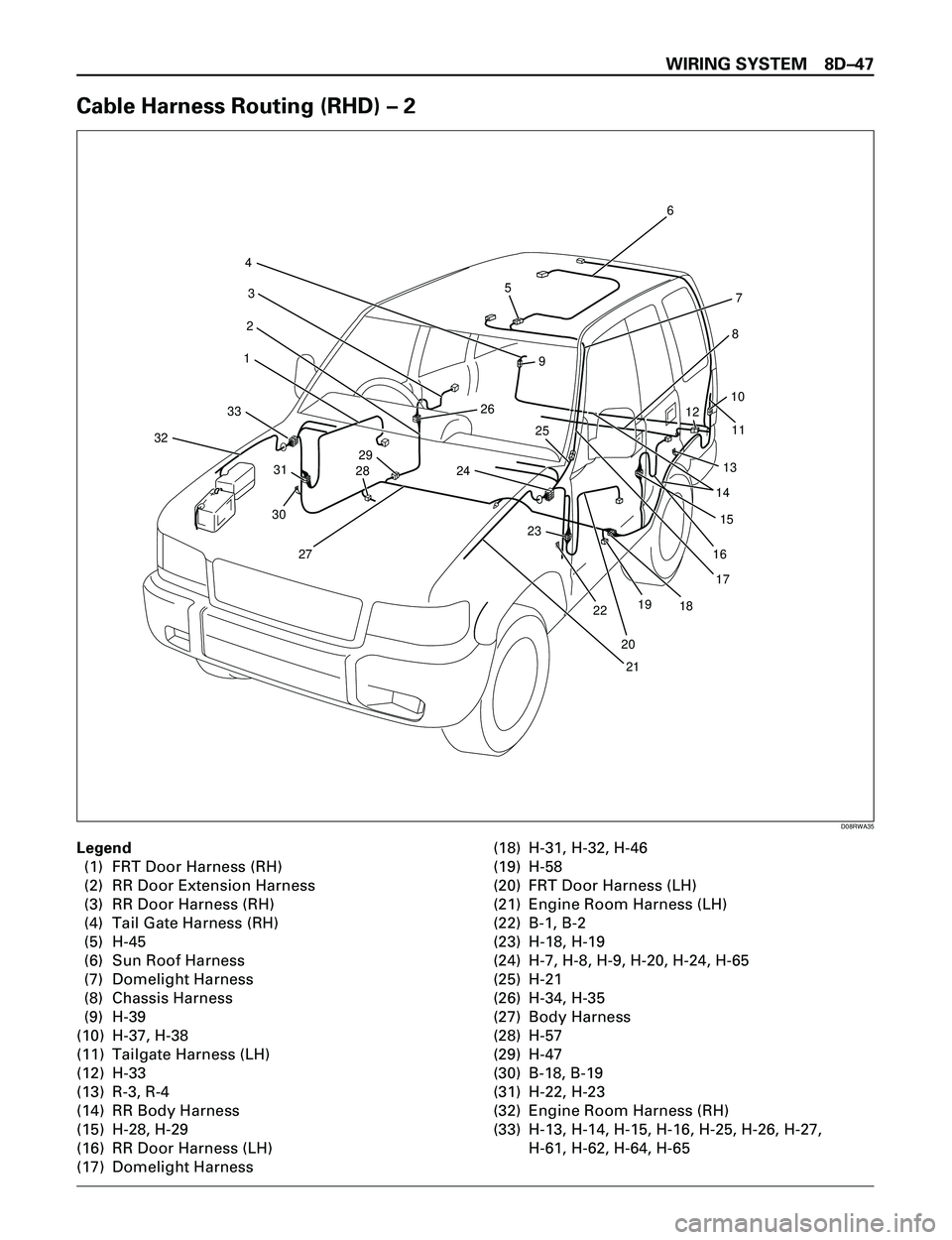

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ47 Cable Harness Routing (RHD) Ð 2 6 7 8 10 11 13 14 15 16 17 18 20 21 22 23 2425 269 5 4 3 2 1 33 32 31 30 272829 1912 D08RWA35 Legend (1) FRT Door Harness (RH) (2) RR Door Extensi
