Page 169 of 3573

AIR CONDITIONING 1B Ð 43
REMOVAL
Preparation:
·Disconnect the battery ground cable
·Discharge and recover refrigerant (Refer to
ÒREFRIGERANT RECOVERYÓ in this section.)
1. Front Console Assembly
2. Lower Cluster Assembly
3. Glove Box
4. Instrument Panel Passenger Lower Cover Assembly
5. Passenger Knee Bolster Reinforcement Assembly
·Refer to Section 10 ÒBODYÓ for INSTRUMENT
PANEL ASSEMBLY removal procedure.
6. Resistor and Electronic Thermostat Connector
7. Drain Hose
8. Refrigerant Line
·Use a back-up wrench when disconnecting and
reconnecting the refrigerant lines.
·When removing the refrigerant line connected part,
the connecting part should immediately be
plugged or capped to prevent foreign matter from
being mixed into the line.
9. Evaporator Assembly
INSTALLATION
To install, follow the removal steps in the reverse order,
noting the following points:
1. To install a new evaporator assembly, add 50cc
(1.4 Imp fl oz) of new compressor oil to a new core.
2. Tighten the refrigerant outlet line to the specified
torque.
Outlet Line Torque Nám (kgám / lbáft)
25 (2.5 / 18)
3. Tighten the refrigerant inlet line to the specified
torque.
Inlet Line Torque Nám (kgám / lbáft)
15 (1.5 / 11)
4. O-rings cannot be reused. Always replace with new
ones.
5. Be sure to apply new compressor oil to the O-rings
when connecting lines.
Electronic thermostat
connector
Resistor connector
Page 170 of 3573
1B Ð 44 AIR CONDITIONING
Legend
(1) Lining
(2) Expansion Valve
(3) O-ring
(4) Lower Case
(5) Evaporator Assembly
(6) Pollen Filter(7) Attaching Screw
(8) Lining
(9) Evaporator Core
(10) Electronic Thermostat
(11) Upper Case

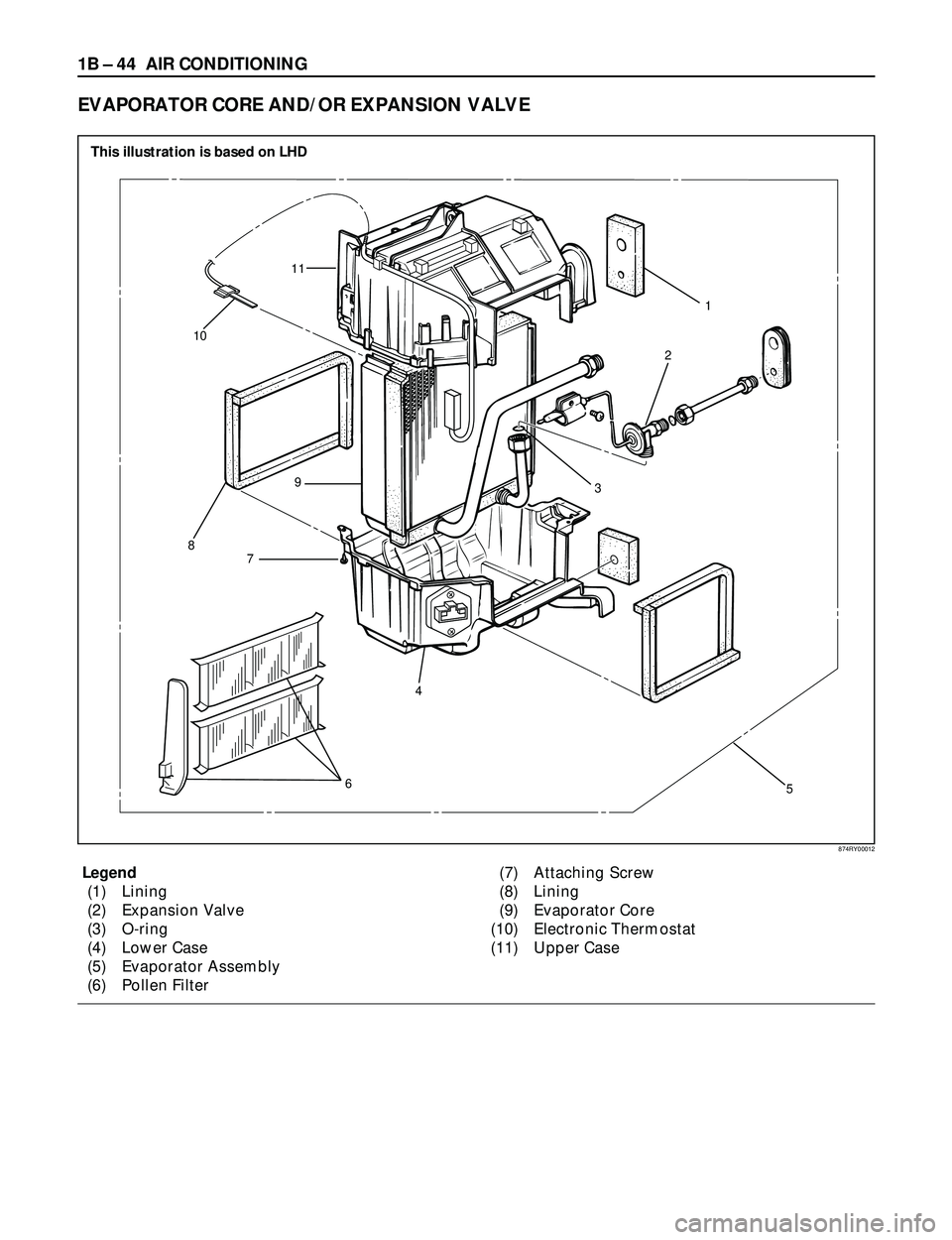

EVAPORATOR CORE AND/OR EXPANSION VALVE
This illustration is based on LHD
81
2
3
5 4
6 79 11
10
874RY00012
Page 171 of 3573

AIR CONDITIONING 1B Ð 45
Removal
1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant.
·Refer to Refrigerant Recovery in this section.
3. Remove evaporator assembly.
·Refer to Evaporator Assembly in this section.
4. Remove pollen filter.
5. Pull the sensor from the evaporator assembly.
6. Remove attaching screw.
7. Remove upper case.
8. Remove lower case.
·Slit the case parting face with a knife since the
lining is separated when removing the
evaporator.
·Lift to remove the upper case.9. Remove evaporator core.
10. Remove expansion valve.
·Tear off the insulator carefully.
·Use a back-up wrench when disconnecting all
refrigerant pipes.
Installation
To install, follow the removal steps in the reverse
order, noting the following points:
1. The sensor is installed on the core with the clip.
2. The sensor must not interfere with the
evaporator core.
3. When installing the new evaporator core, install
the thermo sensor (2) to the evaporator core (1)
specified position with the clip in the illustration.
874RS006
874RY00005
874RY00006
SENSOR TO BE LOCATED
AT 7TH LINE FROM LEFT
57.5mm(2.26 in.) 21
Lower case Upper case
874RX021
Page 172 of 3573
1B Ð 46 AIR CONDITIONING
4. O-rings cannot be reused, Always replace with
new ones.
5. Be sure to apply new compressor oil to the O-
rings when connecting lines.
6. Be sure to install the sensor and the insulator on
the place where they were before.
7. To install a new evaporator core, add 50cc (1.7
fl. oz.) of new compressor oil to the new core.
8. Tighten the refrigerant lines to the specified
torque. Refer to Main Data and Specifications for
Torque Specifications in this section.
9. Apply an adhesive to the parting face of the
lining when assembling the evaporator
assembly.
Page 173 of 3573
AIR CONDITIONING 1B Ð 47
ELECTRONIC THERMOSTAT
Legend
(1) Thermo Sensor
(2) Evaporator Core
(3) Evaporator
(4) Thermostat Unit
Removal
1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant.
·Refer to Refrigerant Recovery in this section.
3. Remove evaporator assembly.
·Refer to Evaporator Assembly removal
procedure in this section.
4. Remove electronic thermostat.
·Pull the sensor from the evaporator assembly.
Installation
To install, follow the removal steps in the reverse
order, noting the following points.
1. Install the thermostat sensor to the evaporator
core specified position with the clip.
2. The sensor is installed on the core with the clip
and it must not interfere with the core.
12
3
4
874RX022
SENSOR TO BE LOCATED
AT 7TH LINE FROM LEFT
57.5mm(2.26 in.) 21
Lower case Upper case
874RX021
Page 174 of 3573
1B Ð 48 AIR CONDITIONING
1
2
3
Removal Steps
1. Control lever assembly
2. A/C switch
3. Illumination bulb
Installation Steps
To install, follow the removal steps in the
reverse order.

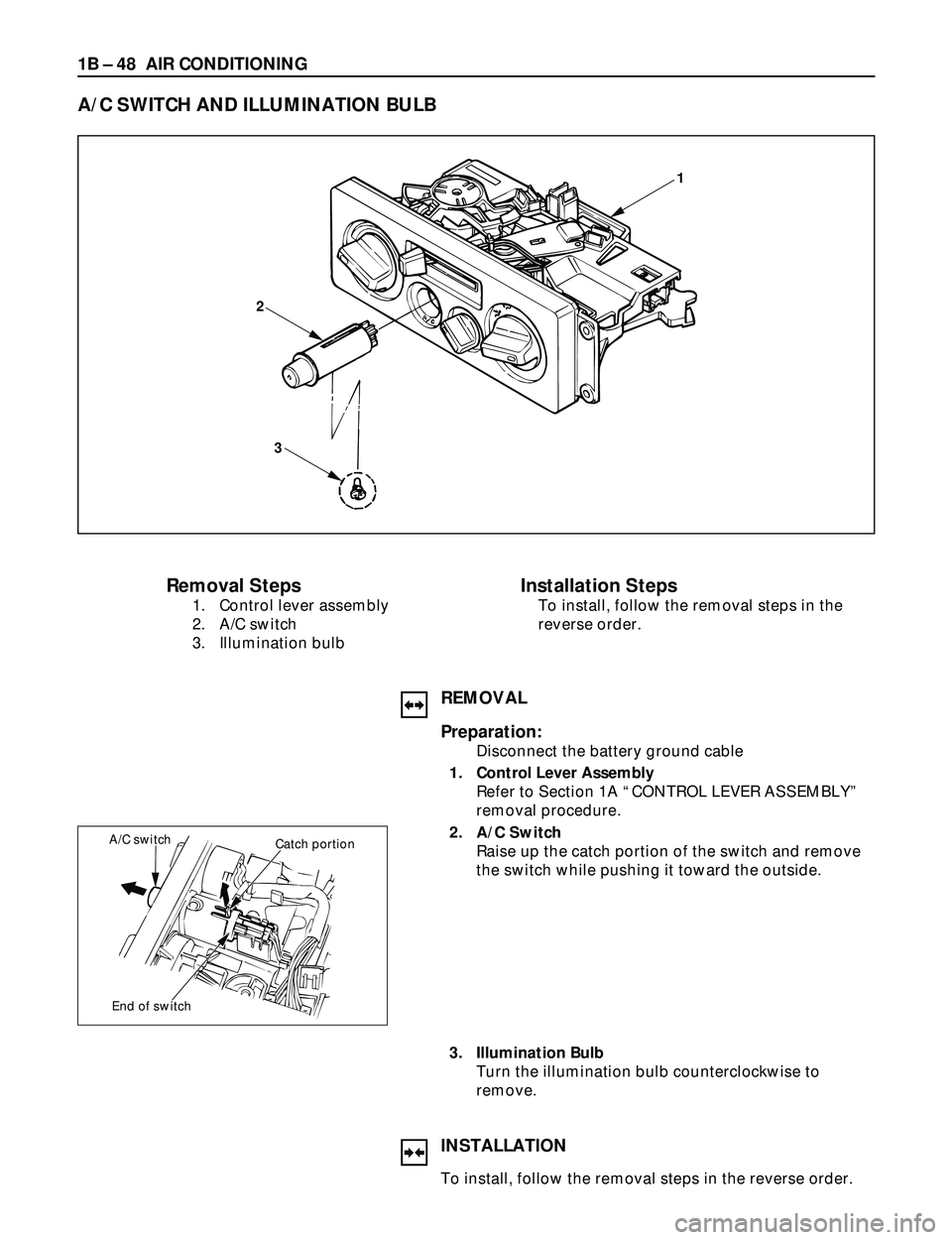

A/C SWITCH AND ILLUMINATION BULB
REMOVAL
Preparation:
Disconnect the battery ground cable
1. Control Lever Assembly
Refer to Section 1A ÒCONTROL LEVER ASSEMBLYÓ
removal procedure.
2. A/C Switch
Raise up the catch portion of the switch and remove
the switch while pushing it toward the outside.
3. Illumination Bulb
Turn the illumination bulb counterclockwise to
remove.
Catch portion
End of switch A/C switch
INSTALLATION
To install, follow the removal steps in the reverse order.
