DRIVE LINE CONTROL SYSTEM (TOD) 4B2±86

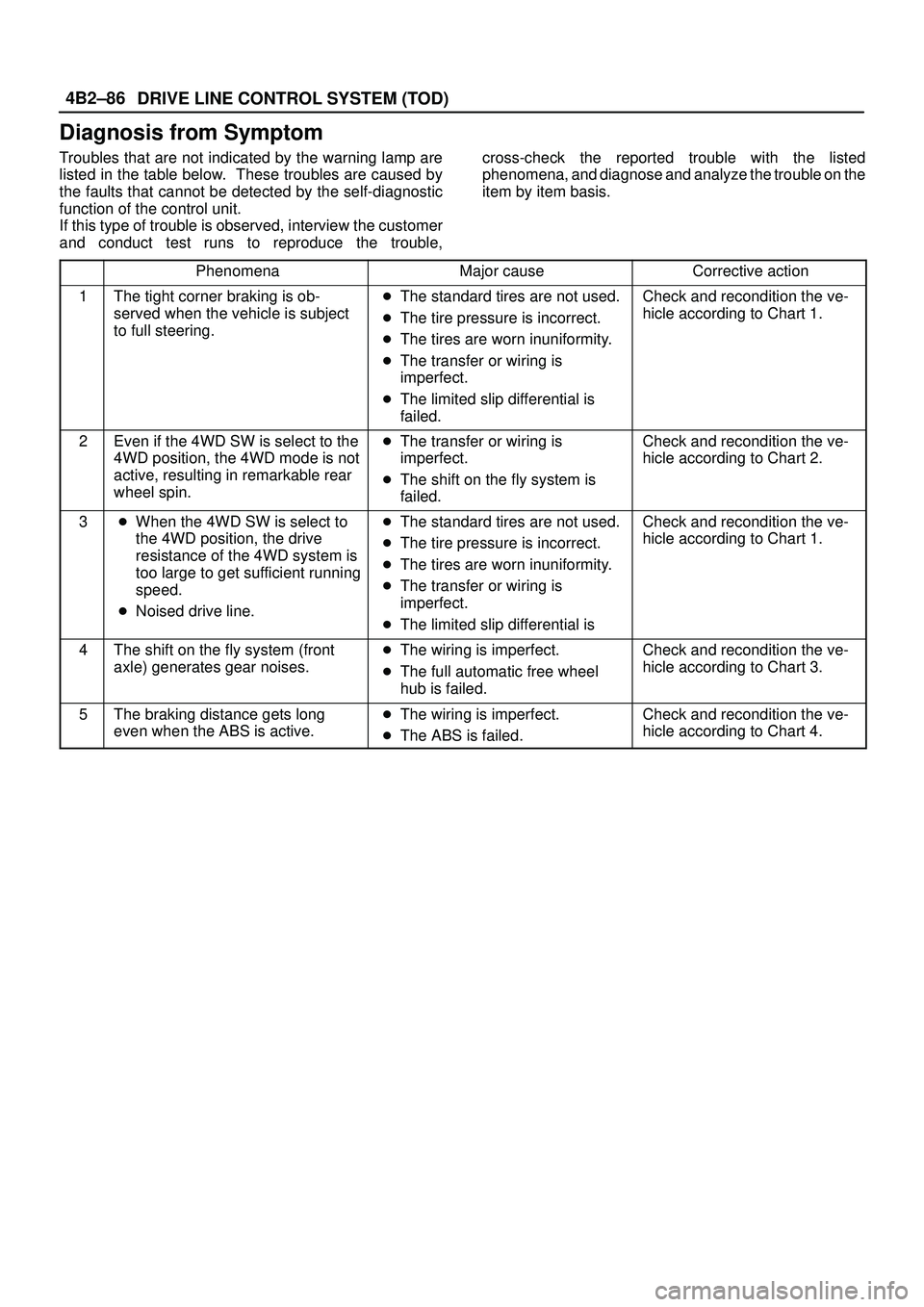

Diagnosis from Symptom
Troubles that are not indicated by the warning lamp are
listed in the table below. These troubles are caused by
the faults that cannot be detected by the self-diagnostic
function of the control unit.
If this type of trouble is observed, interview the customer
and conduct test runs to reproduce the trouble,cross-check the reported trouble with the listed
phenomena, and diagnose and analyze the trouble on the
item by item basis.
PhenomenaMajor causeCorrective action
1The tight corner braking is ob-
served when the vehicle is subject
to full steering.The standard tires are not used.
The tire pressure is incorrect.
The tires are worn inuniformity.
The transfer or wiring is
imperfect.
The limited slip differential is
failed.Check and recondition the ve-
hicle according to Chart 1.
2Even if the 4WD SW is select to the
4WD position, the 4WD mode is not
active, resulting in remarkable rear
wheel spin.The transfer or wiring is
imperfect.
The shift on the fly system is
failed.Check and recondition the ve-
hicle according to Chart 2.
3When the 4WD SW is select to
the 4WD position, the drive
resistance of the 4WD system is
too large to get sufficient running
speed.
Noised drive line.The standard tires are not used.
The tire pressure is incorrect.
The tires are worn inuniformity.
The transfer or wiring is
imperfect.
The limited slip differential is Check and recondition the ve-
hicle according to Chart 1.
4The shift on the fly system (front
axle) generates gear noises.The wiring is imperfect.
The full automatic free wheel
hub is failed.Check and recondition the ve-
hicle according to Chart 3.
5The braking distance gets long
even when the ABS is active.The wiring is imperfect.
The ABS is failed.Check and recondition the ve-
hicle according to Chart 4.
Page 658 of 3573
4B2±87 DRIVE LINE CONTROL SYSTEM (TOD)

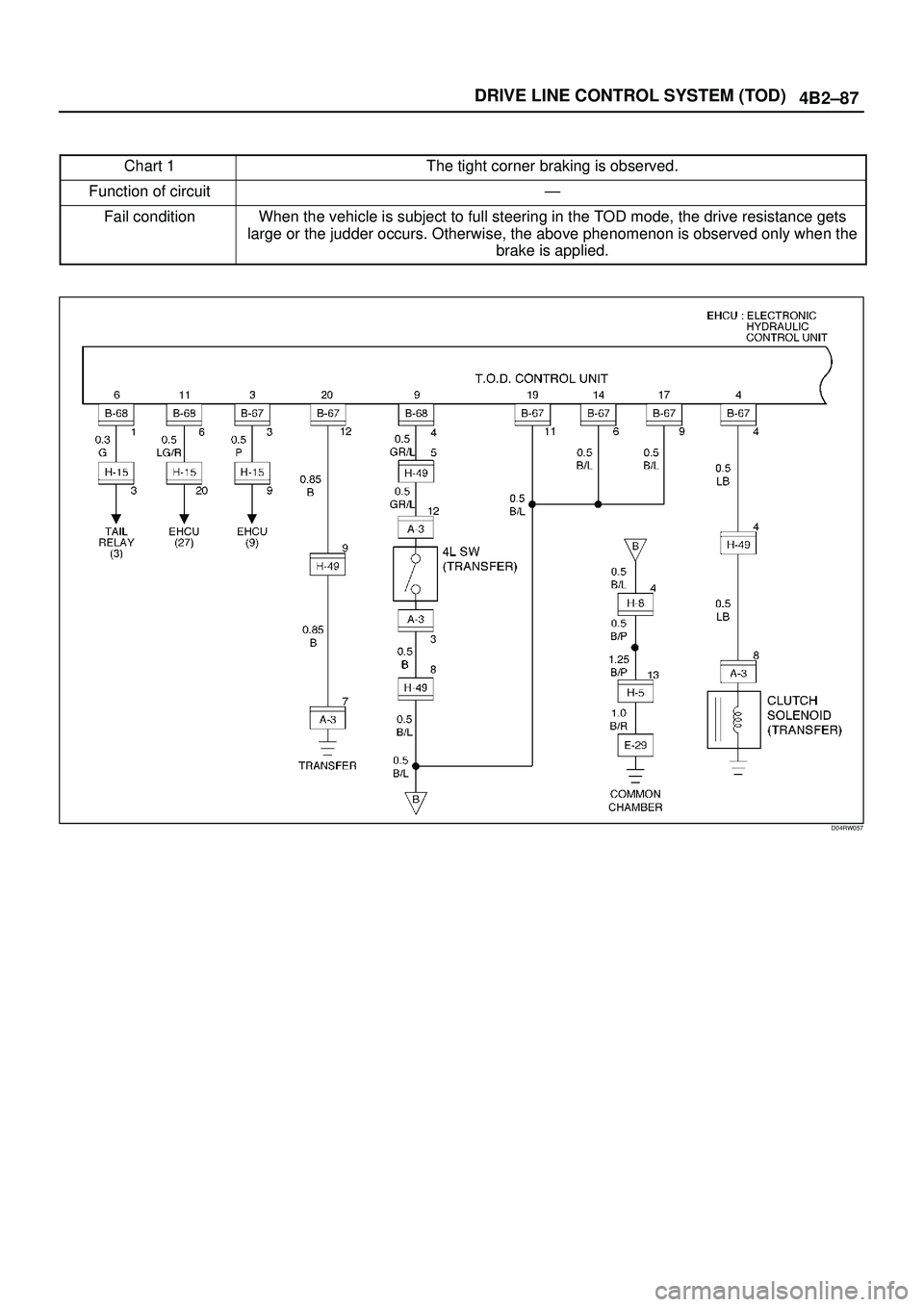

Chart 1The tight corner braking is observed.
Function of circuitÐ
Fail conditionWhen the vehicle is subject to full steering in the TOD mode, the drive resistance gets
large or the judder occurs. Otherwise, the above phenomenon is observed only when the
brake is applied.
D04RW057
Page 659 of 3573

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±88
StepActionYe sNo
1Are the front and rear tires in specified size?
Go to Step 2
Replace the tires
with specified
ones, and service
the new tires.
Go to Step 16
2Is the tire pressure correct?
Go to Step 3
Replace the tires
with specified
ones, and service
the new tires.
Go to Step 16
3Are the tires free from abnormal wear?
Go to Step 4
Replace the tires
with specified
ones, and service
the new tires.
Go to Step 16
4Are different types of tires used?
Go to Step 5
Replace the tires
with specified
ones, and service
the new tires.
Go to Step 16
51. Start the engine.
2. Shift the transfer lever to the high (TOD) position.
3. Fully turn the steering to the left (or right) end, and select the D
range and start the creep run.
Does the tight corner braking occur? Is the judder with chug-chug
sound observed? * Use caution on the operation.
Go to Step 6 Go to Step 11
61. Shift the transfer lever to the 2H position.
2. Fully turn the steering to the left (or right) end, and select the D
range and start the creep run.
Does the tight corner braking occur? Is the judder with chug-chug
sound observed? * Use caution on the operation.
Go to Step 7 Go to Step 14
7Is an LSD mounted to the rear differential? Go to Step 8 Go to Step 9
8Is the genuine LSD oil used in the rear differential?
Go to Step 9
Replace the
differential oil.
Go to Step 16
9Does the engine output the power correctly?
Go to Step 10
Check the
engine.
Go to Step 16
10Do the speed sensors work correctly? (Check trouble codes.)The ECU has
failed. Replace
the ECU.
Go to Step 16
Replace the
speed sensors.
Go to Step 16
11Is the tight corner braking observed only when the brake is
applied?
Go to Step 12
Conduct full
steering under
WOT.
Go to Step 5
121. Turn off the starter switch.
2. Disconnect the ECU connector.
Is the battery voltage observed between terminals (B±68)6 and
(B±67)11?
Go to Step 13
Repair the circuit
of terminal 6
(ABS IN).
Go to Step 16
Page 660 of 3573

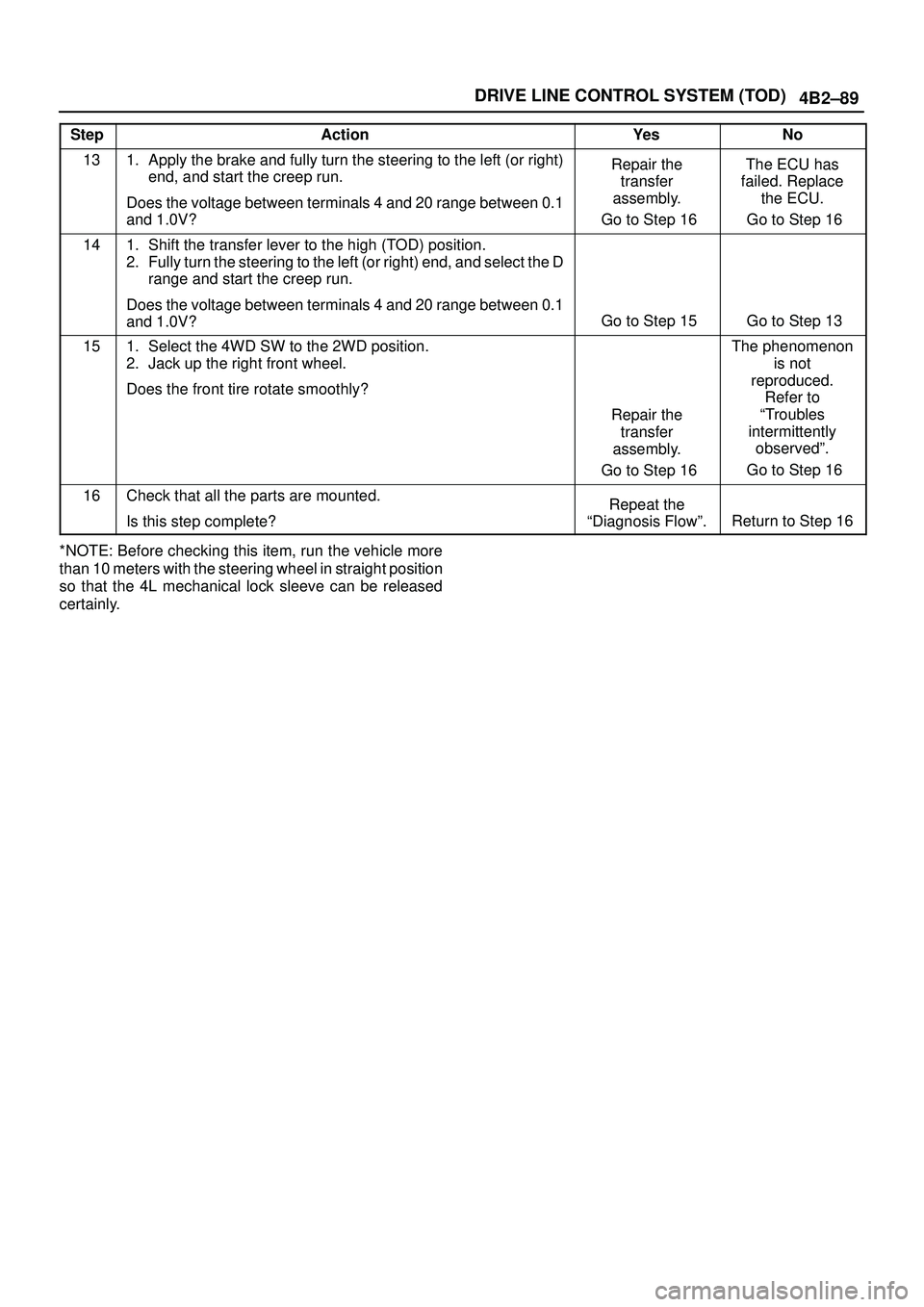

4B2±89 DRIVE LINE CONTROL SYSTEM (TOD)
StepNo Ye s Action
131. Apply the brake and fully turn the steering to the left (or right)
end, and start the creep run.
Does the voltage between terminals 4 and 20 range between 0.1
and 1.0V?Repair the
transfer
assembly.
Go to Step 16The ECU has
failed. Replace
the ECU.
Go to Step 16
141. Shift the transfer lever to the high (TOD) position.
2. Fully turn the steering to the left (or right) end, and select the D
range and start the creep run.
Does the voltage between terminals 4 and 20 range between 0.1
and 1.0V?
Go to Step 15 Go to Step 13
151. Select the 4WD SW to the 2WD position.
2. Jack up the right front wheel.
Does the front tire rotate smoothly?
Repair the
transfer
assembly.
Go to Step 16
The phenomenon
is not
reproduced.
Refer to
ªTroubles
intermittently
observedº.
Go to Step 16
16Check that all the parts are mounted.
Is this step complete?Repeat the
ªDiagnosis Flowº.
Return to Step 16
*NOTE: Before checking this item, run the vehicle more
than 10 meters with the steering wheel in straight position
so that the 4L mechanical lock sleeve can be released
certainly.
Page 661 of 3573
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±90

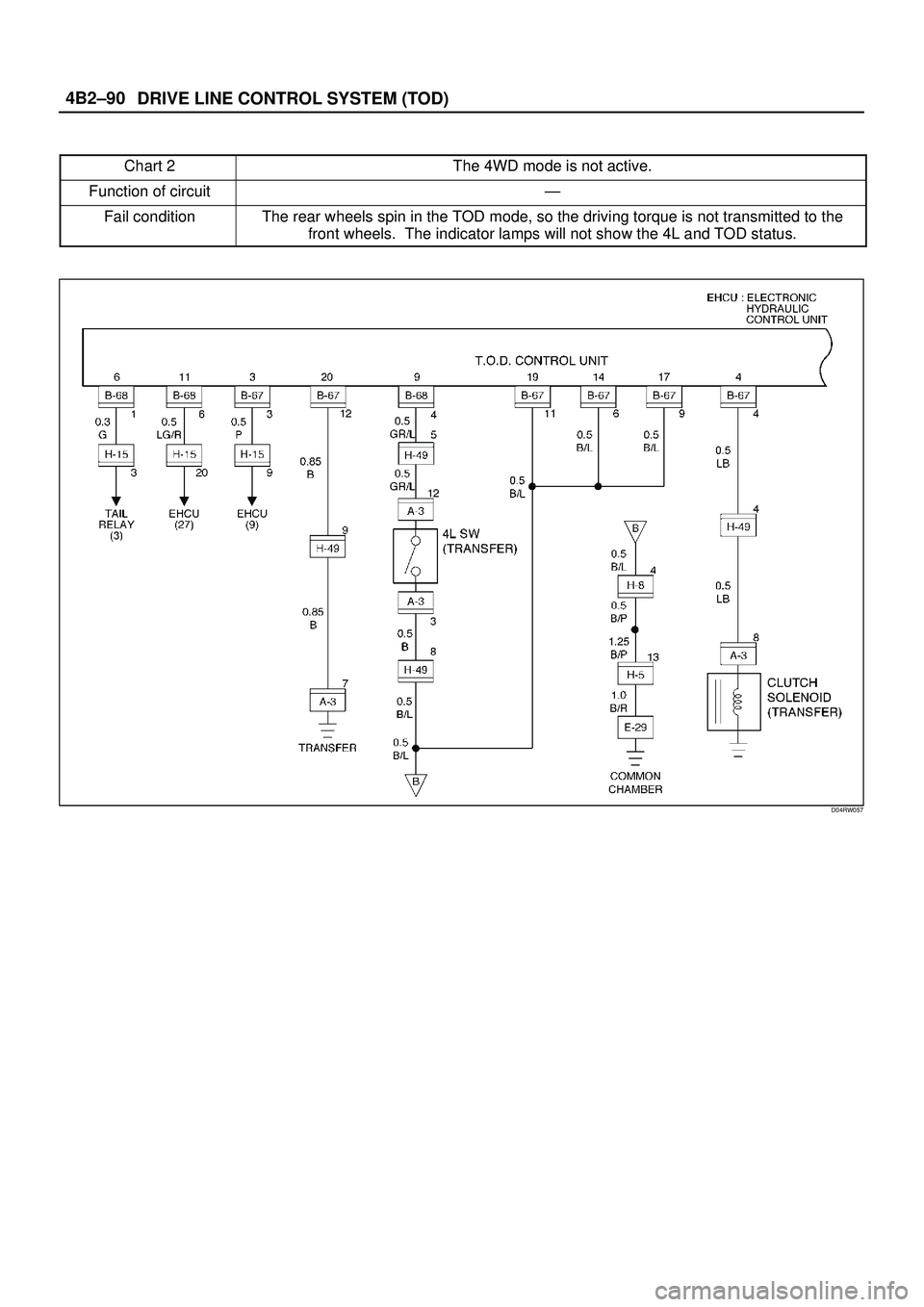

Chart 2The 4WD mode is not active.
Function of circuitÐ
Fail conditionThe rear wheels spin in the TOD mode, so the driving torque is not transmitted to the
front wheels. The indicator lamps will not show the 4L and TOD status.
D04RW057
Page 662 of 3573

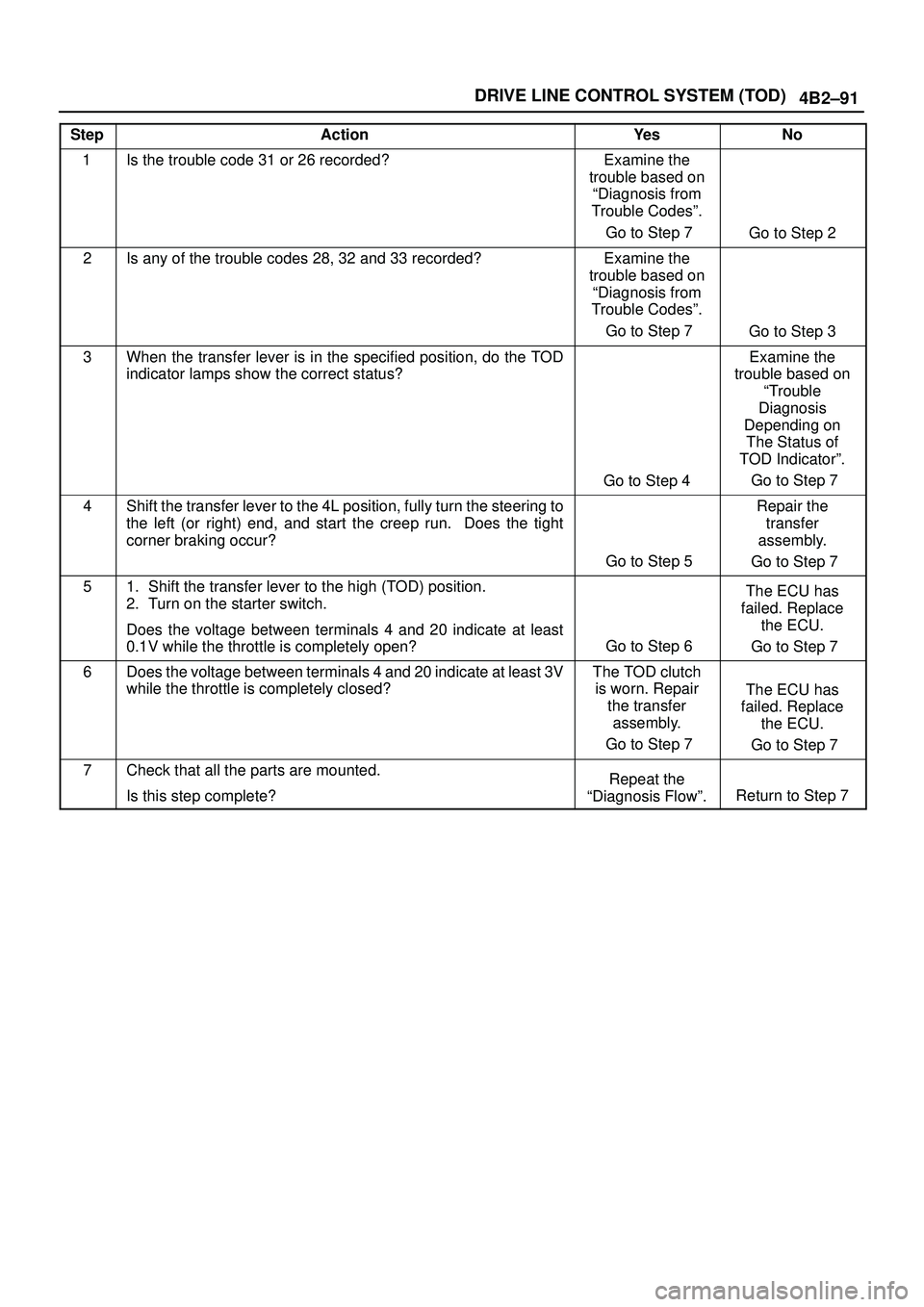

4B2±91 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
1Is the trouble code 31 or 26 recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 7
Go to Step 2
2Is any of the trouble codes 28, 32 and 33 recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 7
Go to Step 3
3When the transfer lever is in the specified position, do the TOD
indicator lamps show the correct status?
Go to Step 4
Examine the
trouble based on
ªTrouble
Diagnosis
Depending on
The Status of
TOD Indicatorº.
Go to Step 7
4Shift the transfer lever to the 4L position, fully turn the steering to
the left (or right) end, and start the creep run. Does the tight
corner braking occur?
Go to Step 5
Repair the
transfer
assembly.
Go to Step 7
51. Shift the transfer lever to the high (TOD) position.
2. Turn on the starter switch.
Does the voltage between terminals 4 and 20 indicate at least
0.1V while the throttle is completely open?
Go to Step 6
The ECU has
failed. Replace
the ECU.
Go to Step 7
6Does the voltage between terminals 4 and 20 indicate at least 3V
while the throttle is completely closed?The TOD clutch
is worn. Repair
the transfer
assembly.
Go to Step 7
The ECU has
failed. Replace
the ECU.
Go to Step 7
7Check that all the parts are mounted.
Is this step complete?Repeat the
ªDiagnosis Flowº.
Return to Step 7
Page 663 of 3573
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±92

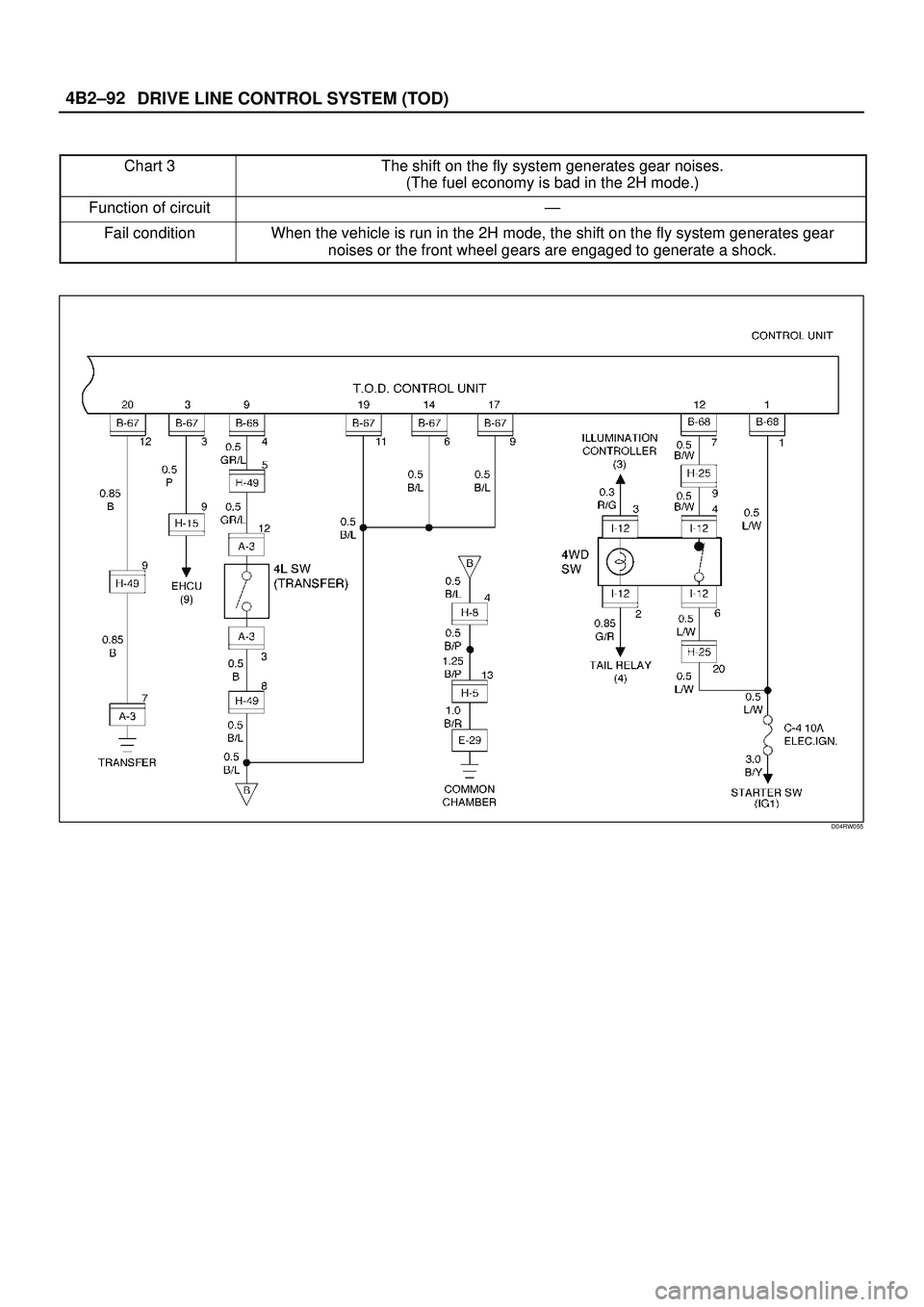

Chart 3The shift on the fly system generates gear noises.
(The fuel economy is bad in the 2H mode.)
Function of circuitÐ
Fail conditionWhen the vehicle is run in the 2H mode, the shift on the fly system generates gear
noises or the front wheel gears are engaged to generate a shock.
D04RW055
Page 664 of 3573

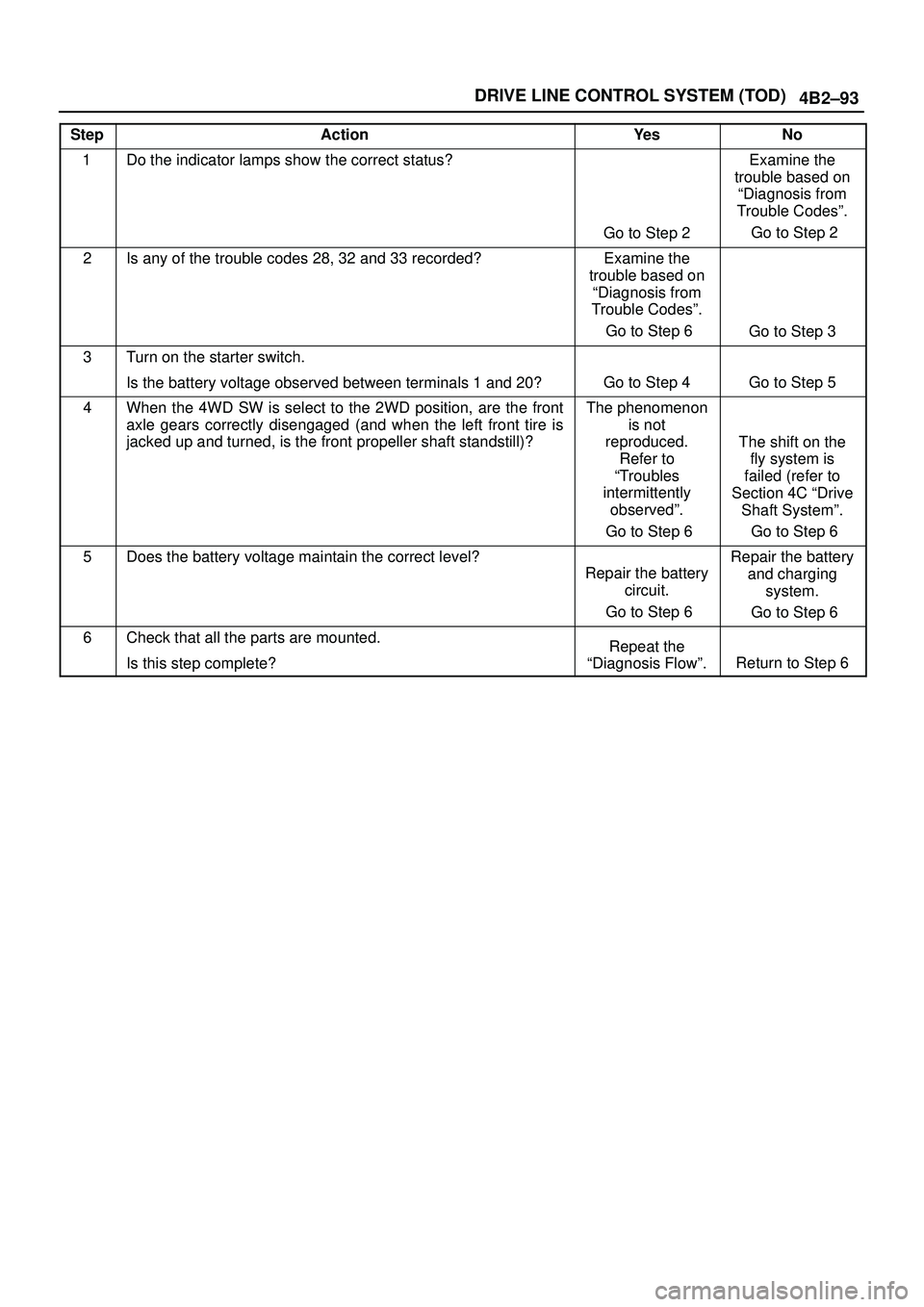

4B2±93 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
1Do the indicator lamps show the correct status?
Go to Step 2
Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 2
2Is any of the trouble codes 28, 32 and 33 recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 6
Go to Step 3
3Turn on the starter switch.
Is the battery voltage observed between terminals 1 and 20?
Go to Step 4Go to Step 5
4When the 4WD SW is select to the 2WD position, are the front
axle gears correctly disengaged (and when the left front tire is
jacked up and turned, is the front propeller shaft standstill)?The phenomenon
is not
reproduced.
Refer to
ªTroubles
intermittently
observedº.
Go to Step 6
The shift on the
fly system is
failed (refer to
Section 4C ªDrive
Shaft Systemº.
Go to Step 6
5Does the battery voltage maintain the correct level?
Repair the battery
circuit.
Go to Step 6
Repair the battery
and charging
system.
Go to Step 6
6Check that all the parts are mounted.
Is this step complete?Repeat the
ªDiagnosis Flowº.
Return to Step 6
