Page 3281 of 3573

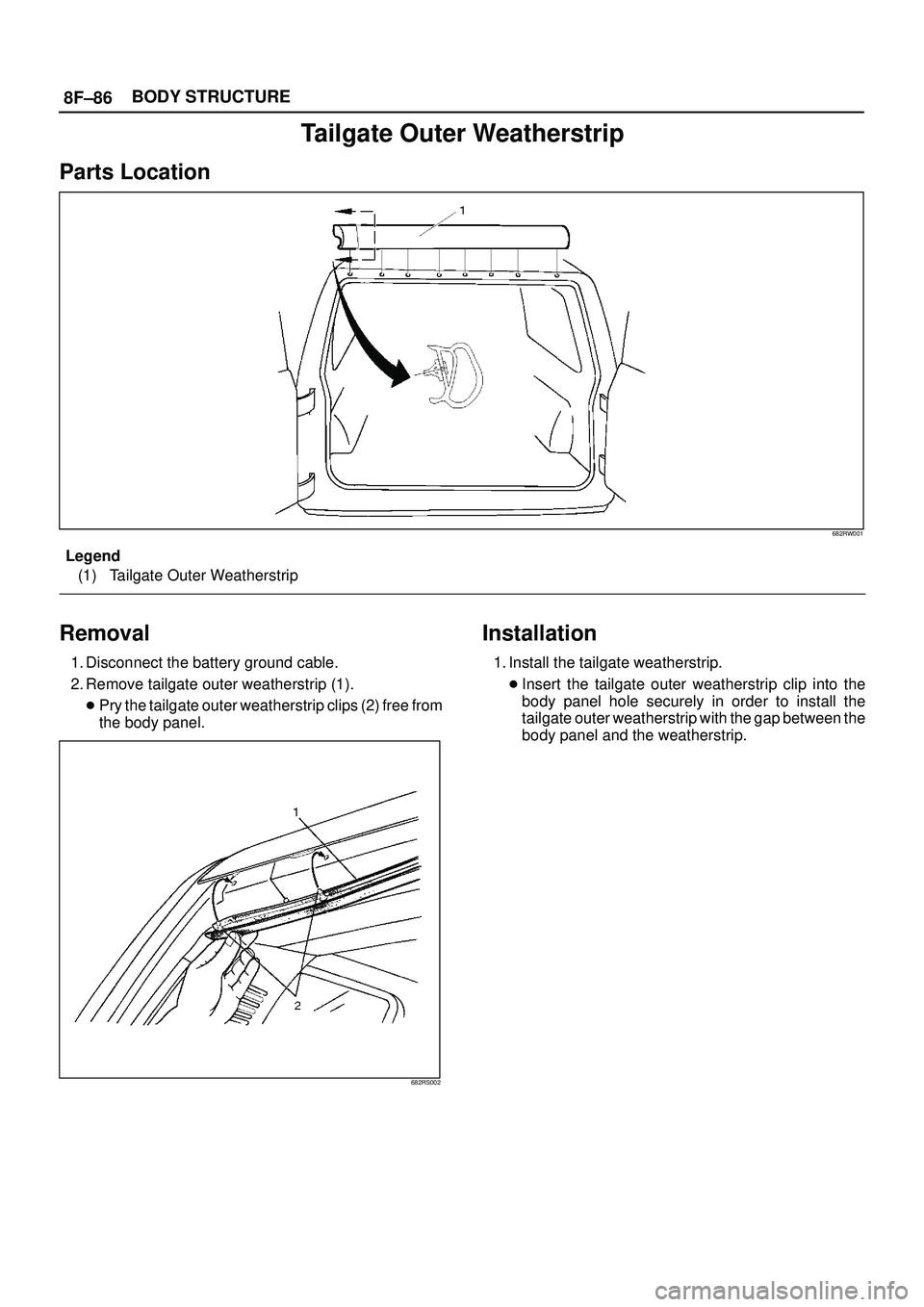

ISUZU TROOPER 1998 Service Repair Manual 8F±86BODY STRUCTURE Tailgate Outer Weatherstrip Parts Location 682RW001 Legend (1) Tailgate Outer Weatherstrip Removal 1. Disconnect the battery ground cable. 2. Remove tailgate outer weatherstrip (1

Page 3282 of 3573

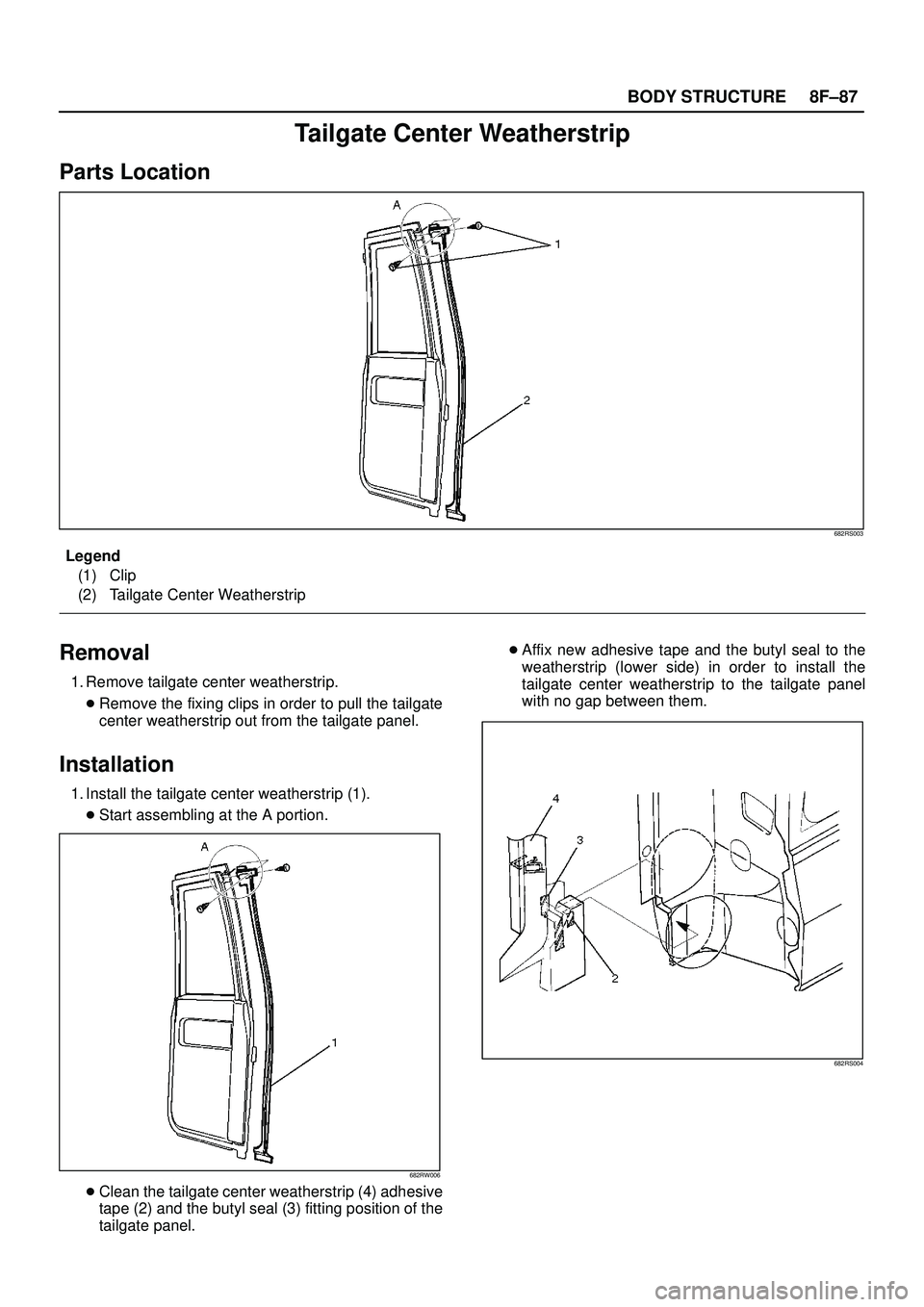

ISUZU TROOPER 1998 Service Repair Manual 8F±87 BODY STRUCTURE Tailgate Center Weatherstrip Parts Location 682RS003 Legend (1) Clip (2) Tailgate Center Weatherstrip Removal 1. Remove tailgate center weatherstrip. Remove the fixing clips in

Page 3283 of 3573

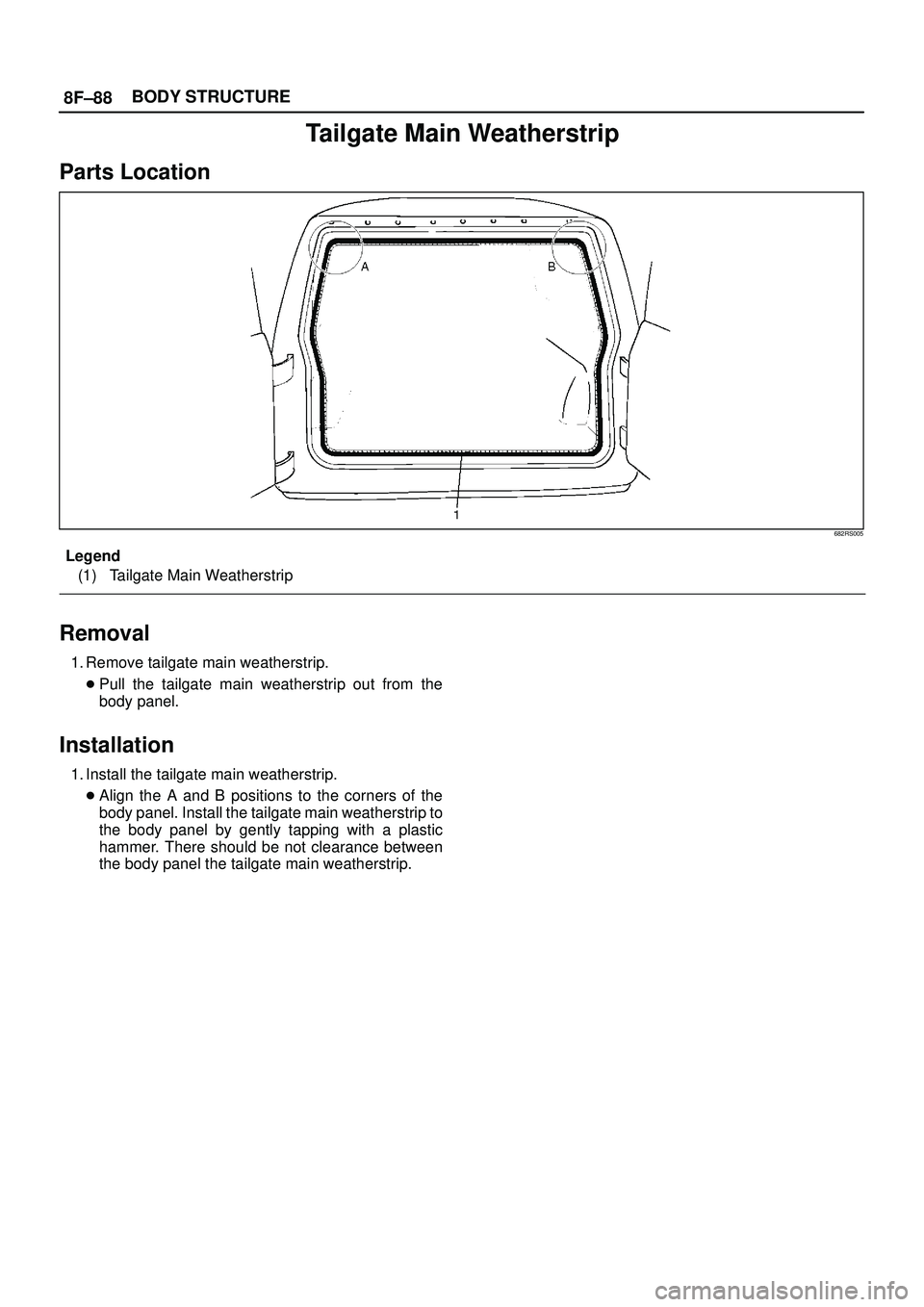

ISUZU TROOPER 1998 Service Repair Manual 8F±88BODY STRUCTURE Tailgate Main Weatherstrip Parts Location 682RS005 Legend (1) Tailgate Main Weatherstrip Removal 1. Remove tailgate main weatherstrip. Pull the tailgate main weatherstrip out fro

Page 3284 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8F±89 BODY STRUCTURE Spare Tire Carrier Parts Location 530RS001 Legend (1) Spare Tire (2) Spare Tire Carrier Removal 1. Remove spare tire. 2. Remove spare tire carrier. Remove the special bolts by u

Page 3285 of 3573

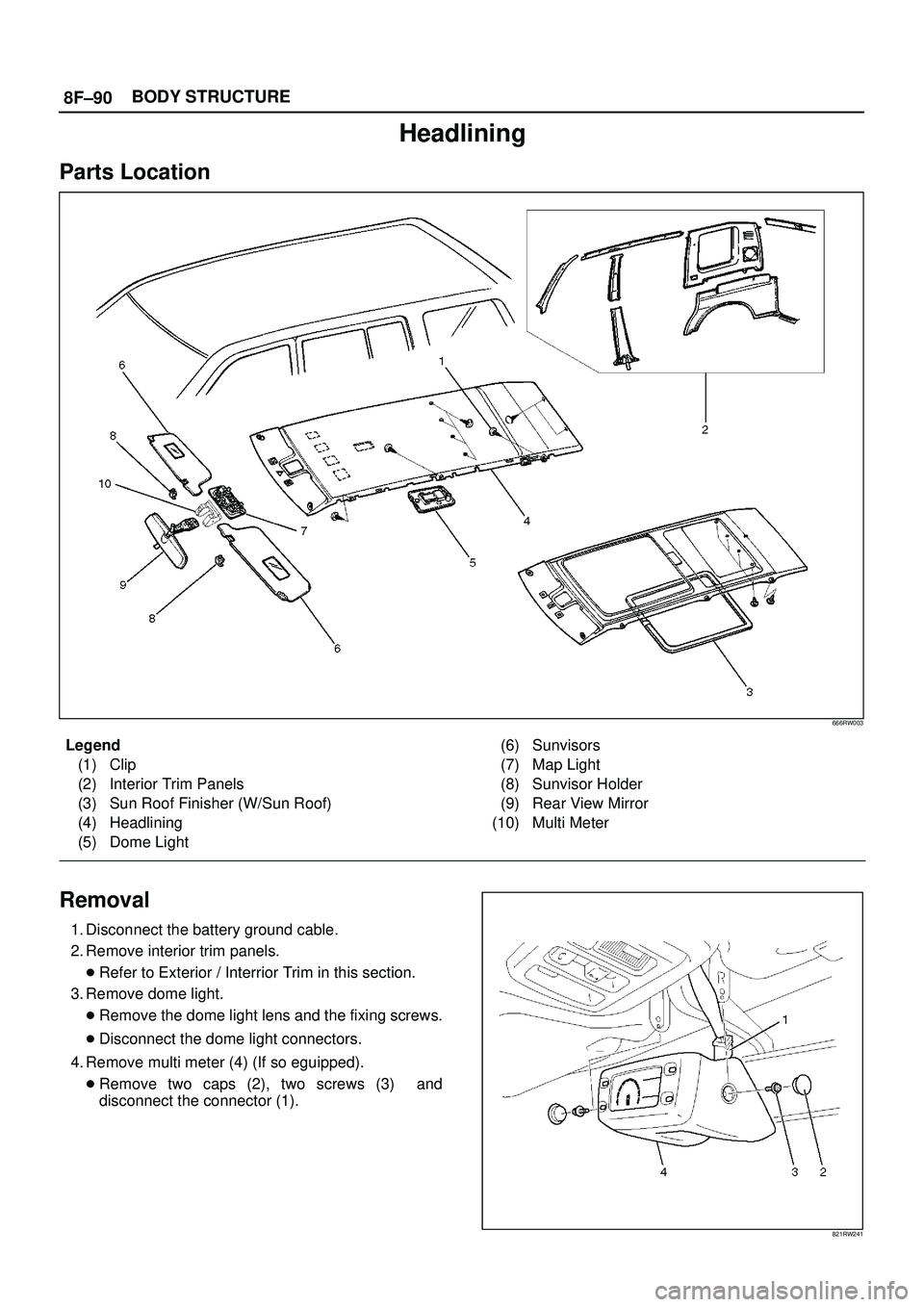

ISUZU TROOPER 1998 Service Repair Manual 8F±90BODY STRUCTURE Headlining Parts Location 666RW003 Legend (1) Clip (2) Interior Trim Panels (3) Sun Roof Finisher (W/Sun Roof) (4) Headlining (5) Dome Light(6) Sunvisors (7) Map Light (8) Sunviso

Page 3286 of 3573

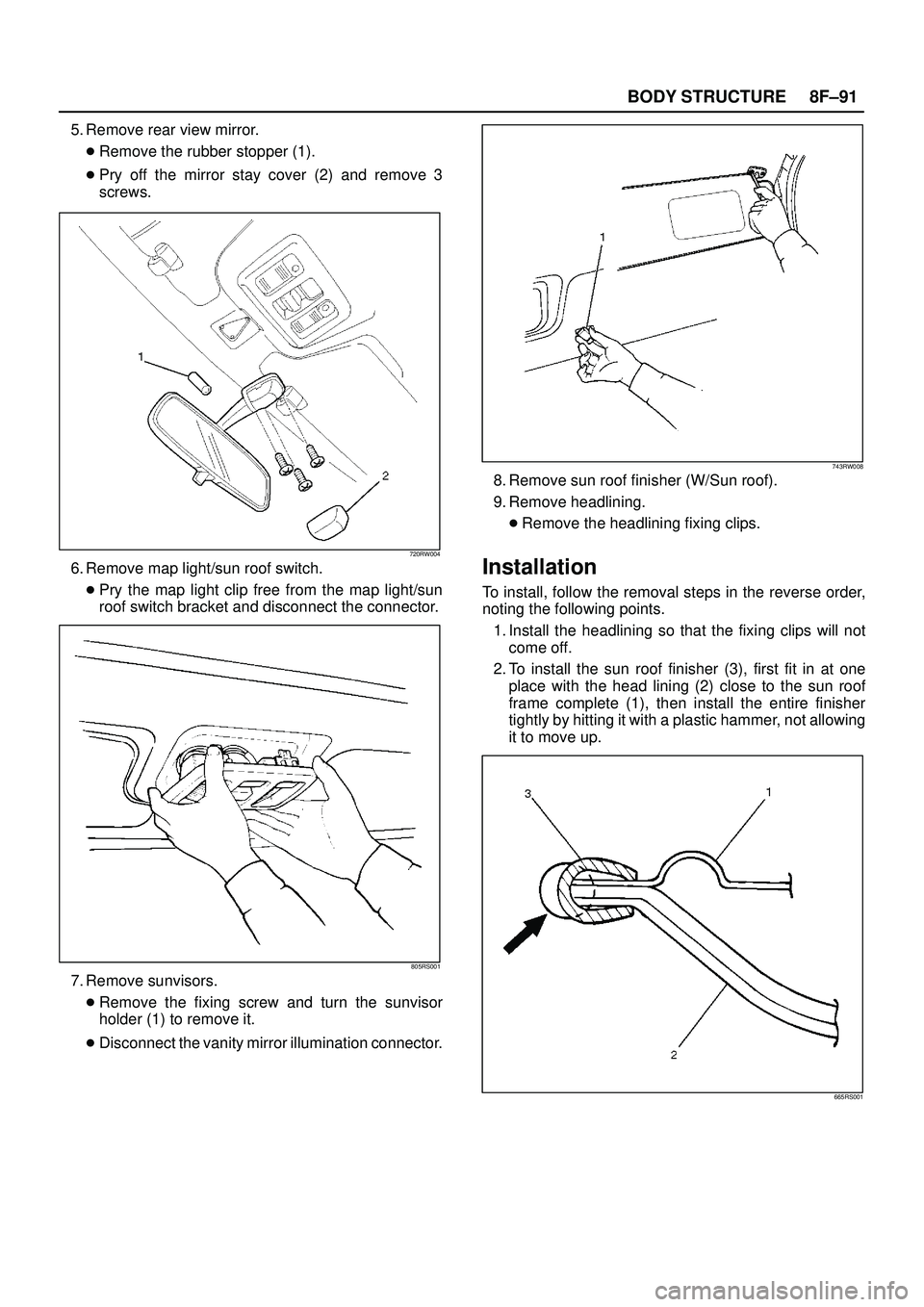

ISUZU TROOPER 1998 Service Repair Manual 8F±91 BODY STRUCTURE 5. Remove rear view mirror. Remove the rubber stopper (1). Pry off the mirror stay cover (2) and remove 3 screws. 720RW004 6. Remove map light/sun roof switch. Pry the map lig

Page 3287 of 3573

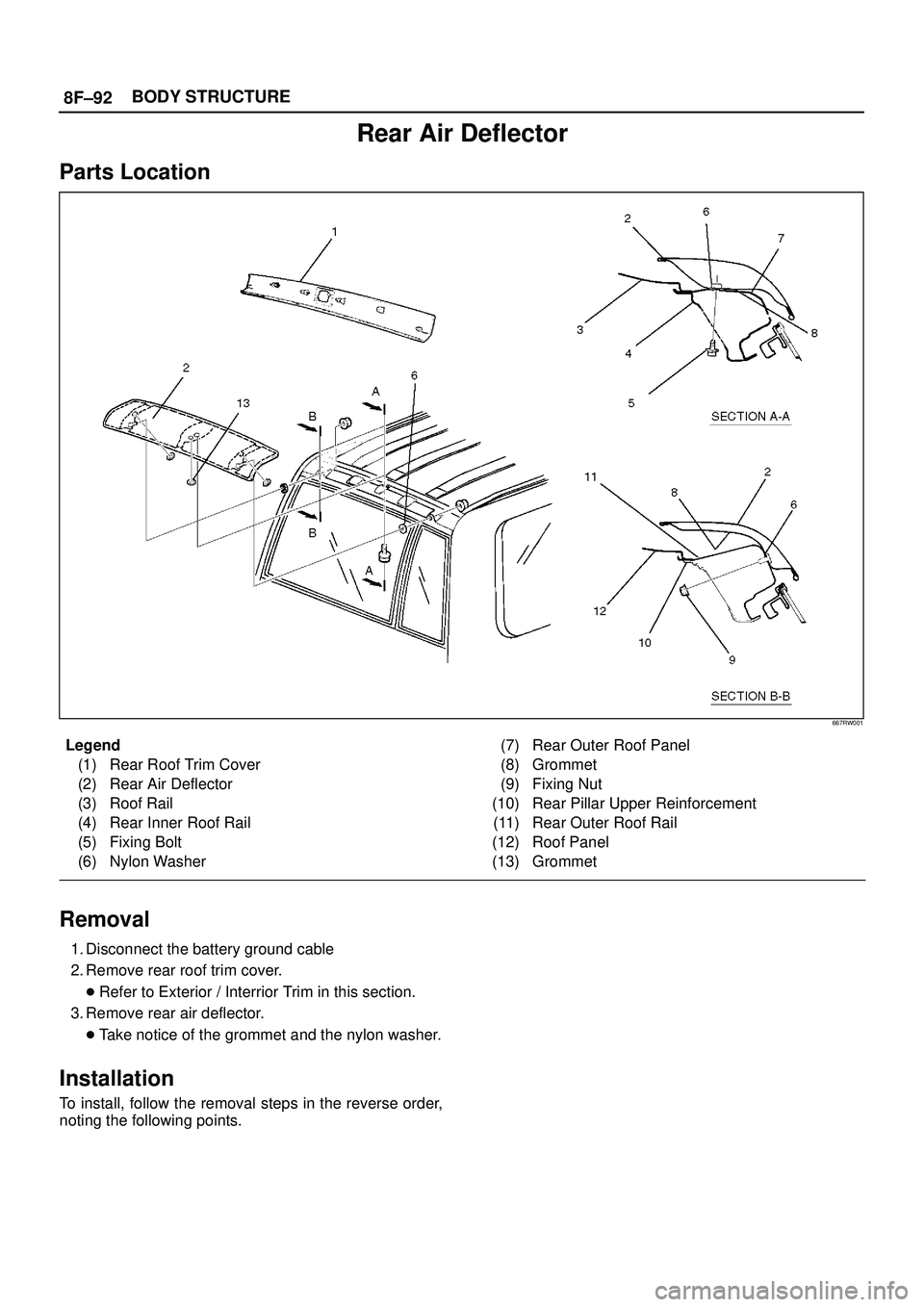

ISUZU TROOPER 1998 Service Repair Manual 8F±92BODY STRUCTURE Rear Air Deflector Parts Location 667RW001 Legend (1) Rear Roof Trim Cover (2) Rear Air Deflector (3) Roof Rail (4) Rear Inner Roof Rail (5) Fixing Bolt (6) Nylon Washer(7) Rear O

Page 3288 of 3573

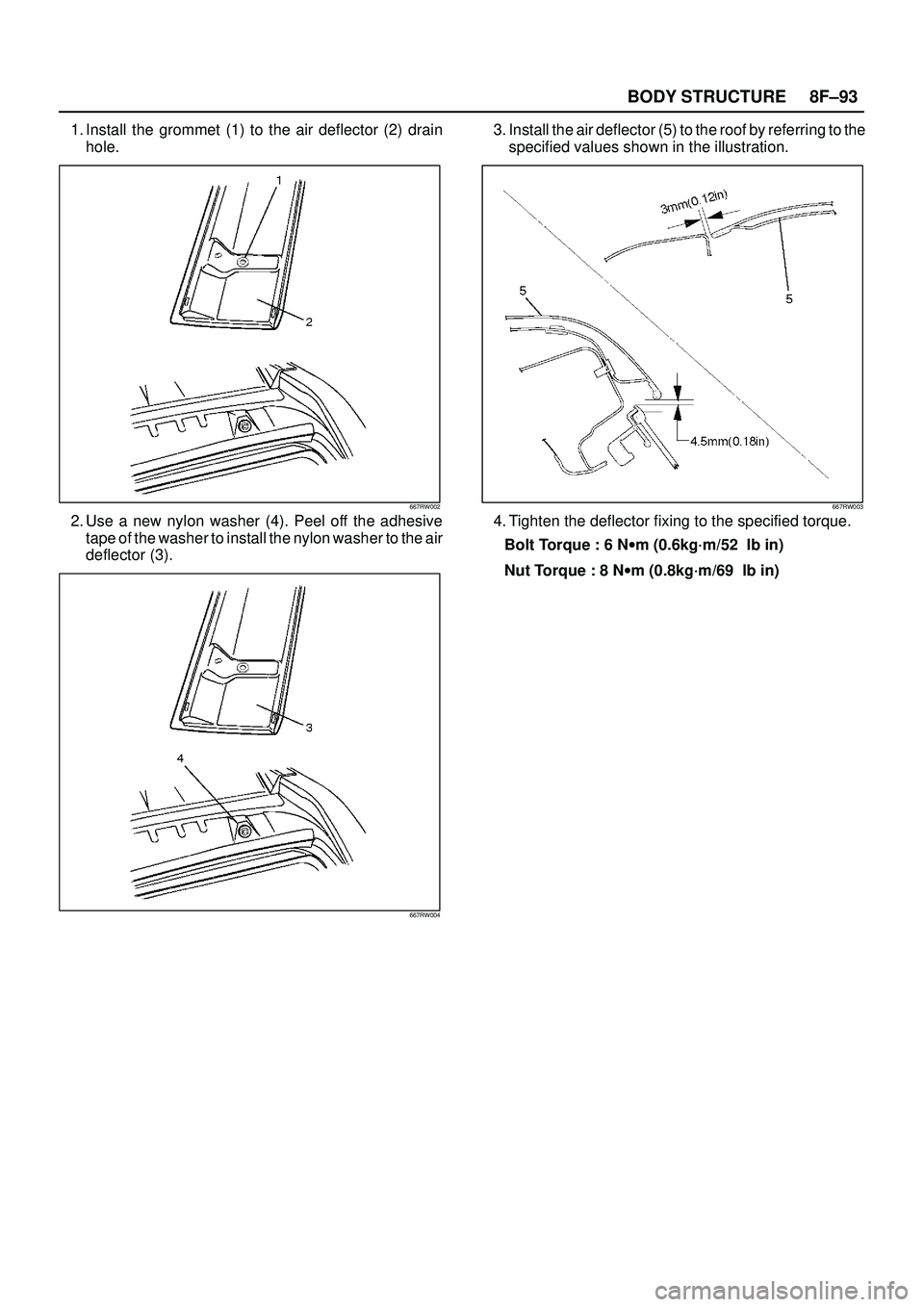

ISUZU TROOPER 1998 Service Repair Manual 8F±93 BODY STRUCTURE 1. Install the grommet (1) to the air deflector (2) drain hole. 667RW002 2. Use a new nylon washer (4). Peel off the adhesive tape of the washer to install the nylon washer to th
