1998 ISUZU TROOPER Service Repair Manual

coolant leveloil levelhomelinkECUresetbolt pattern
Popular search:
headlightsremote controlgas typetire typeload capacityflat tireseats
Previous
Next
Load previous 8 pages

Page 2753 of 3573

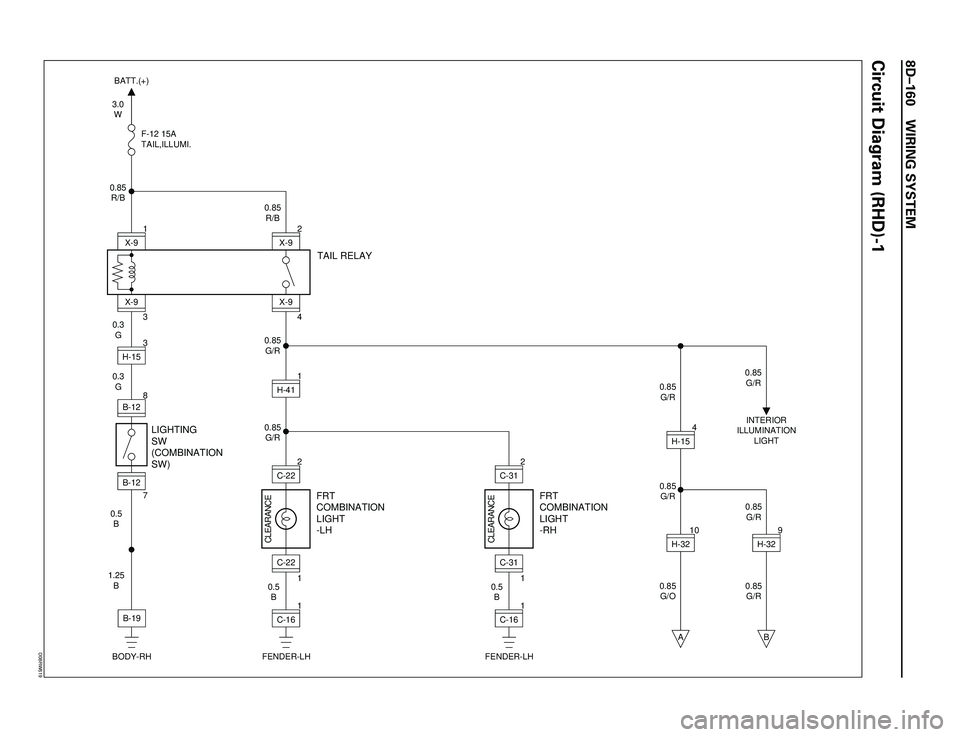

ISUZU TROOPER 1998 Service Repair Manual 8DÐ160 WIRING SYSTEM 3.0 W 0.85 R/BF-12 15A TAIL,ILLUMI. TAIL RELAY BATT.(+) 0.3 G 0.3 G3X-9 1 X-9 0.5 B 0.85 G/R 0.85 G/R 0.85 G/O 0.85 G/R 0.85 G/R 0.85 R/B 4X-9CLEARANCE 2 X-9 10A B-12H-15B-12 LIG

Page 2754 of 3573

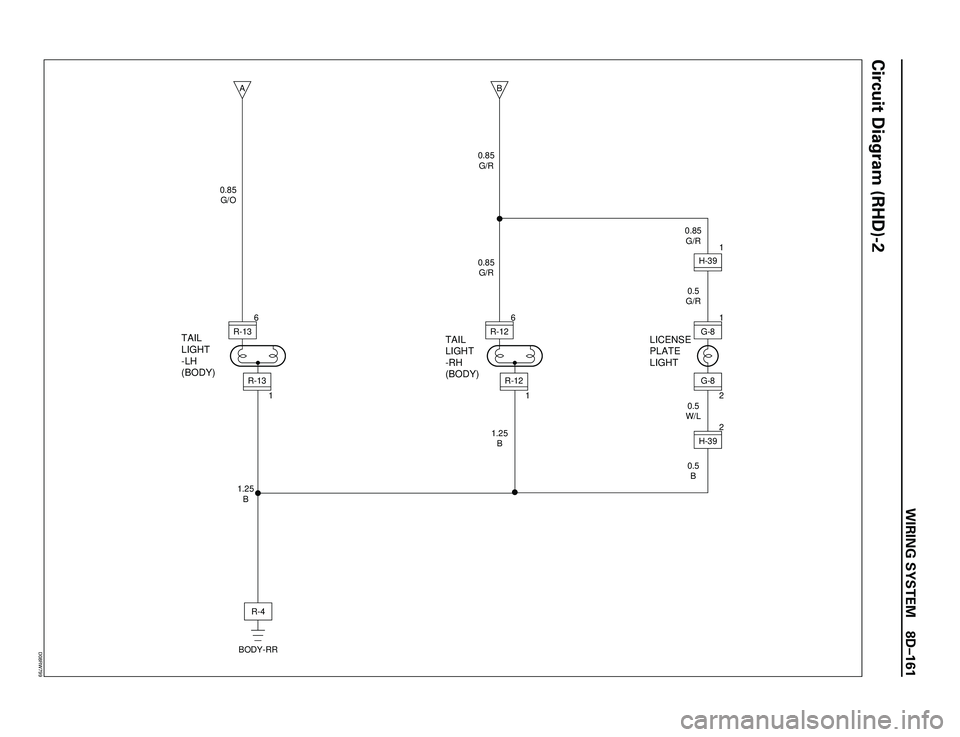

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ161 Circuit Diagram (RHD)-2 0.85 G/R 0.85 G/R 1.25 B 0.5 B 0.5 W/L0.5 G/R 0.85 G/R 1.25 B LICENSE PLATE LIGHT TAIL LIGHT -RH (BODY) B 0.85 G/O R-4 BODY-RR 2 G-81H-392H-391G-8 TAIL LI

Page 2755 of 3573

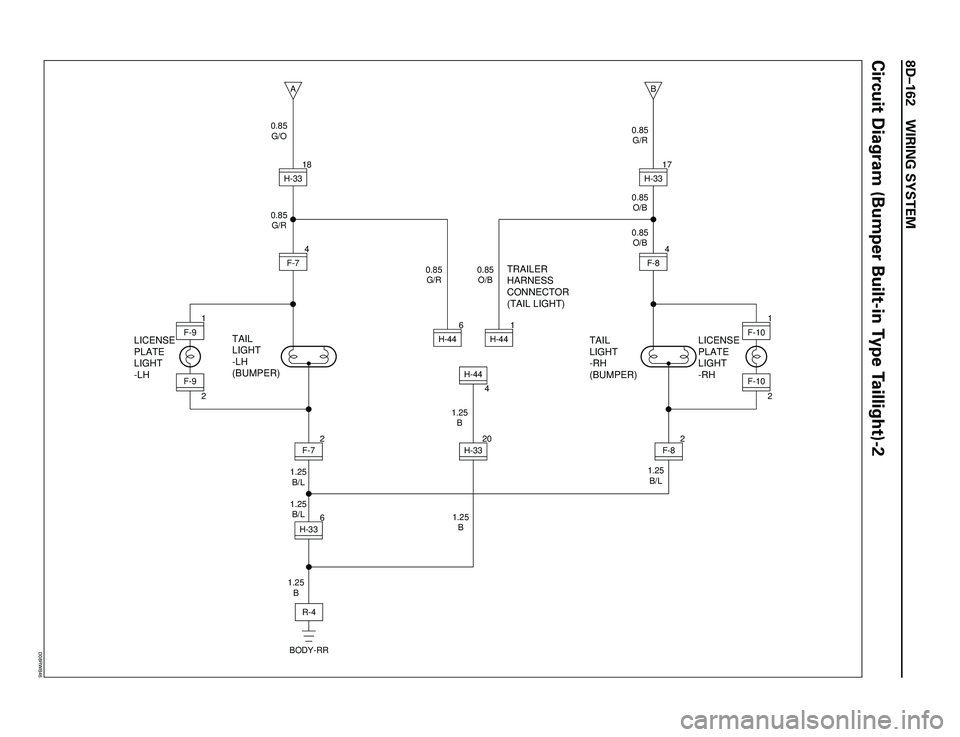

ISUZU TROOPER 1998 Service Repair Manual 8DÐ162 WIRING SYSTEM Circuit Diagram (Bumper Built-in Type Taillight)-2 0.85 G/R 0.85 O/B 0.85 O/B 0.85 O/B 1.25 B/L 1.25 B/L 1.25 B/L 1.25 B 1.25 B1.25 B LICENSE PLATE LIGHT -RH TAIL LIGHT -RH (BUMP

Page 2756 of 3573

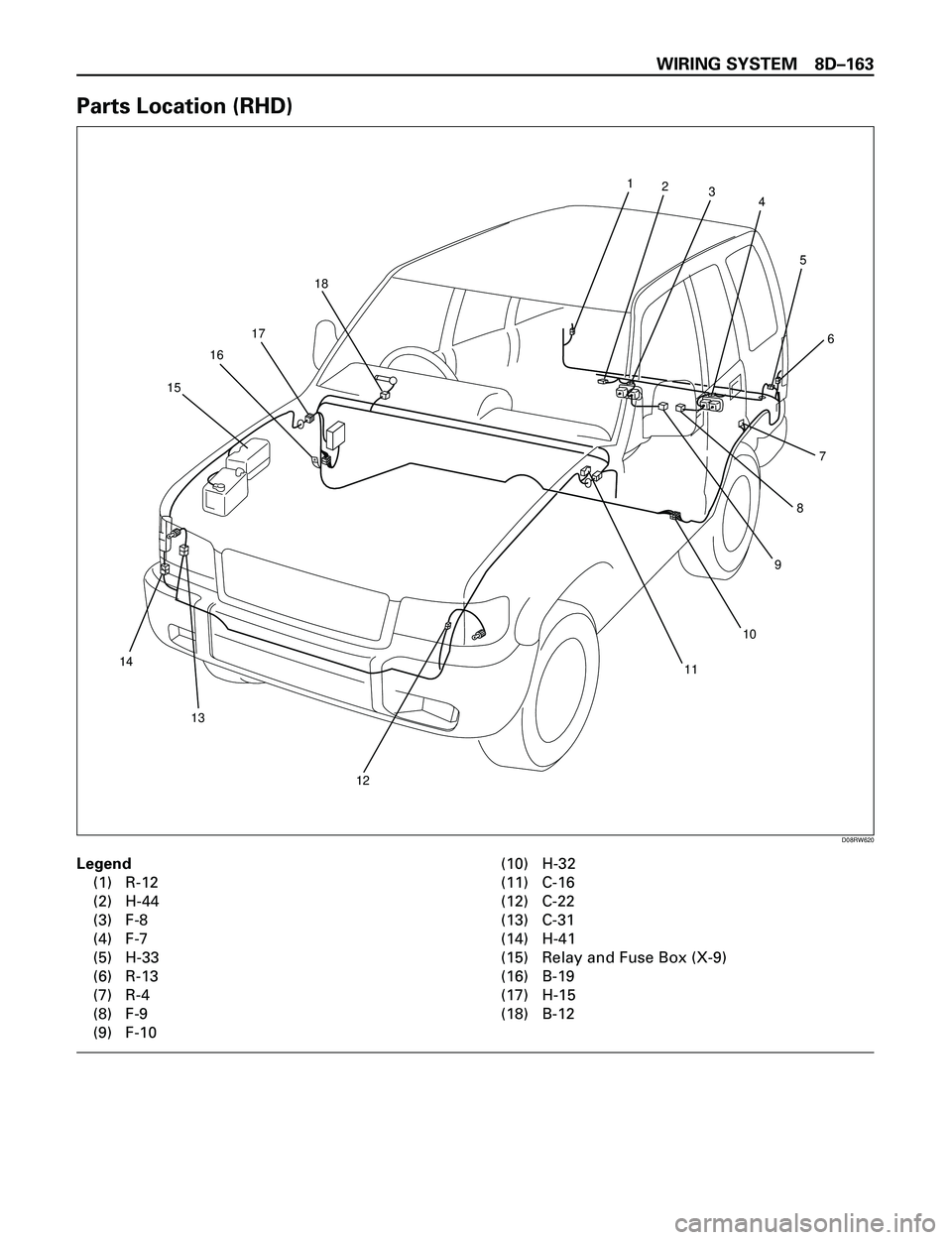

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ163 Parts Location (RHD) Legend (1) R-12 (2) H-44 (3) F-8 (4) F-7 (5) H-33 (6) R-13 (7) R-4 (8) F-9 (9) F-10(10) H-32 (11) C-16 (12) C-22 (13) C-31 (14) H-41 (15) Relay and Fuse Box

Page 2757 of 3573

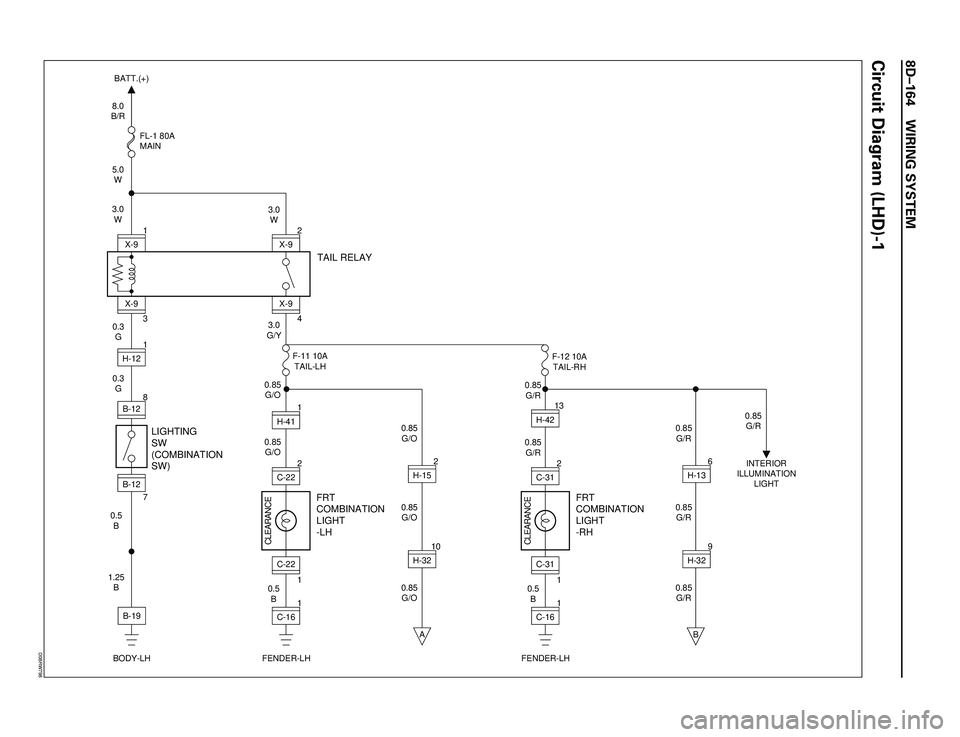

ISUZU TROOPER 1998 Service Repair Manual 8DÐ164 WIRING SYSTEM 8.0 B/R 5.0 W 3.0 WFL-1 80A MAIN TAIL RELAY BATT.(+) 0.3 G 0.3 G3X-91X-9 0.5 B 0.85 G/O 0.85 G/O3.0 W 3.0 G/Y4X-9CLEARANCE 2 X-9 B B-12H-12B-12 LIGHTING SW (COMBINATION SW) FRT C

Page 2758 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ165 0.85 G/R 0.85 G/R 1.25 B 0.5 B 0.5 W/L0.5 G/R 0.85 G/R 1.25 B LICENSE PLATE LIGHT TAIL LIGHT -RH (BODY) B 0.85 G/O R-4 BODY-RR 2 G-81H-392H-391G-8 TAIL LIGHT -LH (BODY) A 1 R-136

Page 2759 of 3573

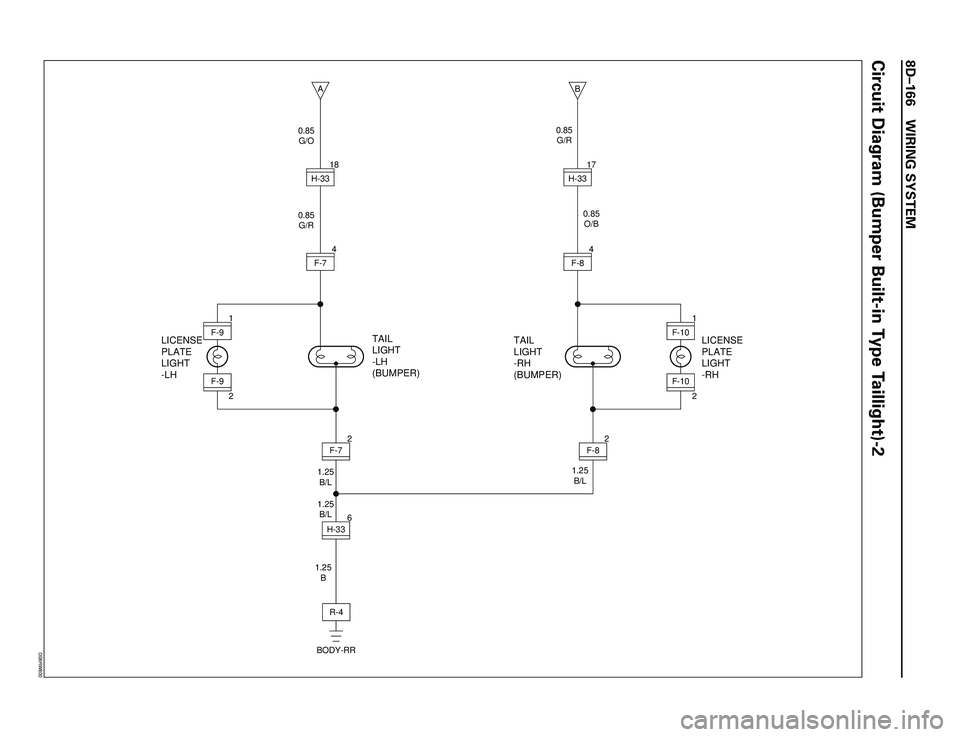

ISUZU TROOPER 1998 Service Repair Manual 8DÐ166 WIRING SYSTEM 0.85 G/R 0.85 O/B 1.25 B/L 1.25 B/L 1.25 B/L 1.25 B LICENSE PLATE LIGHT -RH TAIL LIGHT -RH (BUMPER) 2 BF-84 F-817H-33 0.85 G/R 0.85 G/O 18 H-33 R-4 BODY-RR 2 F-101F-10 LICENSE PL

Page 2760 of 3573

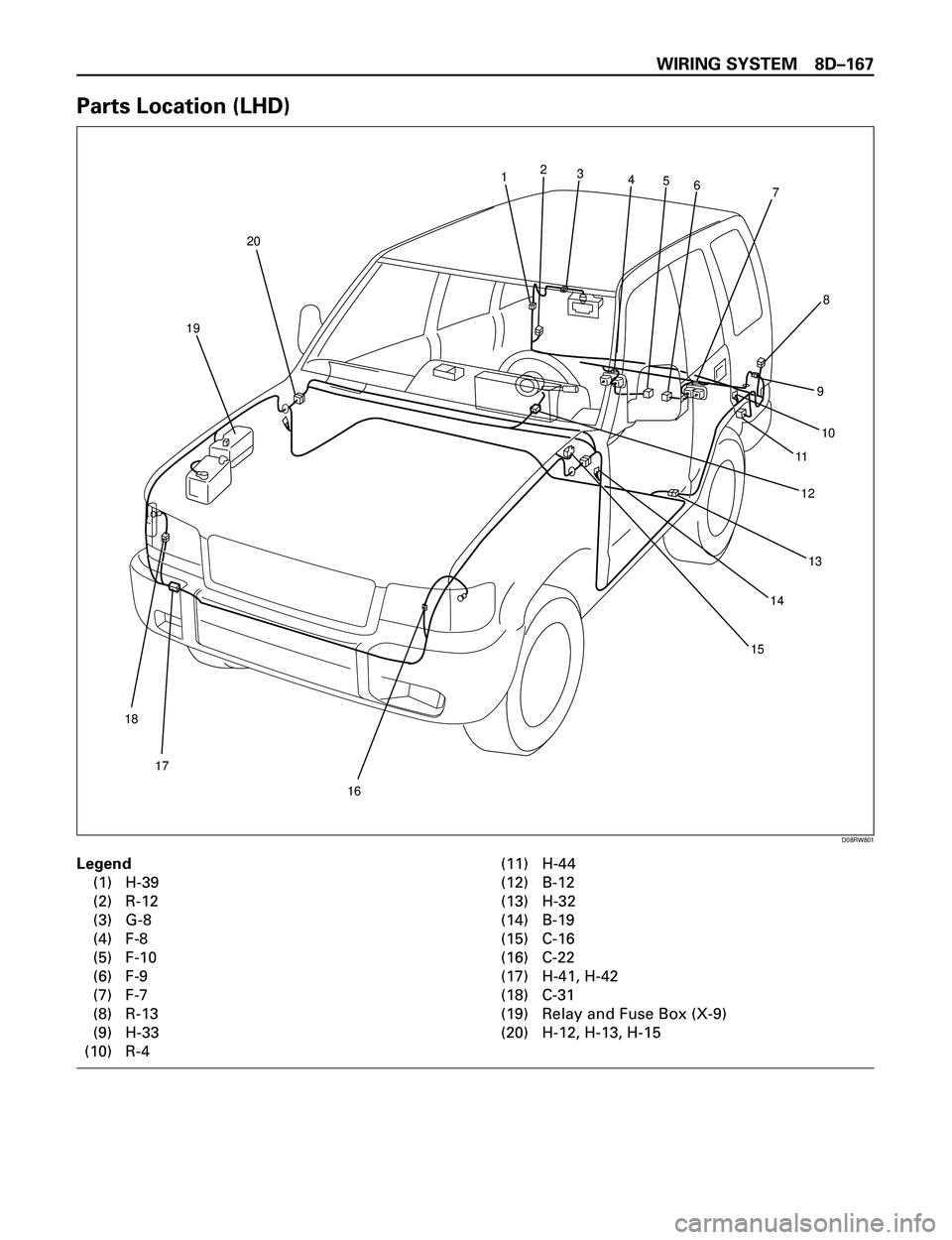

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ167 Parts Location (LHD) Legend (1) H-39 (2) R-12 (3) G-8 (4) F-8 (5) F-10 (6) F-9 (7) F-7 (8) R-13 (9) H-33 (10) R-4(11) H-44 (12) B-12 (13) H-32 (14) B-19 (15) C-16 (16) C-22 (17)
