ISUZU TROOPER 1998 Service Repair Manual 6E±12 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Wiring Diagram (5 of 6) 060RW123

Page 1906 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±13 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Wiring Diagram (6 of 6) 060RW124

Page 1907 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±14 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinouts ECM Pinout Table, 32-Way Connector ± J1 RED ± Upper 060RW138 J1 ± RED PINSIGNAL 1FUEL TEMPERATURE 2SPARE ANALOG 1 3+5VB1 4+5VB2 5SPARE

Page 1908 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±15 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 32-Way Connector ± J1 RED ± Lower 060RW137 J1 ± RED PINSIGNAL 17SPARE ANALOG 4 18INTAKE SM POSITION 19VEHICLE SPEED 20MT NEUTRAL

Page 1909 of 3573

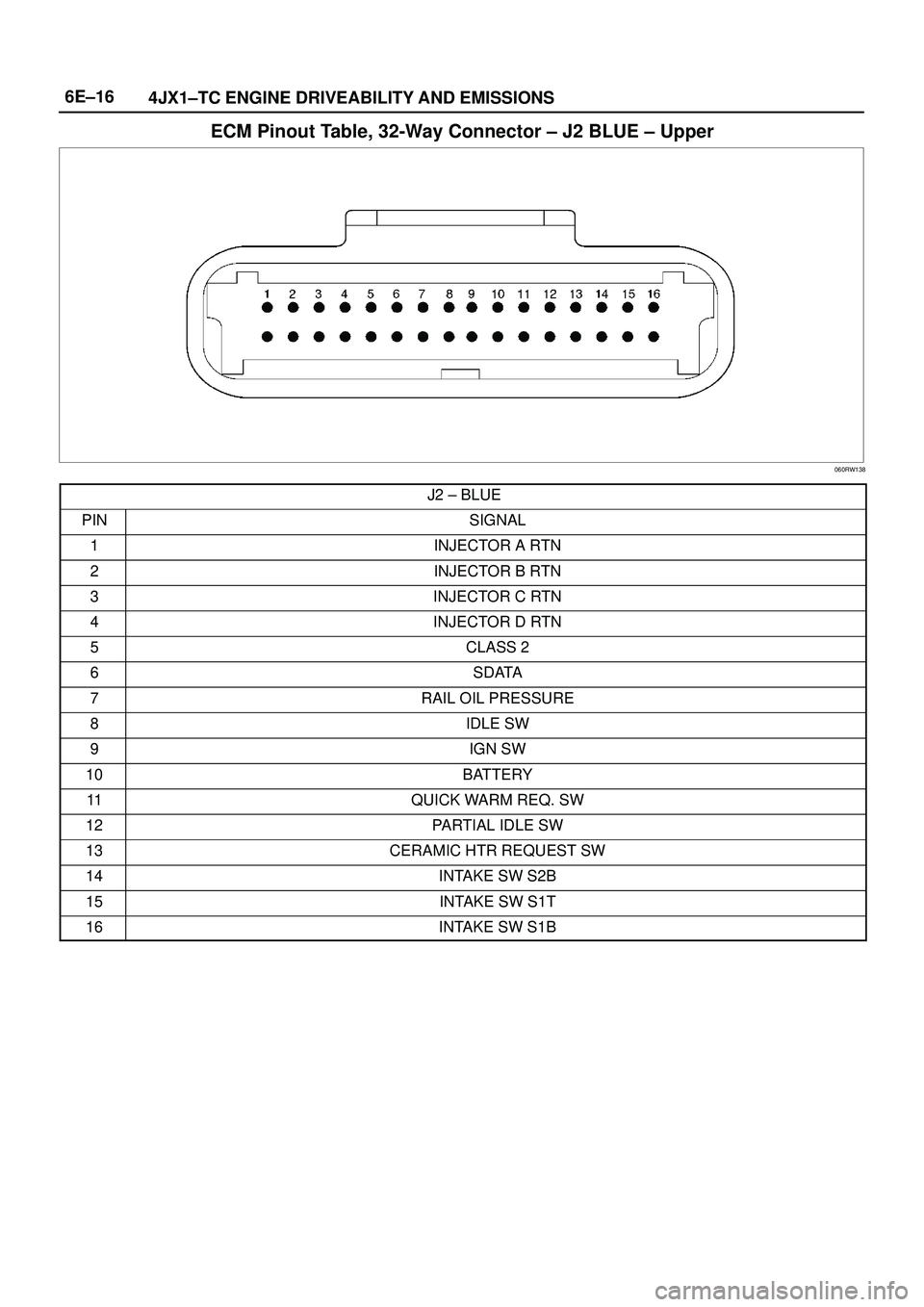

ISUZU TROOPER 1998 Service Repair Manual 6E±16 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 32-Way Connector ± J2 BLUE ± Upper 060RW138 J2 ± BLUE PINSIGNAL 1INJECTOR A RTN 2INJECTOR B RTN 3INJECTOR C RTN 4INJECTOR D RTN 5

Page 1910 of 3573

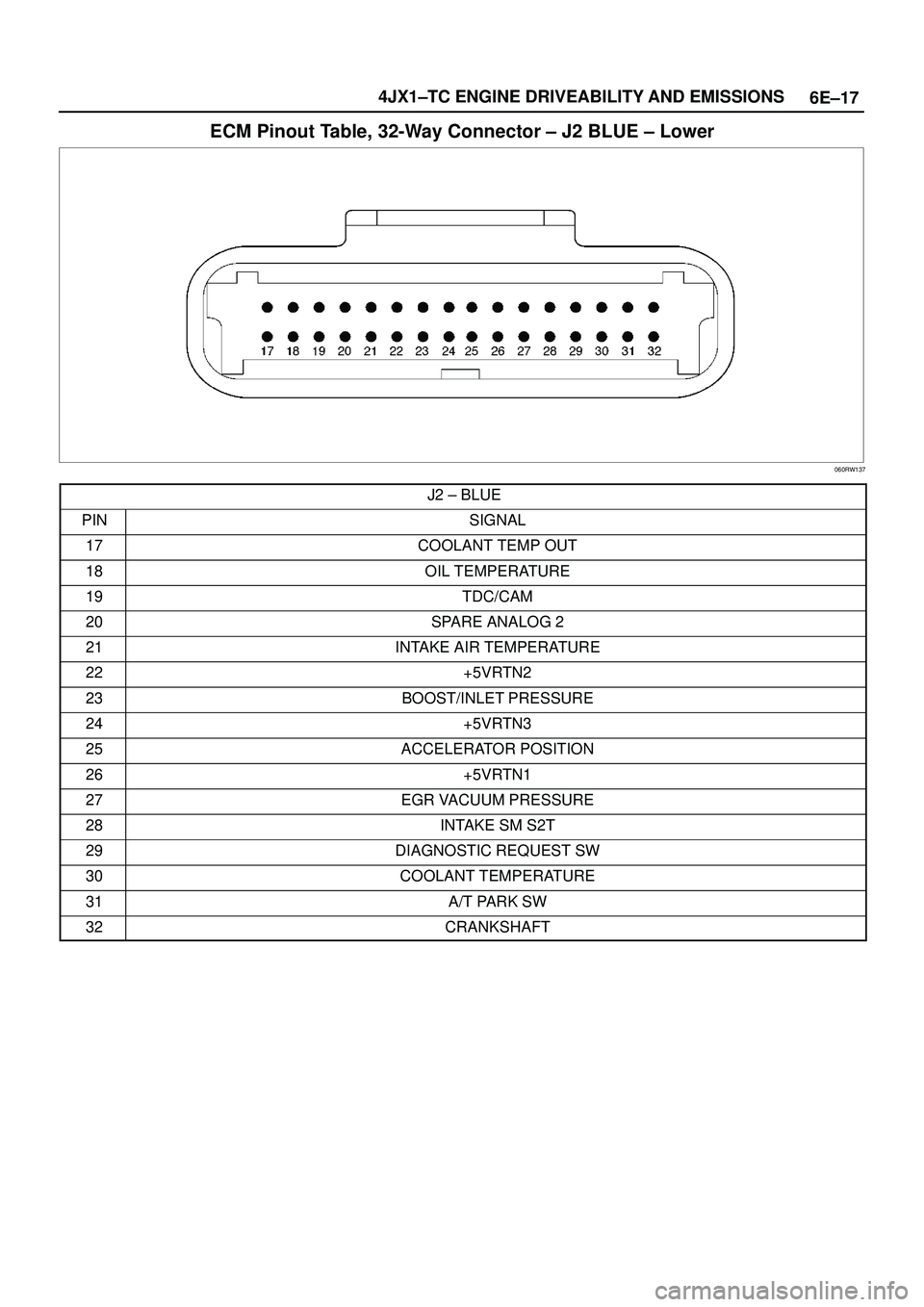

ISUZU TROOPER 1998 Service Repair Manual 6E±17 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 32-Way Connector ± J2 BLUE ± Lower 060RW137 J2 ± BLUE PINSIGNAL 17COOLANT TEMP OUT 18OIL TEMPERATURE 19TDC/CAM 20SPARE ANALOG 2 2

Page 1911 of 3573

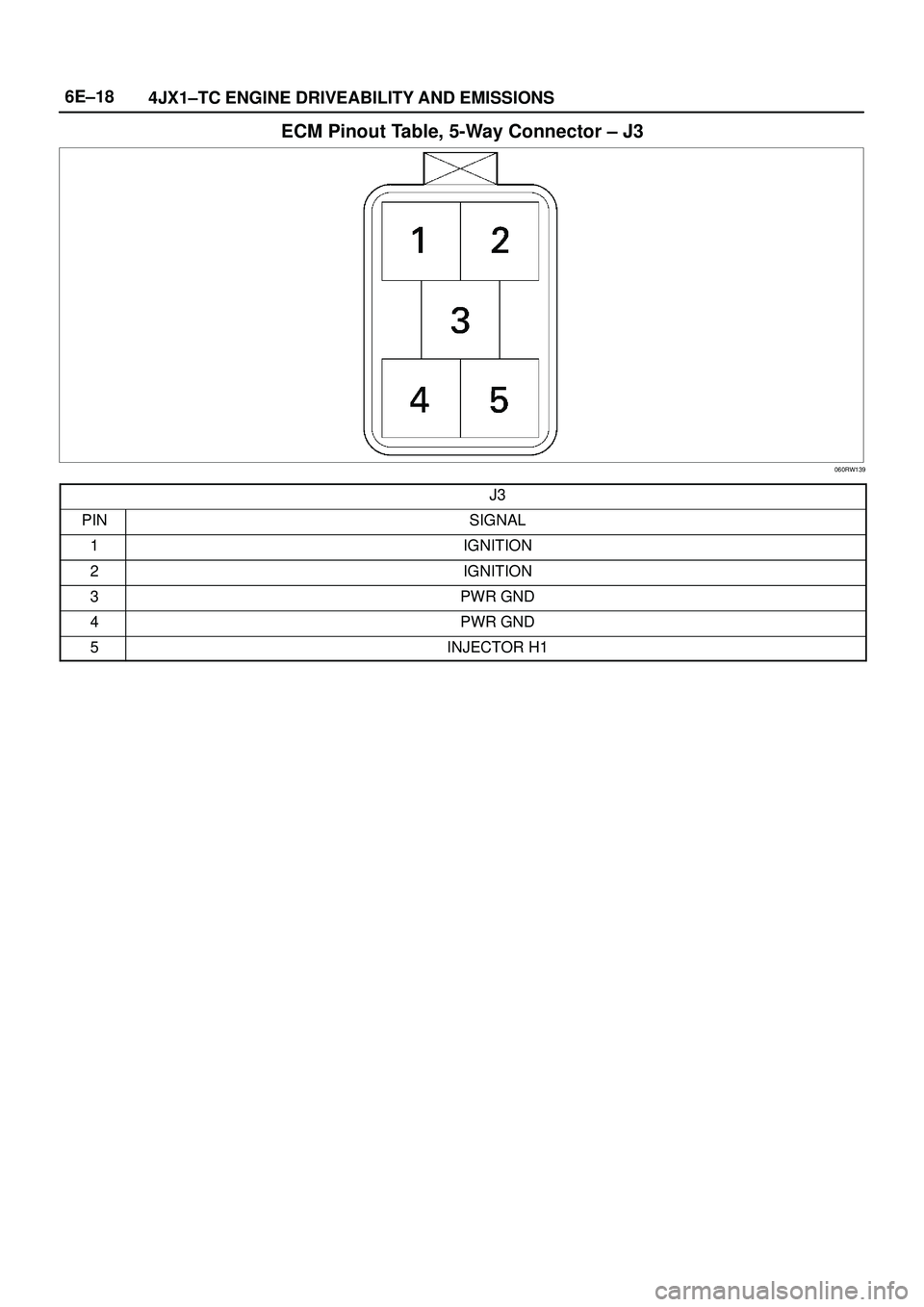

ISUZU TROOPER 1998 Service Repair Manual 6E±18 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 5-Way Connector ± J3 060RW139 J3 PINSIGNAL 1IGNITION 2IGNITION 3PWR GND 4PWR GND 5INJECTOR H1

Page 1912 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±19 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS Component Locator Engine Component Locator Table F06RW051 NumberNameLocation 1AP (Accelerator Pedal Position) SensorAP Bracket 2CKP (Crankshaft Positi
