ISUZU TROOPER 1998 Service Repair Manual 6E±28 ENGINE DRIVEABILITY AND EMISSIONS Component Locators Engine Component Locator (This illustration is based on RHD model.) 060RW210

Page 1146 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±29 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator Table Number NameLocation 1Linear Exhaust Gas Recirculation (EGR) ValveRear right side of the engine 2Throttle Position (TP) SensorOn

Page 1147 of 3573

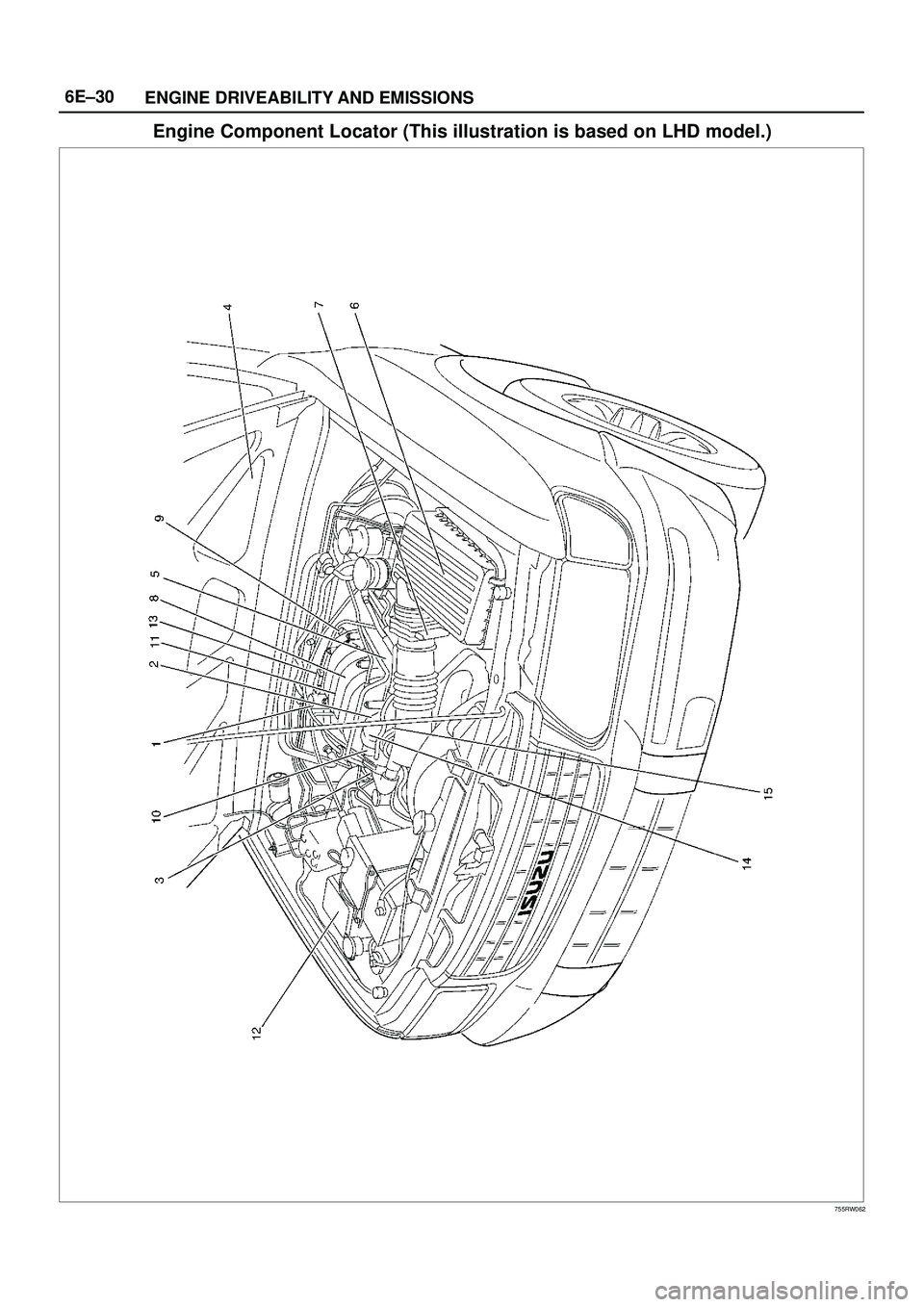

ISUZU TROOPER 1998 Service Repair Manual 6E±30 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator (This illustration is based on LHD model.) 755RW062

Page 1148 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±31 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator Table Number NameLocation 1Linear Exhaust Gas Recirculation (EGR) ValveRear right side of the engine 2Throttle Position (TP) SensorOn

Page 1149 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±32 ENGINE DRIVEABILITY AND EMISSIONS Undercarriage Component Locator F00RW040 Undercarriage Component Locator Table (Automatic Transmission) Number NameLocation 1Fuel Pump AssemblyInstalled in the

Page 1150 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±33 ENGINE DRIVEABILITY AND EMISSIONS Undercarriage Component Locator Table (Manual Transmission) Number NameLocation 1Fuel Pump AssemblyInstalled in the top of the fuel tank 2Fuel Gauge UnitInstal

Page 1151 of 3573

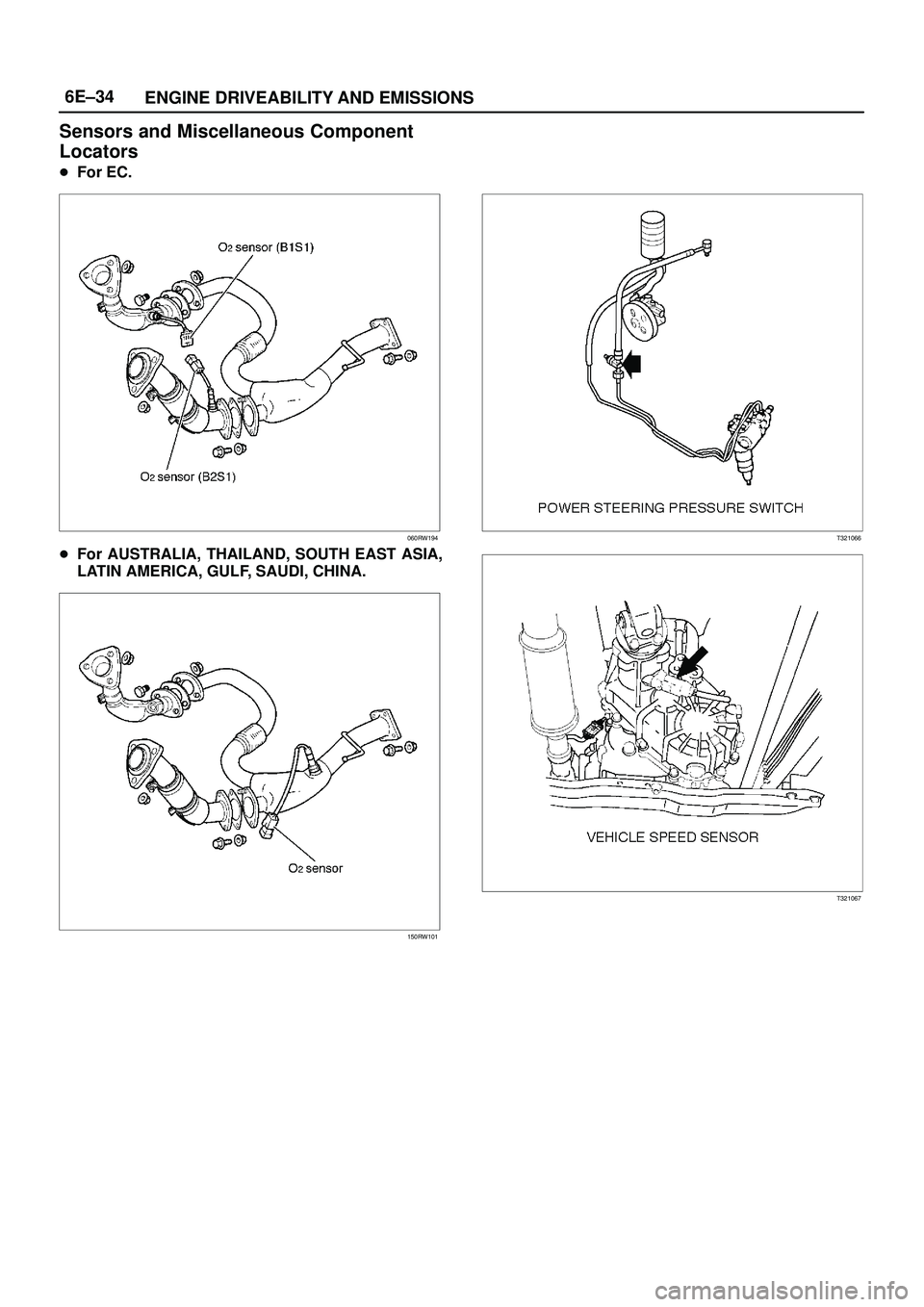

ISUZU TROOPER 1998 Service Repair Manual 6E±34 ENGINE DRIVEABILITY AND EMISSIONS Sensors and Miscellaneous Component Locators For EC. 060RW194 For AUSTRALIA, THAILAND, SOUTH EAST ASIA, LATIN AMERICA, GULF, SAUDI, CHINA. 150RW101 T321066 T

Page 1152 of 3573

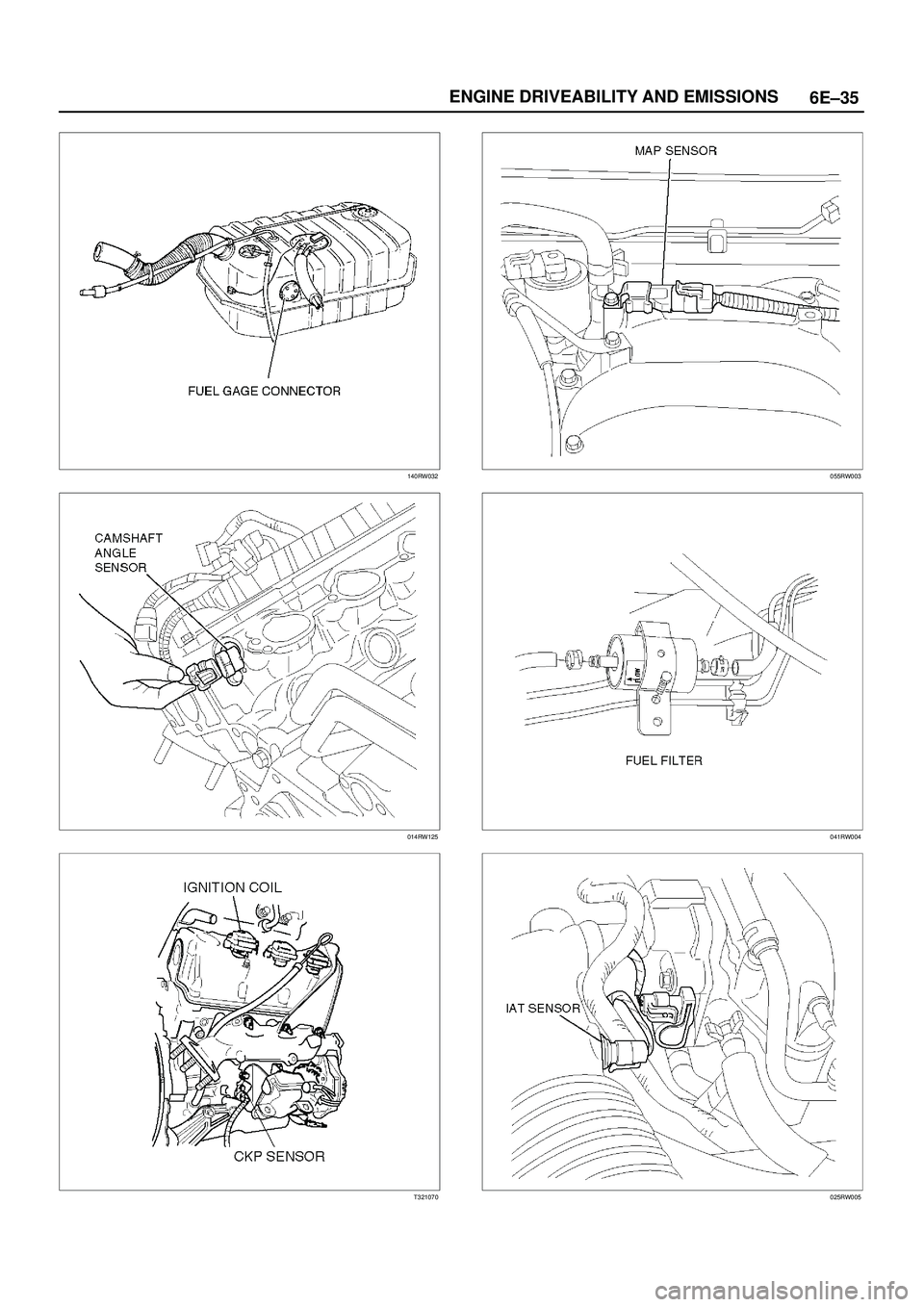

ISUZU TROOPER 1998 Service Repair Manual 6E±35 ENGINE DRIVEABILITY AND EMISSIONS 140RW032 014RW125 T321070 055RW003 041RW004 025RW005
