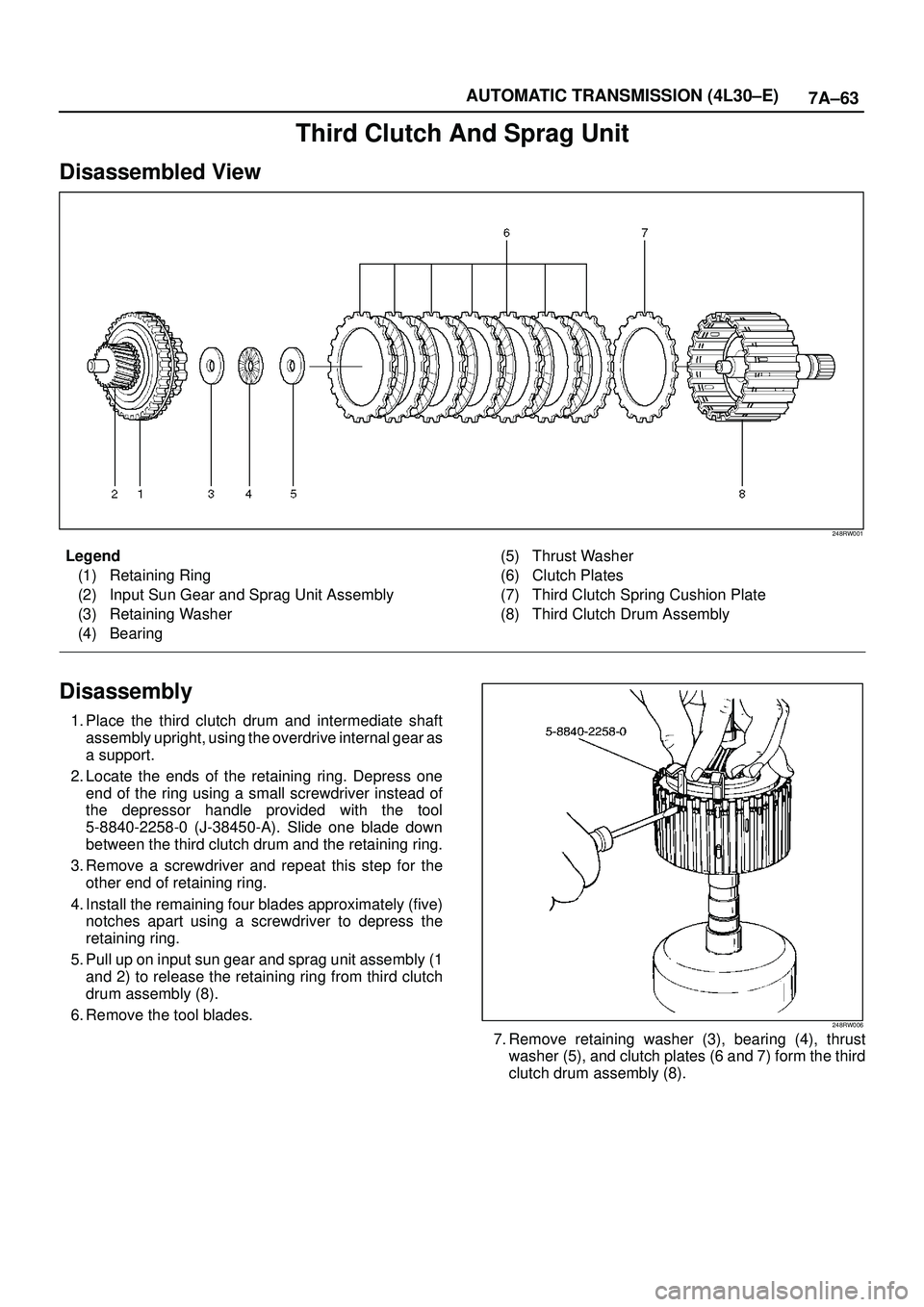

ISUZU TROOPER 1998 Service Repair Manual 7A±63 AUTOMATIC TRANSMISSION (4L30±E) Third Clutch And Sprag Unit Disassembled View 248RW001 Legend (1) Retaining Ring (2) Input Sun Gear and Sprag Unit Assembly (3) Retaining Washer (4) Bearing(5)

Page 2218 of 3573

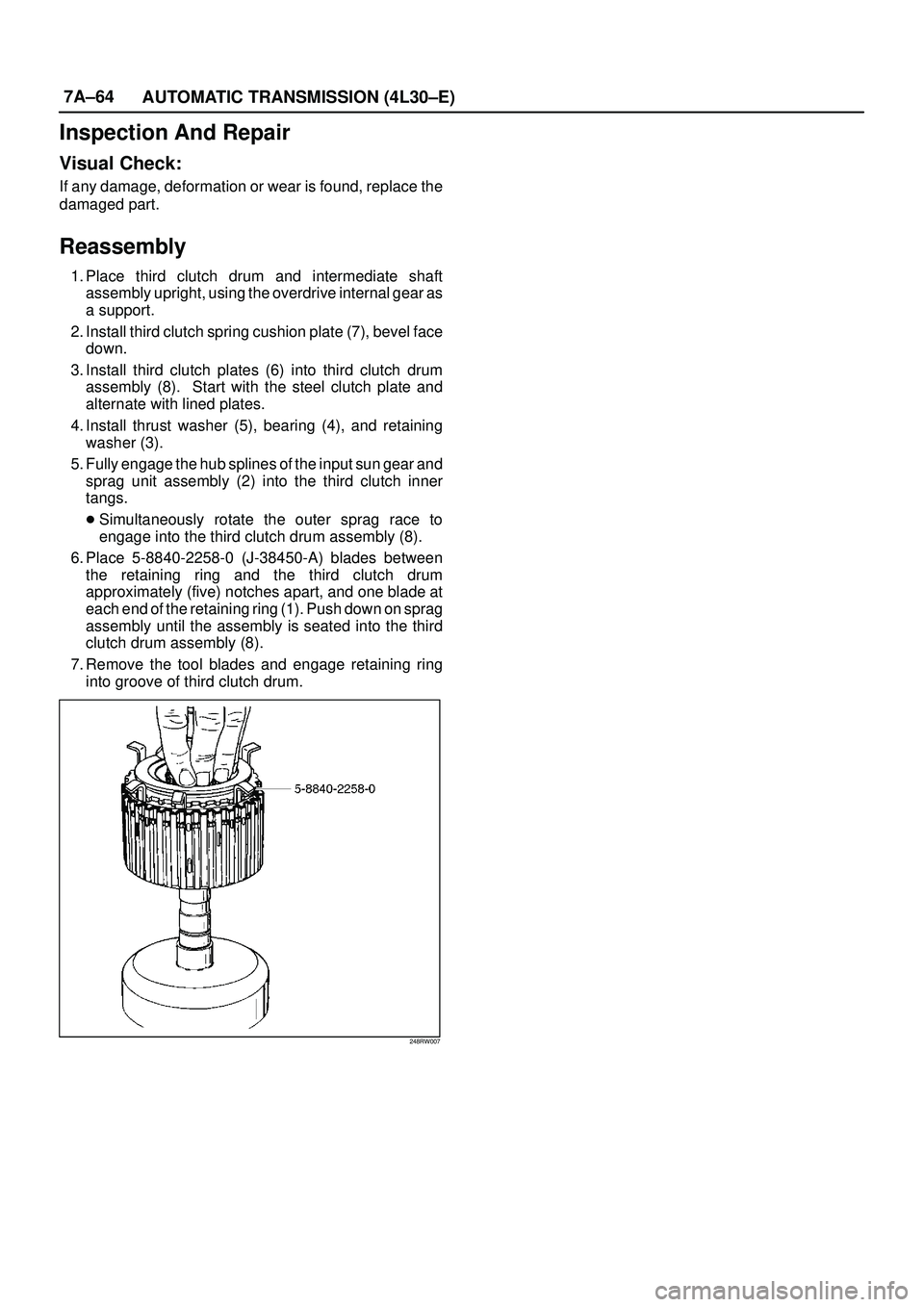

ISUZU TROOPER 1998 Service Repair Manual 7A±64 AUTOMATIC TRANSMISSION (4L30±E) Inspection And Repair Visual Check: If any damage, deformation or wear is found, replace the damaged part. Reassembly 1. Place third clutch drum and intermediat

Page 2219 of 3573

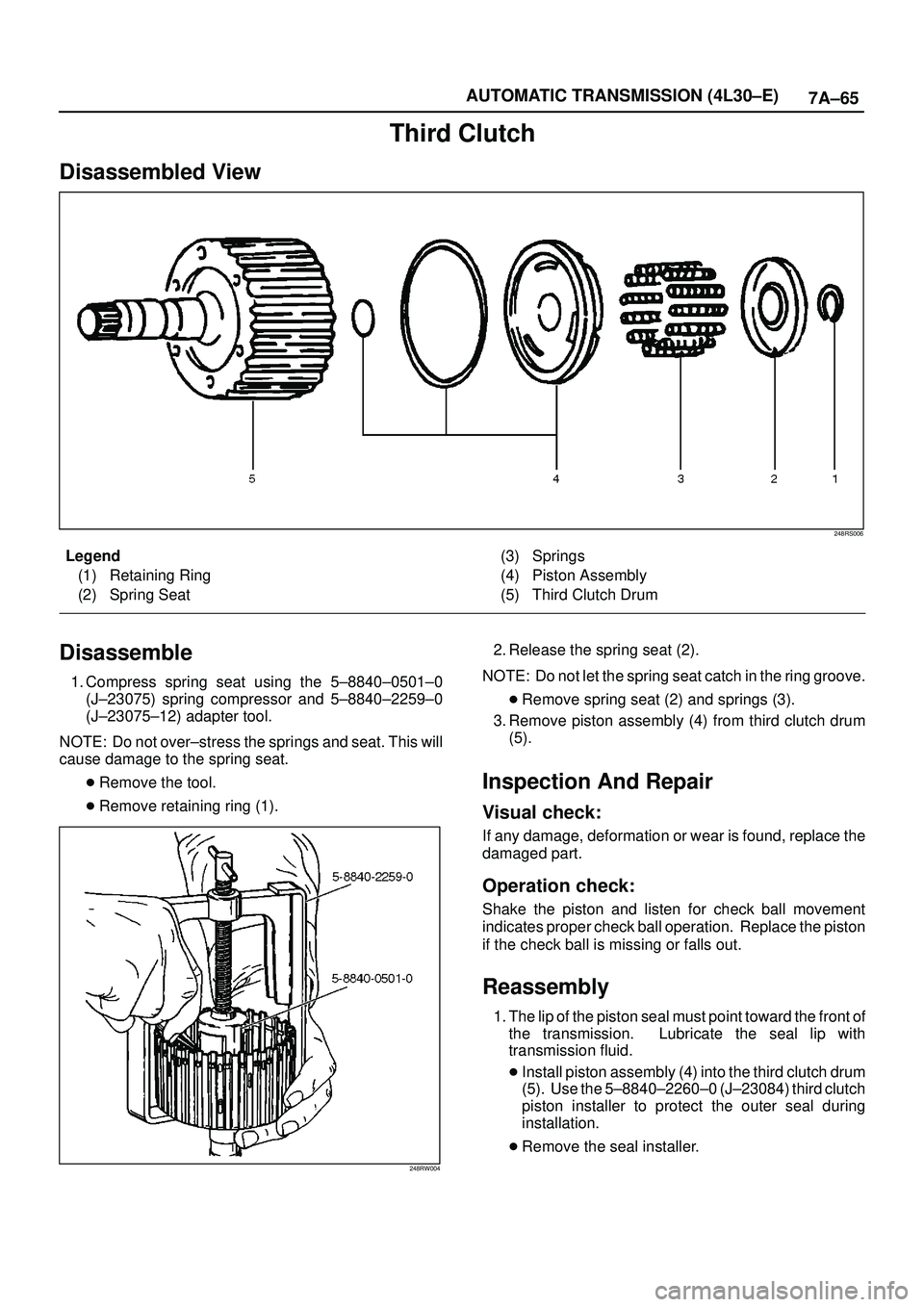

ISUZU TROOPER 1998 Service Repair Manual 7A±65 AUTOMATIC TRANSMISSION (4L30±E) Third Clutch Disassembled View 248RS006 Legend (1) Retaining Ring (2) Spring Seat(3) Springs (4) Piston Assembly (5) Third Clutch Drum Disassemble 1. Compress s

Page 2220 of 3573

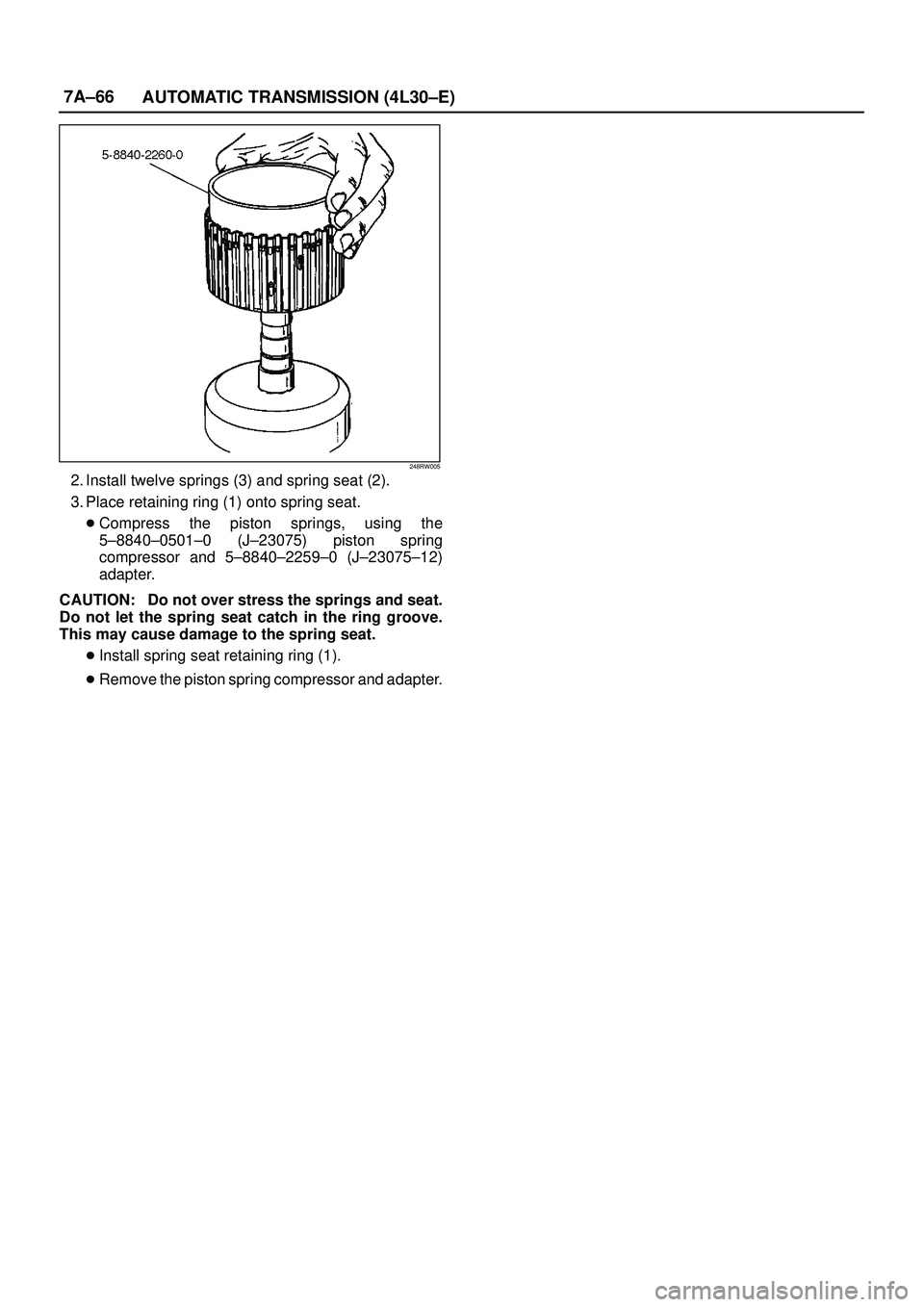

ISUZU TROOPER 1998 Service Repair Manual 7A±66 AUTOMATIC TRANSMISSION (4L30±E) 248RW005 2. Install twelve springs (3) and spring seat (2). 3. Place retaining ring (1) onto spring seat. Compress the piston springs, using the 5±8840±0501

Page 2221 of 3573

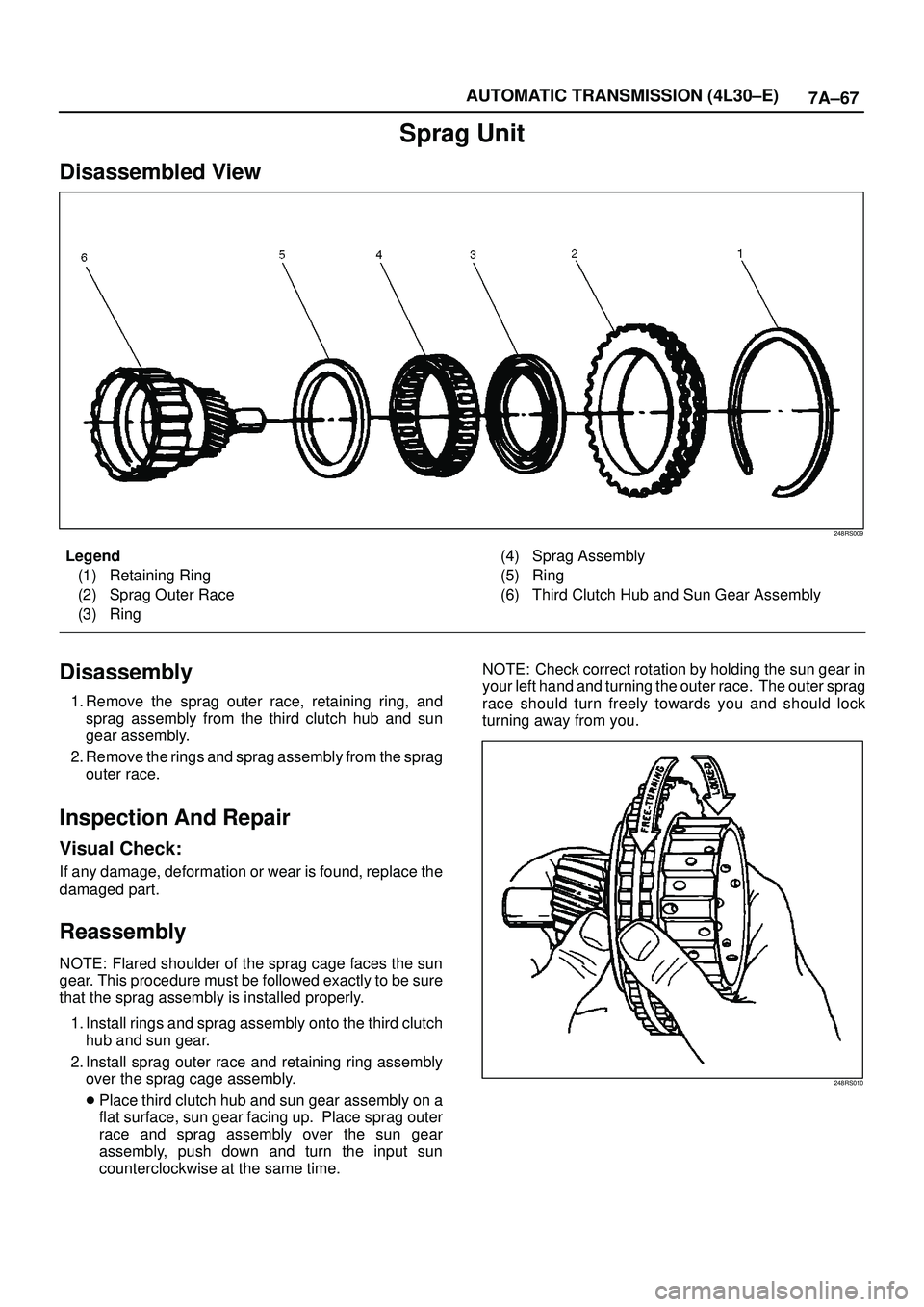

ISUZU TROOPER 1998 Service Repair Manual 7A±67 AUTOMATIC TRANSMISSION (4L30±E) Sprag Unit Disassembled View 248RS009 Legend (1) Retaining Ring (2) Sprag Outer Race (3) Ring(4) Sprag Assembly (5) Ring (6) Third Clutch Hub and Sun Gear Assem

Page 2222 of 3573

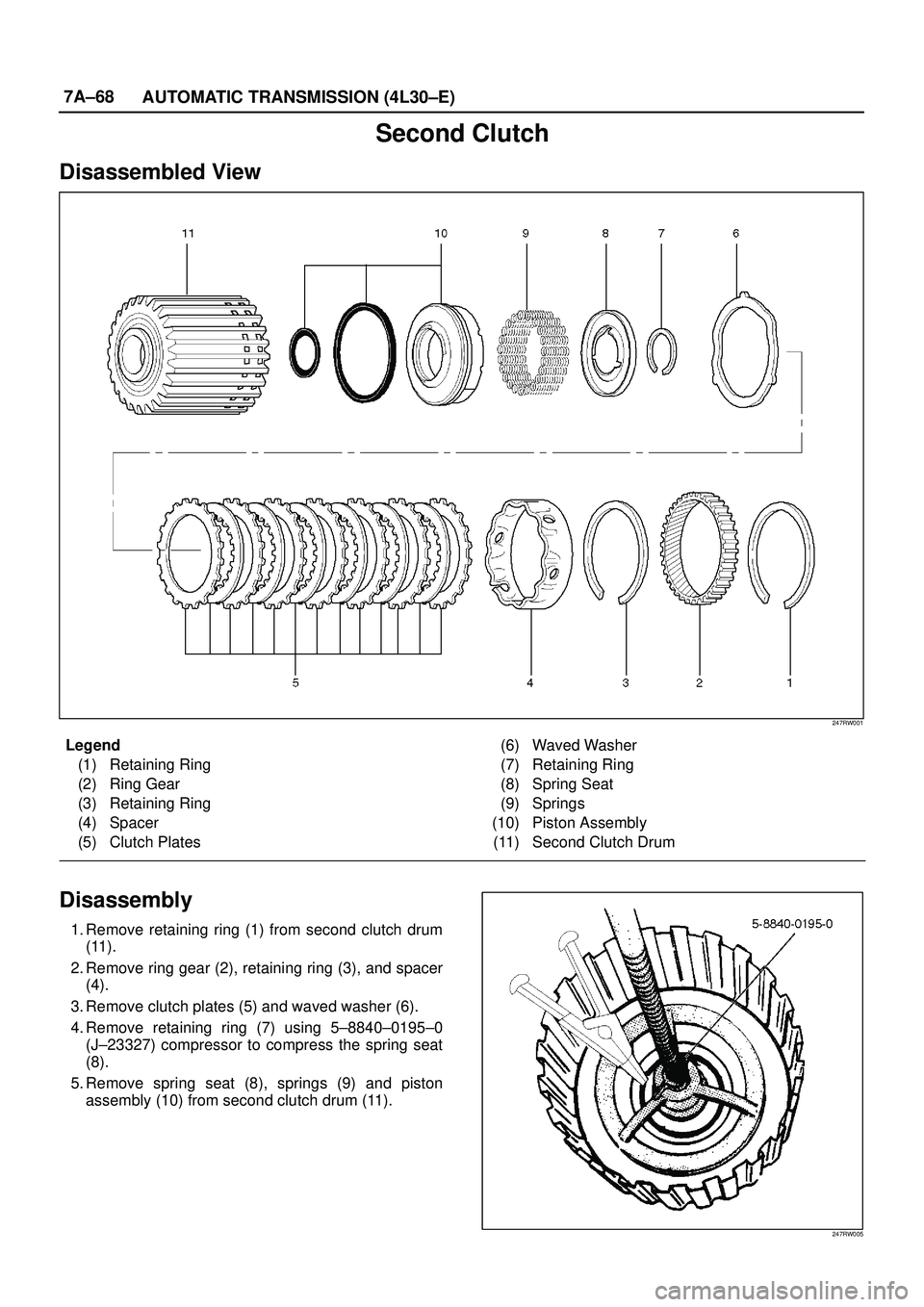

ISUZU TROOPER 1998 Service Repair Manual 7A±68 AUTOMATIC TRANSMISSION (4L30±E) Second Clutch Disassembled View 247RW001 Legend (1) Retaining Ring (2) Ring Gear (3) Retaining Ring (4) Spacer (5) Clutch Plates(6) Waved Washer (7) Retaining R

Page 2223 of 3573

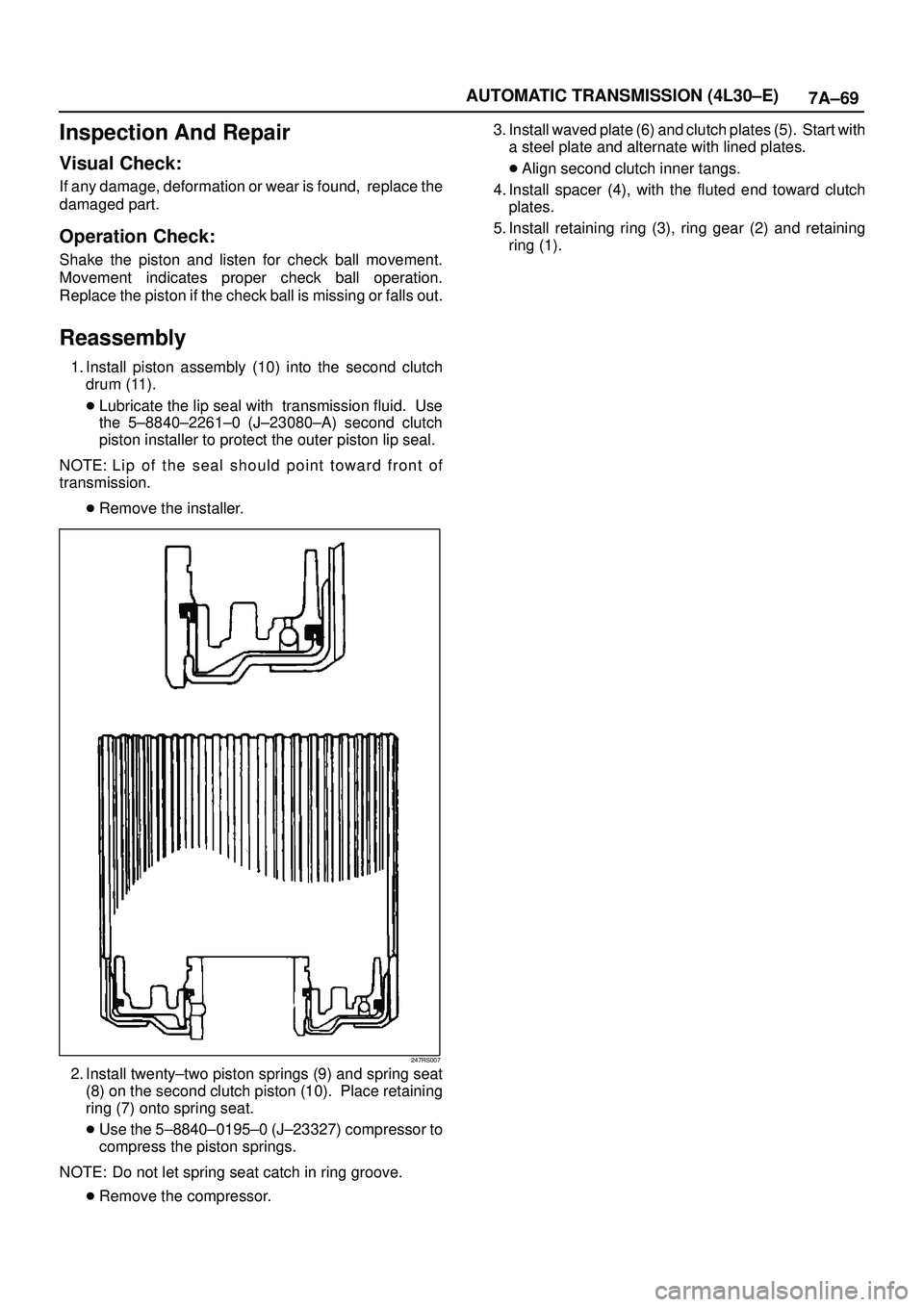

ISUZU TROOPER 1998 Service Repair Manual 7A±69 AUTOMATIC TRANSMISSION (4L30±E) Inspection And Repair Visual Check: If any damage, deformation or wear is found, replace the damaged part. Operation Check: Shake the piston and listen for che

Page 2224 of 3573

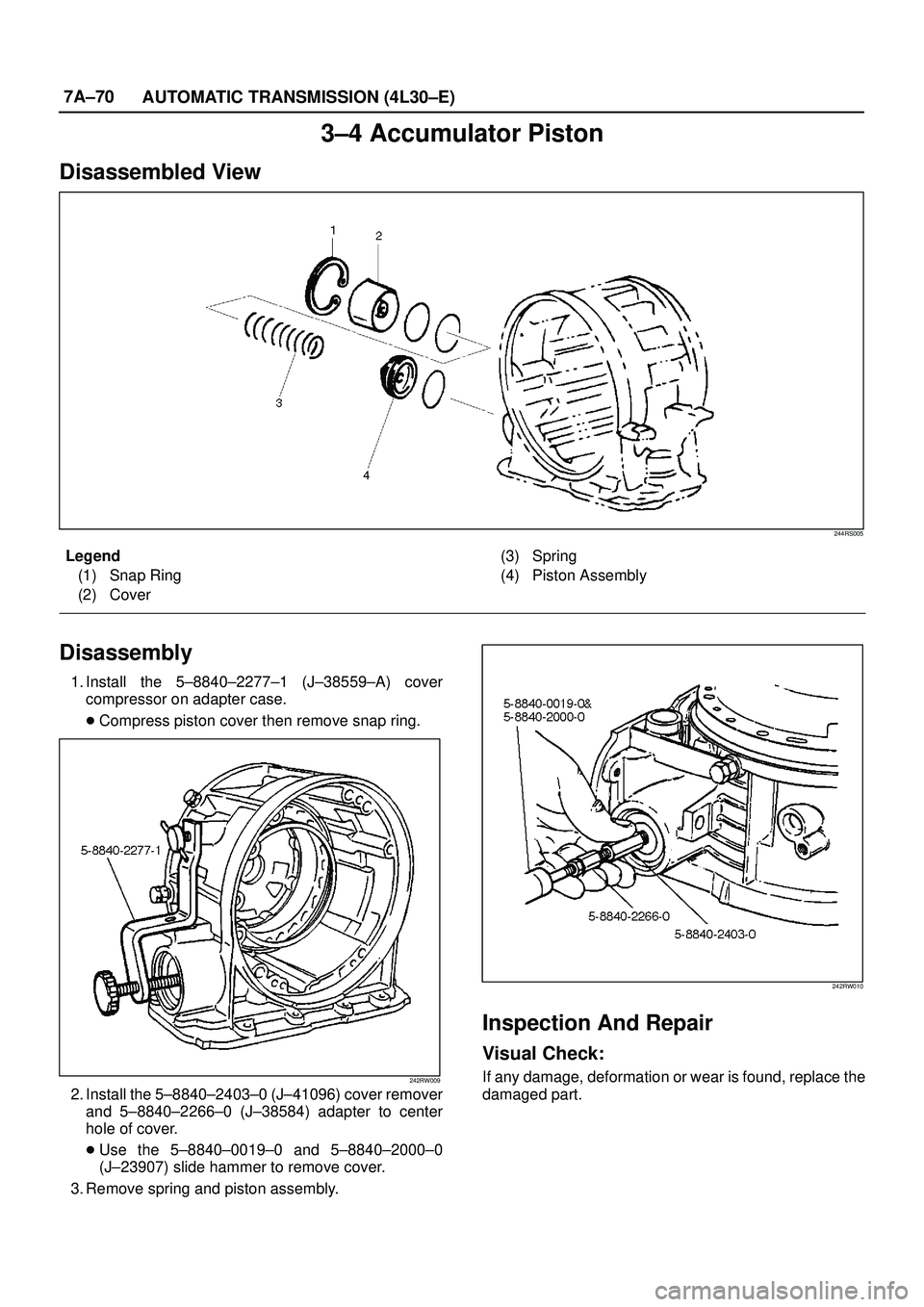

ISUZU TROOPER 1998 Service Repair Manual 7A±70 AUTOMATIC TRANSMISSION (4L30±E) 3±4 Accumulator Piston Disassembled View 244RS005 Legend (1) Snap Ring (2) Cover(3) Spring (4) Piston Assembly Disassembly 1. Install the 5±8840±2277±1 (J±
