Page 1545 of 3573
SERVICE INFORMATION 00 Ð 45

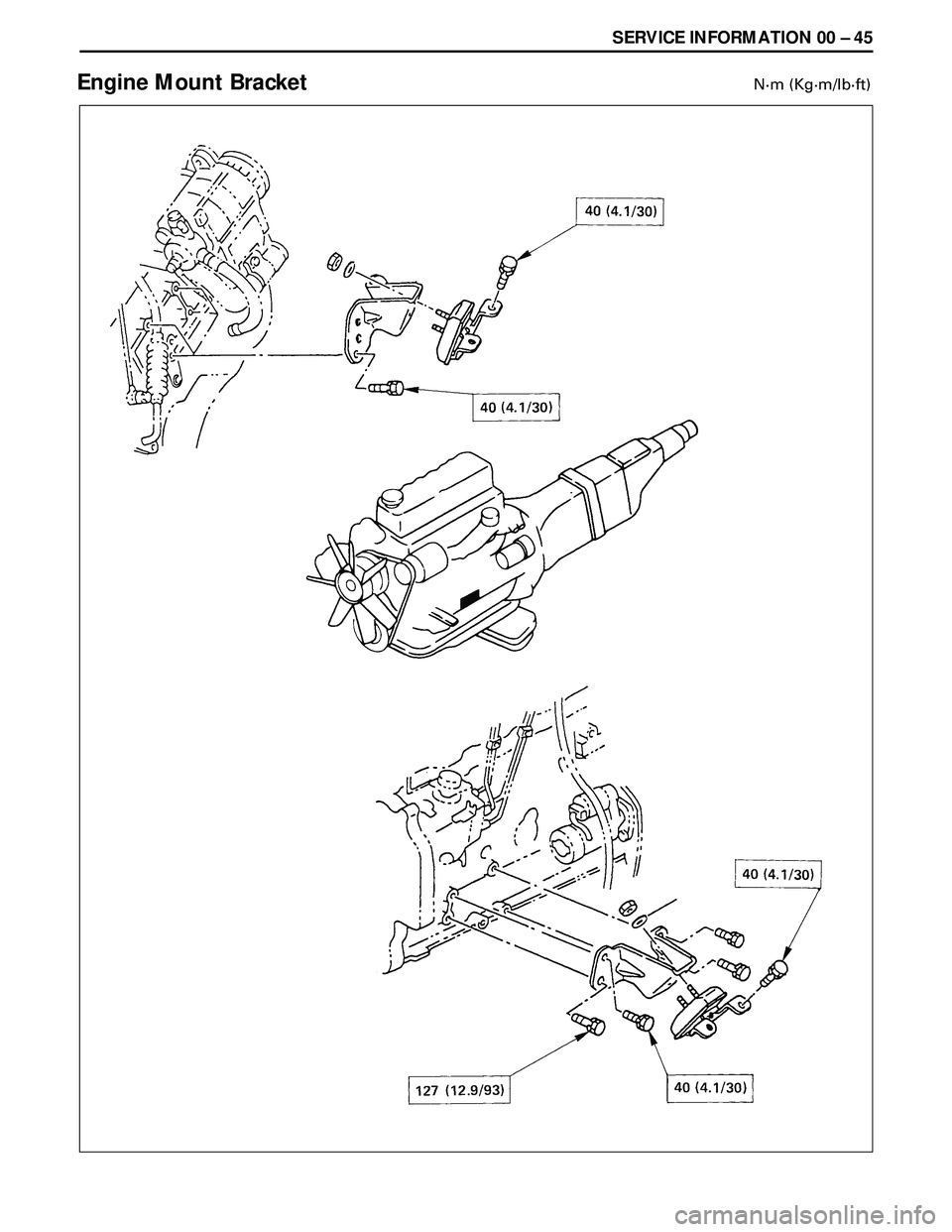

Engine Mount BracketNám (Kgám/lbáft)
Page 1546 of 3573
00 Ð 46 SERVICE INFORMATION

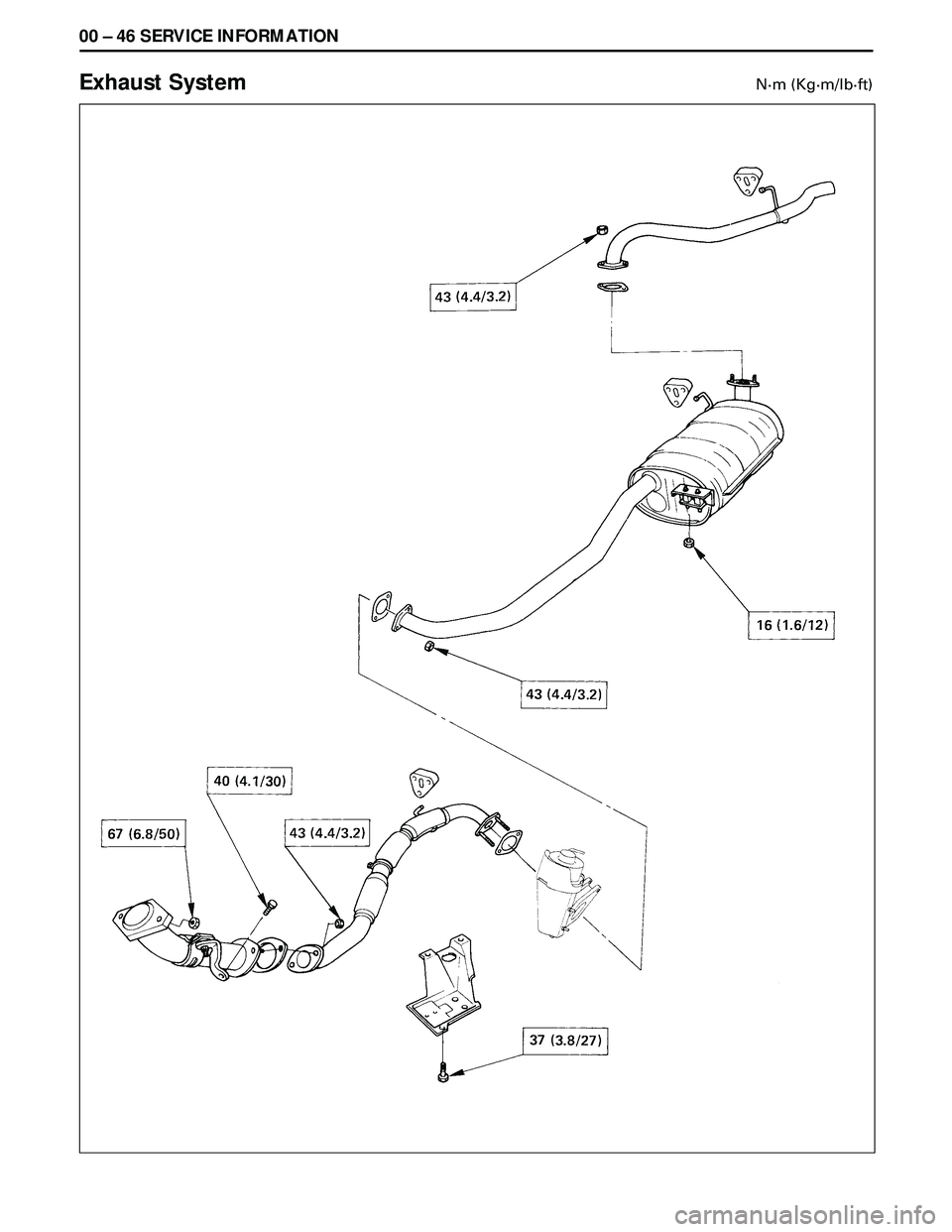

Exhaust SystemNám (Kgám/lbáft)
Page 1547 of 3573
SERVICE INFORMATION 00 Ð 47

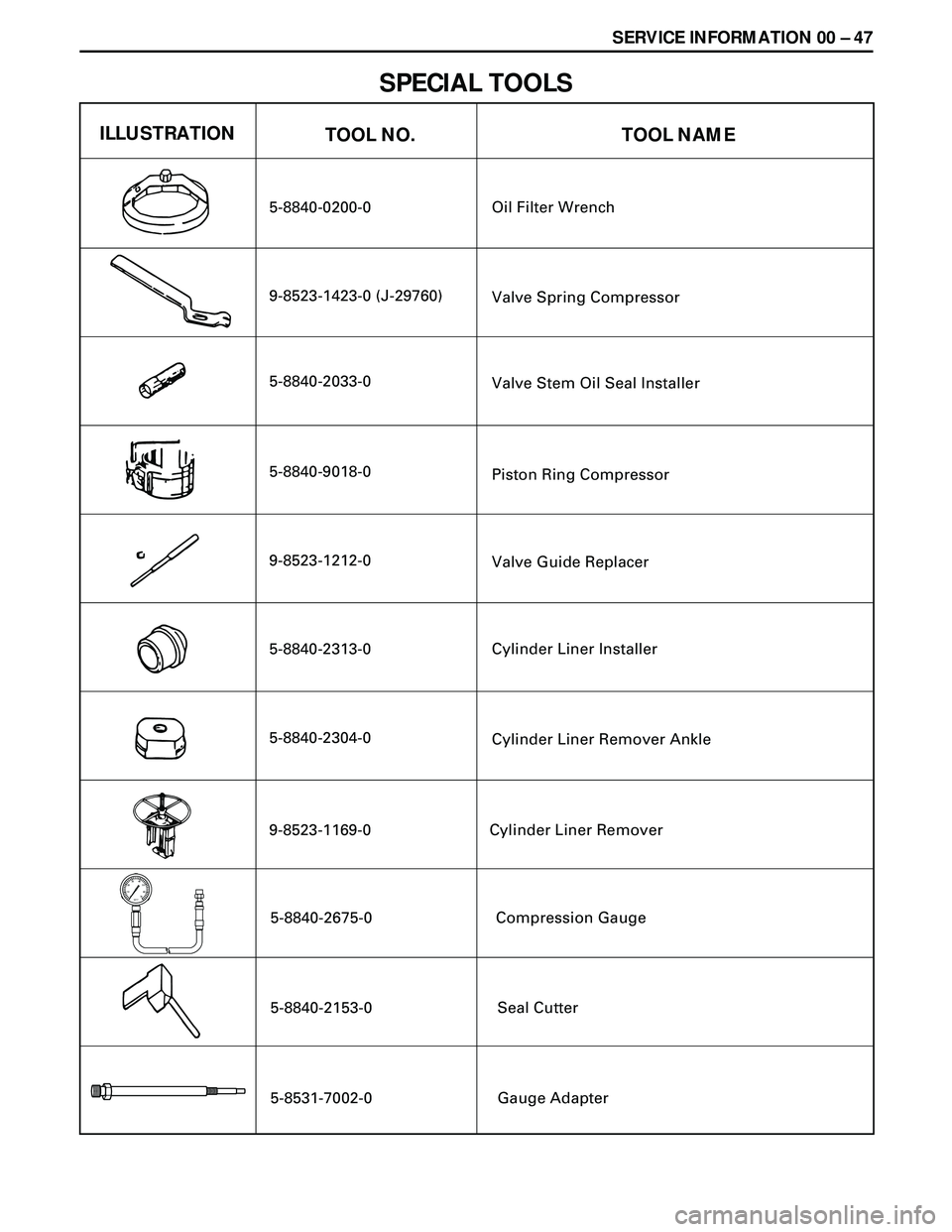

SPECIAL TOOLS
ILLUSTRATIONTOOL NAME
5-8840-0200-0
9-8523-1423-0 (J-29760)
5-8840-2033-0
5-8840-9018-0
9-8523-1212-0
5-8840-2313-0
5-8840-2304-0
TOOL NO.
Oil Filter Wrench
Valve Spring Compressor
Valve Stem Oil Seal Installer
Piston Ring Compressor
Valve Guide Replacer
Cylinder Liner Installer
Cylinder Liner Remover Ankle
Cylinder Liner Remover 9-8523-1169-0
5-8840-2675-0
5-8840-2153-0
5-8531-7002-0Compression Gauge
Seal Cutter
Gauge Adapter
L H D N
Page 1548 of 3573
00 Ð 48 SERVICE INFORMATION

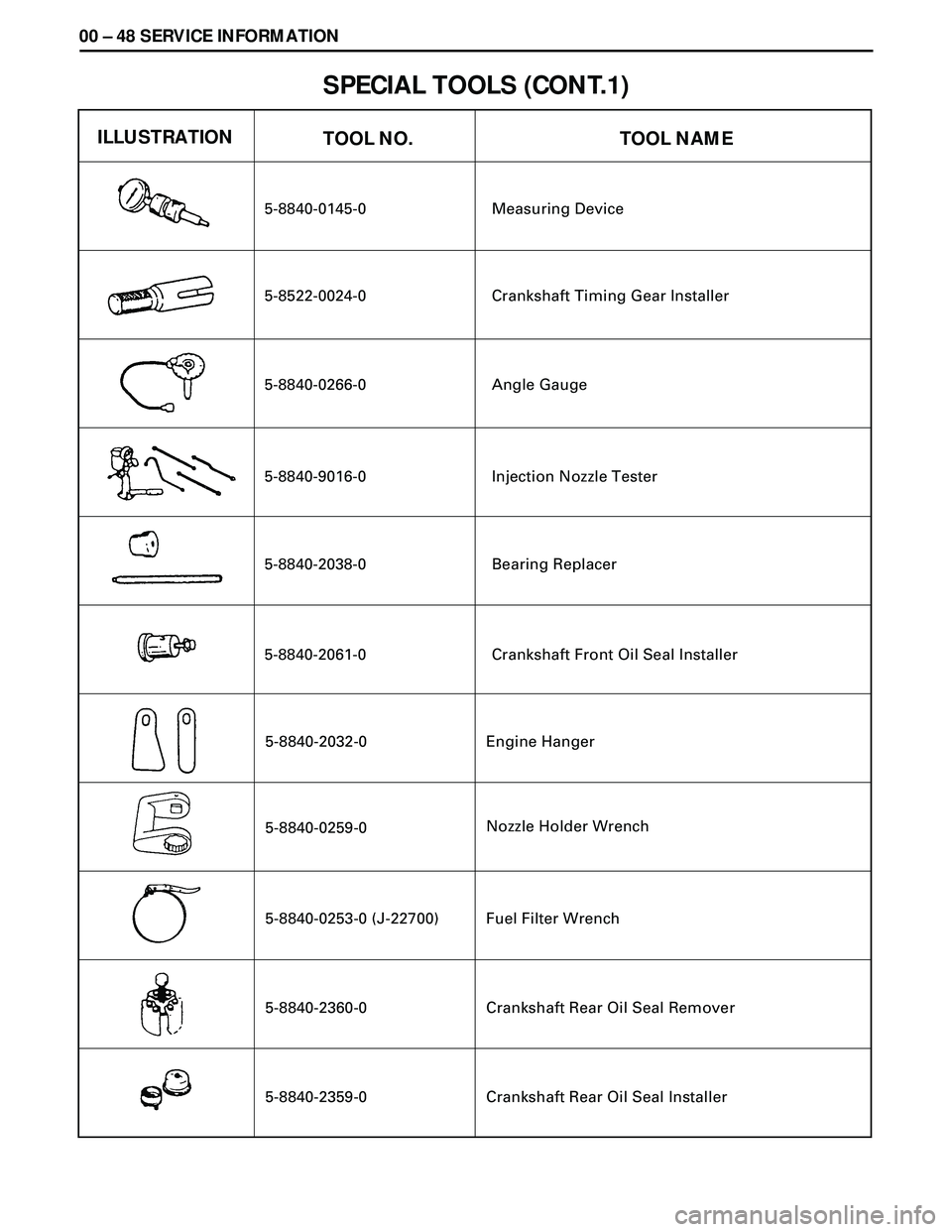

SPECIAL TOOLS (CONT.1)
5-8840-0145-0
5-8522-0024-0
5-8840-0266-0
5-8840-9016-0
5-8840-2038-0
5-8840-2061-0
ILLUSTRATION
TOOL NAME TOOL NO.
Measuring Device
Crankshaft Timing Gear Installer
Angle Gauge
Injection Nozzle Tester
Bearing Replacer
Crankshaft Front Oil Seal Installer
5-8840-2032-0
5-8840-0259-0
5-8840-0253-0 (J-22700)Engine Hanger
Nozzle Holder Wrench
Fuel Filter Wrench
5-8840-2360-0 Crankshaft Rear Oil Seal Remover
5-8840-2359-0 Crankshaft Rear Oil Seal Installer
Page 1549 of 3573
SERVICE INFORMATION 00 Ð 49

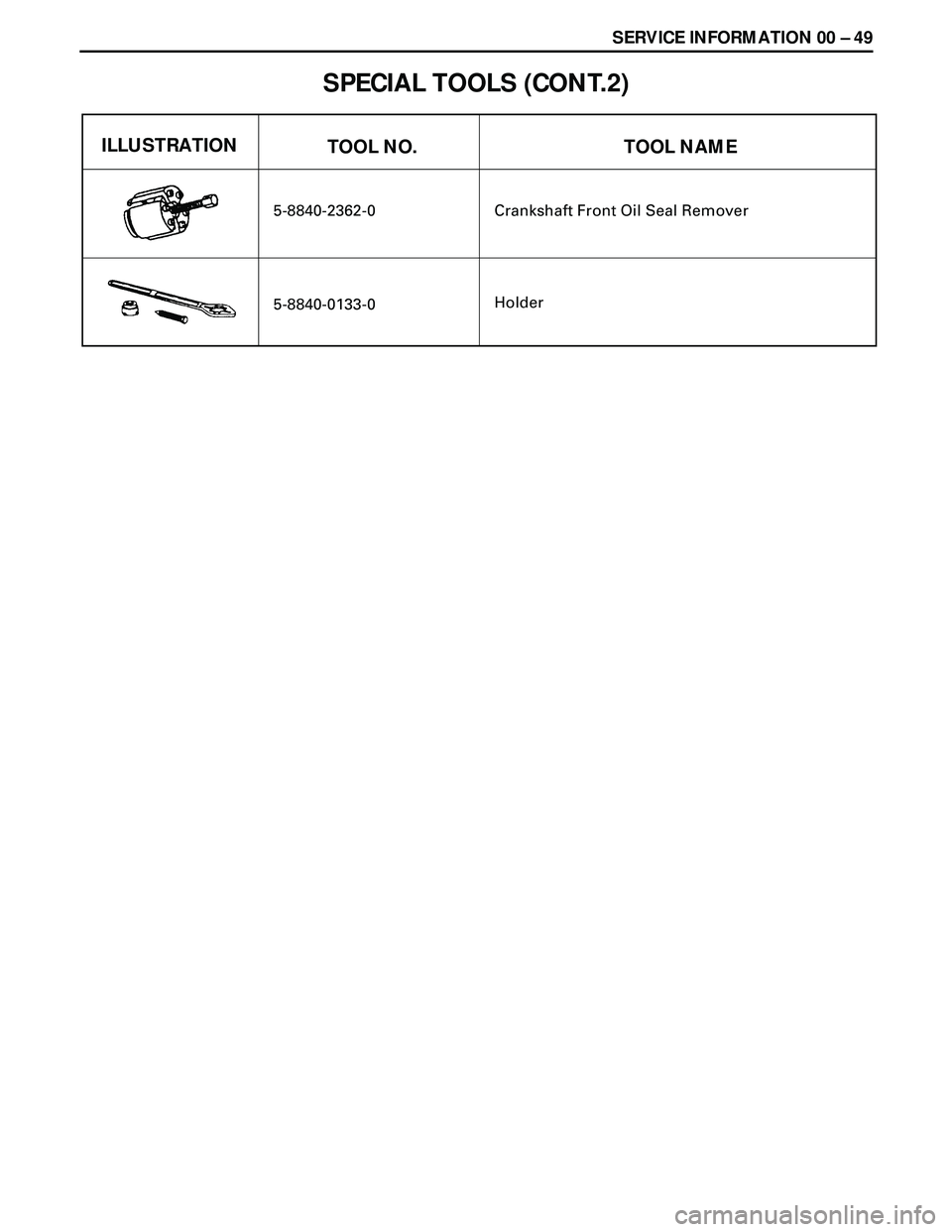

SPECIAL TOOLS (CONT.2)
5-8840-2362-0
5-8840-0133-0
ILLUSTRATION
TOOL NAME TOOL NO.
Crankshaft Front Oil Seal Remover
Holder
Page 1550 of 3573
Page 1551 of 3573

ENGINE MECHANICAL 6A Ð 1
SECTION 6A
ENGINE MECHANICAL
CONTENTS
PAGE
Cylinder Head ..................................................................................................................6A- 2
Valve Springs, Valve Stem Oil Seal, Valve, Valve Guide, Push rod ........................... 6A- 7
Camshaft, Tappet ............................................................................................................ 6A-14
Rocker Arm Assembly .................................................................................................... 6A-19
Oil pump .......................................................................................................................... 6A-21
Crankshaft ........................................................................................................................ 6A-25
Piston and Connecting Rod ............................................................................................ 6A-34
Cylinder Block .................................................................................................................. 6A-42
Page 1552 of 3573
6A Ð 2 ENGINE MECHANICAL

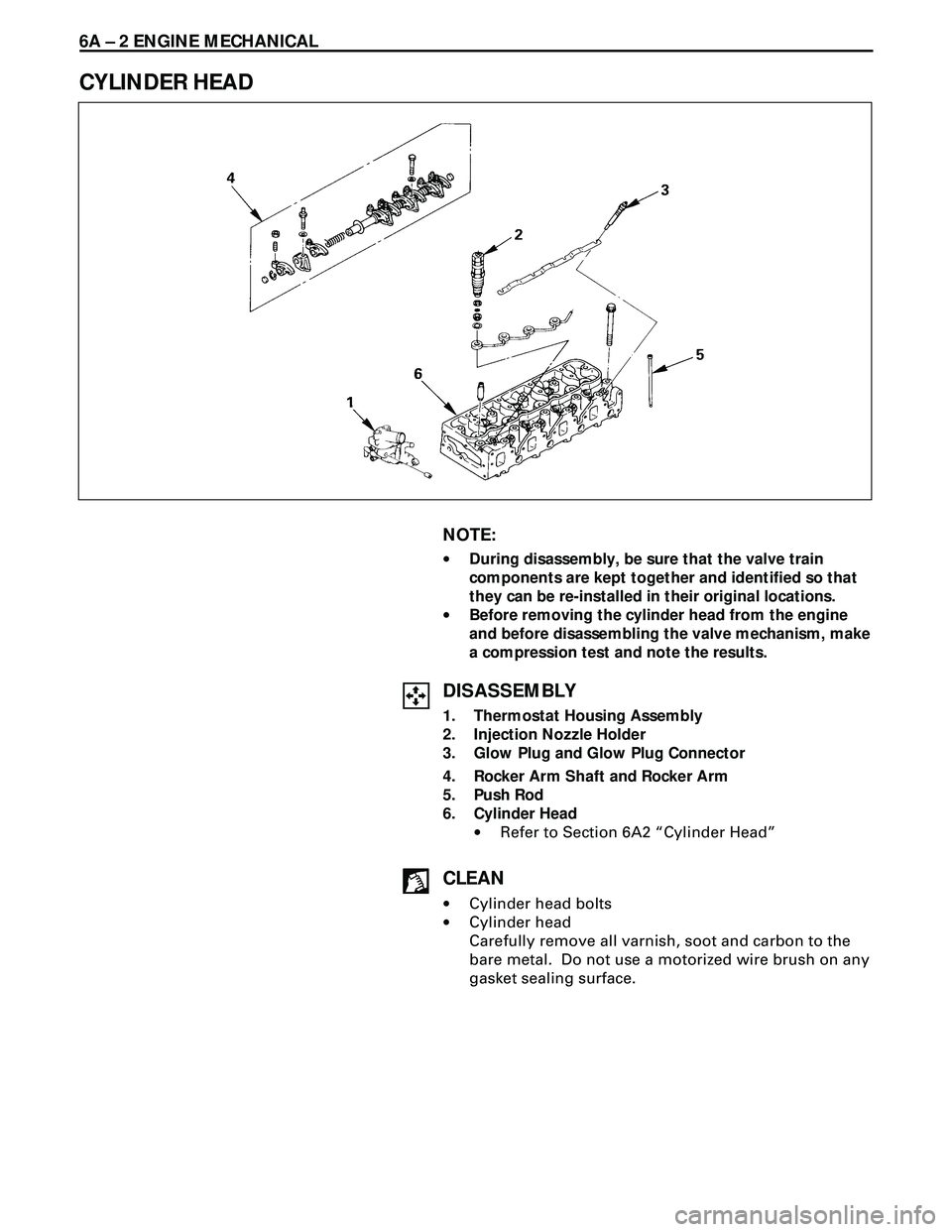

CYLINDER HEAD
NOTE:
·During disassembly, be sure that the valve train
components are kept together and identified so that
they can be re-installed in their original locations.
·Before removing the cylinder head from the engine
and before disassembling the valve mechanism, make
a compression test and note the results.
DISASSEMBLY
1. Thermostat Housing Assembly
2. Injection Nozzle Holder
3. Glow Plug and Glow Plug Connector
4. Rocker Arm Shaft and Rocker Arm
5. Push Rod
6. Cylinder Head
·Refer to Section 6A2 ÒCylinder HeadÓ
CLEAN
·Cylinder head bolts
·Cylinder head
Carefully remove all varnish, soot and carbon to the
bare metal. Do not use a motorized wire brush on any
gasket sealing surface.
