Page 1489 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6G±10
ENGINE LUBRICATION
Oil Pump
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove crankcase assembly.
Refer to removal procedure for Oil Pan and
Crankcase in this manual.

Page 1490 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6G±11 ENGINE LUBRICATION
4. Install oil filter assembly and tighten bolts to the
specified torque.
Torque : 25 N´m (2.5 Kg´m/18 lb ft)
050RW001
Legend
(1) Oil Pump
(2) Oil Filter
(3) Oil Gallery
(4

Page 1491 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6G±12
ENGINE LUBRICATION
Oil Pump Oil Seal
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove crankshaft pulley.
Refer to removal procedure for Crankshaft Pulley in
this manu

Page 1492 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6G±13 ENGINE LUBRICATION
Oil Filter
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove oil filter using 5-8840-0203-0 filter wrench.
Installation
1. Clean filter fitting surfa

Page 1493 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6G±14
ENGINE LUBRICATION
Main Data and Specification
General Specification
ItemSpecificationsItem6VD16VE1
Oil capacity5.3 liters
Torque Specifications
Crankcase, Oil pan, Timing belt tensioner, Timin

Page 1494 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6G±15 ENGINE LUBRICATION

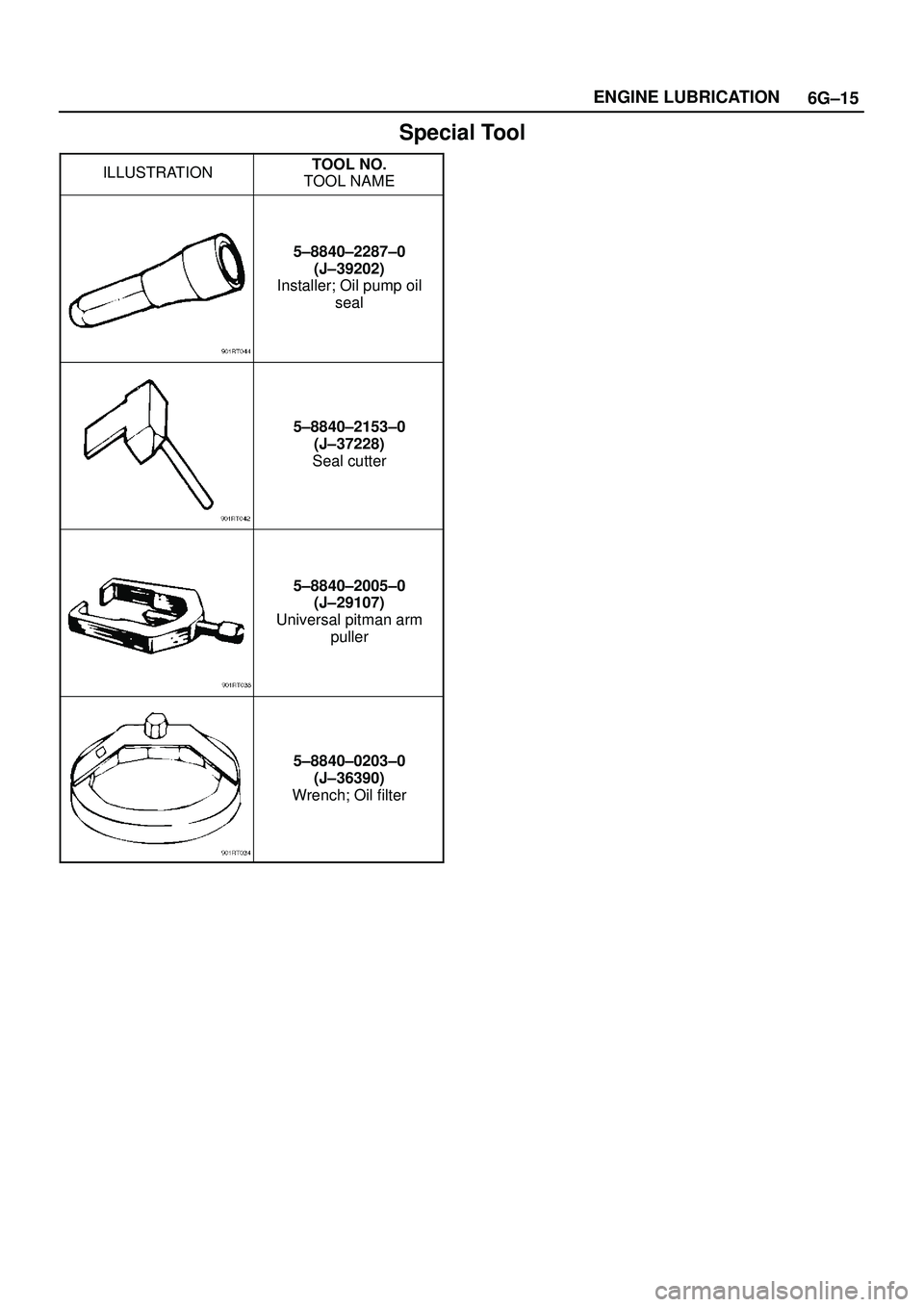

Special Tool
ILLUSTRATIONTOOL NO.
TOOL NAME
5±8840±2287±0
(J±39202)
Installer; Oil pump oil
seal
5±8840±2153±0
(J±37228)
Seal cutter
5±8840±2005±0
(J±29107)
Unive

Page 1495 of 3573

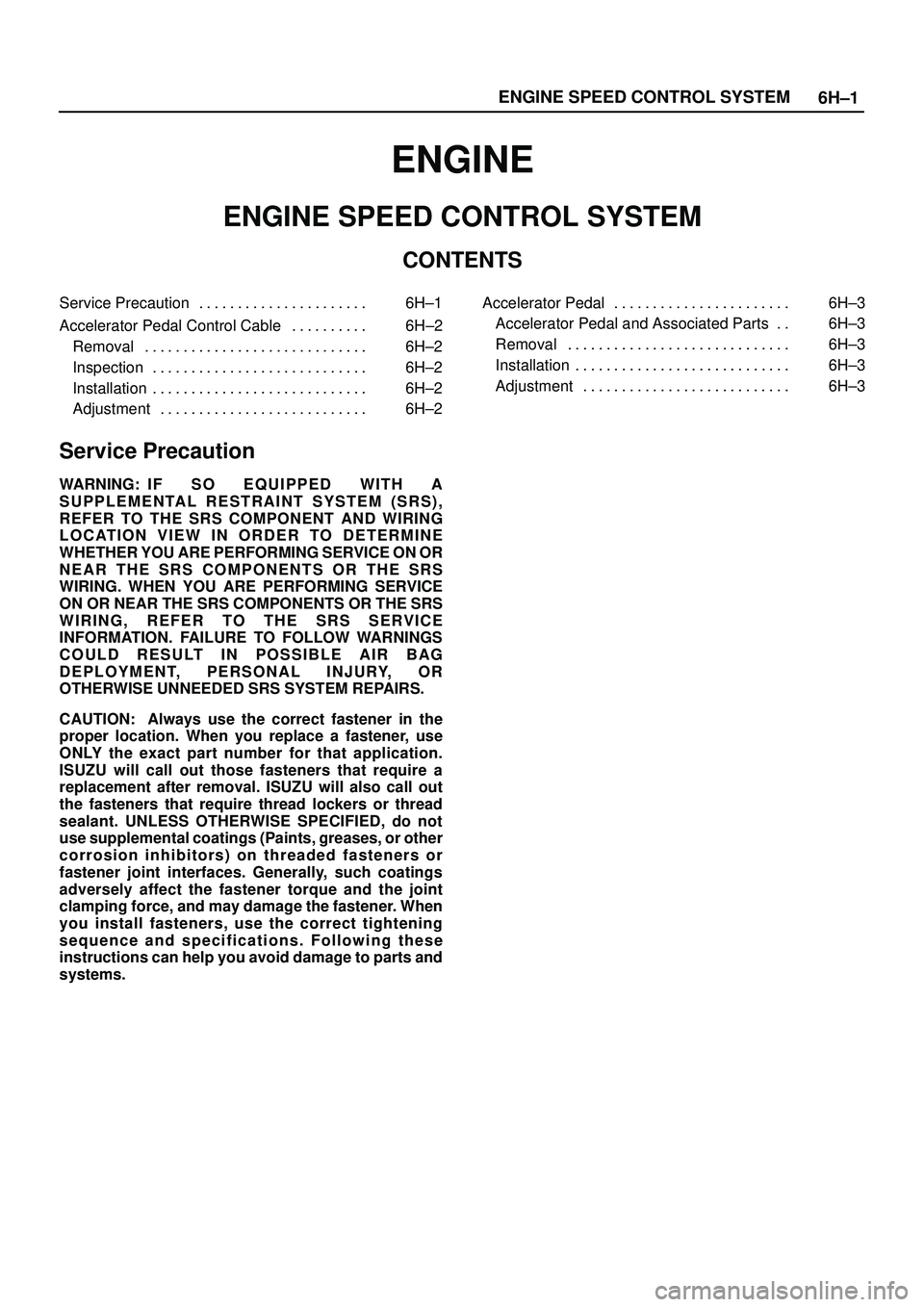

ISUZU TROOPER 1998 Service Repair Manual 6H±1 ENGINE SPEED CONTROL SYSTEM
ENGINE
ENGINE SPEED CONTROL SYSTEM
CONTENTS
Service Precaution 6H±1. . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal Control Cable 6H±2. . . . . . . .

6H±1 ENGINE SPEED CONTROL SYSTEM
ENGINE
ENGINE SPEED CONTROL SYSTEM
CONTENTS
Service Precaution 6H±1. . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal Control Cable 6H±2. . . . . . . . . .
Removal 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . Accelerator Pedal 6H±3. . . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal and Associated Parts 6H±3. .
Removal 6H±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6H±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment 6H±3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Page 1496 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6H±2
ENGINE SPEED CONTROL SYSTEM
Accelerator Pedal Control Cable
Removal
1. Loosen the adjusting nut(5) on the cable bracket
mounted on the common chamber.
2. Remove cable clip(3).
3. Disconnect acce
