1998 ISUZU TROOPER Service Repair Manual

Page 2585 of 3573

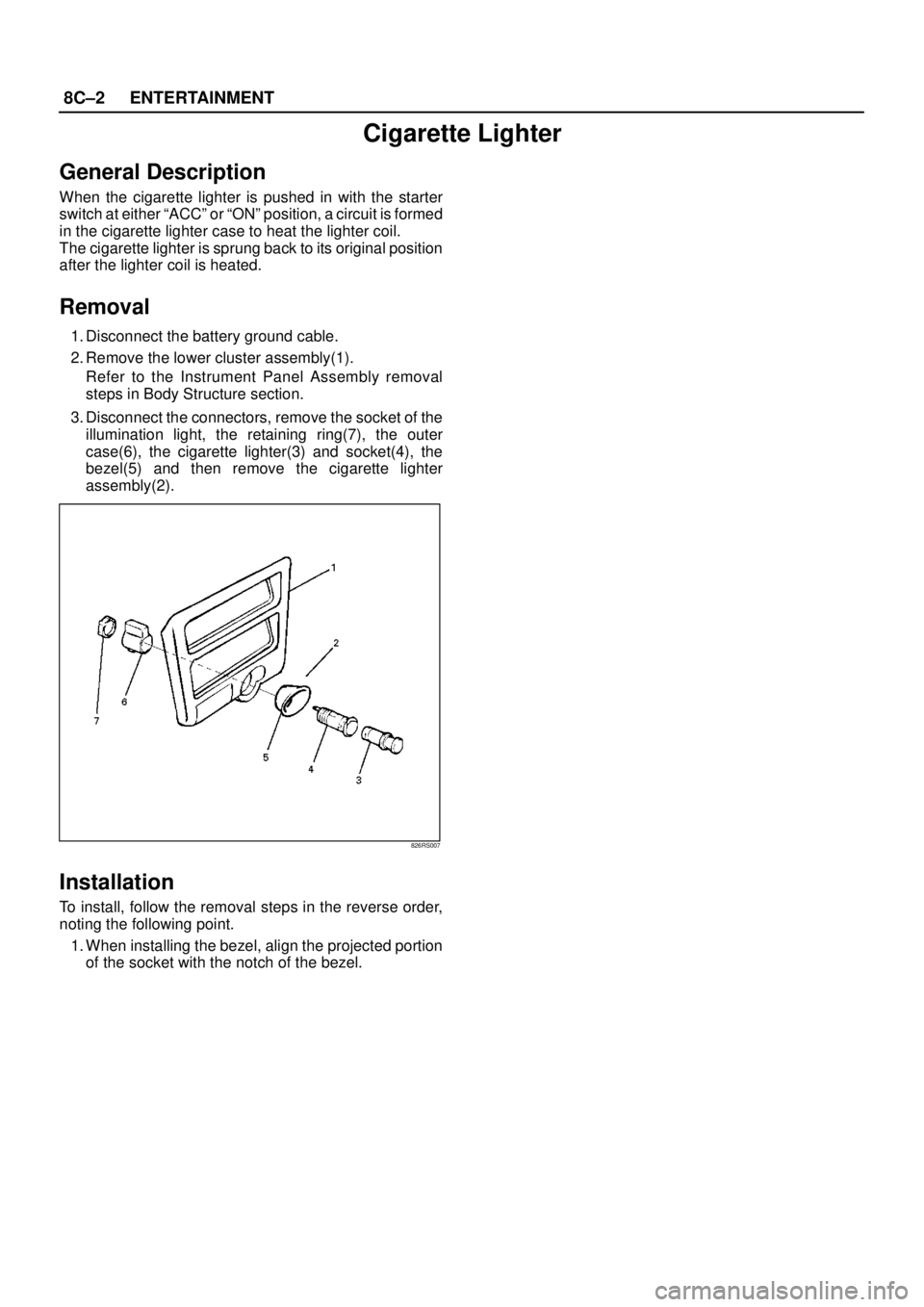

ISUZU TROOPER 1998  Service Repair Manual 8C–2ENTERTAINMENT
Cigarette Lighter
General Description
When the cigarette lighter is pushed in with the starter
switch at either “ACC” or “ON” position, a circuit is formed
in the cigarette

Page 2586 of 3573

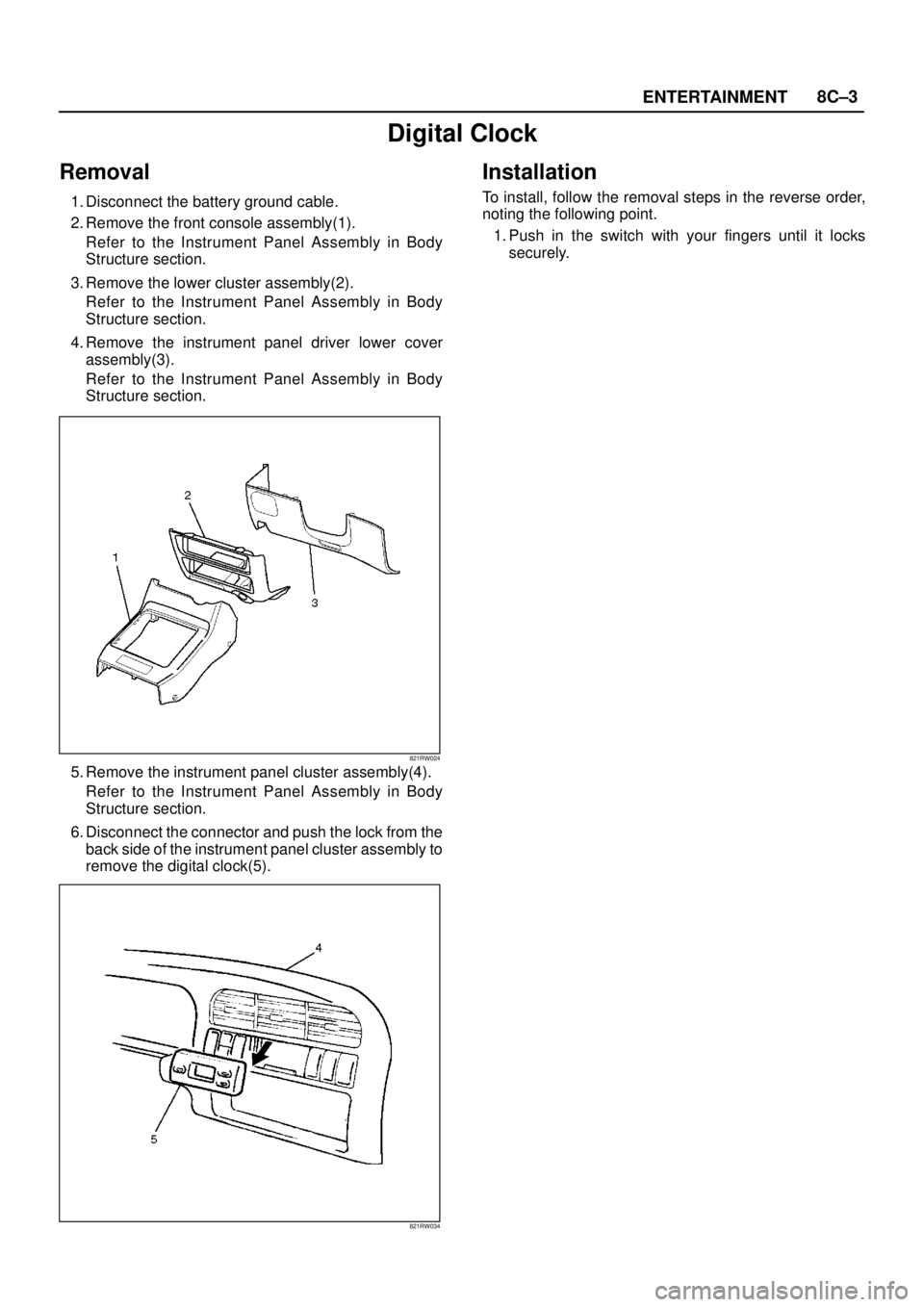

ISUZU TROOPER 1998  Service Repair Manual ENTERTAINMENT8C–3
Digital Clock
Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).
Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove t

Page 2587 of 3573

ISUZU TROOPER 1998  Service Repair Manual 8C–4ENTERTAINMENT
Rod Type Antenna
Removal
1. Disconnect the battery ground cable.
2. Turn the antenna rod(1) counterclockwise to remove
it.
3. Remove three screws and nine clips to remove the
fende

Page 2588 of 3573

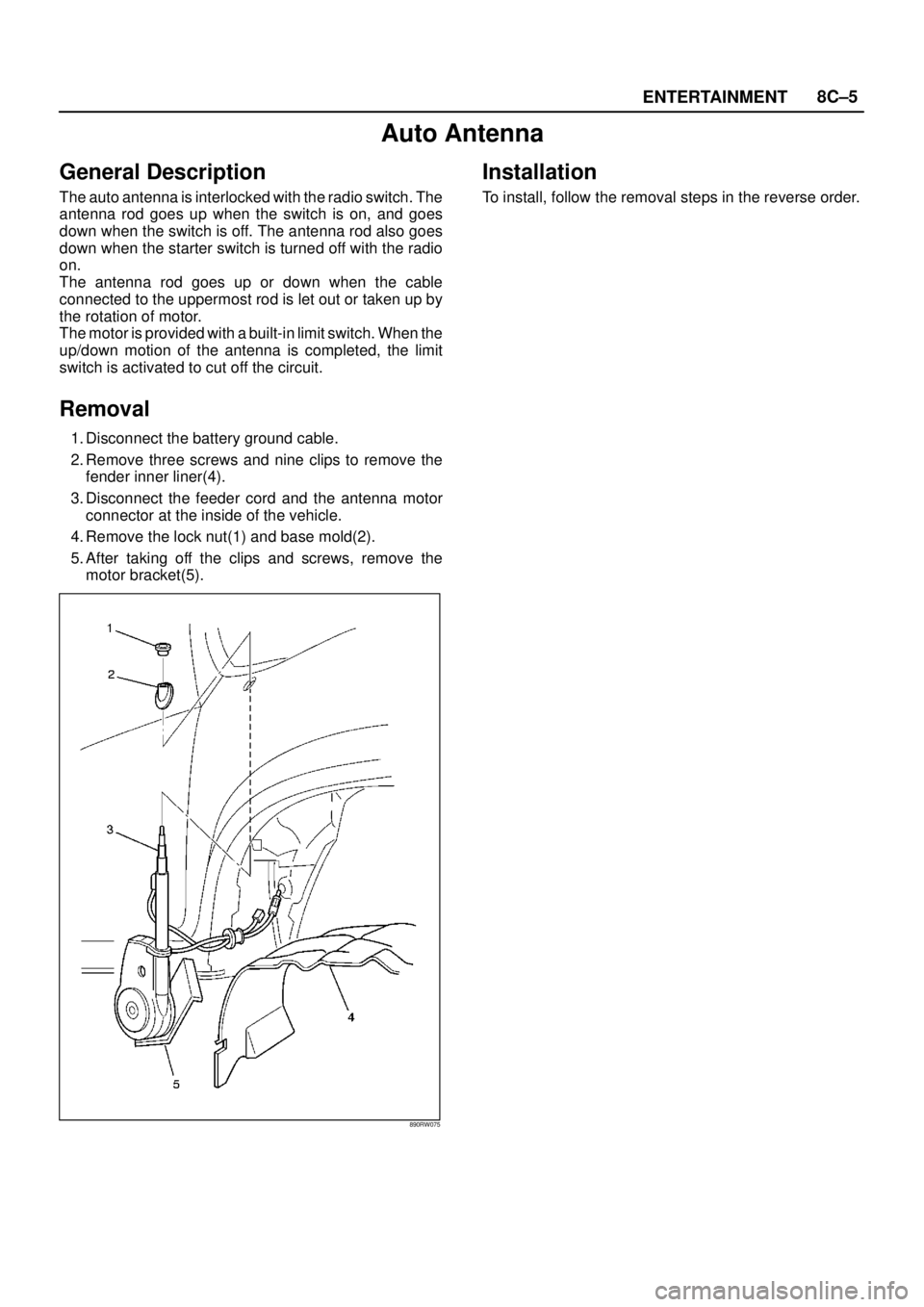

ISUZU TROOPER 1998  Service Repair Manual ENTERTAINMENT8C–5
Auto Antenna
General Description
The auto antenna is interlocked with the radio switch. The
antenna rod goes up when the switch is on, and goes
down when the switch is off. The ant

Page 2589 of 3573

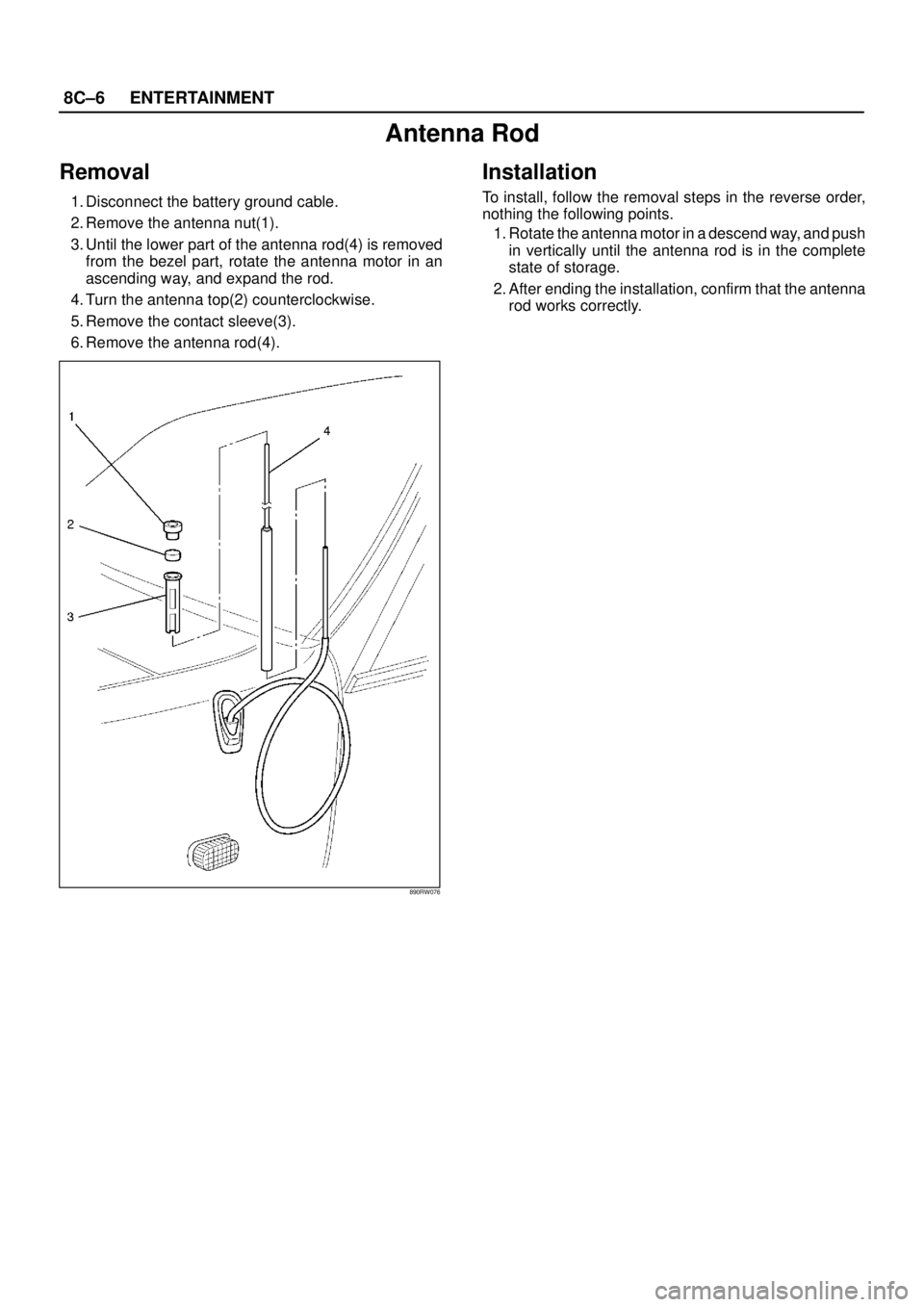

ISUZU TROOPER 1998  Service Repair Manual 8C–6ENTERTAINMENT
Antenna Rod
Removal
1. Disconnect the battery ground cable.
2. Remove the antenna nut(1).
3. Until the lower part of the antenna rod(4) is removed
from the bezel part, rotate the a

Page 2590 of 3573

ISUZU TROOPER 1998  Service Repair Manual ENTERTAINMENT8C–7
Radio
Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly (1).
Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the lowe

Page 2591 of 3573

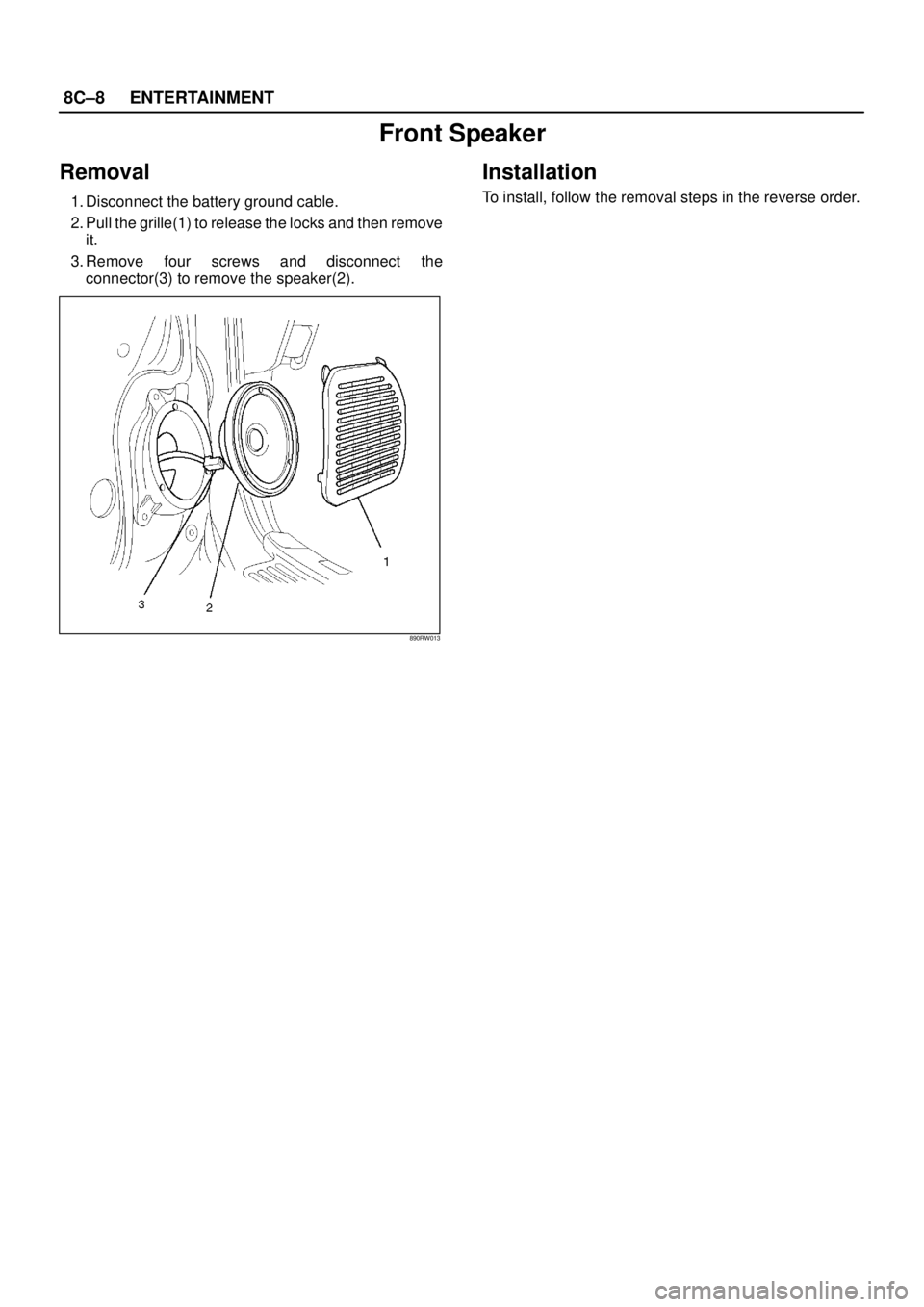

ISUZU TROOPER 1998  Service Repair Manual 8C–8ENTERTAINMENT
Front Speaker
Removal
1. Disconnect the battery ground cable.
2. Pull the grille(1) to release the locks and then remove
it.
3. Remove four screws and disconnect the
connector(3) t

Page 2592 of 3573

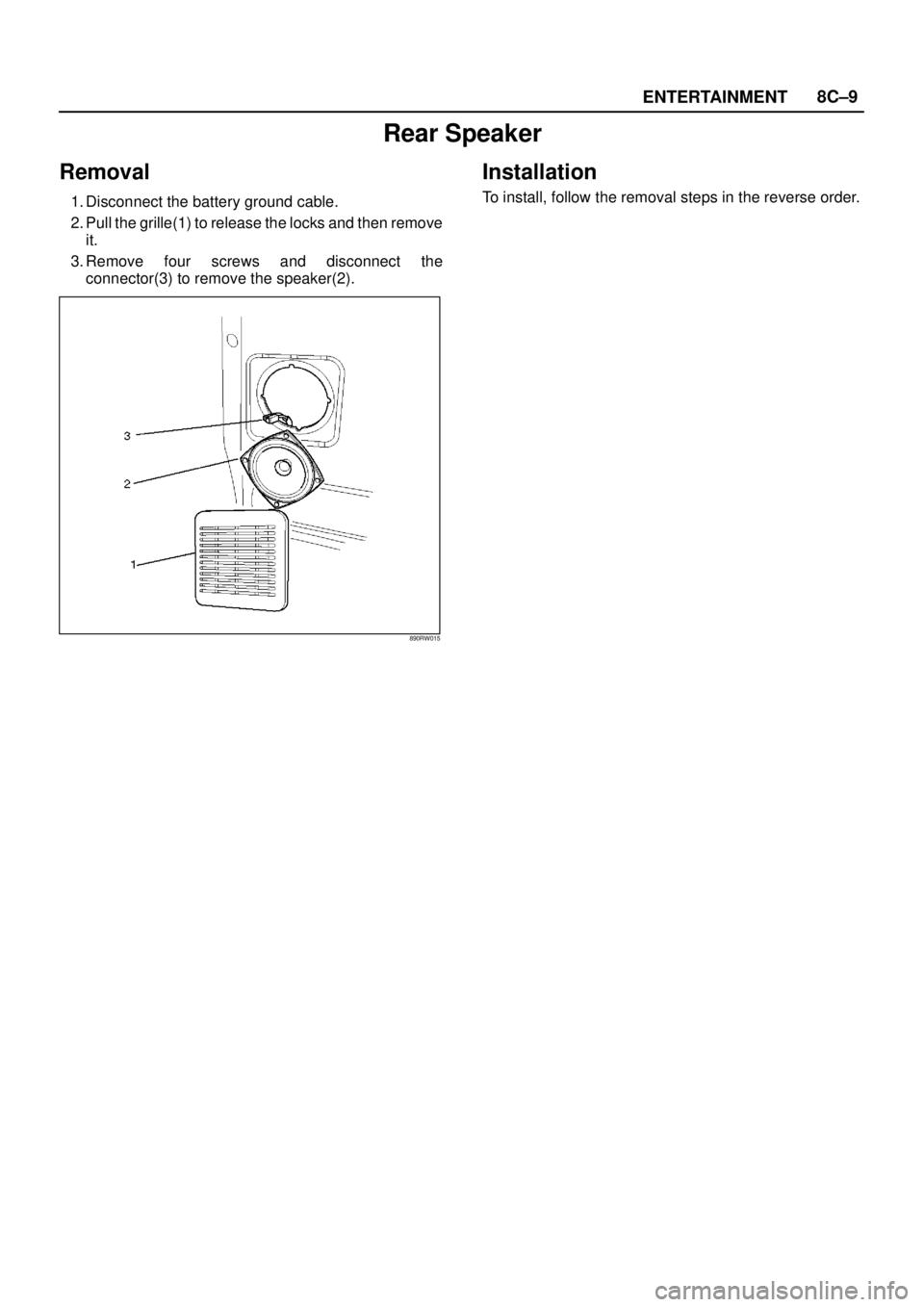

ISUZU TROOPER 1998  Service Repair Manual ENTERTAINMENT8C–9
Rear Speaker
Removal
1. Disconnect the battery ground cable.
2. Pull the grille(1) to release the locks and then remove
it.
3. Remove four screws and disconnect the
connector(3) to
