Page 1049 of 3573

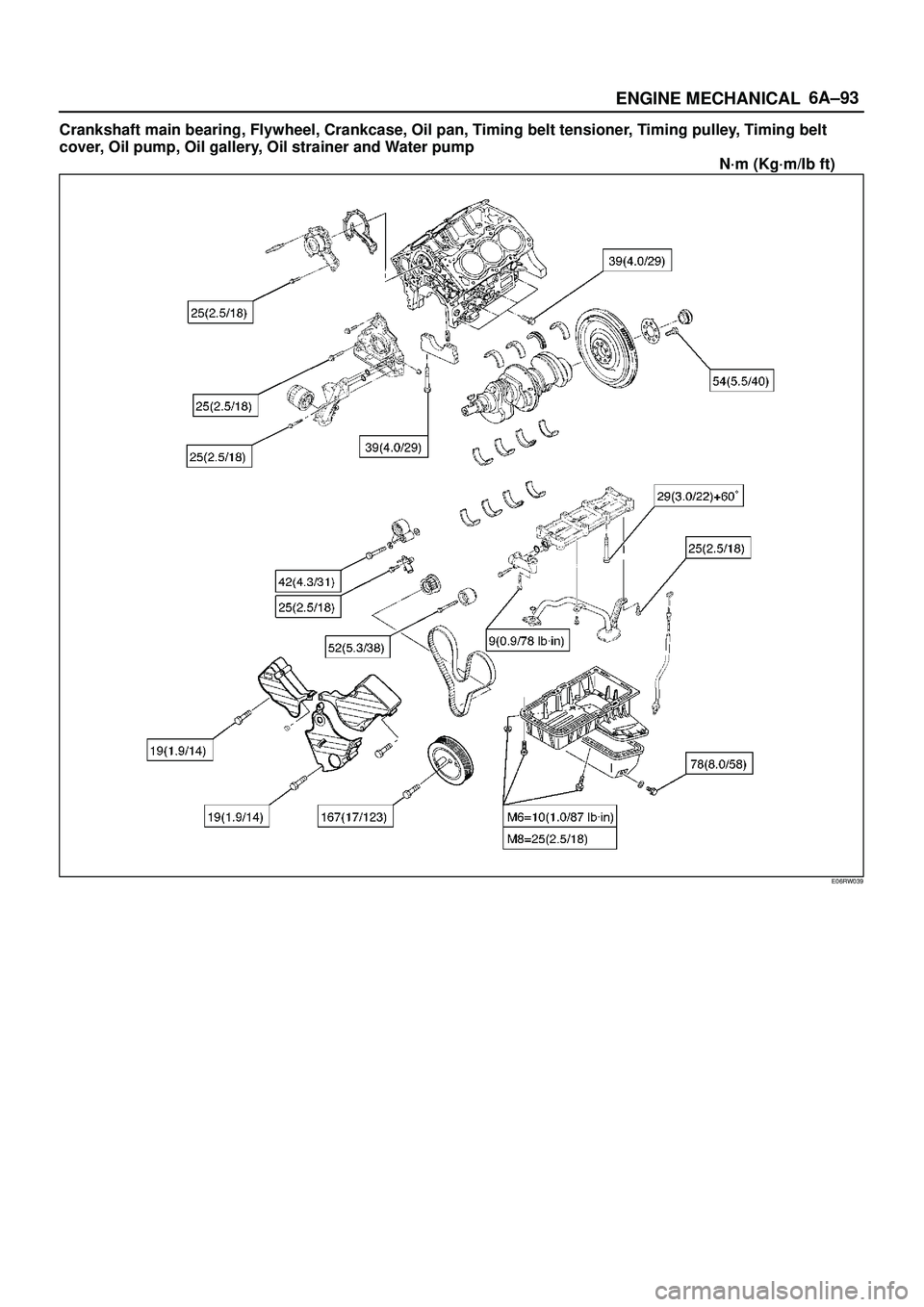

ISUZU TROOPER 1998 Service Repair Manual 6A±93
ENGINE MECHANICAL
Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt
cover, Oil pump, Oil gallery, Oil strainer and Water pump

Page 1050 of 3573

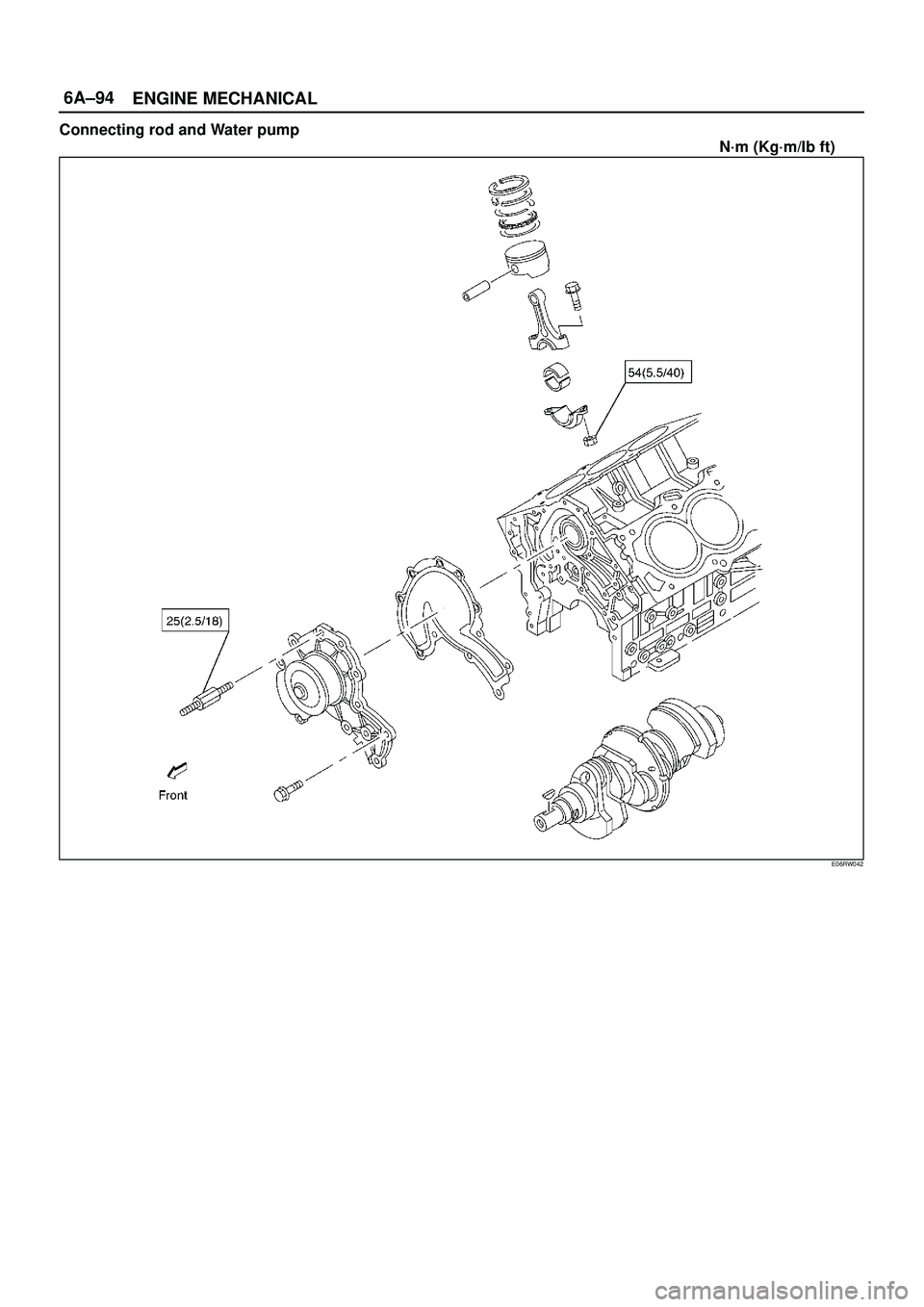

ISUZU TROOPER 1998 Service Repair Manual 6A±94
ENGINE MECHANICAL
Connecting rod and Water pump

Page 1051 of 3573

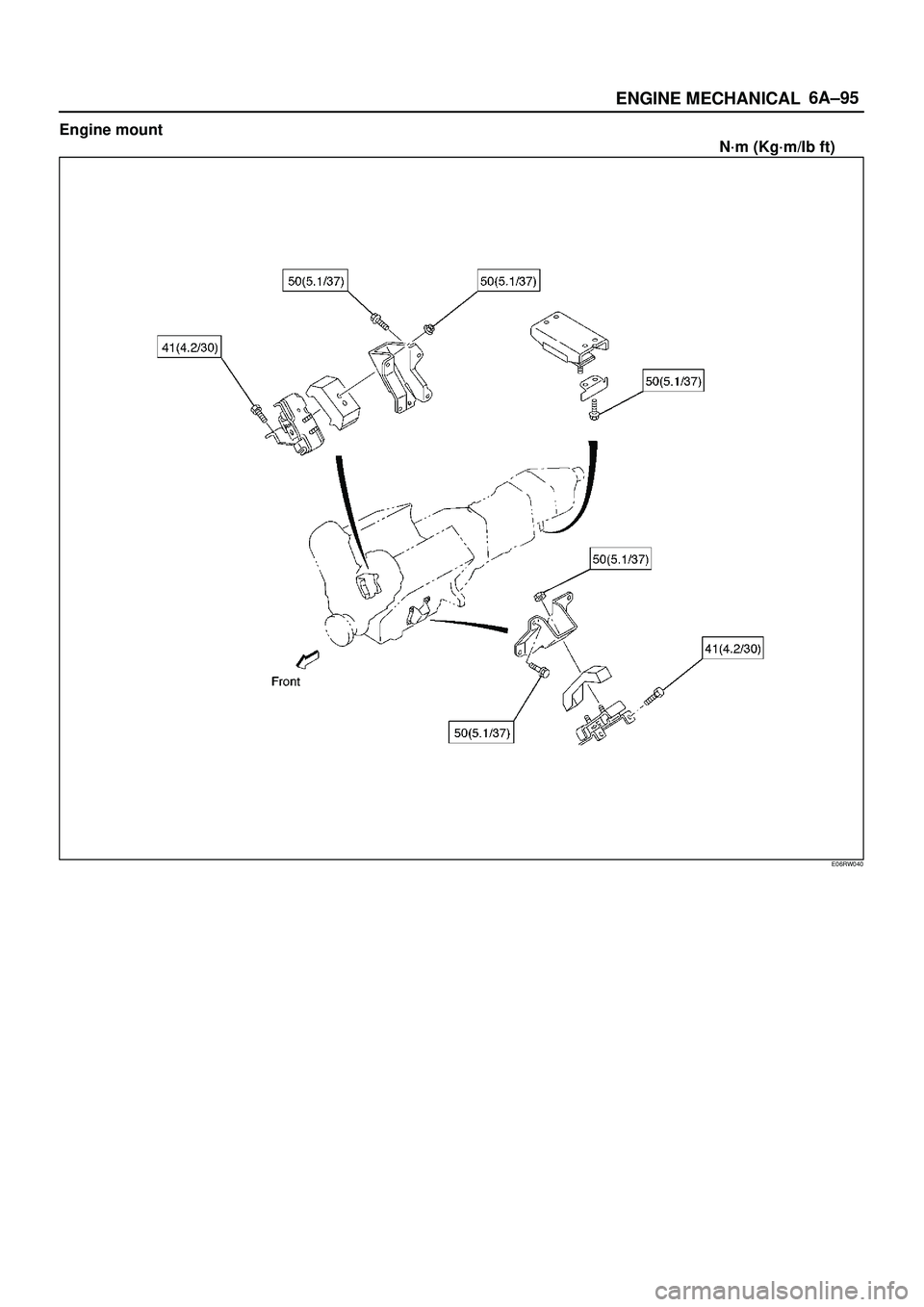

ISUZU TROOPER 1998 Service Repair Manual 6A±95
ENGINE MECHANICAL
Engine mount
N´m (K

Page 1052 of 3573

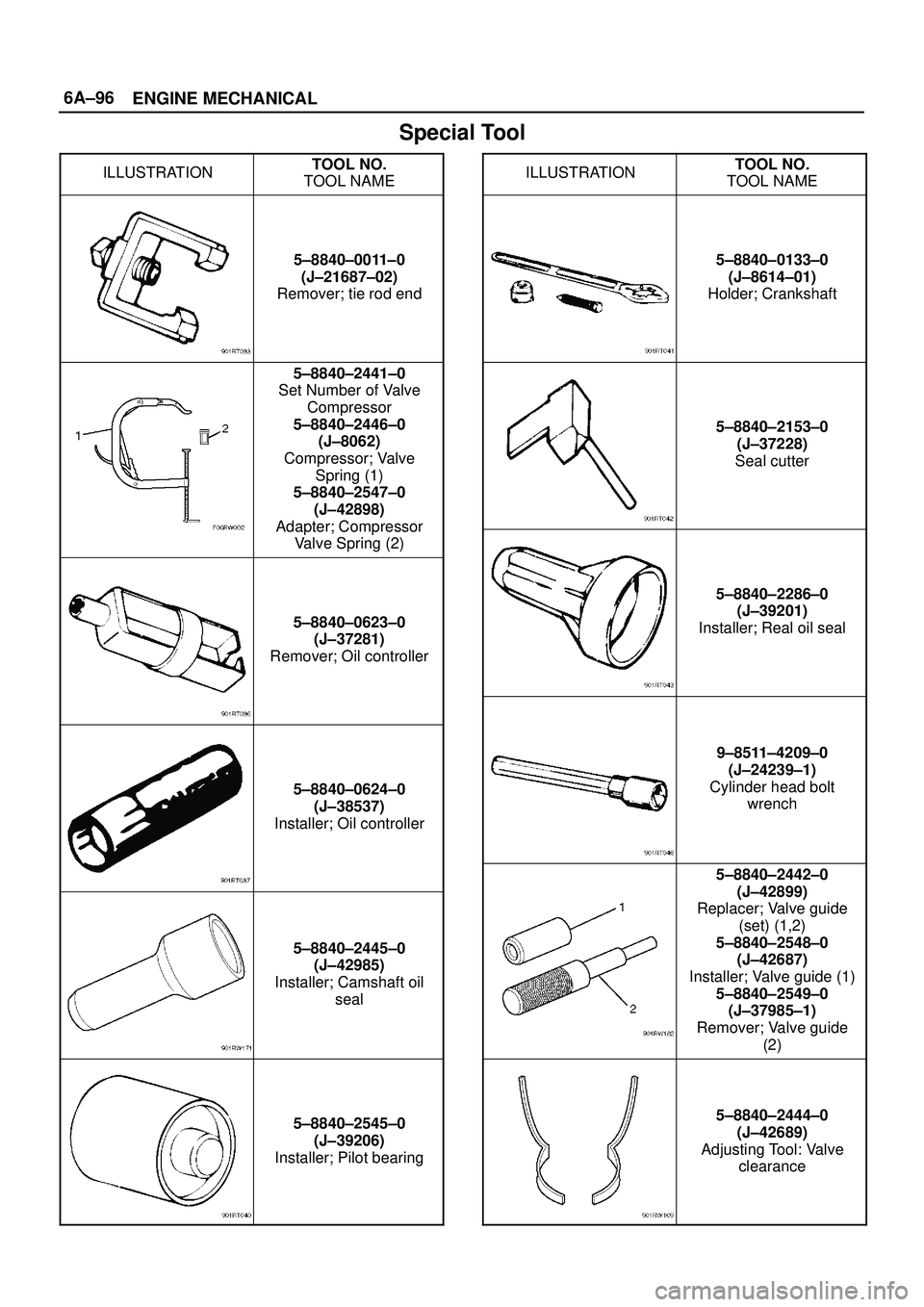

ISUZU TROOPER 1998 Service Repair Manual 6A±96
ENGINE MECHANICAL
Special Tool
ILLUSTRATIONTOOL NO.
TOOL NAME
5±8840±0011±0
(J±21687±02)
Remover; tie rod end
5±8840±2441±0
Set Number of Valve
Compressor
5±8840±2446±0
(J±8062)
Com

Page 1053 of 3573

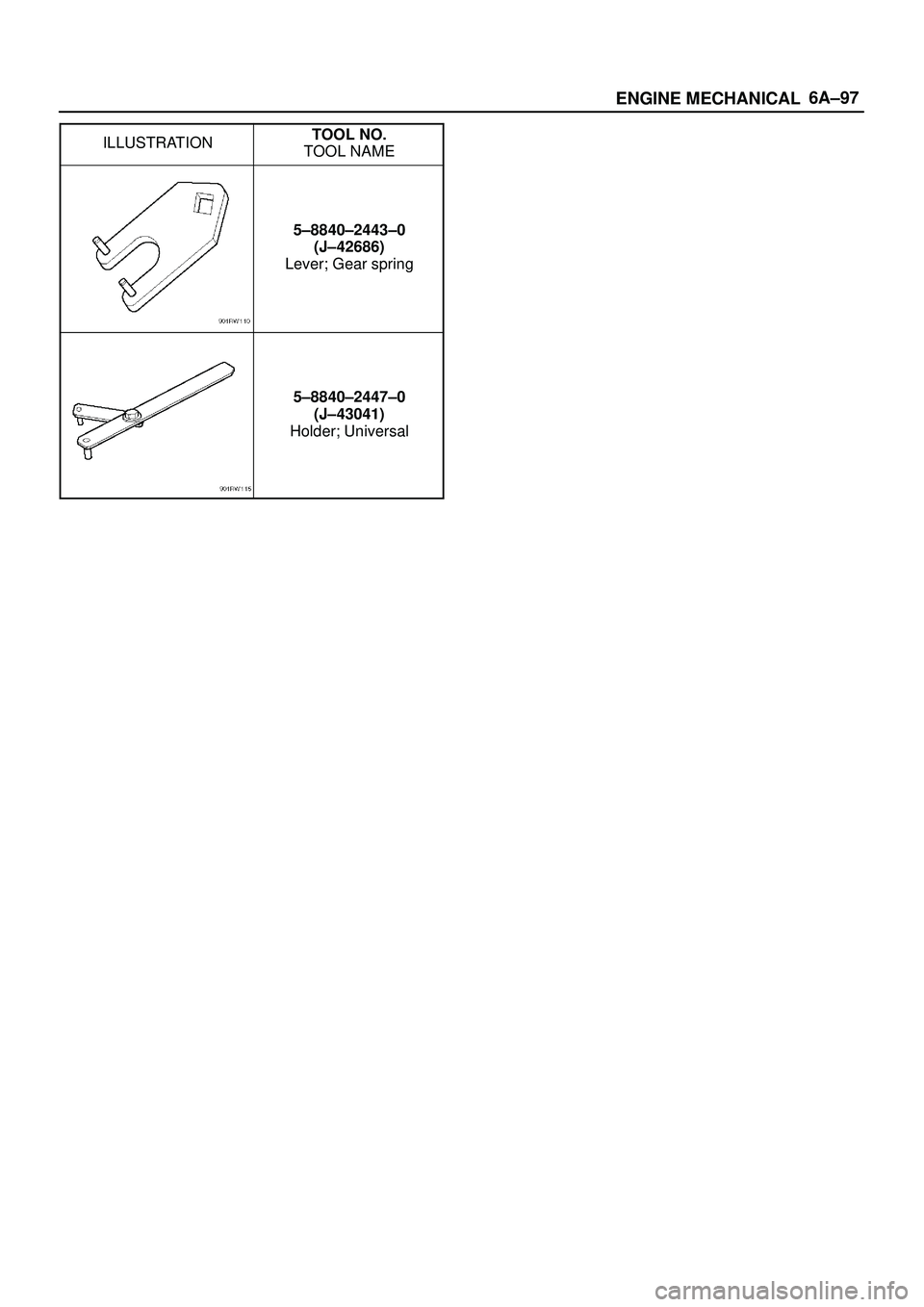

ISUZU TROOPER 1998 Service Repair Manual 6A±97
ENGINE MECHANICAL
ILLUSTRATIONTOOL NO.
TOOL NAME
5±8840±2443±0
(J±42686)
Lever; Gear spring
5±8840±2447±0
(J±43041)
Holder; Universal

Page 1054 of 3573

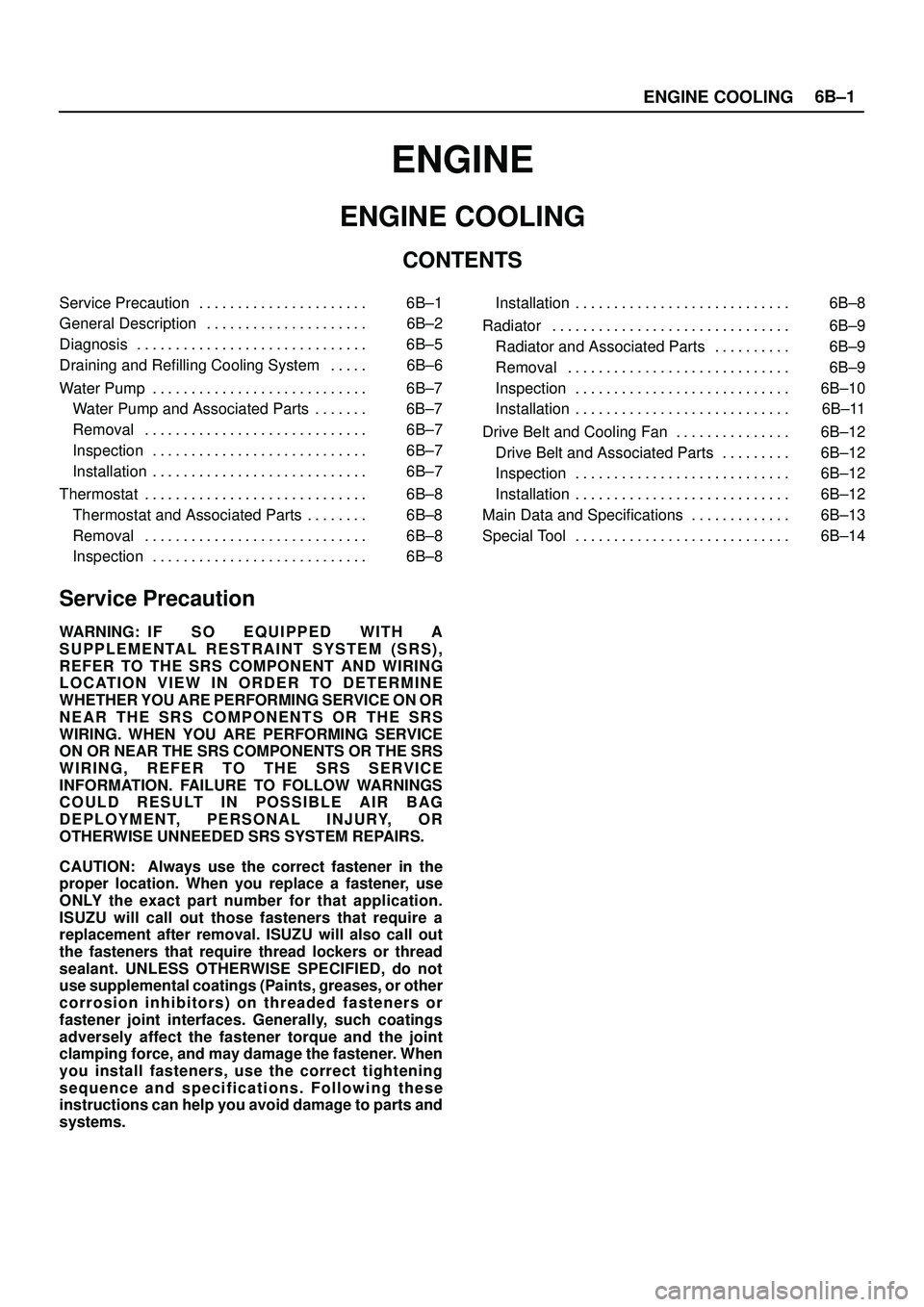

ISUZU TROOPER 1998 Service Repair Manual ENGINE COOLING6B±1
ENGINE
ENGINE COOLING
CONTENTS
Service Precaution 6B±1. . . . . . . . . . . . . . . . . . . . . .
General Description 6B±2. . . . . . . . . . . . . . . . . . . . .
Diagnosis 6B

ENGINE COOLING6B±1
ENGINE
ENGINE COOLING
CONTENTS
Service Precaution 6B±1. . . . . . . . . . . . . . . . . . . . . .
General Description 6B±2. . . . . . . . . . . . . . . . . . . . .
Diagnosis 6B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Draining and Refilling Cooling System 6B±6. . . . .
Water Pump 6B±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Pump and Associated Parts 6B±7. . . . . . .
Removal 6B±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 6B±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6B±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat 6B±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat and Associated Parts 6B±8. . . . . . . .
Removal 6B±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 6B±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation 6B±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiator 6B±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiator and Associated Parts 6B±9. . . . . . . . . .
Removal 6B±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 6B±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6B±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Belt and Cooling Fan 6B±12. . . . . . . . . . . . . . .
Drive Belt and Associated Parts 6B±12. . . . . . . . .
Inspection 6B±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6B±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 6B±13. . . . . . . . . . . . .
Special Tool 6B±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Page 1055 of 3573

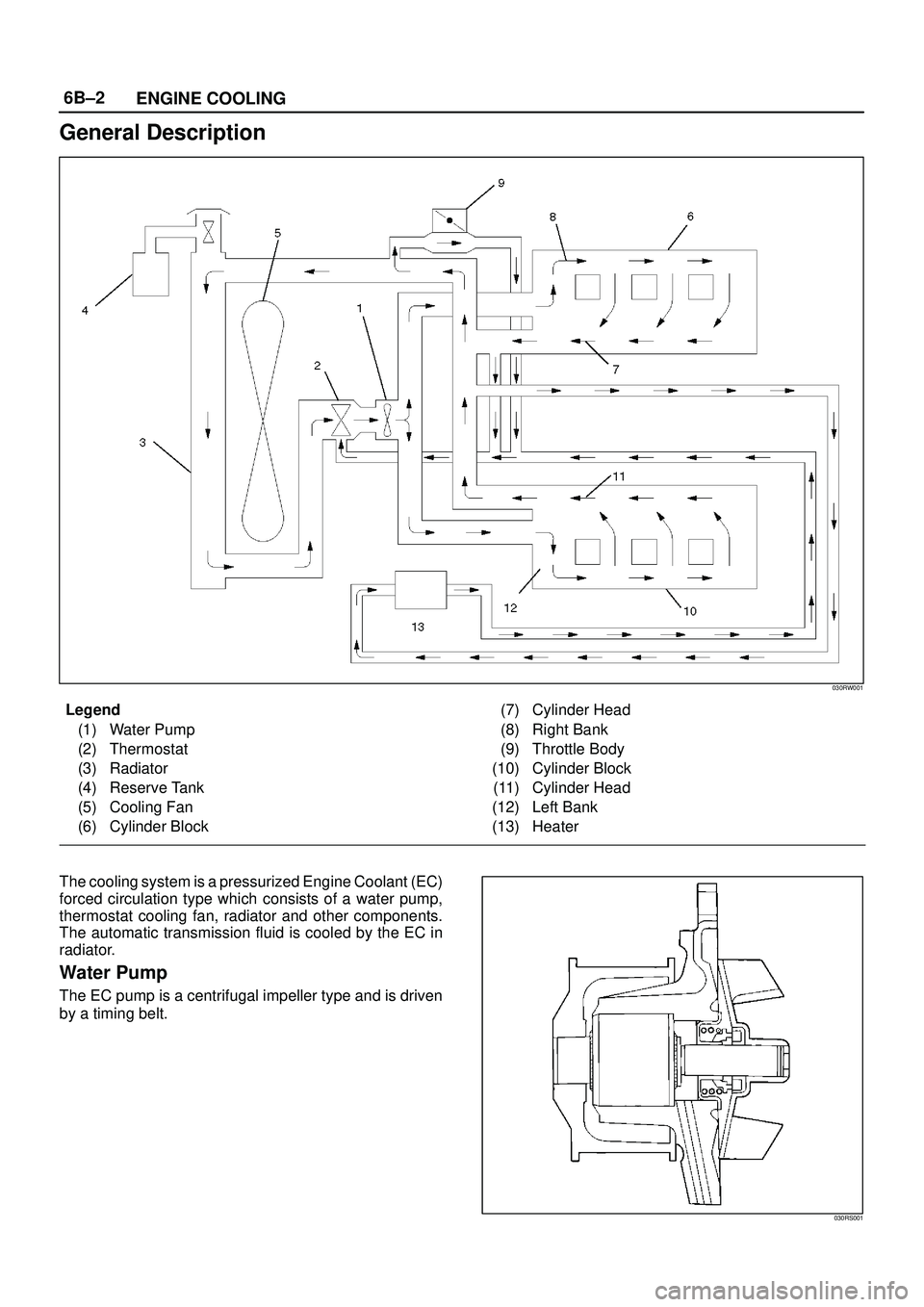

ISUZU TROOPER 1998 Service Repair Manual 6B±2
ENGINE COOLING
General Description
030RW001
Legend
(1) Water Pump
(2) Thermostat
(3) Radiator
(4) Reserve Tank
(5) Cooling Fan
(6) Cylinder Block(7) Cylinder Head
(8) Right Bank
(9) Throttle Bod

Page 1056 of 3573

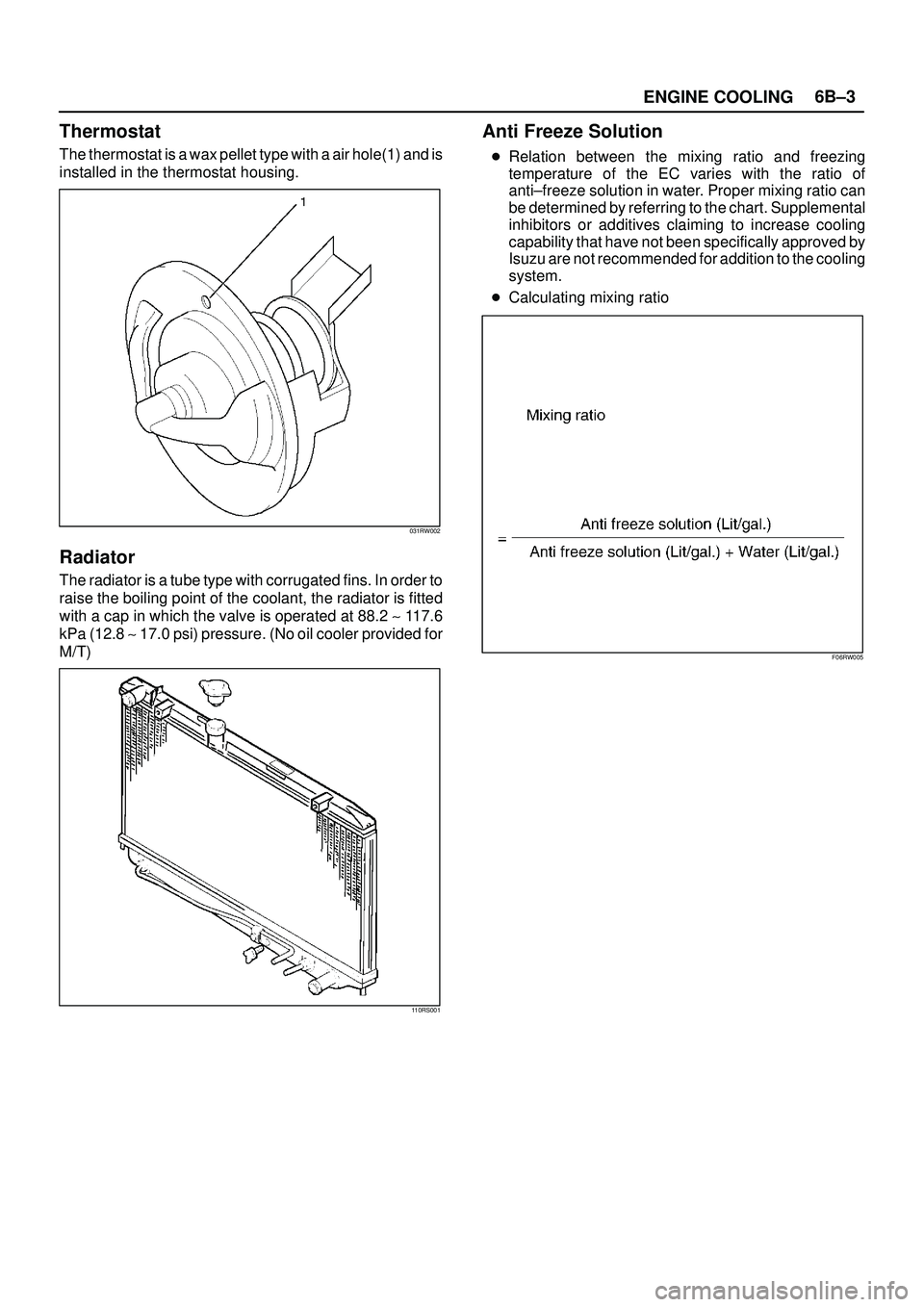

ISUZU TROOPER 1998 Service Repair Manual ENGINE COOLING6B±3
Thermostat
The thermostat is a wax pellet type with a air hole(1) and is
installed in the thermostat housing.
031RW002
Radiator
The radiator is a tube type with corrugated fins. In
