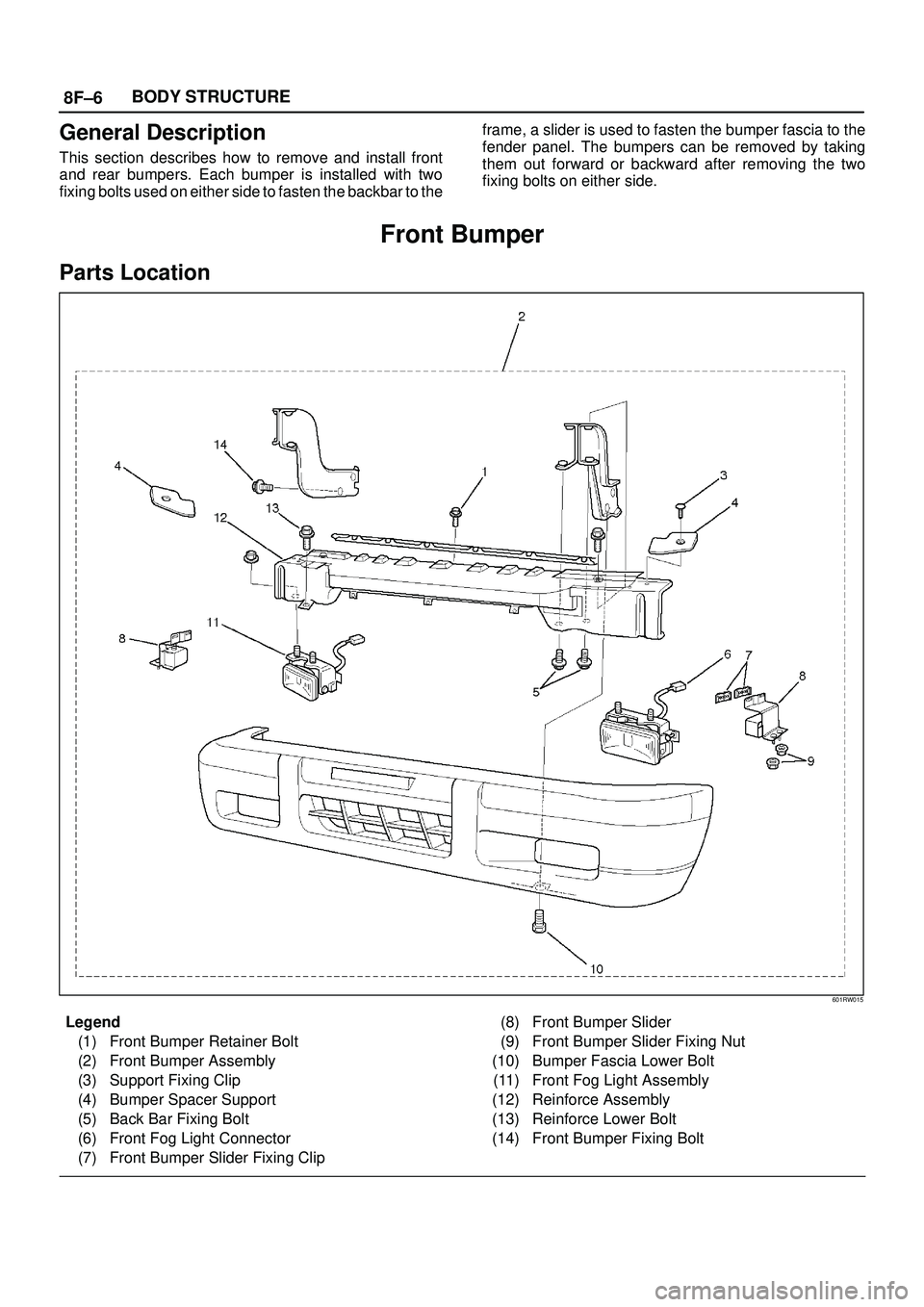

ISUZU TROOPER 1998 Service Repair Manual 8F±6BODY STRUCTURE General Description This section describes how to remove and install front and rear bumpers. Each bumper is installed with two fixing bolts used on either side to fasten the backba

Page 3202 of 3573

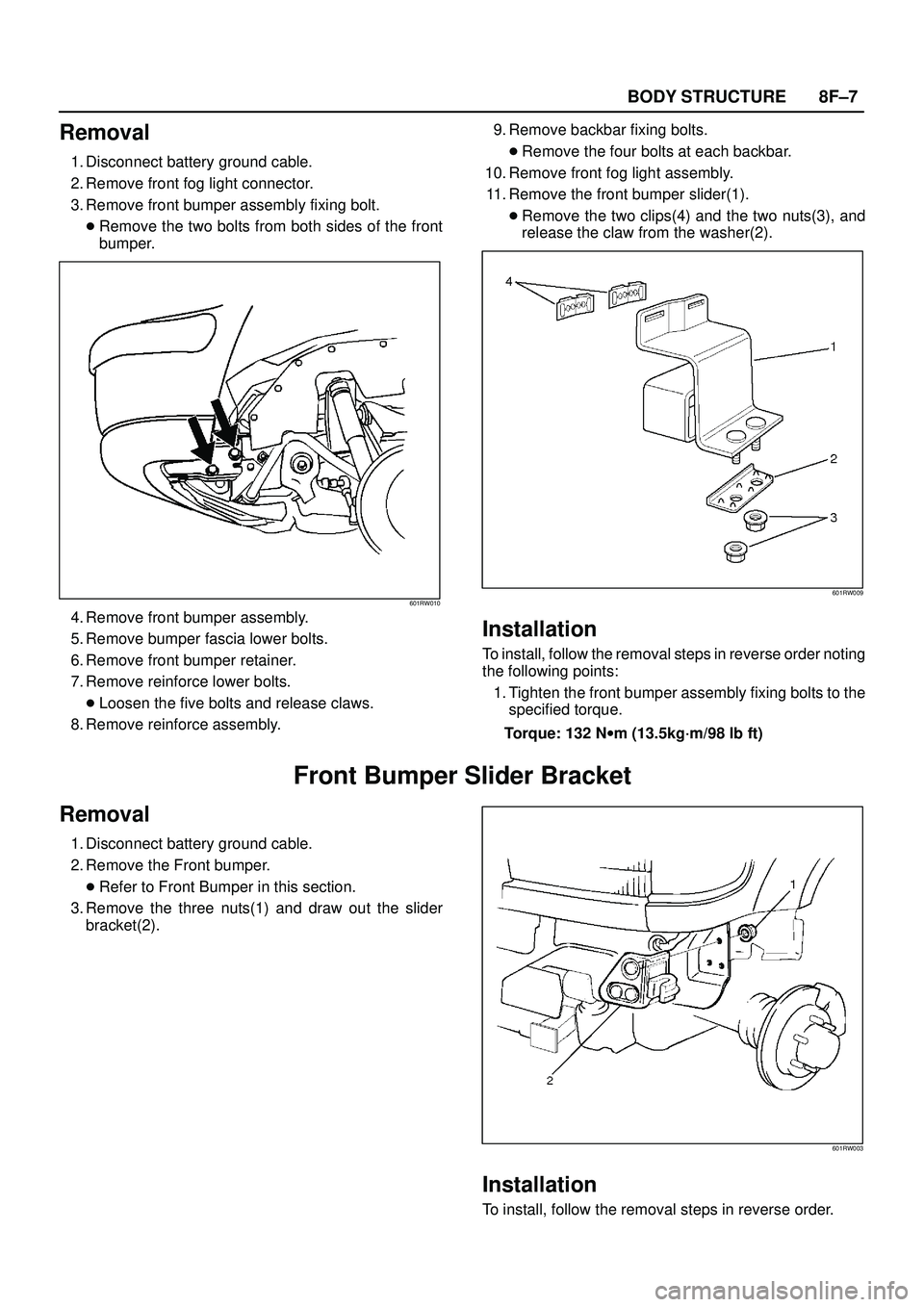

ISUZU TROOPER 1998 Service Repair Manual 8F±7 BODY STRUCTURE Removal 1. Disconnect battery ground cable. 2. Remove front fog light connector. 3. Remove front bumper assembly fixing bolt. Remove the two bolts from both sides of the front bu

Page 3203 of 3573

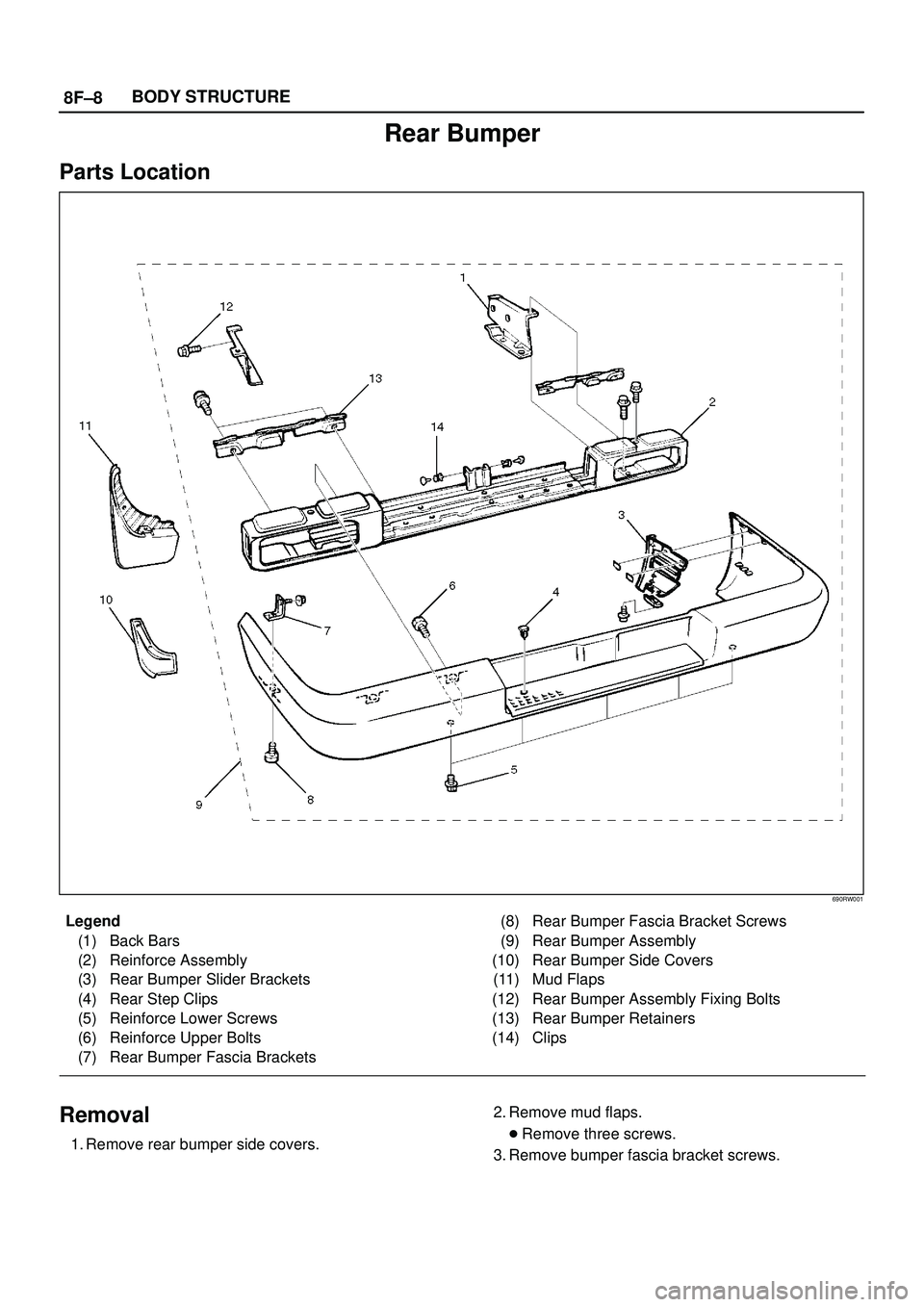

ISUZU TROOPER 1998 Service Repair Manual 8F±8BODY STRUCTURE Rear Bumper Parts Location 690RW001 Legend (1) Back Bars (2) Reinforce Assembly (3) Rear Bumper Slider Brackets (4) Rear Step Clips (5) Reinforce Lower Screws (6) Reinforce Upper B

Page 3204 of 3573

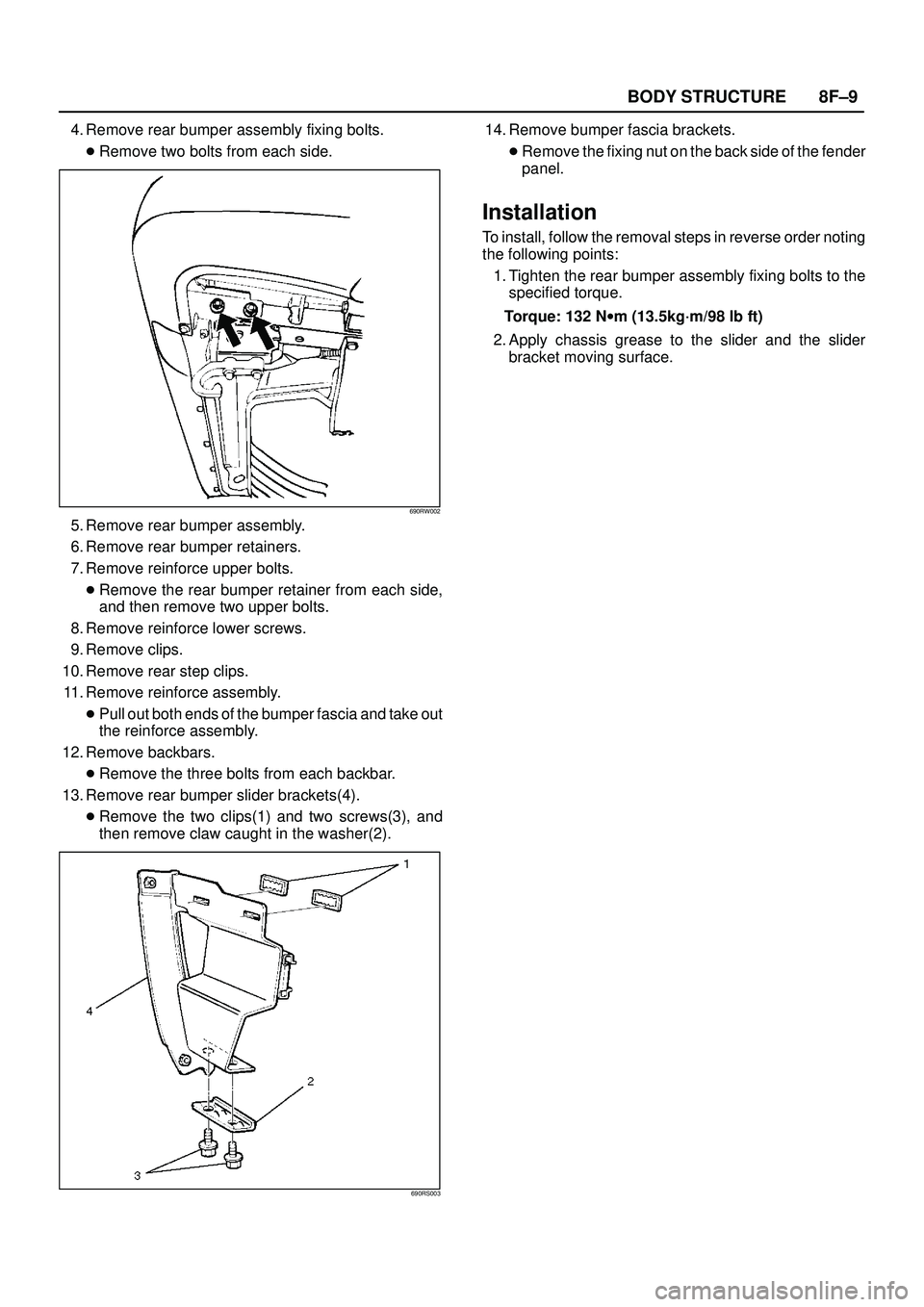

ISUZU TROOPER 1998 Service Repair Manual 8F±9 BODY STRUCTURE 4. Remove rear bumper assembly fixing bolts. Remove two bolts from each side. 690RW002 5. Remove rear bumper assembly. 6. Remove rear bumper retainers. 7. Remove reinforce upper

Page 3205 of 3573

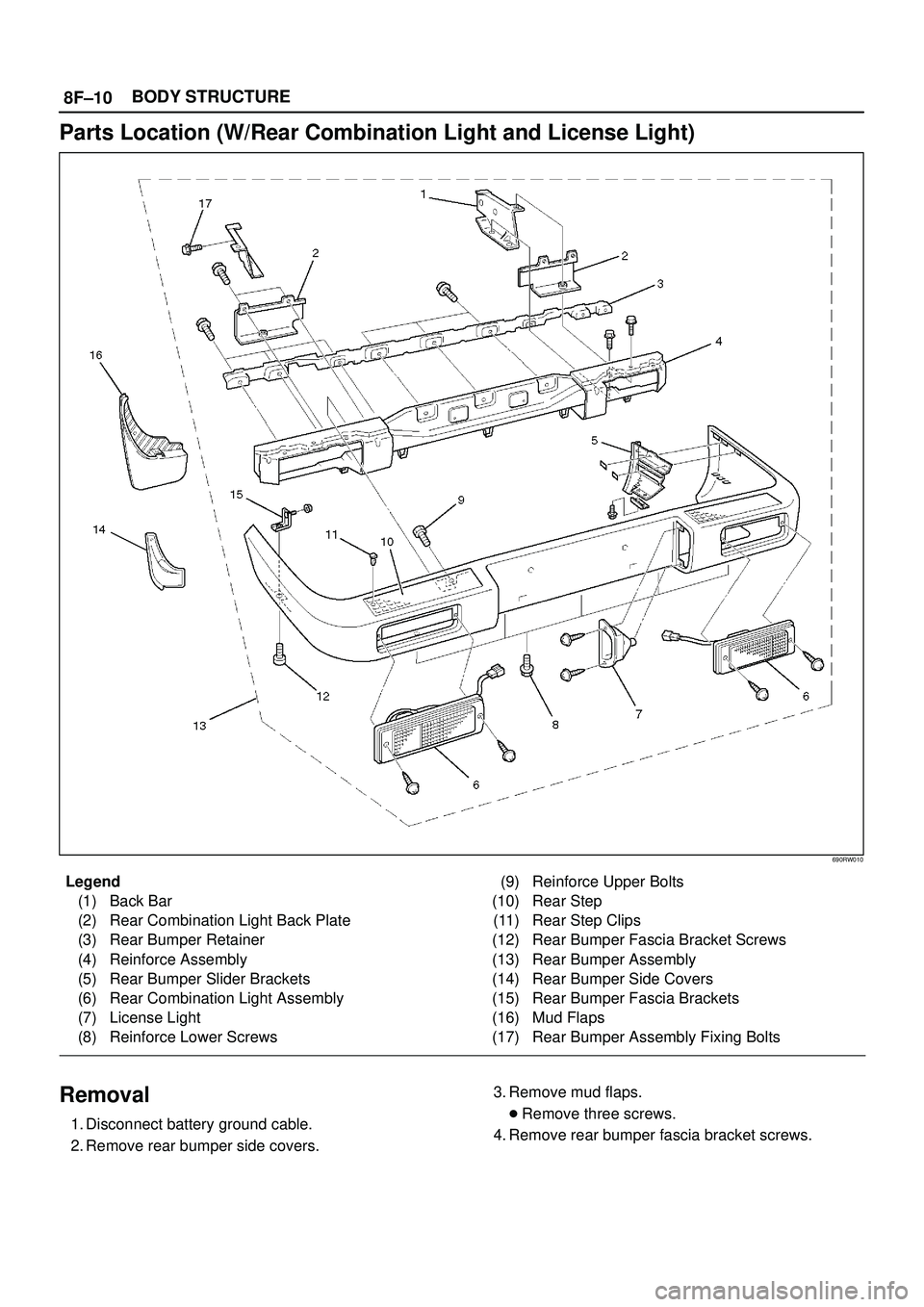

ISUZU TROOPER 1998 Service Repair Manual 8F±10BODY STRUCTURE Parts Location (W/Rear Combination Light and License Light) 690RW010 Legend (1) Back Bar (2) Rear Combination Light Back Plate (3) Rear Bumper Retainer (4) Reinforce Assembly (5)

Page 3206 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8F±11 BODY STRUCTURE 5. Remove rear bumper assembly fixing bolts. Remove two bolts from each side. 690RW011 6. Remove rear bumper assembly. 7. Remove rear bumper retainers. 8. Remove rear combinatio

Page 3207 of 3573

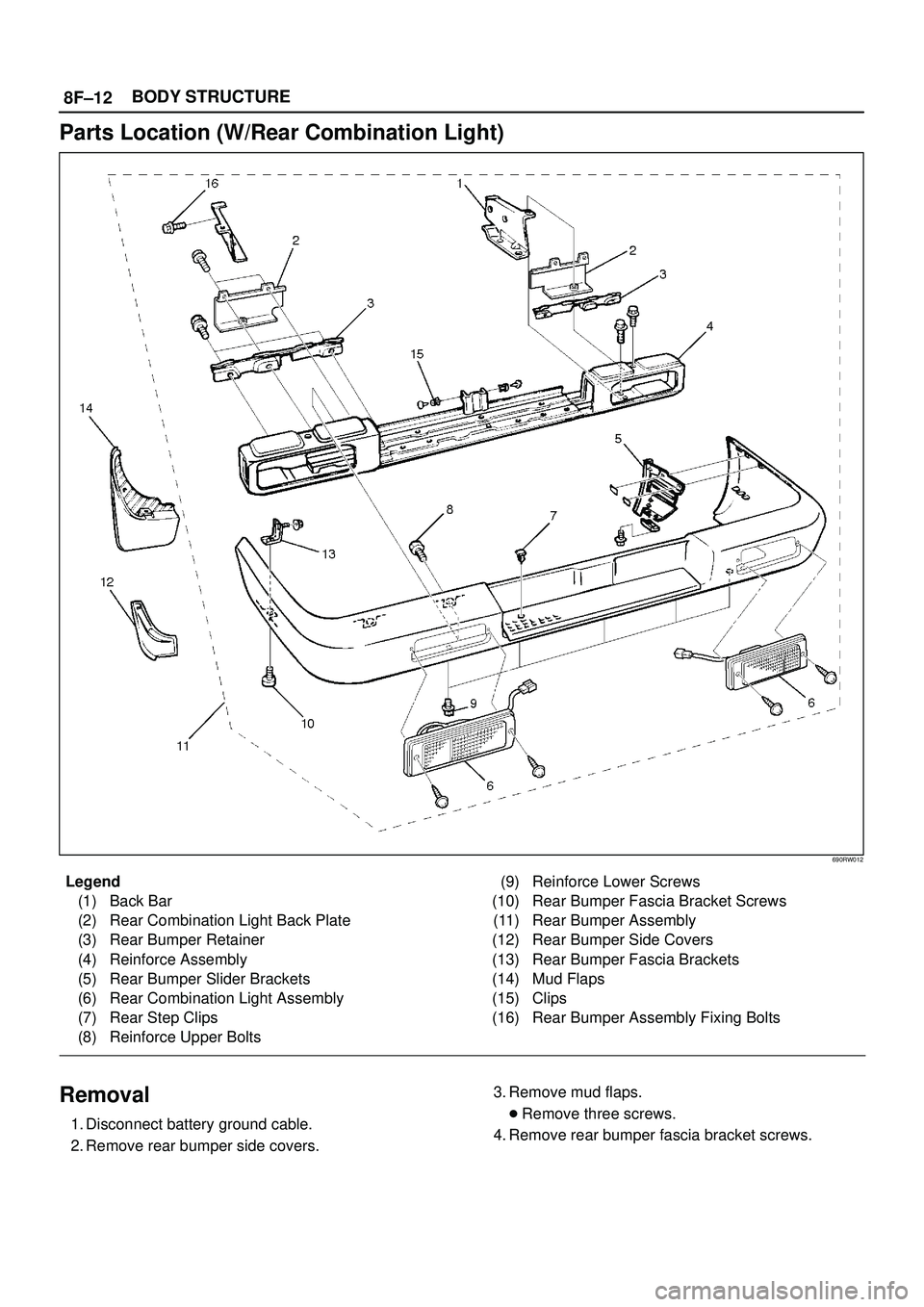

ISUZU TROOPER 1998 Service Repair Manual 8F±12BODY STRUCTURE Parts Location (W/Rear Combination Light) 690RW012 Legend (1) Back Bar (2) Rear Combination Light Back Plate (3) Rear Bumper Retainer (4) Reinforce Assembly (5) Rear Bumper Slider

Page 3208 of 3573

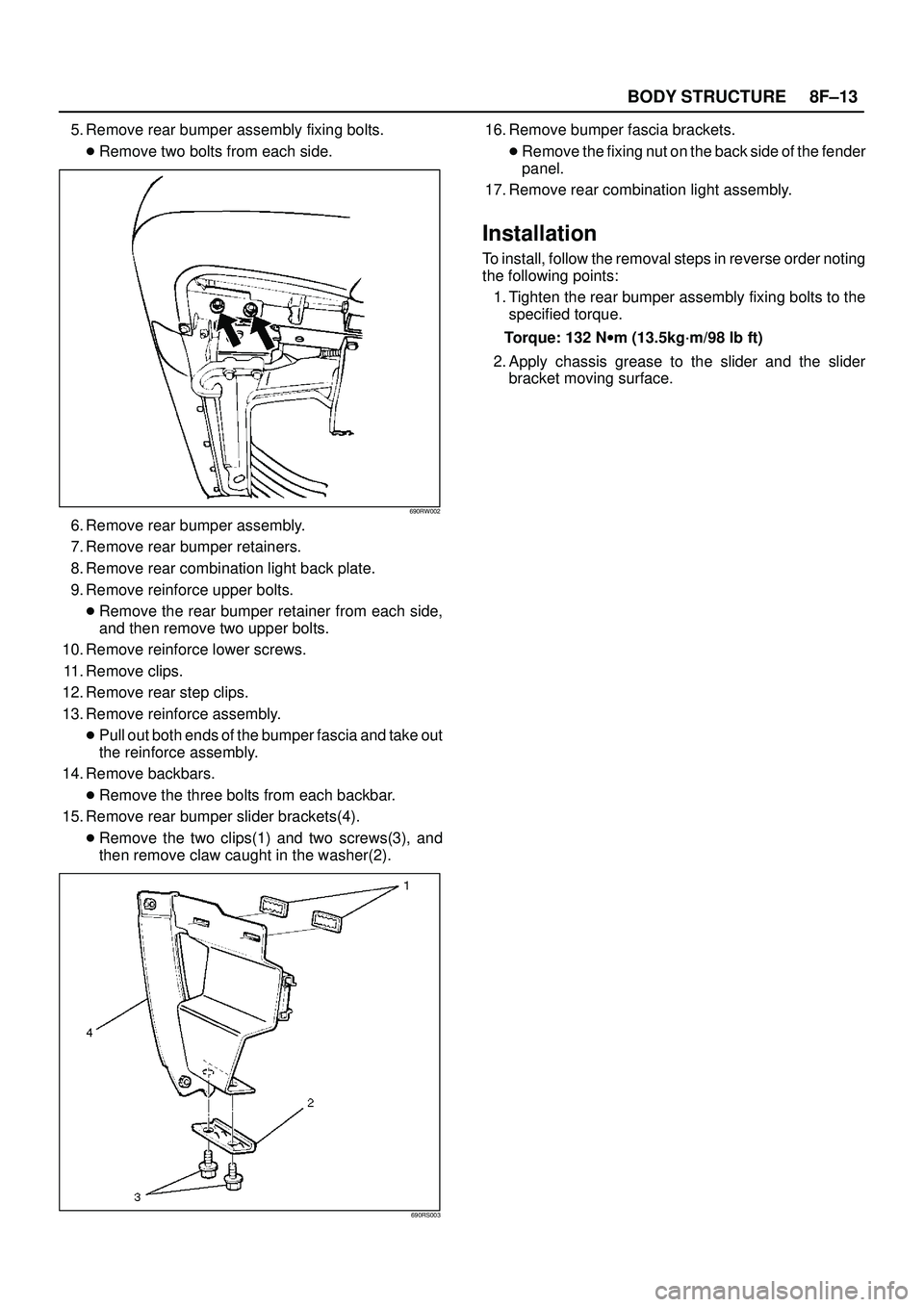

ISUZU TROOPER 1998 Service Repair Manual 8F±13 BODY STRUCTURE 5. Remove rear bumper assembly fixing bolts. Remove two bolts from each side. 690RW002 6. Remove rear bumper assembly. 7. Remove rear bumper retainers. 8. Remove rear combinatio
