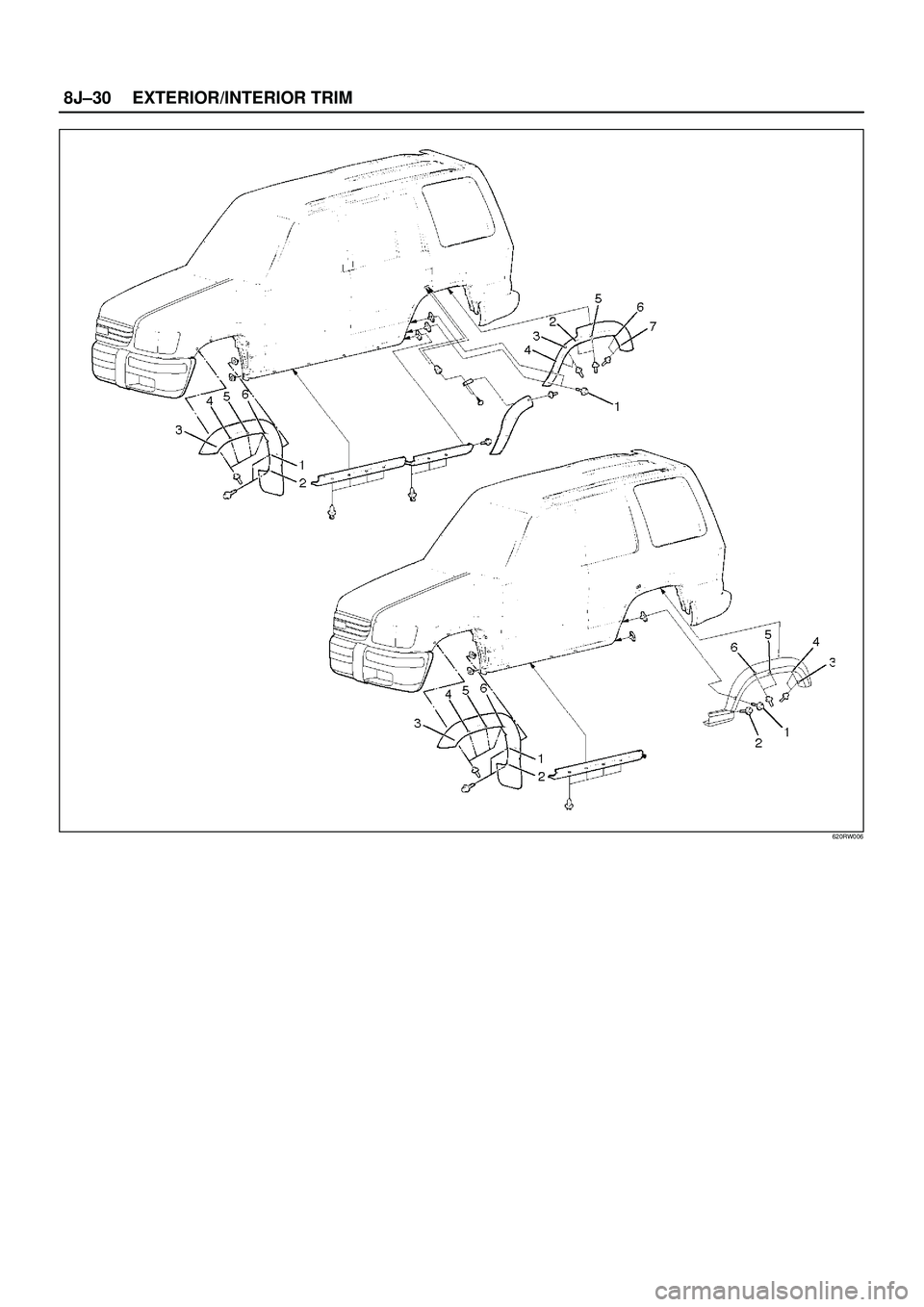

ISUZU TROOPER 1998 Service Repair Manual 8J±30EXTERIOR/INTERIOR TRIM 620RW006

Page 3410 of 3573

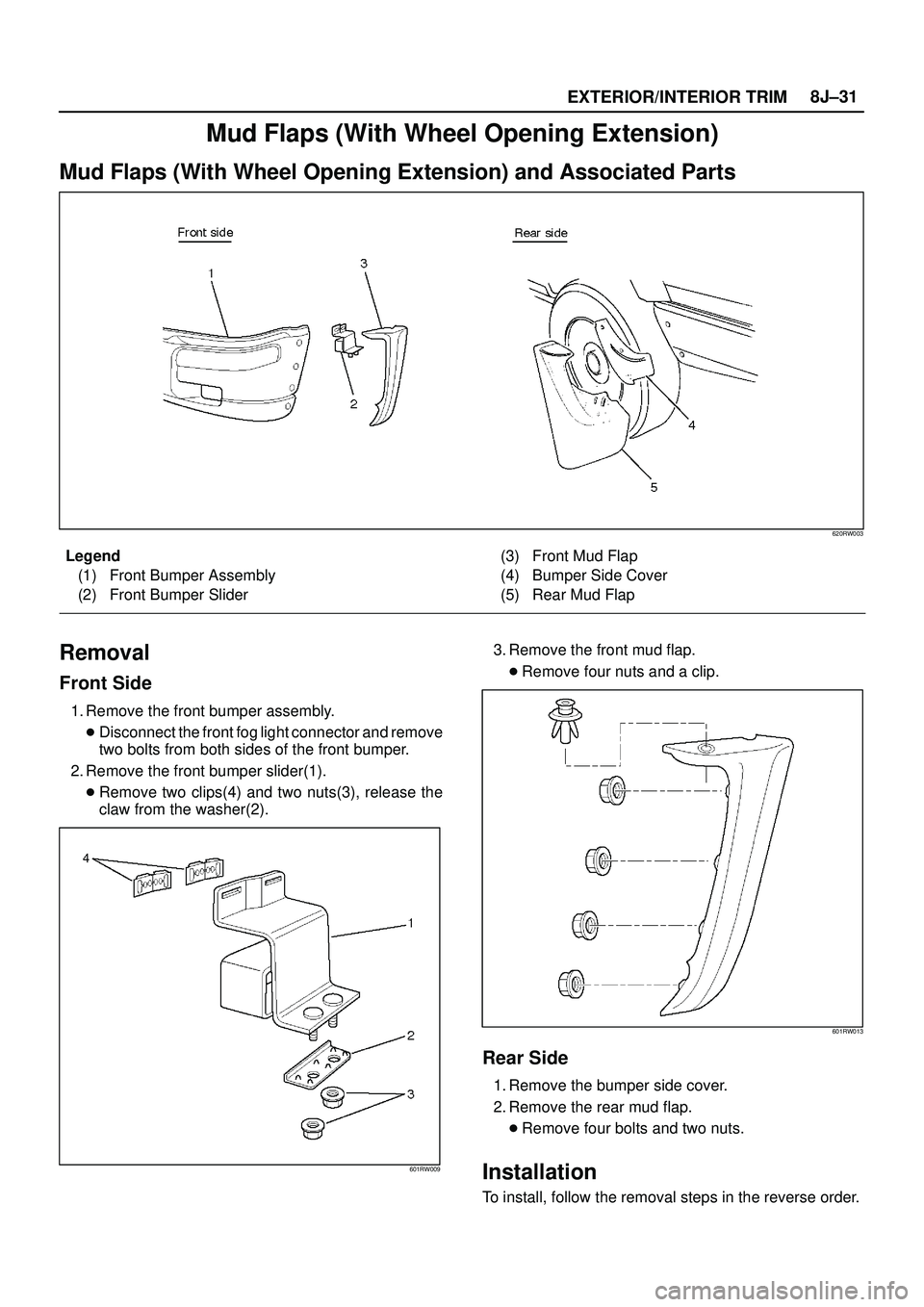

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±31 Mud Flaps (With Wheel Opening Extension) Mud Flaps (With Wheel Opening Extension) and Associated Parts 620RW003 Legend (1) Front Bumper Assembly (2) Front Bumper Slider(3)

Page 3411 of 3573

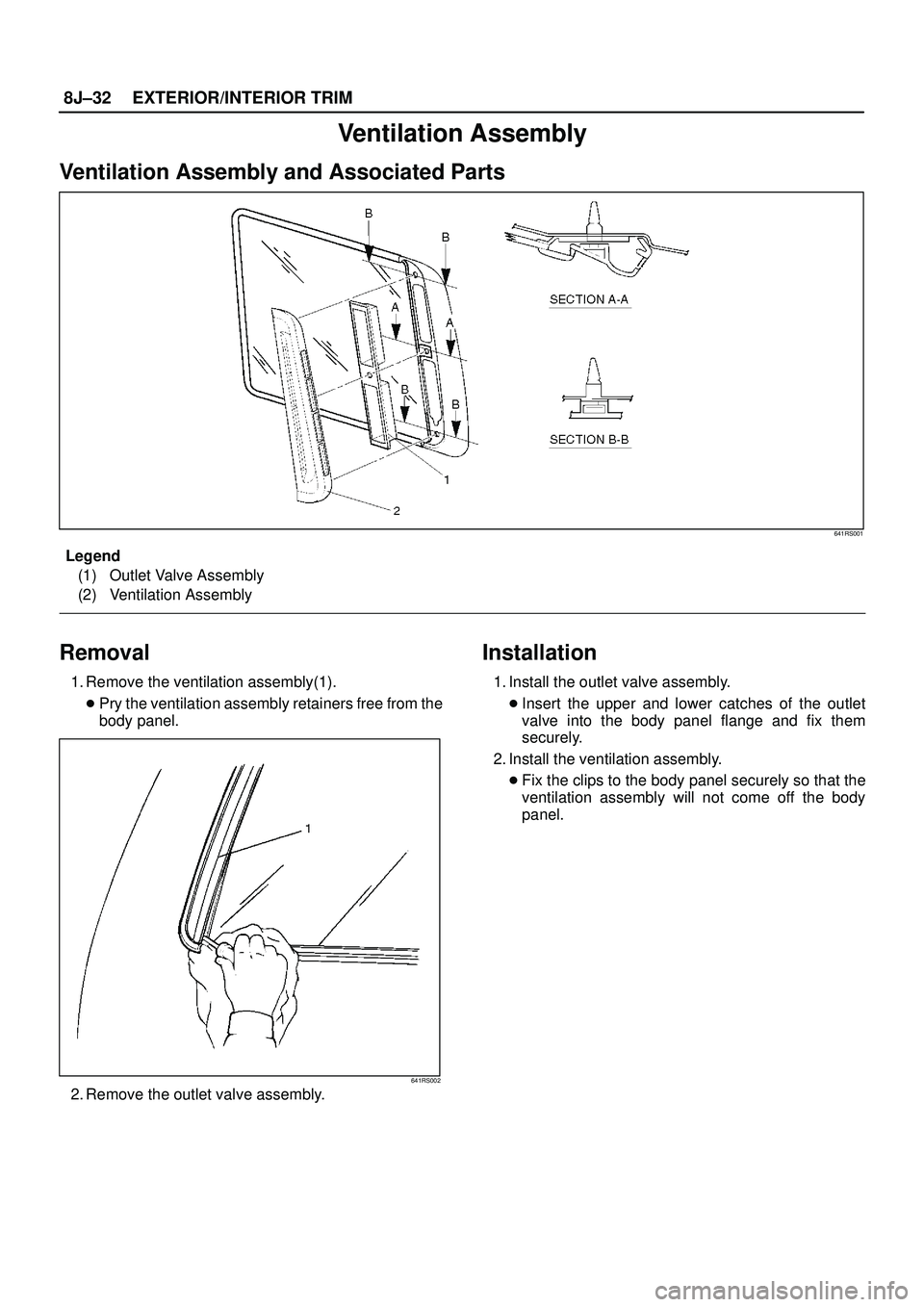

ISUZU TROOPER 1998 Service Repair Manual 8J±32EXTERIOR/INTERIOR TRIM Ventilation Assembly Ventilation Assembly and Associated Parts 641RS001 Legend (1) Outlet Valve Assembly (2) Ventilation Assembly Removal 1. Remove the ventilation assembl

Page 3412 of 3573

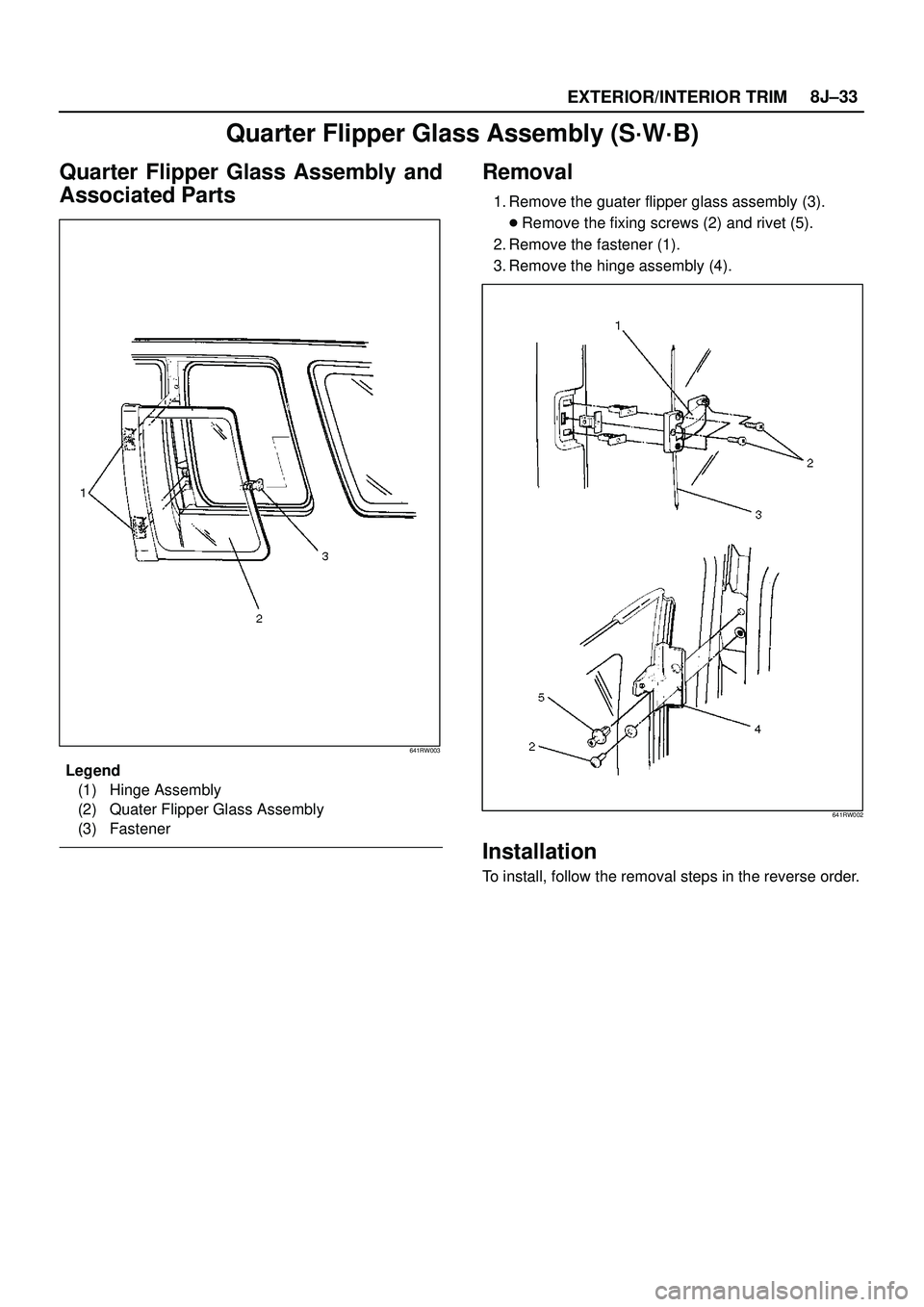

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±33 Quarter Flipper Glass Assembly (S´W´B) Quarter Flipper Glass Assembly and Associated Parts 641RW003 Legend (1) Hinge Assembly (2) Quater Flipper Glass Assembly (3) Faste

Page 3413 of 3573

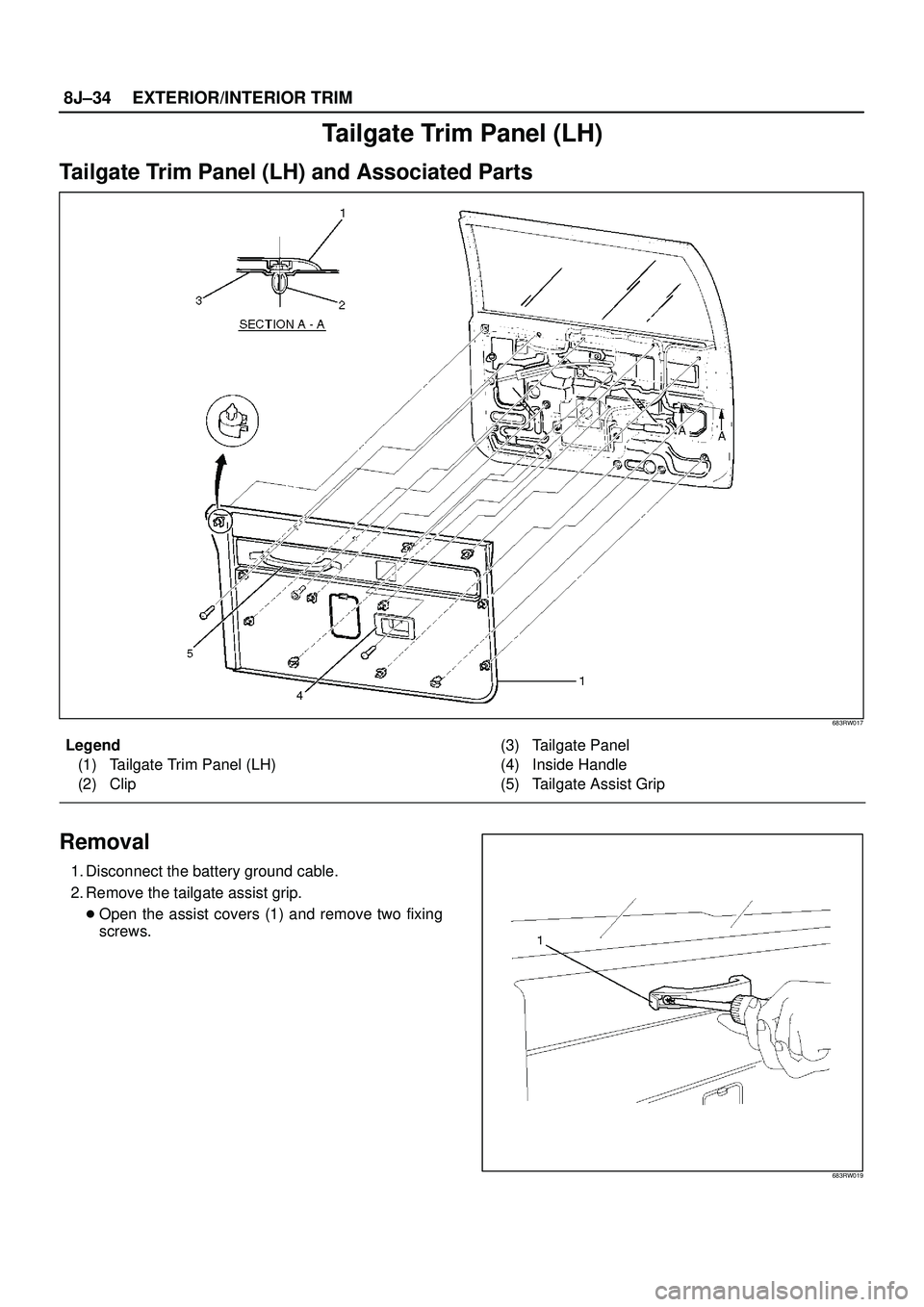

ISUZU TROOPER 1998 Service Repair Manual 8J±34EXTERIOR/INTERIOR TRIM Tailgate Trim Panel (LH) Tailgate Trim Panel (LH) and Associated Parts 683RW017 Legend (1) Tailgate Trim Panel (LH) (2) Clip(3) Tailgate Panel (4) Inside Handle (5) Tailga

Page 3414 of 3573

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±35 3. Remove the inside handle (2). Remove the fixing screw and disconnect the locking link (1). 683RW020 4. Remove the tailgate trim panel (LH). Pry the trim panel retaine

Page 3415 of 3573

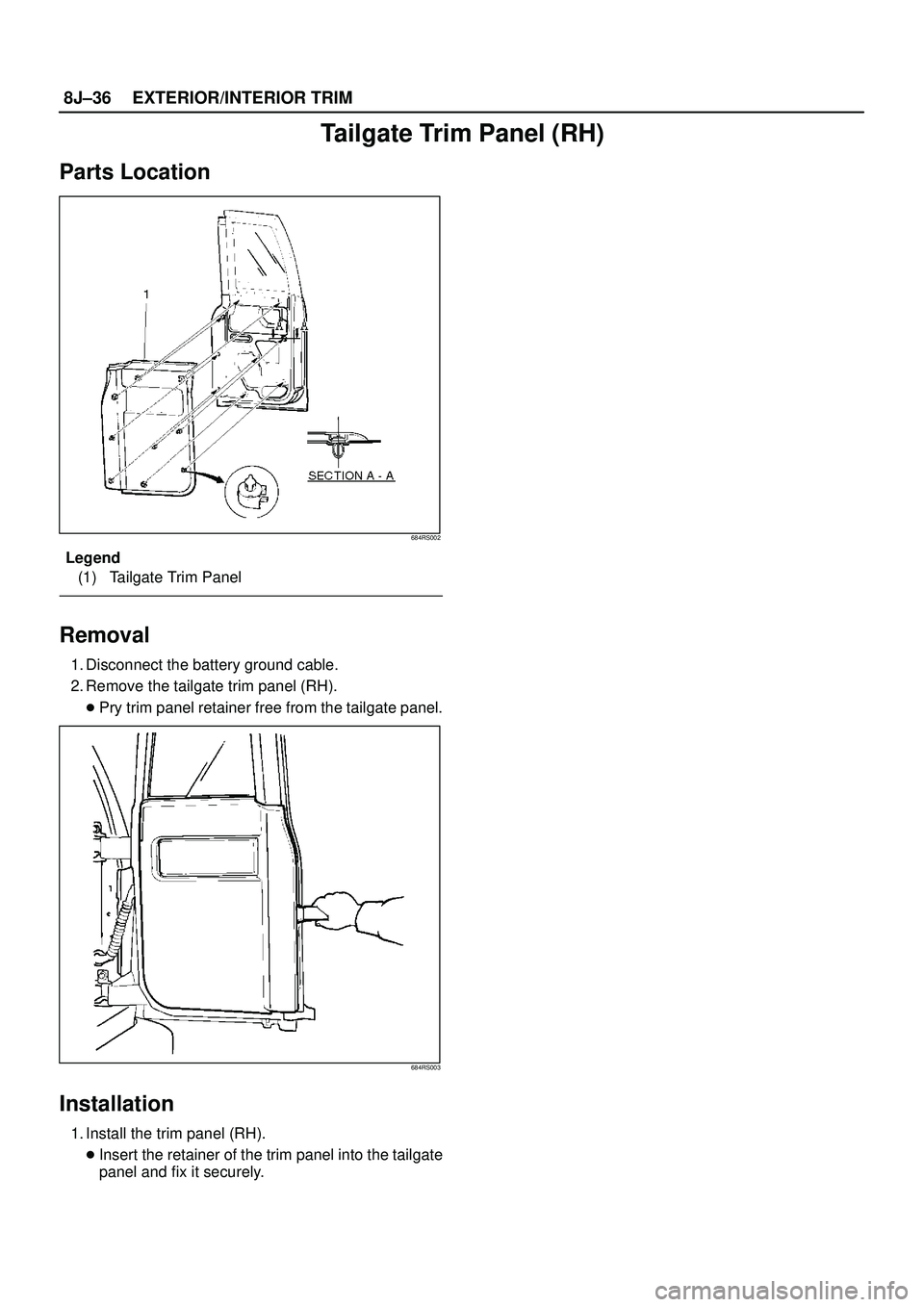

ISUZU TROOPER 1998 Service Repair Manual 8J±36EXTERIOR/INTERIOR TRIM Tailgate Trim Panel (RH) Parts Location 684RS002 Legend (1) Tailgate Trim Panel Removal 1. Disconnect the battery ground cable. 2. Remove the tailgate trim panel (RH). Pr

Page 3416 of 3573

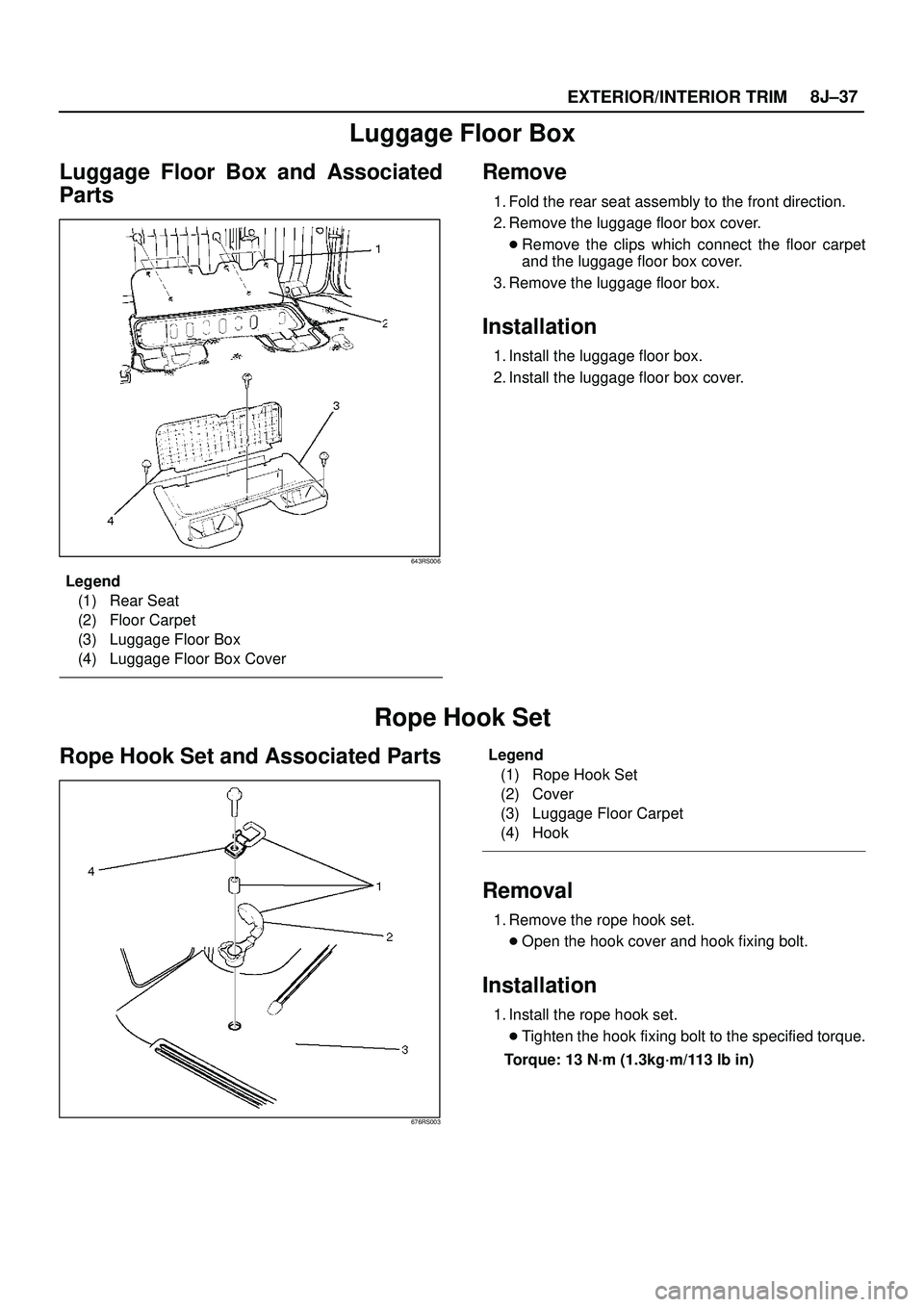

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±37 Luggage Floor Box Luggage Floor Box and Associated Parts 643RS006 Legend (1) Rear Seat (2) Floor Carpet (3) Luggage Floor Box (4) Luggage Floor Box Cover Remove 1. Fold th
