Page 1513 of 3573

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 13 Checkpoint Possible cause Correction 4. SLAPPING NOISE Valve clearance Valve clearance improperly adjusted Adjust the valve clearance Rocker arm Damaged rocker arm Replac

Page 1514 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 14 SERVICE INFORMATION Condition Possible cause Correction Engine overheating Low coolant level Replenish Thermo unit faulty Faulty thermostat Faulty coolant unit Clogged radiator Faulty radiato

Page 1515 of 3573

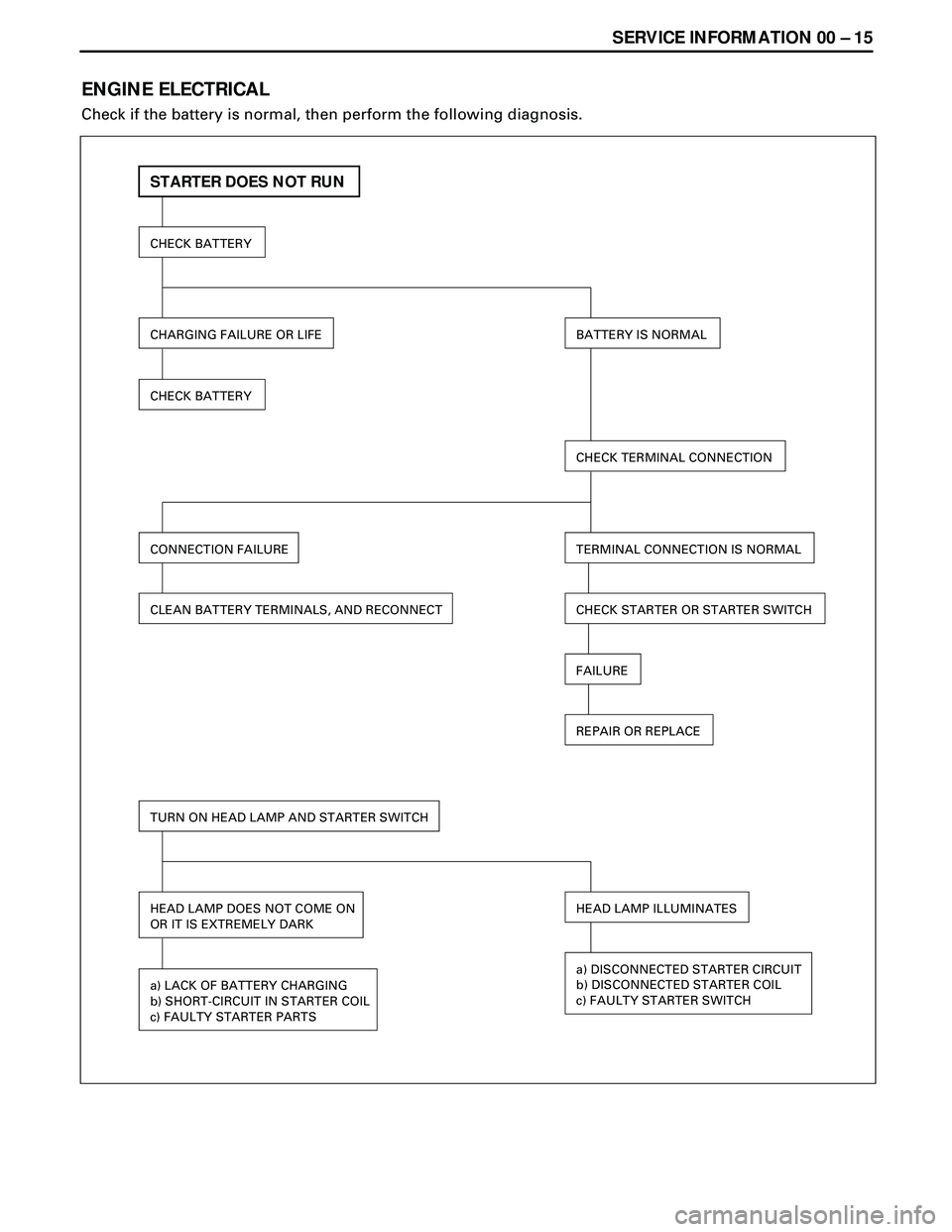

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 15 ENGINE ELECTRICAL Check if the battery is normal, then perform the following diagnosis. STARTER DOES NOT RUN CHECK BATTERY CHARGING FAILURE OR LIFE CHECK BATTERY BATTERY I

Page 1516 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 16 SERVICE INFORMATION FAULTY MESHING OR PINION AND RING GEAR CHECK IF BATTERY VOLTAGE IS PRESENT AT MAGNETIC SWITCH TERMINAL “S” WHEN STARTER SWITCH IS TURNED TO “START (ST)” YESNO EXT

Page 1517 of 3573

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 17 MAGNETIC SWITCH DOES NOT OPERATE THOUGH STARTER SWITCH IS TURNED TO “START (ST)” CHECK IF VOLTAGE IS PRESENT AT MAGNETIC SWITCH TERMINAL “S” WHEN STARTER SWITCH IS

Page 1518 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 18 SERVICE INFORMATION PINION MESHES WITH RING GEAR BUT ENGINE DOES NOT RUN CHECK GROUND CABLE YESNO REPAIR OR REPLACE GROUND CABLE FAULTY CONNECTION OF BRUSH AND COMMUTATORBURNED-OUT MAGNETIC S

Page 1519 of 3573

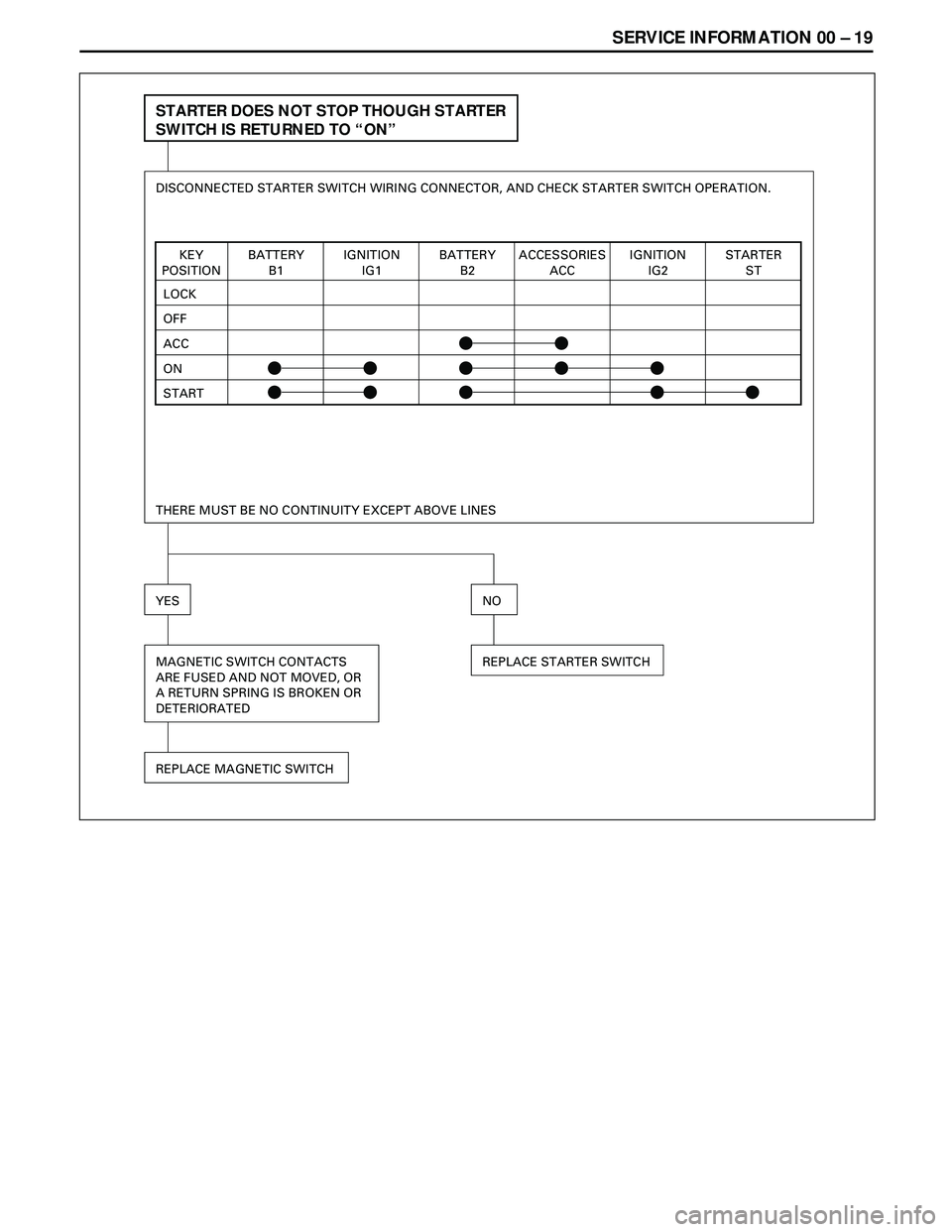

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 19 STARTER DOES NOT STOP THOUGH STARTER SWITCH IS RETURNED TO “ON” YESNO REPLACE STARTER SWITCHMAGNETIC SWITCH CONTACTS ARE FUSED AND NOT MOVED, OR A RETURN SPRING IS BRO

Page 1520 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 20 SERVICE INFORMATION MAIN DATA AND SPECIFICATIONS GENERAL SPECIFICATIONS Engine type Camshaft type Cylinder line-type Number of cylinders Bore x stroke Total piston displacement Compression ra
