Page 2769 of 3573

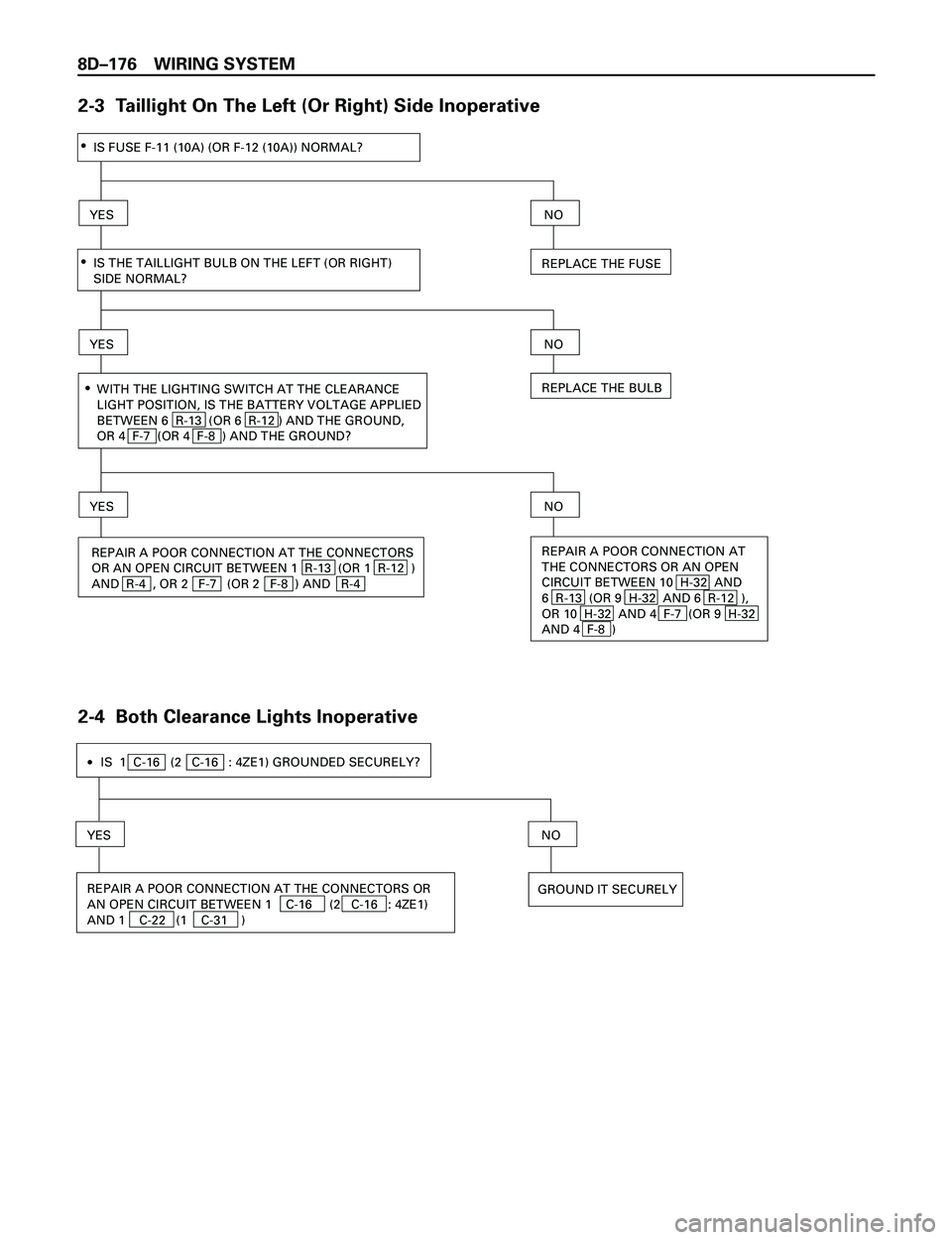

ISUZU TROOPER 1998 Service Repair Manual 8DÐ176 WIRING SYSTEM 2-3 Taillight On The Left (Or Right) Side Inoperative IS FUSE F-11 (10A) (OR F-12 (10A)) NORMAL?· ·YES NO IS THE TAILLIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL?· YES NO RE

Page 2770 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ177 2-5 Clearance Light On The Left (Or Right) Side Operative ·IS THE CLERANCE LIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL? YESNO REPLACE THE BULB·IS THERE ANY CONTINUITY BETWE

Page 2771 of 3573

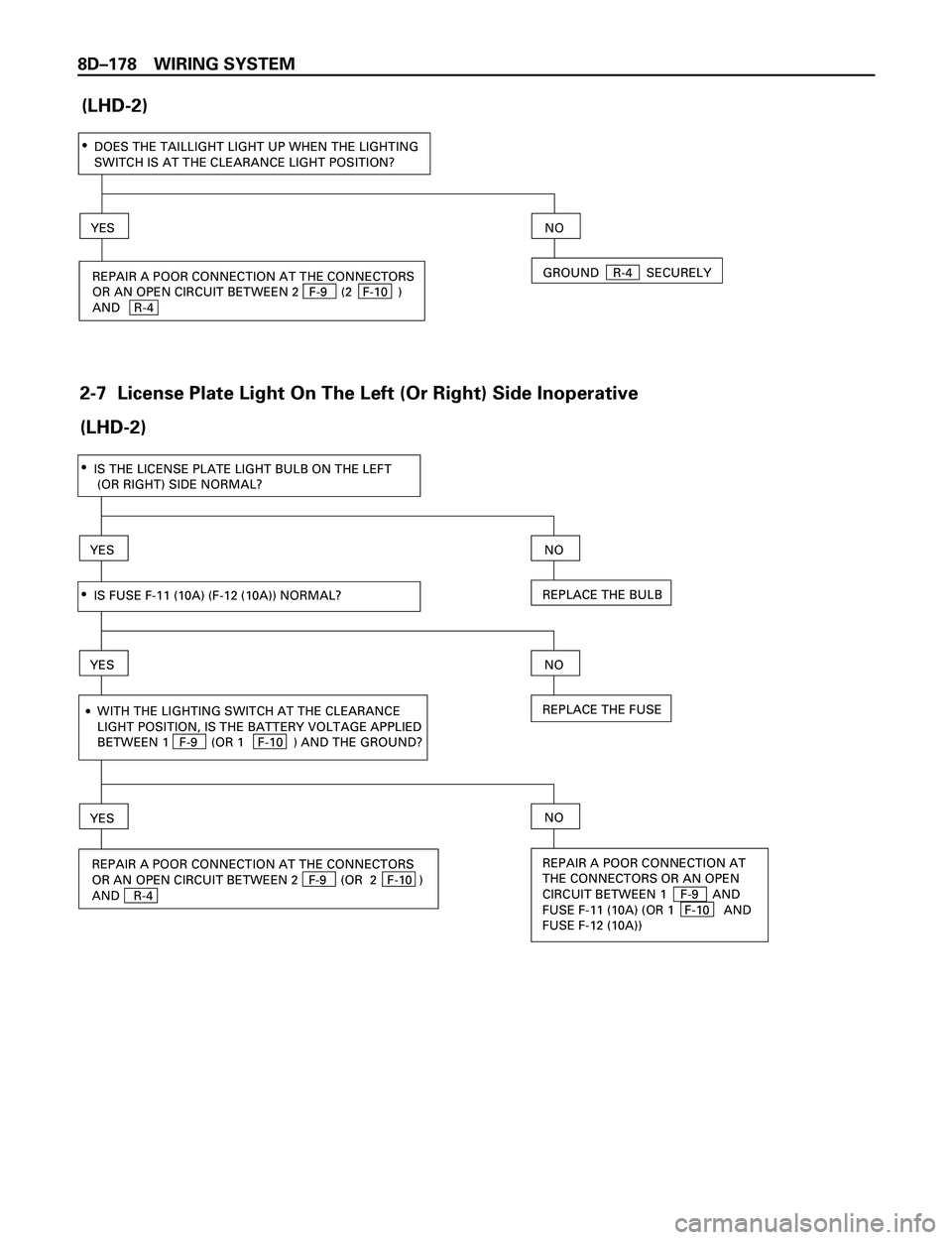

ISUZU TROOPER 1998 Service Repair Manual 8DÐ178 WIRING SYSTEM (LHD-2) DOES THE TAILLIGHT LIGHT UP WHEN THE LIGHTING SWITCH IS AT THE CLEARANCE LIGHT POSITION?· YES NO GROUND R-4 SECURELY REPAIR A POOR CONNECTION AT THE CONNECTORS OR

Page 2772 of 3573

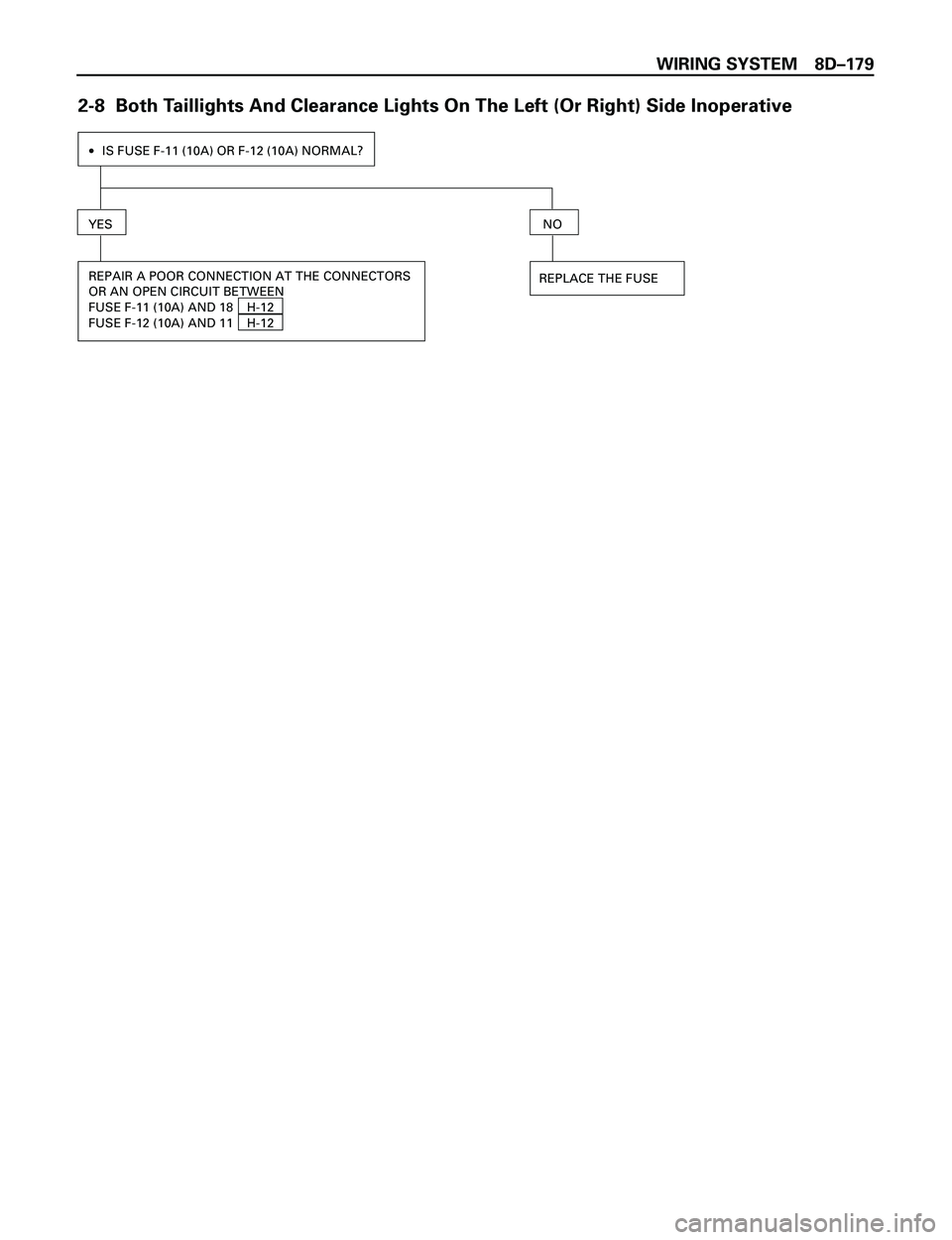

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ179 2-8 Both Taillights And Clearance Lights On The Left (Or Right) Side Inoperative ·IS FUSE F-11 (10A) OR F-12 (10A) NORMAL? YES REPAIR A POOR CONNECTION AT THE CONNECTORS OR AN

Page 2773 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ180 WIRING SYSTEM Interior Illumination Light General Description The circuit consists of a lighting switch, tail relay, illumination controller and illumination lights. All these lights come on w

Page 2774 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ181 Circuit Diagram (RHD)-1 5.0 W 0.85 R/BF-12 15A TAIL,ILLUMI. TAIL RELAY BATT.(+) 0.3 G 0.3 G3X-9 1 X-9 0.85 G/R 0.85 G/R 0.85 G/R 0.85 R/B 4 X-92X-9 B-12H-15B-12 LIGHTING SW (COMB

Page 2775 of 3573

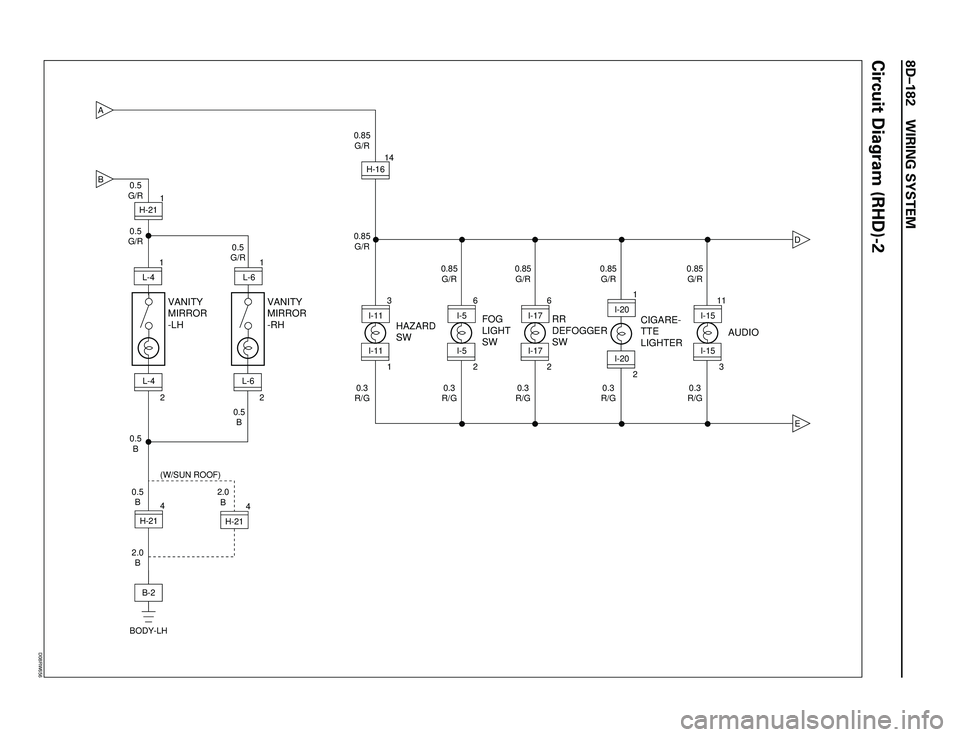

ISUZU TROOPER 1998 Service Repair Manual 8DÐ182 WIRING SYSTEM Circuit Diagram (RHD)-2 AB DE VANITY MIRROR -LH1 H-2114 H-16 (W/SUN ROOF) 0.5 B0.5 B 0.5 B 0.5 G/R 0.5 G/R 0.5 G/R0.85 G/R 0.85 G/R 0.3 R/G0.3 R/G 0.85 G/R 0.3 R/G 0.85 G/R 0.3 R

Page 2776 of 3573

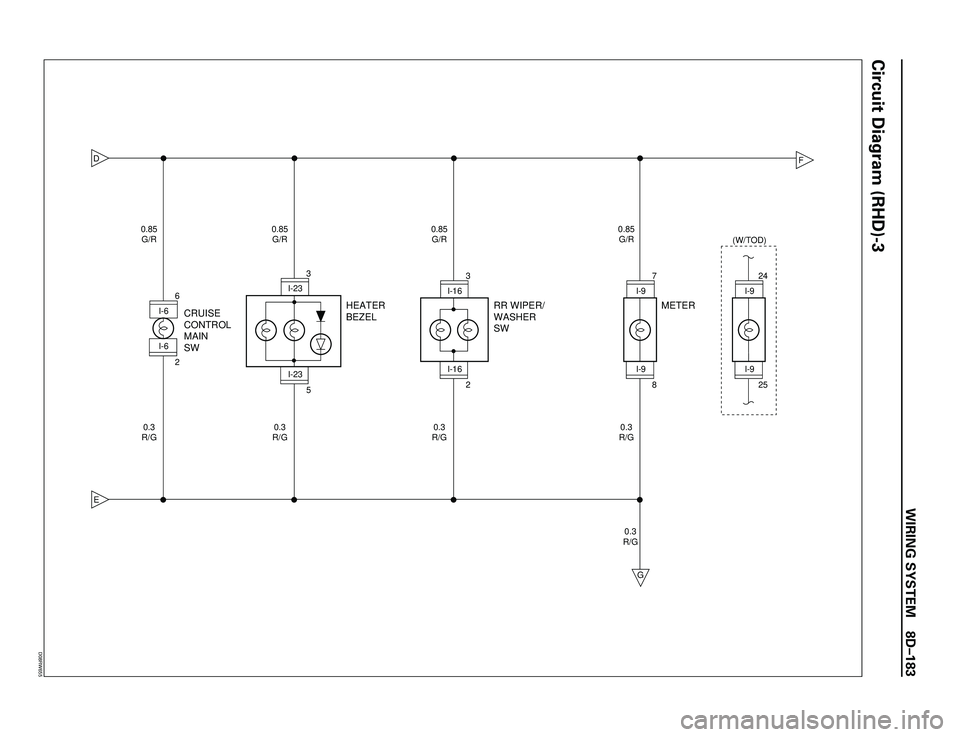

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ183 Circuit Diagram (RHD)-3 DE F G 0.3 R/G 0.85 G/R 0.3 R/G 0.85 G/R 0.3 R/G METER RR WIPER/ WASHER SW HEATER BEZEL7 8 I-9 I-9 3 2 I-16 I-16 0.85 G/R 0.3 R/G 0.85 G/R 0.3 R/G 3 5 I-2
