Page 3313 of 3573

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±1
BODY AND ACCESSORIES
SEATS
CONTENTS
Service Precaution 8G±1. . . . . . . . . . . . . . . . . . . . . .
Front Seat Assembly 8G±2. . . . . . . . . . . . . . . . . . . .
Front Seat Assembl

SEATS8G±1
BODY AND ACCESSORIES
SEATS
CONTENTS
Service Precaution 8G±1. . . . . . . . . . . . . . . . . . . . . .
Front Seat Assembly 8G±2. . . . . . . . . . . . . . . . . . . .
Front Seat Assembly and Associated
Parts 8G±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8G±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View (Long Wheel Base) 8G±3. .
Disassembly 8G±4. . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 8G±5. . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View (Short Wheel Base) 8G±6. .
Disassembly 8G±6. . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 8G±8. . . . . . . . . . . . . . . . . . . . . . . . . .
Power Seat Assembly 8G±9. . . . . . . . . . . . . . . . . . .
General Description 8G±9. . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8G±9. . . . . . . . . . . . . . . . . . . .
Disassembly 8G±10. . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 8G±12. . . . . . . . . . . . . . . . . . . . . . . . . .
Power Seat Switch 8G±12. . . . . . . . . . . . . . . . . . . . . .
Removal 8G±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Tilt Motor / Rear Tilt Motor /
Slide Motor / Recliner Motor 8G±13. . . . . . . . . . . . . .
Parts Location 8G±13. . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8G±13. . . . . . . . . . . . . . .
Seat Heater System 8G±14. . . . . . . . . . . . . . . . . . . . .
General Description 8G±14. . . . . . . . . . . . . . . . . . . . . .
Seat Heater Switch Removal and
Installation 8G±14. . . . . . . . . . . . . . . . . . . . . . . . . . . Heat Unit Parts Location 8G±14. . . . . . . . . . . . . . . .
Heat Unit Removal and Installation 8G±14. . . . . .
Rear Seat Assembly 8G±15. . . . . . . . . . . . . . . . . . . . .
Rear Seat Assembly and Associated Parts 8G±15
Removal 8G±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View (Split Type) 8G±16. . . . . . . . .
Disassembly (Split Type) 8G±17. . . . . . . . . . . . . . .
Reassembly (Split Type) 8G±18. . . . . . . . . . . . . . . .
Disassembled View (Short Wheel Base) 8G±19. .
Disassembly 8G±19. . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 8G±20. . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View (Bench Type) 8G±21. . . . . . .
Disassembly (Bench Type) 8G±22. . . . . . . . . . . . .
Reassembly (Bench Type) 8G±23. . . . . . . . . . . . . .
Third Seat Assembly 8G±23. . . . . . . . . . . . . . . . . . . . .
Parts Location 8G±23. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8G±23. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±24. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8G±24. . . . . . . . . . . . . . . . . . . .
Disassembly 8G±25. . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 8G±25. . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Seat Foot Rest 8G±25. . . . . . . . . . . . . . . . . . . . .
Rear Seat Foot Rest and Associated Parts 8G±25
Removal 8G±26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±26. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8G±26. . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Page 3314 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8G±2SEATS
Front Seat Assembly
Front Seat Assembly and Associated Parts
750RX016
Legend
(1) Rear Cover
(2) Front Seat Assembly
(3) Seat Belt Warning Connector/Pretensioner
Harness Connector
(4) Rear S

Page 3315 of 3573

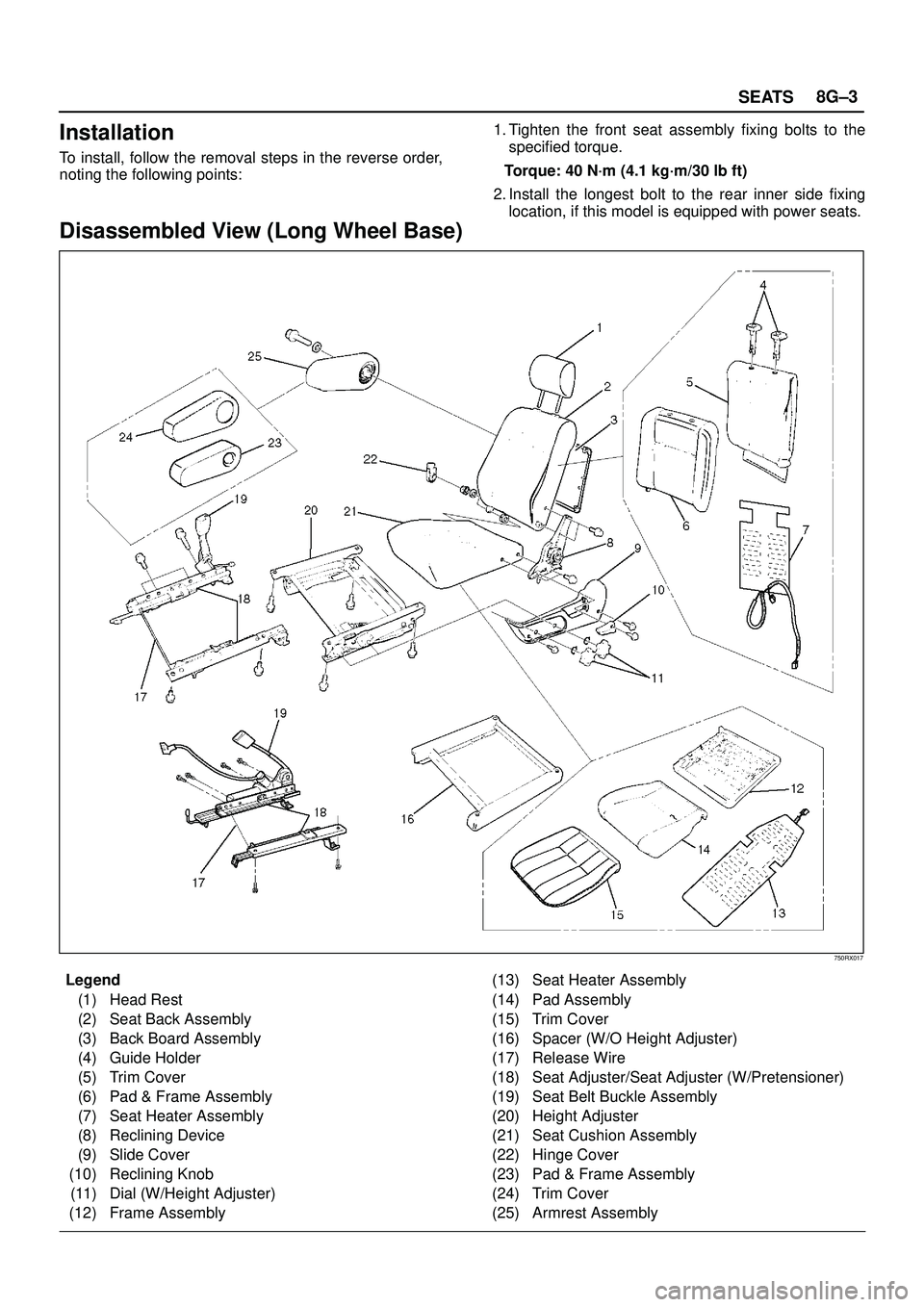

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±3
Installation
To install, follow the removal steps in the reverse order,
noting the following points:1. Tighten the front seat assembly fixing bolts to the
specified torque.
Torque: 40 N´m

Page 3316 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8G±4SEATS
Disassembly
1. Remove the head rest.
2. Remove the reclining knob.
3. Remove the dial(1) (W/height adjuster).
Remove the side cover fixing screws and the dial
lock spring(2).
750RW025
4. R

Page 3317 of 3573

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±5
11. Remove the seat back assembly.
Remove the clips (2) from the seat heater harness
(1), and separate the seat heater connector (3)
(models with the seat heater).
750RW029
Remove the sea

Page 3318 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8G±6SEATS
Disassembled View (Short Wheel Base)
750RX018
Legend
(1) Head Rest
(2) Seat Back Assembly
(3) Back Board Assembly
(4) Pad & Frame Assembly
(5) Trim Cover
(6) Guide Holder
(7) Reclining Devi

Page 3319 of 3573

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±7
6. Remove the reclining device.
Trun up the seat back trim cover in order to remove
the reclining device fixing bolts.
750RS006
Remove the push nut (2) and disconnect walk-in
cable (3) fr

Page 3320 of 3573

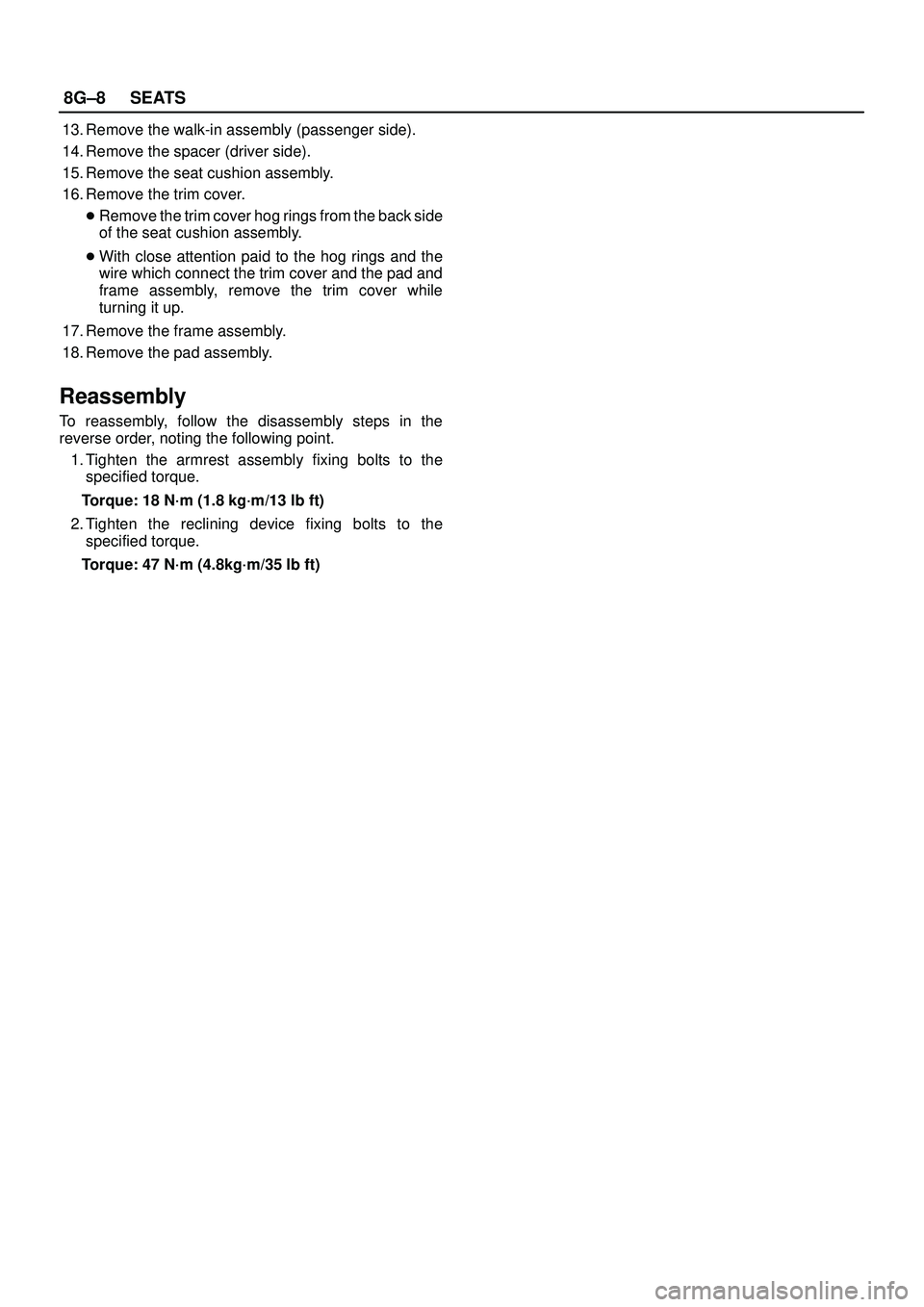

ISUZU TROOPER 1998 Service Repair Manual 8G±8SEATS
13. Remove the walk-in assembly (passenger side).
14. Remove the spacer (driver side).
15. Remove the seat cushion assembly.
16. Remove the trim cover.
Remove the trim cover hog rings from
