Page 1713 of 3573

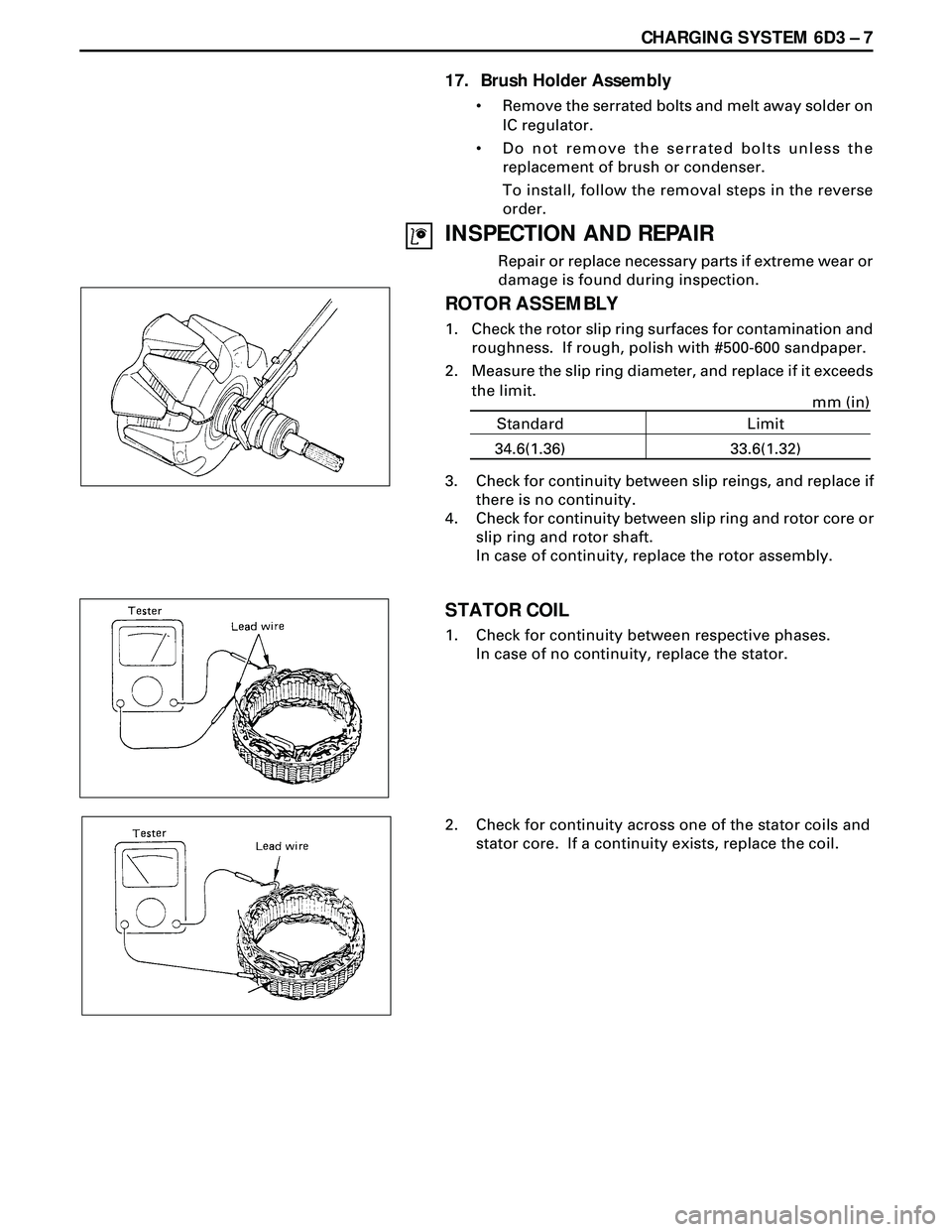

ISUZU TROOPER 1998 Service Repair Manual CHARGING SYSTEM 6D3 Ð 7 17. Brush Holder Assembly ¥ Remove the serrated bolts and melt away solder on IC regulator. ¥ Do not remove the serrated bolts unless the replacement of brush or condenser.

Page 1714 of 3573

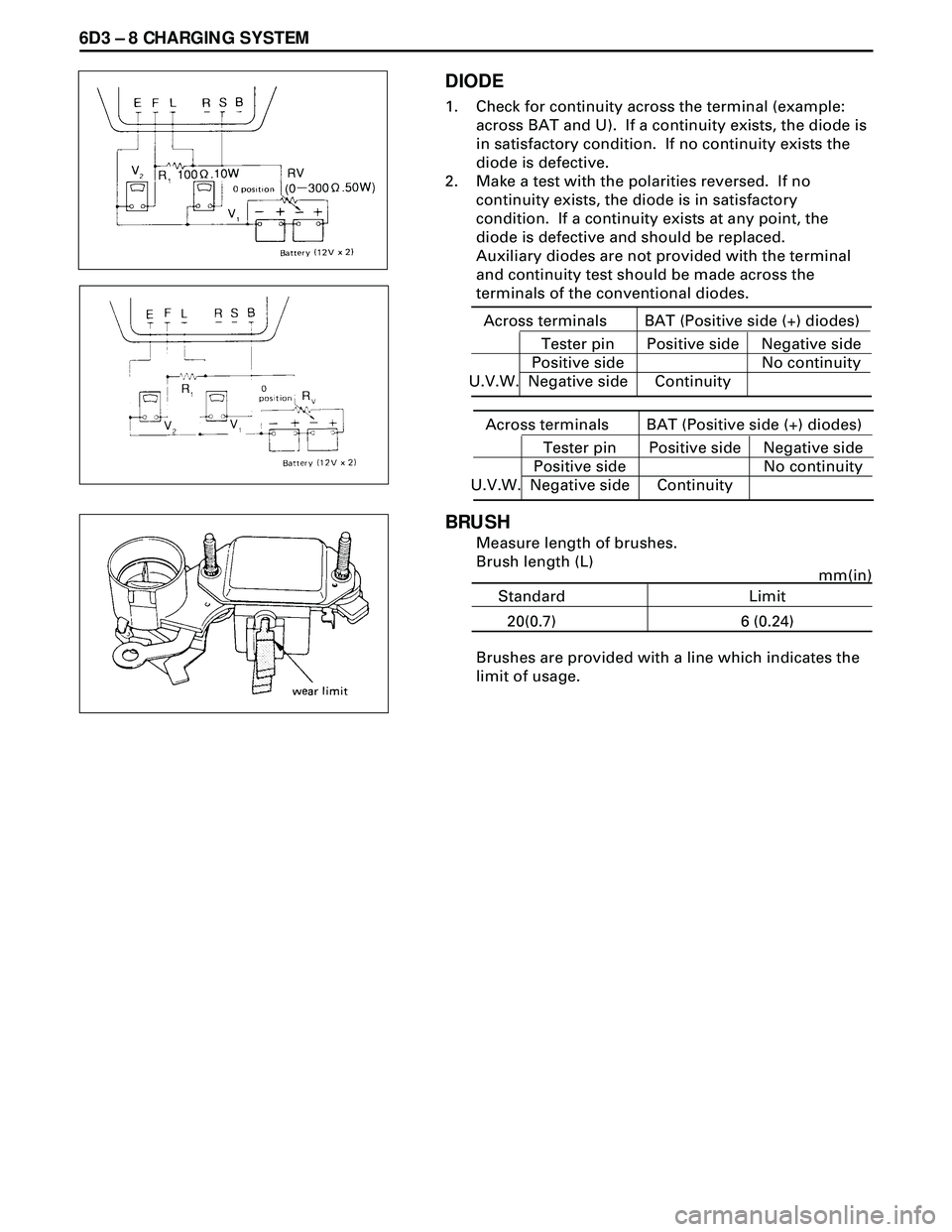

ISUZU TROOPER 1998 Service Repair Manual 6D3 Ð 8 CHARGING SYSTEM DIODE 1. Check for continuity across the terminal (example: across BAT and U). If a continuity exists, the diode is in satisfactory condition. If no continuity exists the di

Page 1715 of 3573

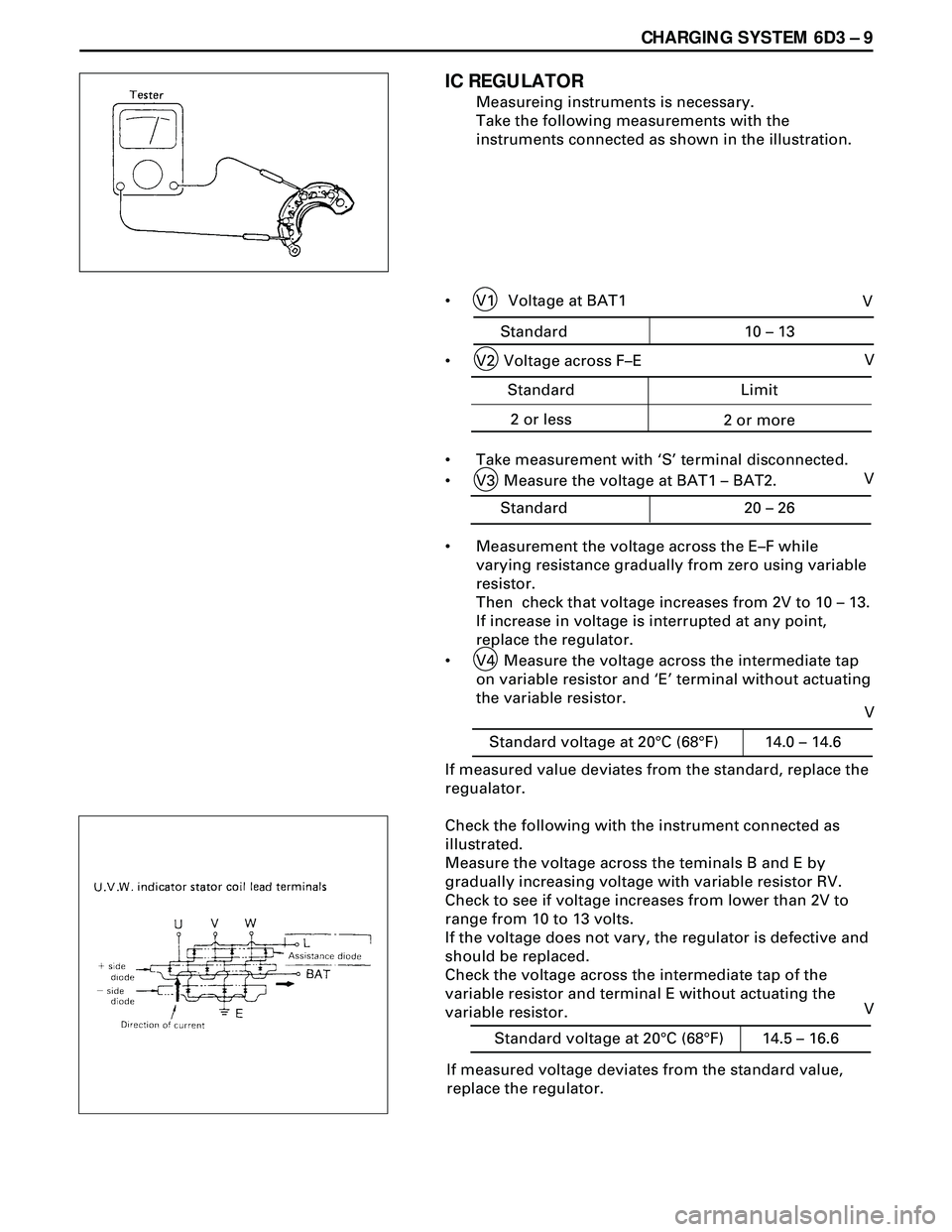

ISUZU TROOPER 1998 Service Repair Manual CHARGING SYSTEM 6D3 Ð 9 IC REGULATOR Measureing instruments is necessary. Take the following measurements with the instruments connected as shown in the illustration. ¥ V1 Voltage at BAT1 ¥ V2 V

Page 1716 of 3573

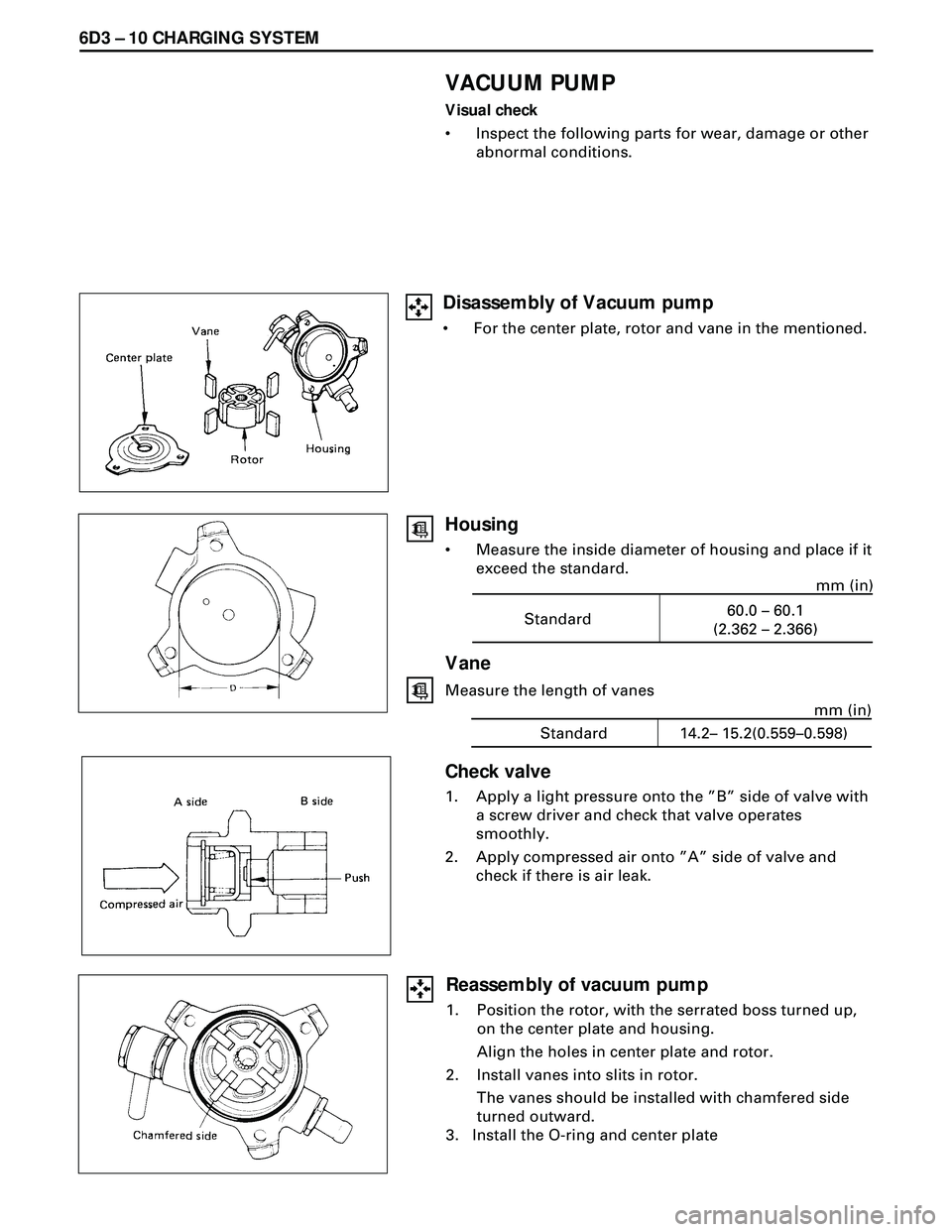

ISUZU TROOPER 1998 Service Repair Manual 6D3 Ð 10 CHARGING SYSTEM VACUUM PUMP Visual check ¥ Inspect the following parts for wear, damage or other abnormal conditions. Standard60.0 – 60.1 (2.362 – 2.366)mm (in) Vane Measure the length

Page 1717 of 3573

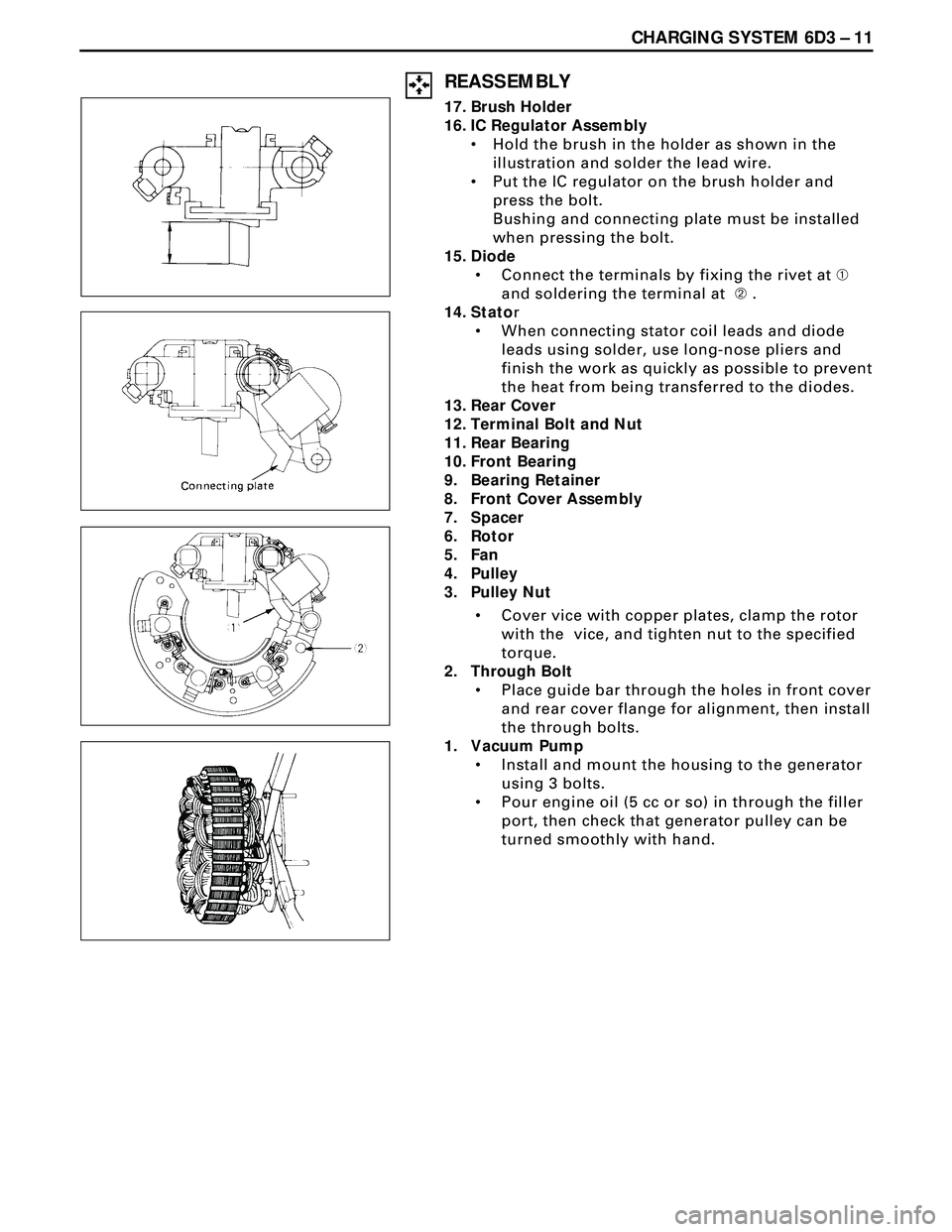

ISUZU TROOPER 1998 Service Repair Manual CHARGING SYSTEM 6D3 Ð 11 REASSEMBLY 17. Brush Holder 16. IC Regulator Assembly ¥ Hold the brush in the holder as shown in the illustration and solder the lead wire. ¥ Put the IC regulator on the br

Page 1718 of 3573

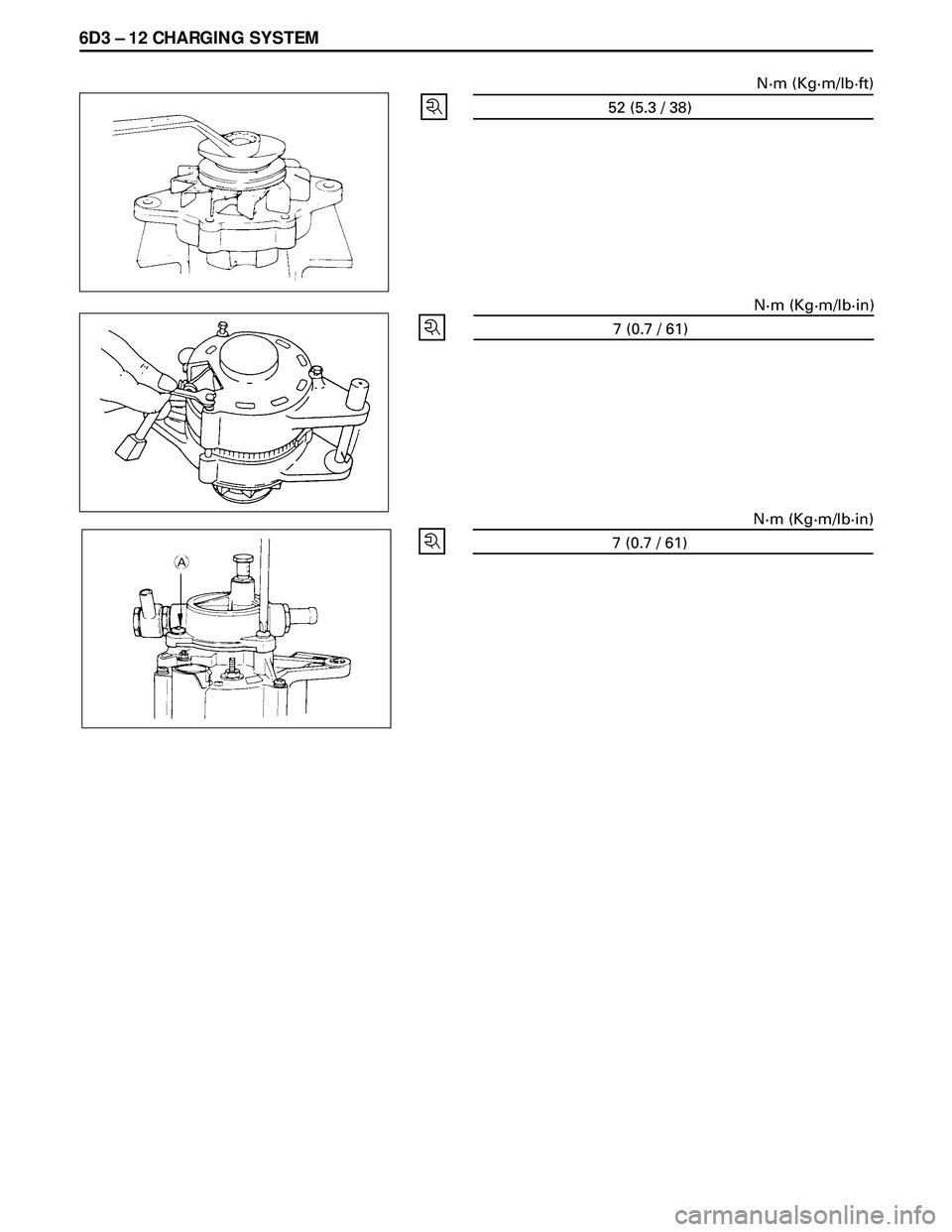

ISUZU TROOPER 1998 Service Repair Manual 6D3 Ð 12 CHARGING SYSTEM 52 (5.3 / 38)N·m (Kg·m/lb·ft) 7 (0.7 / 61)N·m (Kg·m/lb·in) 7 (0.7 / 61)N·m (Kg·m/lb·in)

Page 1719 of 3573

ISUZU TROOPER 1998 Service Repair Manual QOS III PREHEATING SYSTEM 6D6 Ð 1 PAGE General Description ........................................................................................................ 6D6- 1 System Diagram .............

Page 1720 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6D6 Ð 2 QOS III PREHEATING SYSTEM SYSTEM DIAGRAM WIRING DIAGRAM ON B ST Glow relay No.1 Starter SW Battery Engine Glow relay No.2 Glow indicator Charge relayGlow plug Thermo sensor Controller; QOS-II
