ISUZU TROOPER 1998 Service Repair Manual 8DÐ264 WIRING SYSTEM Circuit Diagram (LHD) B-371 B-372 B-37 3 B-37 4A A B-18 H-234D-570.3 R/Y0.3 R/Y2.0 L/B 1.25 B 1.25 B BODY-LH BODY-LH2.0 L/B 2.0 L/B 2.0 L/W 1.25 B 0.3 B 0.5 L/W0.5 L/W3.0 B/Y STA

Page 2858 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ265 Parts Location (LHD) Legend (1) D-27 (2) B-18, B-19 (3) D-22 (4) D-20 (5) H-28, H-29 (6) D-2 (7) D-5, D-30 (8) H-46 (9) H-22, H-23(10) Fuse Box (B-37) (11) B-26 (12) D-11 (13) H-

Page 2859 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ266 WIRING SYSTEM Diagnosis All Windows Do Not Operate STEP ACTION VALUE(S) YES NO Is the fuse CÐ4 normal? Is the circuit breaker C/BÐ2 normal? Is BÐ19 grounded securely? Disconnect the power w

Page 2860 of 3573

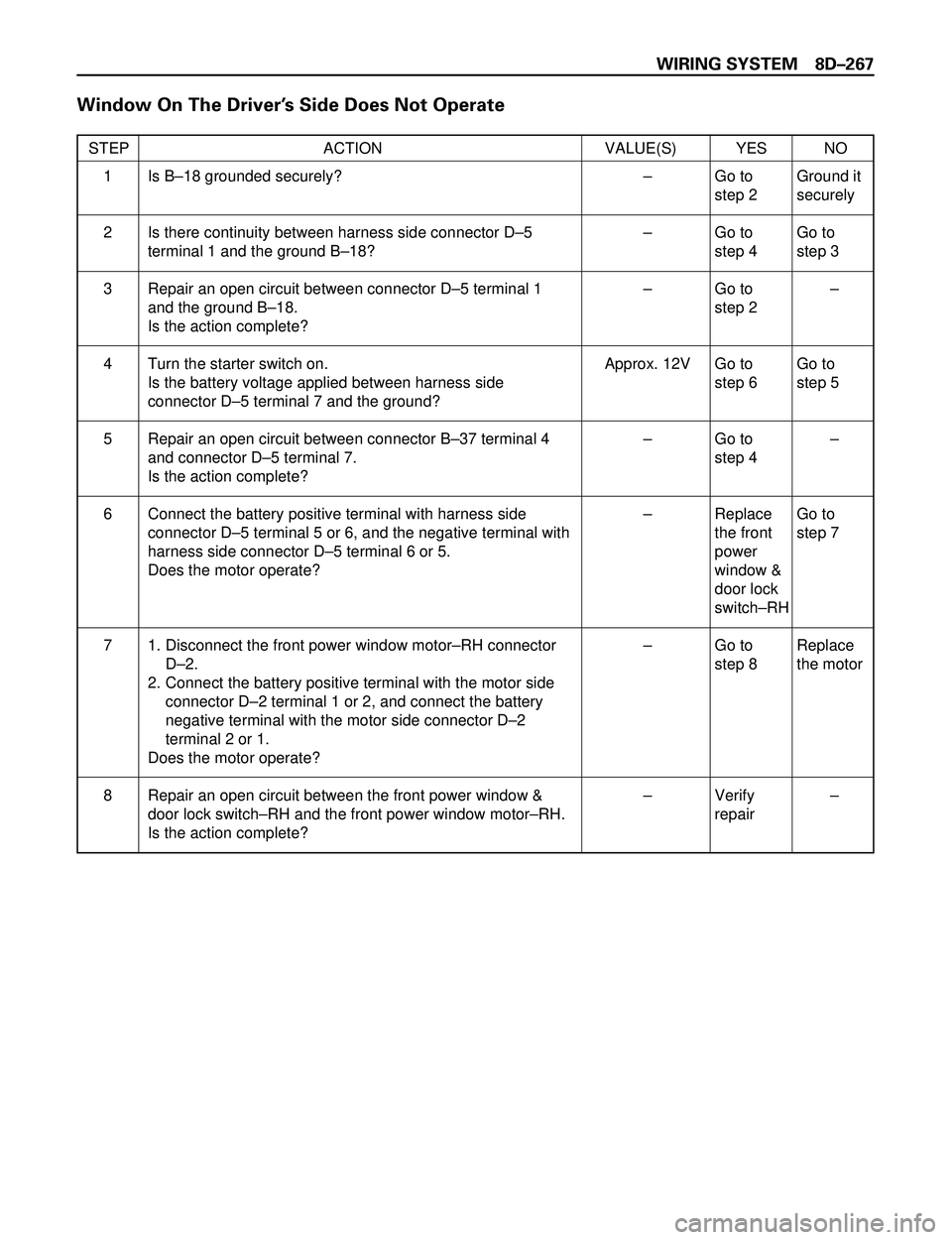

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ267 Window On The DriverÕs Side Does Not Operate STEP ACTION VALUE(S) YES NO Is BÐ18 grounded securely? Is there continuity between harness side connector DÐ5 terminal 1 and the g

Page 2861 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ268 WIRING SYSTEM Window On The Front PassengerÕs Side Does Not Operate STEP ACTION VALUE(S) YES NO Is BÐ1 grounded securely? Disconnect the front power window & door lock switchÐLH connector D

Page 2862 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ269 Rear Window On The Left (or Right) Side Does Not Operate STEP ACTION VALUE(S) YES NO 1. Disconnect the rear power window switchÐLH connector DÐ22 or the rear power window & do

Page 2863 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ270 WIRING SYSTEM Window on the Front PassengerÕs Side Does Not Operate by the Front Power Window & Door Lock Switch Ð RH STEP ACTION VALUE(S) YES NO Disconnect the front power window & door loc

Page 2864 of 3573

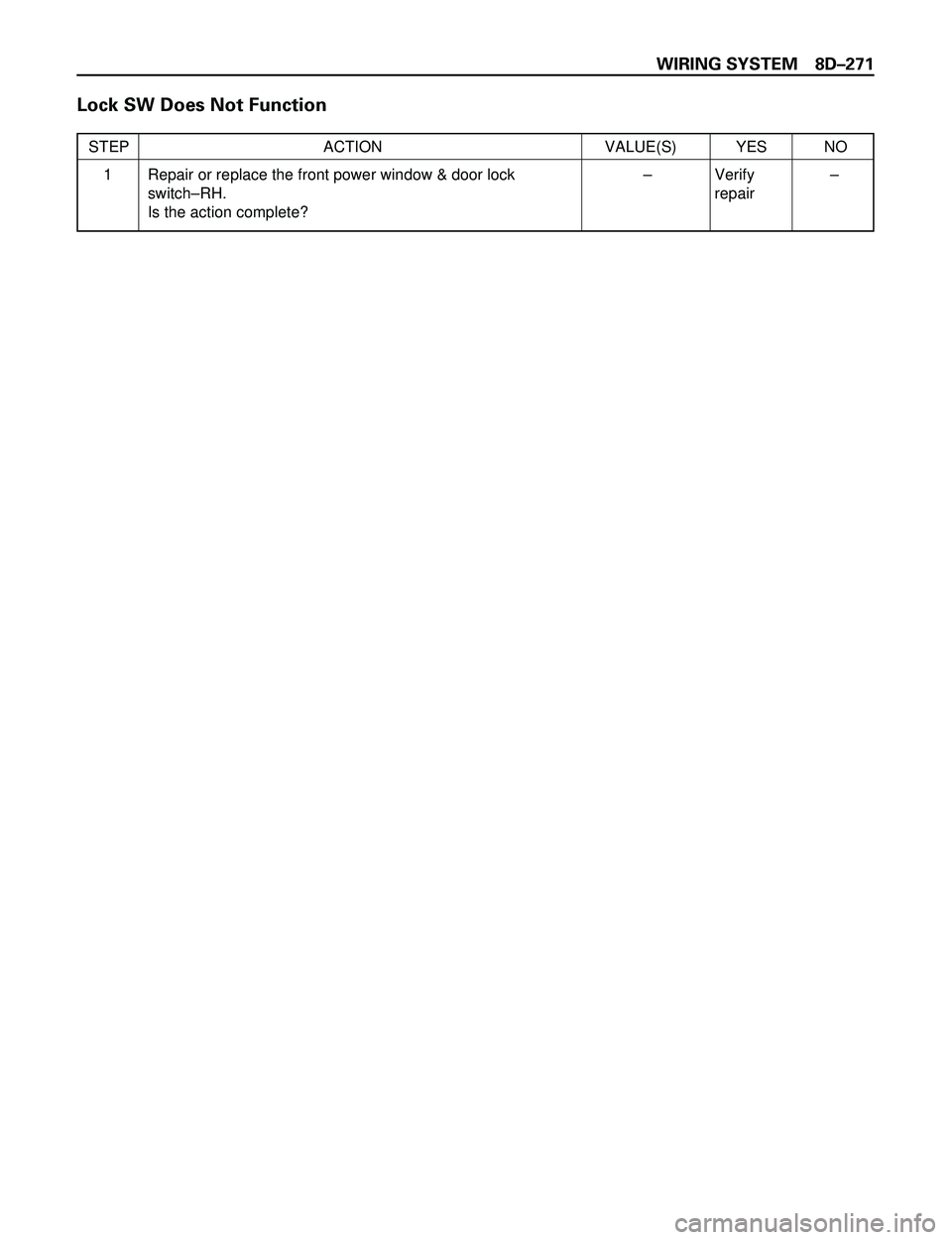

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ271 Lock SW Does Not Function STEP ACTION VALUE(S) YES NO Repair or replace the front power window & door lock switchÐRH. Is the action complete?Ð Verify repairÐ 1
