Page 2905 of 3573

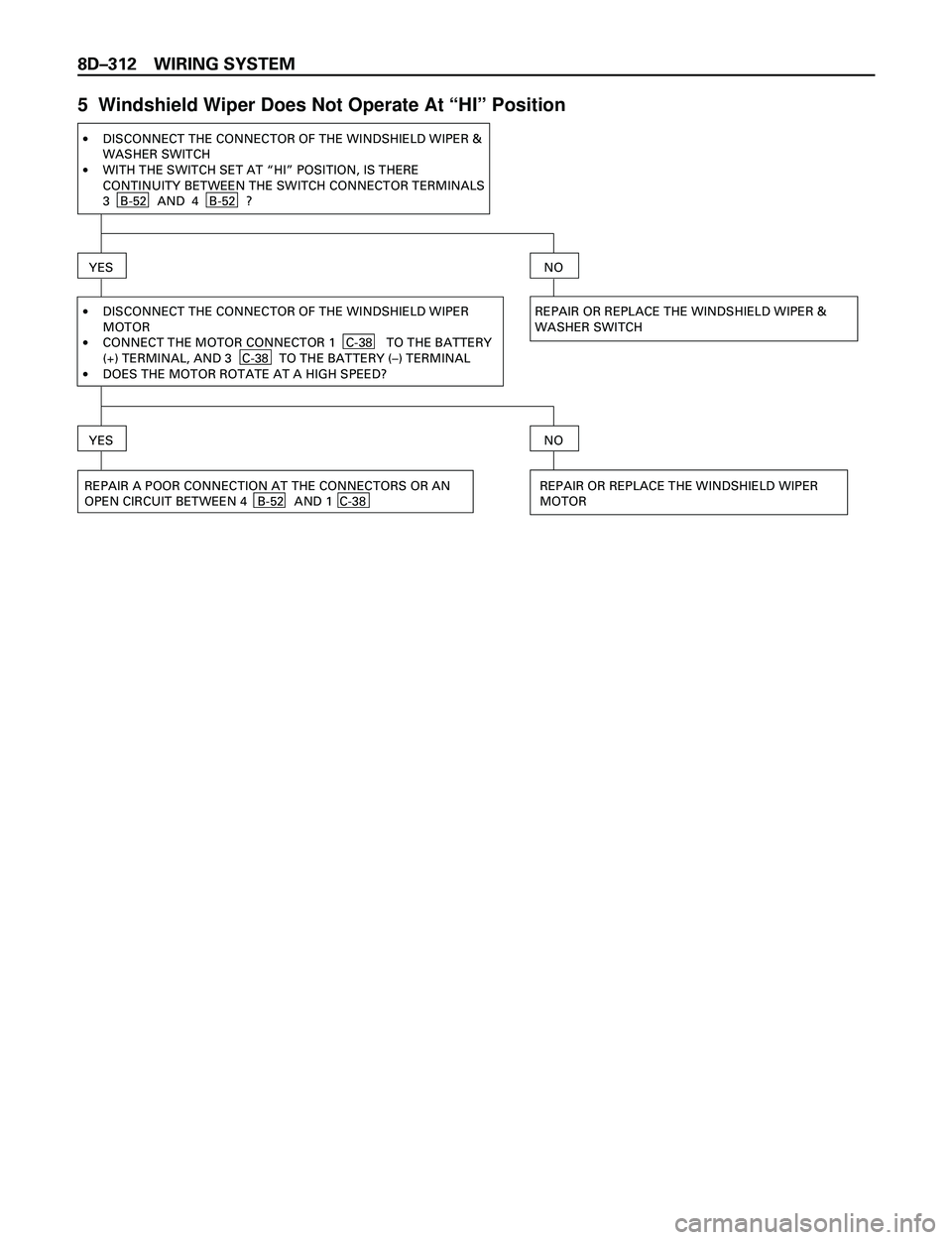

ISUZU TROOPER 1998 Service Repair Manual 8DÐ312 WIRING SYSTEM 5 Windshield Wiper Does Not Operate At ÒHIÓ Position · ·DISCONNECT THE CONNECTOR OF THE WINDSHIELD WIPER & WASHER SWITCH WITH THE SWITCH SET AT “HI” POSITION, IS THERE C

Page 2906 of 3573

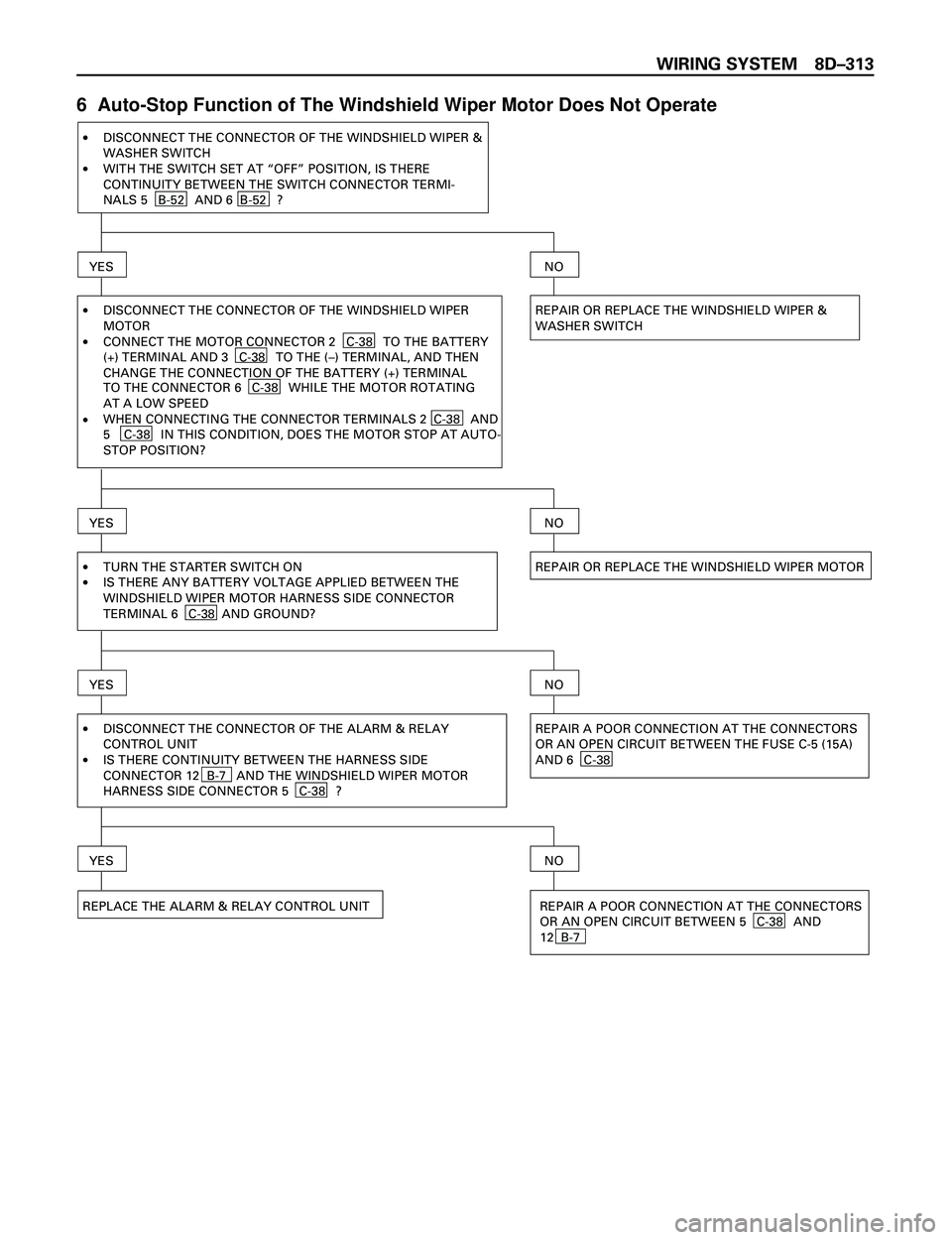

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ313 6 Auto-Stop Function of The Windshield Wiper Motor Does Not Operate · ·DISCONNECT THE CONNECTOR OF THE WINDSHIELD WIPER & WASHER SWITCH WITH THE SWITCH SET AT “OFF” POSITI

Page 2907 of 3573

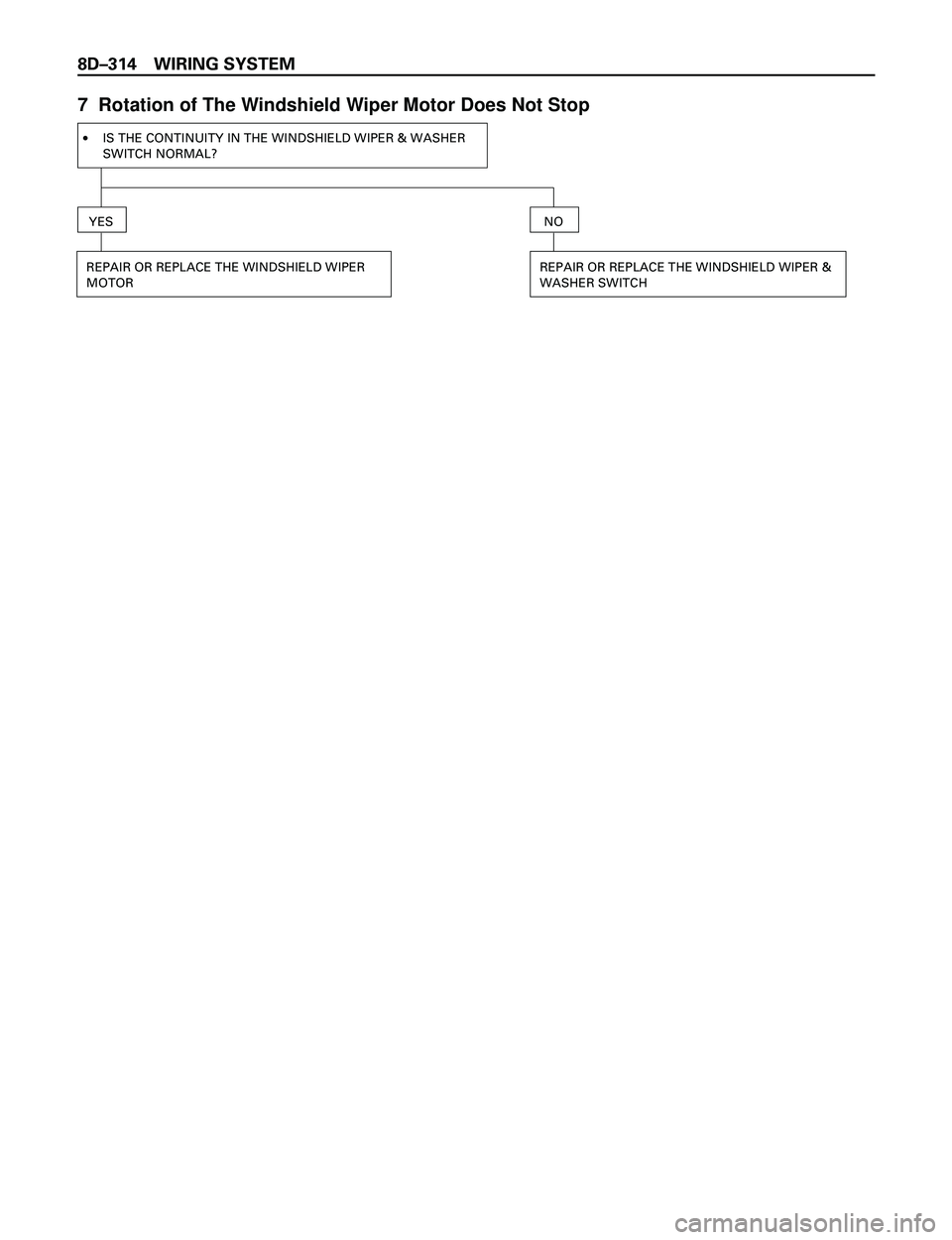

ISUZU TROOPER 1998 Service Repair Manual 8DÐ314 WIRING SYSTEM 7 Rotation of The Windshield Wiper Motor Does Not Stop ·IS THE CONTINUITY IN THE WINDSHIELD WIPER & WASHER SWITCH NORMAL? YESNO REPAIR OR REPLACE THE WINDSHIELD WIPER & WASHER

Page 2908 of 3573

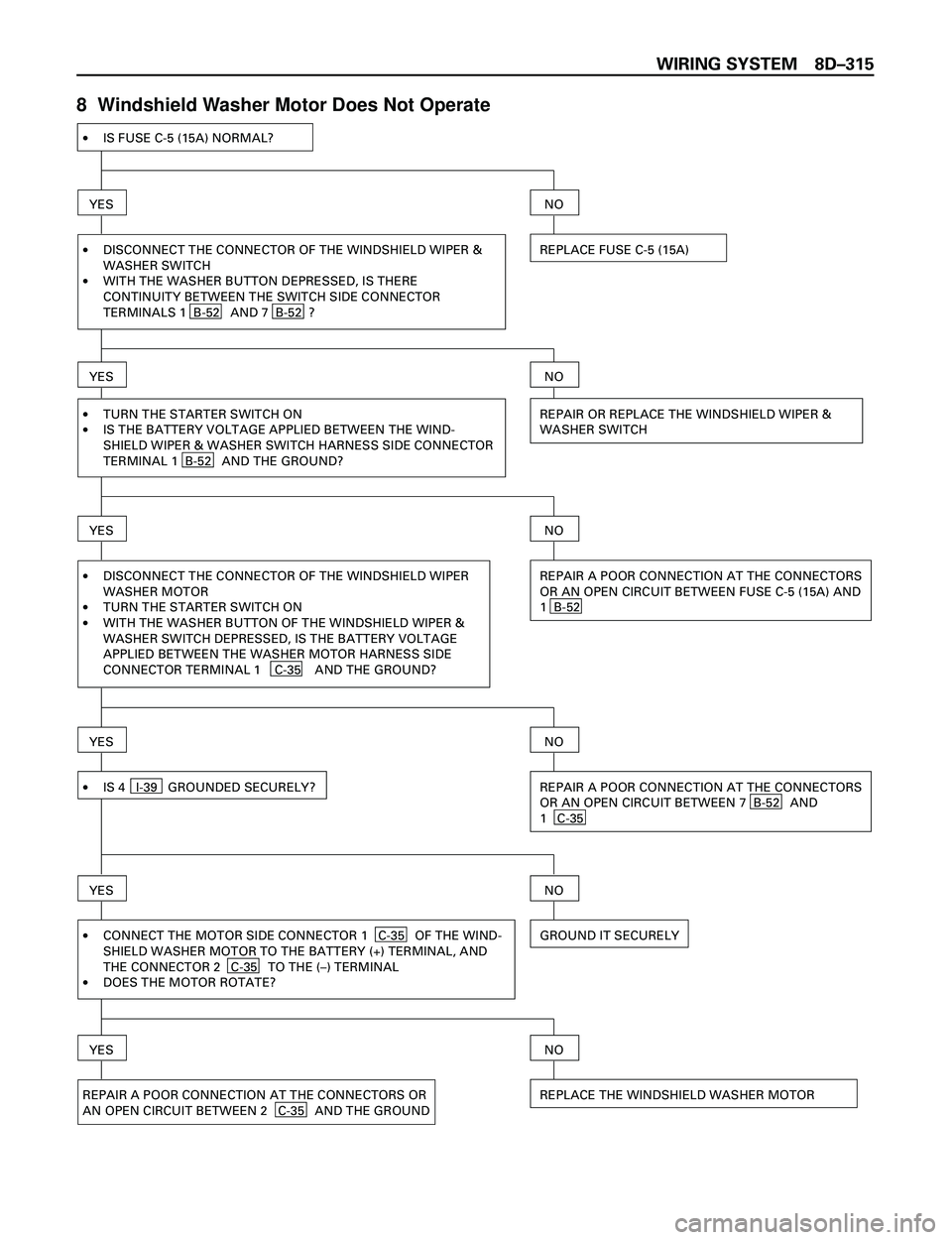

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ315 8 Windshield Washer Motor Does Not Operate ·IS FUSE C-5 (15A) NORMAL? YES · ·DISCONNECT THE CONNECTOR OF THE WINDSHIELD WIPER & WASHER SWITCH WITH THE WASHER BUTTON DEPRESSED

Page 2909 of 3573

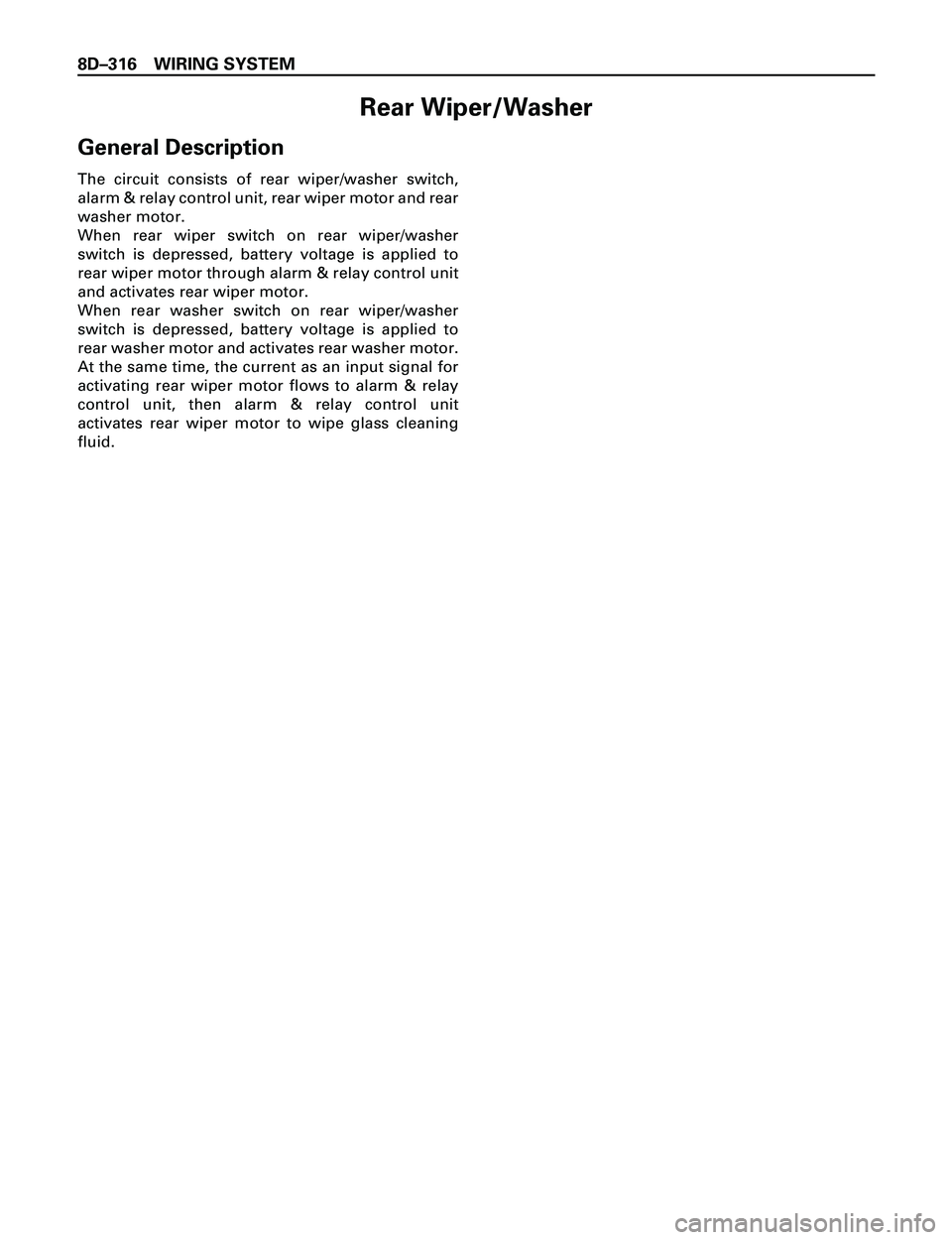

ISUZU TROOPER 1998 Service Repair Manual 8DÐ316 WIRING SYSTEM Rear Wiper/Washer General Description The circuit consists of rear wiper/washer switch, alarm & relay control unit, rear wiper motor and rear washer motor. When rear wiper switch

Page 2910 of 3573

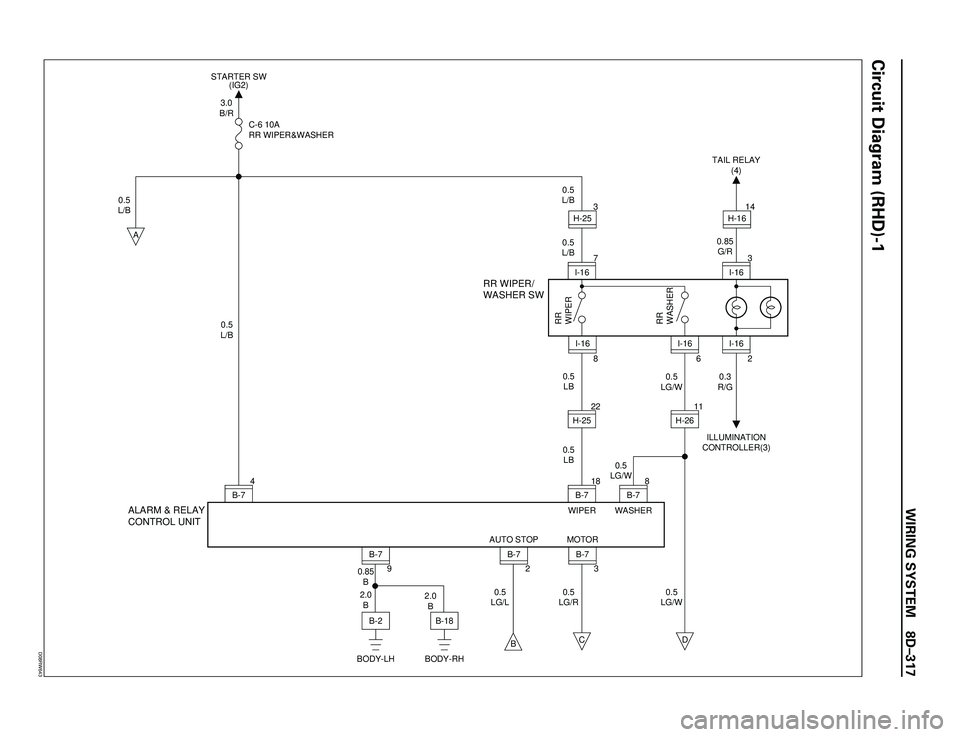

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ317 Circuit Diagram (RHD)-1 ALARM & RELAY CONTROL UNITRR WIPER/ WASHER SW B-2 BODY-LH A B 4 B-77 I-16 8 B-7 B-7 2.0 B 0.85 B 0.5 L/B0.5 L/B0.5 L/B 0.5 L/B3.0 B/R C-6 10A RR WIPER&WAS

Page 2911 of 3573

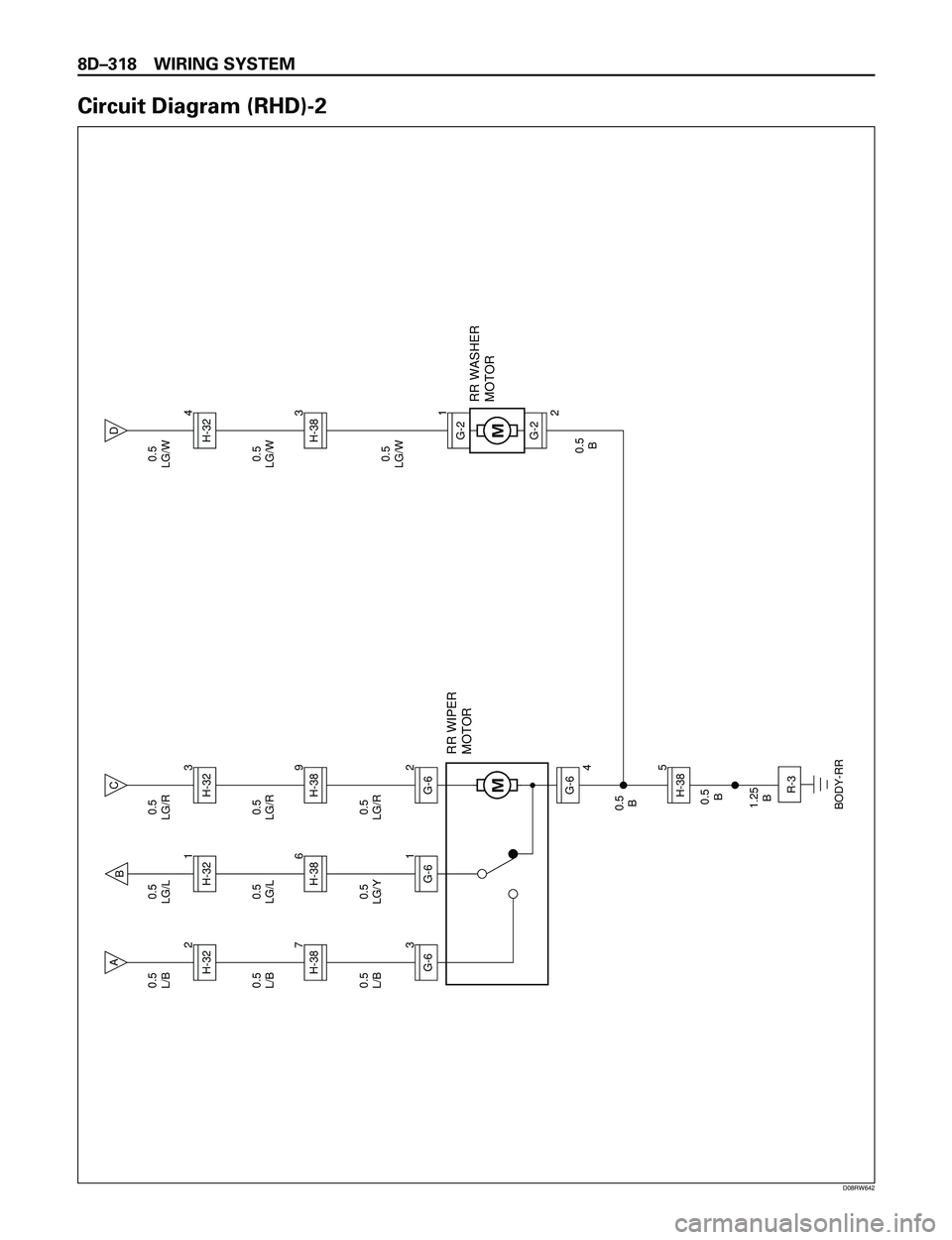

ISUZU TROOPER 1998 Service Repair Manual 8DÐ318 WIRING SYSTEM Circuit Diagram (RHD)-2 RR WASHER MOTOR RR WIPER MOTOR 2 H-32 3 7G-6H-38A 1 H-32 1 6G-6H-38B R-3 BODY-RR3H-32 2 9G-6 5H-38 0.5 B 1.25 B 0.5 B0.5 B 0.5 LG/W0.5 LG/W0.5 LG/W 0.5 LG

Page 2912 of 3573

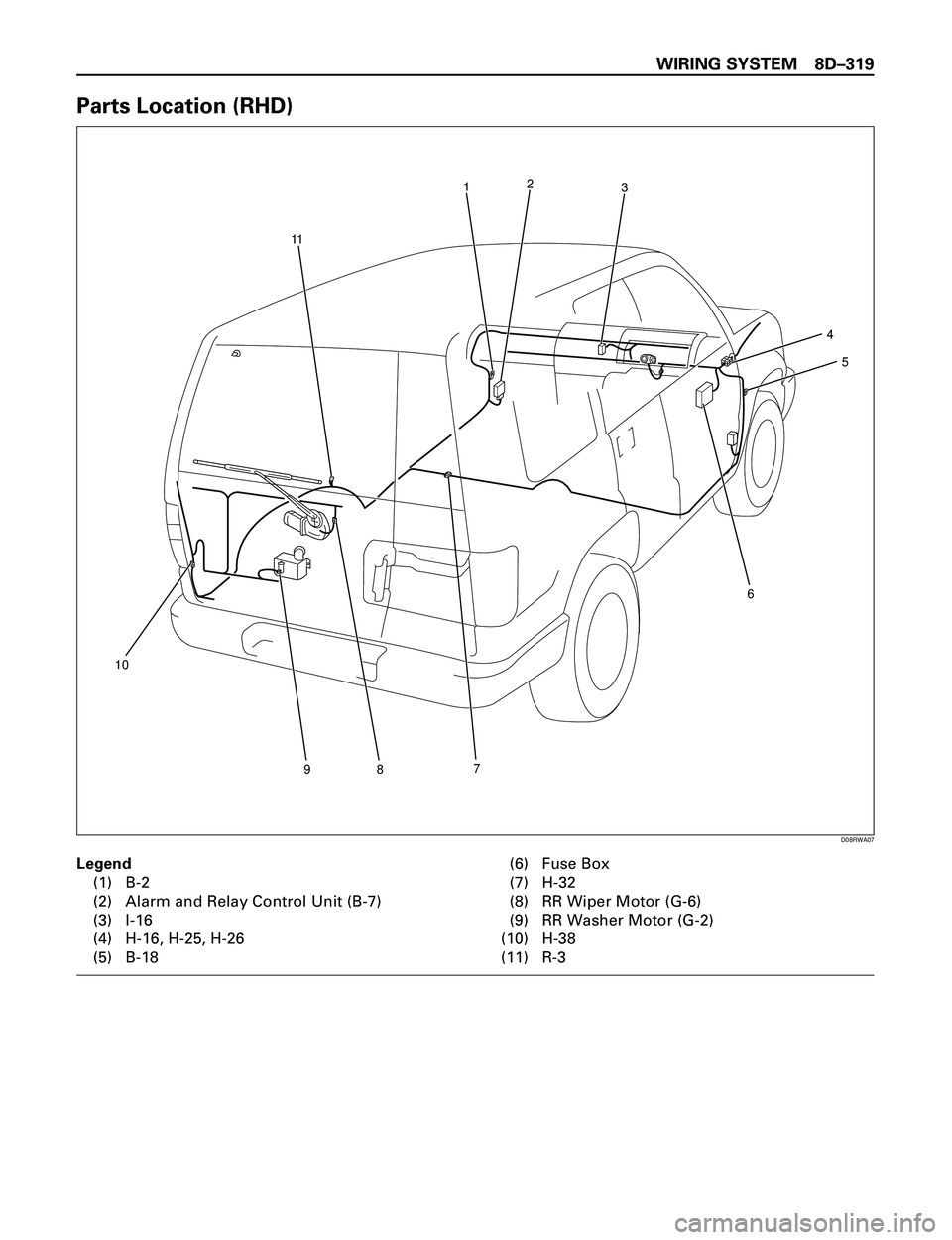

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ319 Parts Location (RHD) Legend (1) B-2 (2) Alarm and Relay Control Unit (B-7) (3) I-16 (4) H-16, H-25, H-26 (5) B-18(6) Fuse Box (7) H-32 (8) RR Wiper Motor (G-6) (9) RR Washer Moto
