Page 105 of 3573
1A Ð 10 HEATING AND VENTILATION
Removal Steps
1. Heater unit
2. Case (Mode control)
3. Washer and mode main lever
4. Rod
5. Mode sub-lever
6. Door lever
7. Clip
Installation Steps
To install, follow the removal steps in the
reverse order.

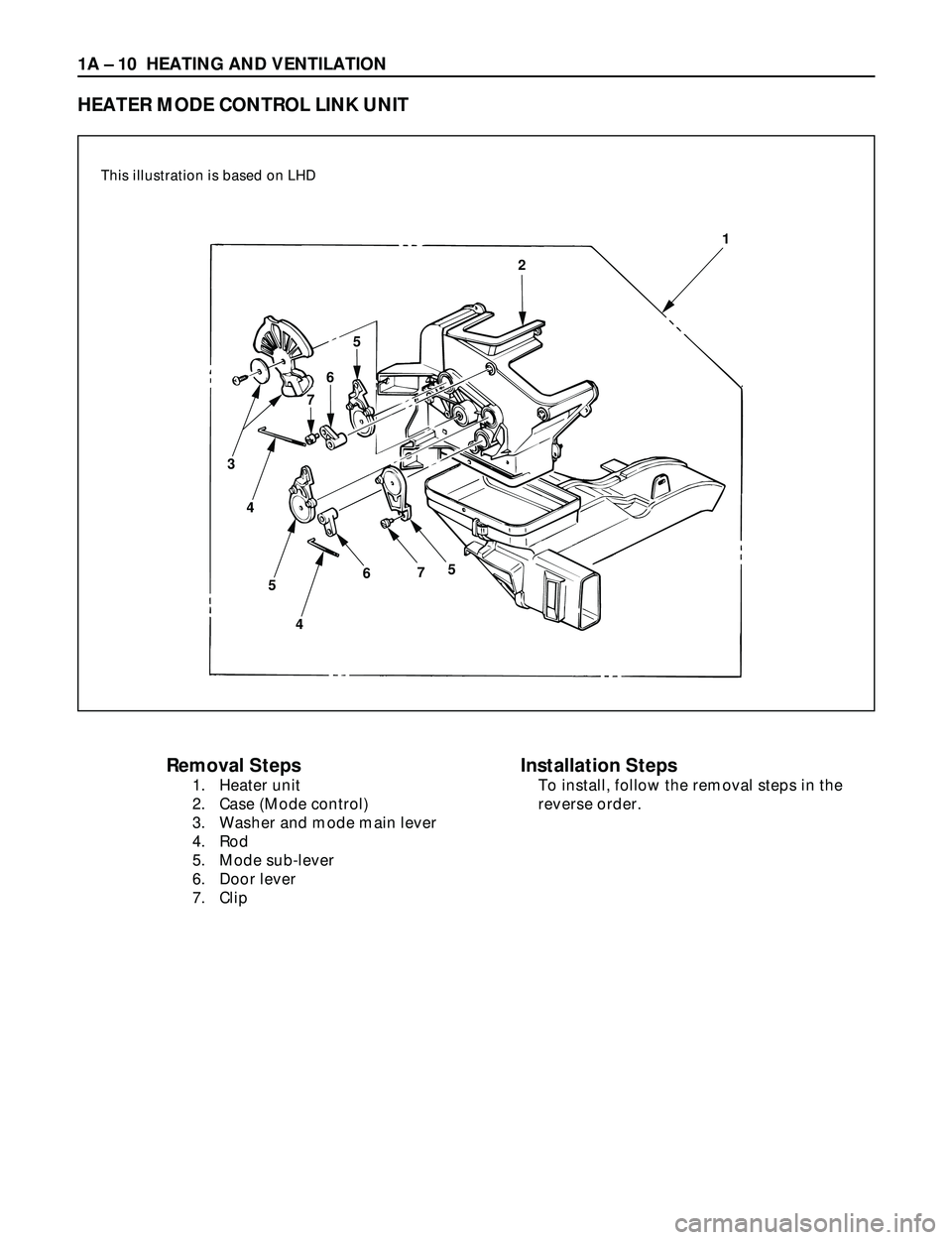

HEATER MODE CONTROL LINK UNIT
This illustration is based on LHD
1
2
5
6
7
3
4
5
46
75
Page 106 of 3573
HEATING AND VENTILATION 1A Ð 11
REMOVAL
Preparation:
·Disconnect the battery ground cable
·Drain engine coolant
1. Heater Unit
Refer to ÒHEATER UNITÓ removal procedure in this
section.
2. Case (Mode Control)
Remove the case (Mode control) from heater unit.
3. Washer and Mode Main Lever
4. Rod
5. Mode Sub-Lever
Press the tab of the sub-lever inward, and take out the
sub-lever.
6. Door Lever
Pull out the door lever while raising up the catch of
the door lever.
INSTALLATION
To install, follow the removal steps in the reverse order,
noting the following points:
1. Apply grease to mode sub-lever and to the abrasive
surface of the heater unit.
2. After installing the link unit, check to see if the link
unit operates correctly.
Page 107 of 3573
1A Ð 12 HEATING AND VENTILATION
Removal Steps
1. Heater unit
2. Case (Temperature control)
3. Rod
4. Sub-lever
5. Door lever
6. Clip
Installation Steps
To install, follow the removal steps in the
reverse order.

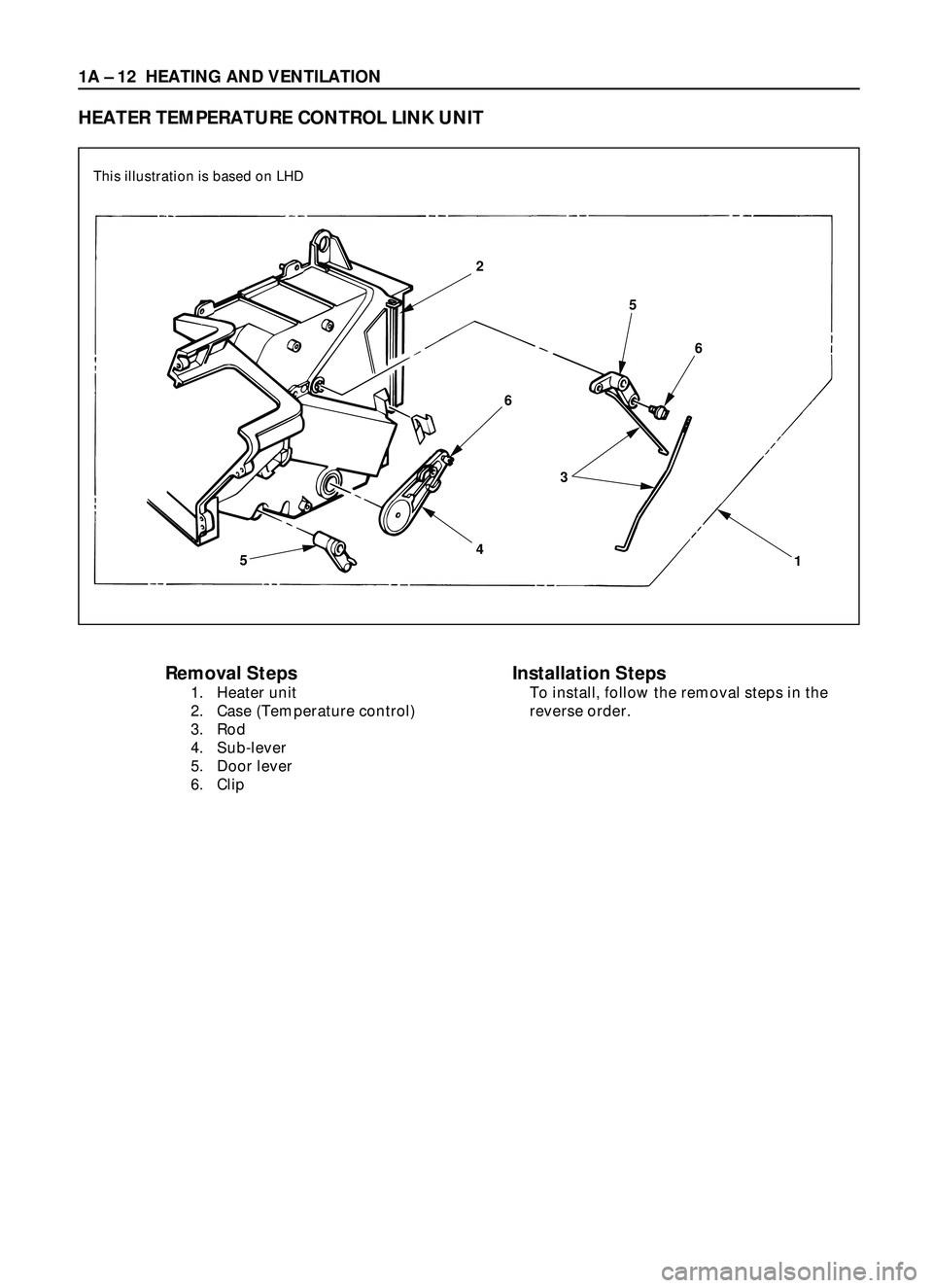

HEATER TEMPERATURE CONTROL LINK UNIT
2
5
6
6
4
5
1 3 This illustration is based on LHD
Page 108 of 3573
HEATING AND VENTILATION 1A Ð 13
REMOVAL
Preparation:
·Disconnect the battery ground cable
·Drain engine coolant
1. Heater Unit
Refer to ÒHEATER UNITÓ removal procedure in this
section.
2. Case (Temperature Control)
Remove the case (Temperature control) from the
heater unit.
3. Rod
4. Sub-Lever
5. Door Lever
Pull out the door lever while raising up the catch of
the door lever.
6. Clip
INSTALLATION
To install, follow the removal steps in the reverse order,
noting the following points:
1. Apply grease to sub-lever and to the abrasive surface
of the heater unit.
2. After installing the link unit, check to see if the link
unit operates correctly.
Page 109 of 3573
1A Ð 14 HEATING AND VENTILATION
Removal Steps
1. Instrument panel assembly
2. Resistor connector
3. Duct
3a. Evaporator assembly (A/C only)
4. Kick panel
5. Blower motor connector
6. Blower assembly
Installation Steps
To install, follow the removal steps in the
reverse order.

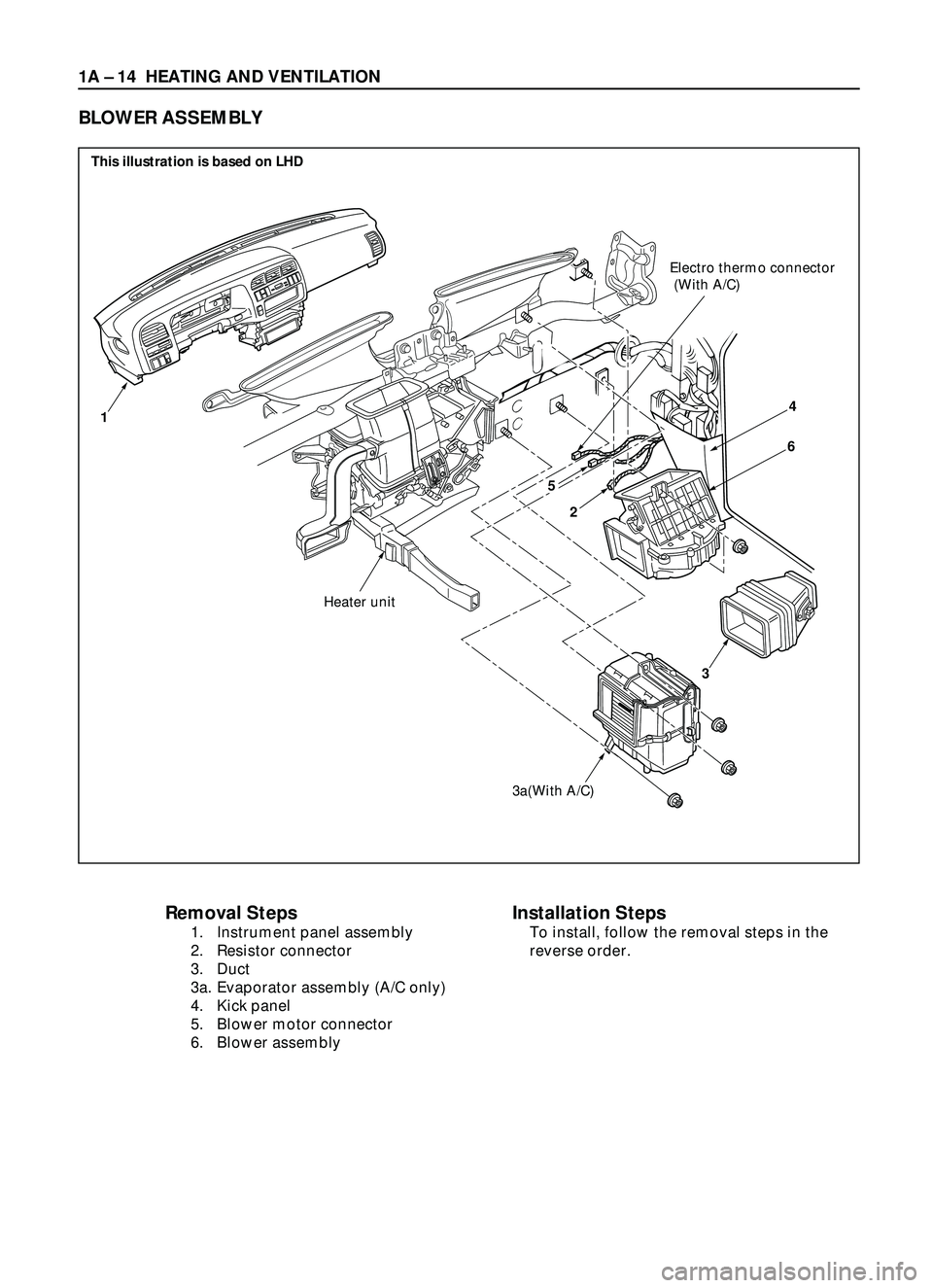

BLOWER ASSEMBLY
2
3a(With A/C)
3
Heater unit
Electro thermo connector
(With A/C)
14
6
5
This illustration is based on LHD
Page 110 of 3573
HEATING AND VENTILATION 1A Ð 15
REMOVAL
Preparation:
·Disconnect the battery ground cable
·Discharge and recover refrigerant (W/A/C)
(Refer to Section 1B ÒREFRIGERANT RECOVERYÓ)
1. Instrument Panel Assembly
Refer to Section 10 ÒBODYÓ for INSTRUMENT PANEL
ASSEMBLY removal procedure.
2. Resistor Connector
3. Duct
3a. Evaporator Assembly (A/C only)
Refer to Section 1B ÒAIR CONDITIONINGÓ for
EVAPORATOR ASSEMBLY removal procedure.
4. Kick panel
5. Blower Motor Connector
6. Blower Assembly
INSTALLATION
To install, follow the removal steps in the reverse order,
noting the following point:
1. Adjust Control Lever Assembly Cables
Refer to ÒCONTROL LEVER ASSEMBLYÓ installation
procedure in this section.
Page 111 of 3573
1A Ð 16 HEATING AND VENTILATION
Removal Steps
1. Blower assembly
2. Lower case
3. Upper case
4. Mode door
5. Sub-lever
6. Door lever
Installation Steps
To install, follow the removal steps in the
reverse order.

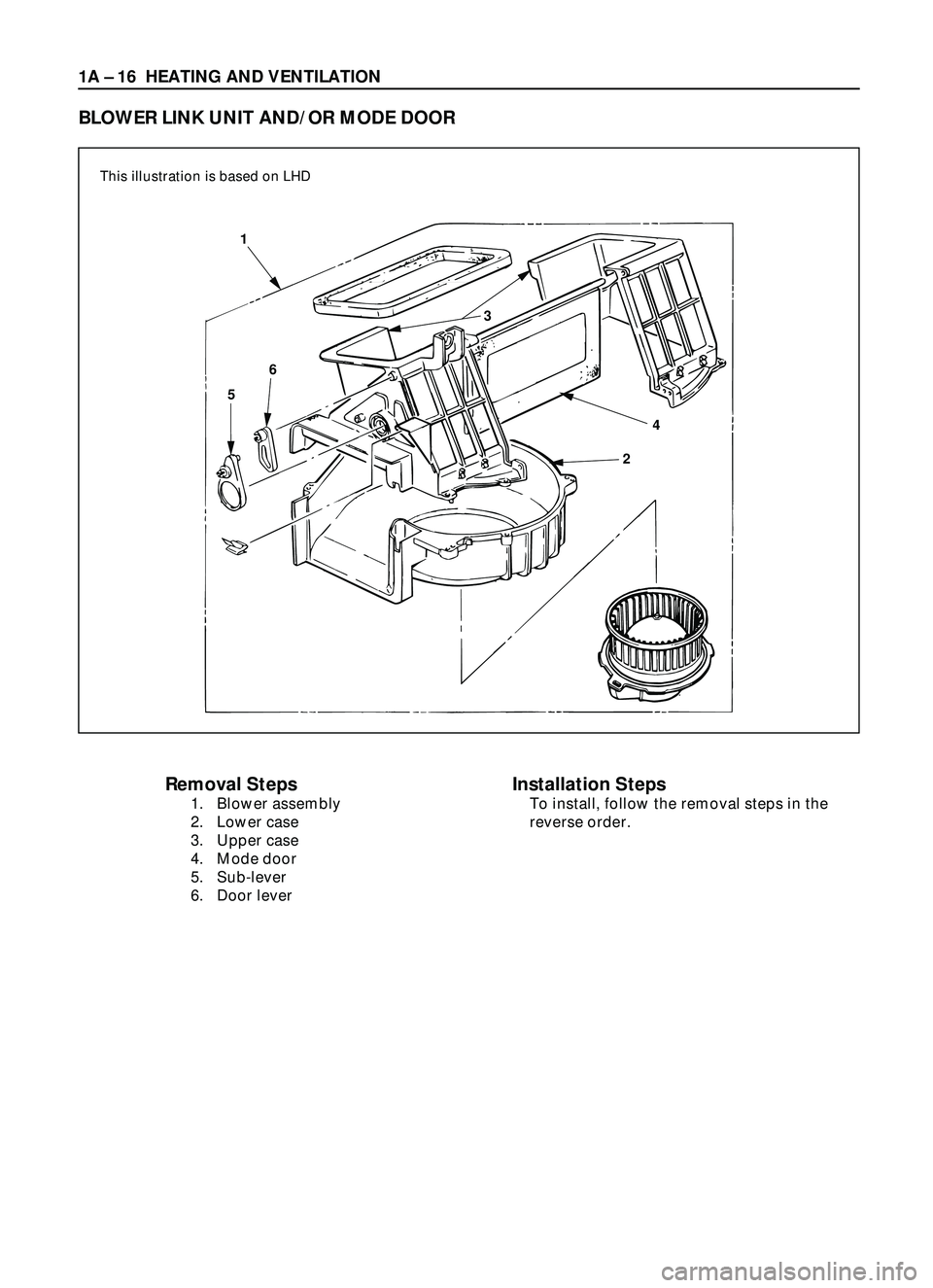

BLOWER LINK UNIT AND/OR MODE DOOR
This illustration is based on LHD
1
3
6
24 5
Page 112 of 3573

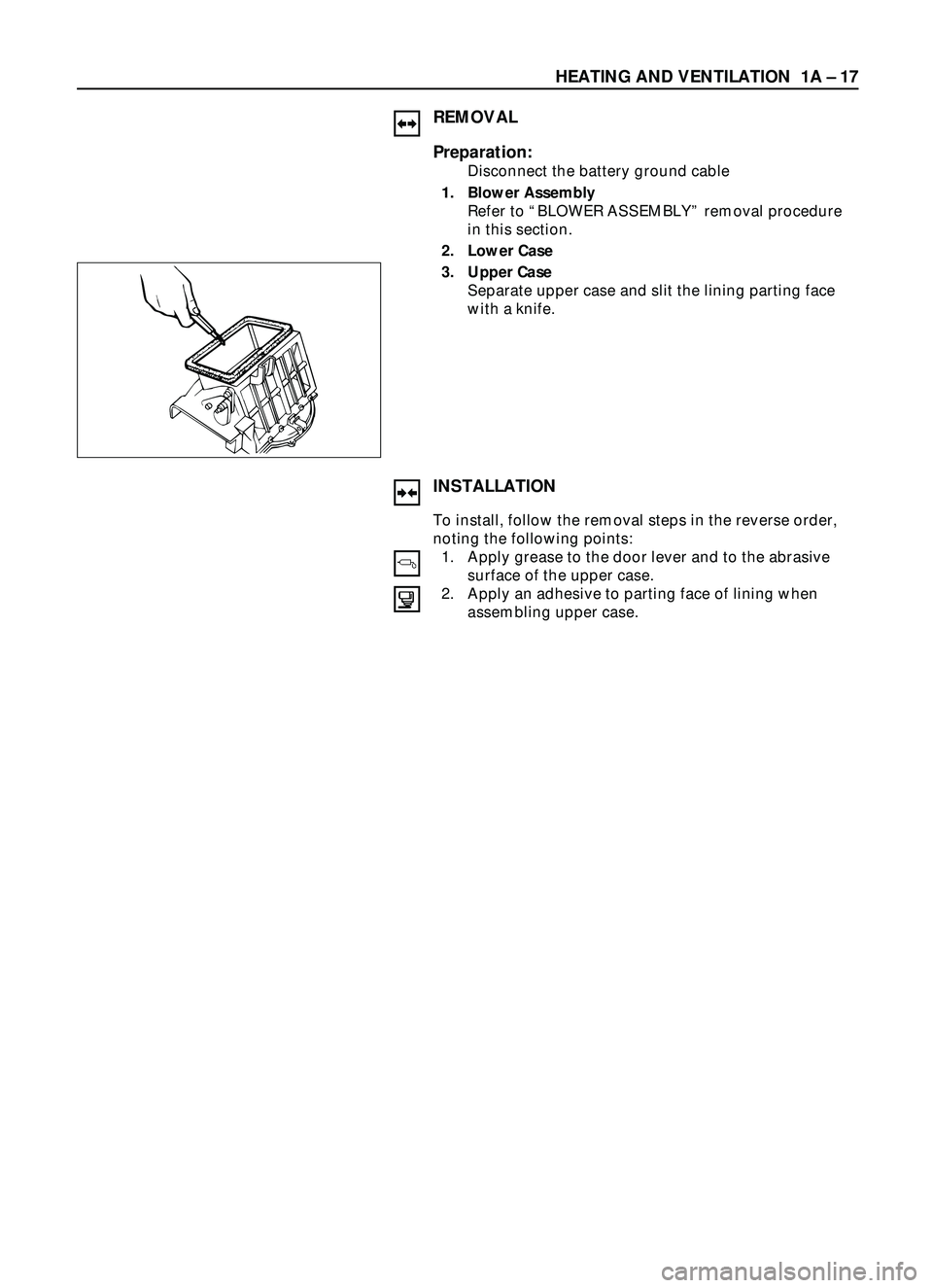

HEATING AND VENTILATION 1A Ð 17
REMOVAL
Preparation:
Disconnect the battery ground cable
1. Blower Assembly
Refer to ÒBLOWER ASSEMBLYÓ removal procedure
in this section.
2. Lower Case
3. Upper Case
Separate upper case and slit the lining parting face
with a knife.
INSTALLATION
To install, follow the removal steps in the reverse order,
noting the following points:
1. Apply grease to the door lever and to the abrasive
surface of the upper case.
2. Apply an adhesive to parting face of lining when
assembling upper case.
