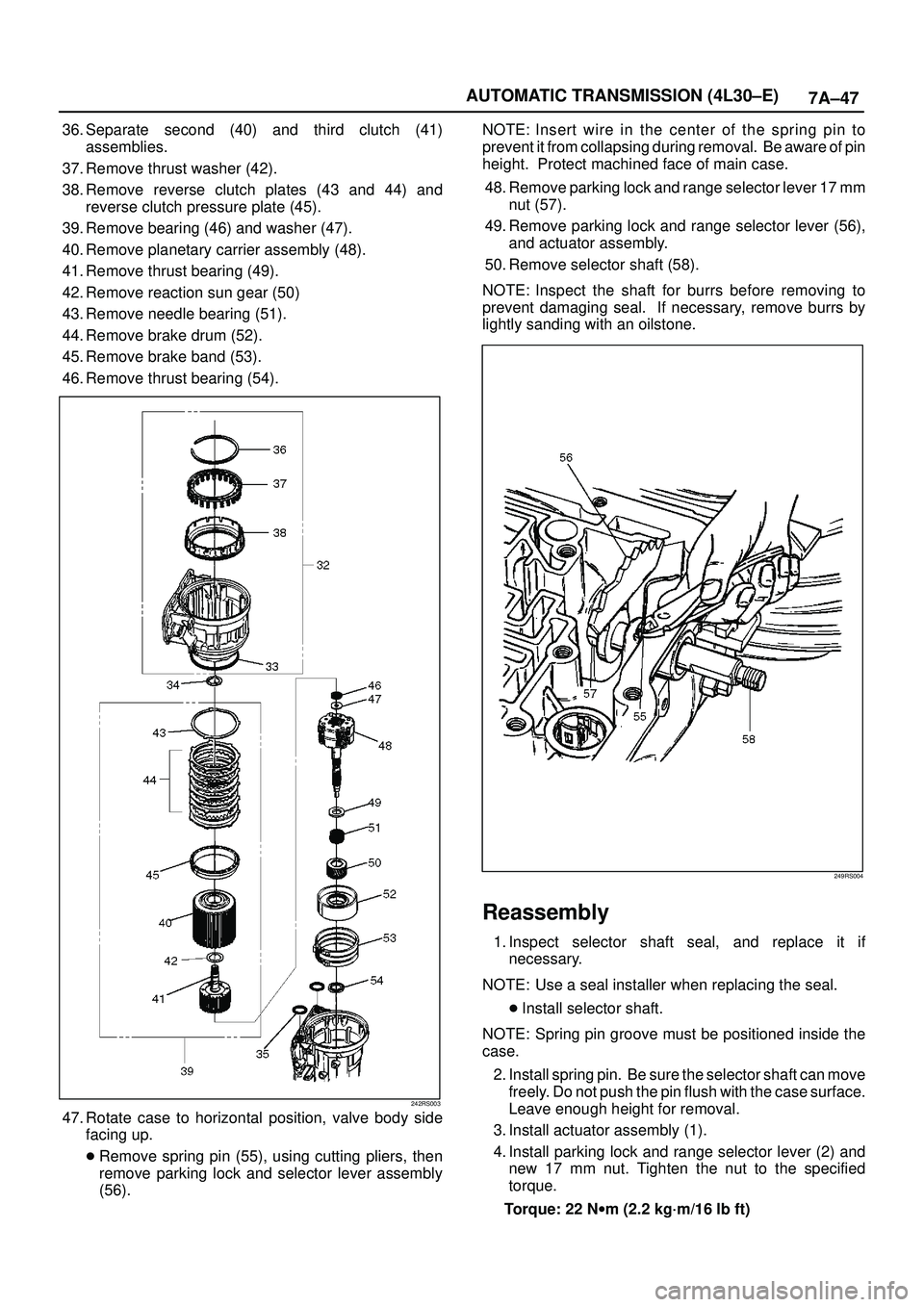

Page 2201 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±47 AUTOMATIC TRANSMISSION (4L30±E) 36. Separate second (40) and third clutch (41) assemblies. 37. Remove thrust washer (42). 38. Remove reverse clutch plates (43 and 44) and reverse clutch pressu

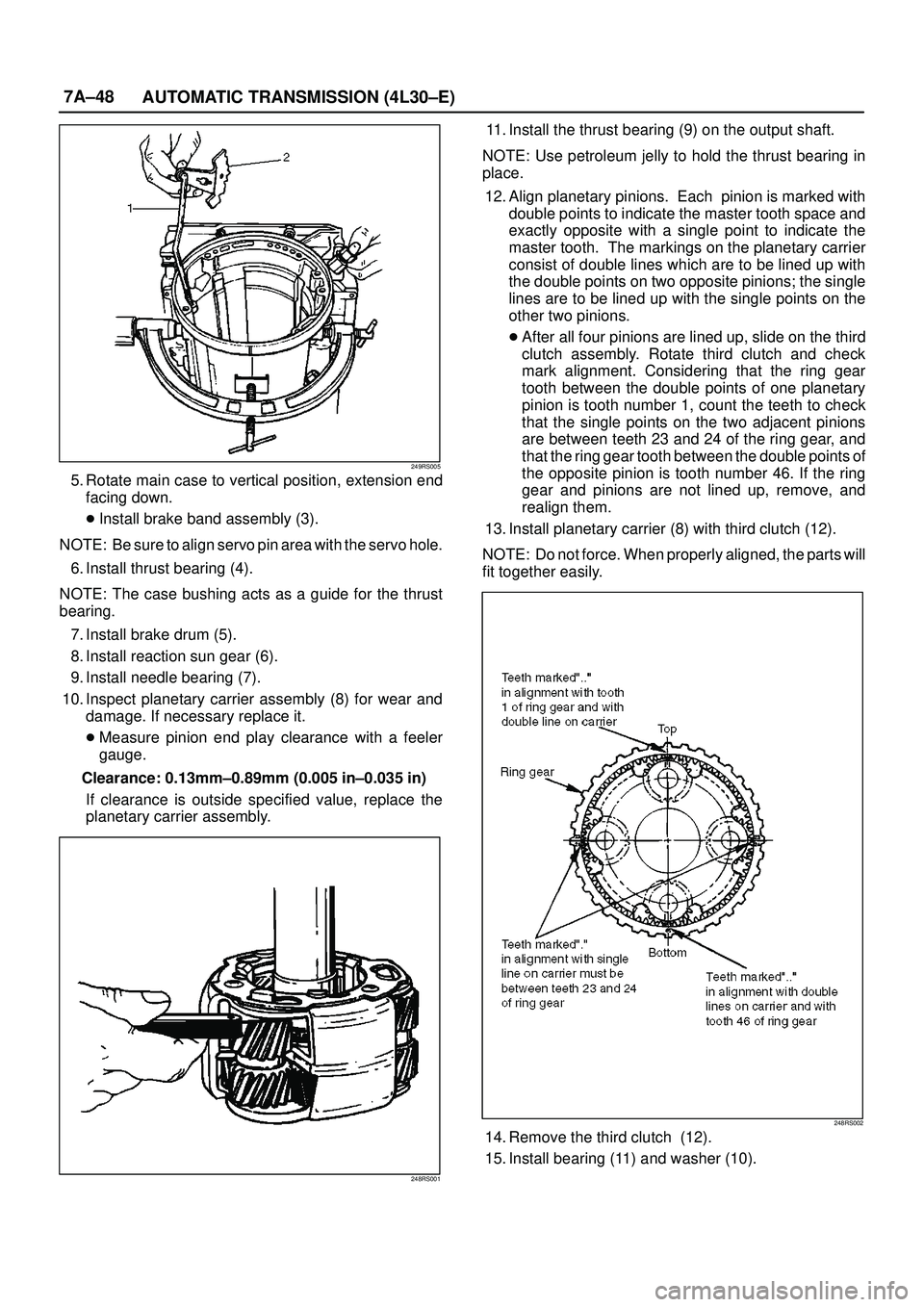

Page 2202 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±48 AUTOMATIC TRANSMISSION (4L30±E) 249RS005 5. Rotate main case to vertical position, extension end facing down. Install brake band assembly (3). NOTE: Be sure to align servo pin area with the s

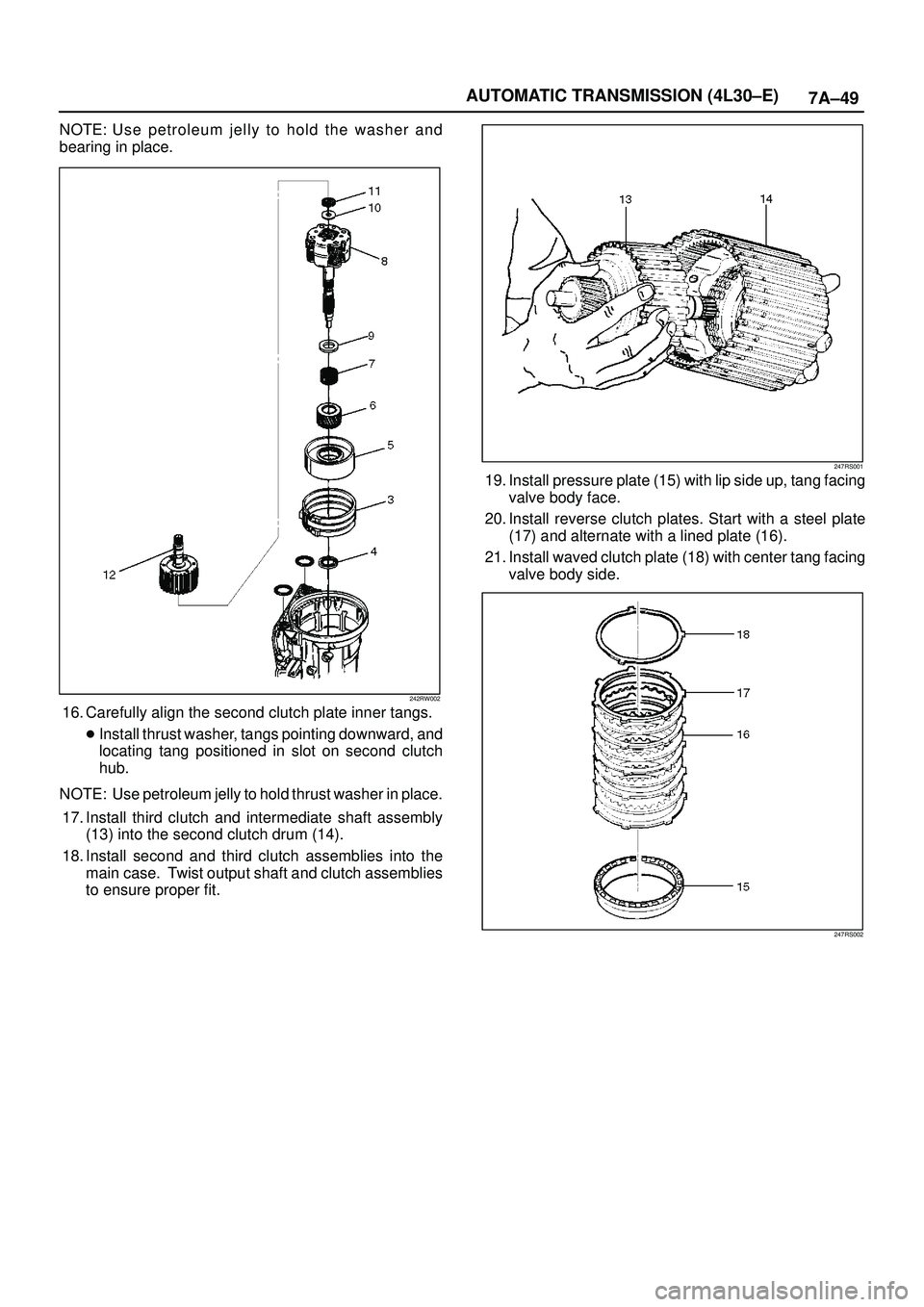

Page 2203 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±49 AUTOMATIC TRANSMISSION (4L30±E) NOTE: Use petroleum jelly to hold the washer and bearing in place. 242RW002 16. Carefully align the second clutch plate inner tangs. Install thrust washer, tan

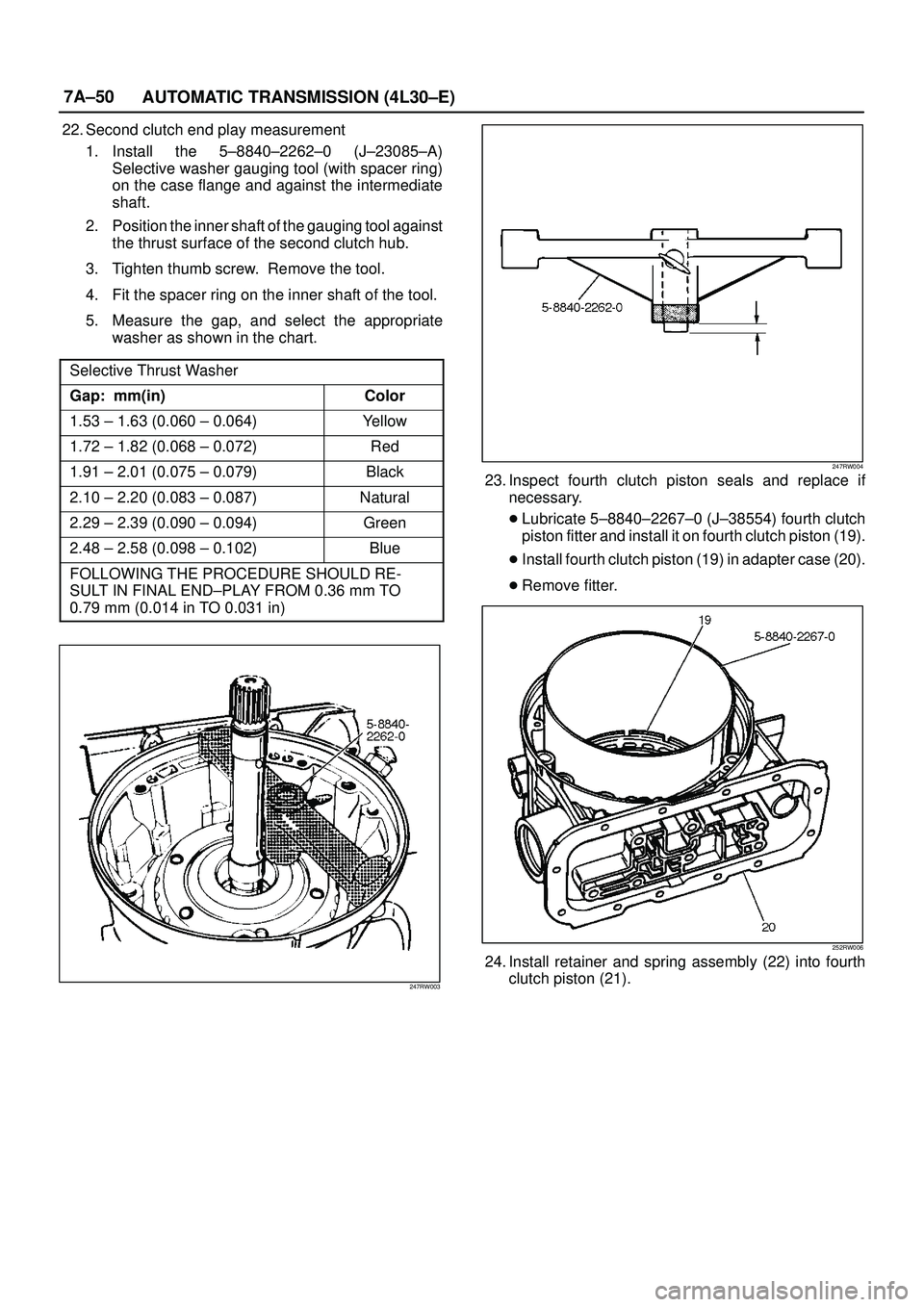

Page 2204 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±50 AUTOMATIC TRANSMISSION (4L30±E) 22. Second clutch end play measurement 1. Install the 5±8840±2262±0 (J±23085±A) Selective washer gauging tool (with spacer ring) on the case flange and aga

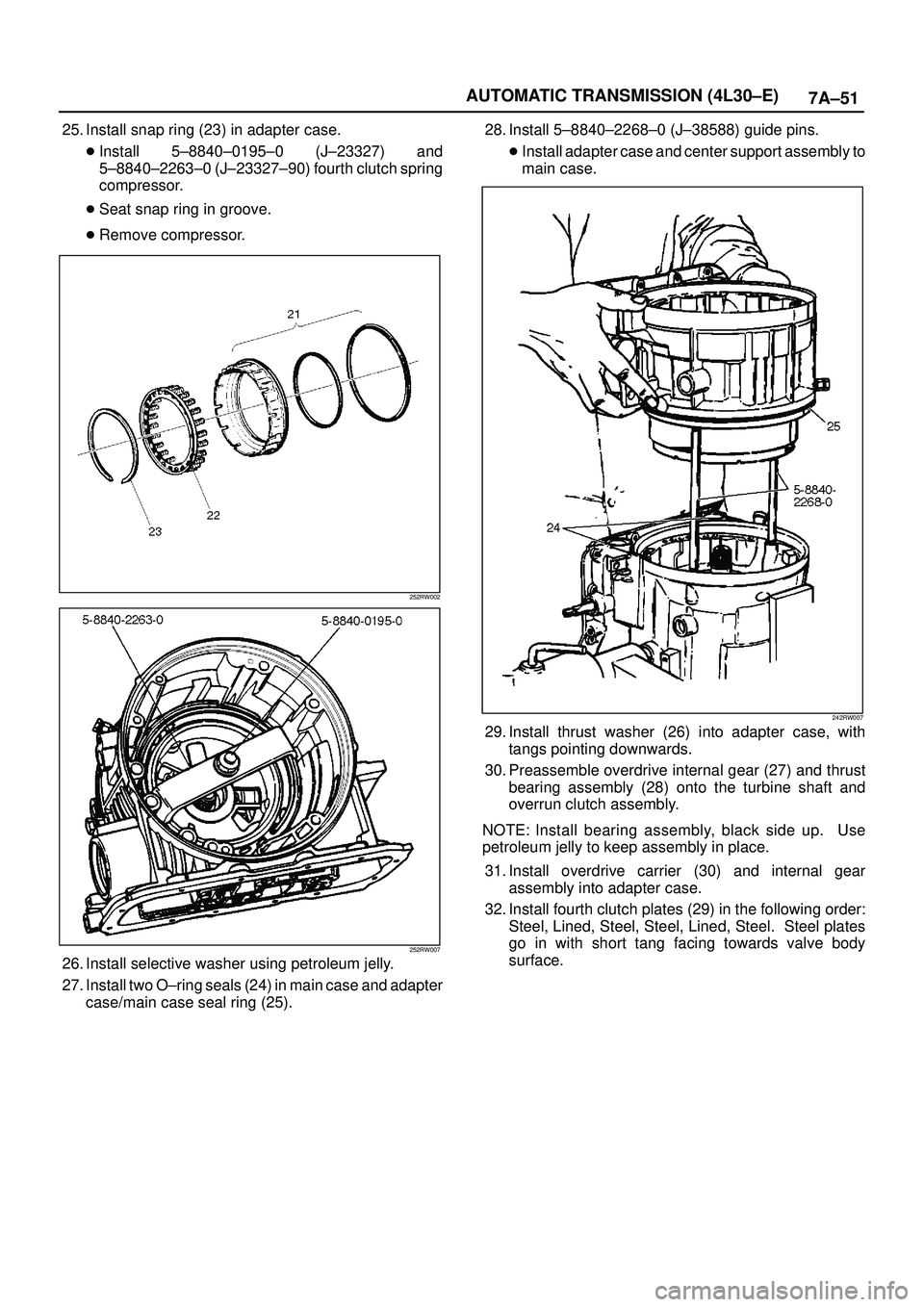

Page 2205 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±51 AUTOMATIC TRANSMISSION (4L30±E) 25. Install snap ring (23) in adapter case. Install 5±8840±0195±0 (J±23327) and 5±8840±2263±0 (J±23327±90) fourth clutch spring compressor. Seat snap

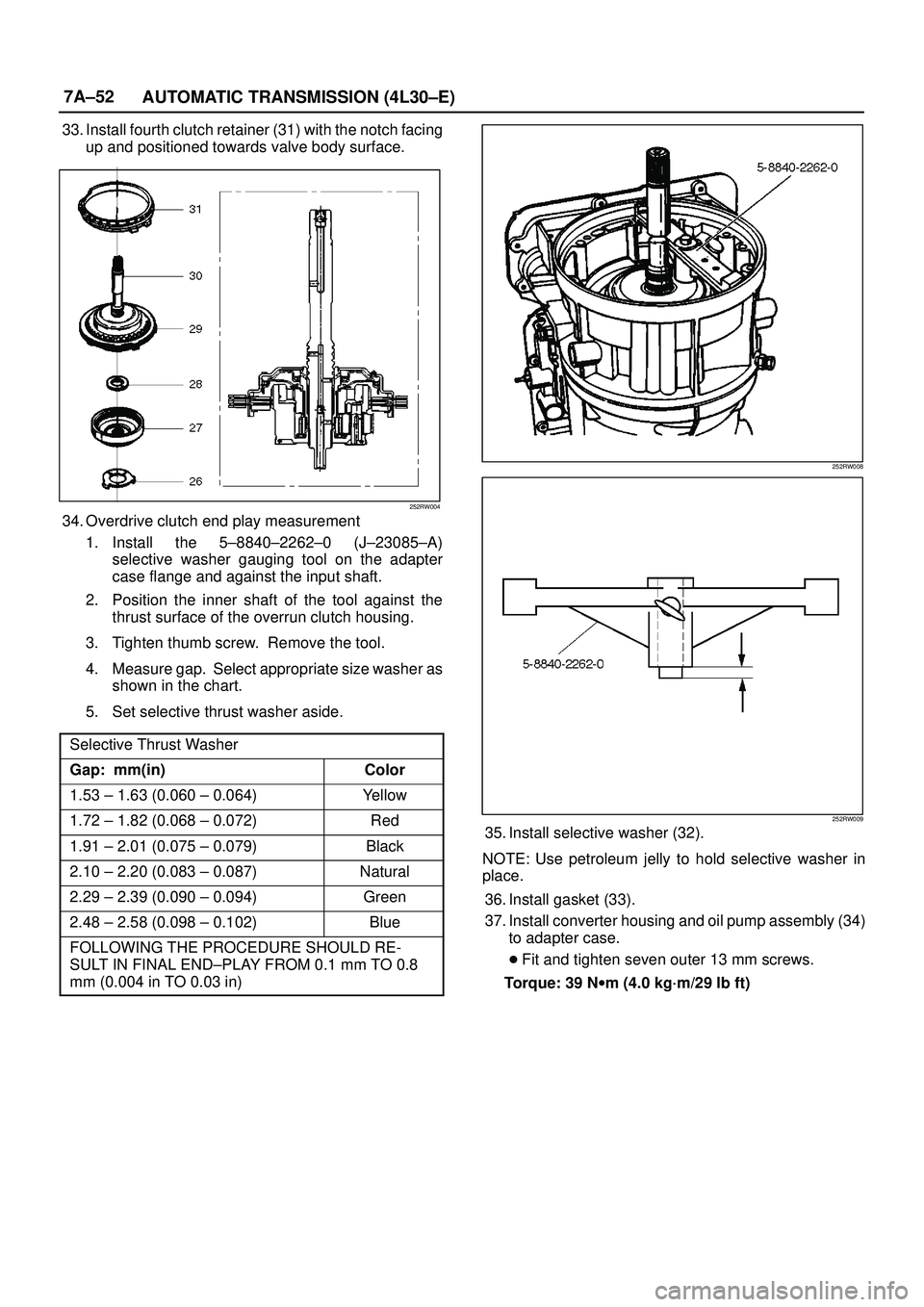

Page 2206 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±52 AUTOMATIC TRANSMISSION (4L30±E) 33. Install fourth clutch retainer (31) with the notch facing up and positioned towards valve body surface. 252RW004 34. Overdrive clutch end play measurement 1

Page 2207 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±53 AUTOMATIC TRANSMISSION (4L30±E) Ensure free rotation of pump using 5±8840±2273±0 (J±23082±01) oil pump rotation tool. 241RW010 38. Overdrive clutch end play measurement. 1. Fit 5±8840±

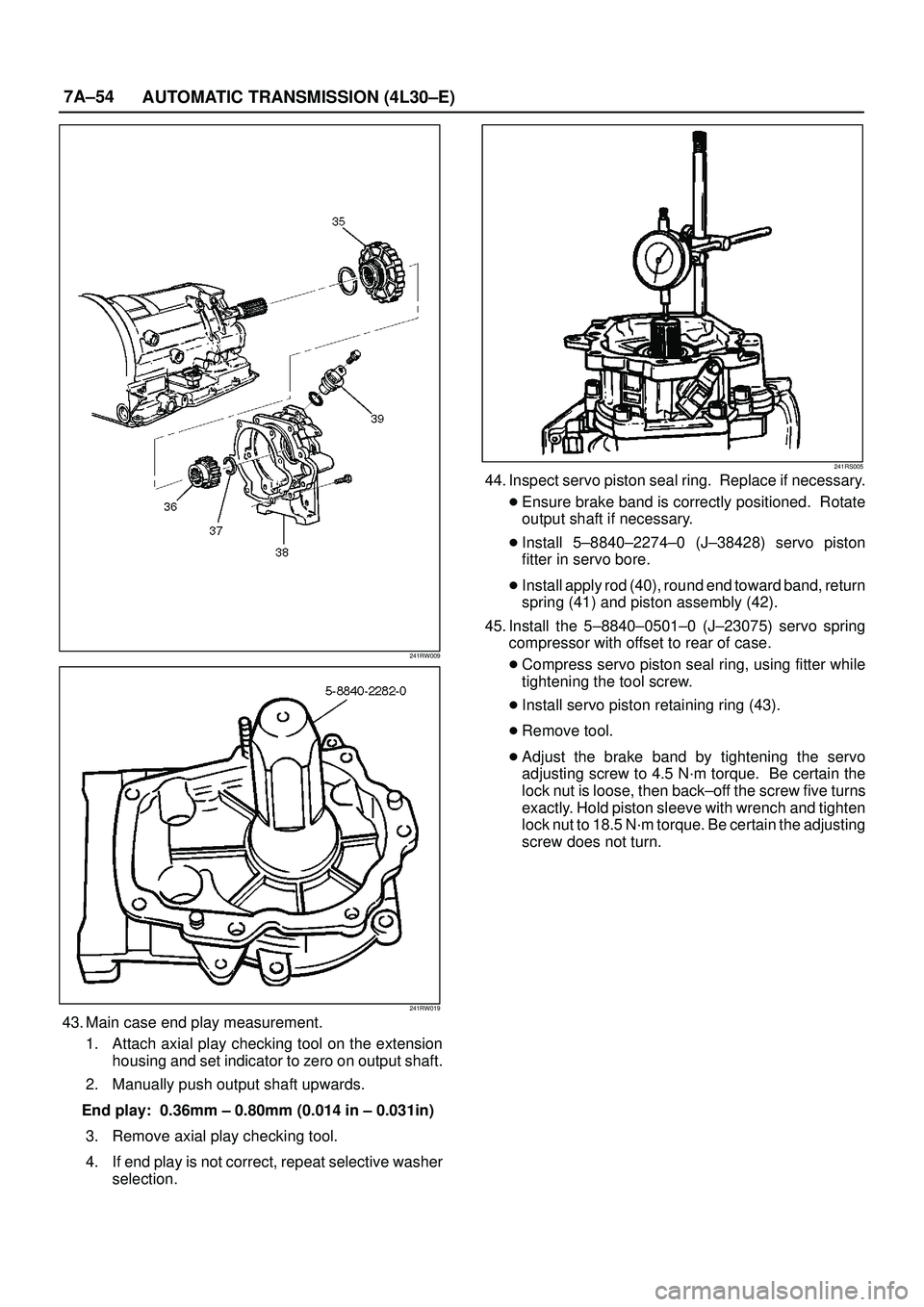

Page 2208 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7A±54 AUTOMATIC TRANSMISSION (4L30±E) 241RW009 241RW019 43. Main case end play measurement. 1. Attach axial play checking tool on the extension housing and set indicator to zero on output shaft. 2.
