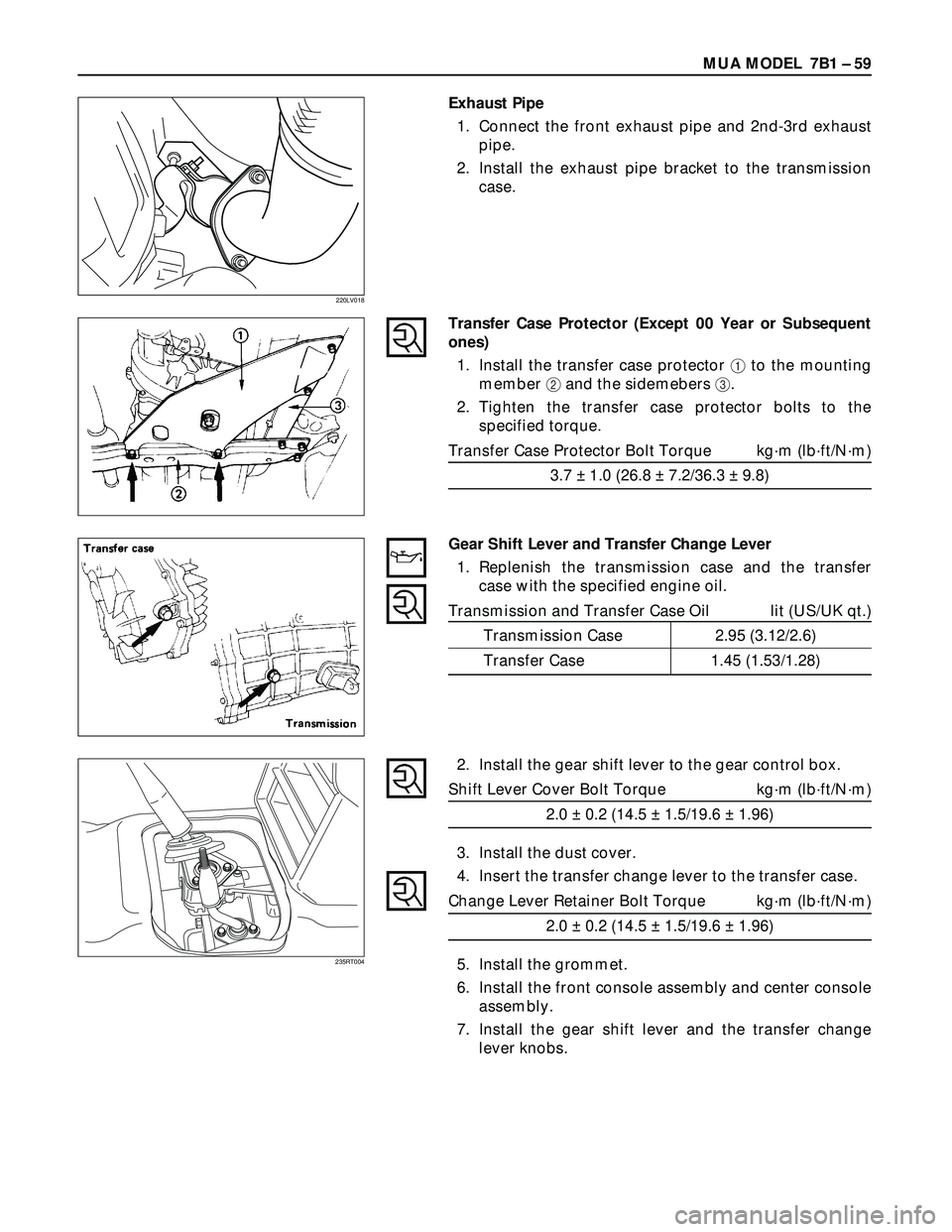

MUA MODEL 7B1 – 59
Exhaust Pipe
1. Connect the front exhaust pipe and 2nd-3rd exhaust
pipe.
2. Install the exhaust pipe bracket to the transmission
case.
220LV018
Transfer Case Protector (Except 00 Year or Subsequent
ones)
1. Install the transfer case protector 1to the mounting
member 2and the sidemebers 3.
2. Tighten the transfer case protector bolts to the
specified torque.
Transfer Case Protector Bolt Torque kg·m (lb·ft/N·m)
3.7 ± 1.0 (26.8 ± 7.2/36.3 ± 9.8)
Gear Shift Lever and Transfer Change Lever
1. Replenish the transmission case and the transfer
case with the specified engine oil.
Transmission and Transfer Case Oil lit (US/UK qt.)
Transmission Case 2.95 (3.12/2.6)
Transfer Case 1.45 (1.53/1.28)
2. Install the gear shift lever to the gear control box.
Shift Lever Cover Bolt Torque kg·m (lb·ft/N·m)
2.0 ± 0.2 (14.5 ± 1.5/19.6 ± 1.96)
3. Install the dust cover.
4. Insert the transfer change lever to the transfer case.
Change Lever Retainer Bolt Torque kg·m (lb·ft/N·m)
2.0 ± 0.2 (14.5 ± 1.5/19.6 ± 1.96)
5. Install the grommet.
6. Install the front console assembly and center console
assembly.
7. Install the gear shift lever and the transfer change
lever knobs.
235RT004
