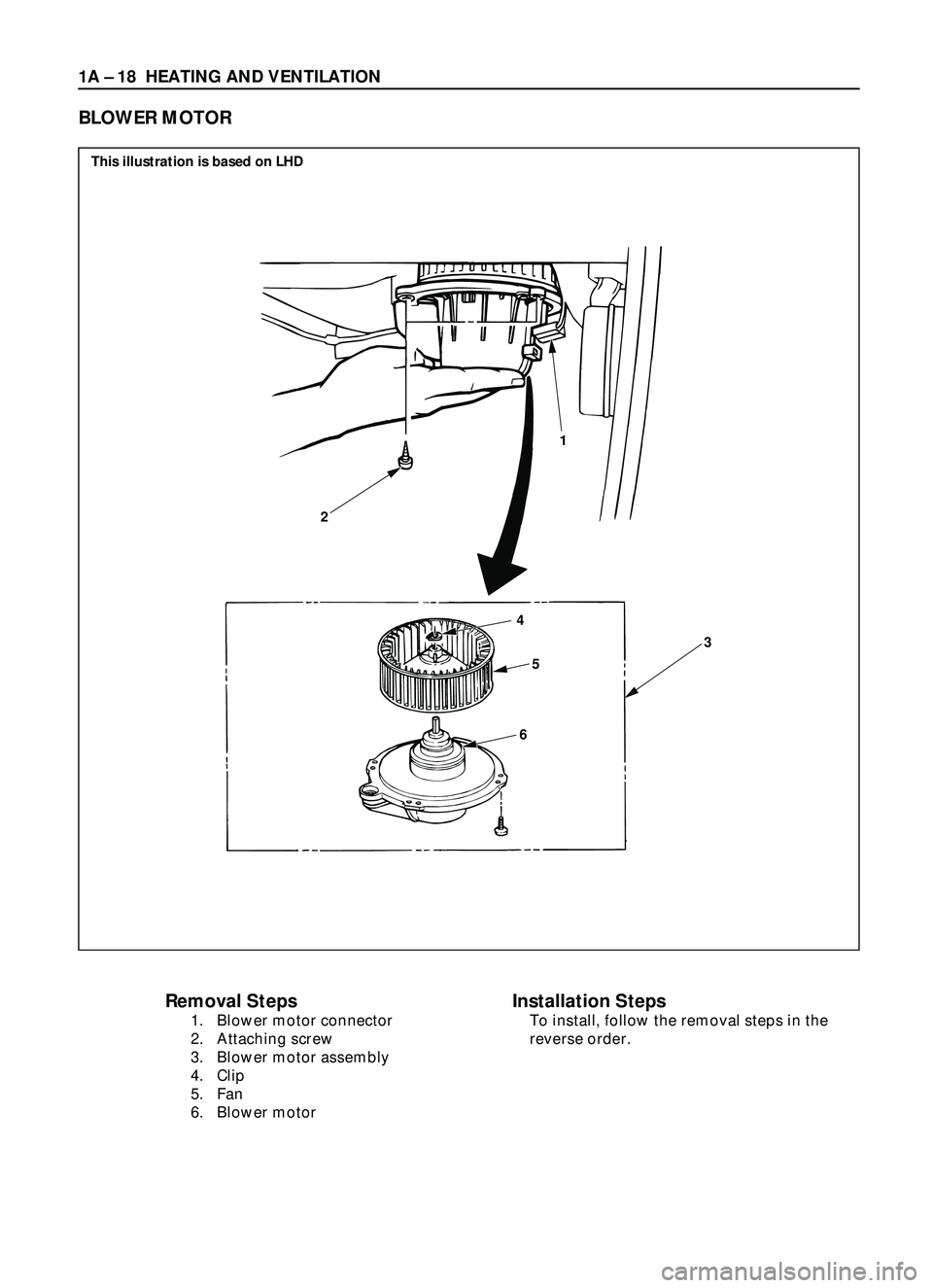

ISUZU TROOPER 1998 Service Repair Manual 3 4 21 5 6 1A Ð 18 HEATING AND VENTILATION Removal Steps 1. Blower motor connector 2. Attaching screw 3. Blower motor assembly 4. Clip 5. Fan 6. Blower motor Installation Steps To install, follow the

Page 114 of 3573

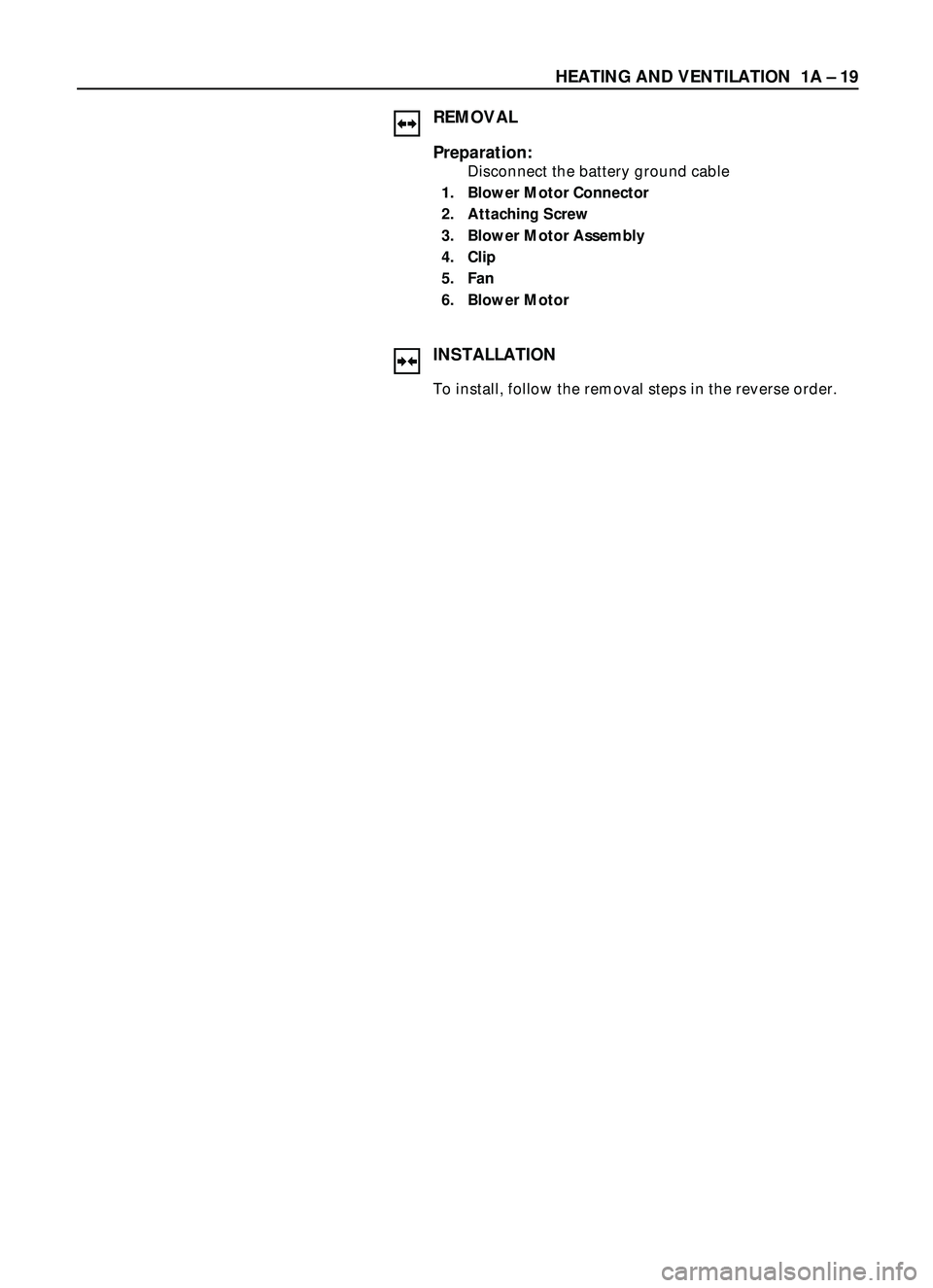

ISUZU TROOPER 1998 Service Repair Manual HEATING AND VENTILATION 1A Ð 19 REMOVAL Preparation: Disconnect the battery ground cable 1. Blower Motor Connector 2. Attaching Screw 3. Blower Motor Assembly 4. Clip 5. Fan 6. Blower Motor IN

Page 115 of 3573

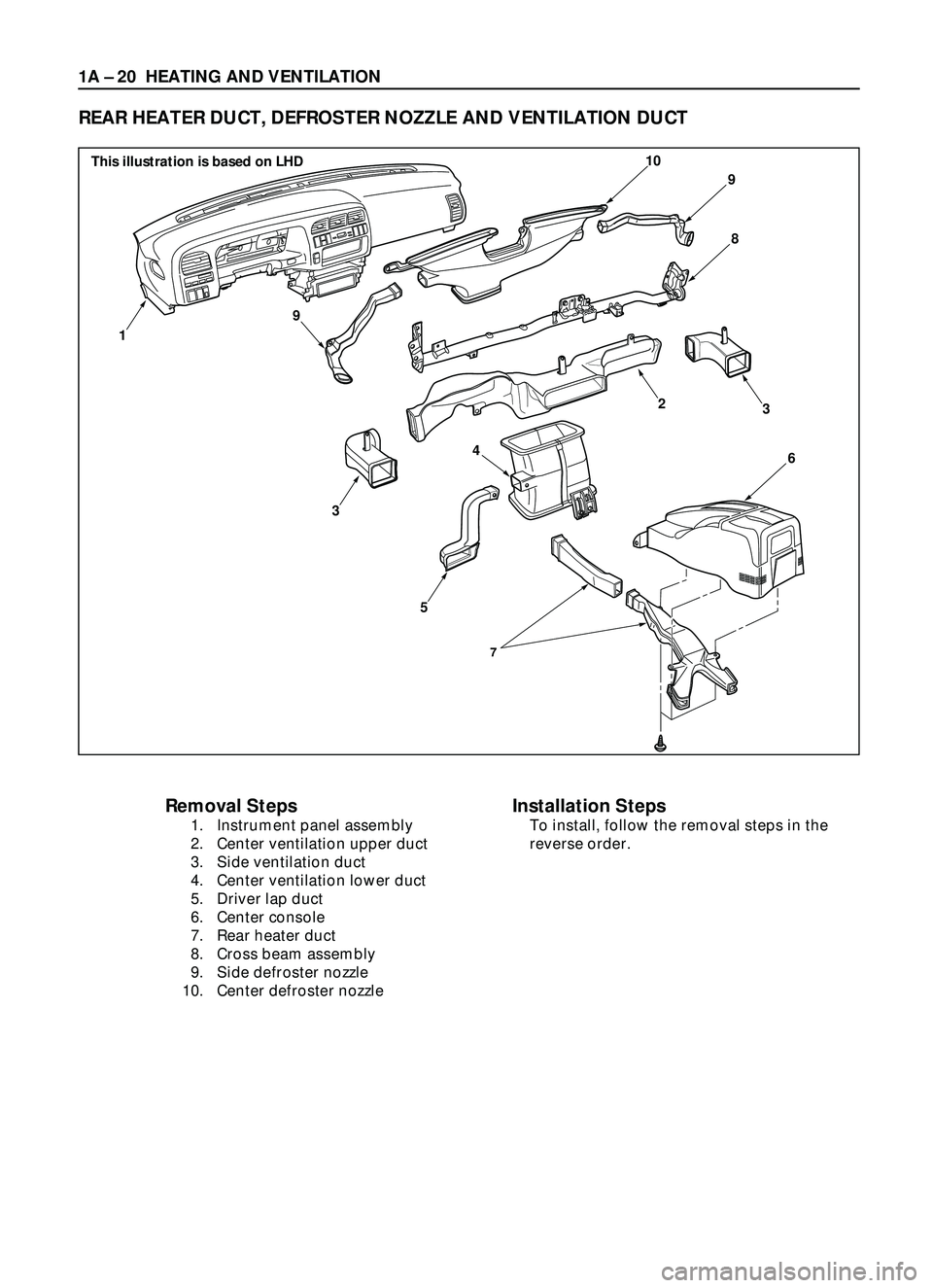

ISUZU TROOPER 1998 Service Repair Manual 1A Ð 20 HEATING AND VENTILATION REAR HEATER DUCT, DEFROSTER NOZZLE AND VENTILATION DUCT Removal Steps 1. Instrument panel assembly 2. Center ventilation upper duct 3. Side ventilation duct 4. Center

Page 116 of 3573

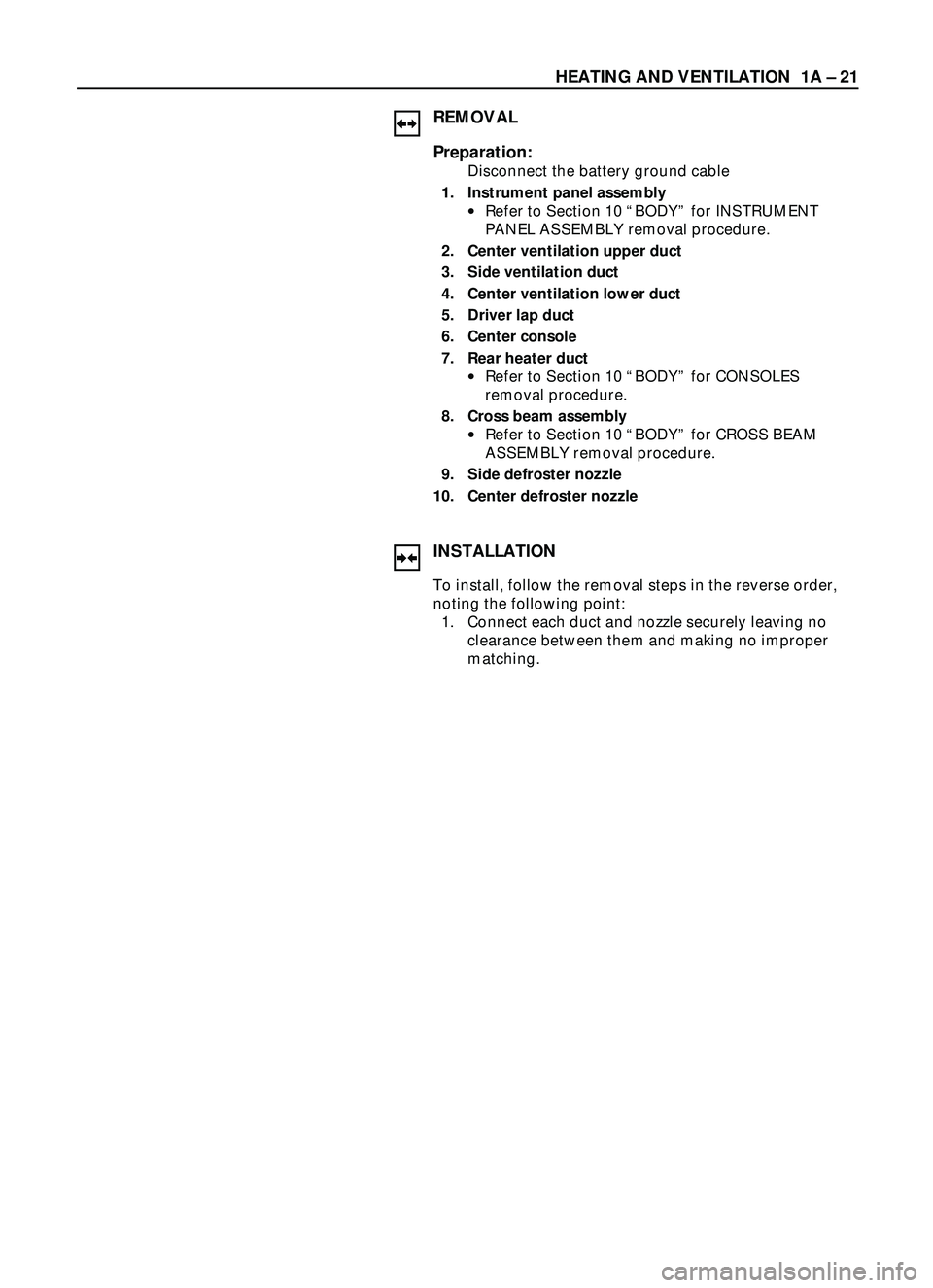

ISUZU TROOPER 1998 Service Repair Manual HEATING AND VENTILATION 1A Ð 21 INSTALLATION To install, follow the removal steps in the reverse order, noting the following point: 1. Connect each duct and nozzle securely leaving no clearance bet

Page 117 of 3573

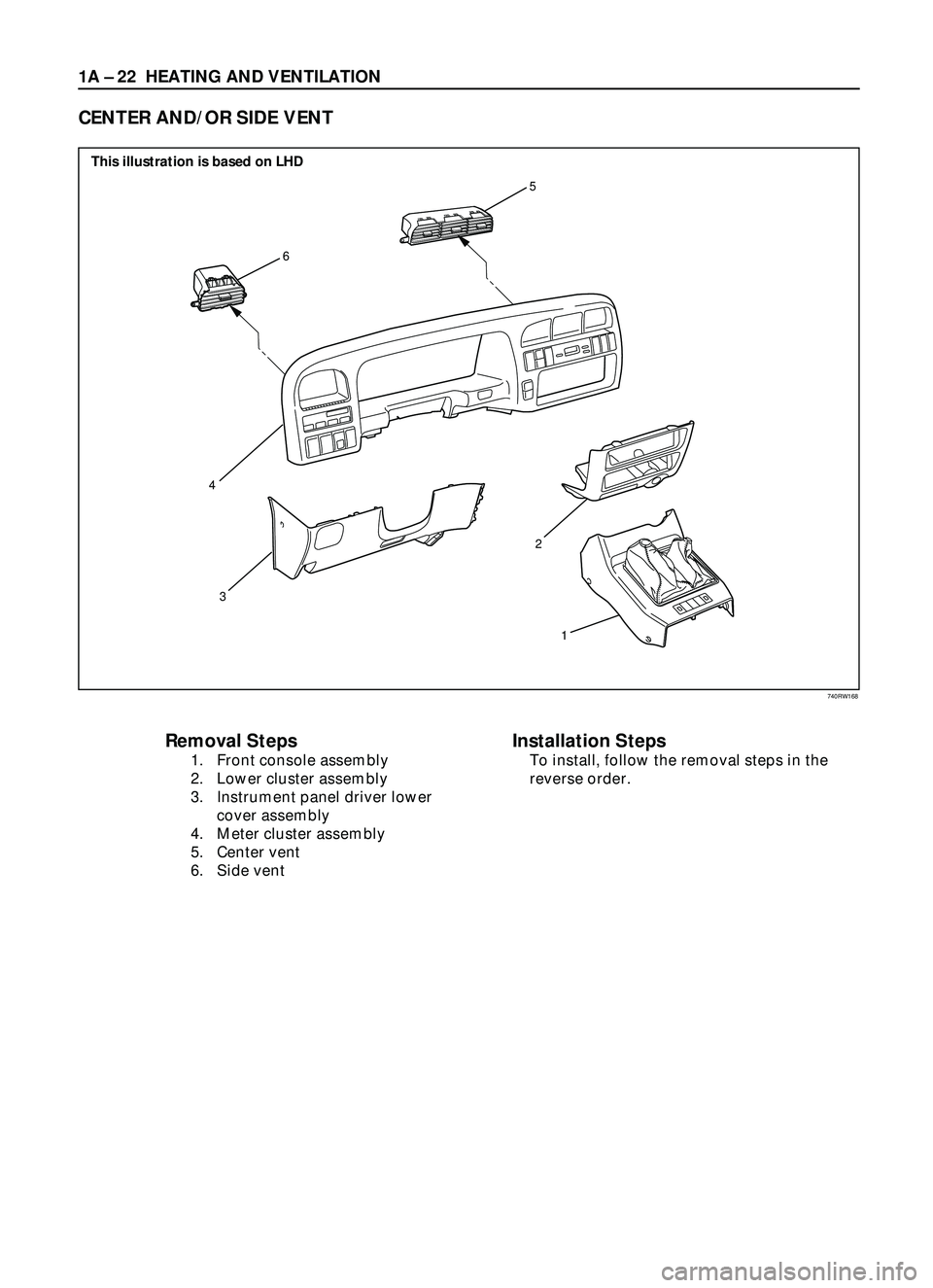

ISUZU TROOPER 1998 Service Repair Manual 1A Ð 22 HEATING AND VENTILATION Removal Steps 1. Front console assembly 2. Lower cluster assembly 3. Instrument panel driver lower cover assembly 4. Meter cluster assembly 5. Center vent 6. Side vent

Page 118 of 3573

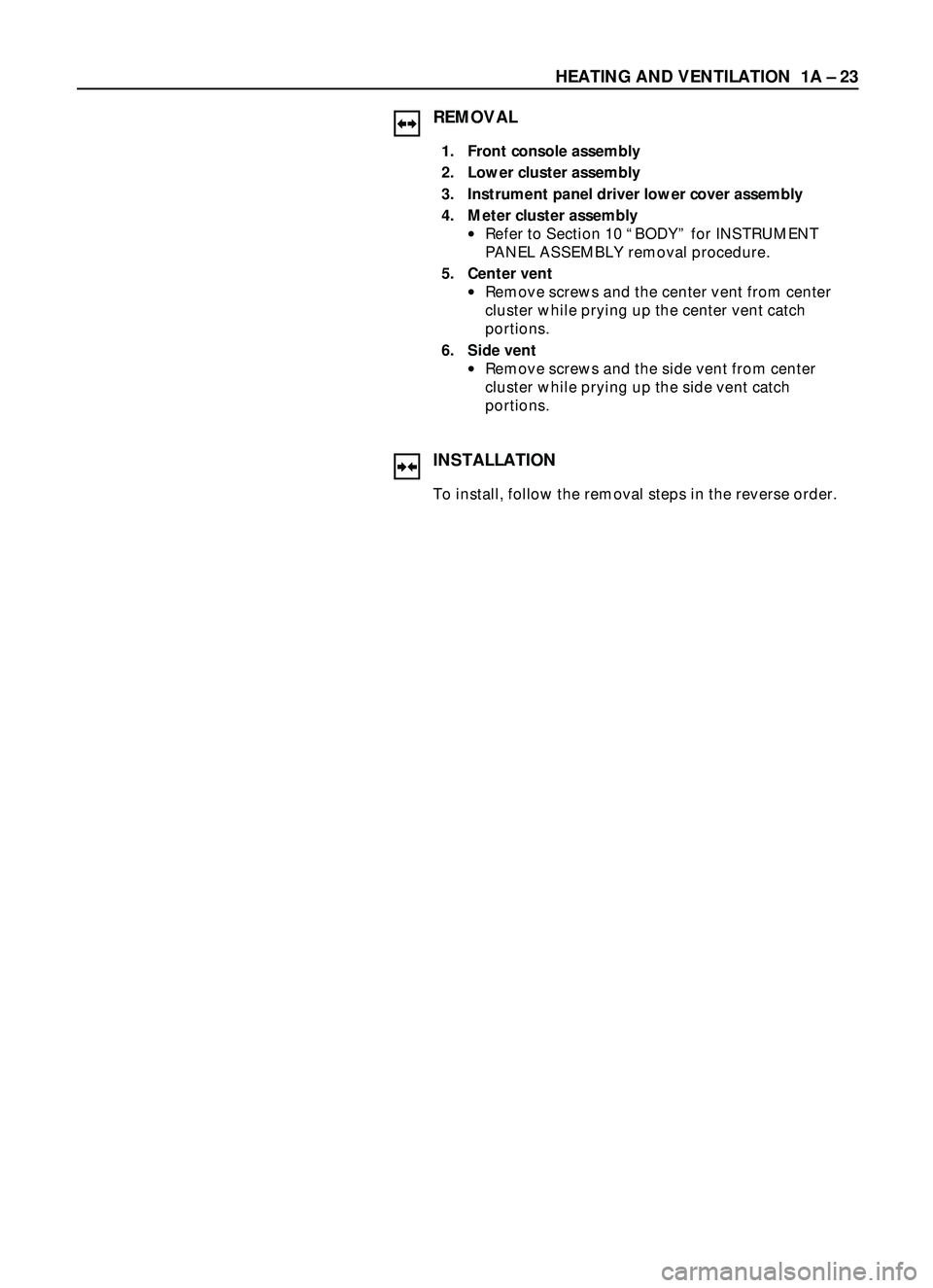

ISUZU TROOPER 1998 Service Repair Manual HEATING AND VENTILATION 1A Ð 23 INSTALLATION To install, follow the removal steps in the reverse order. REMOVAL 1. Front console assembly 2. Lower cluster assembly 3. Instrument panel driver lower c

Page 119 of 3573

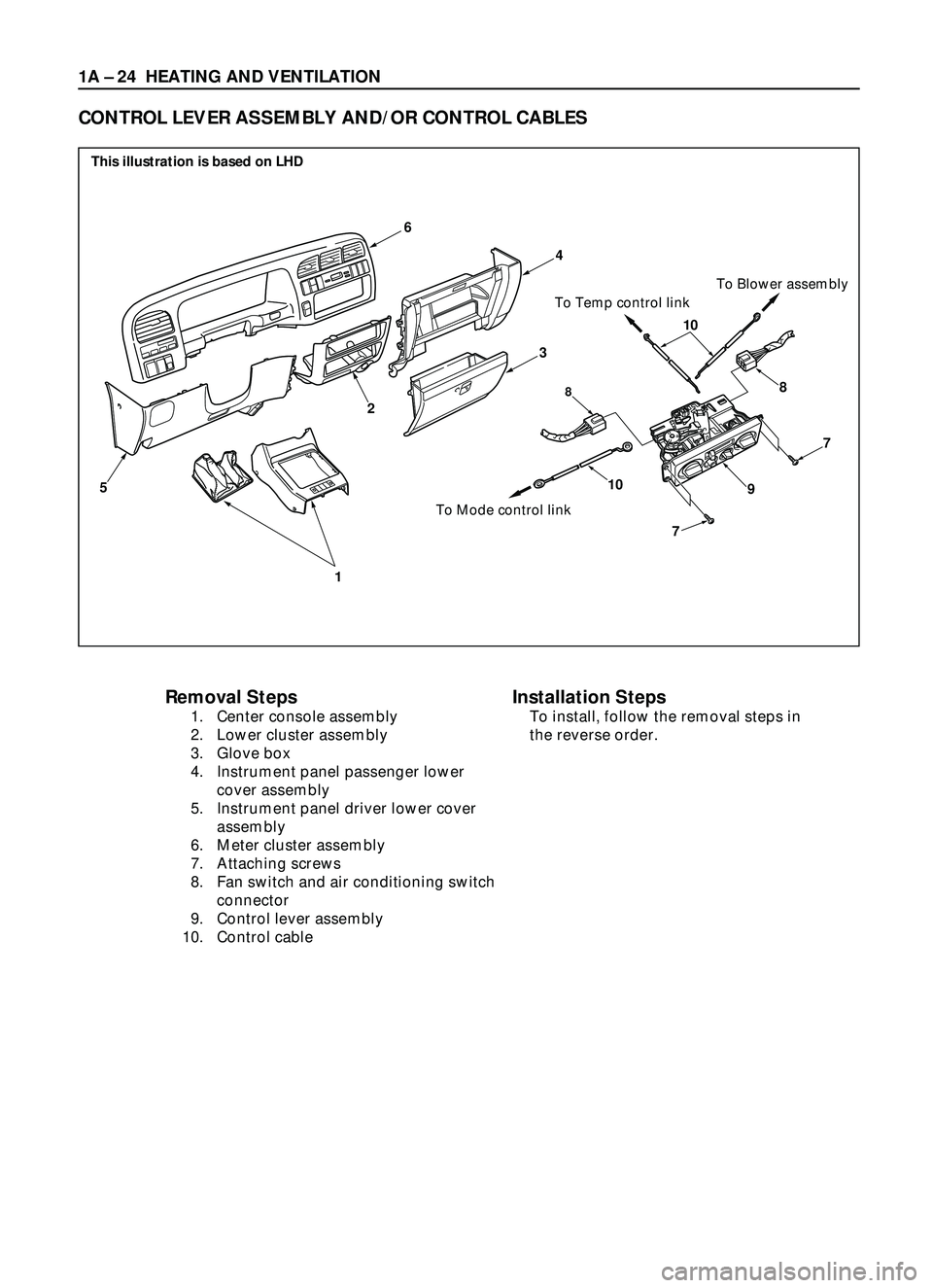

ISUZU TROOPER 1998 Service Repair Manual 1A Ð 24 HEATING AND VENTILATION Removal Steps 1. Center console assembly 2. Lower cluster assembly 3. Glove box 4. Instrument panel passenger lower cover assembly 5. Instrument panel driver lower cov

Page 120 of 3573

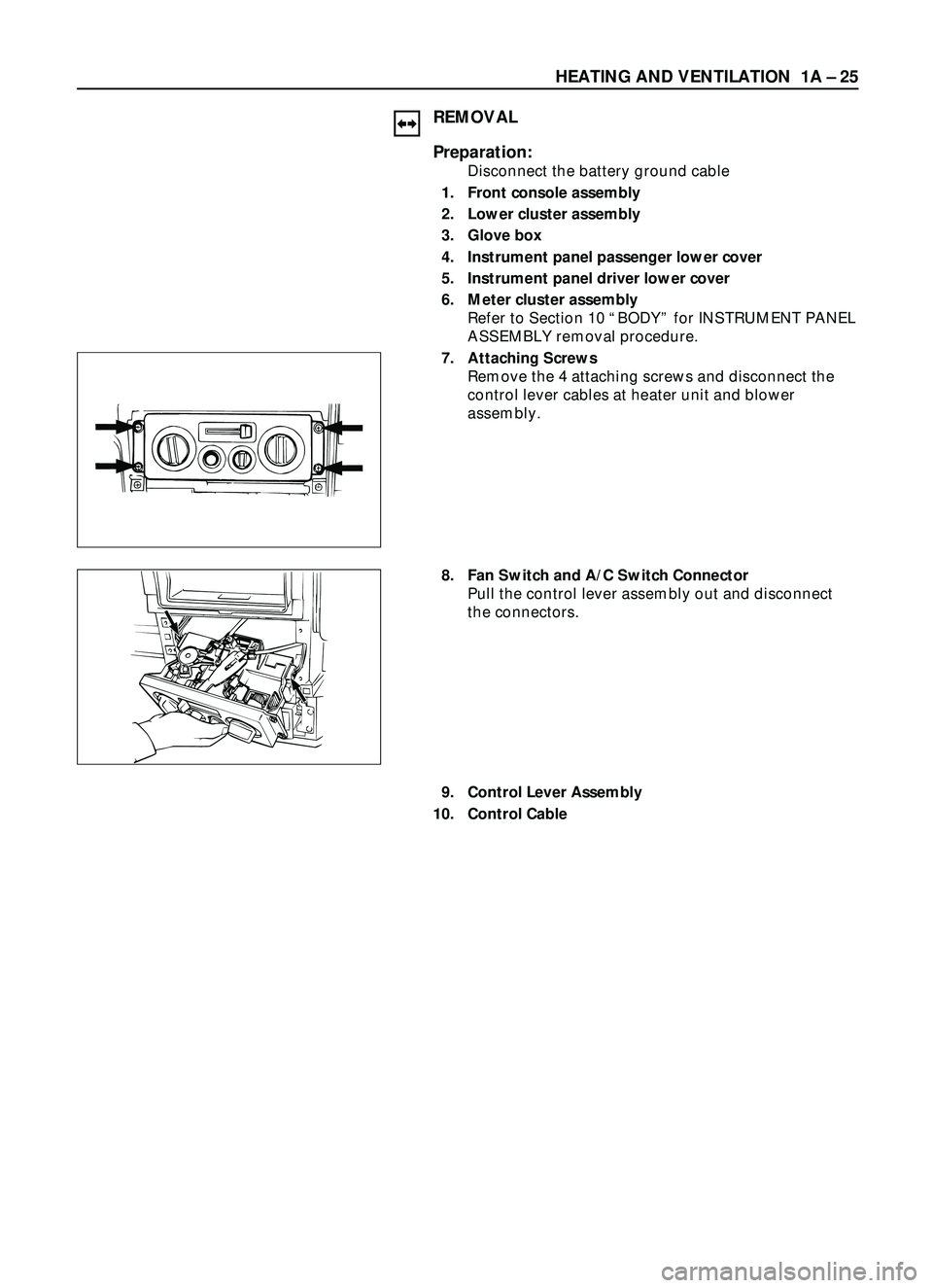

ISUZU TROOPER 1998 Service Repair Manual HEATING AND VENTILATION 1A Ð 25 REMOVAL Preparation: Disconnect the battery ground cable 1. Front console assembly 2. Lower cluster assembly 3. Glove box 4. Instrument panel passenger lower cover
