ISUZU TROOPER 1998 Service Repair Manual 00 Ð 18 SERVICE INFORMATION
BLOWER MOTOR DOES NOT RUN
·IS NO. C-19 (25A) FUSE OK?
·IS BLOWER RELAY (B-36) OK?
YESNO
REPLACE
NO
REPLACE
NO
REPLACE
NO
REPLACE CONTROL LEVER ASSEMBLY
NO
REPLACE
NO
OPE

Page 58 of 3573

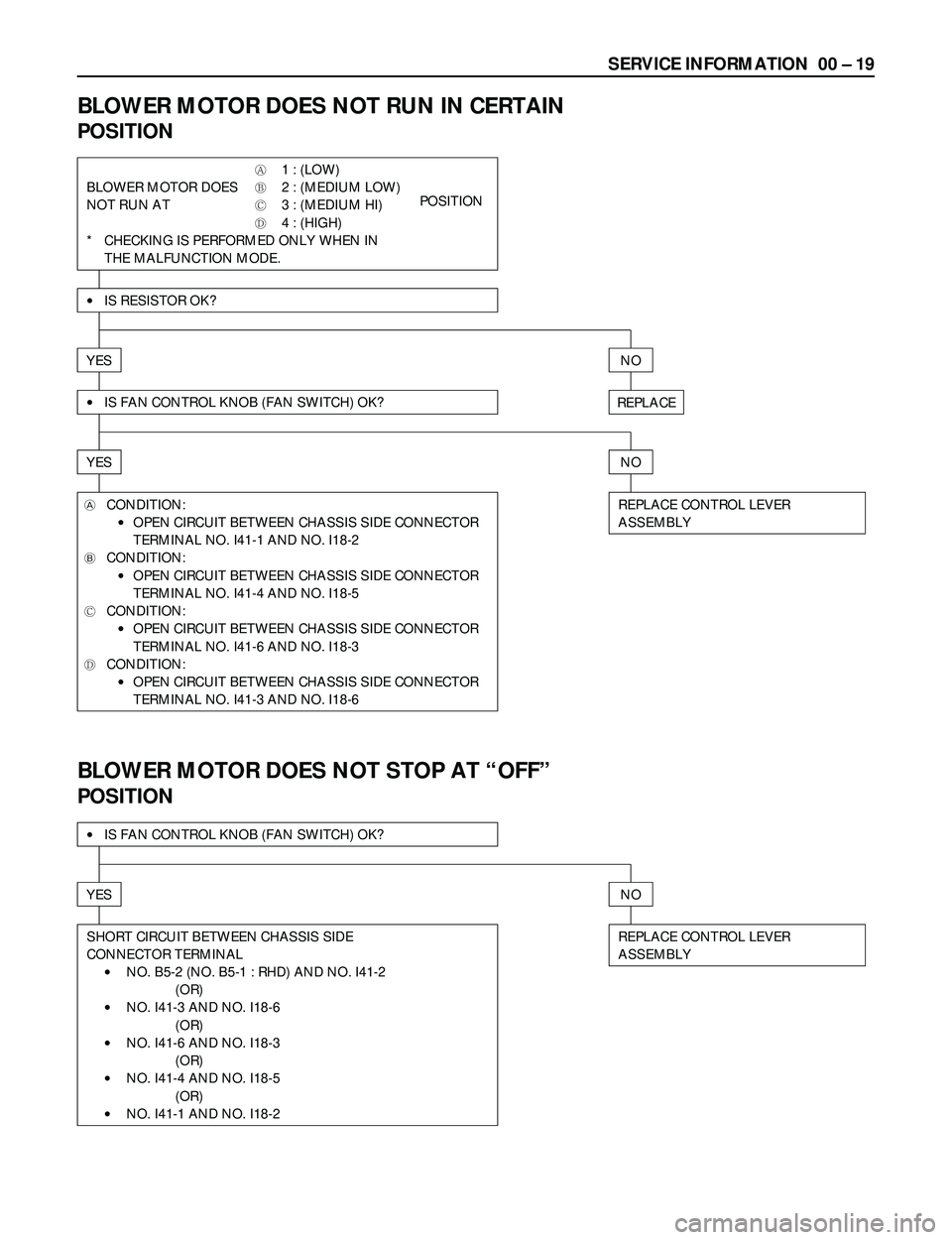

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 19
BLOWER MOTOR DOES NOT RUN IN CERTAIN
POSITION
A1 : (LOW)
BLOWER MOTOR DOES
B2 : (MEDIUM LOW)
NOT RUN AT
C3 : (MEDIUM HI) POSITION
D4 : (HIGH)
* CHECKING IS PERFO

Page 59 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 20 SERVICE INFORMATION
CERAMIC HEATER
When the fan control knob (fan switch) turns on
with the temperature control knob set to ÒFULL
HOTÓ (full hot switch ÒONÓ), the ceramic heater in
the he

Page 60 of 3573

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 21
CERAMIC HEATER DOES NOT OPERATE
·ARE NO. FL-3 (40A) AND NO. C-20 (10A) OK?
YESNO
REPLACE
REPLACE
REPLACE
REPLACE
·ARE A/C AND CERAMIC HEATER RELAYS OK?
YESNO
·ARE BLO

Page 61 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 22 SERVICE INFORMATION
CERAMIC HEATER DOES NOT STOP
WHEN THE IGNITION SW. ÒOFFÓ, DOES CERAMIC HEATER
STOP?
YESNO
CERAMIC HEATER RELAY DEFECTIVE·SHORT CIRCUIT BETWEEN CHASSIS SIDE RELAY TERMIN

Page 62 of 3573

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 23

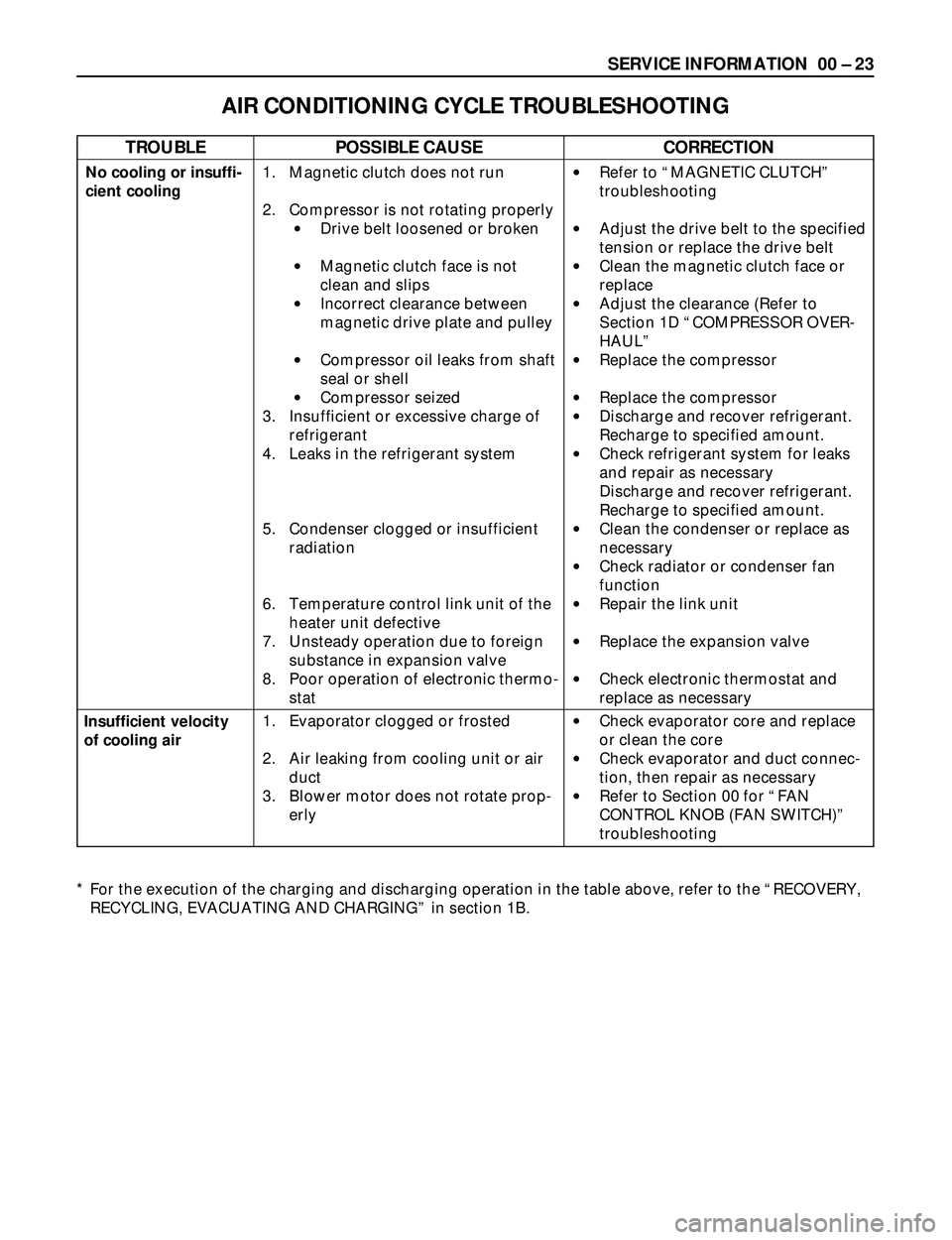

AIR CONDITIONING CYCLE TROUBLESHOOTING
No cooling or insuffi-
cient cooling
Insufficient velocity
of cooling air1. Magnetic clutch does not run
2. Compressor is not rotat

Page 63 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 24 SERVICE INFORMATION
CHECKING REFRIGERANT SYSTEM
WITH MANIFOLD GAUGE
Conditions;
·Ambient temperature at approx. 25 ~30°C (77
~86°F)
·Run the engine at Idling
·A/C switch is ÒONÓ
·Run

Page 64 of 3573

ISUZU TROOPER 1998 Service Repair Manual RESULT SYMPTOM TROUBLE CAUSE CORRECTION
SERVICE INFORMATION 00 Ð 25
Reduced or no air flow through
the condenser
No bubbles in sight glass when
condenser is cooled by water
(Insufficient cooling)
Af

RESULT SYMPTOM TROUBLE CAUSE CORRECTION
SERVICE INFORMATION 00 Ð 25
Reduced or no air flow through
the condenser
No bubbles in sight glass when
condenser is cooled by water
(Insufficient cooling)
After stopping air conditioning,
pressure drops approx. 196 kPa
(28 PSI) quickly
Insufficient cooling and excessive
bubbles in the sight glass
Low pressure gauge indicates
vacuum
Frost or dew on refrigerant line
before and after receiver/ drier or
expansion valve, and low pres-
sure gauge indicates vacuum
After turning off air conditioning,
high and low pressure gauge
balanced quickly
Low pressure gauge is lowered
after condenser is cooled by
water
Low pressure hose temperature
around the compressor refriger-
ant line connector is lower than
around evaporator
After turning off air conditioning,
high and low pressure gauge is
balanced quickly
Air conditioning turns off before
passenger compartment is suffi-
ciently cool·Condenser clogged or dirty
·Radiator (condenser) fan
does not operate properly
·Excessive refrigerant in
system
·Air in system
·Insufficient refrigerant in
system
·Clogged or defective expan-
sion valve
·Restriction caused by debris
or moisture in receiver/drier
·Compressor seal defective
·Poor compression due to
defective compressor gasket
·Excessive refrigerant in
system
·Unsatisfactory valve opera-
tion due to defective temper-
ature sensor of expansion
valve
·Expansion valve opens too
long
·Compressor gasket is defec-
tive
·Electronic thermostat defec-
tive·Clean
·Check cooling fan
operation
·Check sight glass.
(See ÒReading Sight
GlassÓ)
·Discharge and
recover refrigerant.
Recharge to speci-
fied amount
·Evacuate and
charge refrigerant
system
·Check sight glass.
(See ÒReading Sight
GlassÓ)
·Check for leaks
·Discharge and
recover refrigerant.
Recharge to speci-
fied amount
·Replace the expan-
sion valve
·Check system for
restriction and
replace
receiver/drier
·Replace or repair
compressor
·Discharge and
recover refrigerant
Recharge to speci-
fied amount
·Replace the expan-
sion valve
·Replace
·Check the electronic
thermostat and
replace as neces-
saryDischarge
(High) pres-
sure gauge
abnormally
high
Discharge
(High) pres-
sure gauge
abnormally
low
Suction
(Low) pres-
sure gauge
abnormally
high
* For the charging and discharging operations in the table above, refer to ÒRECOVERY, RECYCLING,
EVACUATION AND CHARGINGÓ in this section.
