Page 1633 of 3573

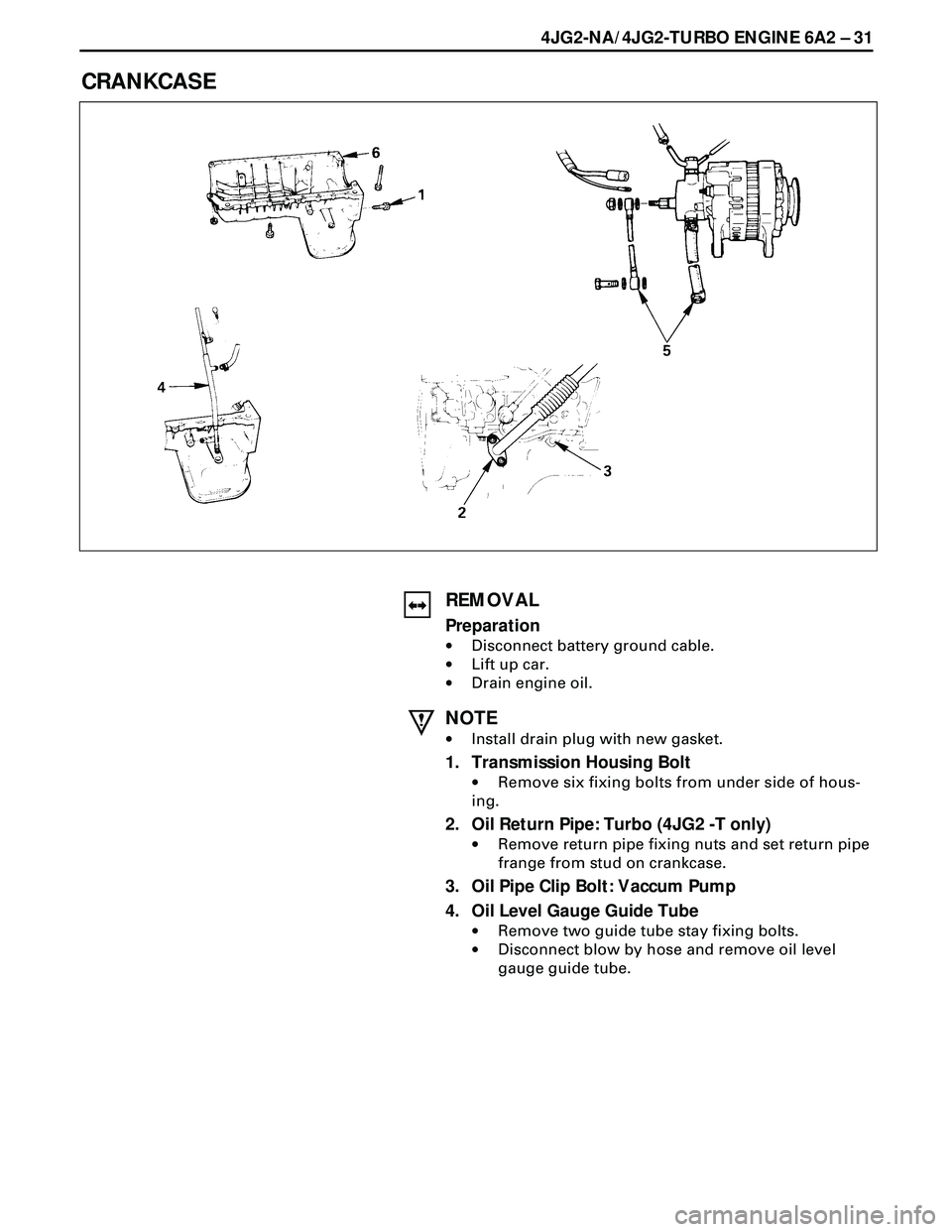

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2 Ð 31 CRANKCASE REMOVAL Preparation ·Disconnect battery ground cable. ·Lift up car. ·Drain engine oil. NOTE ·Install drain plug with new gasket. 1. Transmission Housi

Page 1634 of 3573

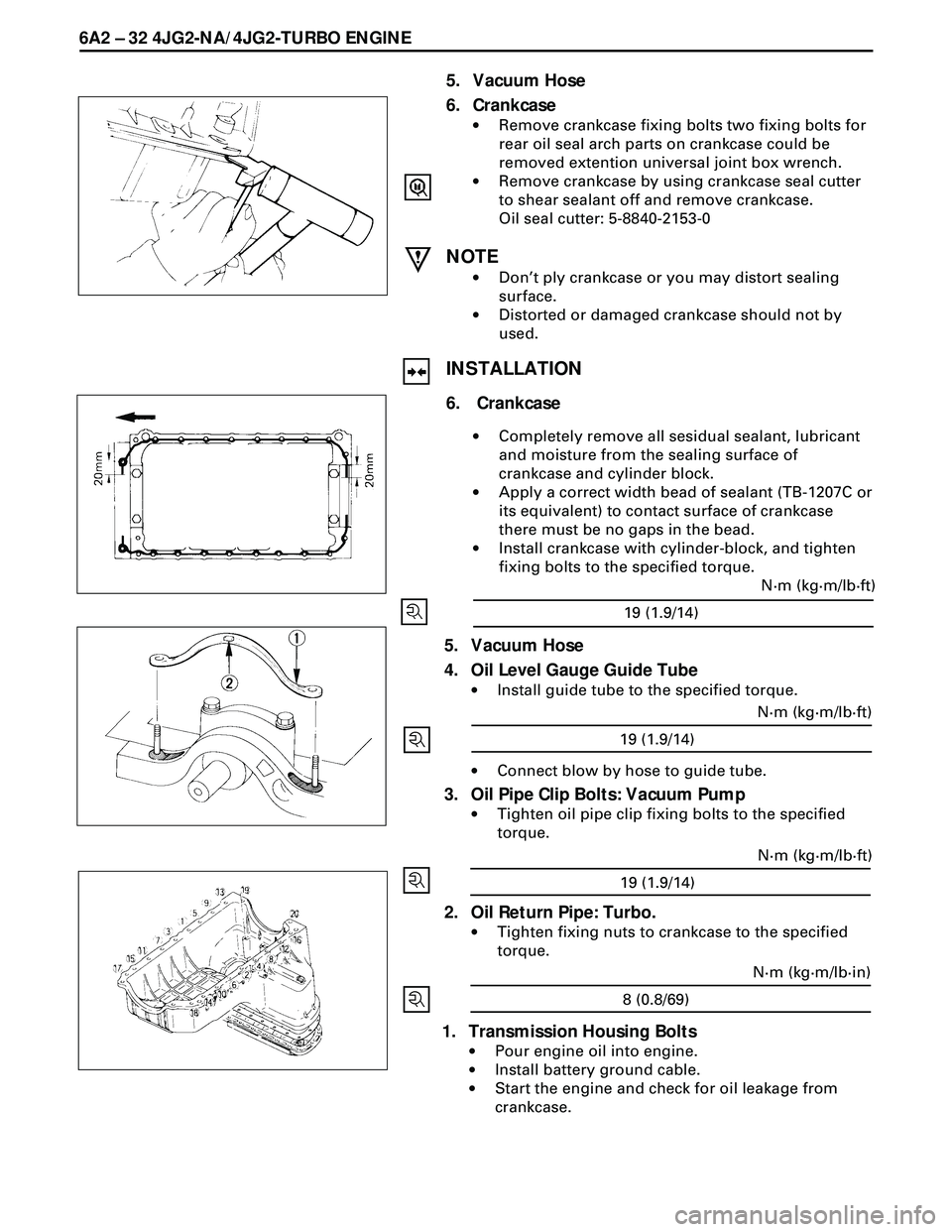

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 32 4JG2-NA/4JG2-TURBO ENGINE 5. Vacuum Hose 6. Crankcase ·Remove crankcase fixing bolts two fixing bolts for rear oil seal arch parts on crankcase could be removed extention universal joint bo

Page 1635 of 3573

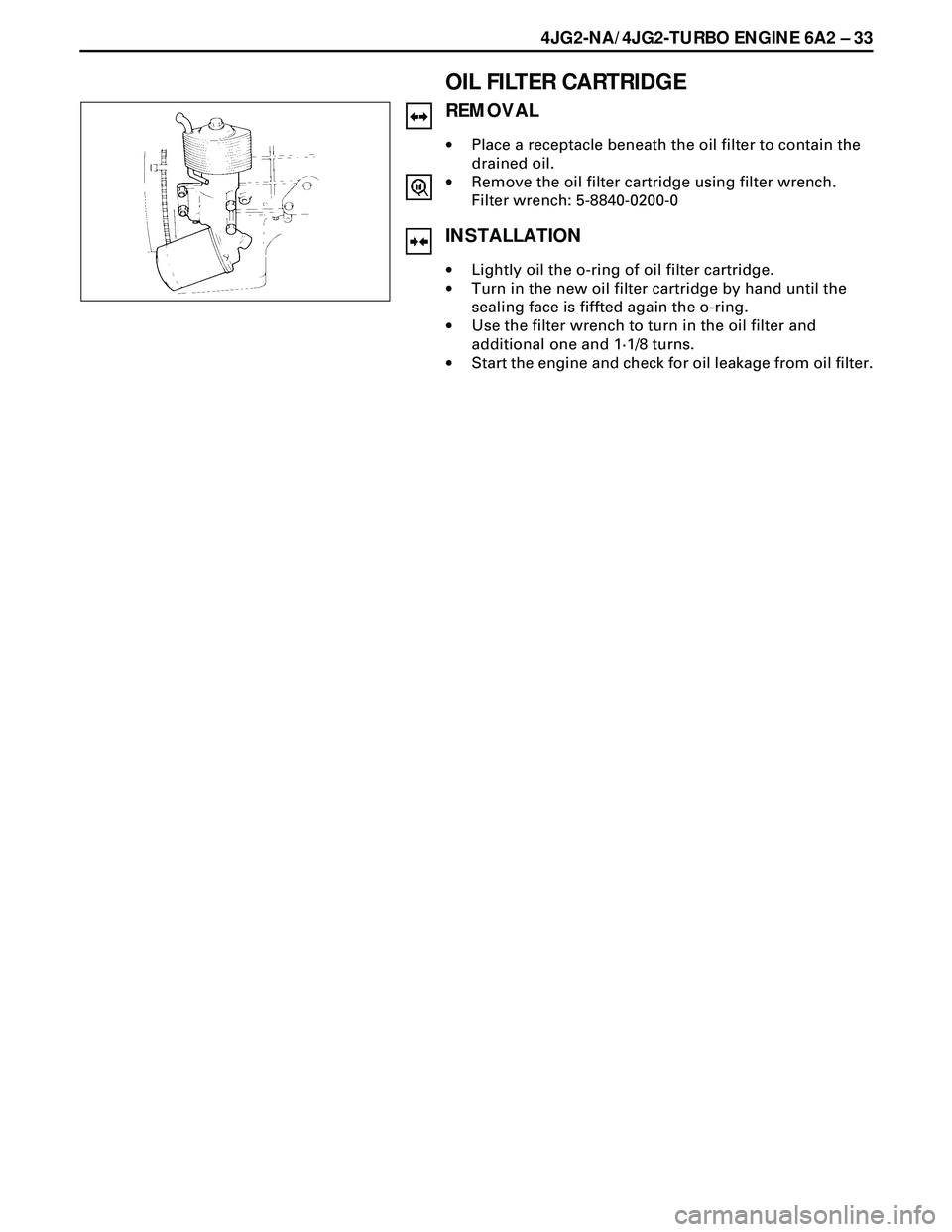

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2 Ð 33 OIL FILTER CARTRIDGE REMOVAL ·Place a receptacle beneath the oil filter to contain the drained oil. ·Remove the oil filter cartridge using filter wrench. Filter w

Page 1636 of 3573

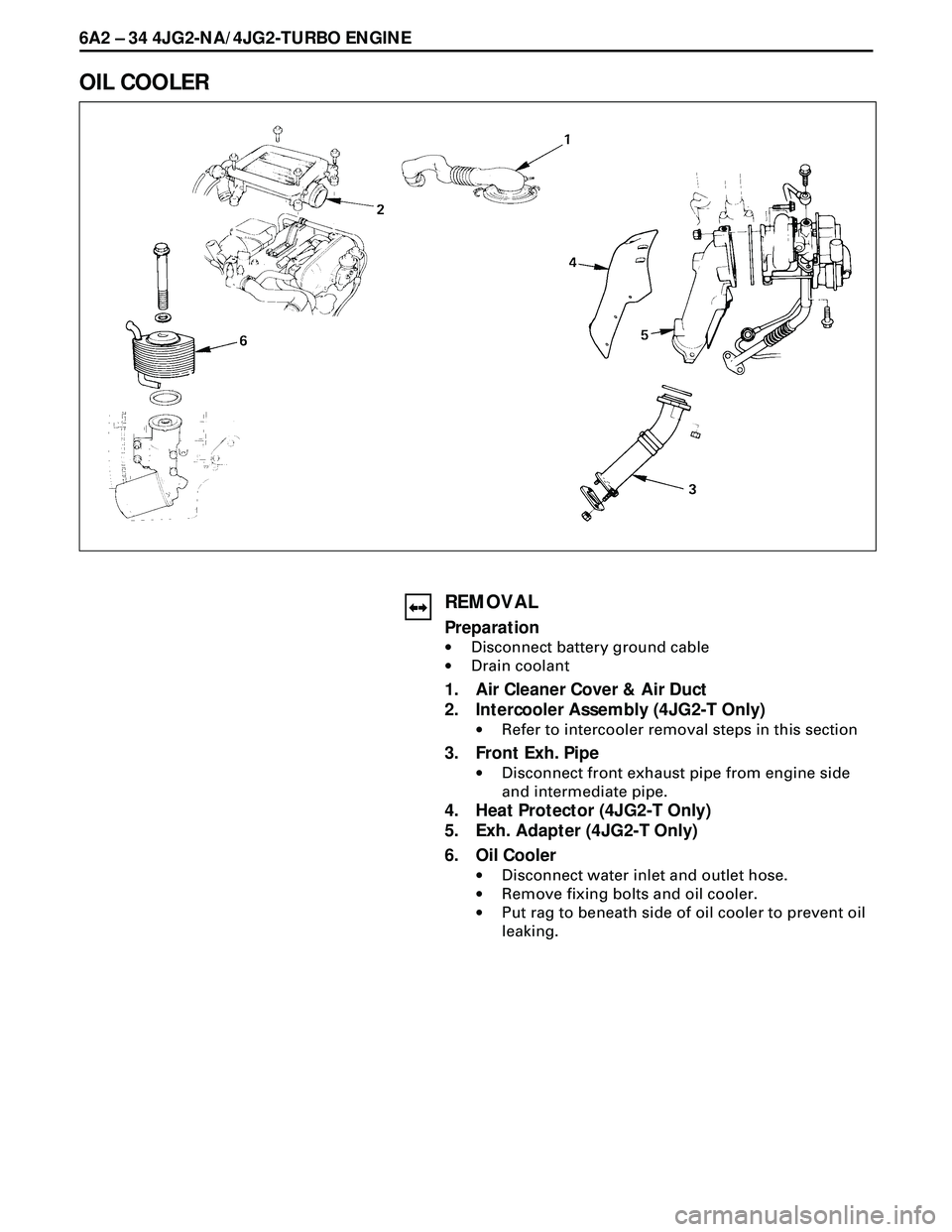

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 34 4JG2-NA/4JG2-TURBO ENGINE OIL COOLER REMOVAL Preparation ·Disconnect battery ground cable ·Drain coolant 1. Air Cleaner Cover & Air Duct 2. Intercooler Assembly (4JG2-T Only) ·Refer to in

Page 1637 of 3573

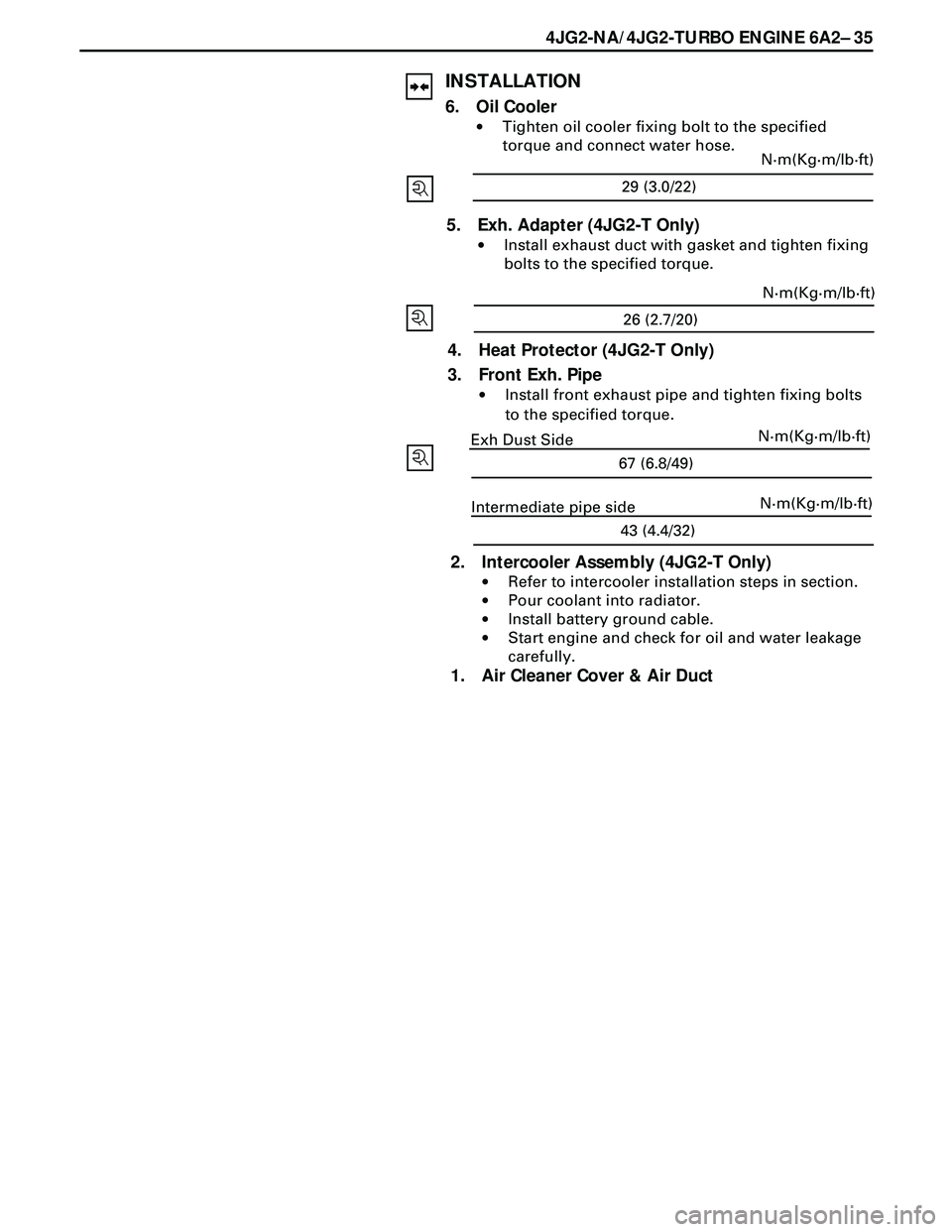

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2Ð 35 INSTALLATION 6. Oil Cooler ·Tighten oil cooler fixing bolt to the specified torque and connect water hose. 5. Exh. Adapter (4JG2-T Only) ·Install exhaust duct with

Page 1638 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 36 4JG2-NA/4JG2-TURBO ENGINE OIL PUMP ASSEMBLY REMOVAL Preparation ·Disconnect battery ground cable. ·Lift up car. ·Drain engine oil. NOTE ·Install drain plug with new washer. 1. Crankcase

Page 1639 of 3573

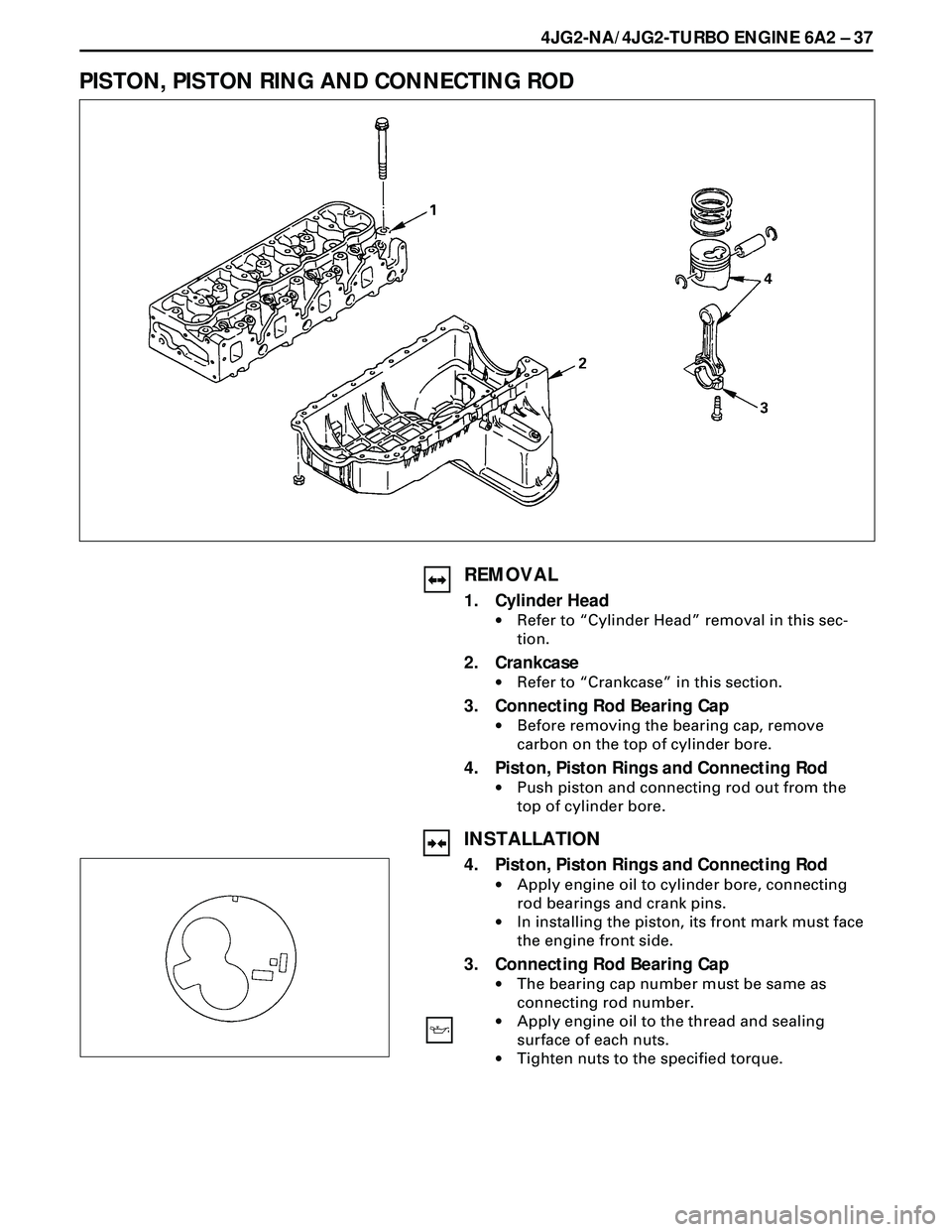

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2 Ð 37 PISTON, PISTON RING AND CONNECTING ROD REMOVAL 1. Cylinder Head ·Refer to ÒCylinder HeadÓ removal in this sec- tion. 2. Crankcase ·Refer to ÒCrankcaseÓ in thi

Page 1640 of 3573

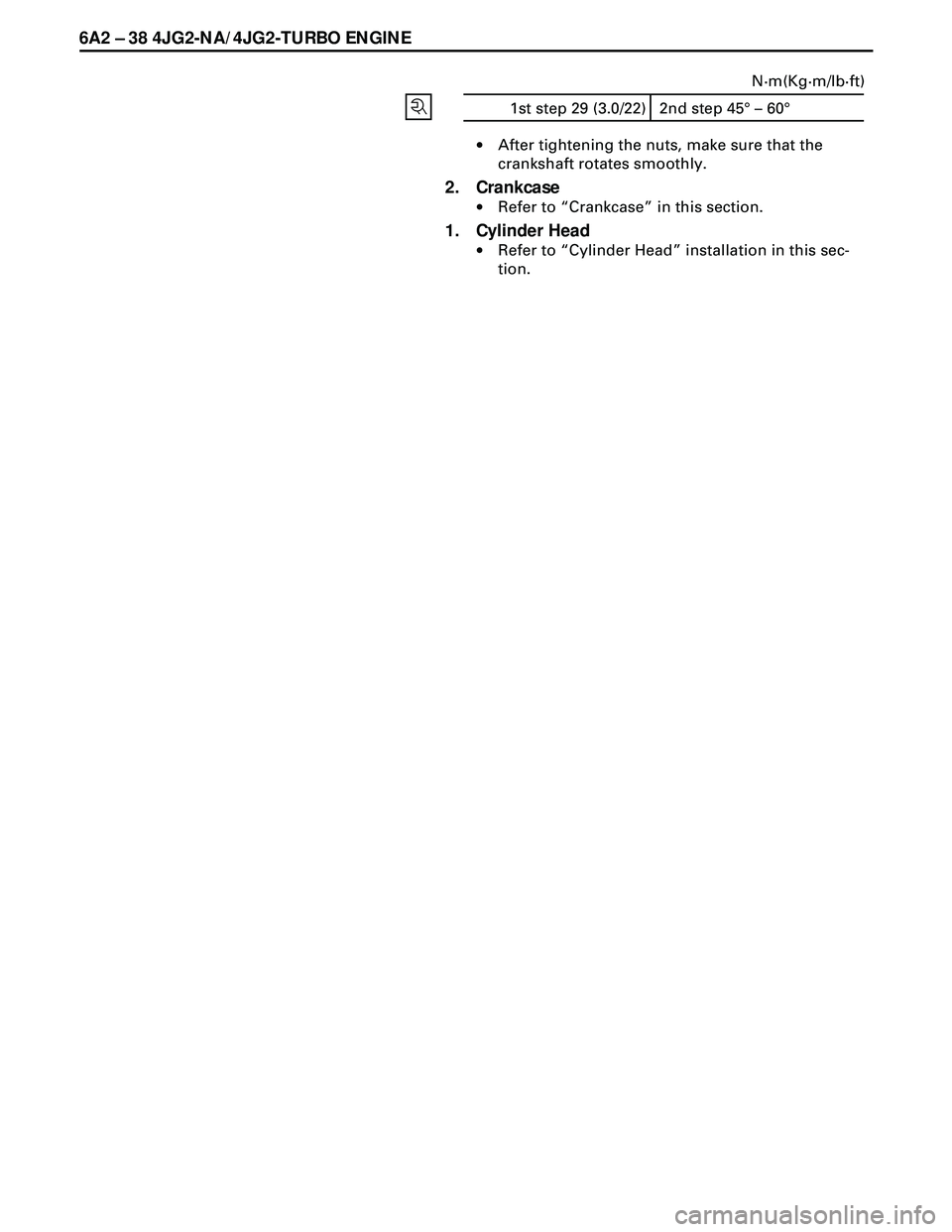

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 38 4JG2-NA/4JG2-TURBO ENGINE ·After tightening the nuts, make sure that the crankshaft rotates smoothly. 2. Crankcase ·Refer to ÒCrankcaseÓ in this section. 1. Cylinder Head ·Refer to ÒCy
