ISUZU TROOPER 1998 Service Repair Manual 6F±2ENGINE EXHAUST

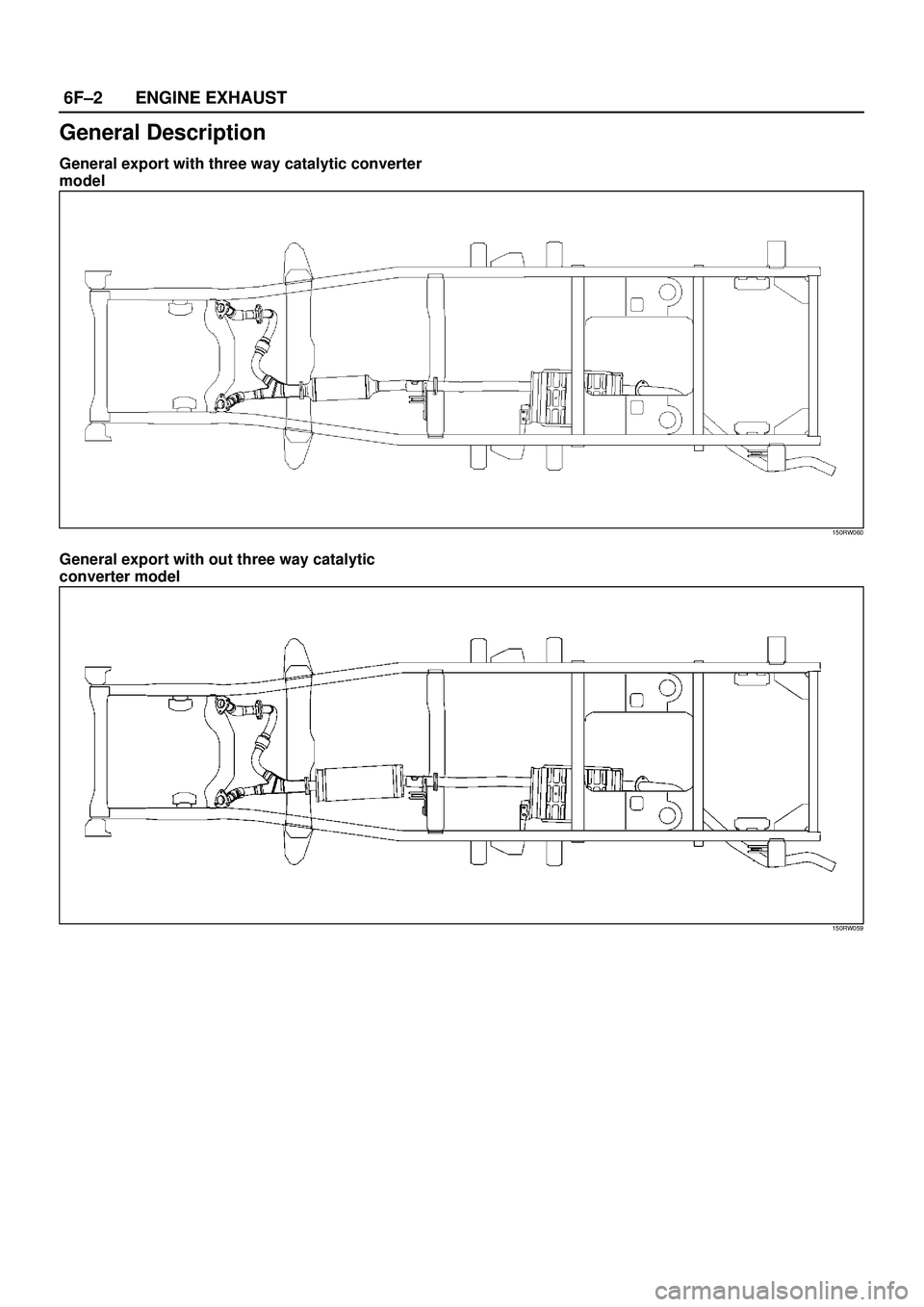

General Description
General export with three way catalytic converter
model
150RW060
General export with out three way catalytic
converter model
150RW059

Page 1474 of 3573

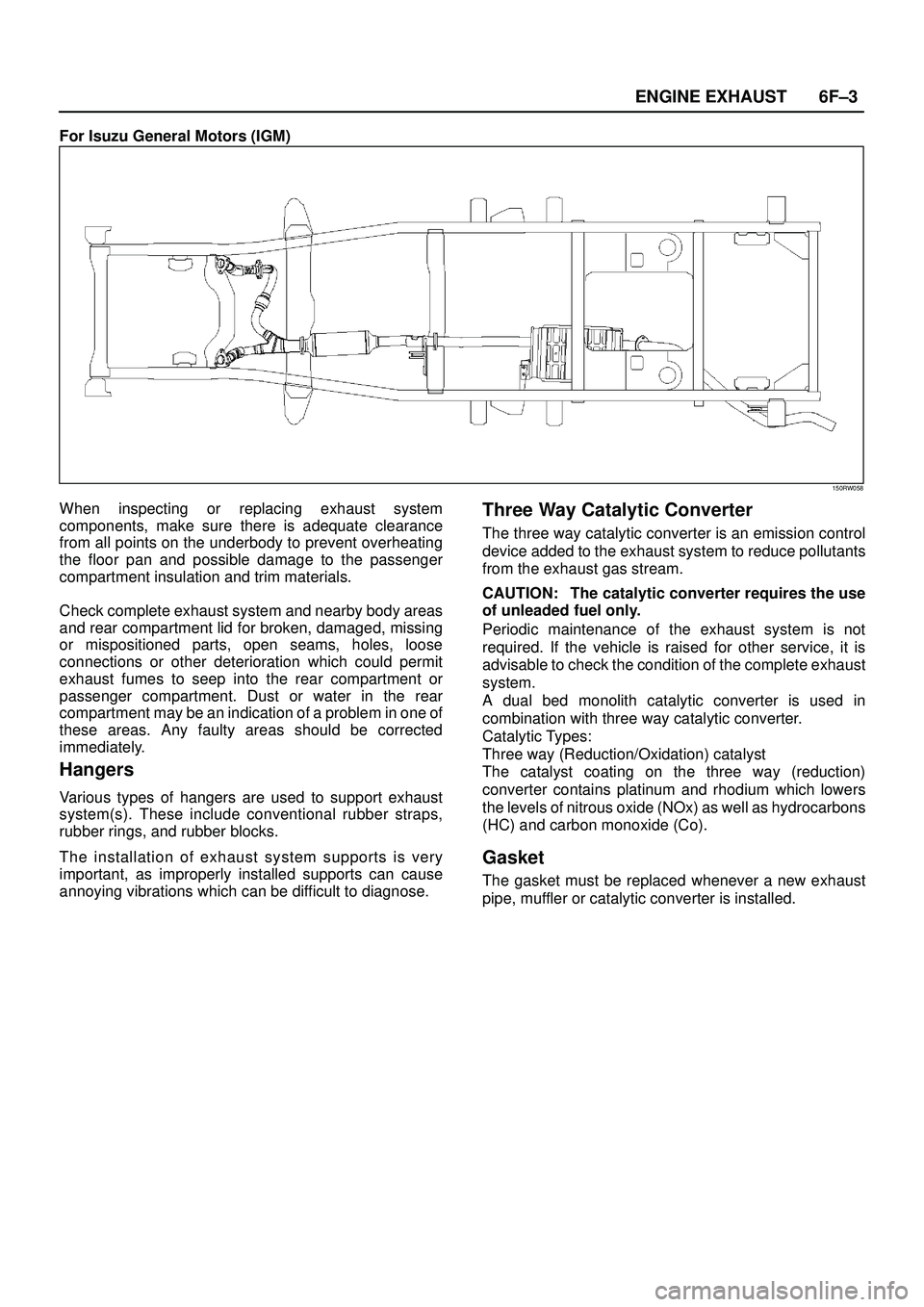

ISUZU TROOPER 1998 Service Repair Manual 6F±3 ENGINE EXHAUST
For Isuzu General Motors (IGM)
150RW058
When inspecting or replacing exhaust system
components, make sure there is adequate clearance
from all points on the underbody to prevent o

Page 1475 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6F±4ENGINE EXHAUST
Front Exhaust Pipe
Front Exhaust Pipe and Associated Parts
150RW063
Legend
(1) Front Exhaust Pipe RH Fixing Nuts
(2) Front Exhaust Pipe RH Fixing Bolts and Nuts
(3) O
2 Sensor Term

Page 1476 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6F±5 ENGINE EXHAUST
Three Way Catalytic Converter
Removal
1. Disconnect battery ground cable.
2. Raise the vehicle and support with suitable safety
stands.
3. Remove three way exhaust pipe fixing bol

Page 1477 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6F±6ENGINE EXHAUST
Exhaust Silencer
Exhaust Silencer and Associated Parts
E06RW031
Legend
(1) Exhaust Silencer
(2) Exhaust Silencer(3) Mounting Rubber
(4) Exhaust Silencer Fixing Nuts
(5) Exhaust Sil

Page 1478 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6F±7 ENGINE EXHAUST
Rear Exhaust pipe
Rear Exhaust pipe and Associated Parts
E06RW033
Legend
(1) Mounting Rubber(2) Rear Exhaust Pipe
(3) Rear Exhaust Pipe Fixing Nuts
Removal
1. Disconnect battery g

Page 1479 of 3573

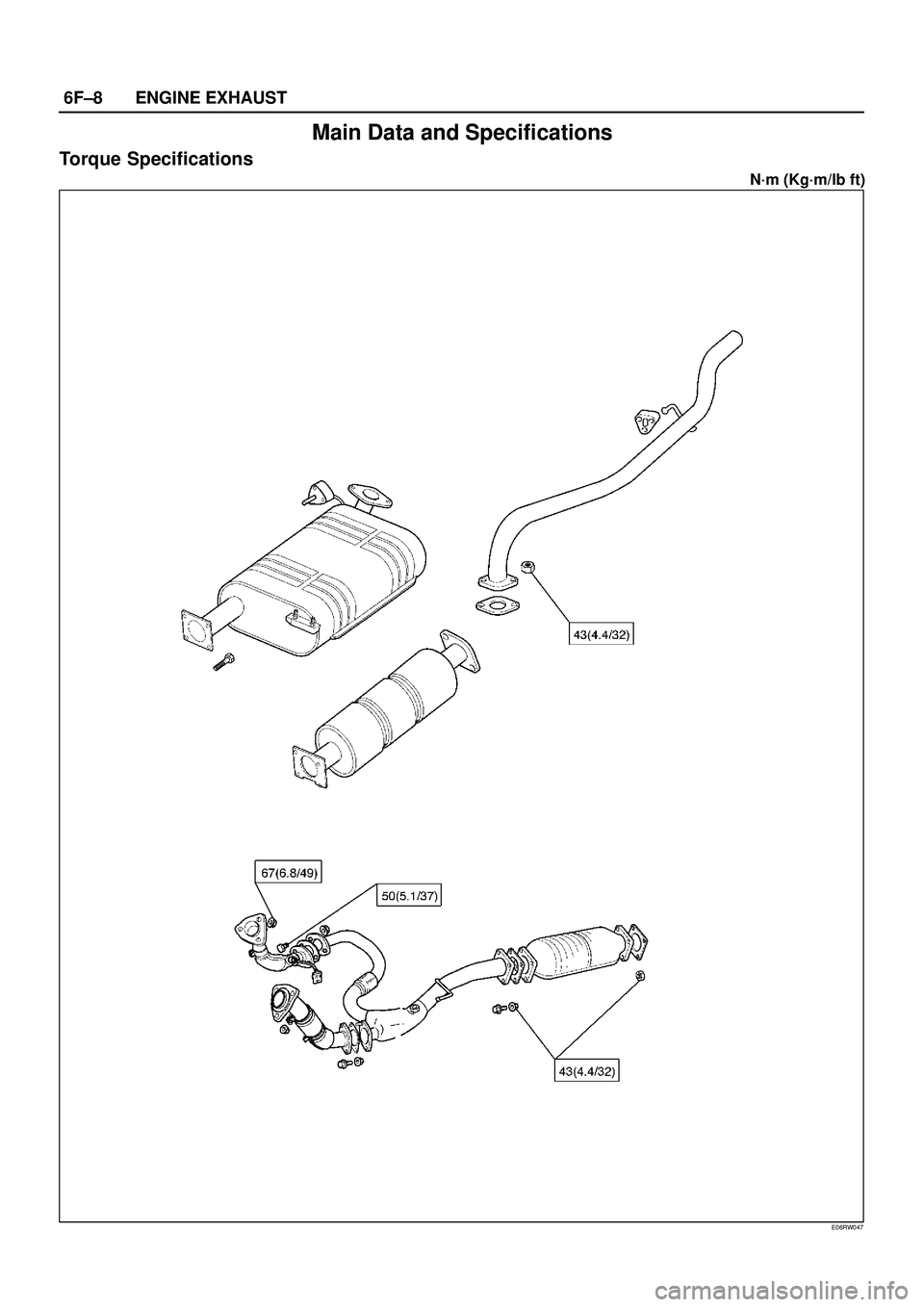

ISUZU TROOPER 1998 Service Repair Manual 6F±8ENGINE EXHAUST
Main Data and Specifications
Torque Specifications
N´m (Kg´m/lb ft)
E06RW047

Page 1480 of 3573

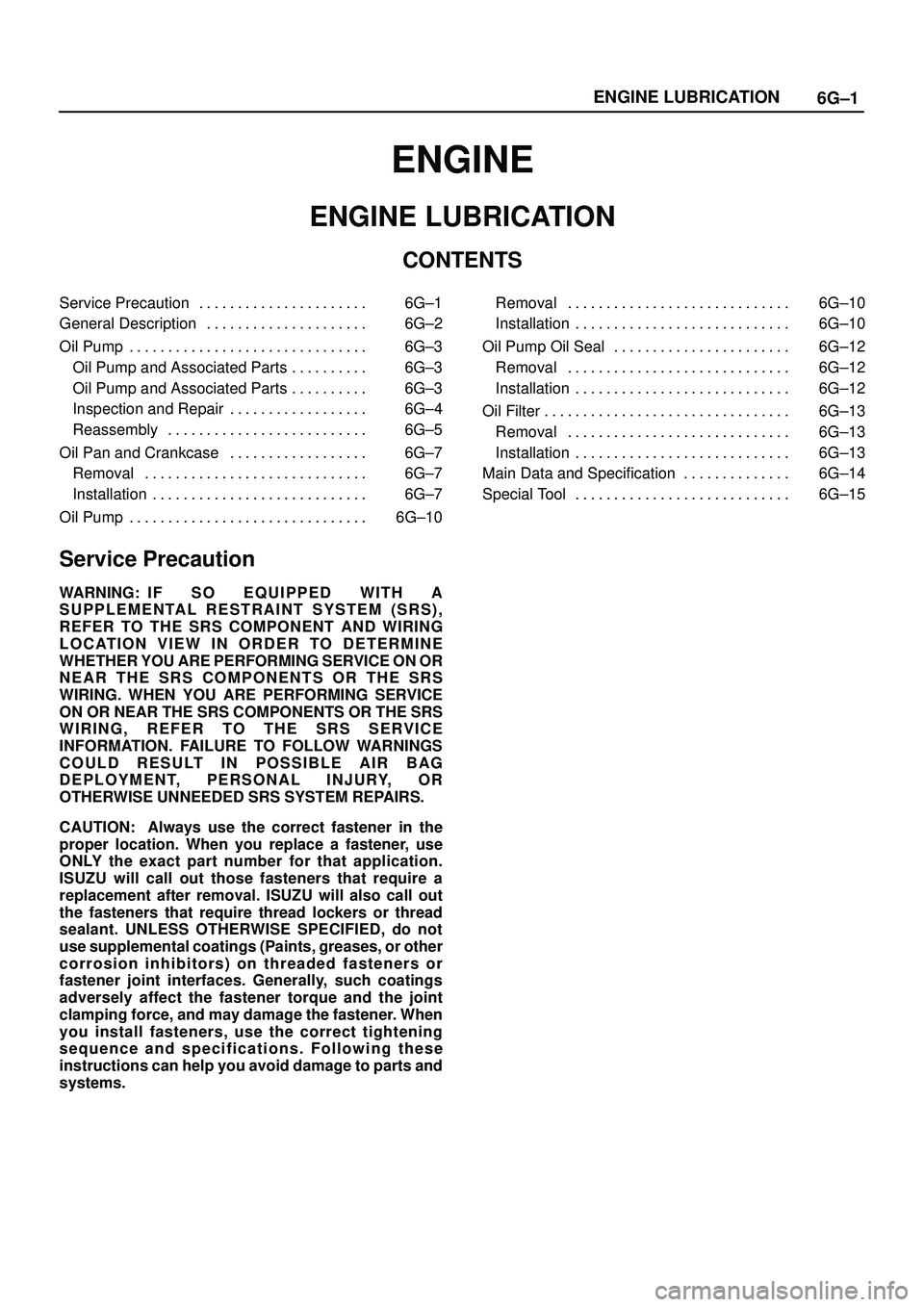

ISUZU TROOPER 1998 Service Repair Manual 6G±1 ENGINE LUBRICATION
ENGINE
ENGINE LUBRICATION
CONTENTS
Service Precaution 6G±1. . . . . . . . . . . . . . . . . . . . . .
General Description 6G±2. . . . . . . . . . . . . . . . . . . . .
Oil

6G±1 ENGINE LUBRICATION
ENGINE
ENGINE LUBRICATION
CONTENTS
Service Precaution 6G±1. . . . . . . . . . . . . . . . . . . . . .
General Description 6G±2. . . . . . . . . . . . . . . . . . . . .
Oil Pump 6G±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pump and Associated Parts 6G±3. . . . . . . . . .
Oil Pump and Associated Parts 6G±3. . . . . . . . . .
Inspection and Repair 6G±4. . . . . . . . . . . . . . . . . .
Reassembly 6G±5. . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pan and Crankcase 6G±7. . . . . . . . . . . . . . . . . .
Removal 6G±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6G±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pump 6G±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Removal 6G±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6G±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pump Oil Seal 6G±12. . . . . . . . . . . . . . . . . . . . . . .
Removal 6G±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6G±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Filter 6G±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 6G±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6G±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specification 6G±14. . . . . . . . . . . . . .
Special Tool 6G±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
