1998 ISUZU TROOPER Service Repair Manual

headlightsoil typewheel boltsdoor lockpower steeringdriver seat adjustment
Popular search:
dimensionsmanual transmissionautomatic transmissionengine overheatside mirrorsfuel additivessensor
Previous
Next
Load previous 8 pages

Page 2329 of 3573

ISUZU TROOPER 1998 Service Repair Manual MANUAL TRANSMISSION7B±11 220RW119 Legend (1) Pressure Plate Assembly (2) Release Bearing (3) Wedge Collar 30. Remove the transmission retaining nuts and bolts. 31. Remove the transmission assembly wi

Page 2330 of 3573

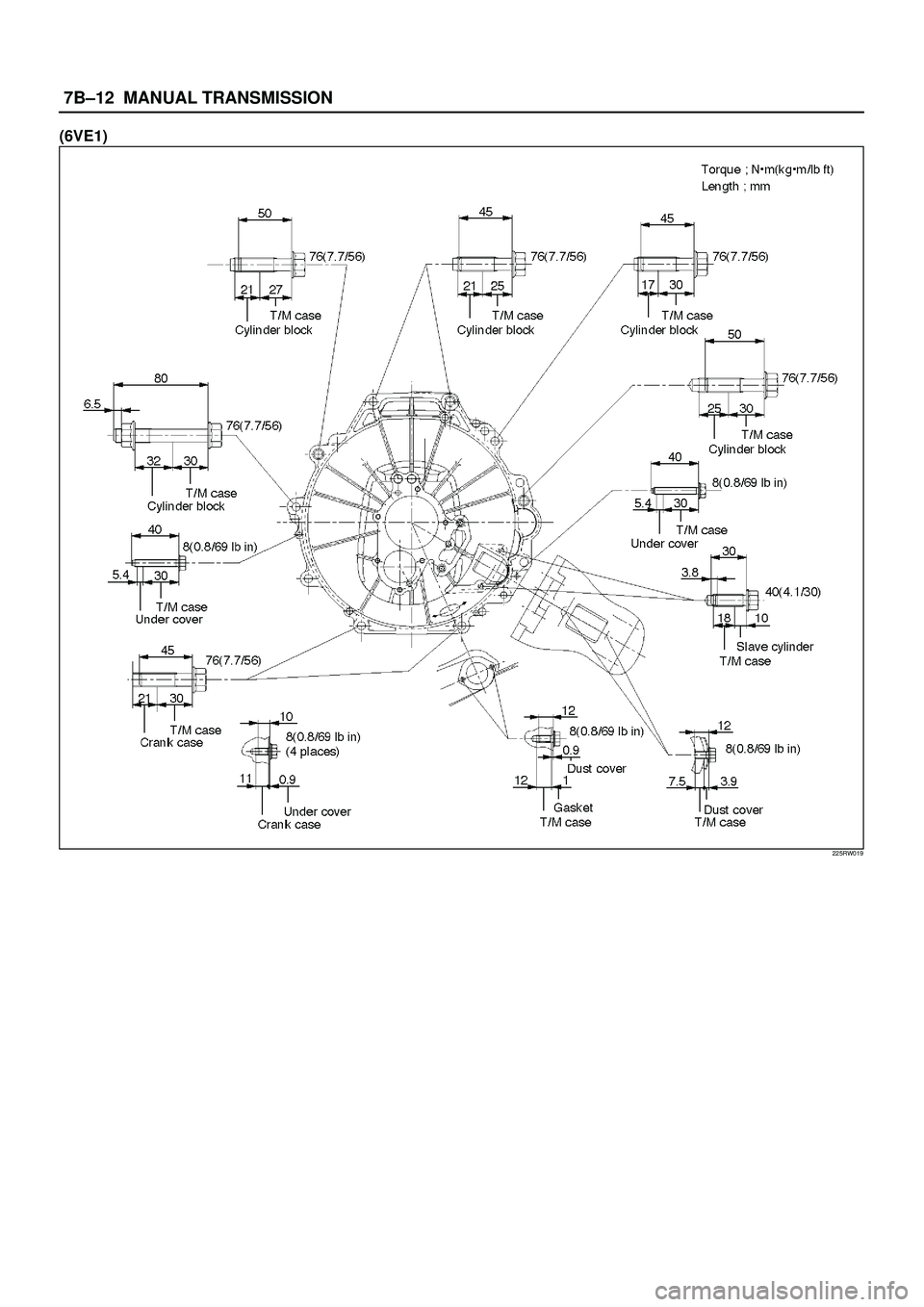

ISUZU TROOPER 1998 Service Repair Manual 7B±12MANUAL TRANSMISSION (6VE1) 225RW019

Page 2331 of 3573

ISUZU TROOPER 1998 Service Repair Manual MANUAL TRANSMISSION7B±13 (4JX1) 225RW020 5. Apply a force of about 113N (26 Ib) to the tip of the shift fork in the direction of the transmission to engage the clutch pressure plate and release beari

Page 2332 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7B±14MANUAL TRANSMISSION 7. Install the engine rear mount to the transmission case and tighten the fixing bolts specified torque (6VE1). Torque: 41 N´m (4.2kg´m/30 Ib ft) 8. Install the third cross

Page 2333 of 3573

ISUZU TROOPER 1998 Service Repair Manual MANUAL TRANSMISSION7B±15 141RW024 18. Connect the speedometer sensor and 2WD±4WD actuator harness connector. 826RW024

Page 2334 of 3573

ISUZU TROOPER 1998 Service Repair Manual 7B±16MANUAL TRANSMISSION 19. Connect the backup lamp switch, 4WD indicator switch, and 1-2 indicator switch harness connectors. 826RW023 20. Install the front and 3 way exhaust pipe (6VE1). Install t

Page 2335 of 3573

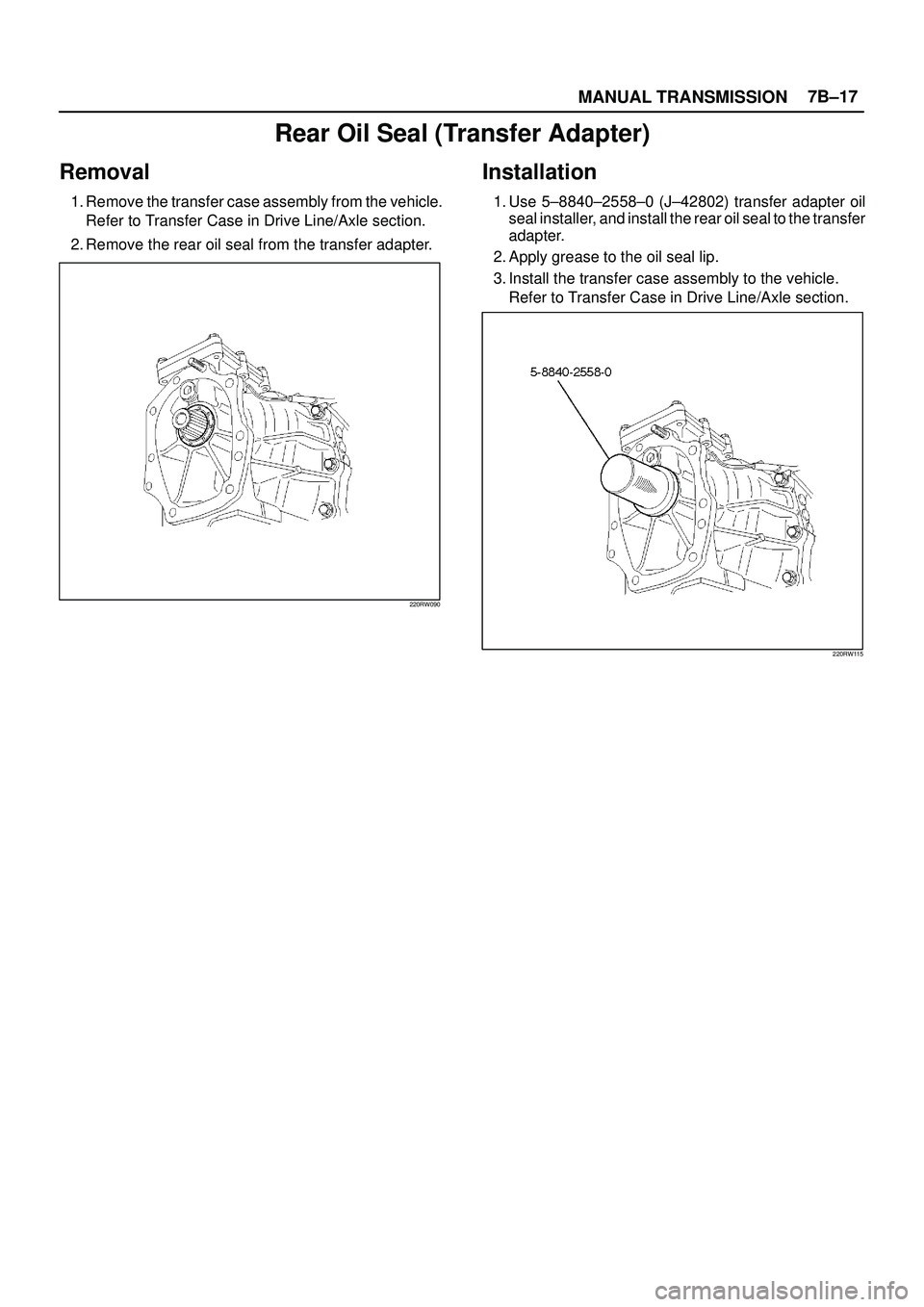

ISUZU TROOPER 1998 Service Repair Manual MANUAL TRANSMISSION7B±17 Rear Oil Seal (Transfer Adapter) Removal 1. Remove the transfer case assembly from the vehicle. Refer to Transfer Case in Drive Line/Axle section. 2. Remove the rear oil seal

Page 2336 of 3573

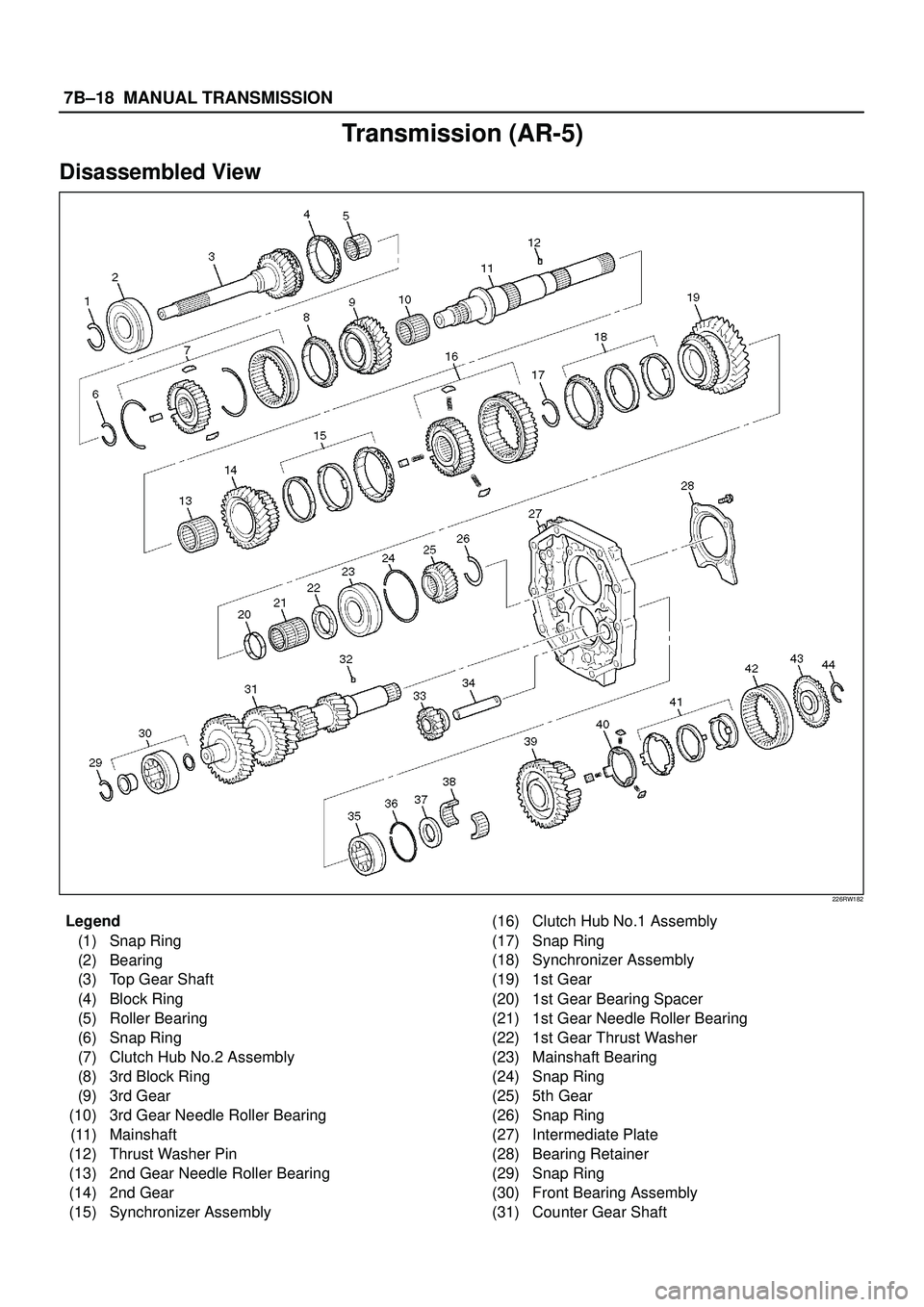

ISUZU TROOPER 1998 Service Repair Manual 7B±18MANUAL TRANSMISSION Transmission (AR-5) Disassembled View 226RW182 Legend (1) Snap Ring (2) Bearing (3) Top Gear Shaft (4) Block Ring (5) Roller Bearing (6) Snap Ring (7) Clutch Hub No.2 Assembl
