Page 473 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4A2A±6 DIFFERENTIAL (REAR 220mm) 11. Install the lateral rod fixing nut to the axle housing. 12. Install the stabilizer linkage mounting nut to the axle housing. 13. Install the shock absorber fixing

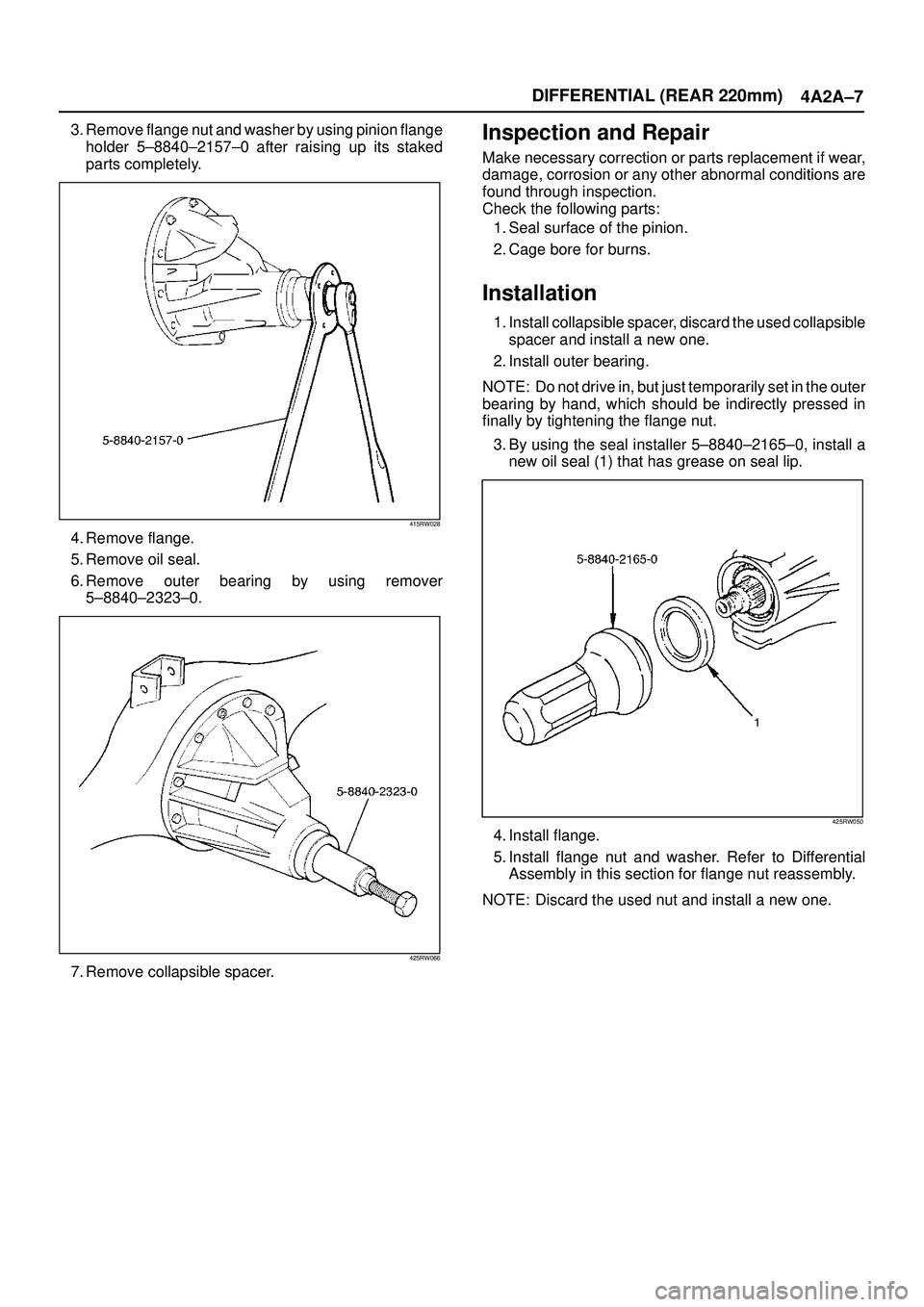

Page 474 of 3573

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±7 3. Remove flange nut and washer by using pinion flange holder 5±8840±2157±0 after raising up its staked parts completely. 415RW028 4. Remove flange. 5. Remove oil

Page 475 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4A2A±8 DIFFERENTIAL (REAR 220mm) Differential Assembly Differential Assembly and Associated Parts 425RW055 Legend (1) Bolt and Nut (2) Axle Shaft Assembly(3) Parking Brake Cable (4) Differential Asse

Page 476 of 3573

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±9 Installation 1. Clean the contact surfaces of the axle and differential carrier. As shown in the drawing, apply Three Bond TB1215 or equivalent then install differen

Page 477 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4A2A±10 DIFFERENTIAL (REAR 220mm) Disassembled View 415RW035 Legend (1) Bolt (2) Bearing Cap (3) Side Bearing (4) Adjust Shim (5) Diff Cage Assembly (6) Side Bearing Outer Race (7) Pinion Gear (8)

Page 478 of 3573

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±11 Disassembly 1. Using holding fixture 5±8840±0275±0 and holding fixture base 5±8840±0003±0, fix the differential assembly to the bench. 425RW046 2. Remove beari

Page 479 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4A2A±12 DIFFERENTIAL (REAR 220mm) 11. Remove the drive pinion assembly using a soft metal rod and a hammer. 425RW056 12. Remove collapsible spacer. 13. Remove the inner bearing using a separator 5±8

Page 480 of 3573

ISUZU TROOPER 1998 Service Repair Manual DIFFERENTIAL (REAR 220mm) 4A2A±13 Reassembly 1. Using installer 5±8840±2164±0 and grip 5±8840±0007±0, install outer bearing outer race. 415RW025 2. Using installer 5±8840±2163±0 and grip 5±
