Page 1817 of 3573

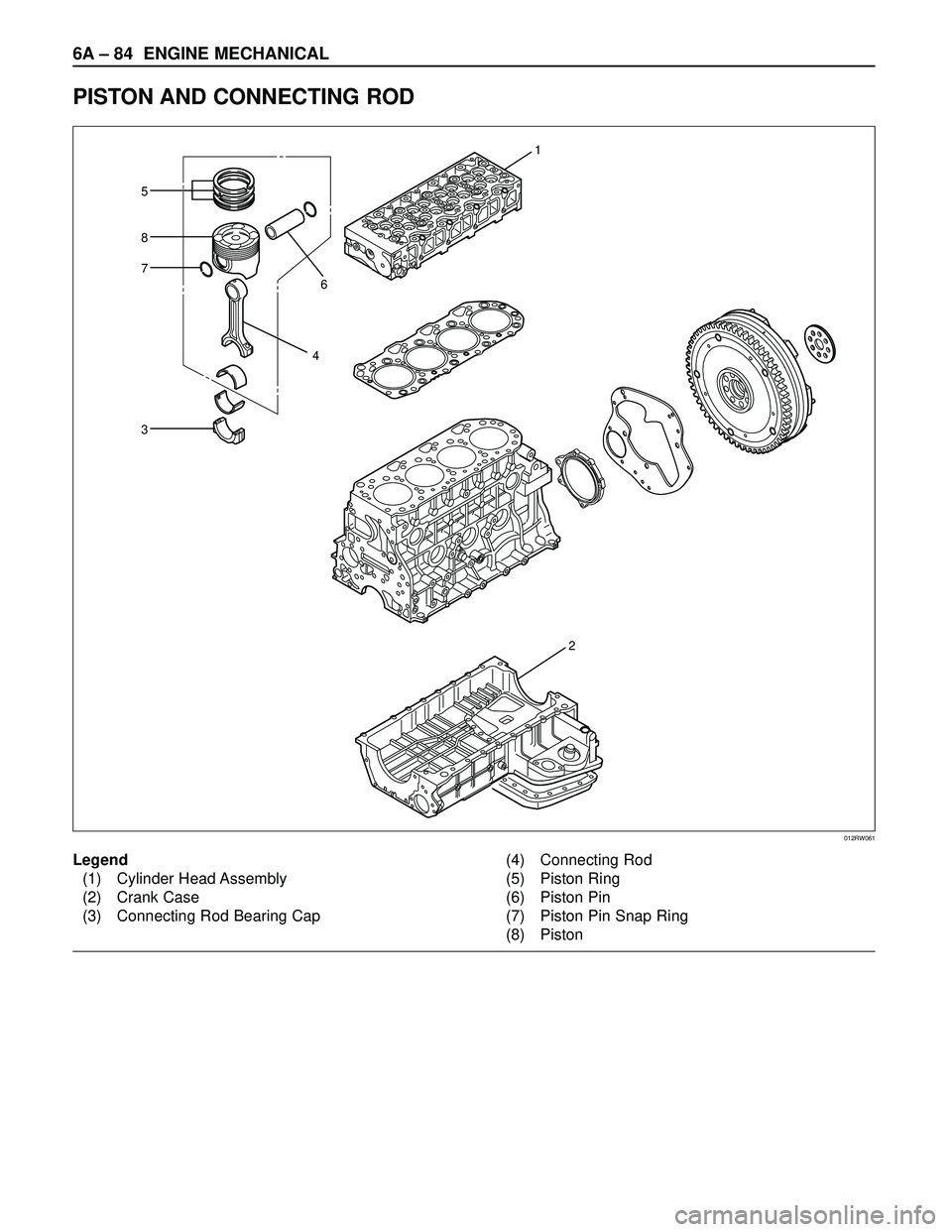

ISUZU TROOPER 1998 Service Repair Manual 6A– 84 ENGINE MECHANICAL PISTON AND CONNECTING ROD 5 8 7 3 1 2 6 4 012RW061 Legend (1) Cylinder Head Assembly (2) Crank Case (3) Connecting Rod Bearing Cap(4) Connecting Rod (5) Piston Ring (6) Pist

Page 1818 of 3573

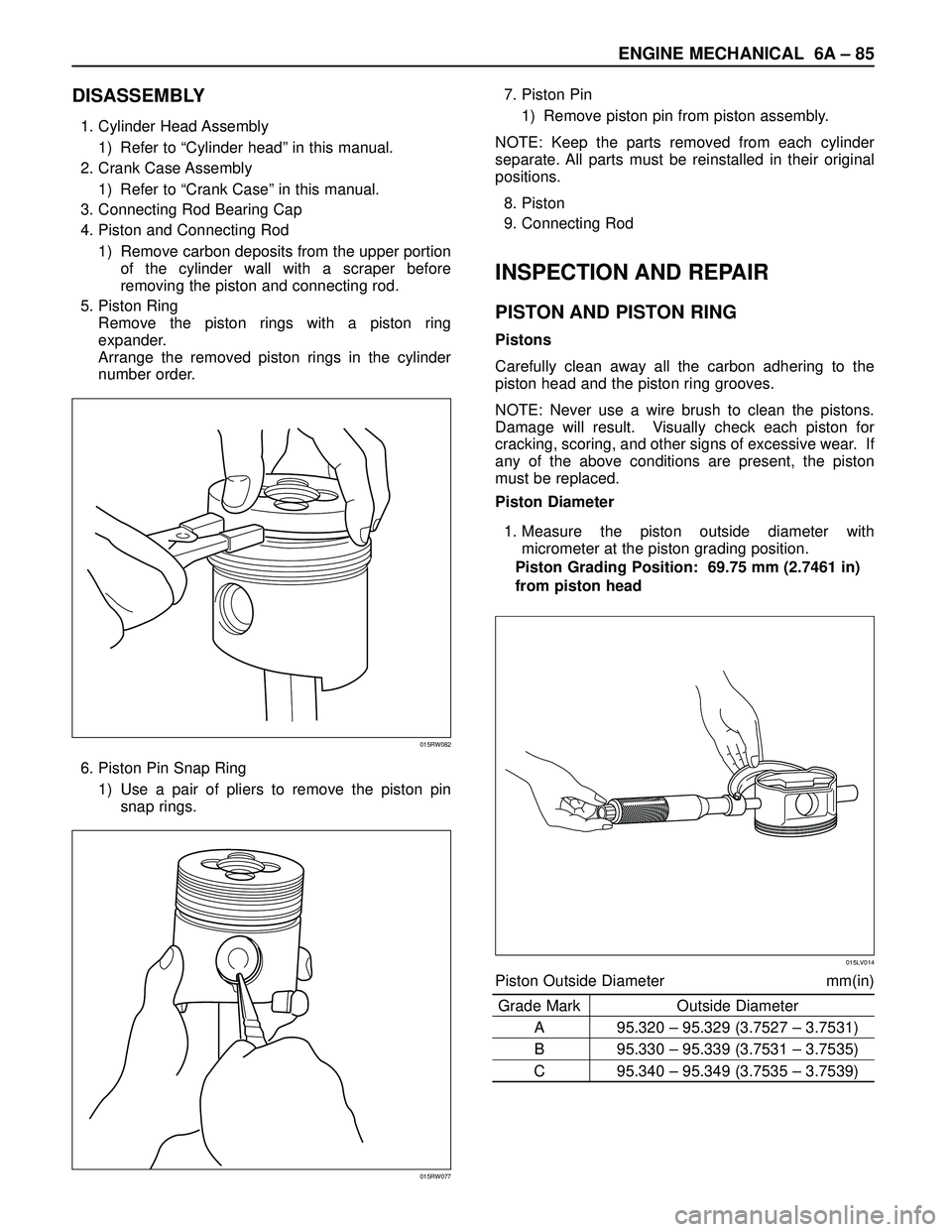

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A– 85 DISASSEMBLY 1. Cylinder Head Assembly 1) Refer to “Cylinder head” in this manual. 2. Crank Case Assembly 1) Refer to “Crank Case” in this manual. 3. Connecting Rod B

Page 1819 of 3573

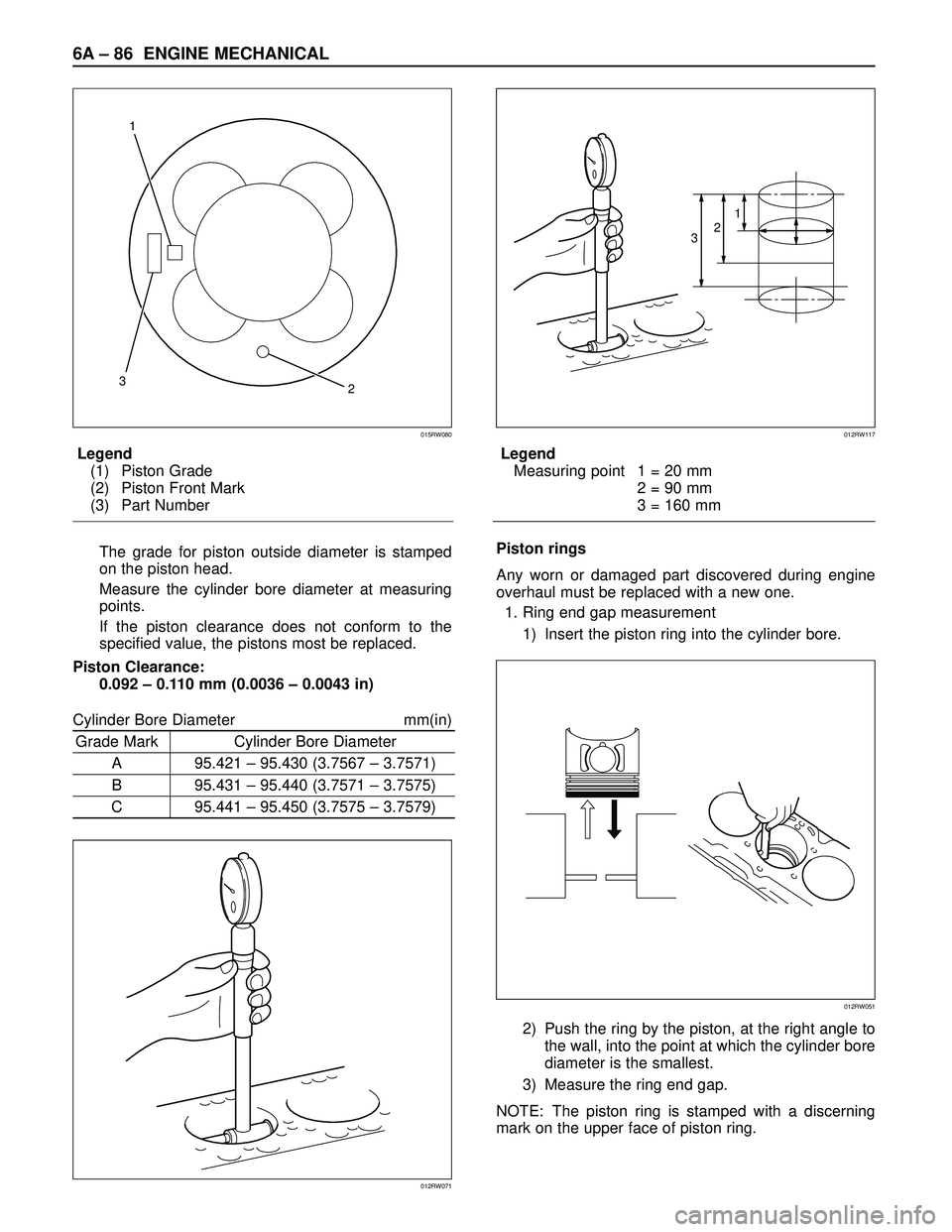

ISUZU TROOPER 1998 Service Repair Manual 6A– 86 ENGINE MECHANICAL Legend (1) Piston Grade (2) Piston Front Mark (3) Part Number The grade for piston outside diameter is stamped on the piston head. Measure the cylinder bore diameter at meas

Page 1820 of 3573

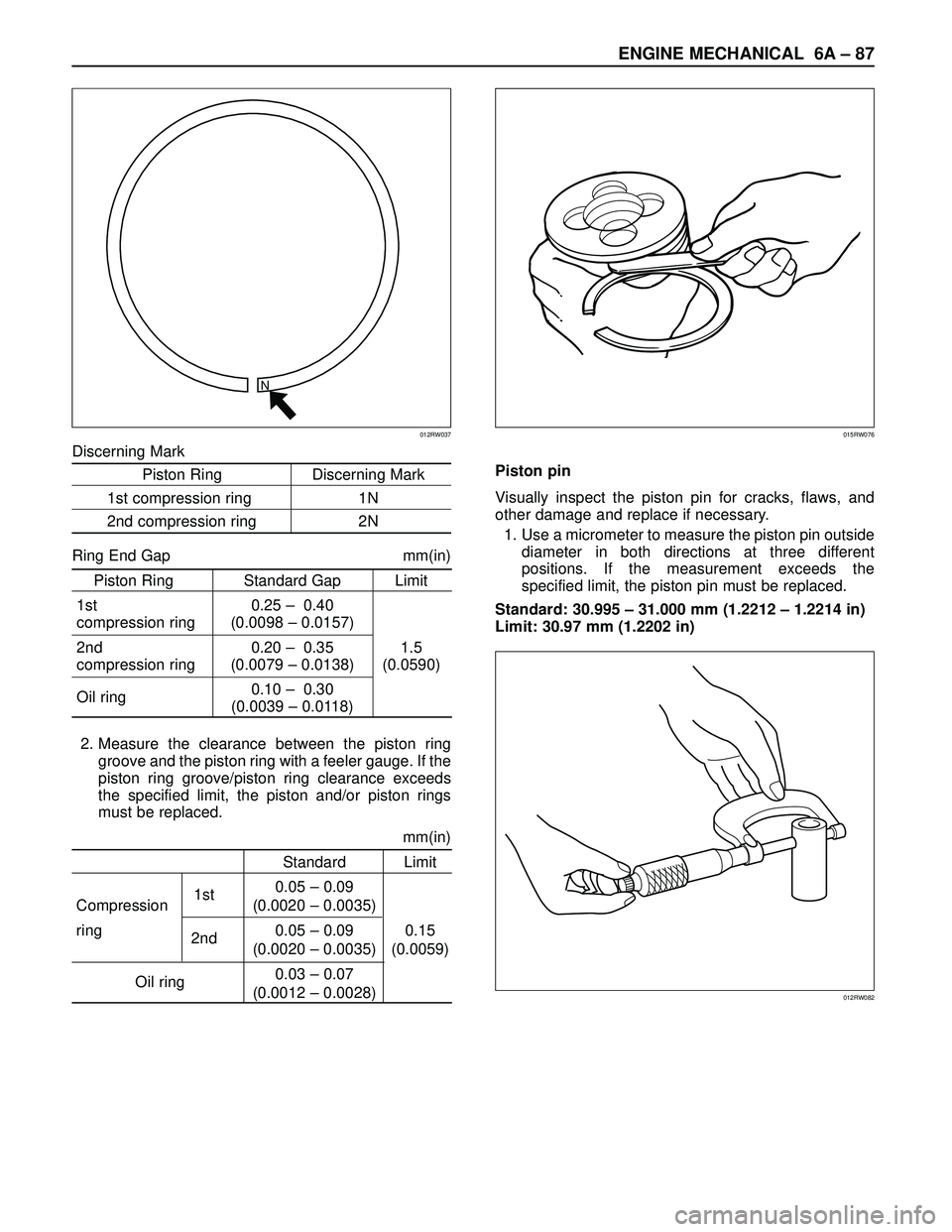

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A– 87 Discerning Mark Piston Ring Discerning Mark 1st compression ring 1N 2nd compression ring 2N Ring End Gap mm(in) Piston Ring Standard Gap Limit 1st 0.25 –0.40 compression r

Page 1821 of 3573

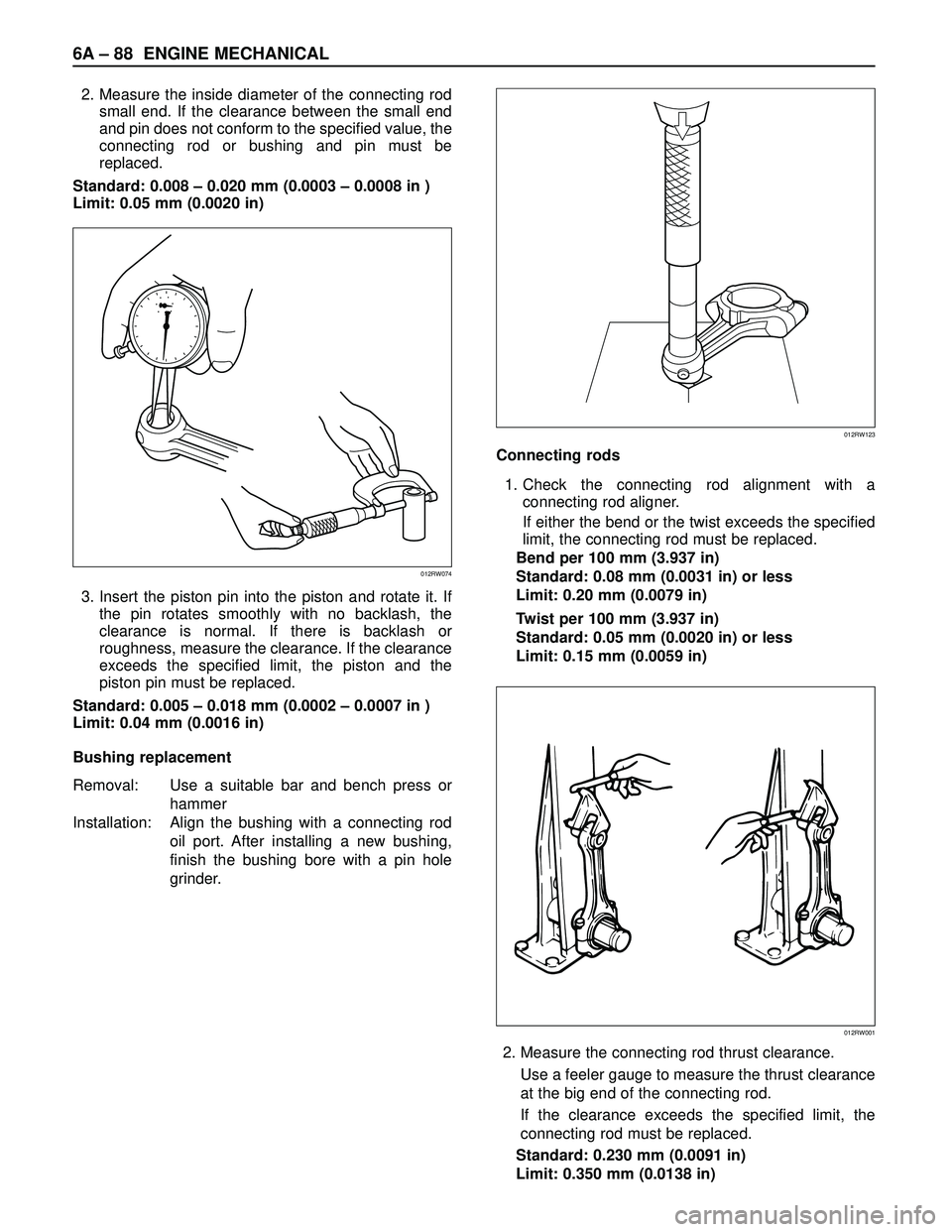

ISUZU TROOPER 1998 Service Repair Manual 6A– 88 ENGINE MECHANICAL 2. Measure the inside diameter of the connecting rod small end. If the clearance between the small end and pin does not conform to the specified value, the connecting rod or

Page 1822 of 3573

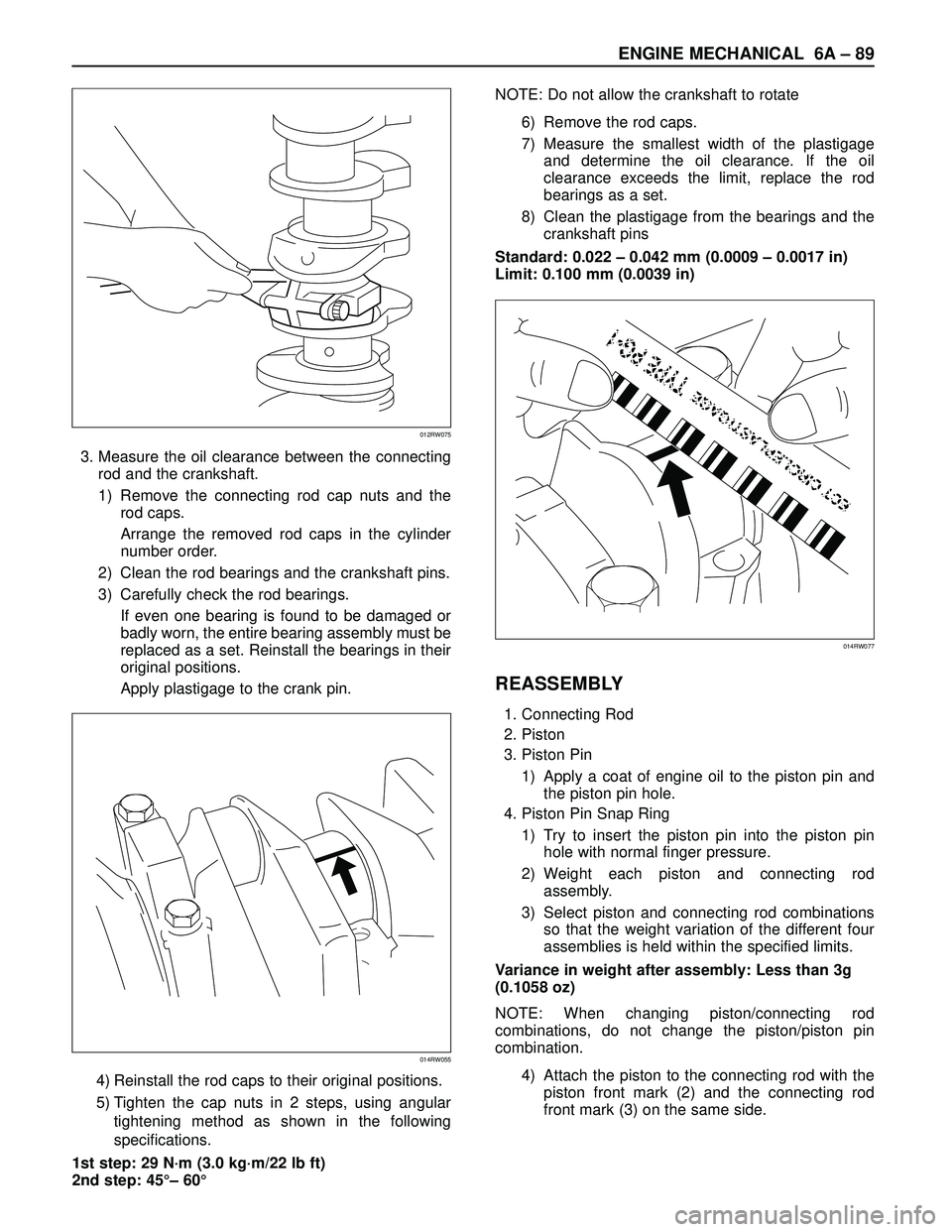

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A– 89 3. Measure the oil clearance between the connecting rod and the crankshaft. 1) Remove the connecting rod cap nuts and the rod caps. Arrange the removed rod caps in the cylin

Page 1823 of 3573

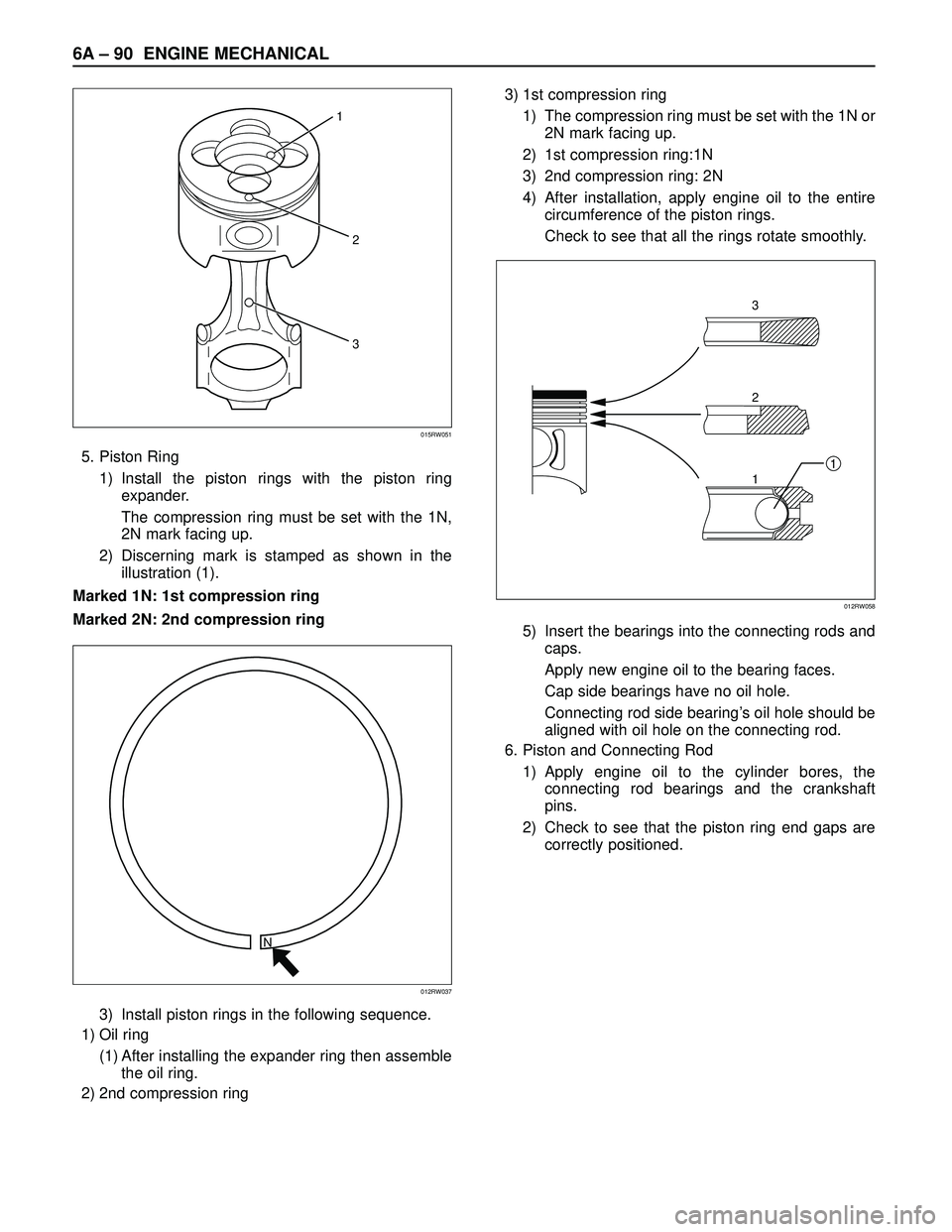

ISUZU TROOPER 1998 Service Repair Manual 6A– 90 ENGINE MECHANICAL 5. Piston Ring 1) Install the piston rings with the piston ring expander. The compression ring must be set with the 1N, 2N mark facing up. 2) Discerning mark is stamped as s

Page 1824 of 3573

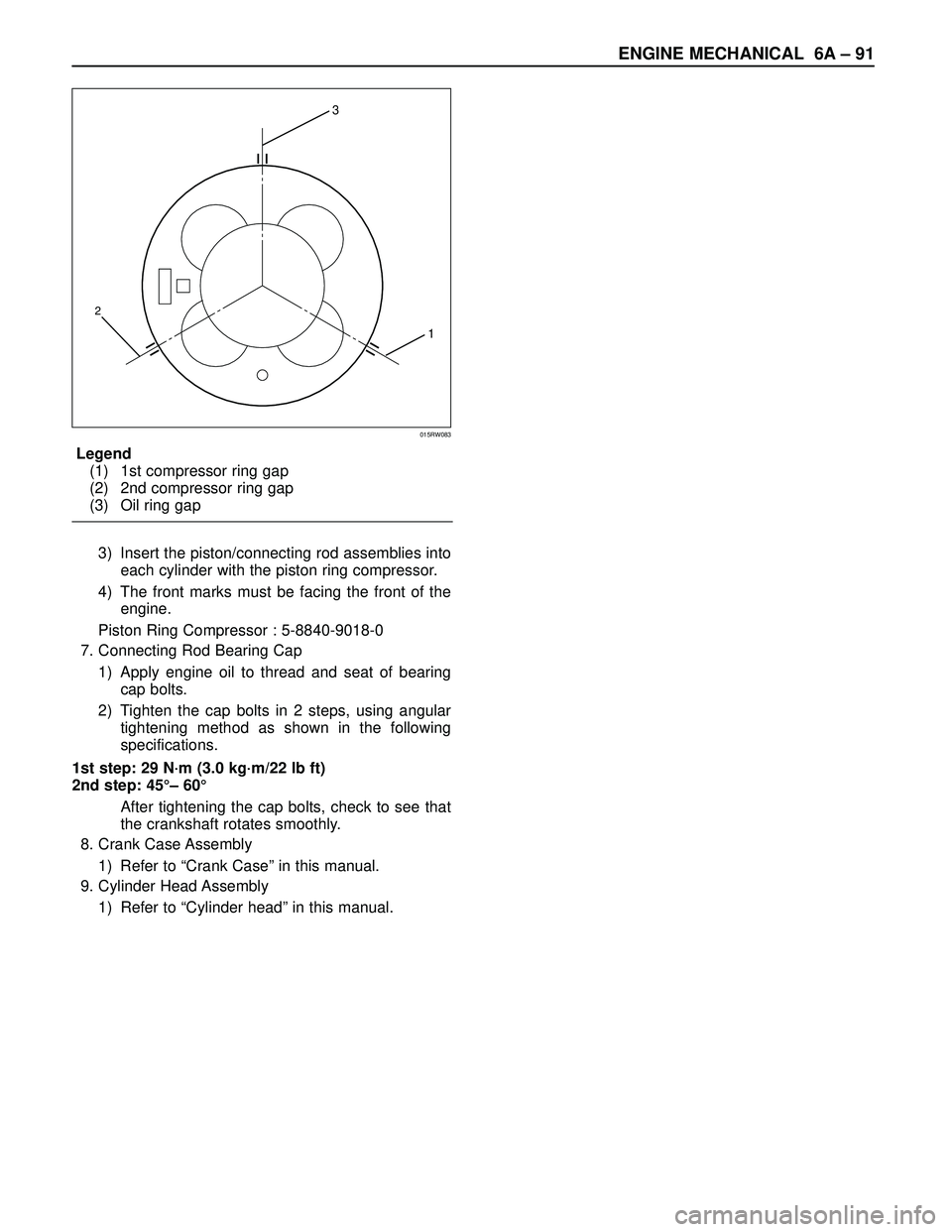

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A– 91 Legend (1) 1st compressor ring gap (2) 2nd compressor ring gap (3) Oil ring gap 3) Insert the piston/connecting rod assemblies into each cylinder with the piston ring compre
