Page 609 of 3573
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±38
Check flowTrouble codePhenomenonStandard
524Rear speed sensor signal open or
GND short, speed sensor COM
open.0.3 > sensor voltage
NOTE: The following procedure shows the case that the
front or rear sensor reference or common grounding line
is broken.
D04RW061
Page 610 of 3573
4B2±39 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Start the engine.
2. Select 4H (TOD) mode.
Is the memory except DTC 24?
Go to Step 3Go to Step 2
2Is the continuity harness of terminal 23 (vehicle side terminal of
the rear speed sensor)?Replace speed
sensor.
Go to Step 6
Repair the circuit.
Go to Step 6
3Is the memory DTC 14?
Go to Step 4
Refer to other
trouble cheek
flow.
Go to Step 2
4Is the continuity between harness of terminal 23 and 24 (vehicle
side terminal of the front and rear speed sensor)?
Go to Step 5
Repair the circuit
Go to Step 6
5Is the continuity between harness of terminal 15 and 18 (vehicle
side terminal of the speed sensor COM and ref)?Replace front and
rear speed
sensor.
Go to Step 6
Repair the circuit.
Go to Step 6
61. Check that all the parts are mounted.
2. Clear the trouble code.
Is the step complete?
Repeat the
ªDiagnosis Flowº.
The trouble is not
reproduced.
Refer to
ªTroubles
intermittently
observedº.
Return to Step 6
Page 611 of 3573

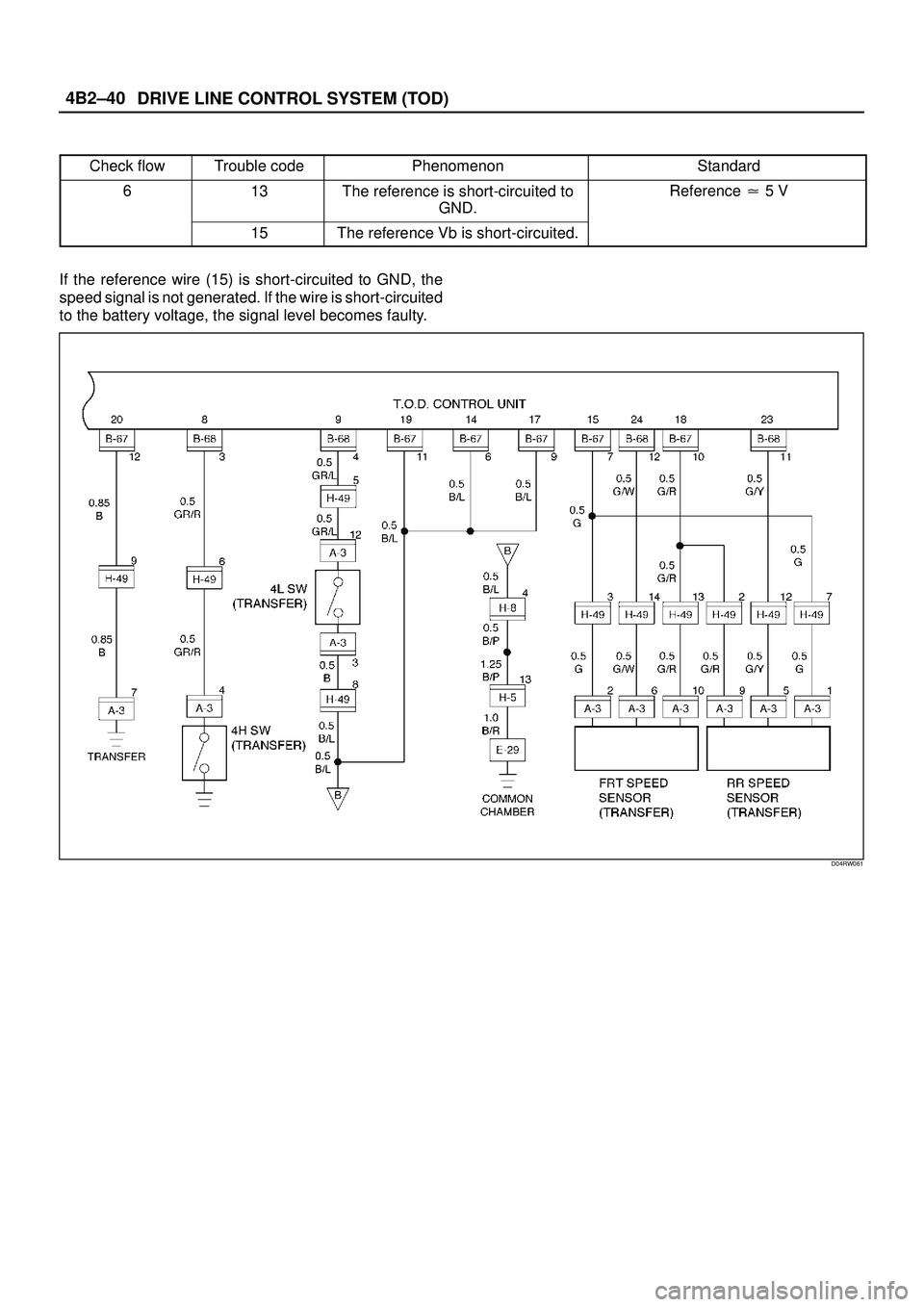

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±40
Check flowTrouble codePhenomenonStandard
613The reference is short-circuited to
GND.Reference 5 V
15The reference Vb is short-circuited.
If the reference wire (15) is short-circuited to GND, the
speed signal is not generated. If the wire is short-circuited
to the battery voltage, the signal level becomes faulty.
D04RW061
Page 612 of 3573

4B2±41 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Start the engine.
Does the voltage between terminals 15 and 19 meet the standard
5V?
Go to Step 8Go to Step 2
2Is the voltage below the standard?Go to Step 3Go to Step 7
31. Turn off the starter switch.
2. Disconnect the ECU connector.
Is the continuity established between vehicle harness terminals
(B±67)7 and (B±67)11?
Go to Step 4
The ECU is
failed. Replace
the ECU.
Go to Step 8
41. Disconnect the H-49 connector.
Is the continuity established between floor harness connector
terminals (H-49)3 and (H-49)9?
Go to Step 5Go to Step 6
51. Disconnect the A±3 connector.
Is the continuity established between transfer harness connector
terminals (A±3)2 and (A±3)7?
Replace the front
speed sensor.
Go to Step 8
The reference
harness for the
front speed
sensor is
short±circuited to
GND. Repair the
circuit.
Go to Step 8
61. Disconnect the A±3 connector.
Is the continuity established between transfer harness connector
terminals (A±3)1 and (A±3)7?
Replace the rear
speed sensor.
Go to Step 8
The reference
harness for the
rear speed
sensor is
short±circuited to
GND. Repair the
circuit.
Go to Step 8
71. Turn off the starter switch.
2. Disconnect the ECU connector.
3. Turn on the starter switch.
Is the battery voltage observed between harness connector
terminals (B±67)7 and (B±67)11?
Repair the
harness circuit.
Go to Step 8
The ECU has
failed. Replace
the ECU.
Go to Step 8
81. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
ªDiagnosis Flowº
Go to Step 8
Page 613 of 3573
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±42
Check flowTrouble codePhenomenonStandard
721The voltage of the throttle position
sensor (TPS) is faulty.
The signal voltage from the TPS deviates from the stan-
dard range.
D04RW056
Page 614 of 3573
4B2±43 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Turn off the starter switch.
Is the battery voltage normal?
Go to Step 2
Charge or
replace the
battery.
Go to Step 6
21. Turn on the starter switch.
Does the voltage between terminals 21 and 19 fall within the
standard range above?
Go to Step 6Go to Step 3
31. Turn off the starter switch.
2. Disconnect the ECU connector.
3. Turn on the starter switch.
Does the voltage between terminals (B±68)9 and (B±67)11 fall
within the standard range above?
The ECU has
failed. Replace
the ECU.
Go to Step 6
Go to Step 4
4Is the harness healthy?
Go to Step 5
Repair the
harness.
Go to Step 6
5Is the TPS healthy?
Go to Step 6
Replace the TPS.
Go to Step 6
61. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
ªDiagnosis Flowº.
Go to Step 6
Page 615 of 3573
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±44
Check flowTrouble codePhenomenonStandard
834The diesel/gasoline engine identifi-
cation signal is faulty.Gasoline: Continuity established
The engine identification signals of 6VE1 and 4JX1 are
changed each other.
D04RW056
Page 616 of 3573
4B2±45 DRIVE LINE CONTROL SYSTEM (TOD)
6VE1
Step
ActionYe sNo
11. Turn off the starter switch.
Is the continuity established between terminals 14 and 19?
Go to Step 2
The harness is
broken. Repair
the circuit.
Go to Step 3
21. Turn on the starter switch.
Does the voltage between terminals 14 and 19 indicate 0V?The phenomenon
is not
reproduced.
Refer to
ªTroubles
intermittently
observedº
Go to Step 3
The ECU has
failed. Replace
the ECU.
Go to Step 3
31. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
ªDiagnosis Flowº.
Return to Step 3
