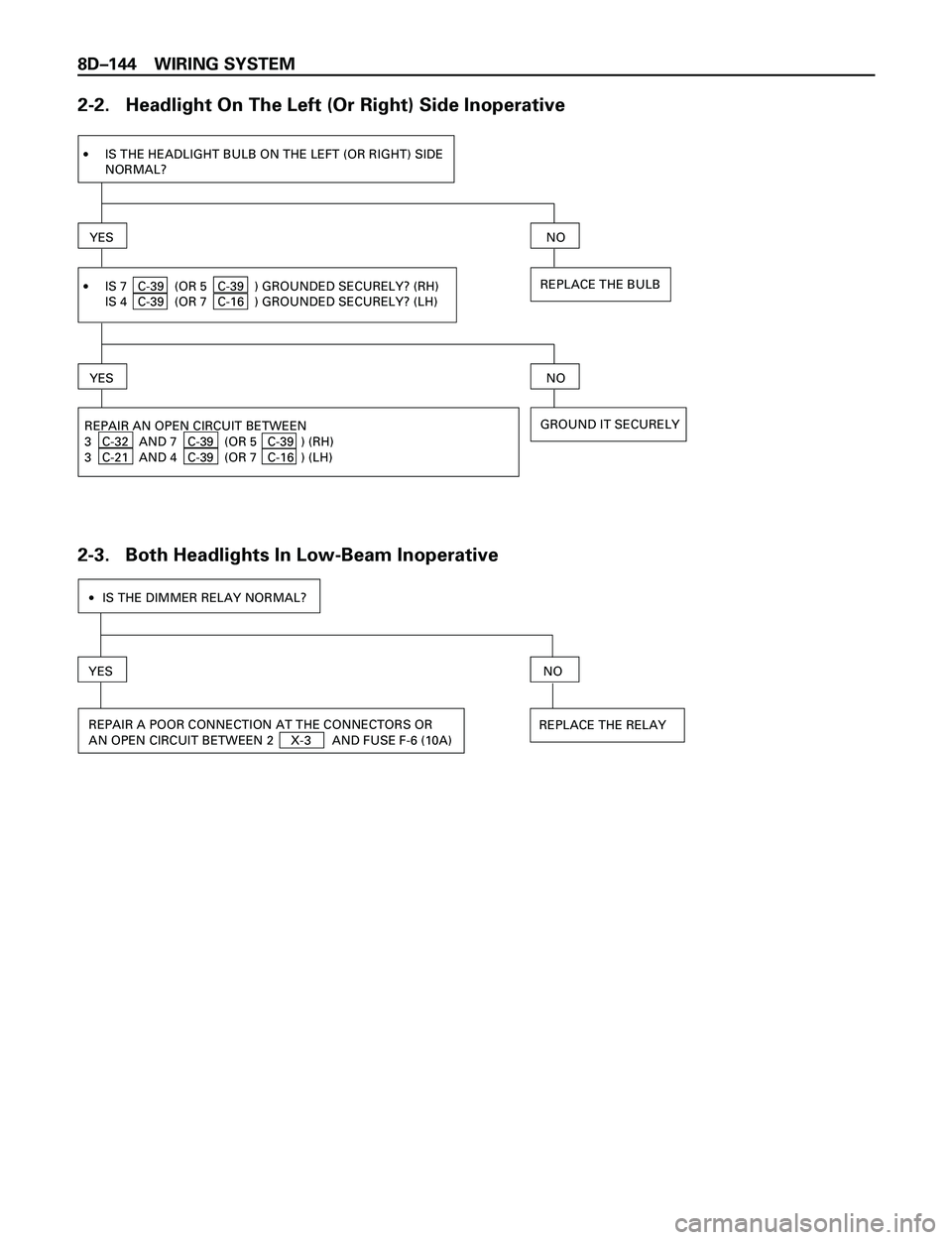

ISUZU TROOPER 1998 Service Repair Manual 8DÐ144 WIRING SYSTEM 2-2. Headlight On The Left (Or Right) Side Inoperative ·IS THE HEADLIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL? YES REPLACE THE BULB NO ·IS 7 C-39 (OR 5 C-39 ) GROU

Page 2738 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ145 2-4. Headlight Low-Beam On The Left (Or Right) Side Inoperative 2-5. Both Headlights In High-Beam Inoperative ·IS THE HEADLIGHT BULB NORMAL? YESNO REPLACE THE BULB·IS THE F

Page 2739 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ146 WIRING SYSTEM 2-6. Headlight High-Beam On The Left (Or Right) Side Inoperative 2-7. Headlight Beam Does Not Change ·IS THE CONTINUITY IN THE DIMMER·PASSING SW NORMAL ? YES REPAIR OR REPL

Page 2740 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ147 2-8. Headlights Remain On When The Lighting SW Is Turned Off 2-9. Headlights Come On When The Lighting SW At The Clearance Light Position ·IS THE LIGHTING RELAY NORMAL? YES

Page 2741 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ148 WIRING SYSTEM 3-1. Both FRT Fog Lights Inoperative (While The Clearance Light Is On) ·IS 5 C-16 (OR 6 C-16 ) GROUNDED SECURELY? YES GROUND IT SECURELY NO · ·REMOVE THE FRT FOG LIGHT

Page 2742 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ149 3-2. FRT Fog Light On The Left (Or Right) Side Inoperative (While The Clearance Light Is ON) ·IS THE BULB NORMAL ? YES REPLACE THE BULB NO ·IS THERE CONTINUITY BETWEEN 13 H-

Page 2743 of 3573

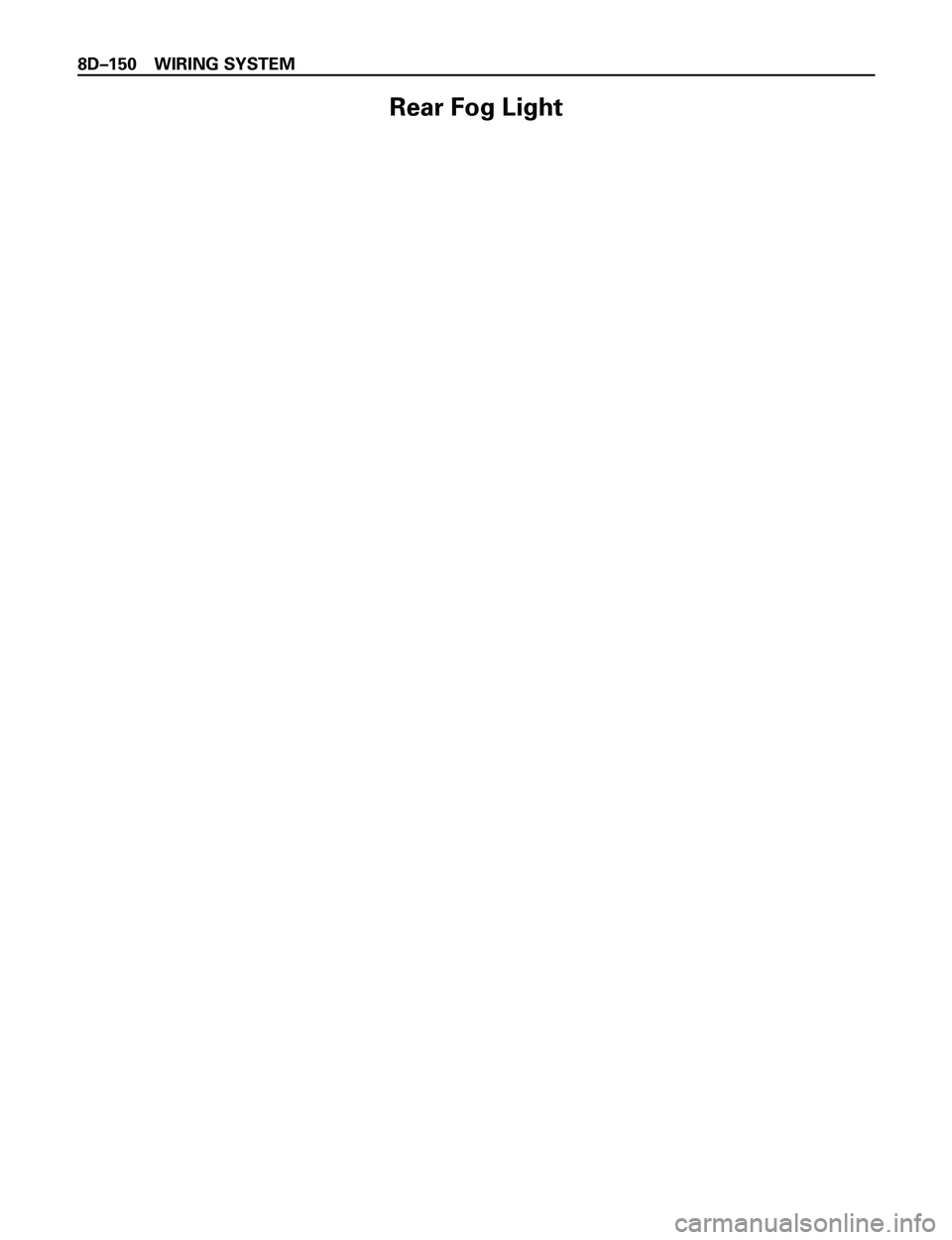

ISUZU TROOPER 1998 Service Repair Manual 8DÐ150 WIRING SYSTEM Rear Fog Light

Page 2744 of 3573

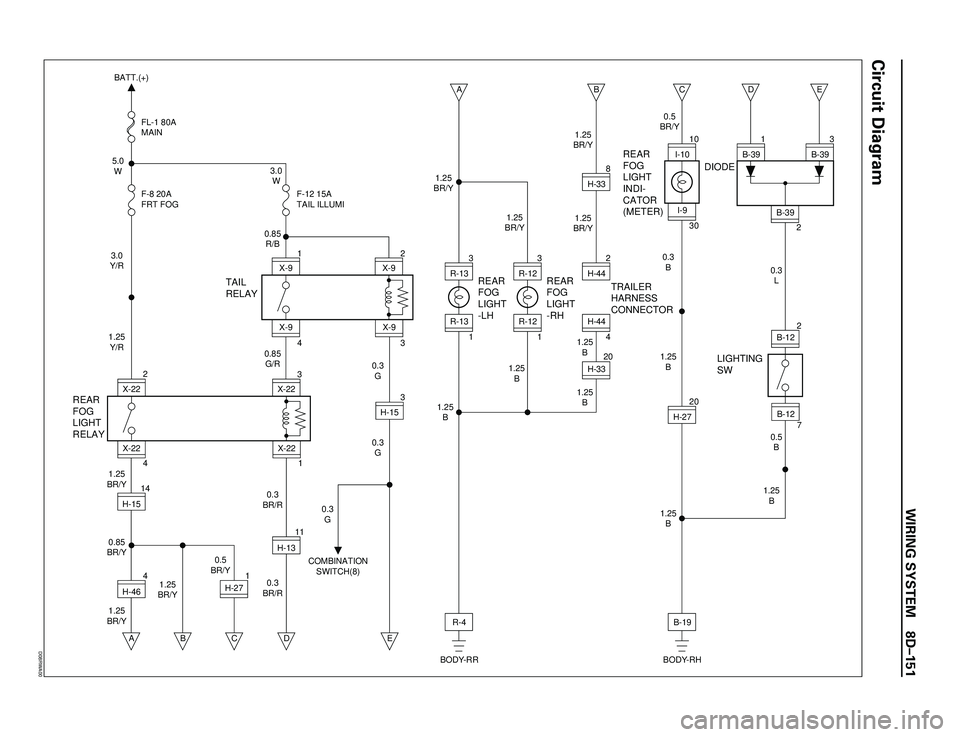

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ151 Circuit Diagram 5.0 W3.0 W FL-1 80A MAIN F-8 20A FRT FOGF-12 15A TAIL ILLUMI TAIL RELAY BATT.(+) 3 X-9 2 X-9 0.85 R/B 0.85 G/R 0.3 BR/R 0.3 BR/R0.3 G 0.3 G 0.3 G COMBINATION SWIT
