ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±30 Diagnostic Trouble Codes CodeItemDiagnosisCheck flow No. 12Start codeNormalÐ 13RefShorted GND6 14Front speed sensorInput abnormality (open, sig or com)2 15RefS

Page 602 of 3573

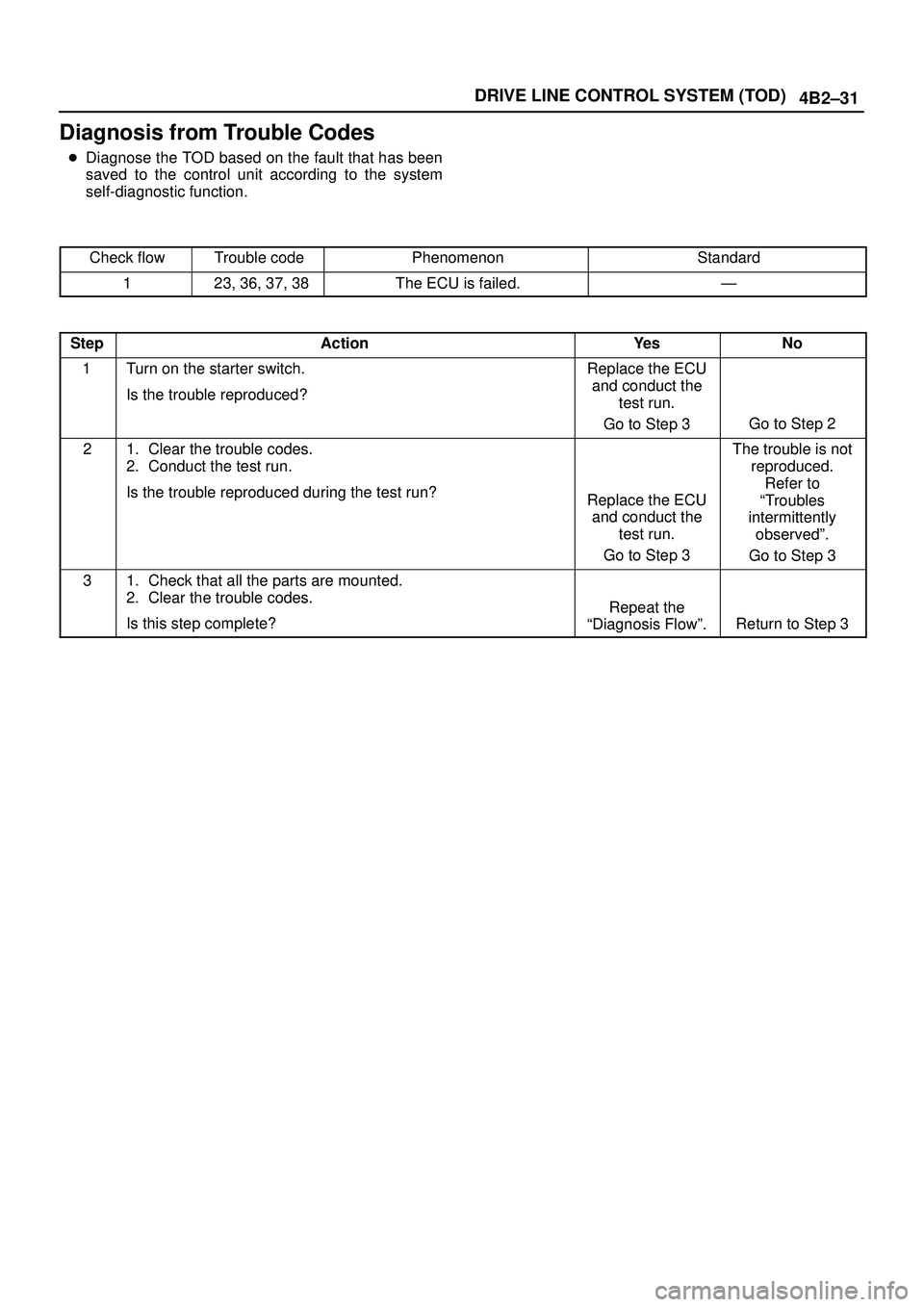

ISUZU TROOPER 1998 Service Repair Manual 4B2±31 DRIVE LINE CONTROL SYSTEM (TOD) Diagnosis from Trouble Codes Diagnose the TOD based on the fault that has been saved to the control unit according to the system self-diagnostic function. Chec

Page 603 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±32 Check flowTrouble codePhenomenonStandard 214Front speed sensor signal open or GND short, speed sensor com open.0.3 > sensor voltage NOTE: The following procedur

Page 604 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±33 DRIVE LINE CONTROL SYSTEM (TOD) StepActionYe sNo 11. Start the engine. 2. Select 4H (TOD) mode. Is the memory except DTC 14? Go to Step 3Go to Step 2 2Is the continuity harness of terminal 24

Page 605 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±34 Check flowTrouble codePhenomenonStandard 316The front speed sensor no pulse.Hi level : 4.5 ~ 6.0 V Lo level : 0.7 ~ 2.0 V Frequency (F) = GAS: 832 Hz (at 50 km/

Page 606 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±35 DRIVE LINE CONTROL SYSTEM (TOD) StepActionYe sNo 11. Connect TECH 2. While running in TOD mode, does TECH±2s front speed sensor indication change with vehicle speed? Go to Step 2 Repair and

Page 607 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±36 Check flowTrouble codePhenomenonStandard 427The rear speed sensor no pulse.Hi level : 4.5 ~ 6.0 V Lo level : 0.7 ~ 2.0 V Frequency (F) = 832 Hz (at 50 km/h) NOT

Page 608 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±37 DRIVE LINE CONTROL SYSTEM (TOD) StepActionYe sNo 11. Connect TECH 2. While running in TOD mode, does TECH±2s rear speed sensor indication change with vehicle speed? Go to Step 2 Repair and i
