Page 3329 of 3573

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±17 Disassembly (Split Type) 1. Remove the back board. Remove the clips and the back board. 2. Remove the device cover. 3. Remove the release knob. Turn the knob counterclockwise to remove i

Page 3330 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8G±18SEATS Reassembly (Split Type) To reassemble, follow the disassembly steps in the reverse order, noting the following point. 1. Tighten the reclining device fixing bolts to the specified torque.

Page 3331 of 3573

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±19 Disassembled View (Short Wheel Base) 755RW036 Legend (1) Back Board (2) Release Knob (3) Release Rod (4) Device Cover (5) Reclining Device (6) Linkage Bush (7) Pillow Assembly (8) Pad & Fr

Page 3332 of 3573

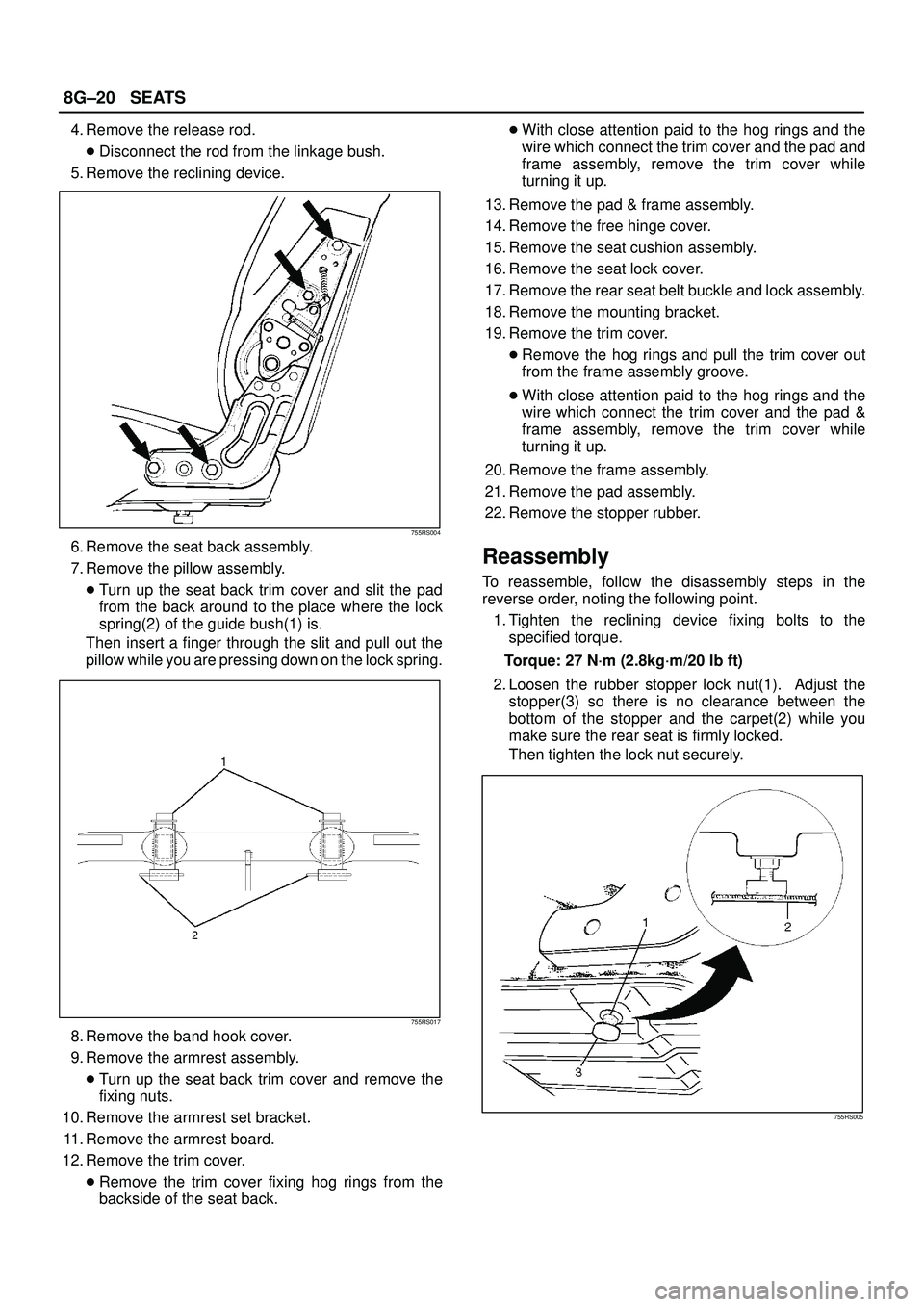

ISUZU TROOPER 1998 Service Repair Manual 8G±20SEATS 4. Remove the release rod. Disconnect the rod from the linkage bush. 5. Remove the reclining device. 755RS004 6. Remove the seat back assembly. 7. Remove the pillow assembly. Turn up the

Page 3333 of 3573

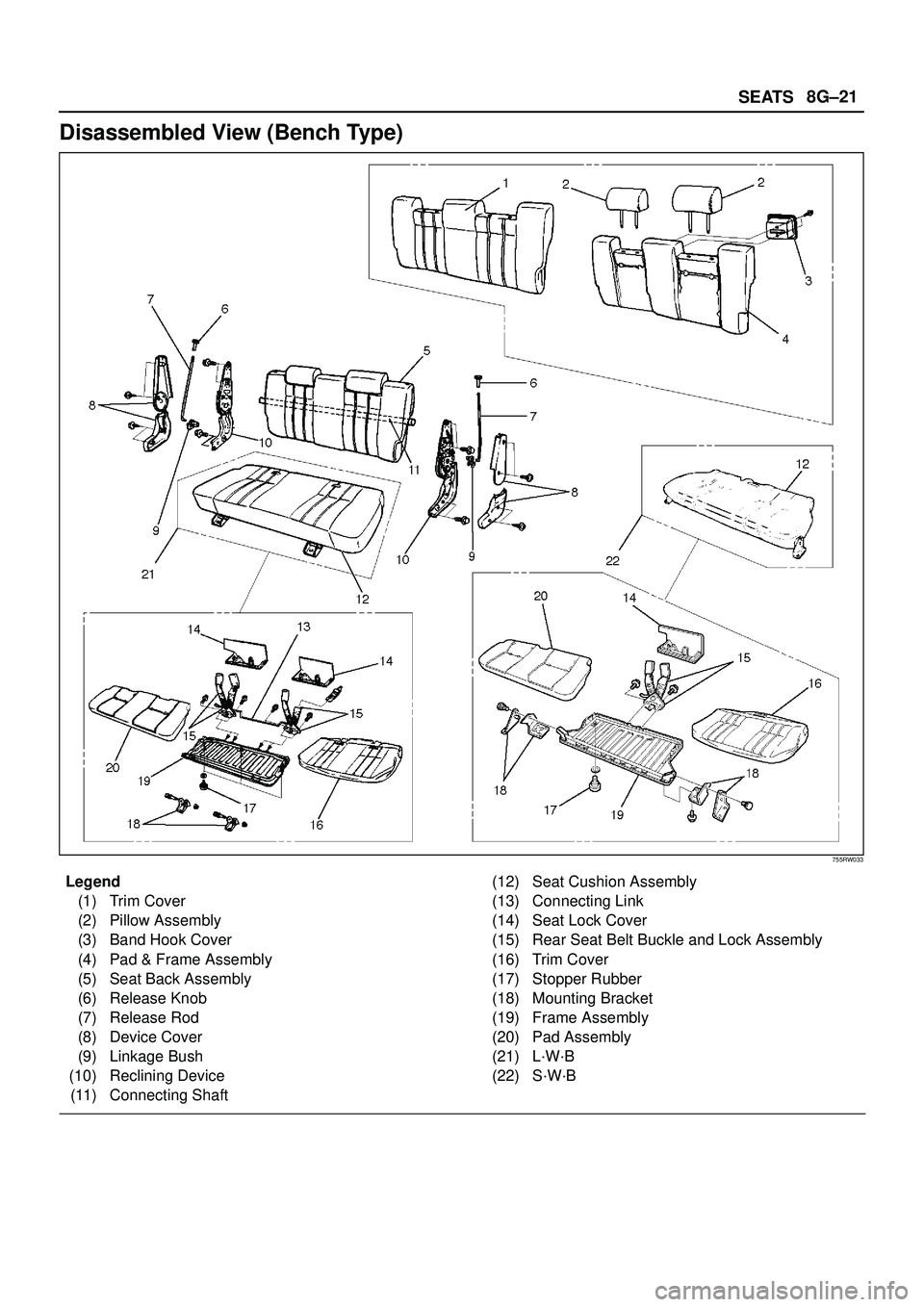

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±21 Disassembled View (Bench Type) 755RW033 Legend (1) Trim Cover (2) Pillow Assembly (3) Band Hook Cover (4) Pad & Frame Assembly (5) Seat Back Assembly (6) Release Knob (7) Release Rod (8) D

Page 3334 of 3573

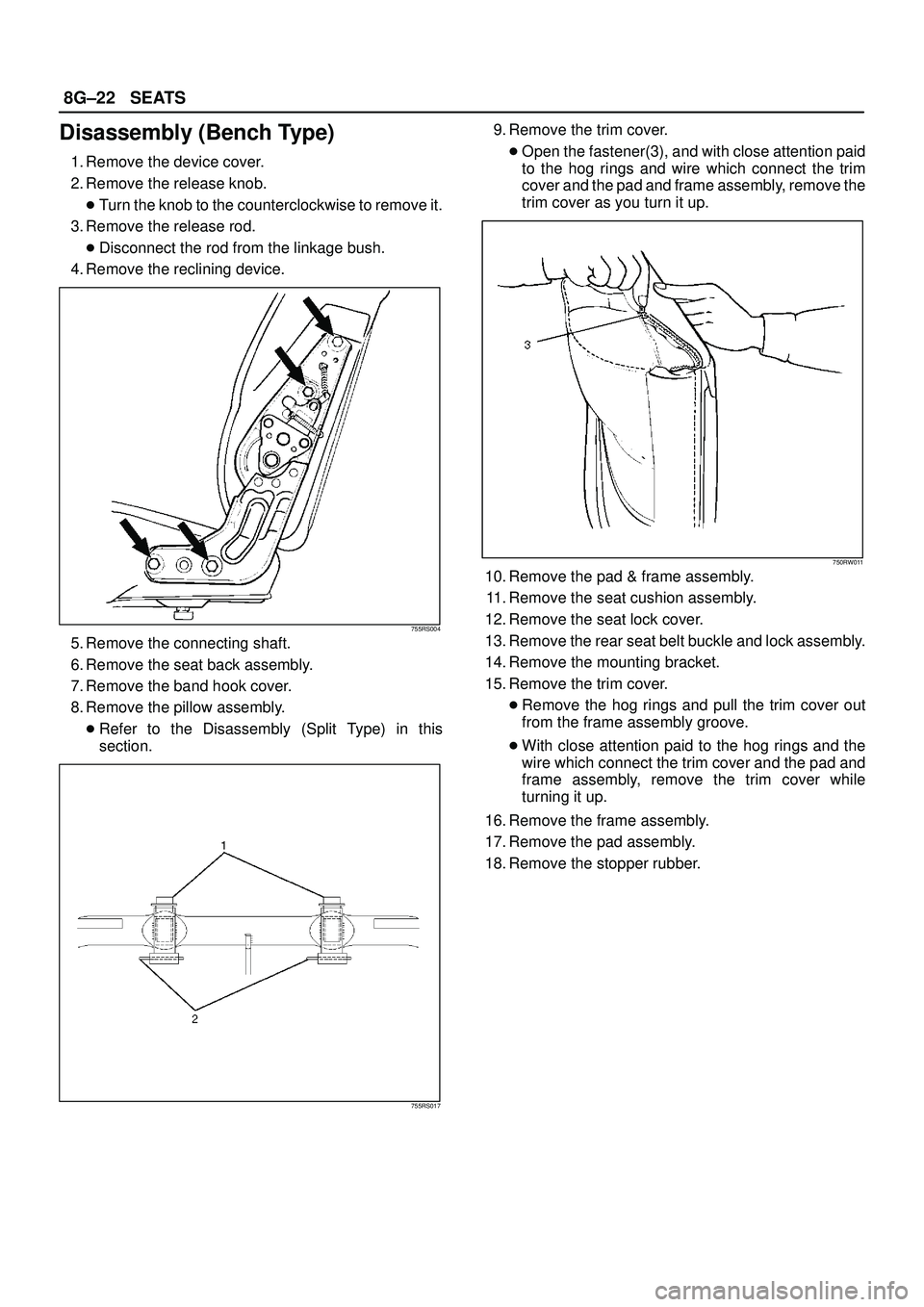

ISUZU TROOPER 1998 Service Repair Manual 8G±22SEATS Disassembly (Bench Type) 1. Remove the device cover. 2. Remove the release knob. Turn the knob to the counterclockwise to remove it. 3. Remove the release rod. Disconnect the rod from th

Page 3335 of 3573

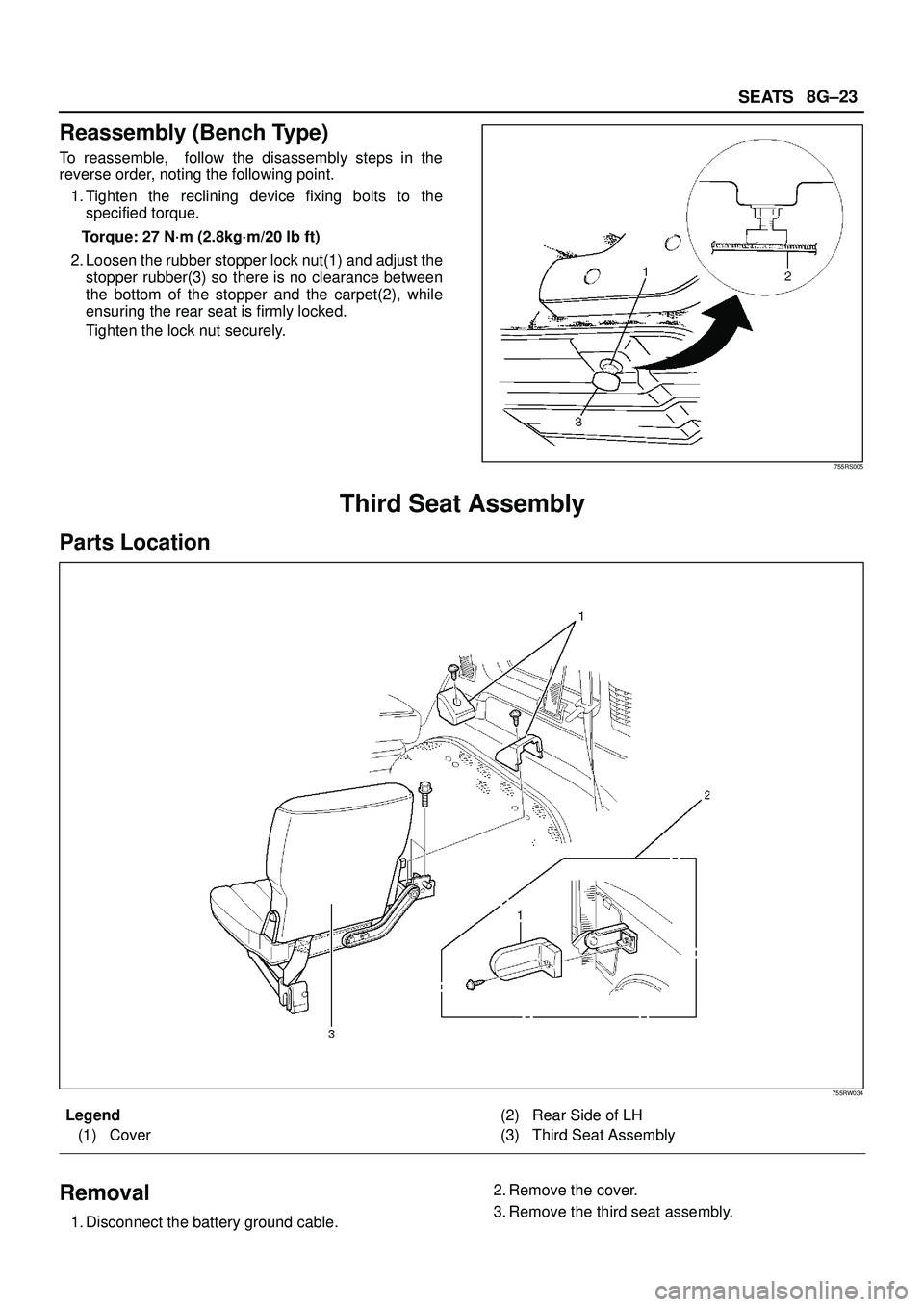

ISUZU TROOPER 1998 Service Repair Manual SEATS8G±23 Reassembly (Bench Type) To reassemble, follow the disassembly steps in the reverse order, noting the following point. 1. Tighten the reclining device fixing bolts to the specified torque.

Page 3336 of 3573

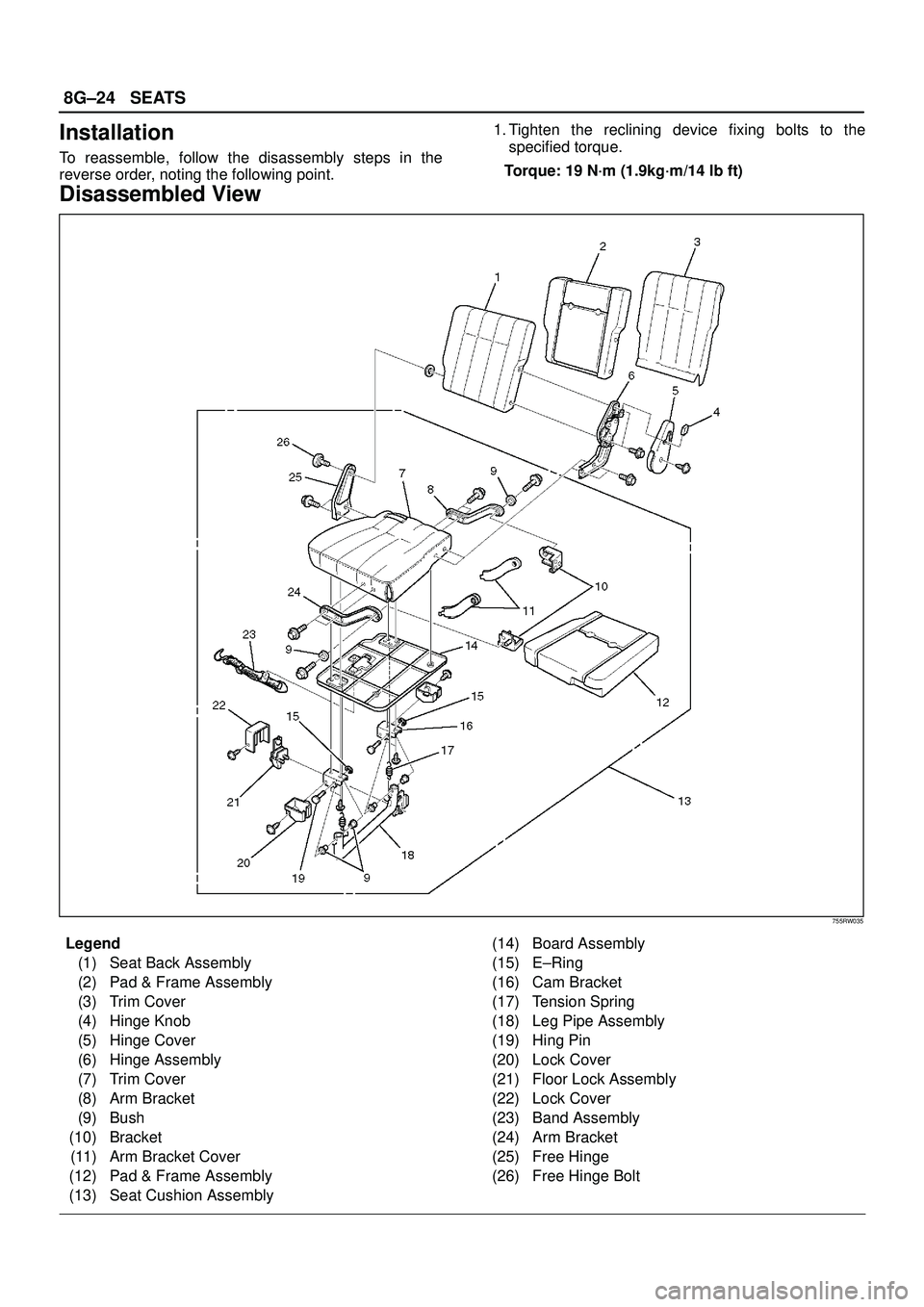

ISUZU TROOPER 1998 Service Repair Manual 8G±24SEATS Installation To reassemble, follow the disassembly steps in the reverse order, noting the following point.1. Tighten the reclining device fixing bolts to the specified torque. Torque: 19 N
