Page 1121 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±4
ENGINE DRIVEABILITY AND EMISSIONS
Knock Sensor 6E±337. . . . . . . . . . . . . . . . . . . . . . . . .
Linear Exhaust Gas Recirculation (EGR)
Control 6E±337. . . . . . . . . . . . . . . . .

6E±4
ENGINE DRIVEABILITY AND EMISSIONS
Knock Sensor 6E±337. . . . . . . . . . . . . . . . . . . . . . . . .
Linear Exhaust Gas Recirculation (EGR)
Control 6E±337. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mass Air Flow (MAF) Sensor 6E±337. . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Sensor 6E±338
Powertrain Control Module (PCM) 6E±338. . . . . . .
PCM Function 6E±338. . . . . . . . . . . . . . . . . . . . . . . . .
PCM Components 6E±339. . . . . . . . . . . . . . . . . . . . .
PCM Voltage Description 6E±339. . . . . . . . . . . . . . .
PCM Input/Outputs 6E±339. . . . . . . . . . . . . . . . . . . .
PCM Service Precautions 6E±339. . . . . . . . . . . . . .
Reprogramming The PCM 6E±339. . . . . . . . . . . . . .
Throttle Position (TP) Sensor 6E±339. . . . . . . . . . .
Transmission Fluid Temperature (TFT)
Sensor 6E±340. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmission Range Switch 6E±340. . . . . . . . . . . . .
Vehicle Speed Sensor (VSS) 6E±340. . . . . . . . . . . .
Use of Circuit Testing Tools 6E±340. . . . . . . . . . . . .
Aftermarket Electrical and Vacuum
Equipment 6E±340. . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrostatic Discharge Damage 6E±341. . . . . . . . .
Upshift Lamp 6E±341. . . . . . . . . . . . . . . . . . . . . . . . .
General Description (Air Induction) 6E±341. . . . . . . .
Air Induction System 6E±341. . . . . . . . . . . . . . . . . . .
General Description (Fuel Metering) 6E±341. . . . . . .
Acceleration Mode 6E±341. . . . . . . . . . . . . . . . . . . . .
Accelerator Controls 6E±341. . . . . . . . . . . . . . . . . . .
Battery Voltage Correction Mode 6E±341. . . . . . . .
CMP Signal 6E±341. . . . . . . . . . . . . . . . . . . . . . . . . . .
Clear Flood Mode 6E±342. . . . . . . . . . . . . . . . . . . . .
Deceleration Mode 6E±342. . . . . . . . . . . . . . . . . . . .
Engine Speed/Vehicle Speed/Fuel
Disable Mode 6E±342. . . . . . . . . . . . . . . . . . . . . . . .
Fuel Cutoff Mode 6E±342. . . . . . . . . . . . . . . . . . . . . .
Fuel Injector 6E±342. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Metering System Components 6E±342. . . . . . Fuel Metering System Purpose 6E±342. . . . . . . . . .
Fuel Pressure Regulator 6E±343. . . . . . . . . . . . . . . .
Fuel Pump Electrical Circuit 6E±343. . . . . . . . . . . . .
Fuel Rail 6E±343. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Idle Air Control (IAC) Valve 6E±343. . . . . . . . . . . . .
Run Mode 6E±344. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting Mode 6E±344. . . . . . . . . . . . . . . . . . . . . . . . .
Throttle Body Unit 6E±344. . . . . . . . . . . . . . . . . . . . .
General Description (Electronic Ignition
System) 6E±344. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camshaft Position (CMP) Sensor 6E±344. . . . . . . .
Crankshaft Position (CKP) Sensor 6E±345. . . . . . .
Electronic Ignition 6E±345. . . . . . . . . . . . . . . . . . . . .
Ignition Coils 6E±345. . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Control 6E±345. . . . . . . . . . . . . . . . . . . . . . . .
Ignition Control PCM Output 6E±347. . . . . . . . . . . .
Knock Sensor (KS) PCM Input 6E±347. . . . . . . . . .
Powertrain Control Module (PCM) 6E±347. . . . . . .
Spark Plug 6E±347. . . . . . . . . . . . . . . . . . . . . . . . . . . .
A/C Clutch Diagnosis 6E±349. . . . . . . . . . . . . . . . . . . .
A/C Clutch Circuit Operation 6E±349. . . . . . . . . . . .
A/C Clutch Circuit Purpose 6E±349. . . . . . . . . . . . .
A/C Request Signal 6E±349. . . . . . . . . . . . . . . . . . . .
General Description (Exhaust Gas
Recirculation (EGR) System) 6E±349. . . . . . . . . . . . .
EGR Purpose 6E±349. . . . . . . . . . . . . . . . . . . . . . . . .
Linear EGR Valve 6E±349. . . . . . . . . . . . . . . . . . . . .
Linear EGR Control 6E±349. . . . . . . . . . . . . . . . . . . .
Linear EGR Valve Operation and Results
of Incorrect Operation 6E±349. . . . . . . . . . . . . . . . .
EGR Pintle Position Sensor 6E±350. . . . . . . . . . . . .
General Description (Positive Crankcase
Ventilation (PCV) System) 6E±350. . . . . . . . . . . . . . .
Crankcase Ventilation System Purpose 6E±350. . .
Crankcase Ventilation System Operation 6E±350.

Page 1122 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±5 ENGINE DRIVEABILITY AND EMISSIONS
Specifications
Tightening Specifications
ApplicationN´mLb Ft.Lb In.
Camshaft Position Sensor Retaining Screw9Ð78
Crankshaft Position Sensor Mounting Bolt10Ð8

Page 1123 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±6
ENGINE DRIVEABILITY AND EMISSIONS
Diagrams and Schematics

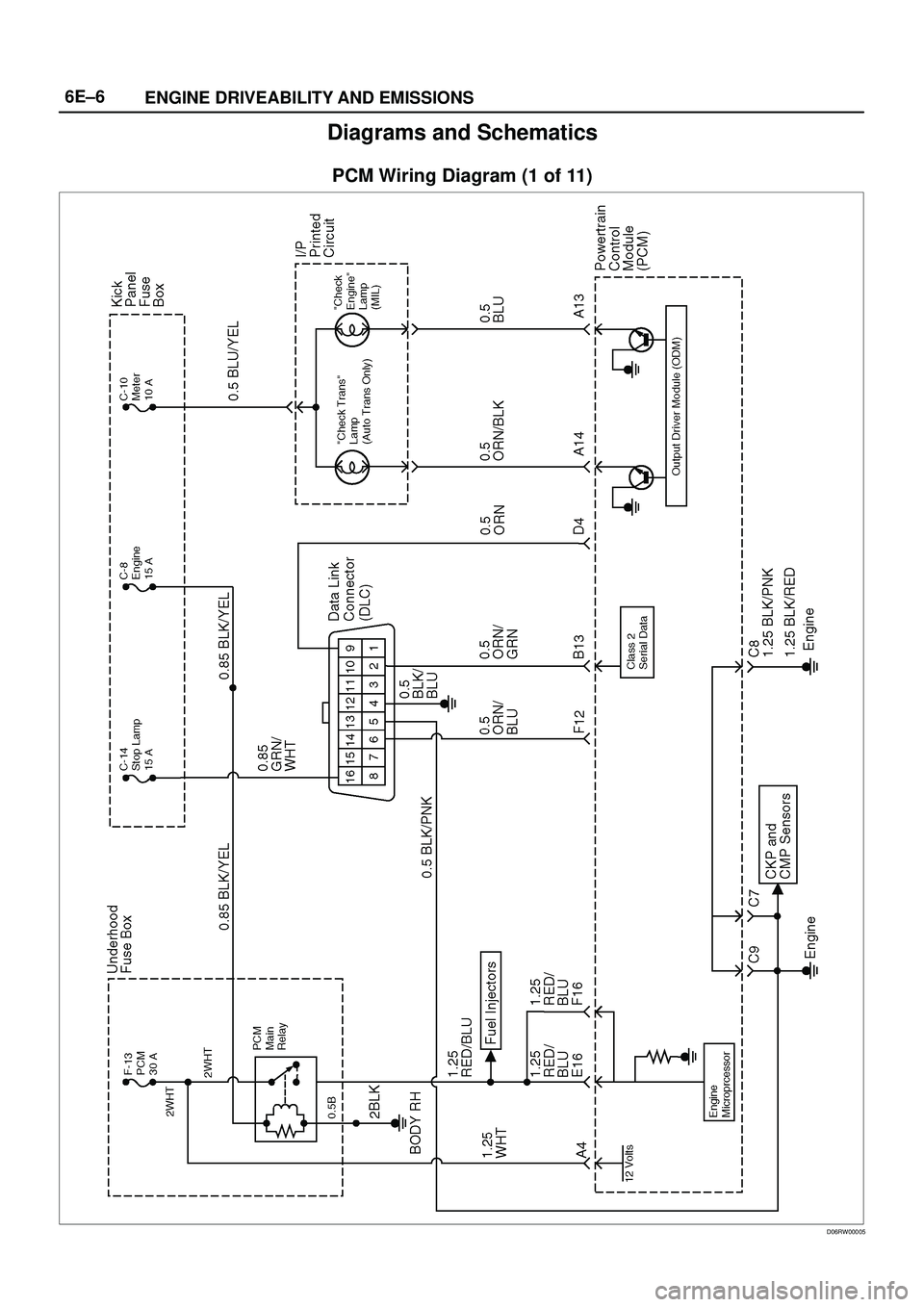

PCM Wiring Diagram (1 of 11)
D06RW00005

Page 1124 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±7 ENGINE DRIVEABILITY AND EMISSIONS

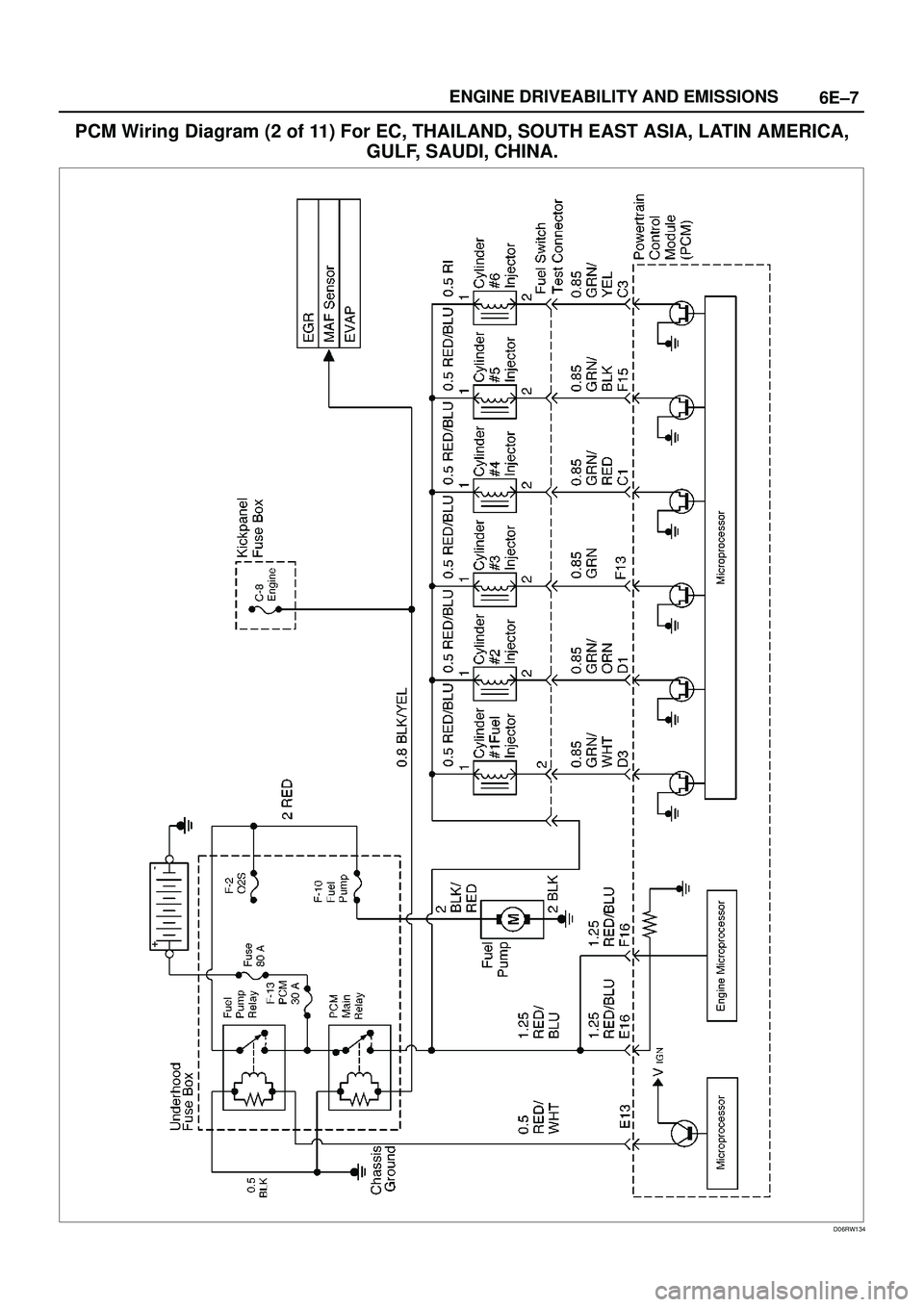

PCM Wiring Diagram (2 of 11) For EC, THAILAND, SOUTH EAST ASIA, LATIN AMERICA,
GULF, SAUDI, CHINA.
D06RW134

Page 1125 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±8
ENGINE DRIVEABILITY AND EMISSIONS

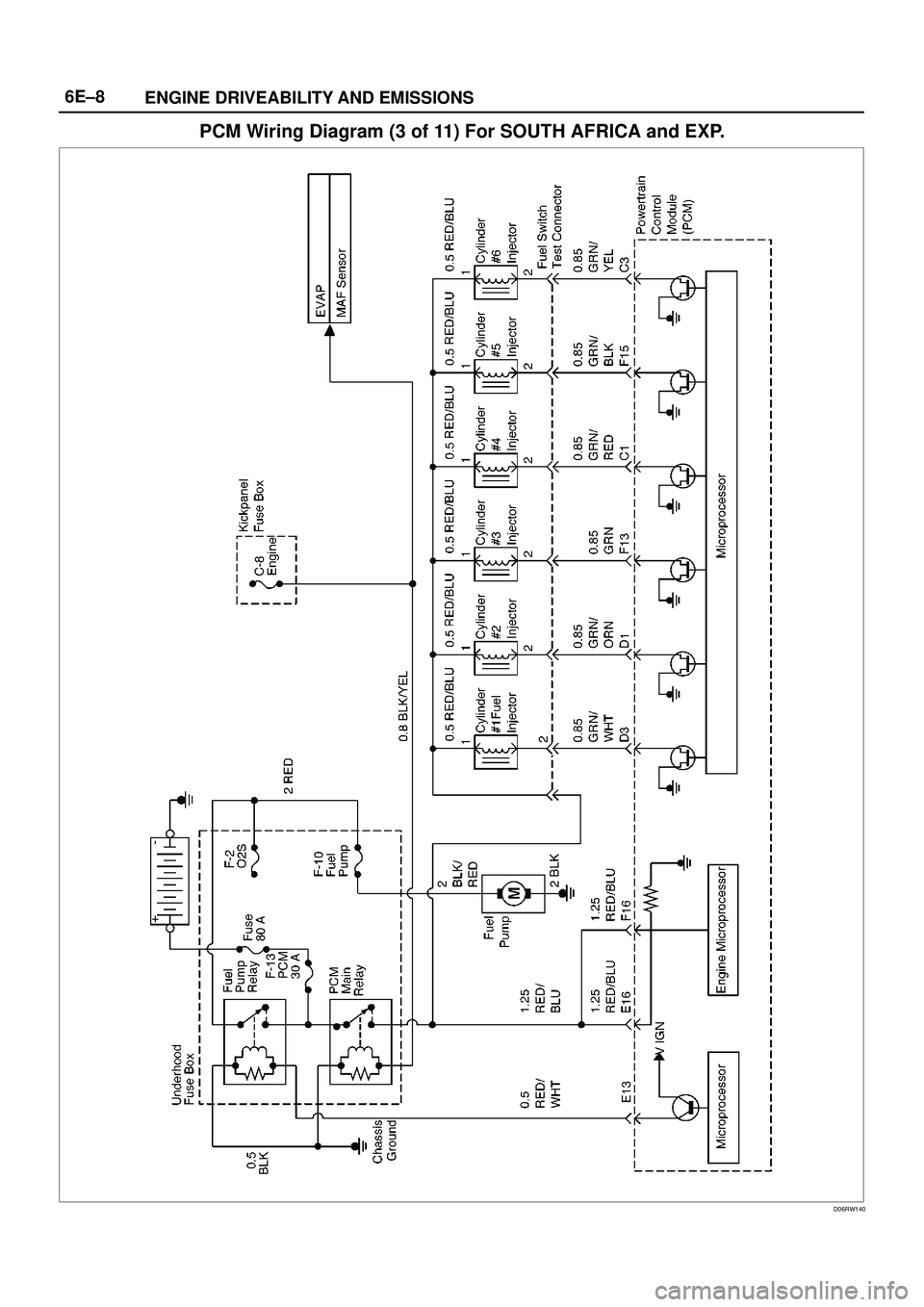

PCM Wiring Diagram (3 of 11) For SOUTH AFRICA and EXP.
D06RW140

Page 1126 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±9 ENGINE DRIVEABILITY AND EMISSIONS

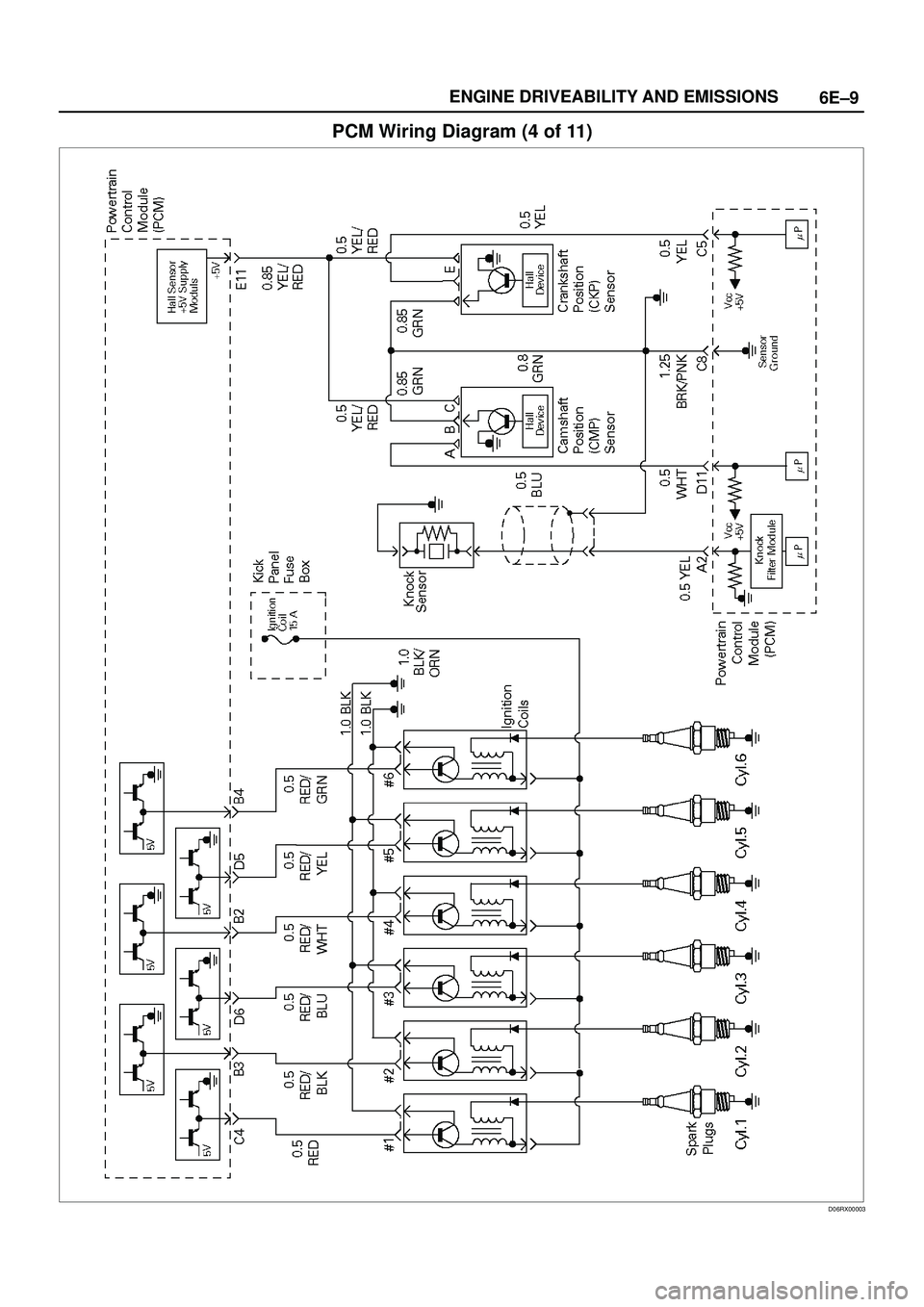

PCM Wiring Diagram (4 of 11)
D06RX00003

Page 1127 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±10
ENGINE DRIVEABILITY AND EMISSIONS

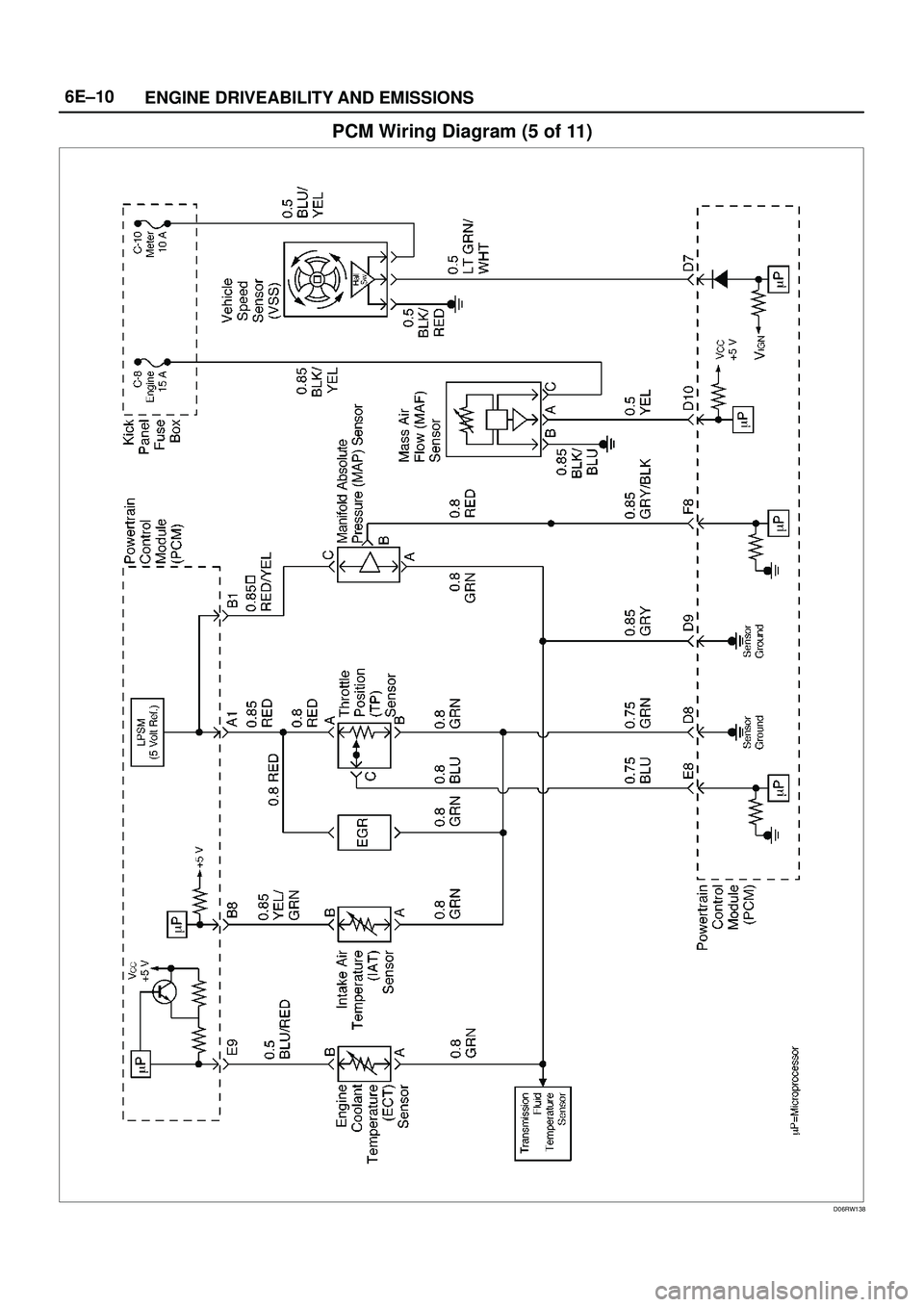

PCM Wiring Diagram (5 of 11)
D06RW138

Page 1128 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±11 ENGINE DRIVEABILITY AND EMISSIONS

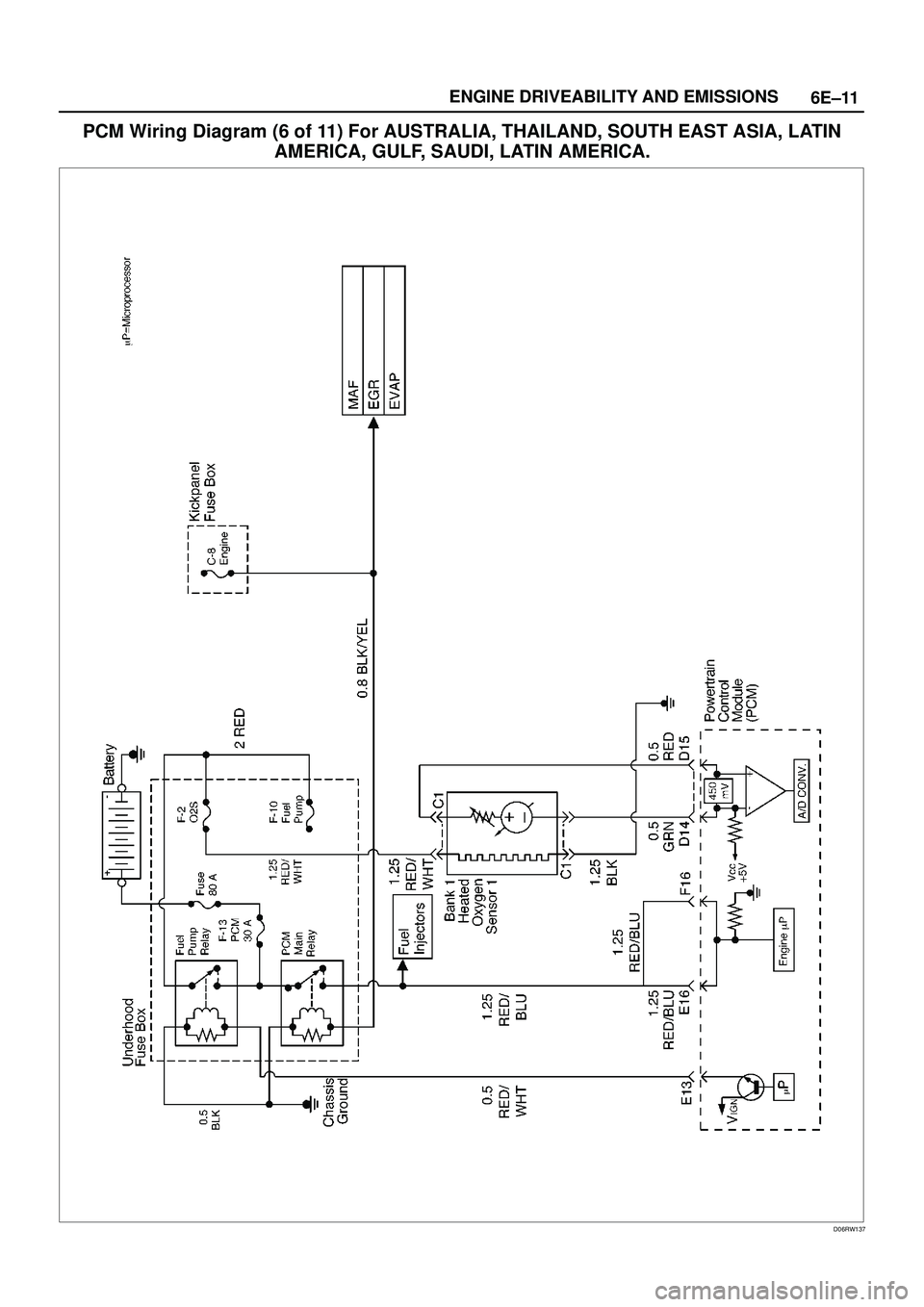

PCM Wiring Diagram (6 of 11) For AUSTRALIA, THAILAND, SOUTH EAST ASIA, LATIN
AMERICA, GULF, SAUDI, LATIN AMERICA.
D06RW137
