Page 2545 of 3573

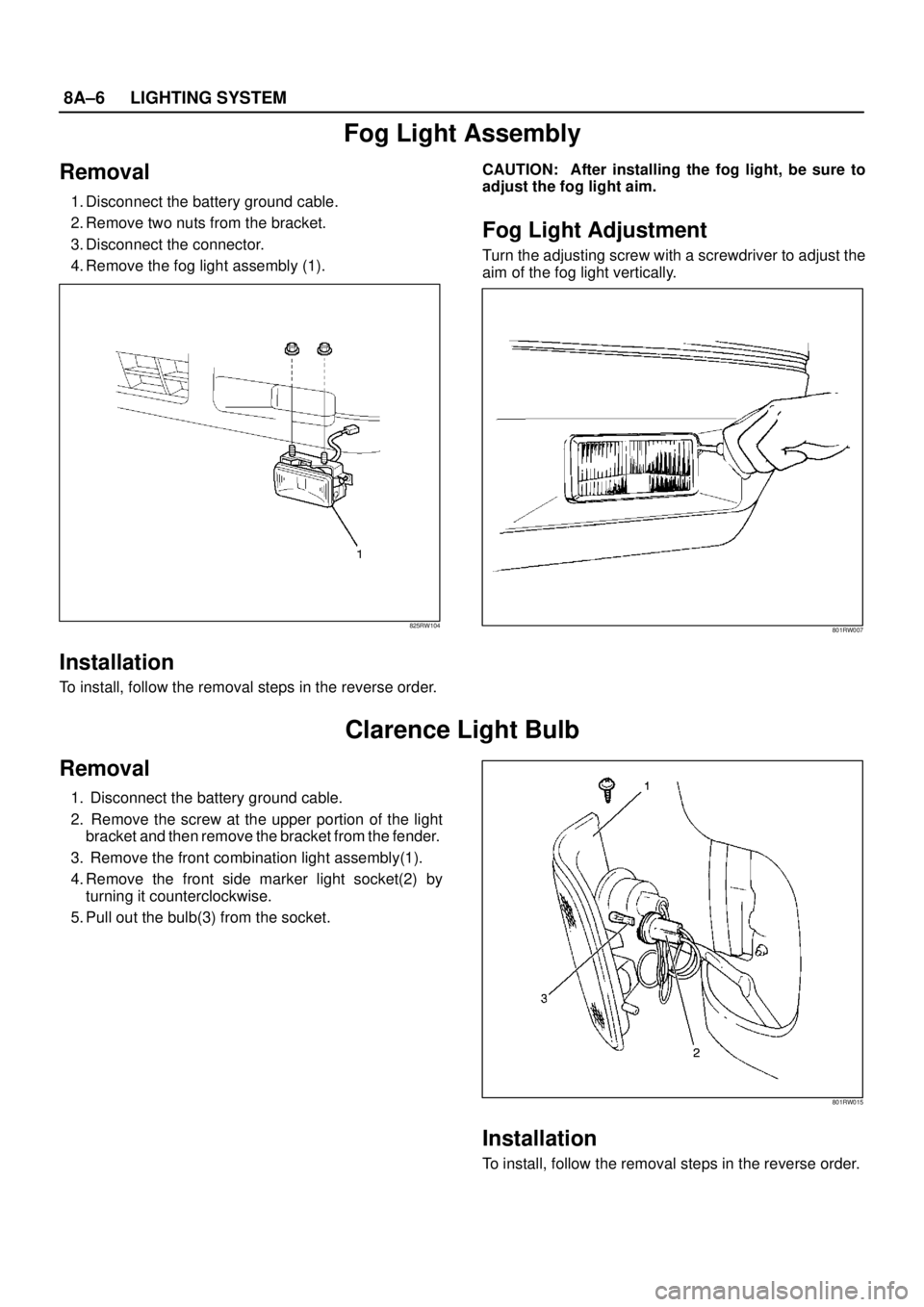

ISUZU TROOPER 1998 Service Repair Manual 8A–6LIGHTING SYSTEM Fog Light Assembly Removal 1. Disconnect the battery ground cable. 2. Remove two nuts from the bracket. 3. Disconnect the connector. 4. Remove the fog light assembly (1). 825RW10

Page 2546 of 3573

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–7 Rear Fog Light Bulb (RHD) Removal 1. Disconnect the battery ground cable. 2. Remove three screws and release locks at two locations to remove the rear combination light assembly(

Page 2547 of 3573

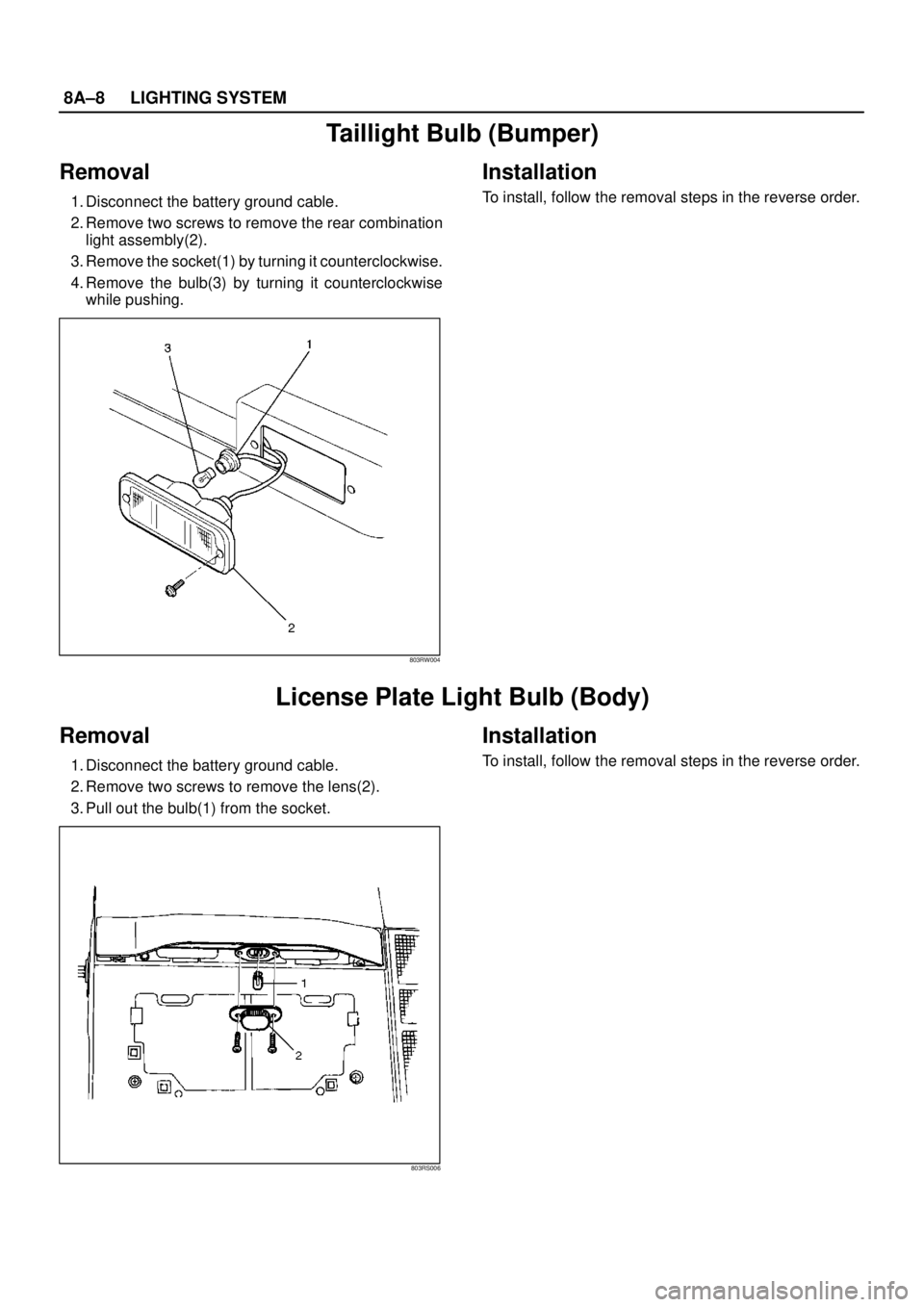

ISUZU TROOPER 1998 Service Repair Manual 8A–8LIGHTING SYSTEM Taillight Bulb (Bumper) Removal 1. Disconnect the battery ground cable. 2. Remove two screws to remove the rear combination light assembly(2). 3. Remove the socket(1) by turning

Page 2548 of 3573

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–9 License Plate Light Bulb (Bumper) Removal 1. Disconnect the battery ground cable. 2. Remove two screws to remove the license plate light(1). 3. Pull out the bulb(3) from the sock

Page 2549 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8A–10LIGHTING SYSTEM High Mount Stoplight Removal 1. Disconnect the battery ground cable. 2. Remove the clips(2). 3. Pull out the high mount stoplight(1). 4. Remove the connector. 5. Remove

Page 2550 of 3573

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–11 Side Turn Signal Light Bulb Removal 1. Disconnect the battery ground cable. 2. Pull the light/bulb(1) toward you while pushing the light housing in the rear direction of the v

Page 2551 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8A–12LIGHTING SYSTEM Backup Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove three screws and release the lock at two positions. 3. Remove the rear combination light(3). 4. Re

Page 2552 of 3573

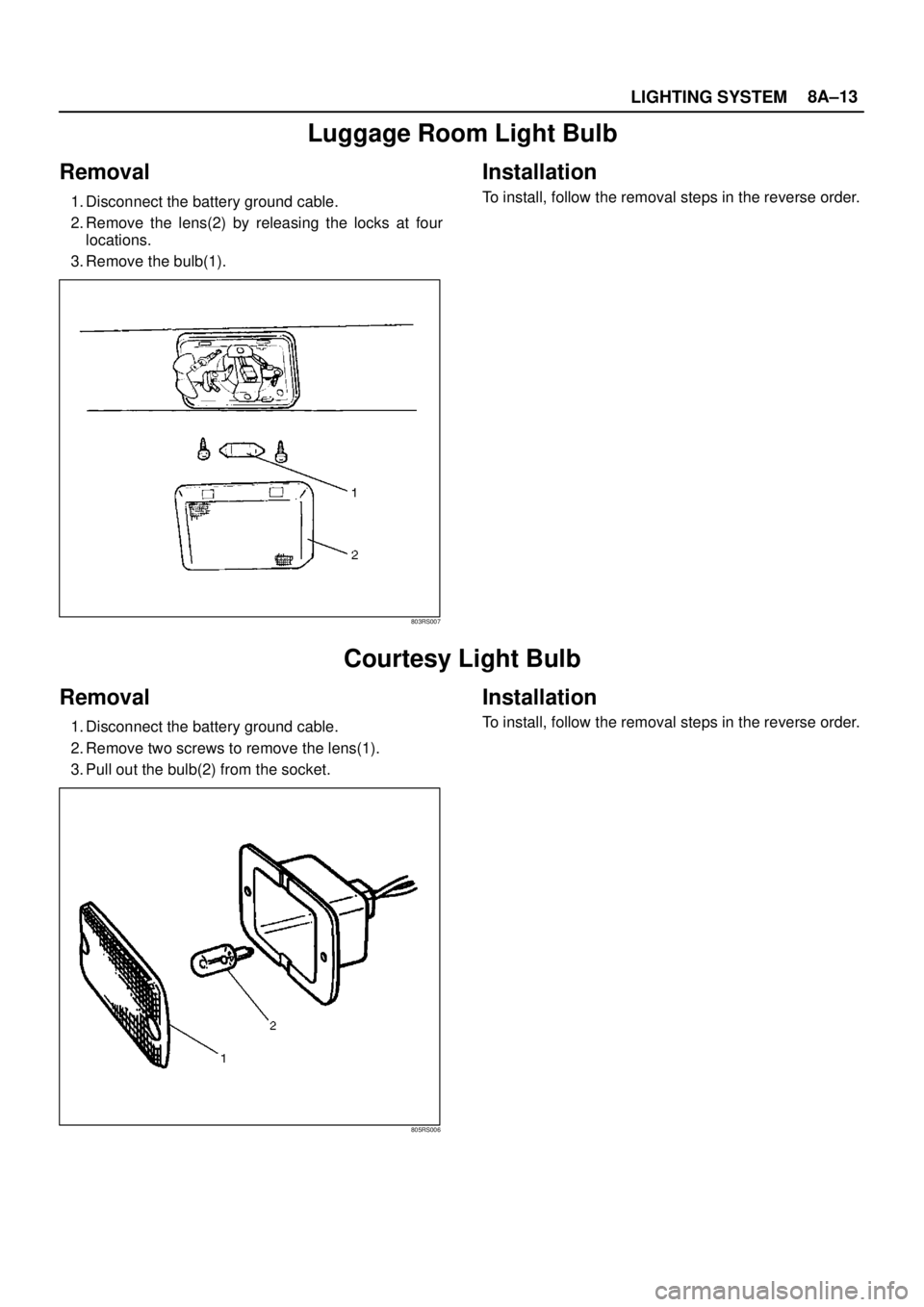

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–13 Luggage Room Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the lens(2) by releasing the locks at four locations. 3. Remove the bulb(1). 803RS007 Install
