Page 2761 of 3573

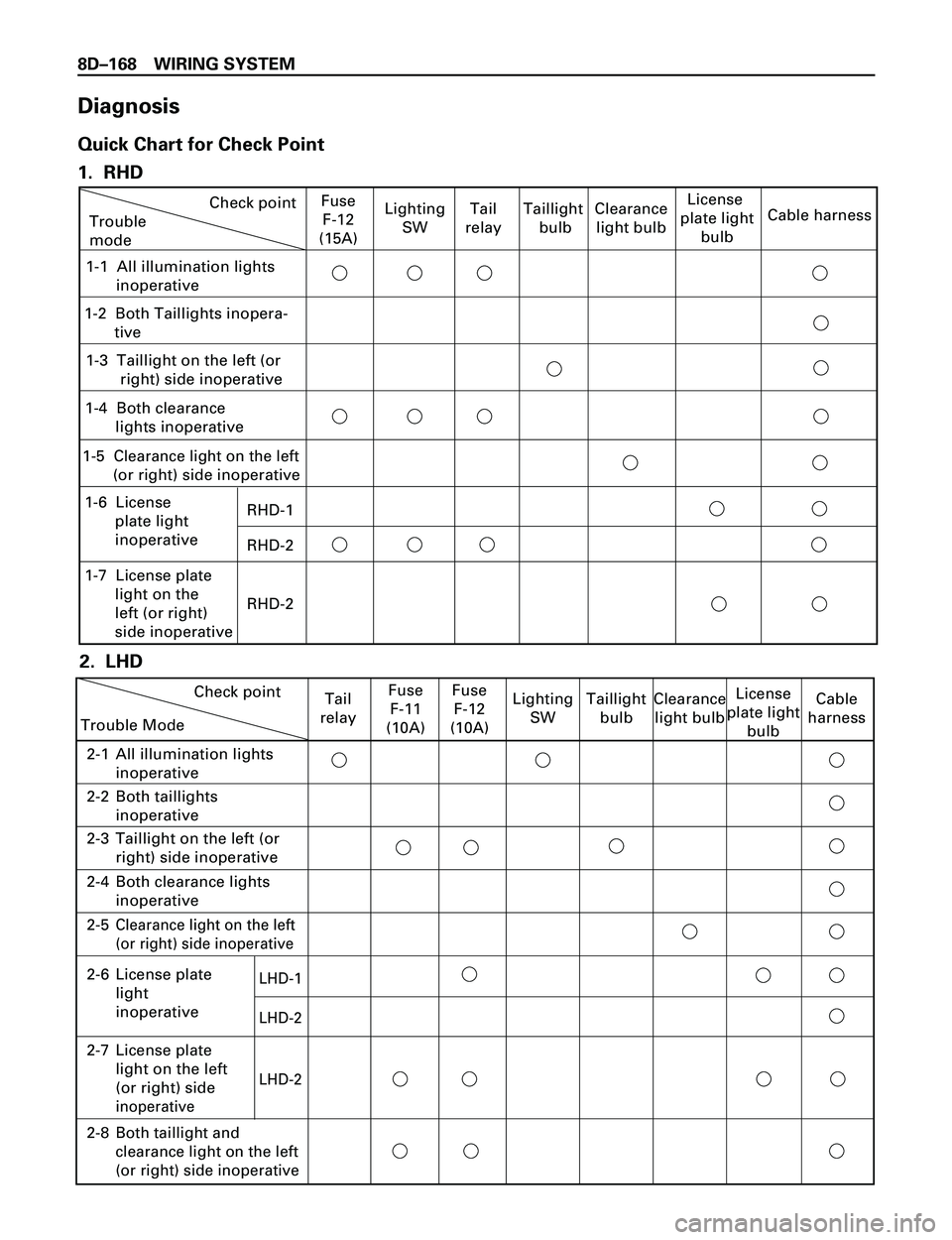

ISUZU TROOPER 1998 Service Repair Manual 8DÐ168 WIRING SYSTEM Diagnosis Quick Chart for Check Point 1. RHD 2. LHD Trouble modeCheck point RHD-1 RHD-2 RHD-2 Fuse F-12 (15A)Lighting SWTail relayClearance light bulbLicense plate light bulbC

Page 2762 of 3573

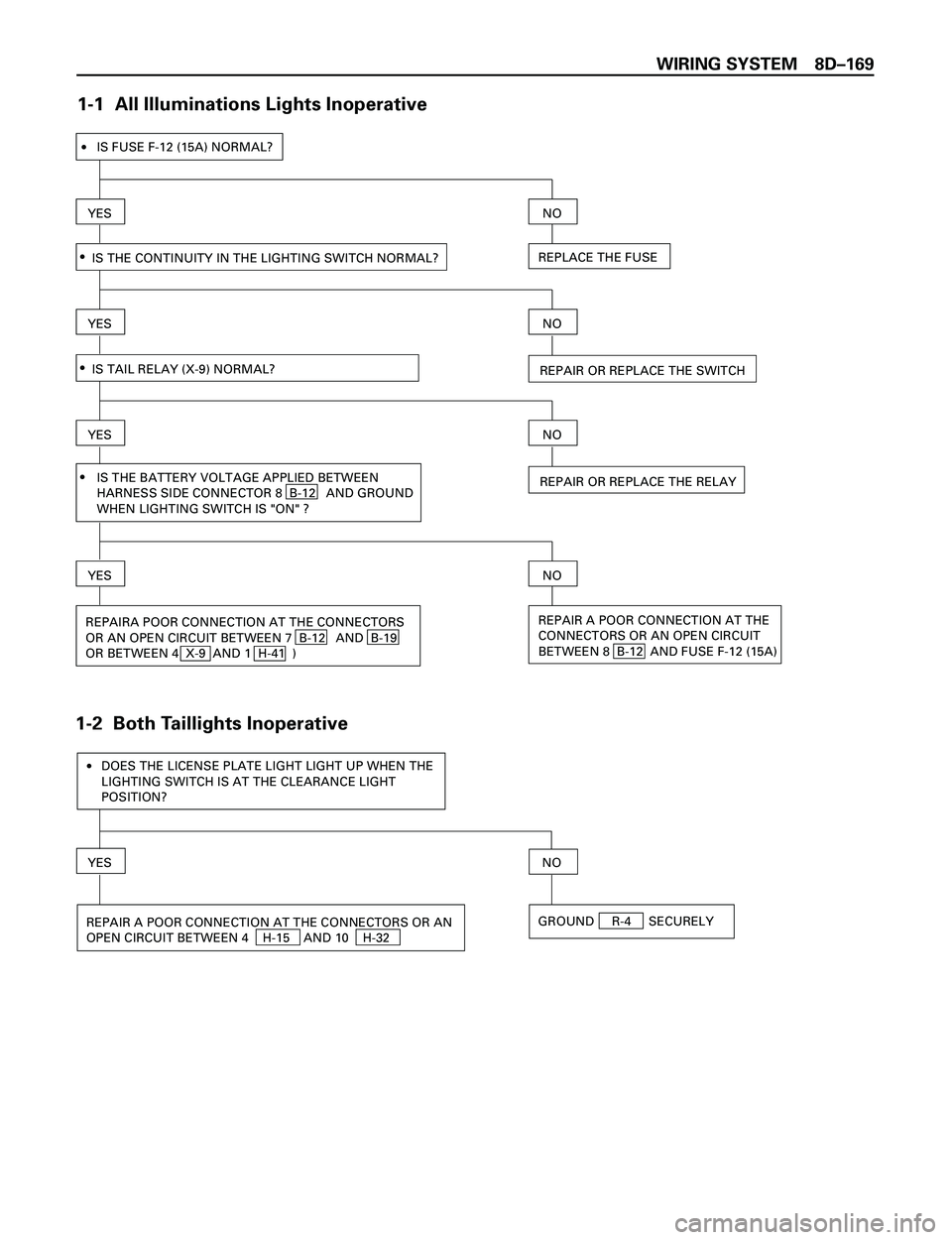

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ169 1-1 All Illuminations Lights Inoperative 1-2 Both Taillights Inoperative IS THE BATTERY VOLTAGE APPLIED BETWEEN HARNESS SIDE CONNECTOR 8 B-12 AND GROUND WHEN LIGHTING SWITCH

Page 2763 of 3573

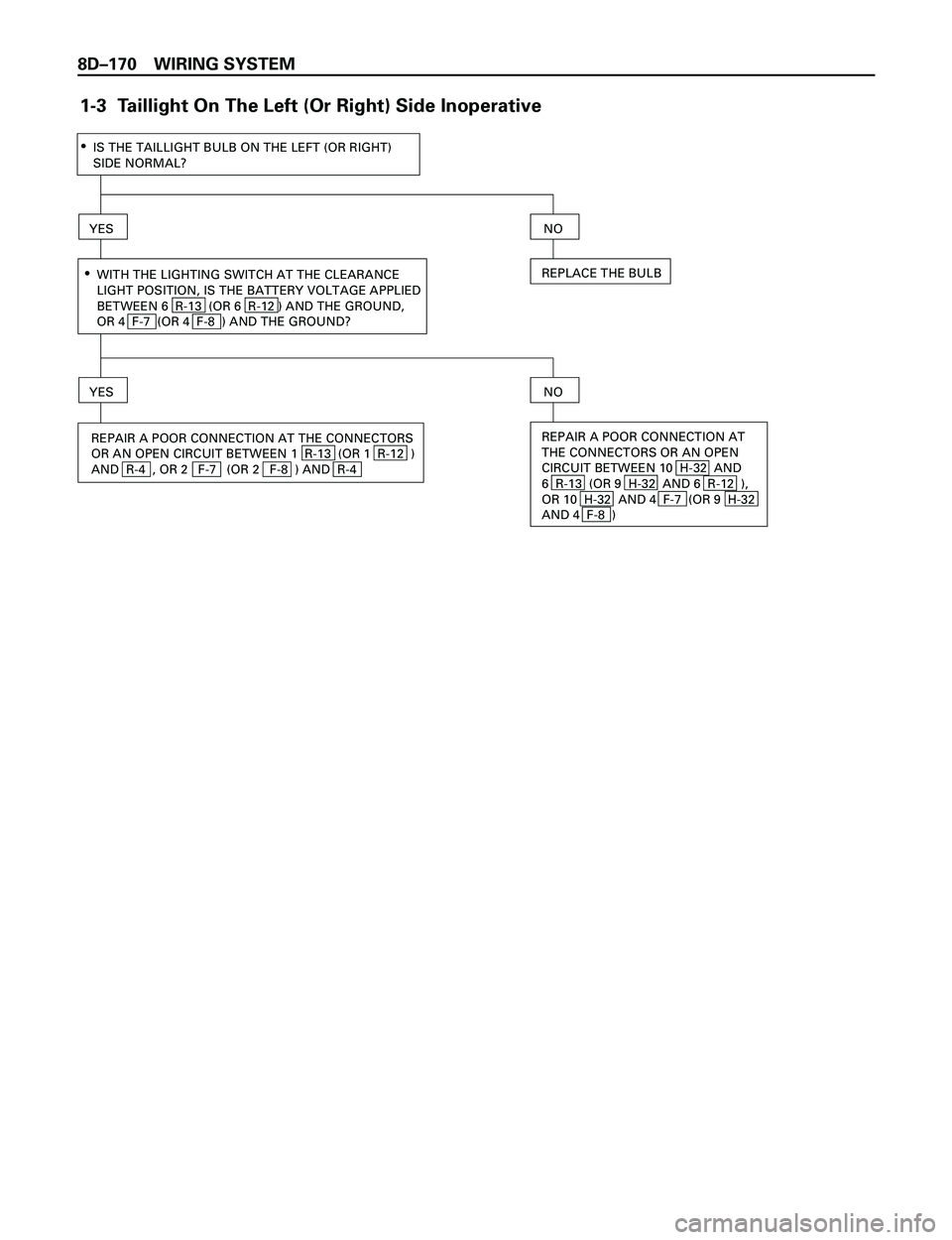

ISUZU TROOPER 1998 Service Repair Manual 8DÐ170 WIRING SYSTEM 1-3 Taillight On The Left (Or Right) Side Inoperative IS THE TAILLIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL?· ·YES NO REPLACE THE BULB WITH THE LIGHTING SWITCH AT THE CLEAR

Page 2764 of 3573

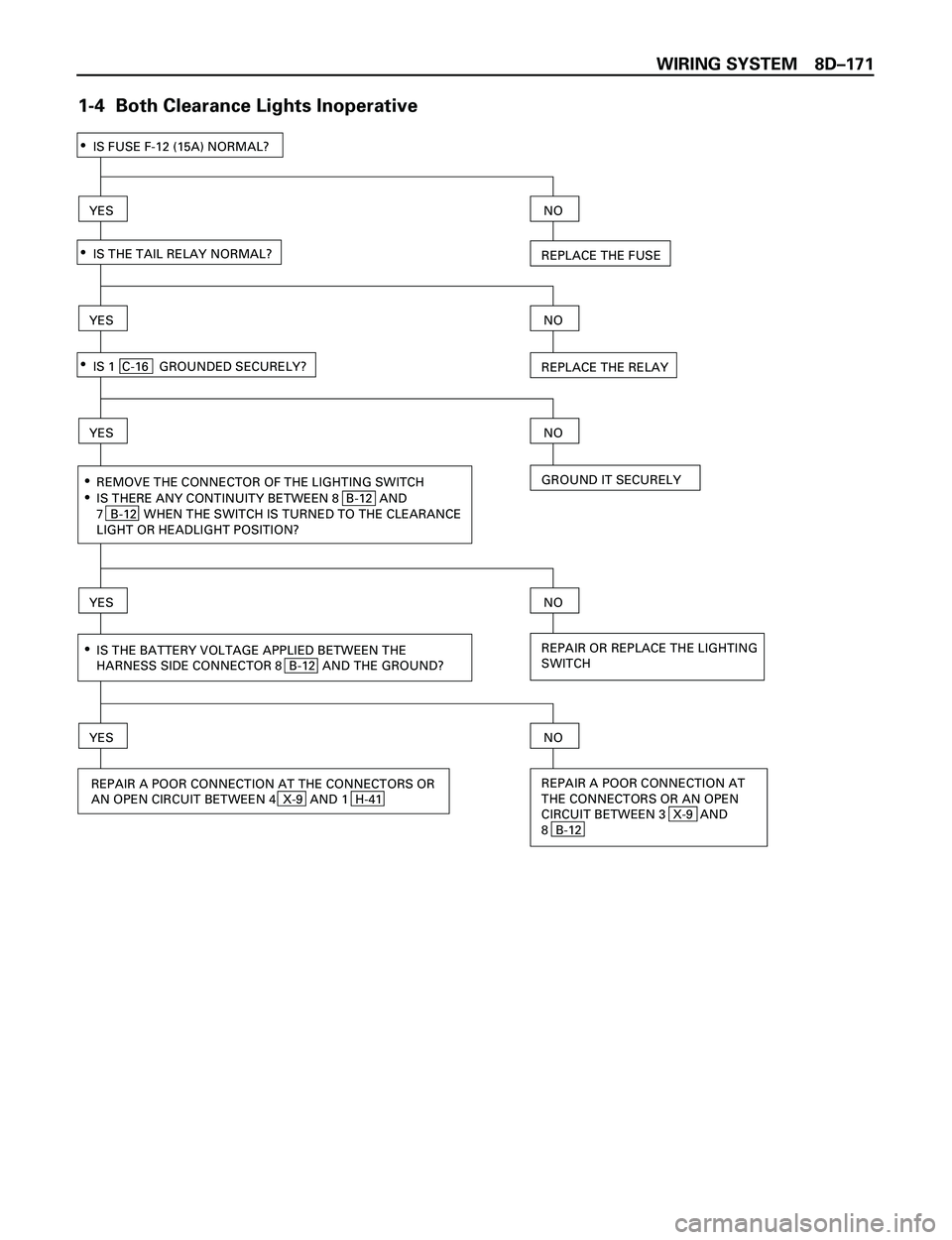

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ171 1-4 Both Clearance Lights Inoperative IS FUSE F-12 (15A) NORMAL?· ·YES NO REPLACE THE FUSE REPLACE THE RELAY REMOVE THE CONNECTOR OF THE LIGHTING SWITCH · IS THERE ANY CONTIN

Page 2765 of 3573

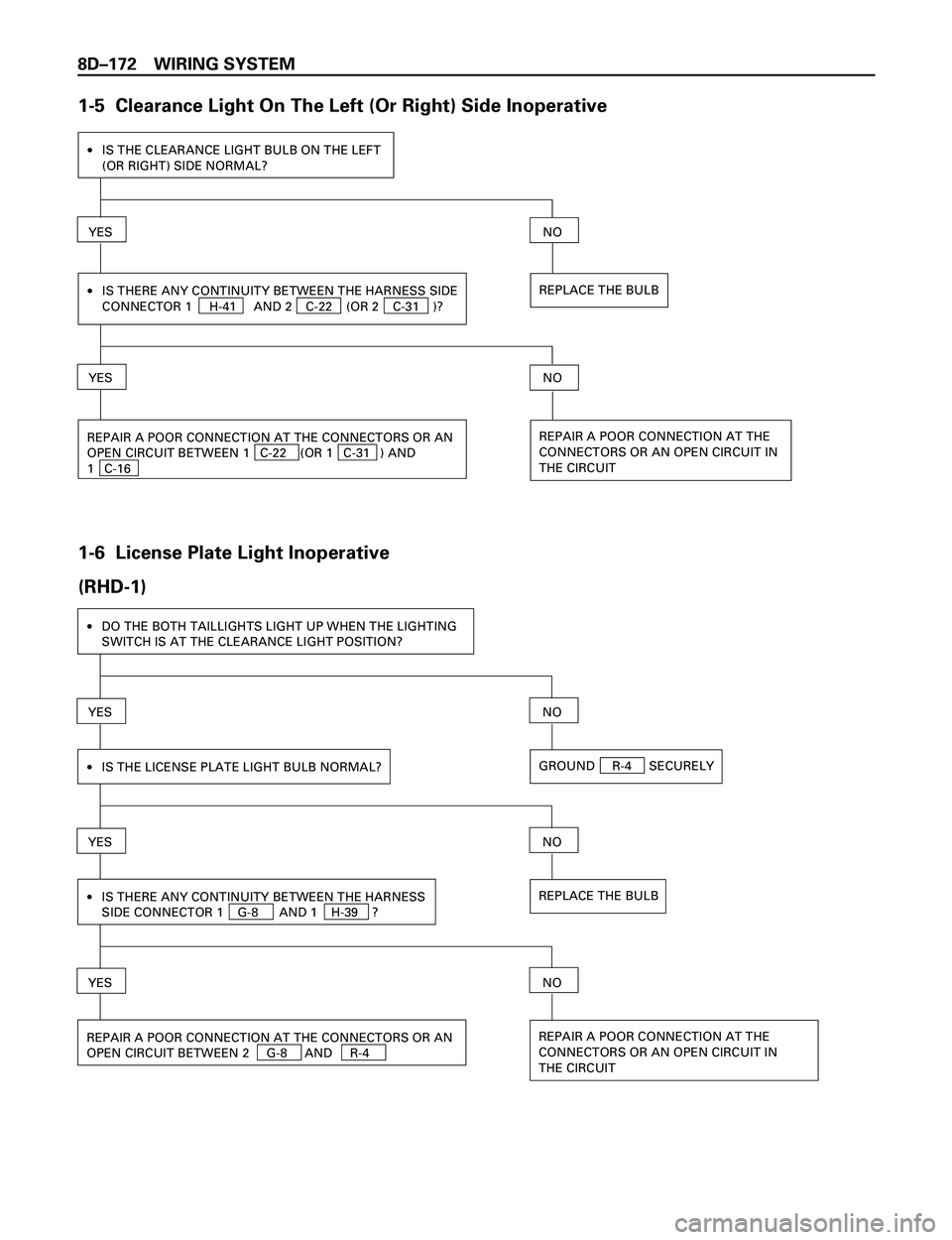

ISUZU TROOPER 1998 Service Repair Manual 8DÐ172 WIRING SYSTEM 1-5 Clearance Light On The Left (Or Right) Side Inoperative ·IS THE CLEARANCE LIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL? YESNO REPLACE THE BULB·IS THERE ANY CONTINUITY BET

Page 2766 of 3573

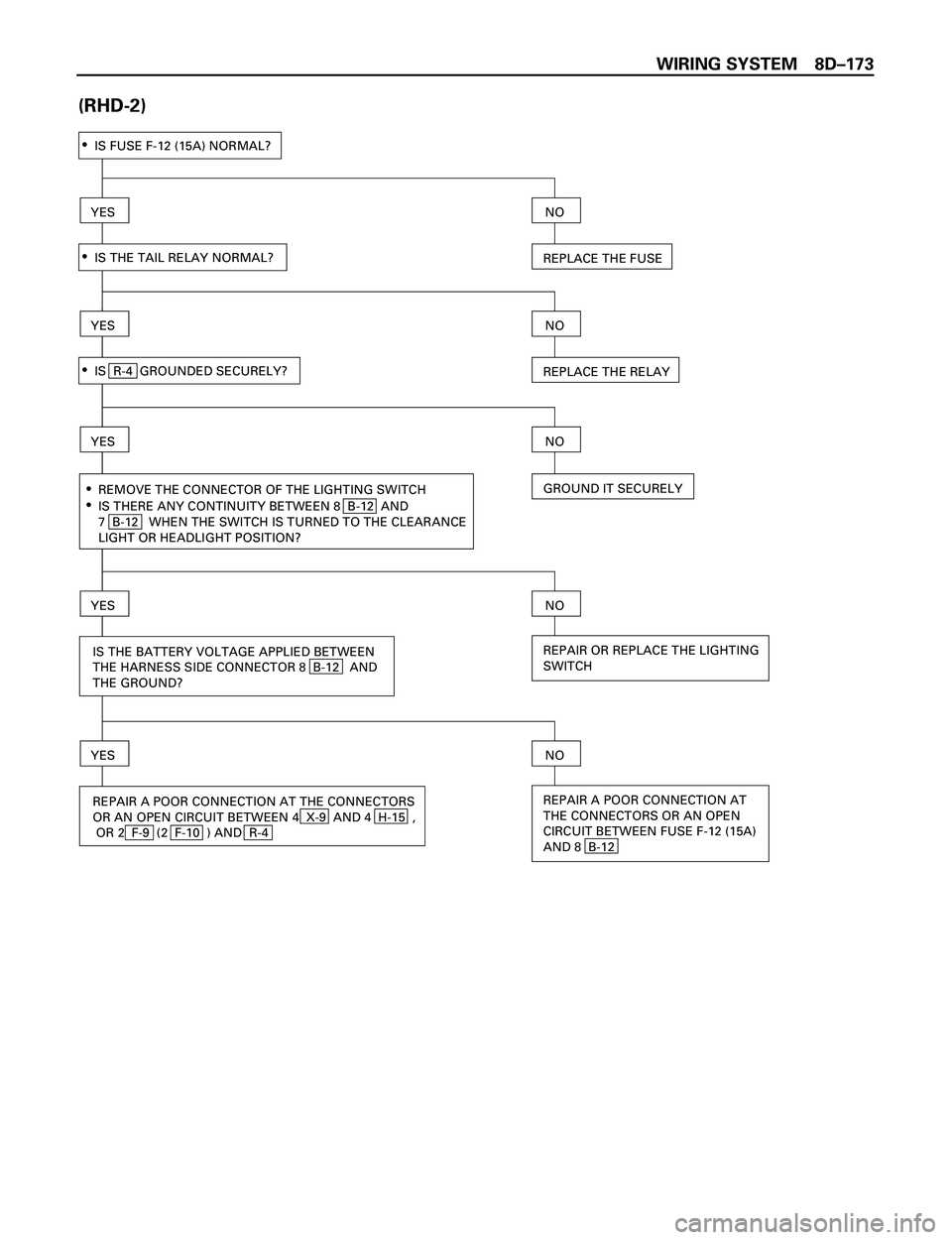

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ173 (RHD-2) YESNO REPAIR A POOR CONNECTION AT THE CONNECTORS OR AN OPEN CIRCUIT BETWEEN FUSE F-12 (15A) AND 8 B-12 REPAIR A POOR CONNECTION AT THE CONNECTORS OR AN OPEN CIRCUIT BET

Page 2767 of 3573

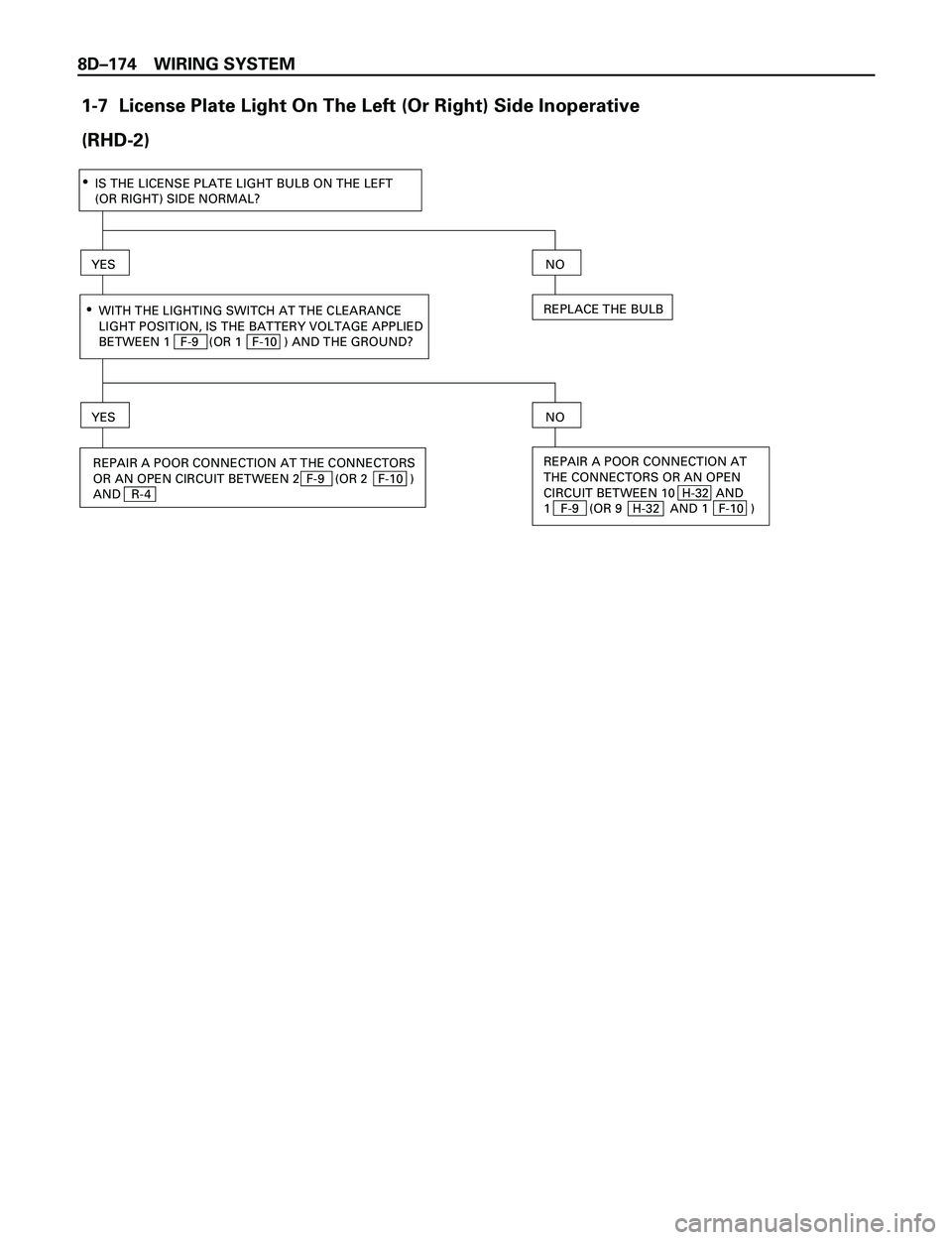

ISUZU TROOPER 1998 Service Repair Manual 8DÐ174 WIRING SYSTEM 1-7 License Plate Light On The Left (Or Right) Side Inoperative (RHD-2) IS THE LICENSE PLATE LIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL?· ·YES NO REPLACE THE BULB WITH THE

Page 2768 of 3573

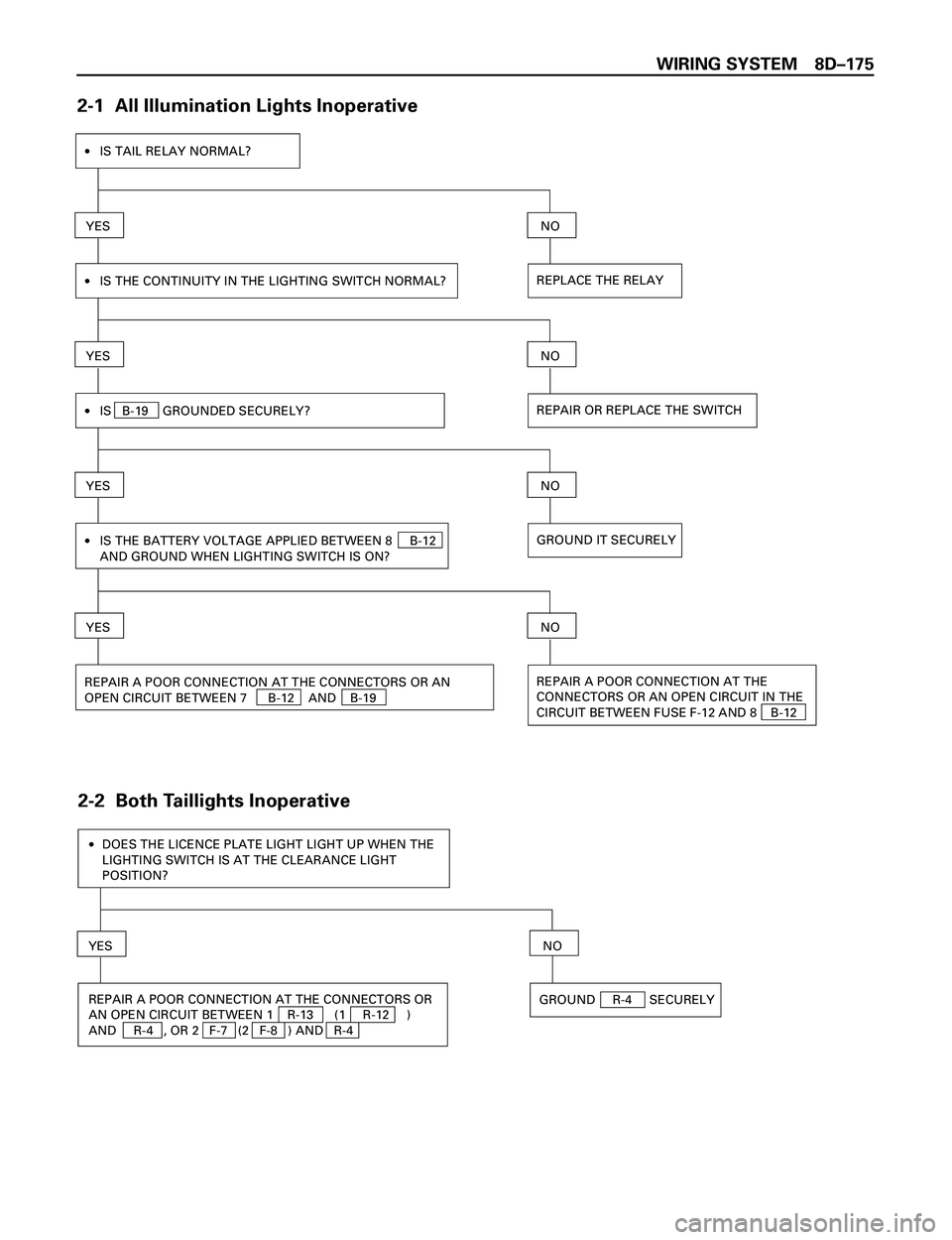

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ175 2-1 All Illumination Lights Inoperative ·IS TAIL RELAY NORMAL? YESNO REPLACE THE RELAY·IS THE CONTINUITY IN THE LIGHTING SWITCH NORMAL? YESNO REPAIR A POOR CONNECTION AT THE C
